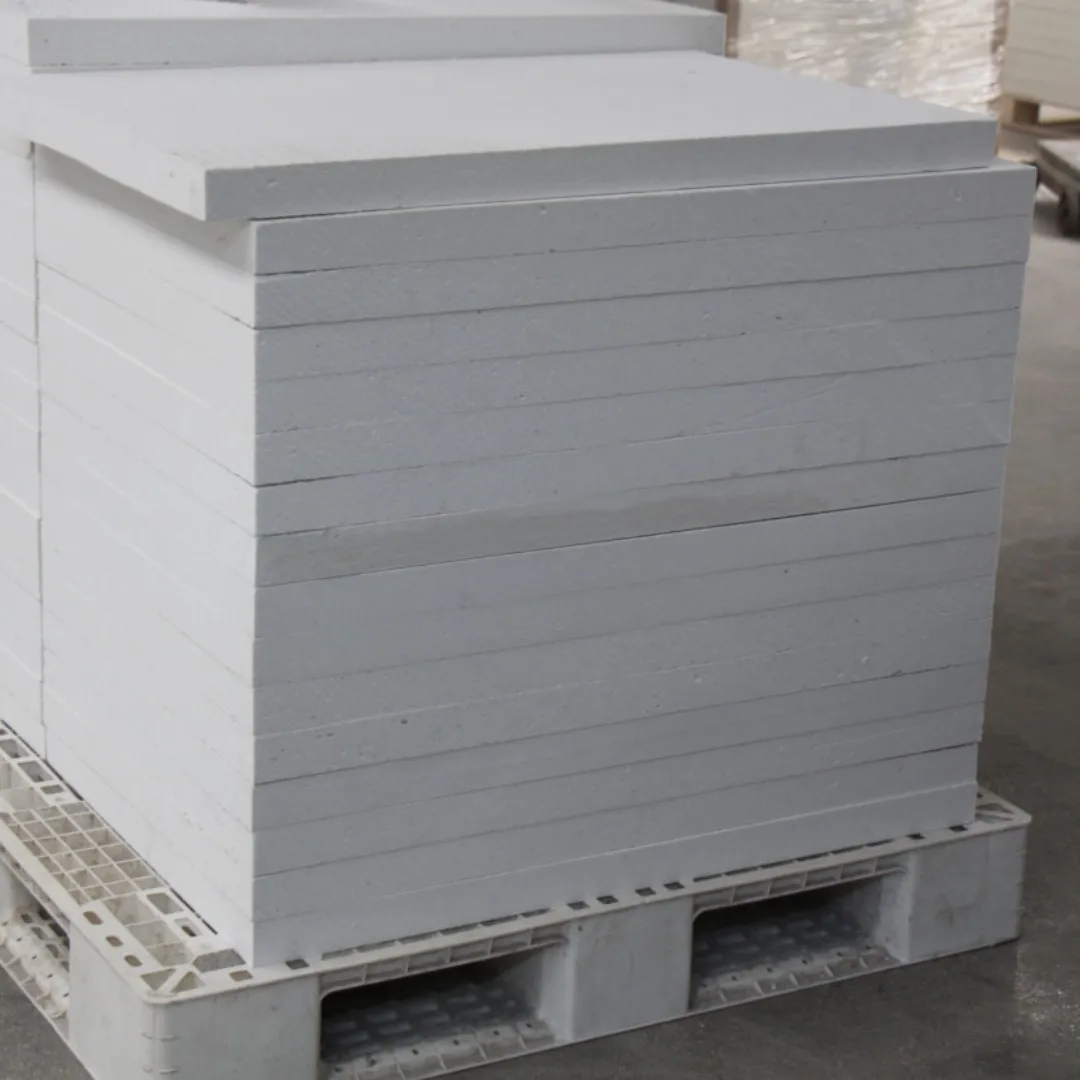

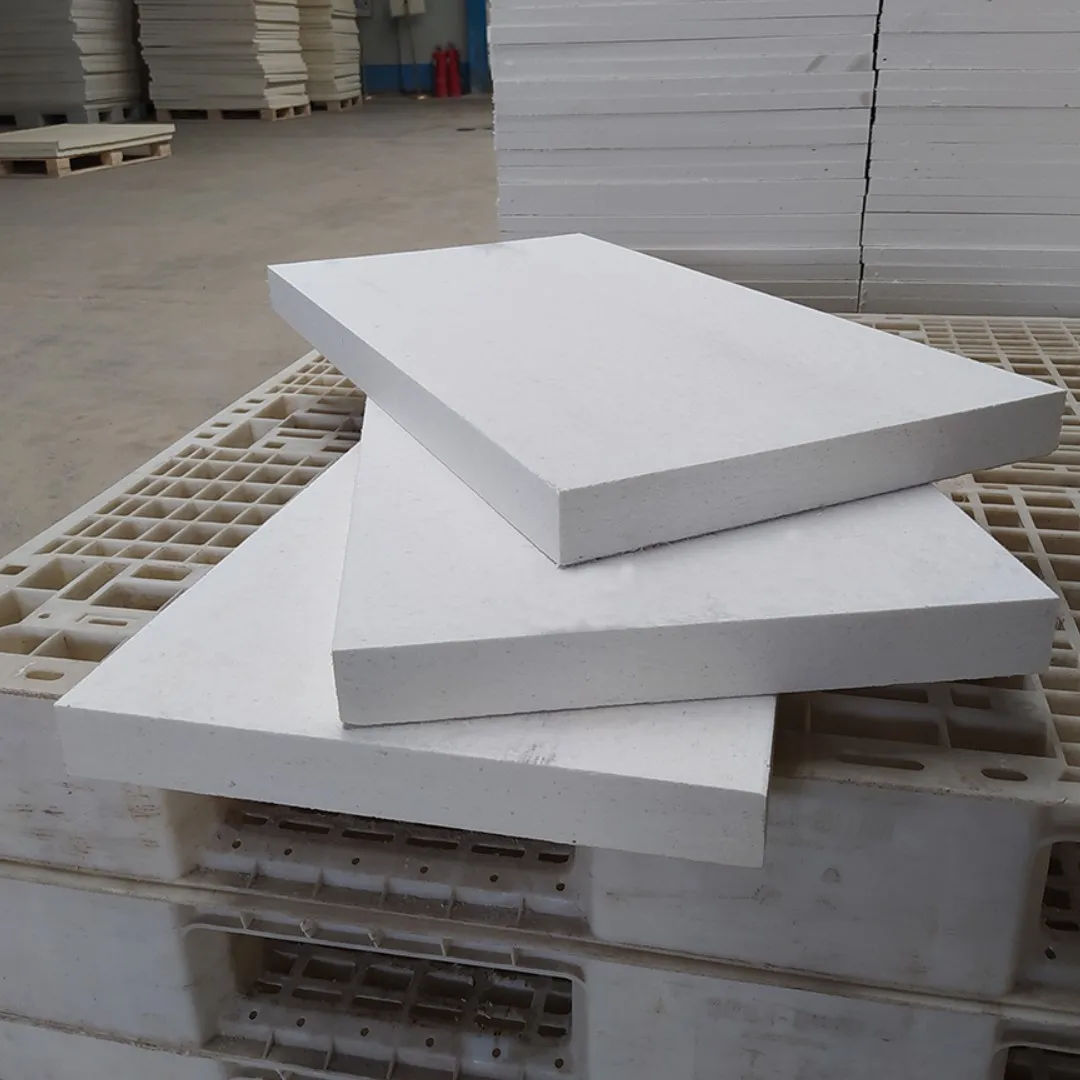

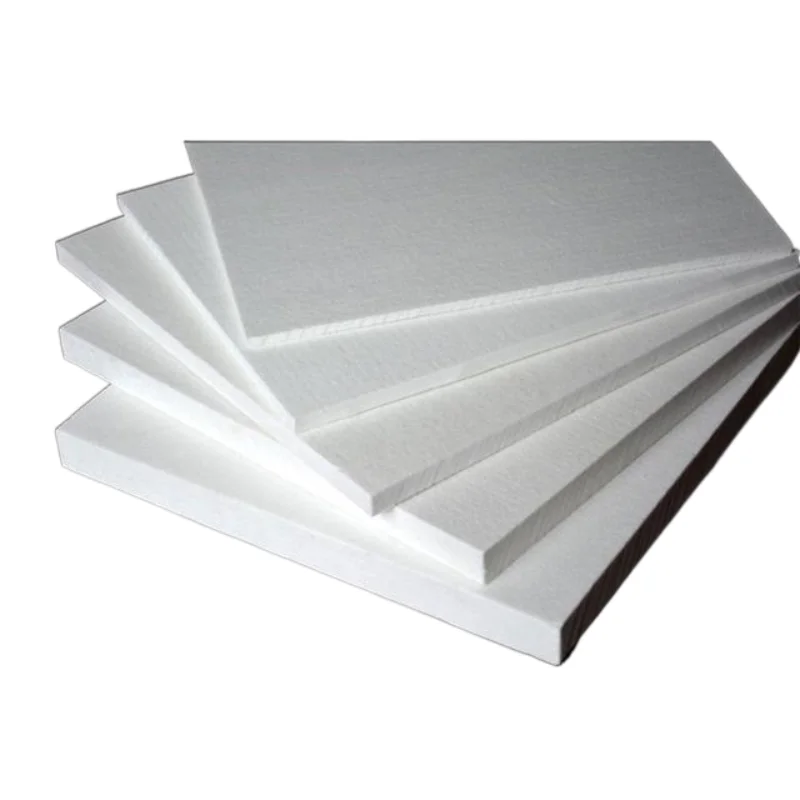

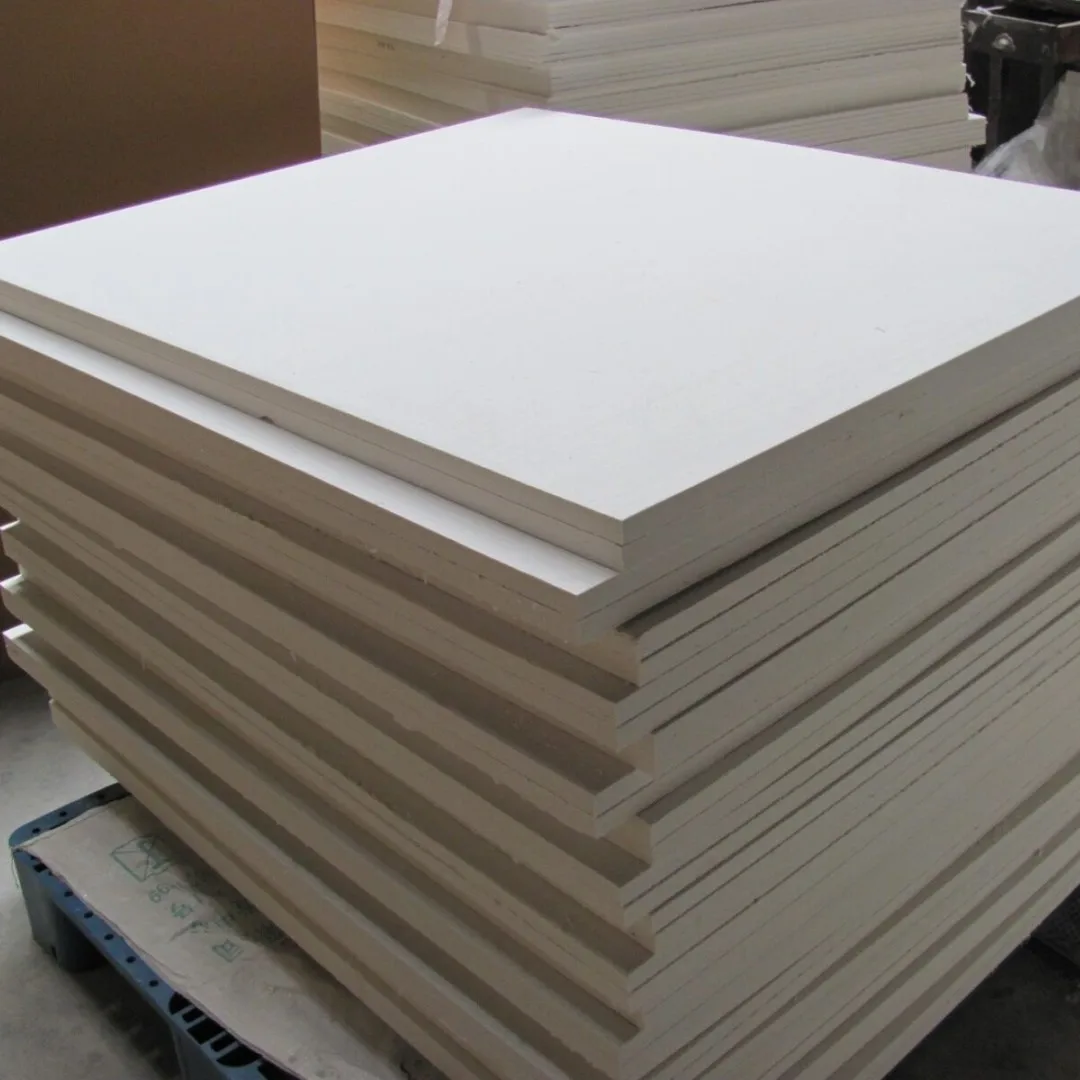

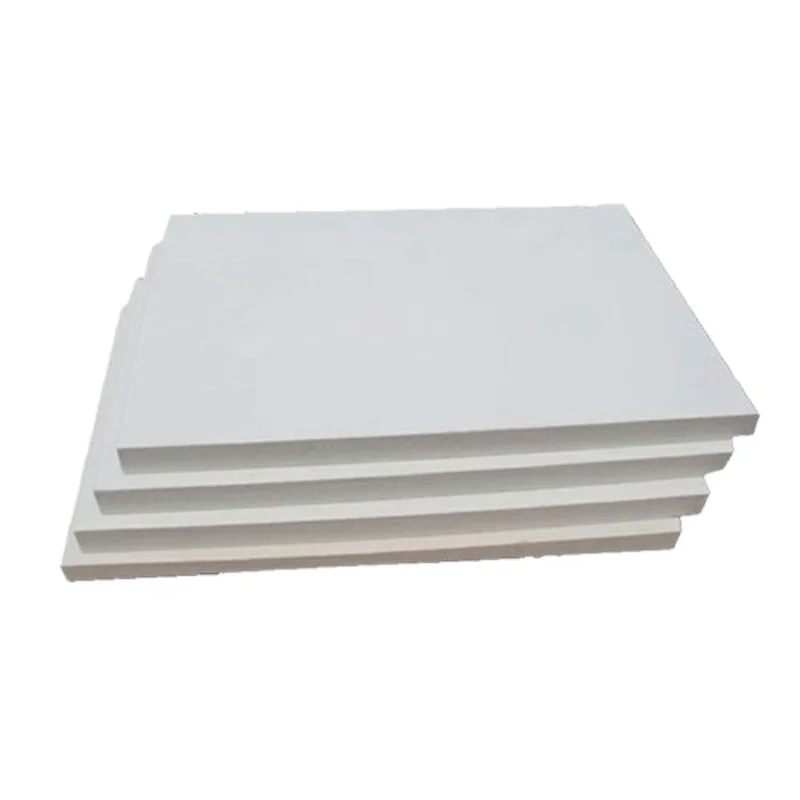

Оптовая цена Белый алюминиевый силикат огнеупорная доска изоляционная доска керамическая волокнистая доска
- Category: >>>
- Supplier: Henan Yunchang New Material Co. Ltd.
Share on (1600898355154):
Product Overview
Description
Product Description
Ceramic fiber insulation product
Application range

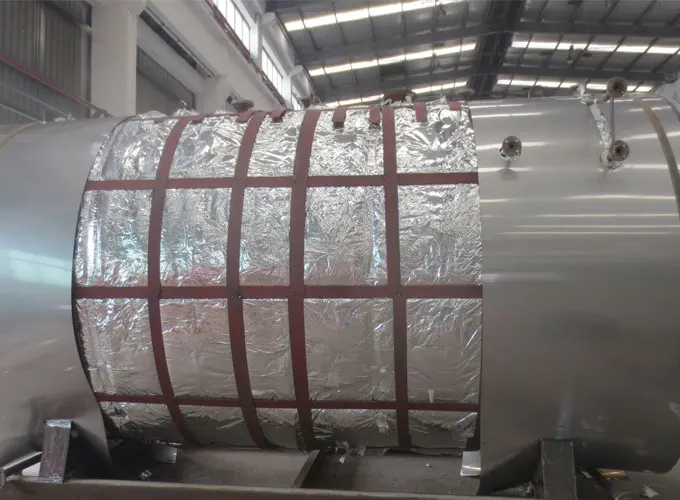

- Pipeline internal insulation and external insulation
- Thermal insulation in electrical appliances, nuclear power and aviation fields
- Furnace door, high temperature flange connection seal
- Expansion Joint Filling
Support Product Customization
Product Features
Ceramic Fiber Products 陶瓷纤维制品 | YC1050 | YC1260 ST | YC1260 HP | YC1350 HA | YC1430 Zr | YC1600 PMF | ||
Classification temperature 分类温度(℃) | 1050 | 1260 | 1260 | 1350 | 1430 | 1600 | ||
Operating temperature 工作温度(℃) | 900 | 1050 | 1100 | 1050 | 1250 | 1400 | ||
体积密度Bulk density(KG/m3) | 96-160 | 96-160 | 96-160 | 96-160 | 96-160 | 96-160 | ||
Linear shrinkage 线性收缩%(24h,128 Kg/M3) | ≤2.6 (900℃) | ≤2.6 (1000℃) | ≤2.6 (1100℃) | ≤2.5 (1200℃) | ≤3 (1250℃) | ≤1.5 (1500℃) | ||
Tensile strength 抗拉强度Kpa(128Kg/M3) | 40 | 80 | 80 | 80 | 80 | 100 | ||
Thermal Conductivity 导热系数(W/m.k)128 Kg/M3 | 400℃ | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | - | |
800℃ | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | ||
1000℃ | - | 0.23 | 0.23 | 0.23 | - | - | ||
Chemical components 化学组成(%) | Al203 | ≥40 | ≥42.0 | ≥45.0 | ≥52 | ≥36 | ≥72 | |
Al203+SiO2 | ≥97.0 | ≥98.0 | ≥98.0 | ≥98.0 | ≥84.0 | ≥99.0 | ||
ZrO3 | - | - | - | - | ≥15 | - | ||
其它 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
Note: The technical data of the product is the average value obtained from the adopted testing standards, which will fluctuate within a certain range, and this data does not represent the quality assurance data of the product. For more information, please contact customer service.
长度（mm） | 宽度(mm) | 厚度(mm) | |
7200/15000/20000 | 610(1220) | 6 | |
7200/15000 | 610(1220) | 10 | |
7200/15000 | 610(1220) | 12.5 | |
7200/15000 | 610(1220) | 15 | |
7200 | 610(1220) | 20 | |
7200 | 610(1220) | 25 | |
5000 | 610(1220) | 30 | |
4500 | 610(1220) | 40 | |
3600 | 610(1220) | 50 | |
Other sizes can be made according to customer requirements其它尺寸可依照客户要求制作 | 包装方式：编织袋加防水膜、纸箱包装 Packing method: woven bag with waterproof film, carton packing | ||
Production & Use

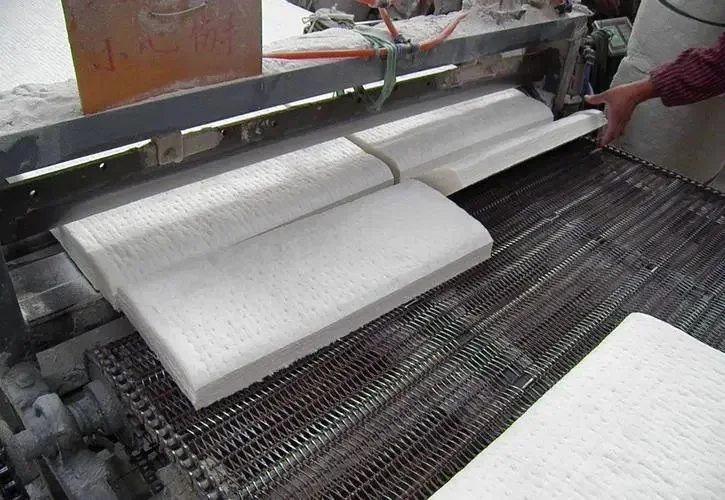

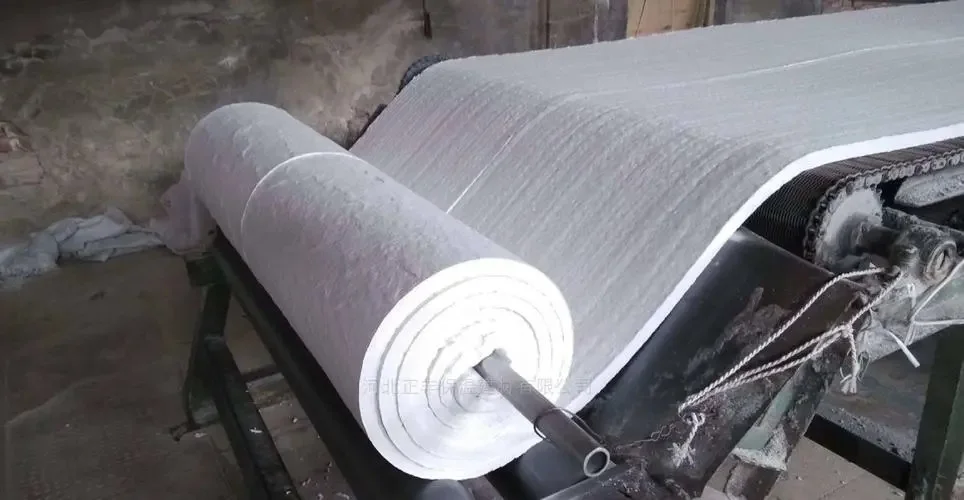

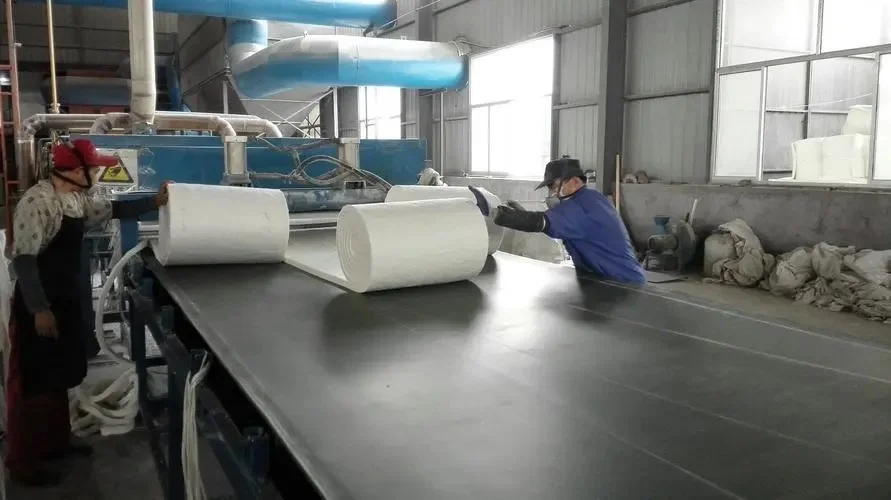

01Production site

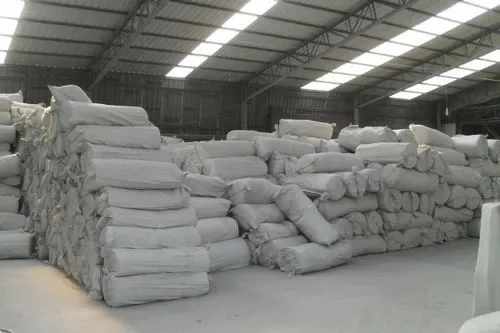

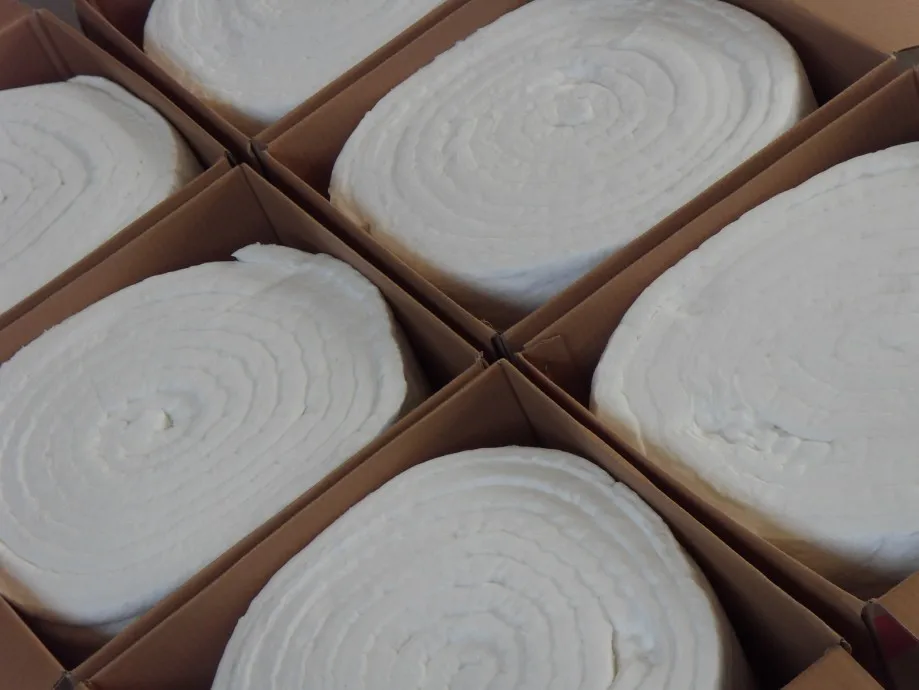

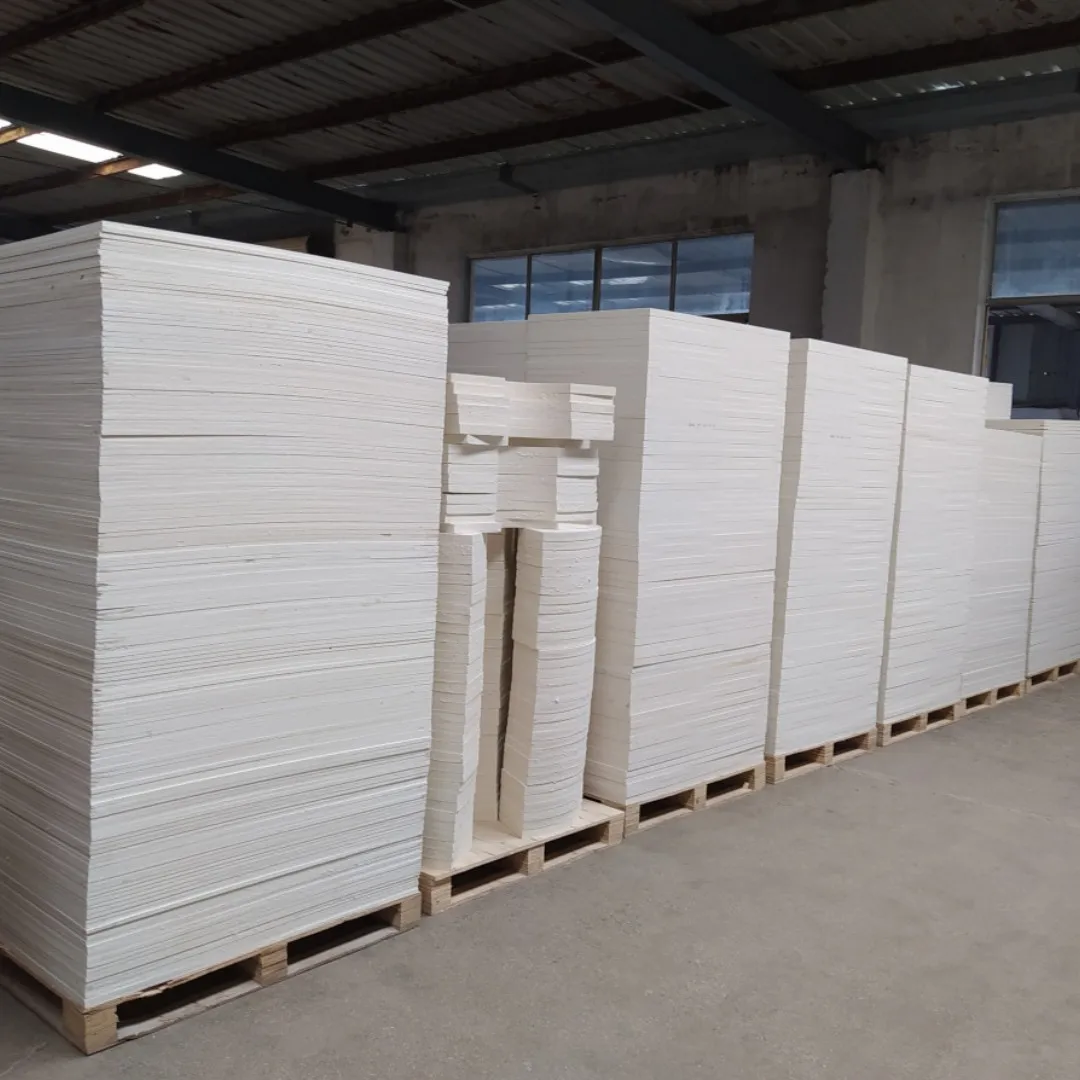

02Inventory and packaging

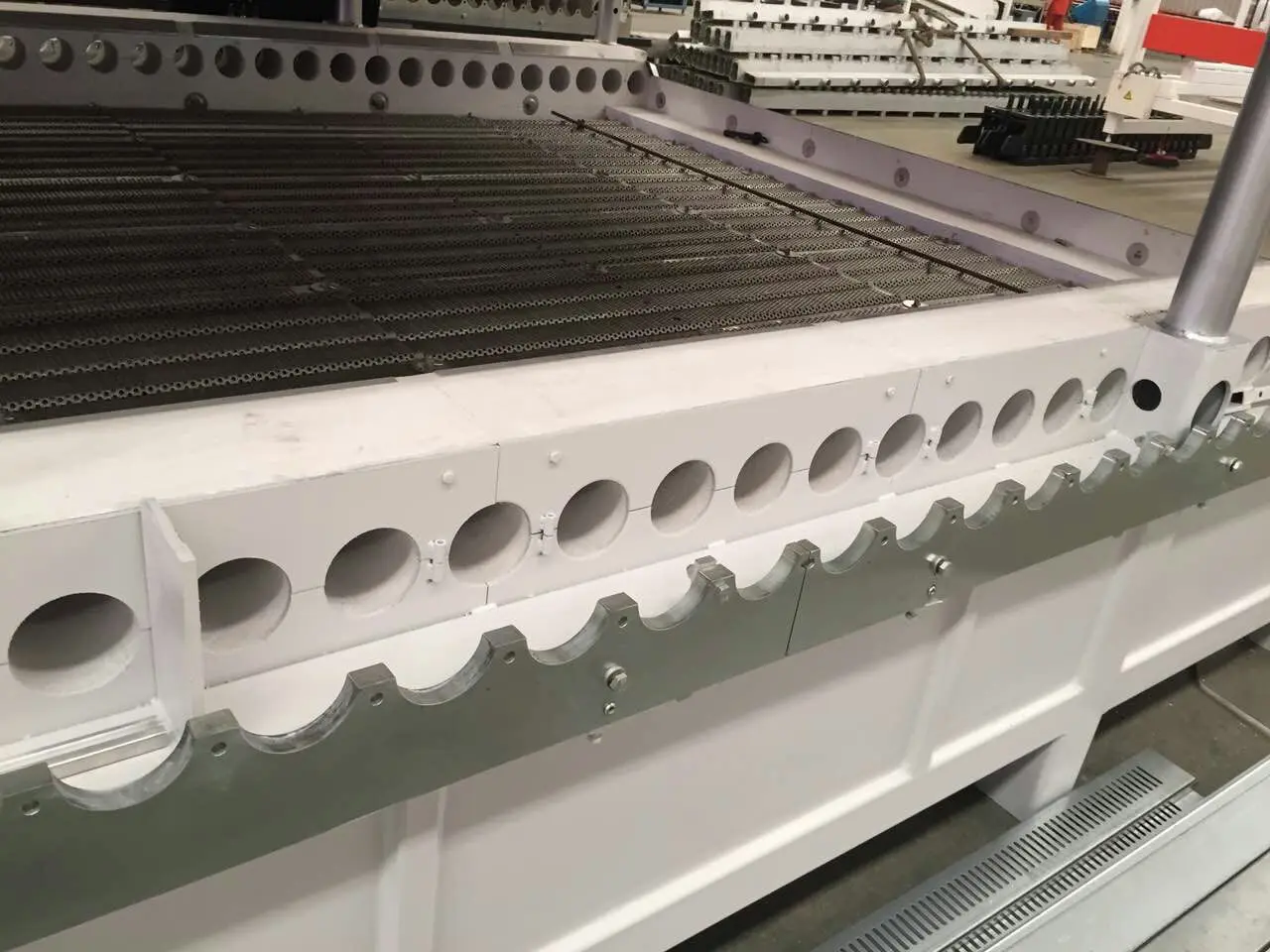

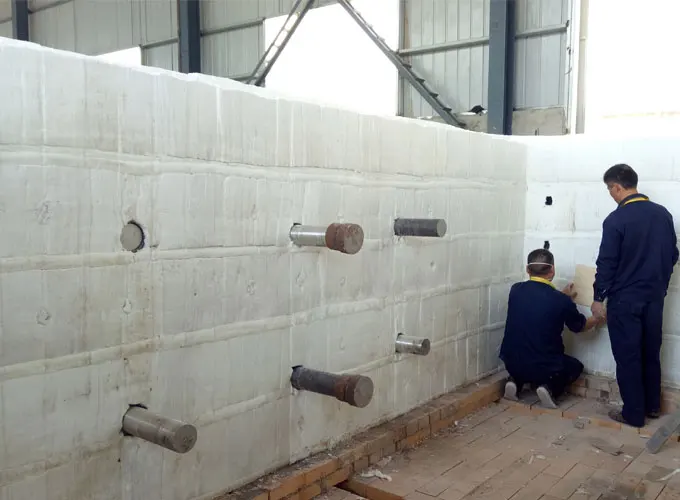

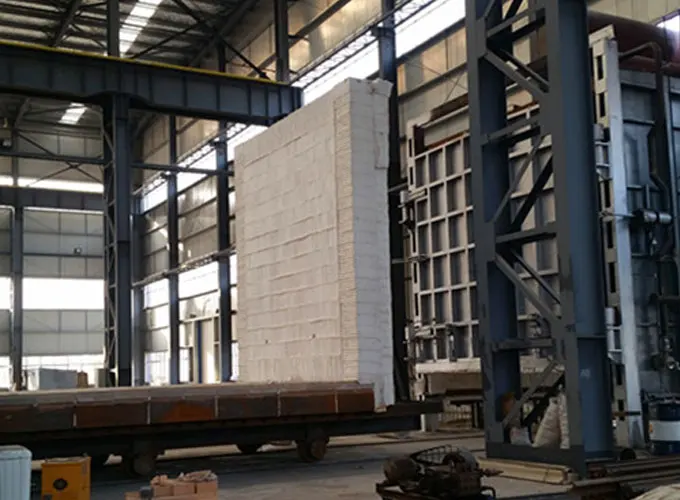

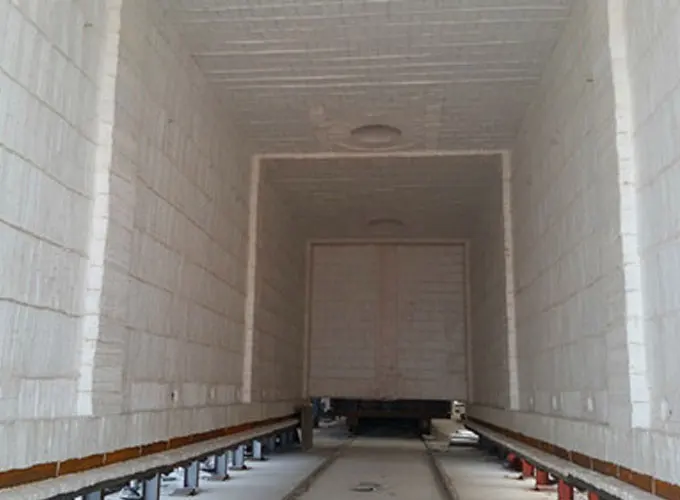

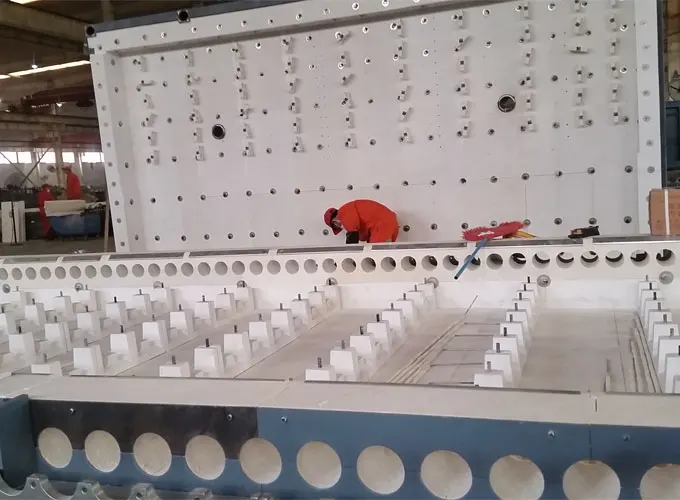

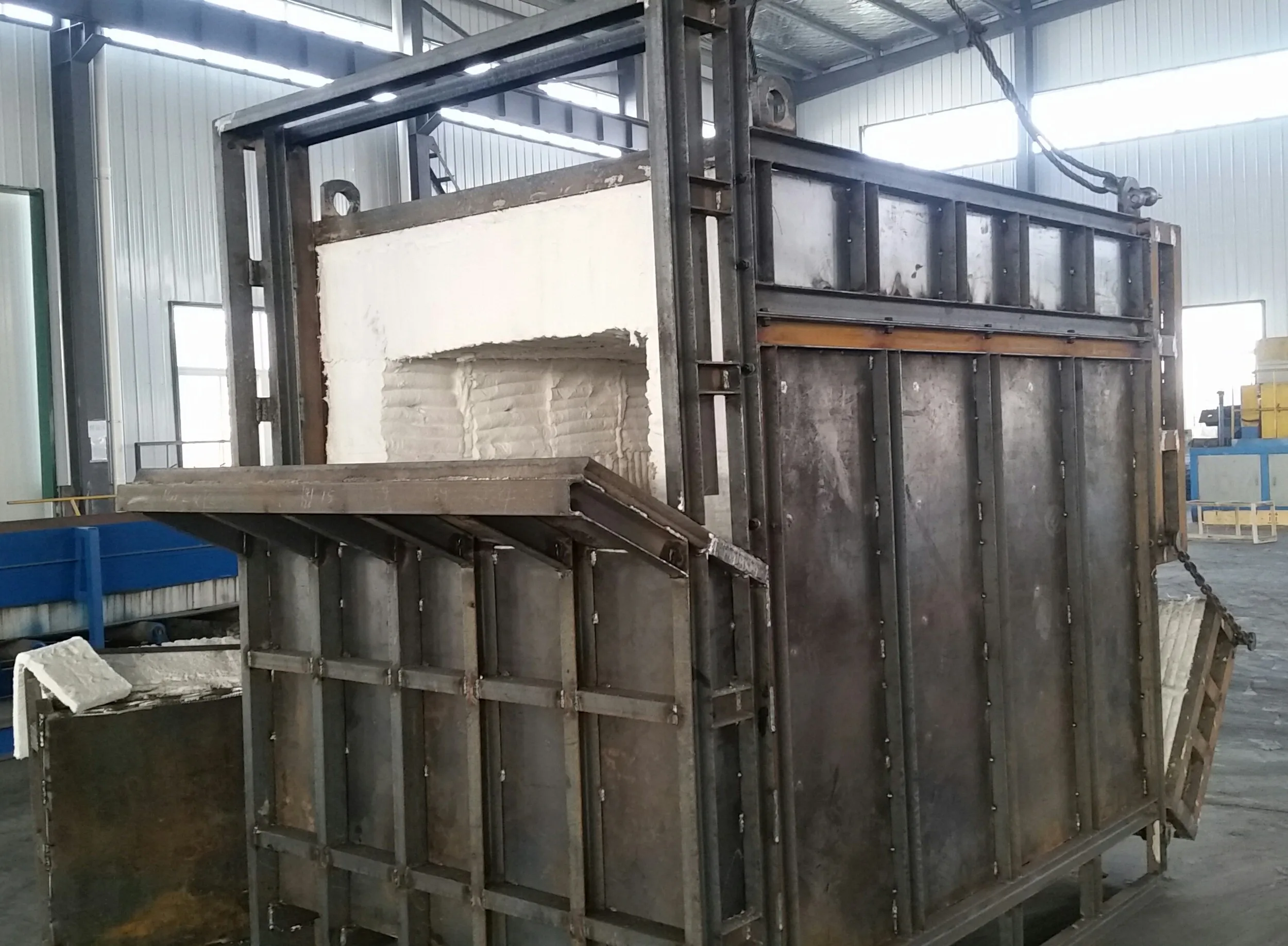

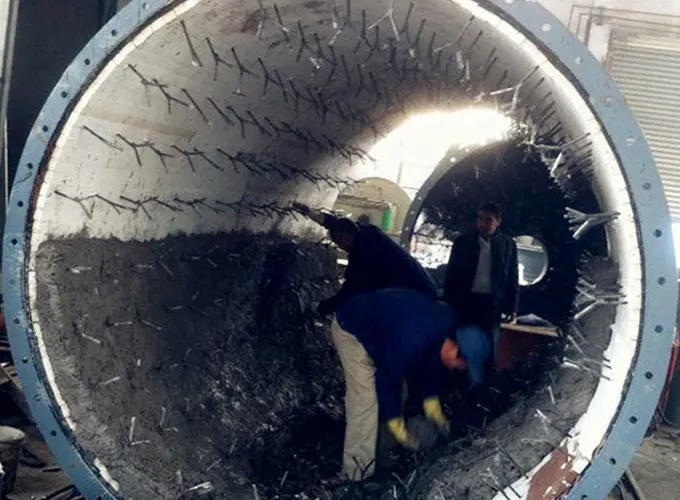

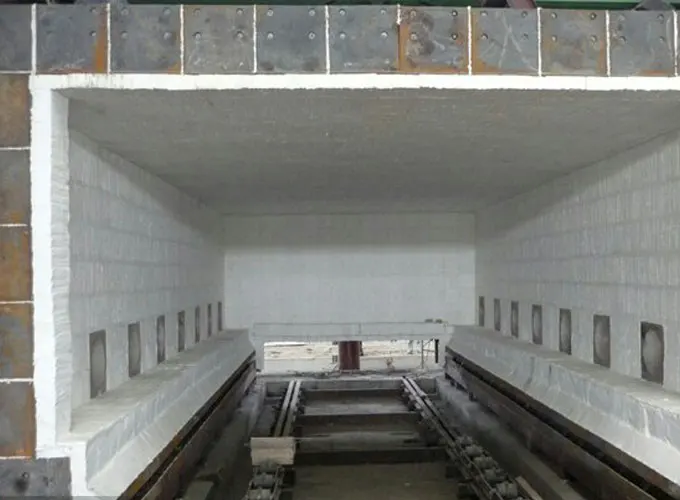

03Construction and Application
Packaging & Delivery
Packaging & Transportation Advantages
-Packaging supports customization. If you have any customization requirements, please contact us!
-On time delivery and fast delivery; Under normal circumstances, delivery takes 7-15 days
-Wide range of shipping methods, such as land, sea, air, railway, etc
-Packaging supports customization. If you have any customization requirements, please contact us!
-On time delivery and fast delivery; Under normal circumstances, delivery takes 7-15 days
-Wide range of shipping methods, such as land, sea, air, railway, etc
Company Profile
Henan Yunchang New Material Co., Ltd.
Customer Visit
Laboratory Equipment
We have been engaged in the refractory material industry for decades and have strong technical capabilities. We have a professional design, research and development team, and advanced experimental equipment. We will serve domestic and foreign customers with an industrial development mindset!
