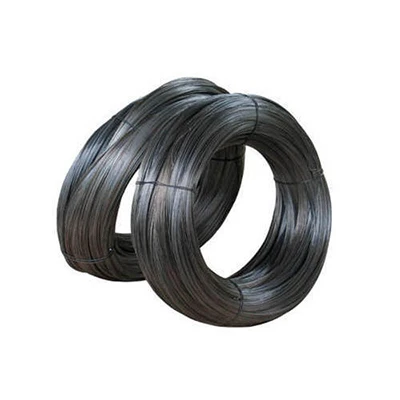

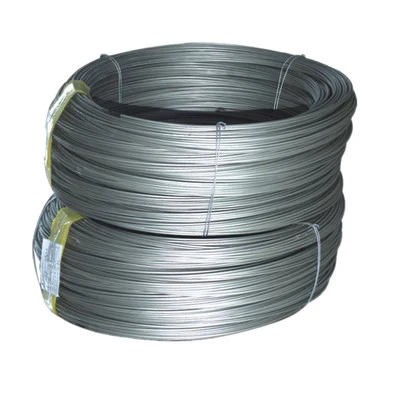

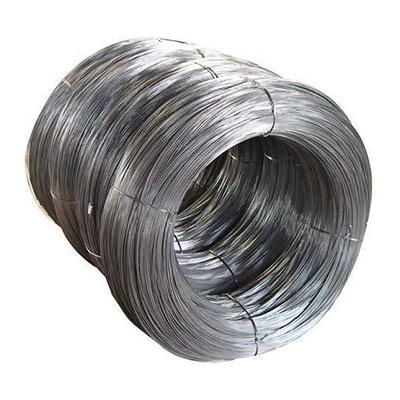

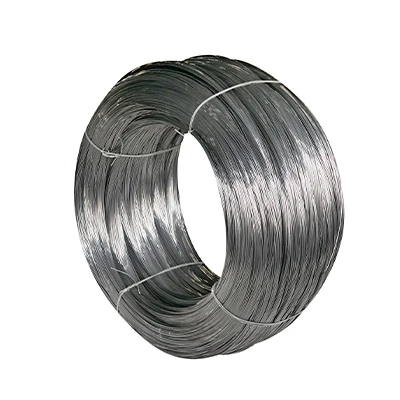

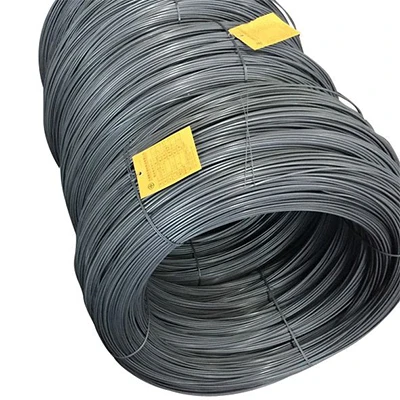

High Carbon Steel Spring Wire High Quality Hard Drawn Helical Torsion Spring Steel Wire
- Category: >>>
- Supplier: Zhongshi Steel (shandong) Co. Ltd.
Share on (1600898408166):
Product Overview
Description
Galvanized steel wire surface treatment：
Electro galvanized and hot dipped galvaized
Specification
ASTM A475, ASTM A363, BS183:1972
Zinc-coated grade of steel strand wire /guy wire : Class A ,Class B and class C
Technical Data | ||||||||||
Intensity level | Wire diameter | Min. tensile strength | Min. stress with 1% extension | Min. extension percentage | Min. No. of 3600 twist | |||||
mm | Mpa | Mpa | % | |||||||
General | 1.24~2.25 | 1340 | 1170 | 3.0 | 16 | |||||
2.25~2.75 | 1310 | 1140 | 3.0 | 16 | ||||||
2.75~3.00 | 1310 | 1140 | 3.5 | 16 | ||||||
3.00~3.50 | 1290 | 1100 | 3.5 | 14 | ||||||
3.50~4.25 | 1290 | 1100 | 4.0 | 12 | ||||||
4.25~4.75 | 1290 | 1100 | 4.0 | 12 | ||||||
4.75~5.50 | 1290 | 1100 | 4.0 | 12 | ||||||
High | 1.24~2.25 | 1450 | 1310 | 2.5 | 16 | |||||
2.25~2.75 | 1410 | 1280 | 2.5 | 16 | ||||||
2.75~3.00 | 1410 | 1280 | 3.0 | 16 | ||||||
3.00~3.50 | 1410 | 1240 | 3.0 | 14 | ||||||
3.50~4.25 | 1380 | 1170 | 3.0 | 12 | ||||||
4.25~4.75 | 1380 | 1170 | 3.0 | 12 | ||||||
4.75~5.50 | 1380 | 1170 | 2.0 | 12 | ||||||
Very high | 1.24~2.25 | 1620 | 1450 | 2.0 | 14 | |||||
2.25~2.75 | 1590 | 1410 | 2.0 | 14 | ||||||
2.75~3.00 | 1590 | 1410 | 2.5 | 12 | ||||||
3.00~3.50 | 1550 | 1380 | 2.5 | 12 | ||||||
3.50~4.25 | 1520 | 1340 | 2.5 | 10 | ||||||
4.25~4.75 | 1520 | 1340 | 2.5 | 10 | ||||||
4.75~5.50 | 1520 | 1270 | 2.5 | 10 | ||||||
Using stainless steel precision casting, high hardness, durable.The thickness of the wire is uniform, the quality control is strict, and the variety and specifications are complete in the production process.With many years of industry experience, the product specifications are complete, and it can also be customized for processing and production according to needs.
The steel wire is made of high-quality carbon steel, which can achieve high strength after repeated cold drawing and heat treatment. Workplaces such as wet or open air environments can use steel ropes made of galvanized steel wire to enhance rust resistance.

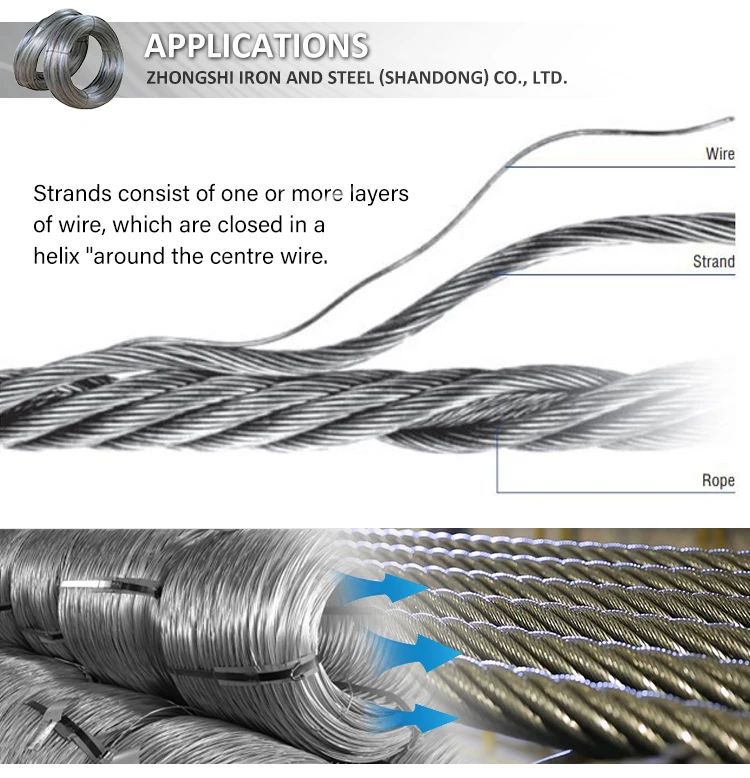

The steel wire rope is a flexible rope made of multiple or multiple strands of thin steel wires. The steel wire rope is twisted into strands by multiple layers of steel wires, and then takes the rope core as the center and is twisted into a helical rope by a certain number of strands. In material handling machinery, it is used for lifting, pulling, tensioning and bearing. The steel wire rope has high strength, light weight, stable operation, not easy to break suddenly and reliable operation. Structure: The steel wire rope is mainly constructed with steel wire and rope core. The steel wire rope plays the role of bearing the load, and its performance is mainly determined by the steel wire.
The steel wire rope is a flexible rope made of multiple or multiple strands of thin steel wires. The steel wire rope is twisted into strands by multiple layers of steel wires, and then takes the rope core as the center and is twisted into a helical rope by a certain number of strands. In material handling machinery, it is used for lifting, pulling, tensioning and bearing. The steel wire rope has high strength, light weight, stable operation, not easy to break suddenly and reliable operation. Structure: The steel wire rope is mainly constructed with steel wire and rope core. The steel wire rope plays the role of bearing the load, and its performance is mainly determined by the steel wire.
1. The most professional production and sales team will give you the most professional products.
2. Customizable design.
3. Free samples.
4. All questions will be answered within 24 hours.
2. Customizable design.
3. Free samples.
4. All questions will be answered within 24 hours.
Q:What kind of work does your company do?
A:We are a business integrating industry and trade. The company is mainly engaged
in carbon steel coil, carbon steel steel pipe, galvanized steel coil, stainless steel seri
-es products, etc, with rich experience.
Q:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's
quality.
(4): Professional packing teams which keep every packing safely.
(5):Samples can be provided as your requirements.
Q:What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,
balance based on BL copy or LC at sight. If you have another question, pls feel free
to contact us as below.
Q:What about your price?
A:Our price is very competitive. Pls feel free to contact us if you are interested in
our products.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as
soon as possible on the basis of the quality assurance.Usually the delivery time is w
-ithin5 days after we received your balance."
A:We are a business integrating industry and trade. The company is mainly engaged
in carbon steel coil, carbon steel steel pipe, galvanized steel coil, stainless steel seri
-es products, etc, with rich experience.
Q:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's
quality.
(4): Professional packing teams which keep every packing safely.
(5):Samples can be provided as your requirements.
Q:What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,
balance based on BL copy or LC at sight. If you have another question, pls feel free
to contact us as below.
Q:What about your price?
A:Our price is very competitive. Pls feel free to contact us if you are interested in
our products.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as
soon as possible on the basis of the quality assurance.Usually the delivery time is w
-ithin5 days after we received your balance."
