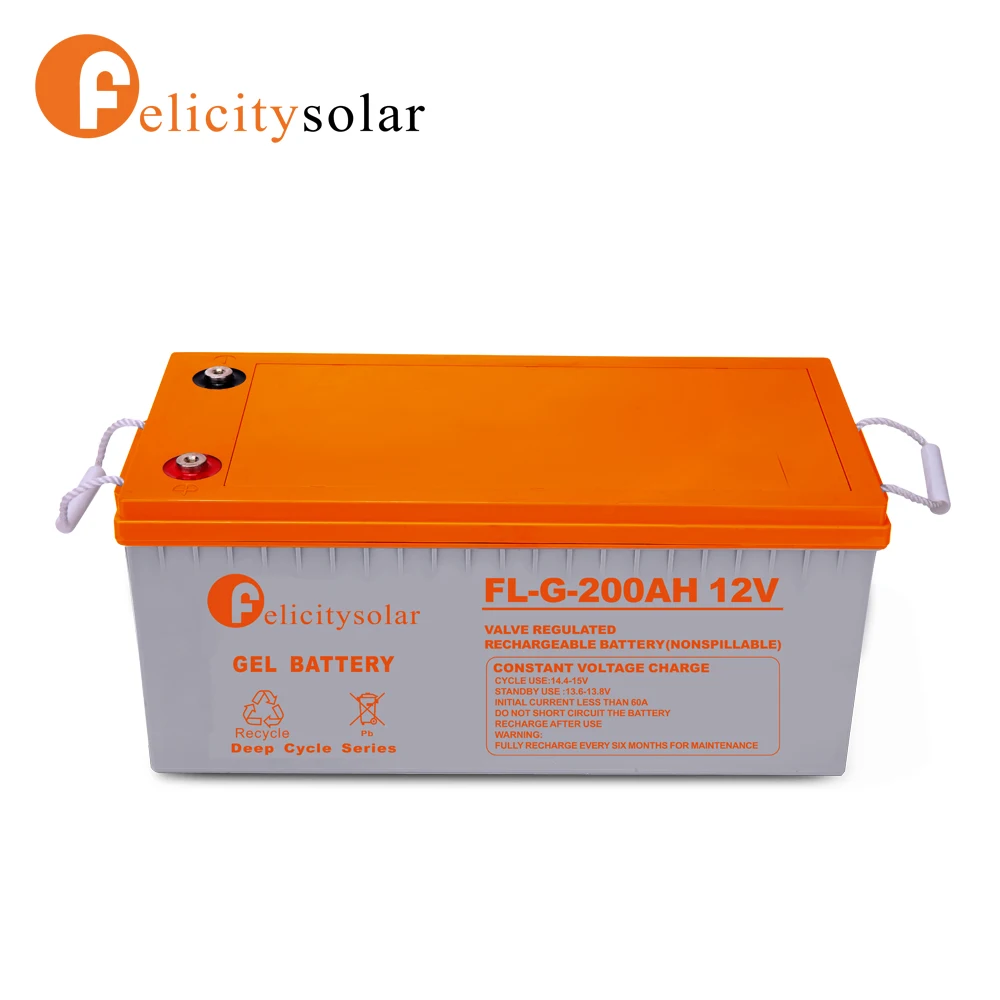

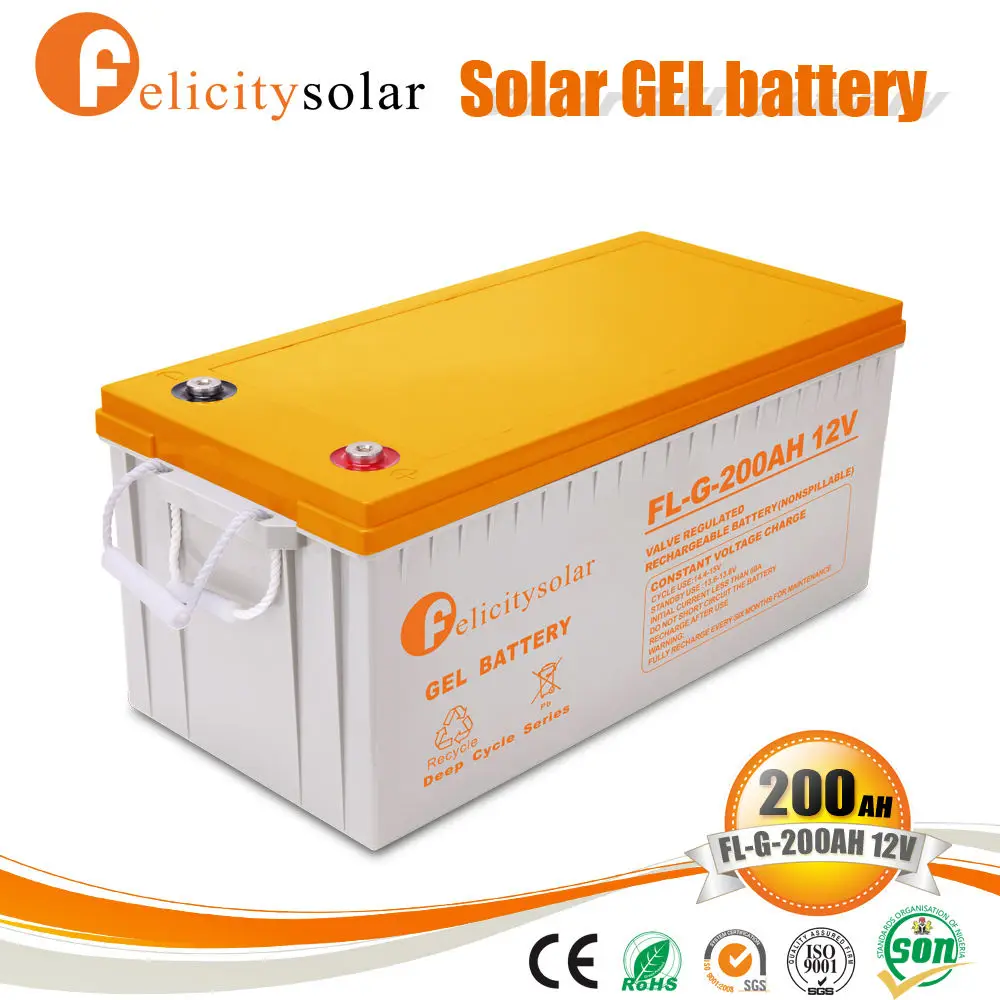

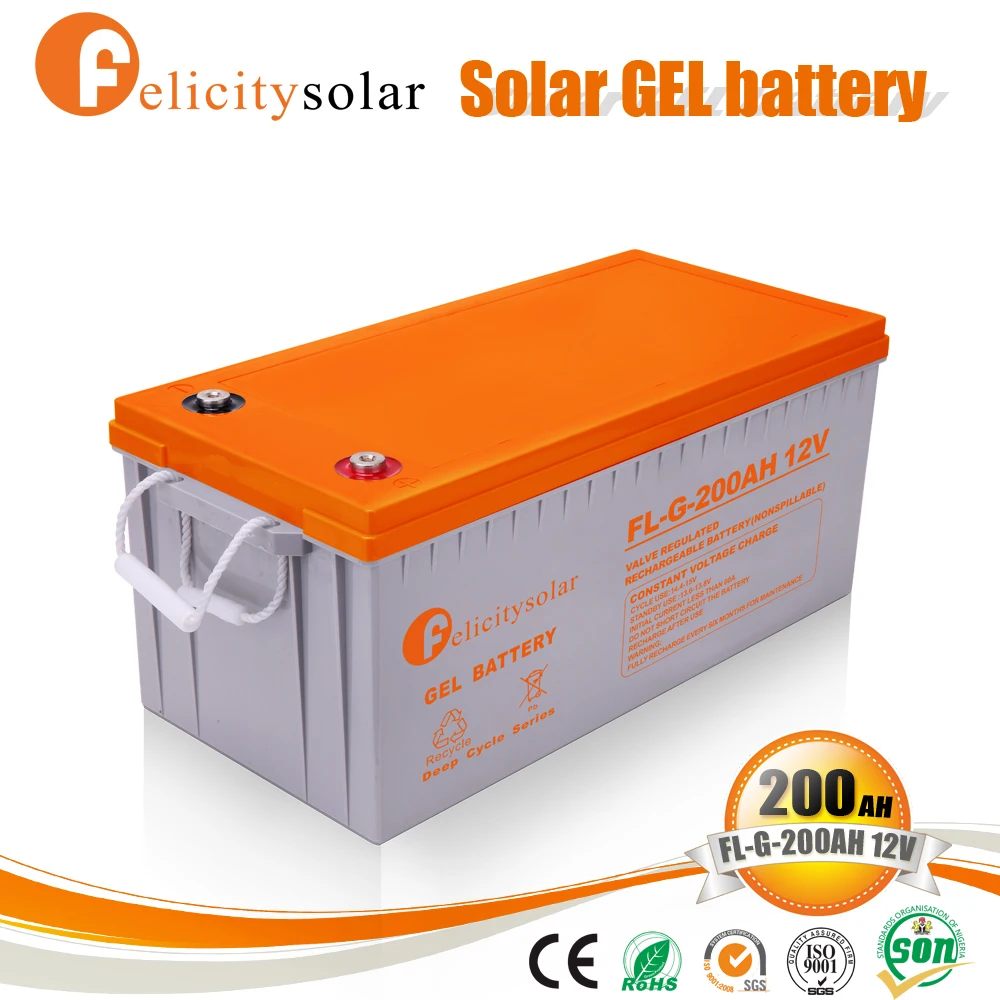

Solar system power battery 12V 200AH GEL battery AGM battery
- Category: >>>
- Supplier: Guangzhou Felicity Solar Technology Co. Ltd.Guangzhou Ltd.
Share on (1600898450163):
Product Overview
Description
Product Parameters
Features
1. Solve electrolyte stratification,sulfuric acid evenly distributed.
2. Deeper discharge of the silica gel electrolyte lead-acid batteries extends the cycle life of the battery greatly
3. Smaller charging current (about 1/3 of AGM battery) leads to lower energy consumption and less warming.
4. Lower self-discharge rate
2. Deeper discharge of the silica gel electrolyte lead-acid batteries extends the cycle life of the battery greatly
3. Smaller charging current (about 1/3 of AGM battery) leads to lower energy consumption and less warming.
4. Lower self-discharge rate
Model | G-12V 100AH | G-12V 150AH | G-12V 200AH | ||
Cels Per Unit | 6 | ||||
Voltage Per Unit | 12 | ||||
Capacity | 100Ah@10hr-rate to 1.80V per cell@25℃ | 150Ah@10hr-rate to 1.80V per cell@25℃ | 200Ah@10hr-rate to 1.80V per cell@25℃ | ||
Weight | 32.8KG | 44KG | 61.5KG | ||
Max.Discharge Current | 1000A(5 sec) | 1500A(5 sec) | 2000A(5 sec) | ||
Intemal Resistance | Approx.5m | Approx.4.2m | Approx.4 m | ||
Recommended Maximum Charging | 30A | 45A | 60A | ||
Operating Temperature Range | Discharge:-20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃ | ||||
Normal Operating Temperature Range | 25℃±5℃ | ||||
Float charging Voltage | 13.6 to 13.8V DC/unit Average at 25℃ | ||||
Equalization and Cycle Service | 14.4to 14.6V DC/unit Average at 25C | ||||
Self Discharge | GEL batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3%per month at 25'C.Please charge batteries before using. | ||||
Size | 330x171x218MM | 484x241x170MM | 522x219x240MM | ||
Company Profile
Guangzhou Felicity Solar Technology Co., Ltd. (hereinafter referred to as "Felicity") is a photovoltaic high-tech enterprise integrating R&D, production, sales, engineering design, installation guidance and after-sales service. Founded in 2010, the company covers an area of 35 acres, and has an annual output value of nearly 1 billion yuan. At present, the company has more than 600 employees, including more than 100 senior experts in new energy and professional technical personnel in various disciplines. There are 6 production plants, 3 research and development institutions, and 25 product technology patents, including 20 practical invention patents and 5 invention patents.
The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .
The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .

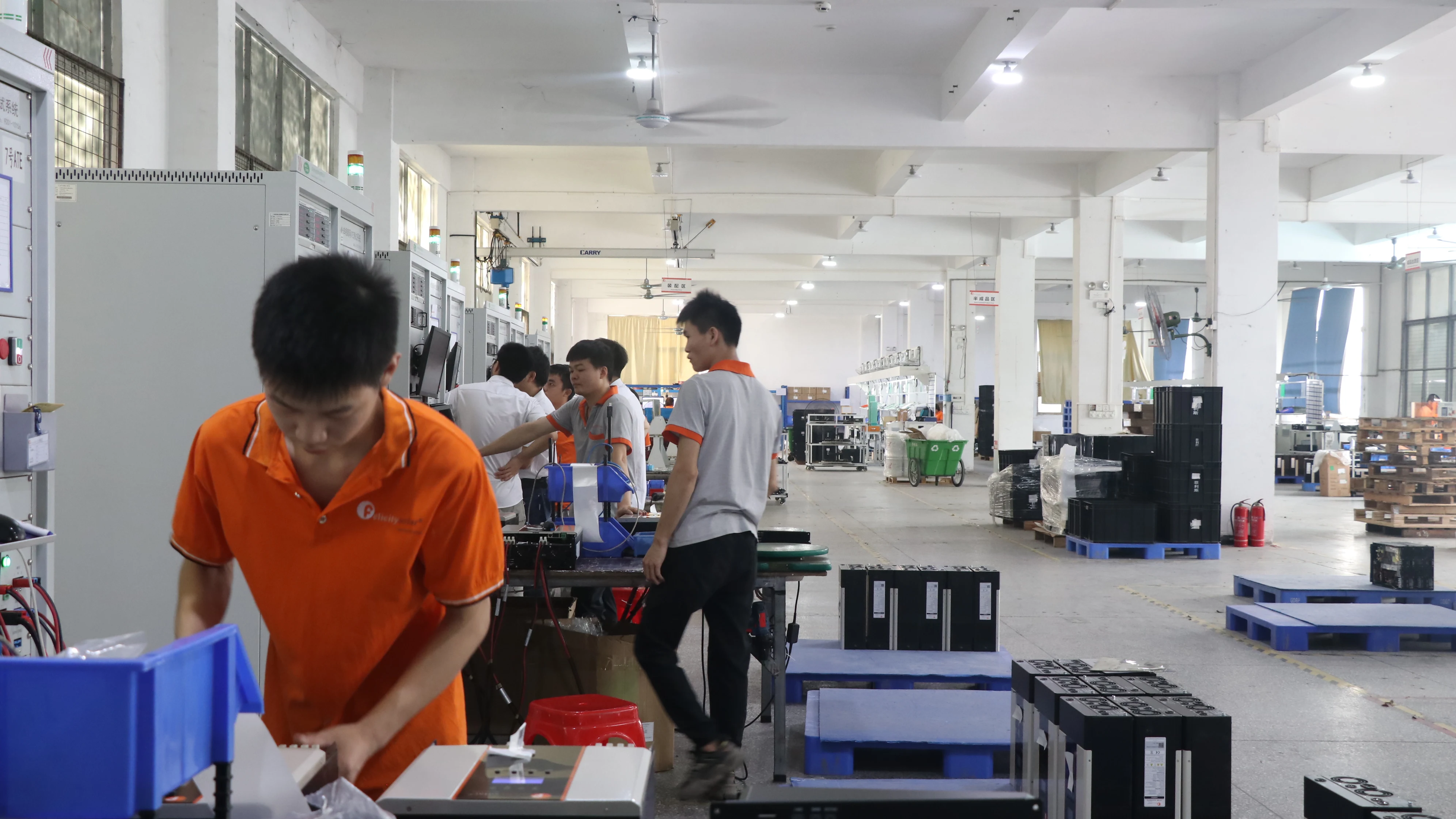

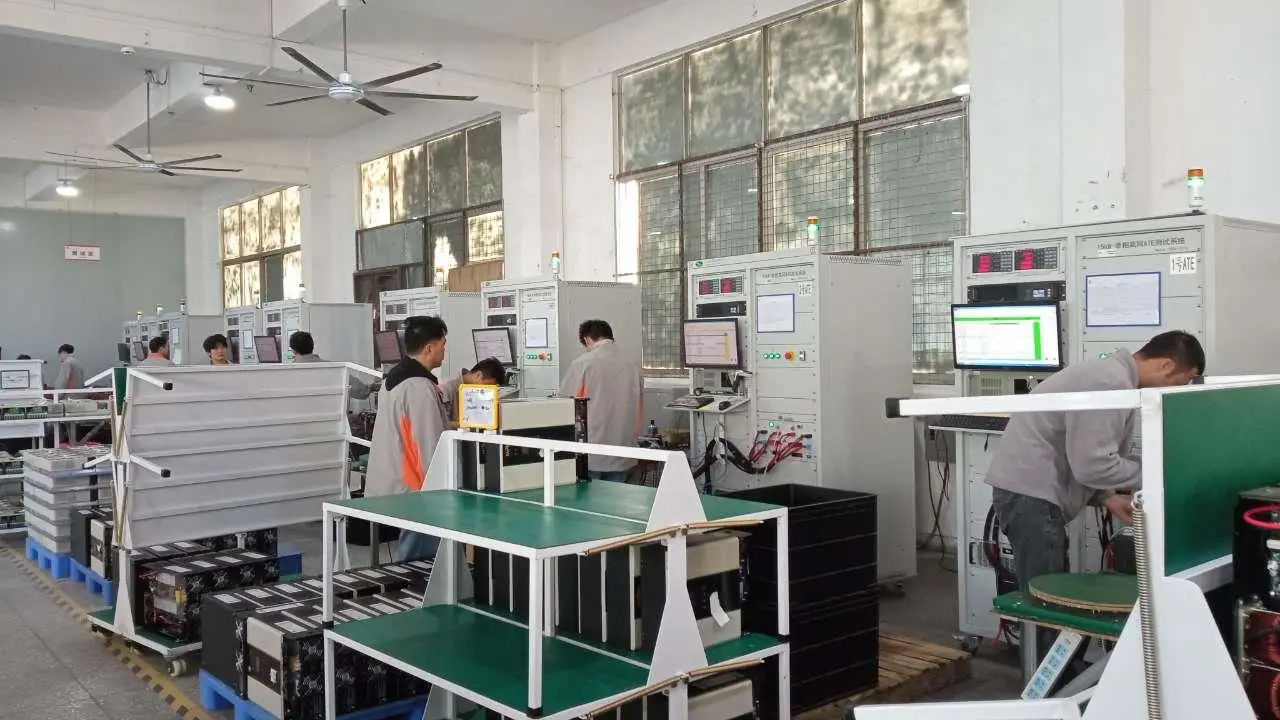

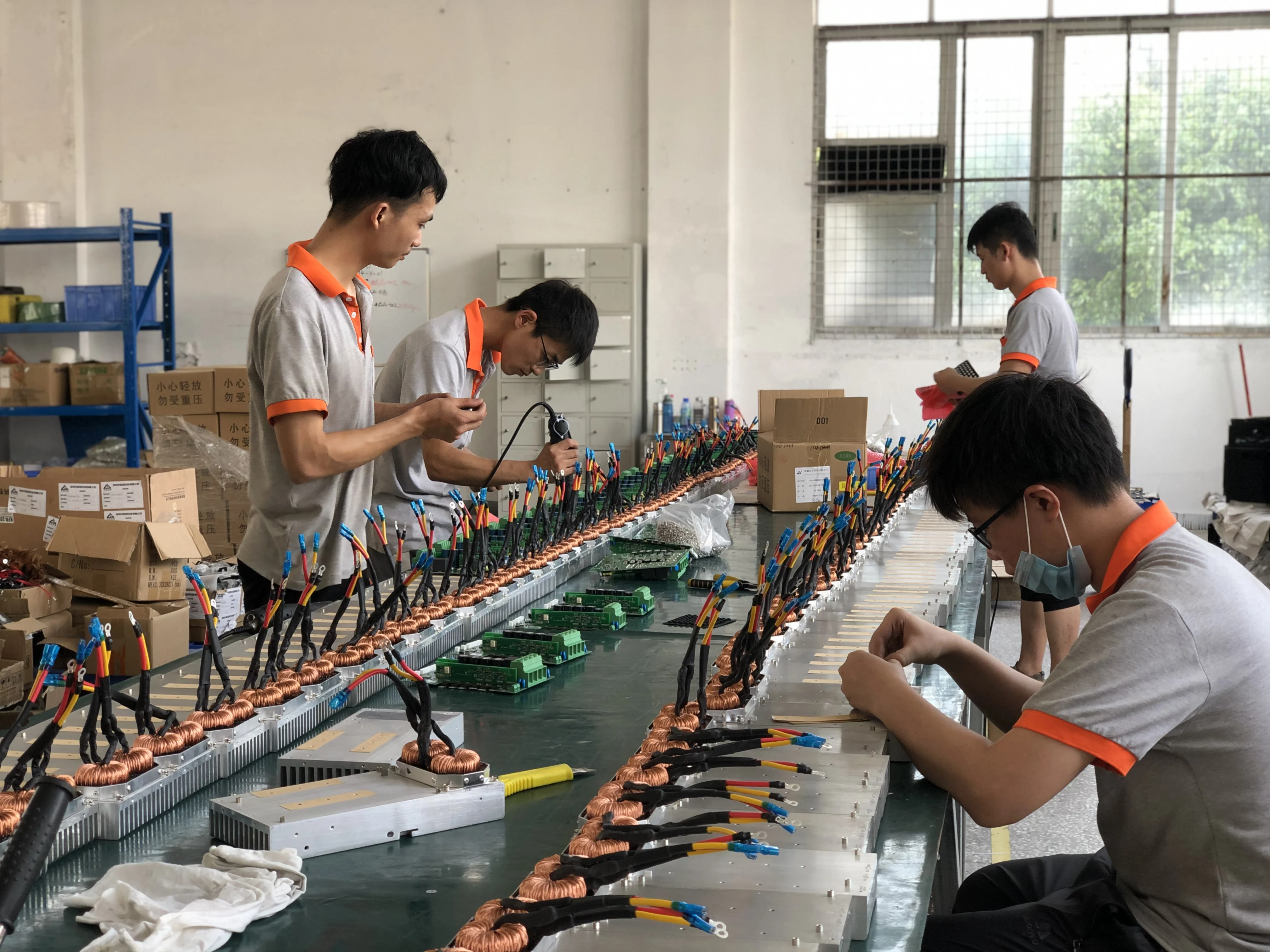

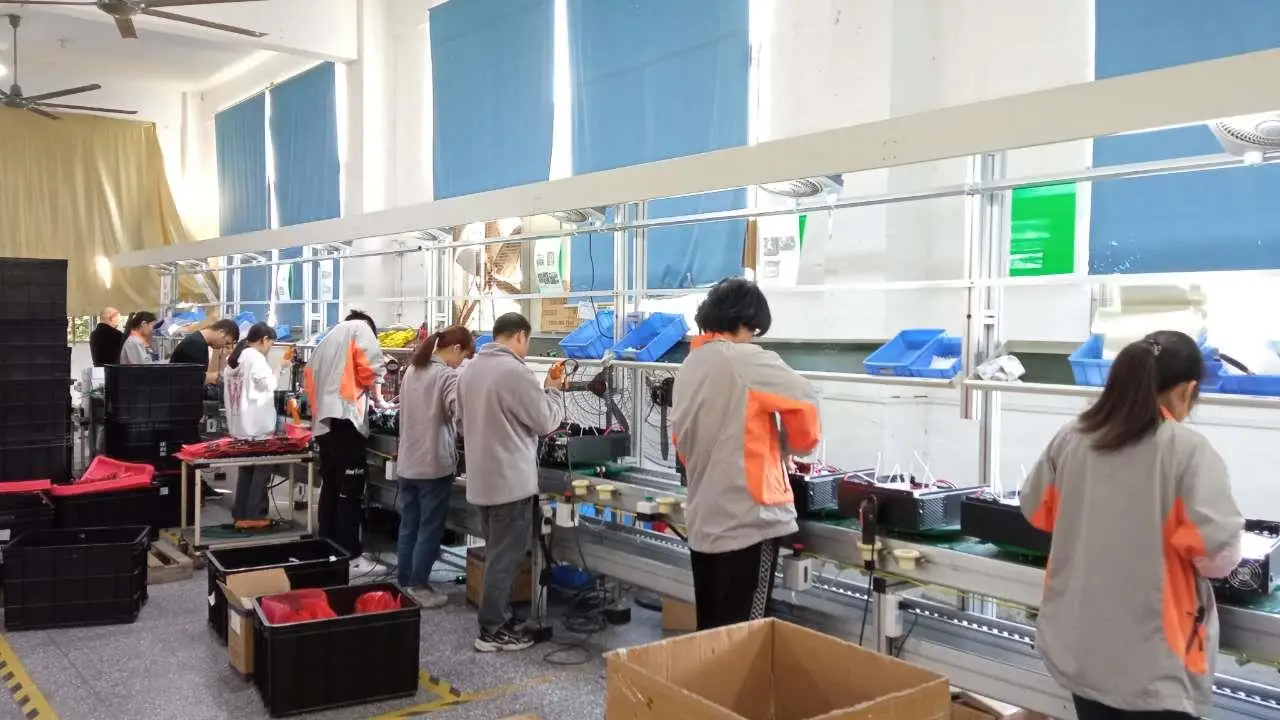

Production line
R & D technology

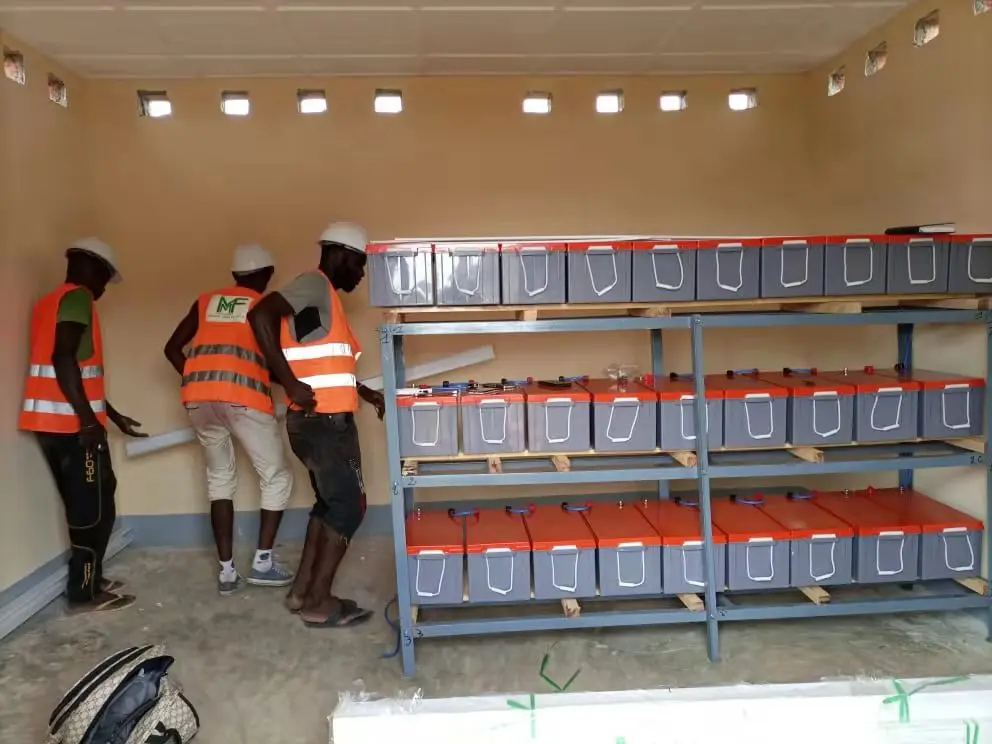

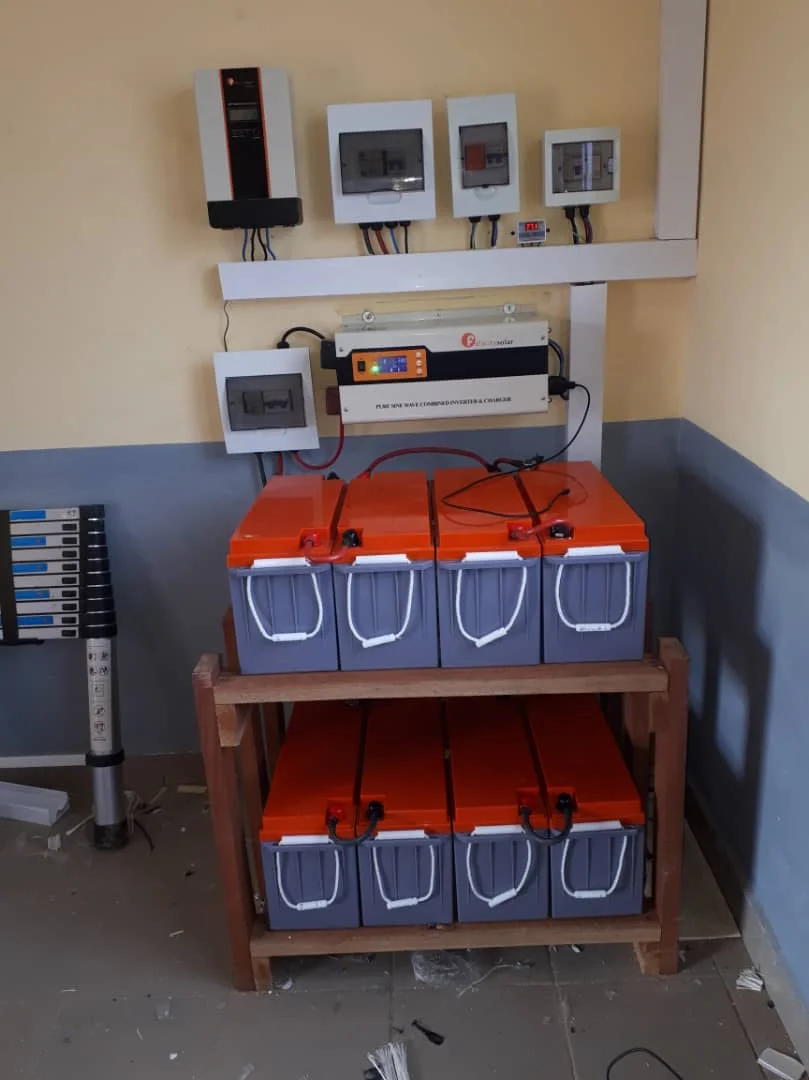

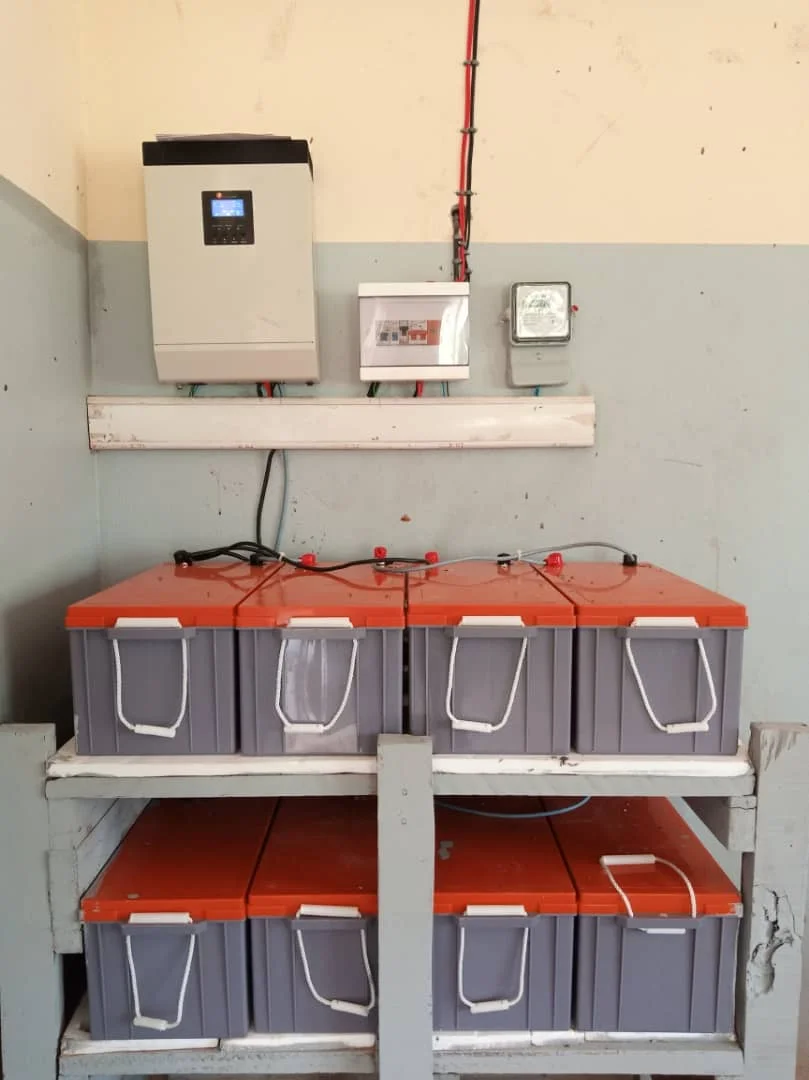

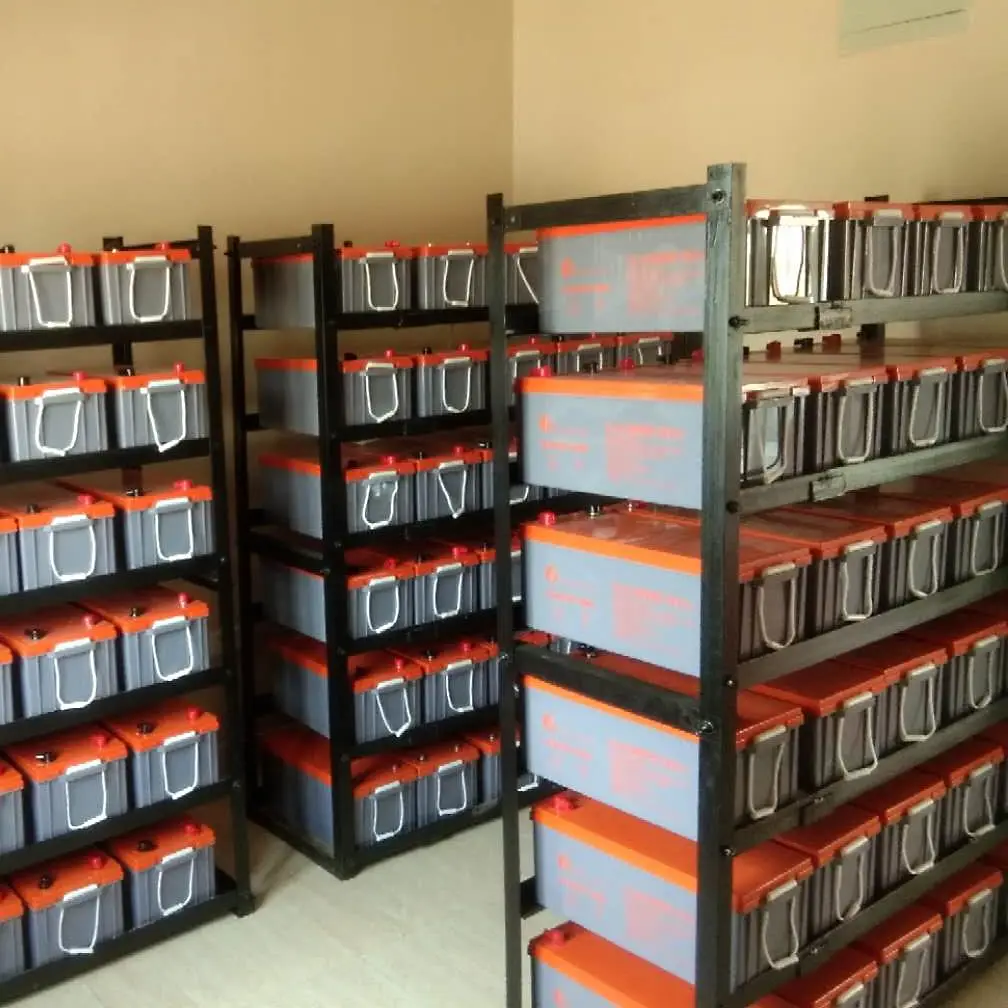

Customer Case

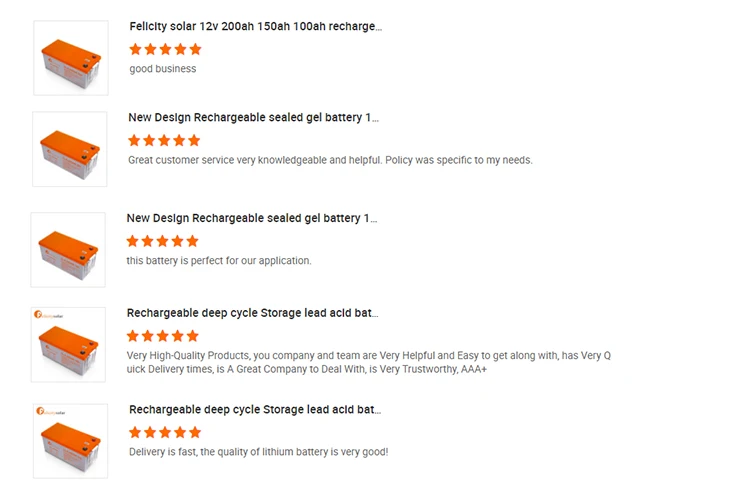

Feedback

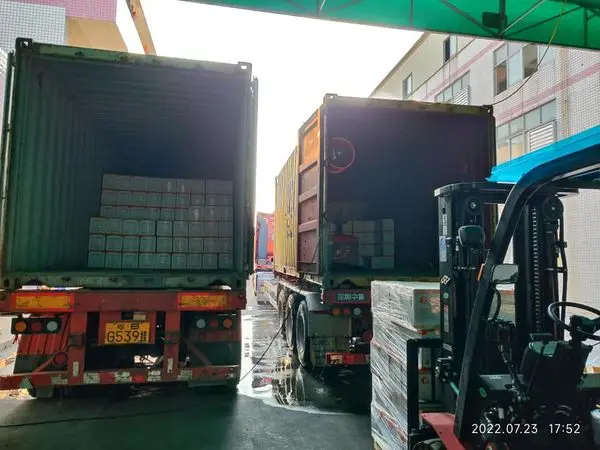

Packaging &Transportation
