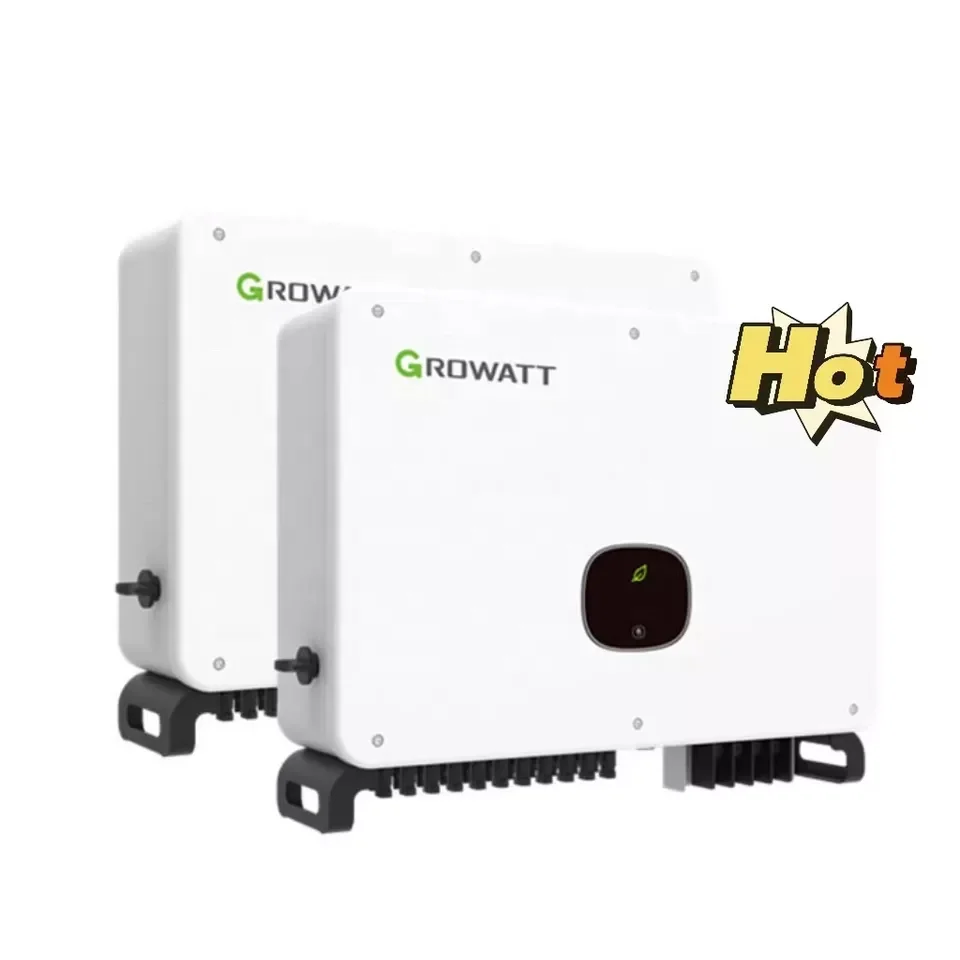

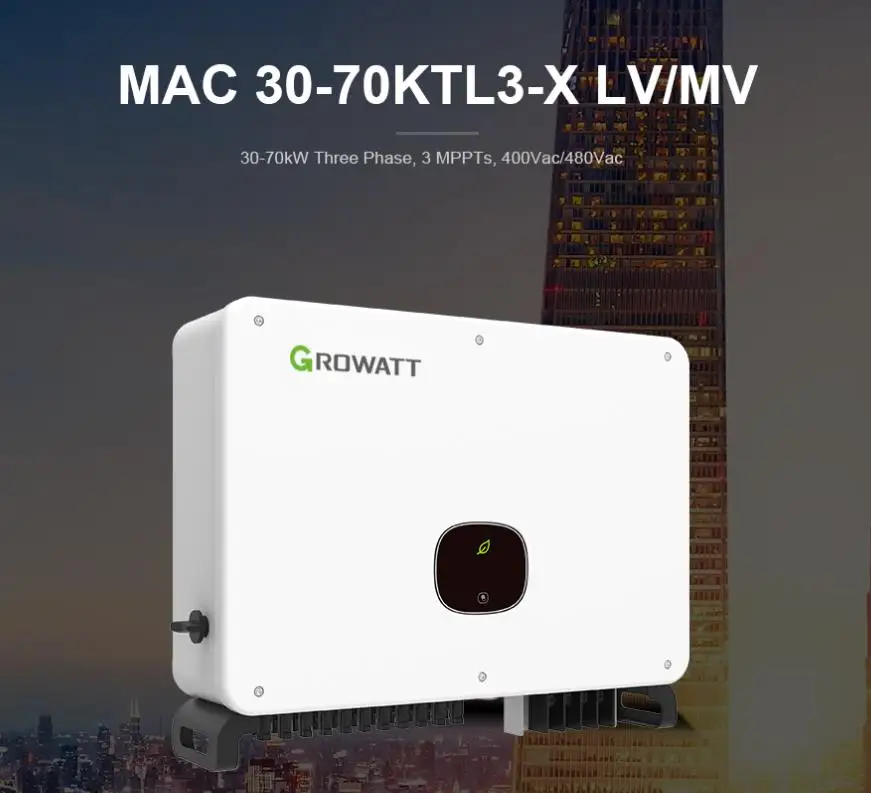

Growatt On Grid Inverter 50KW 60KW 70KW Grid Tied Solar Inverter With Smart Energy Meter
- Category: >>>
- Supplier: Lovsun Solar Energy Co.Ltd
Share on (1600898452885):
Product Overview
Description
Product Description
* 220V Three Phase 3MPPTs
* Smart Diagnosis
* 98.8% Max Efficiency
* Local WiFi configuration
* MPPT voltage range: 200V-1000V
* Rated AC Output Power: 15000W
* Max. AC Apparent Power: 16600VA@220VAC
* Nominal AC Voltage range: 127V/220V (101.6-139.7V)
* AC Grid Frequency range: 50/60 Hz
* 5 Years warranty
* Smart Diagnosis
* 98.8% Max Efficiency
* Local WiFi configuration
* MPPT voltage range: 200V-1000V
* Rated AC Output Power: 15000W
* Max. AC Apparent Power: 16600VA@220VAC
* Nominal AC Voltage range: 127V/220V (101.6-139.7V)
* AC Grid Frequency range: 50/60 Hz
* 5 Years warranty
Specification
Datasheet | 50KTL3-X MV | 60KTL3-X MV | 66KTL3-X MV | 70KTL3-X MV | ||||
Input Data (DC) | ||||||||
Max. recommended PV power (for module STC) | 75000W | 90000W | 99000W | 10500W | ||||
Max. DC voltage | 1100V | |||||||
Start voltage | 250V | |||||||
Nominal voltage | 700V | |||||||
MPPT voltage range | 200V-1000V | |||||||
No. of MPP trackers | 3 | |||||||
No. of PV strings per MPP tracker | 4/3/3 | 4/4/4 | 4/4/4 | 4/4/4 | ||||
Max. input current per MPP tracker | 50A/37.5A/37.5A | 50A/50A/50A | 50A/50A/50A | 50A/50A/50A | ||||
Max. short-circuit current per MPP tracker | 55A | |||||||
Output data(AC) | ||||||||
AC nominal power | 50000W | 60000W | 66000W | 70000W | ||||
Max. AC apparent power | 55500VA | 66600VA | 73300VA | 77700VA | ||||
Nominal AC voltage(range*) | 277V/480V (425-540V) | |||||||
AC grid frequency(range*) | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||
Max. output current | 66.9A | 80.2A | 88.2A | 93.6A | ||||

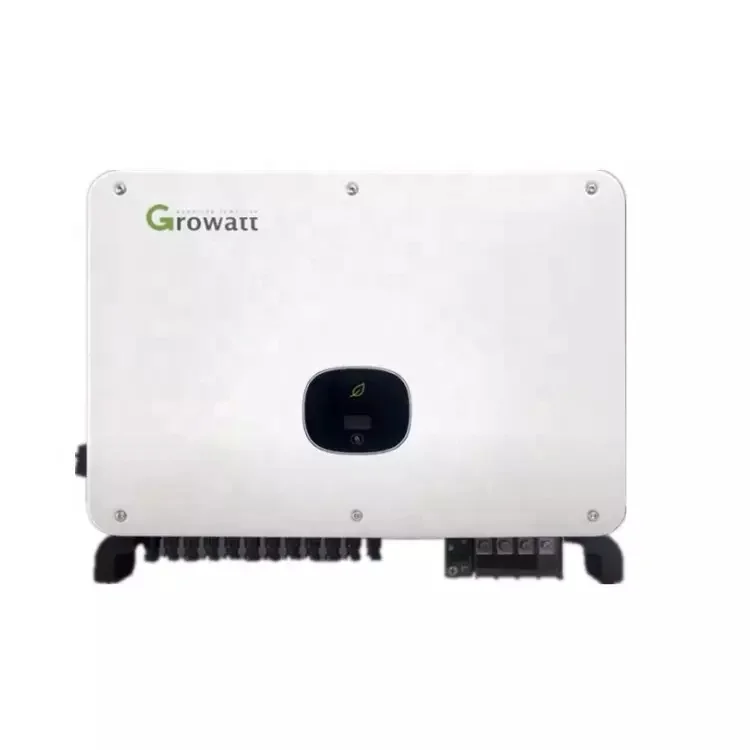

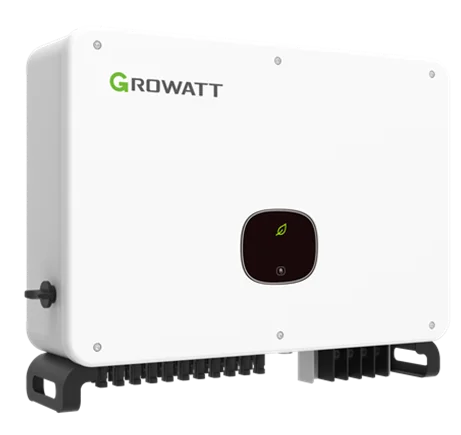

Details Images

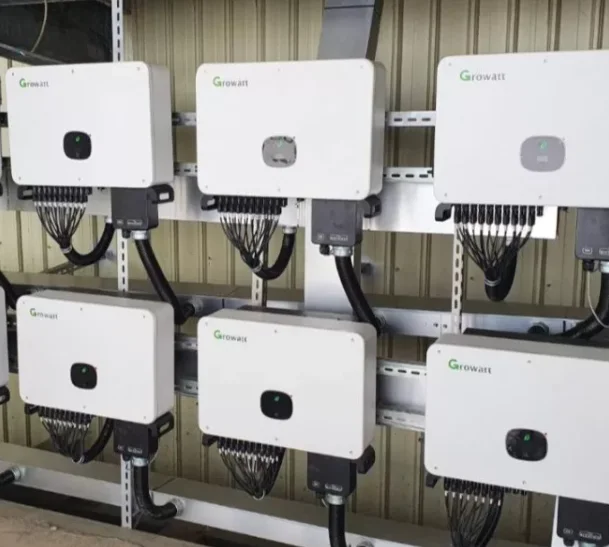

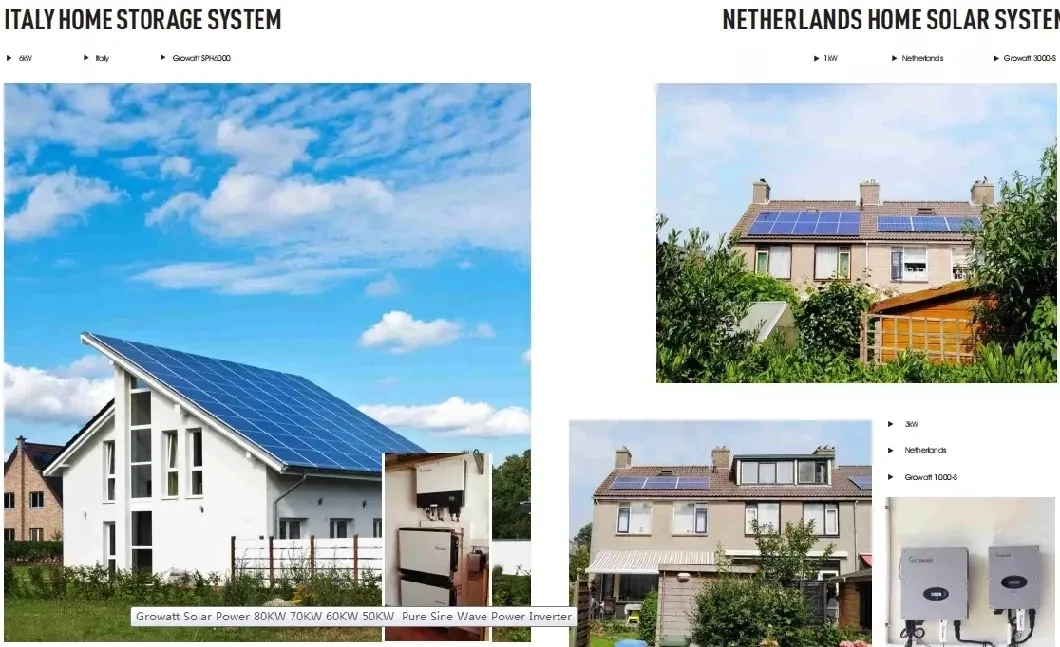

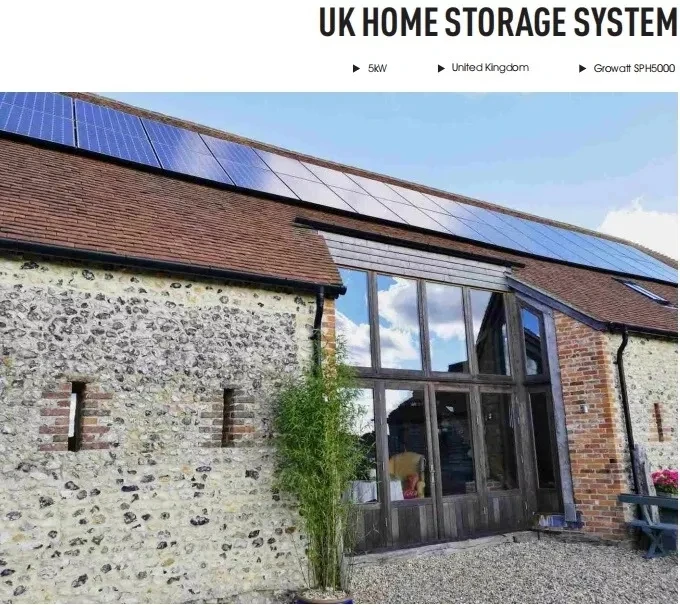

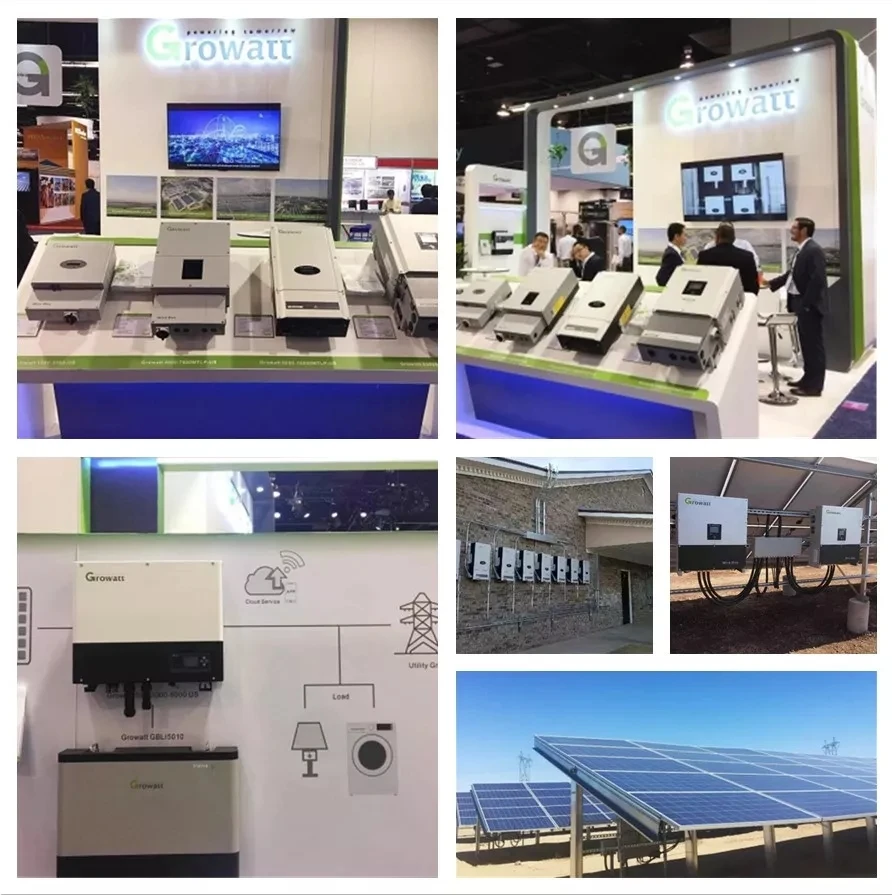

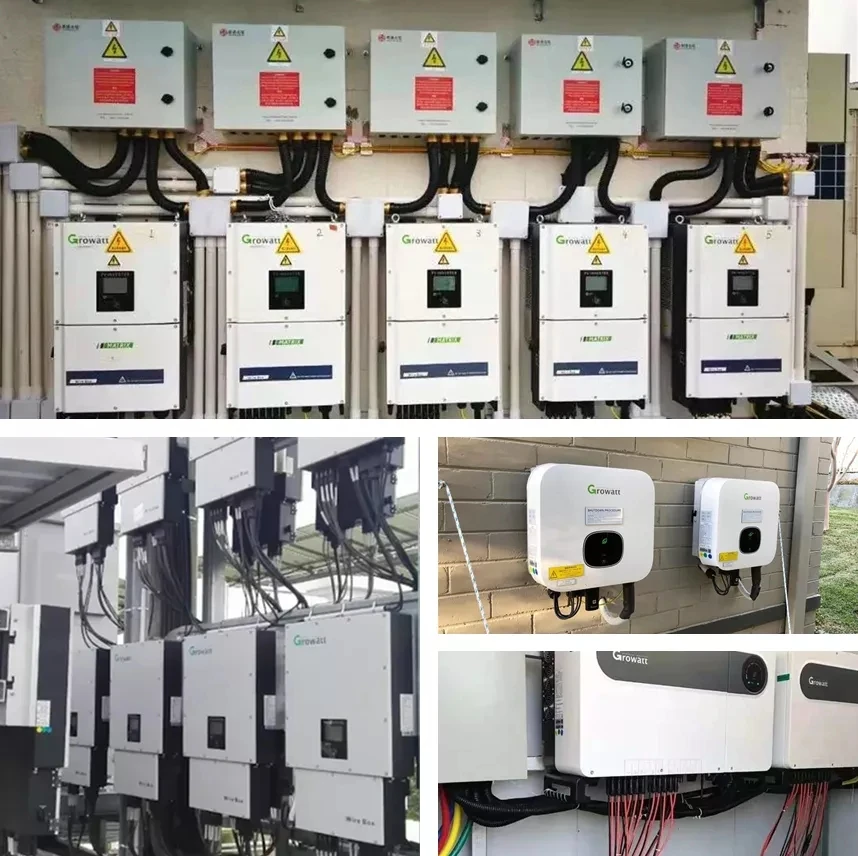

Our Projects

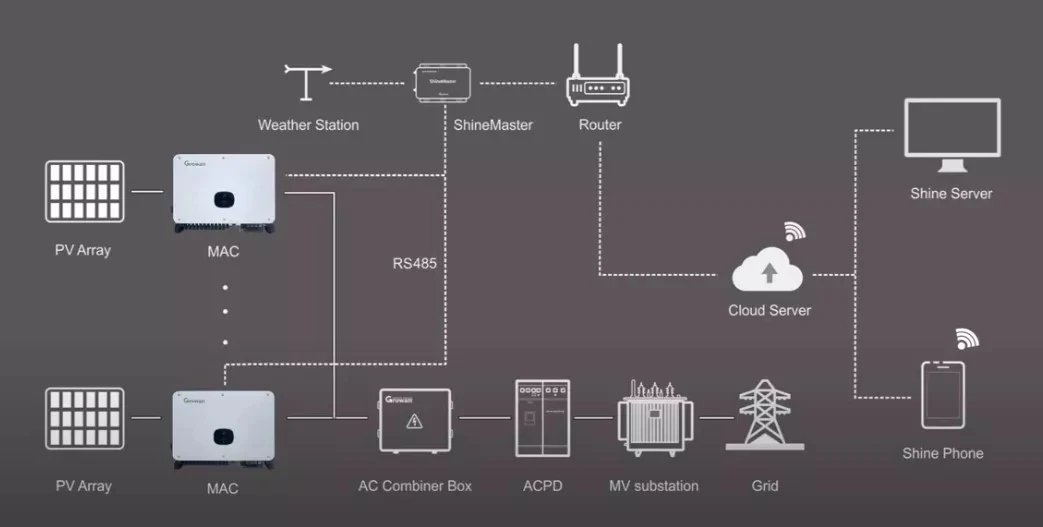

Application Scenarios

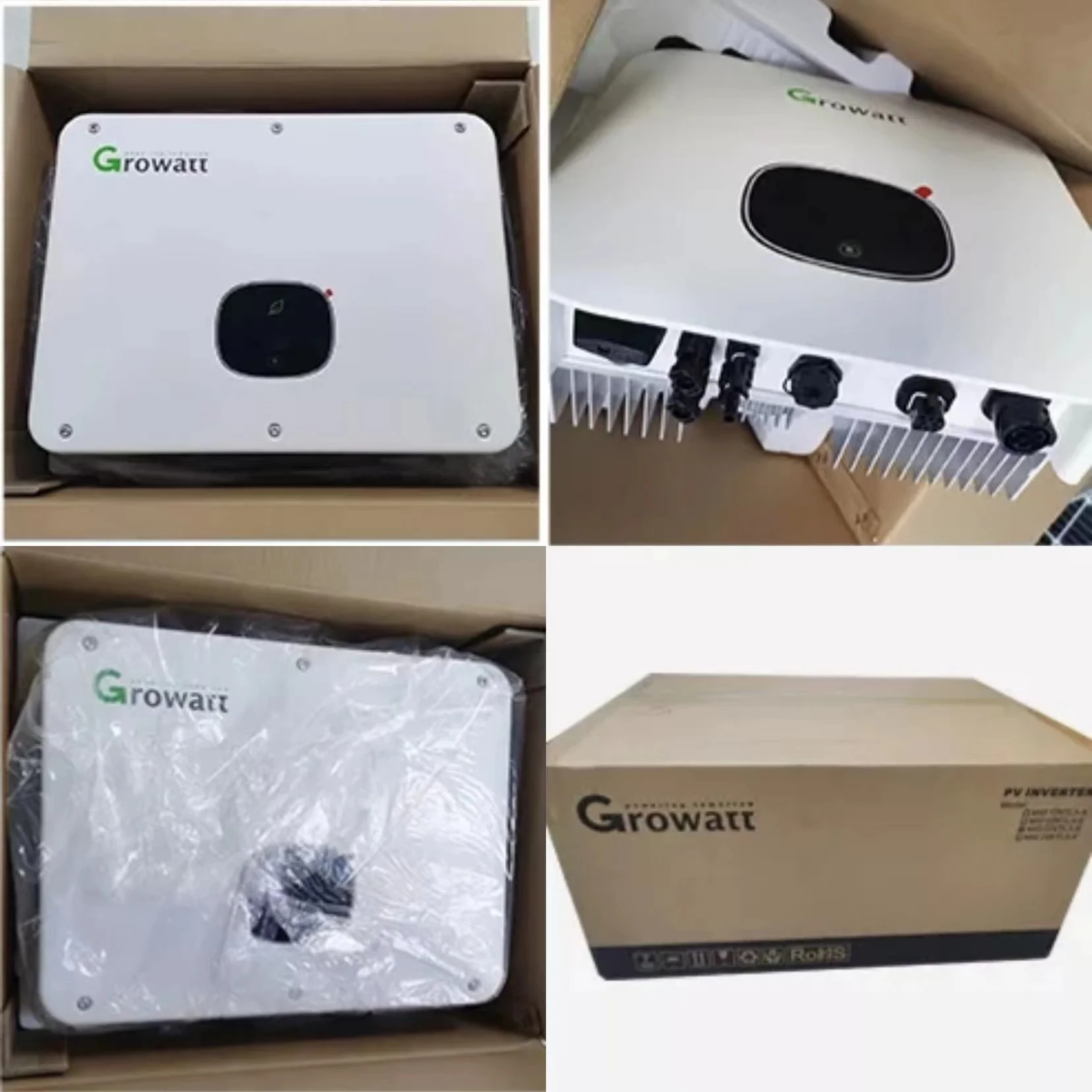

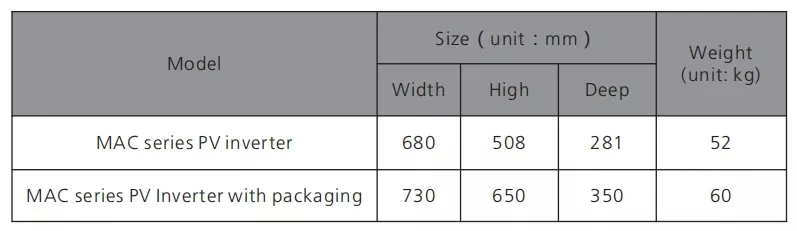

Packing & Delivery
Delivery & Payment Terms
Payment Terms | T/T | EXW | 30%T/T in advance,paid the balance before shipment | ||||
FOB | |||||||
CFR(C&F) | 30%T/T in advance,paid the balance against copy of B/L | ||||||
CIF | |||||||
L/C | Optional L/C amount above 50,000usd, we can accept L/C at sight | ||||||
West Union | Optional for amount less than 5000usd | ||||||
paypal | |||||||
Delivery Time | 7~10 days after receiving payment for one container | ||||||
