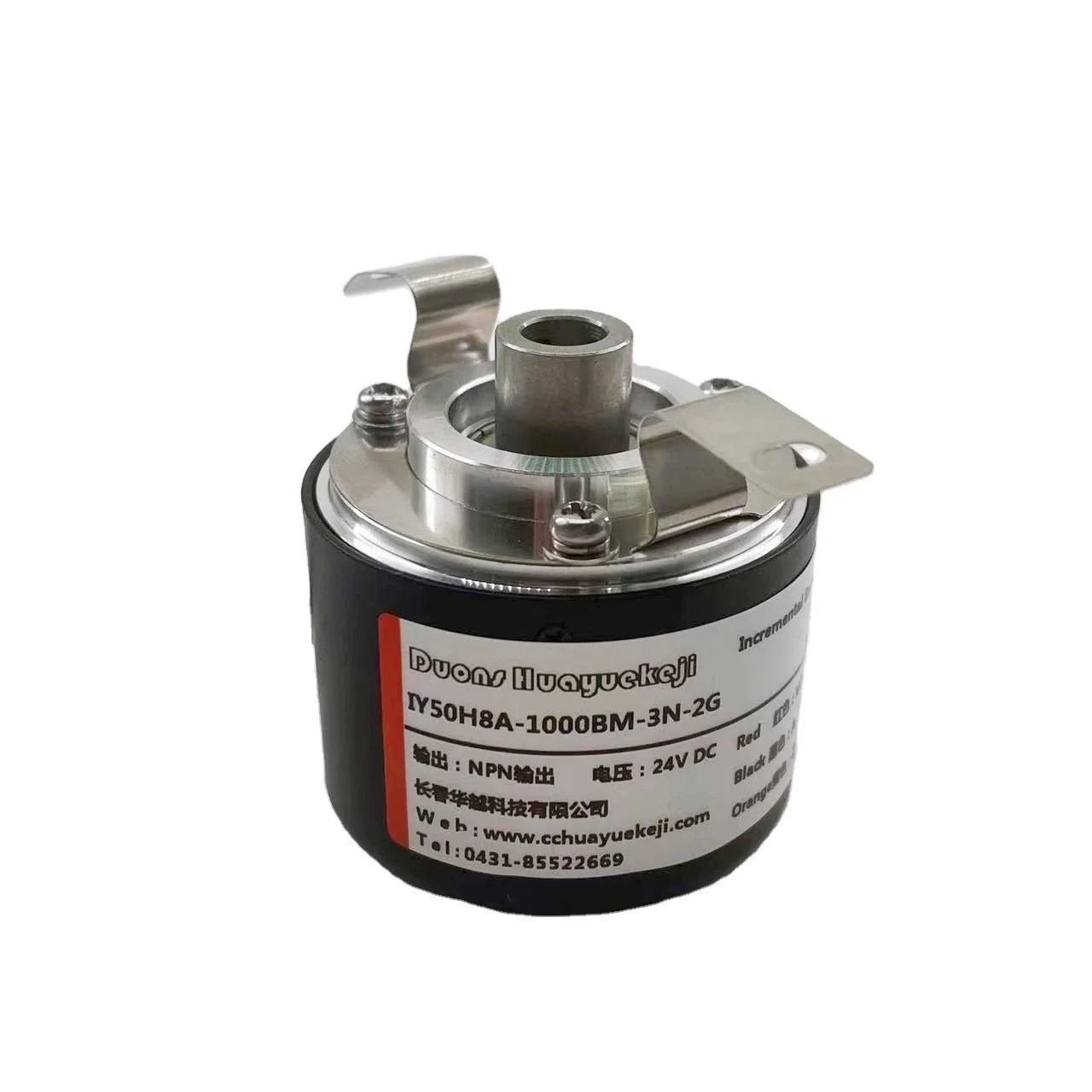

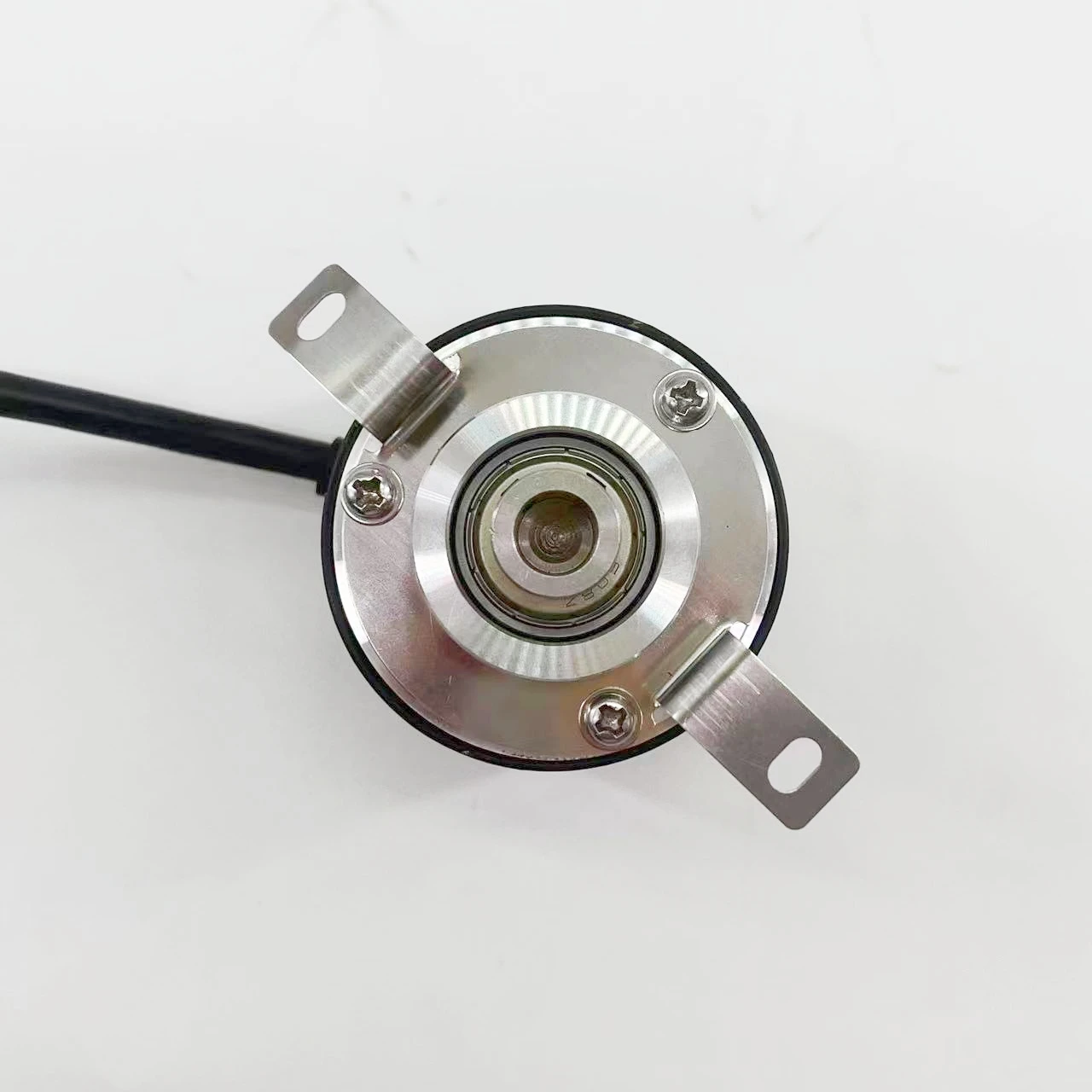

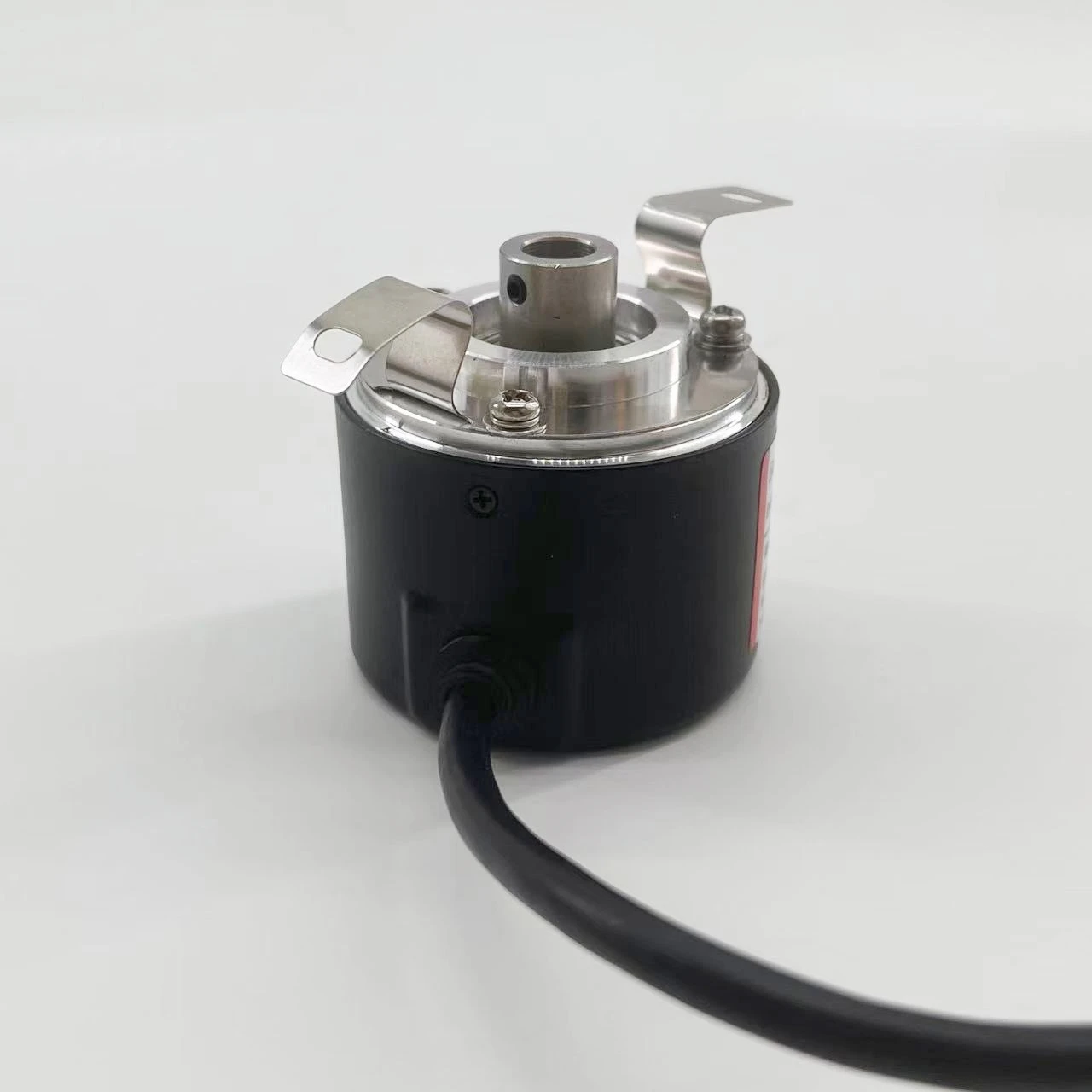

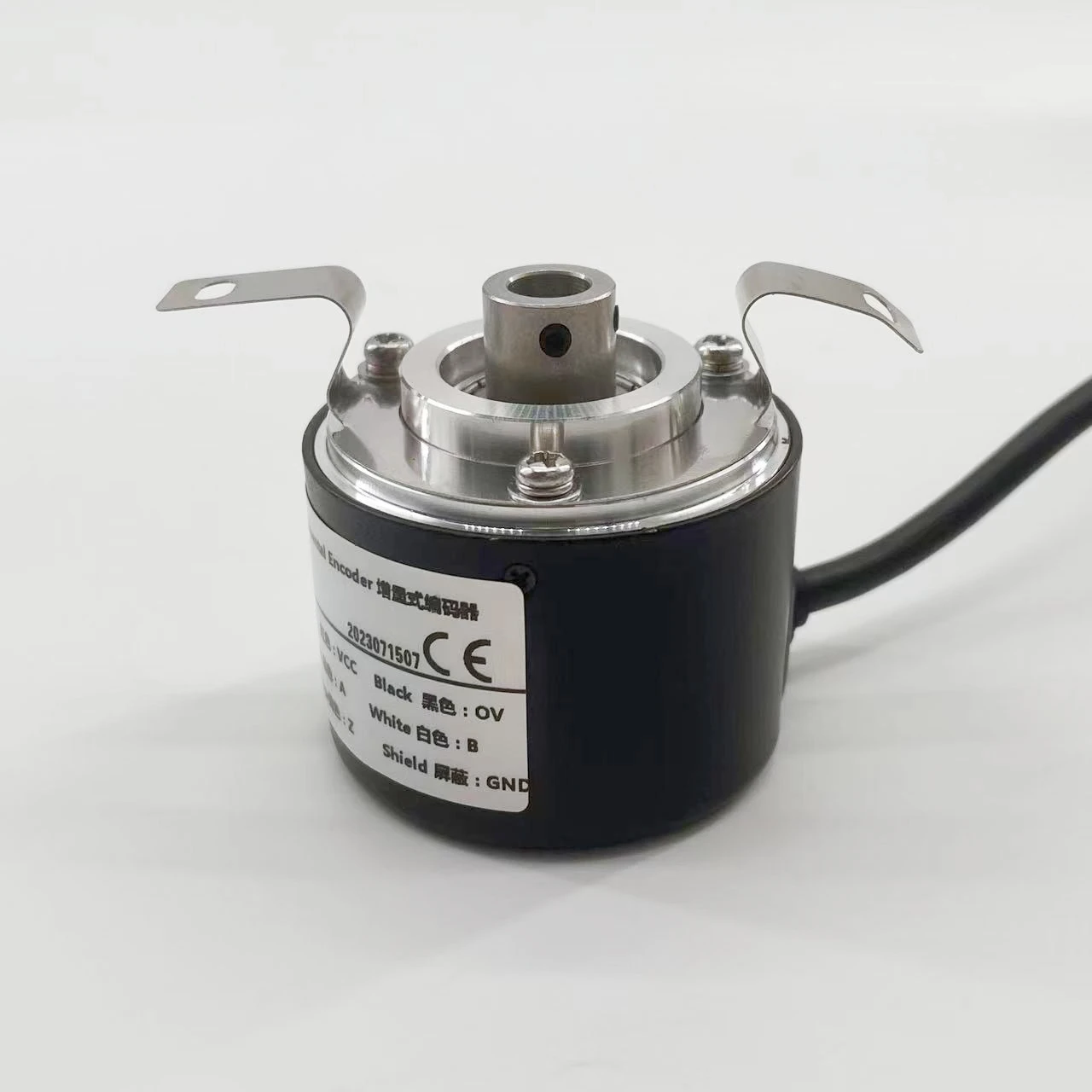

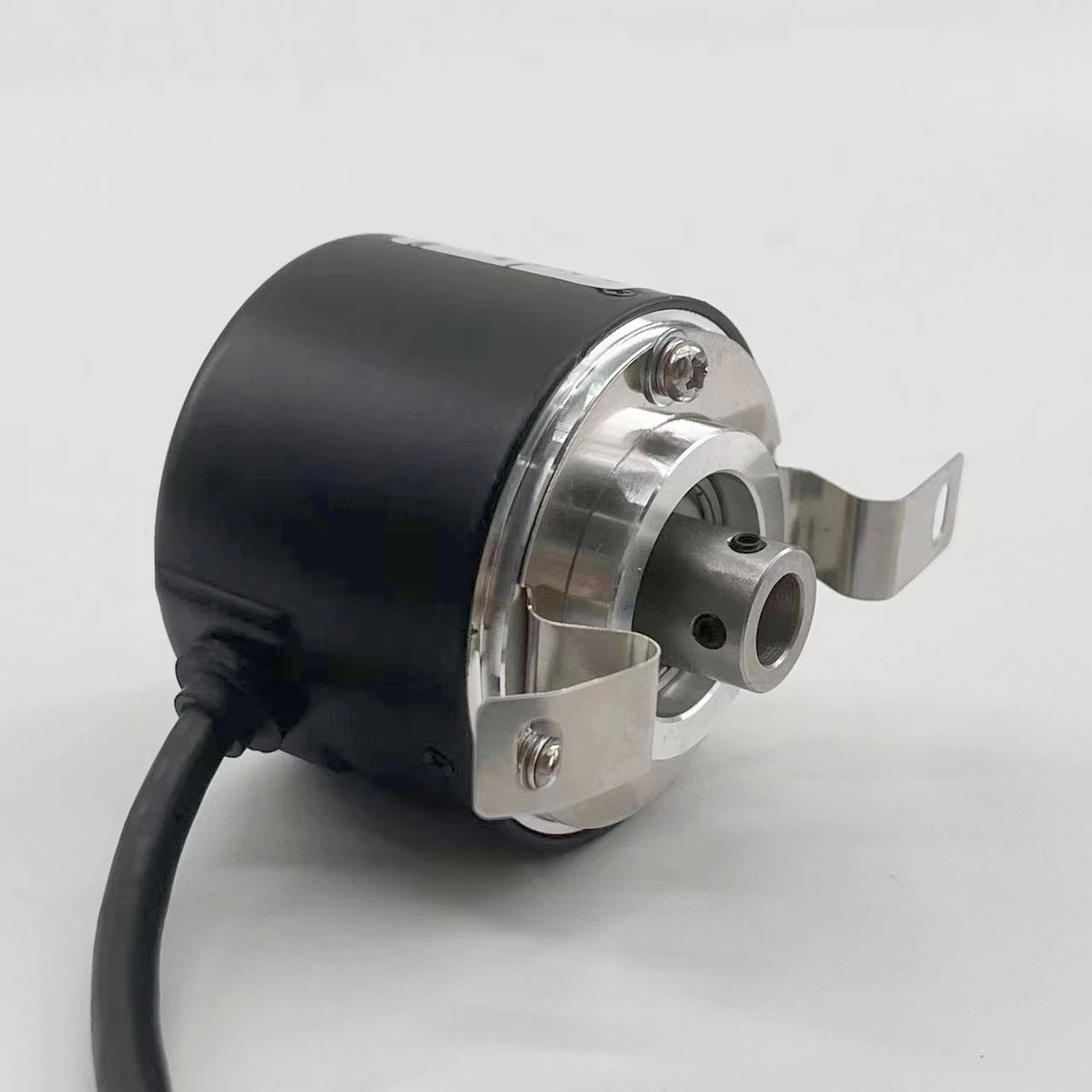

Push Pull Output Completely Replaces The Japanese Koyo TRD NH Encoder Rotary
- Category: >>>
- Supplier: Changchun Huayue Technology Co. Ltd.
Share on (1600898472828):
Product Overview
Description
Model Description IY50H8A- 1000BM - 3 T - 2 G (B) | Optical Linear Encoder | |
1000BM Number of pulses (resolution) | 10BM,20BM,50BM,60BM,100BM,200BM,360BM,400BM, 500BM,600BM,800BM,1000BM,1024BM,1200BM,2000BM, 2048BM,2500BM,3000BM,3600BM,4096BM | |
T Output | T: push-pull/complementary output L: drive output A: wide voltagedrive output | |
2 Cable length | 2: 2 meter cable (standard), other lengths available | |
G cable outlet direction | G: Cable radial side exit E: Cable axial rear exit | |
B protection level | B：IP54（Default None） A：IP65 | |
Products Description
Type | ROTARY ENCODER |
Place of Origin | China Jilin |

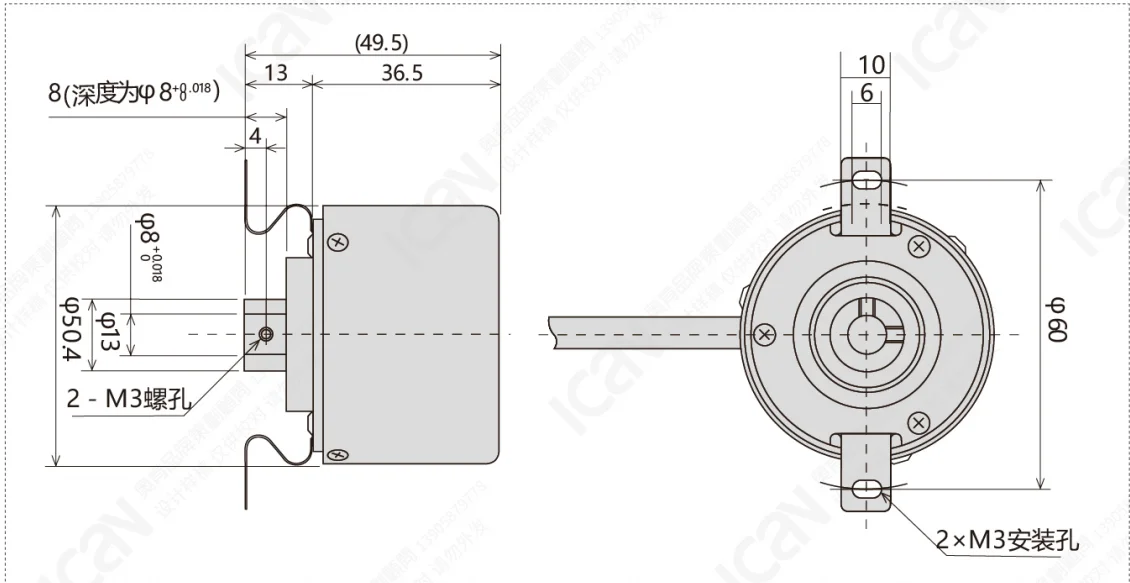

Shaft diameter | Outside diameter 50mm；Bore diameter 8 mm |
Mains Voltage | Push-pull output：10.8V-26.4V 5V/24V Voltage output：5V OR 24V |
Output | T: push-pull/complementary output L: drive output A: wide voltagedrive output |
Products Description | Incremental semi-hollow shaft encoder |
Product shape | Diameter 50mm |
use | Automation, semi-automation applications, for measuring displacement, Angle, speed and other functions are optional. |
Recommend Products
Company Profile
Certifications
Exhibtion
Product packaging
FAQ
Q1:How to order our product ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
