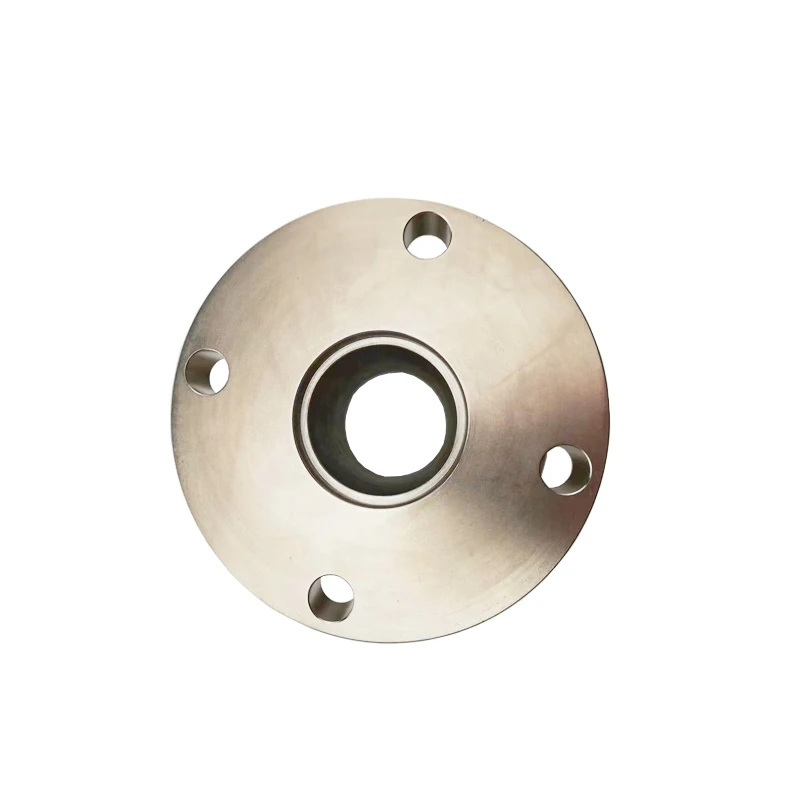

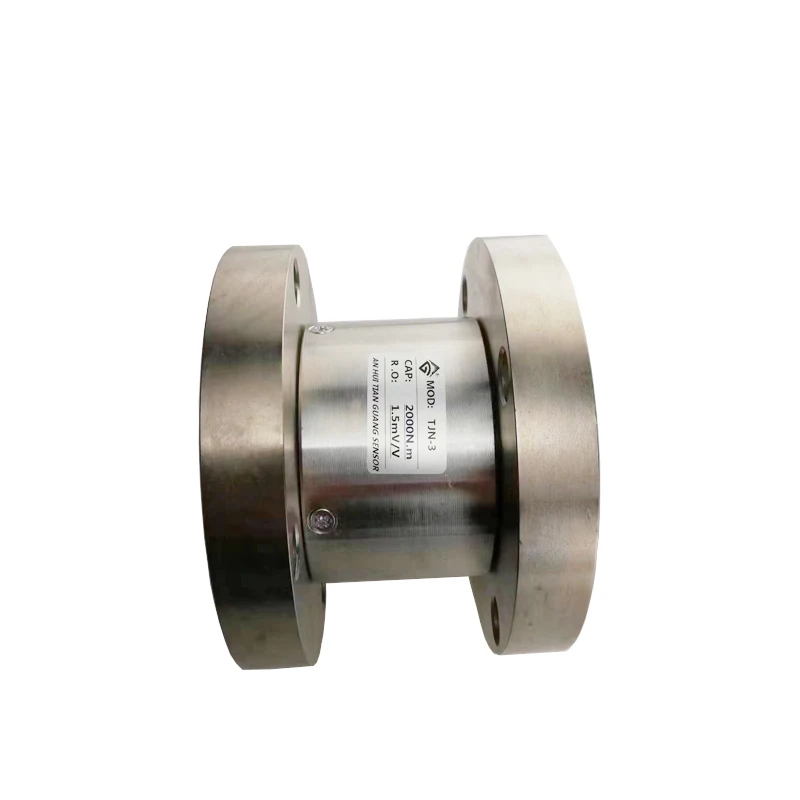

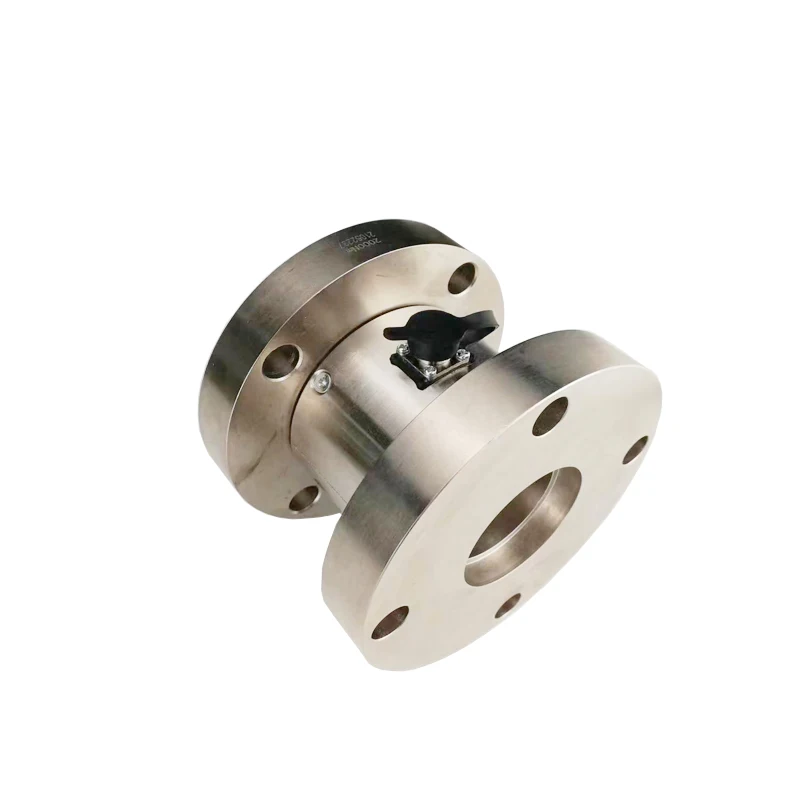

TJN 3 High Quality Load Cell Flange Style Reaction Torque Transducer 100Nm 10KNm
- Category: >>>
- Supplier: Anhui Tianguang Sensor Co. Ltd.
Share on (1600898484885):
Product Overview
Description
Product Description
Product Name | Torque Sensor |
Accuracy | 0.1-0.5%FS |
Sensitivity | 1.0-2.0mV/V |
Relative creep over 30 min | ±0.05%FS |
Temp. influence on zero | ±0.05%FS/10℃ |
Temp. influence on out put | ±0.05%FS/10℃ |
Zero output | ±2.0%FS |
Input resistance | 380±10Ω or 750±15Ω |
Output resistance | 350± 3Ω or 700±5Ω |
Insulation resistance | >5000 MΩ |
Operating temperature range | -20~+65℃ |
Reference temperature | 23℃ |
Bridge voltage | advise 10V DC |
Limit force | 120%FS |
Material | Alloy Steel |

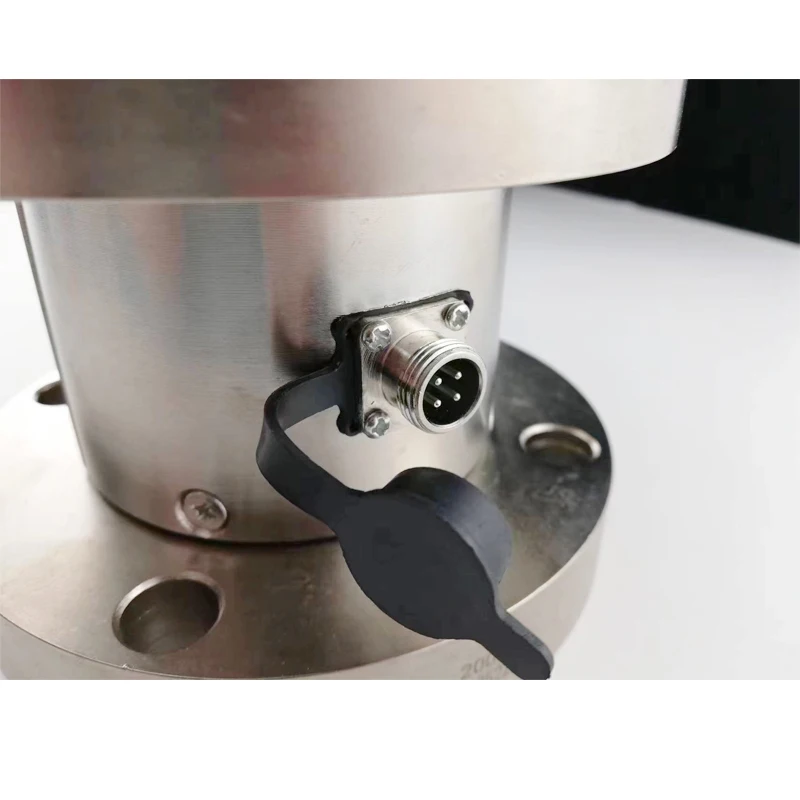

Mode of connection | Input+ : Red, Input- : Black, Output+ : Green, Output- : White |
1. Rated Force Range: 1000Nm,1500Nm,2000Nm,3000Nm,5000Nm
2. Cable length: 3-6m
3. OEM: Acceptable
4. Certification:CE/ ISO9001
5.Packing: See the details
2. Cable length: 3-6m
3. OEM: Acceptable
4. Certification:CE/ ISO9001
5.Packing: See the details
