Hot sale drum type wood chipper engine shredder diesel chipper wood china
- Category: >>>
- Supplier: Henan Zhangsheng Environmental Protection Equipment Co. Ltd.
Share on (1600898489014):
Product Overview
Description

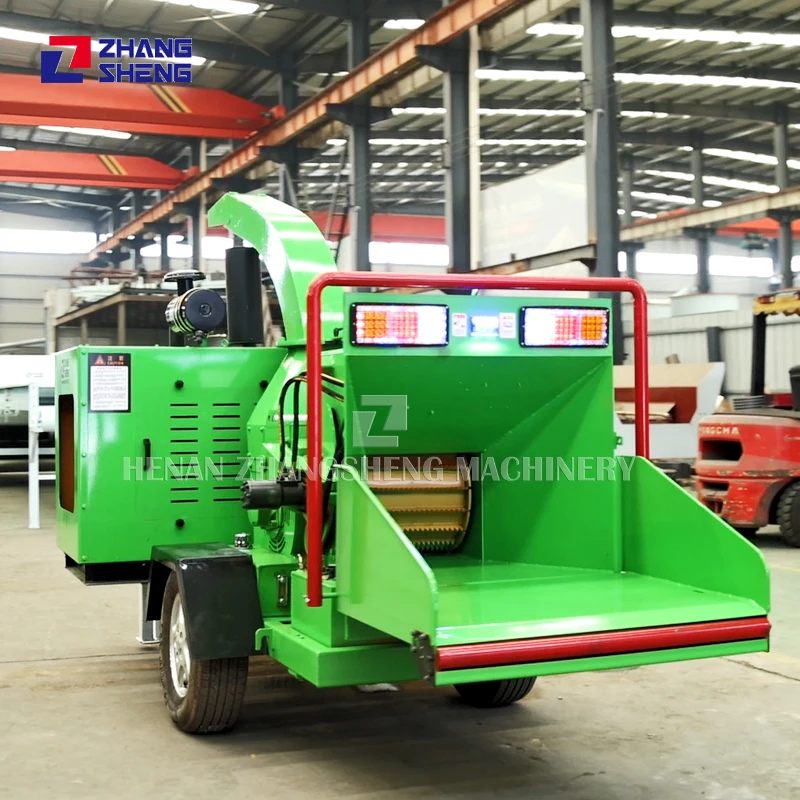

As our best-selling machine,The Model 1050/1063 Chipper features large diameter drum rotors that can directly chip wood over 12 inches.The hydraulic feeding system reduces the return of materials, safely and effectively increases the feeding speed, and the output can reach 5000kg/hour; 360 degree rotating outlet,The wood chips unloading spray distance is more than 3 meters, and it is directly loaded into the truck;With a 3-inch trailer and all-steel car tires, a small car can easily drag a 4000kg wood chipper for mobile operations.
Chopped wood chips are 5-25mm in size
and can be used to make organic fertilizers and mulch
Items | 800 | 1050 | 1063 | 1263 | 1585 | 1585X | |||||
Max. wood log diameter | 150mm | 250mm | 300mm | 350mm | 430mm | 480mm | |||||
Engine type | Diesel engine/Motor | ||||||||||
Engine Power | 54HP 4 cyl. | 102HP 4 cyl. | 122HP 4 cyl. | 184HP 6 cyl. | 235HP 6 cyl. | 336HP 6 cyl. | |||||
Cutting Drum Size （mm） | Φ350*320 | Φ480*500 | Φ630*600 | Φ850*700 | |||||||
Blades qty. on cutting drum | 4pcs | 6pcs | 9pcs | ||||||||

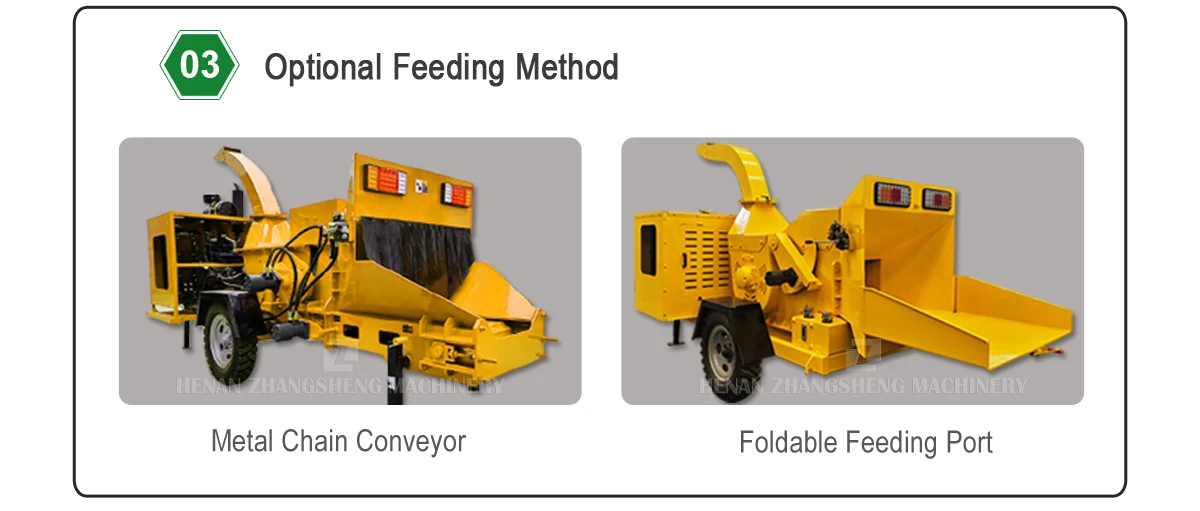

Feeding Type | Manual feed | Metal conveyor | |||||||||
Shipping way | 5.8 cbm by LCL | 9.7 cbm by LCL | 10.4 cbm by LCL | 11.5 cbm by LCL | 20ft container | ||||||
Packing way | plywood case | Heavy Plywood case+steel frame | no | ||||||||

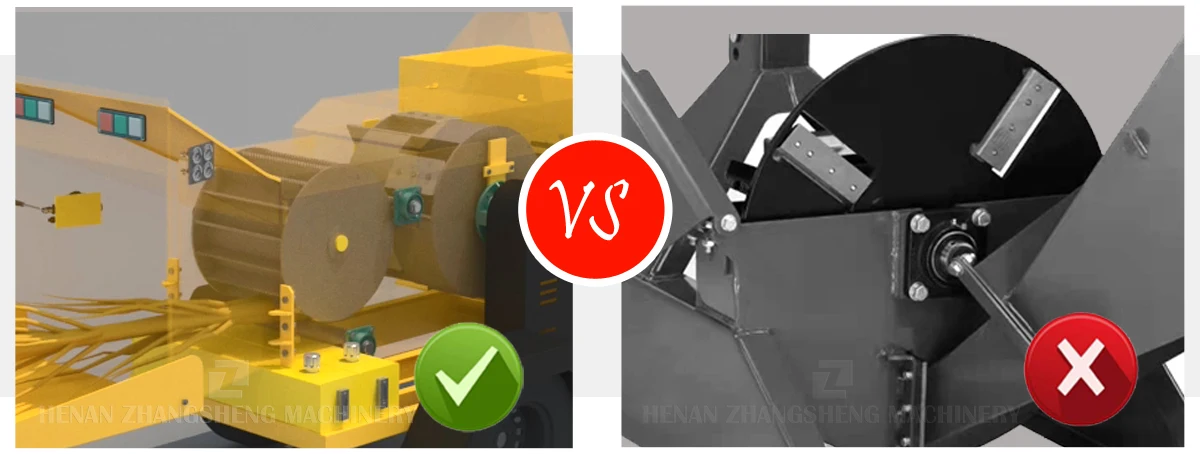

Why choose wood drum chippers?
Drum Chippers
The working principle is the same as that of the horizontal grinder, and the processing capacity is large. Used in conjunction with hydraulic feed rollers, it can easily cut 11" logs with a throughput of 5000 kg/hr.
Disc Chippers
Disc chippers are mainly used for cutting small branches up to 3 inches. Since there is no hydraulic feed, the density of the cut
material is low, so the output is smaller.
material is low, so the output is smaller.

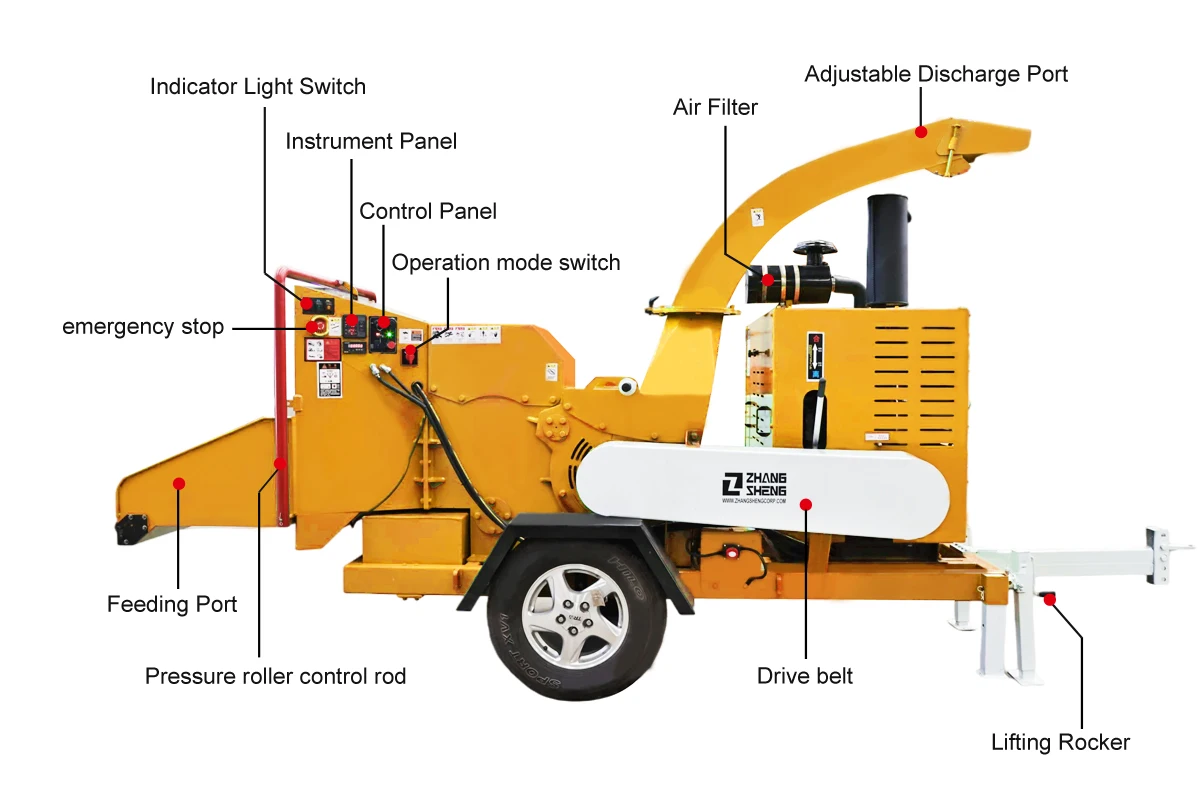

Details determine product quality
Automatically monitor the work load of crushing mechanisms. When the load exceeds the alarm value, automatically reduce the feeding speed or stop feeding to avoid the stuck.

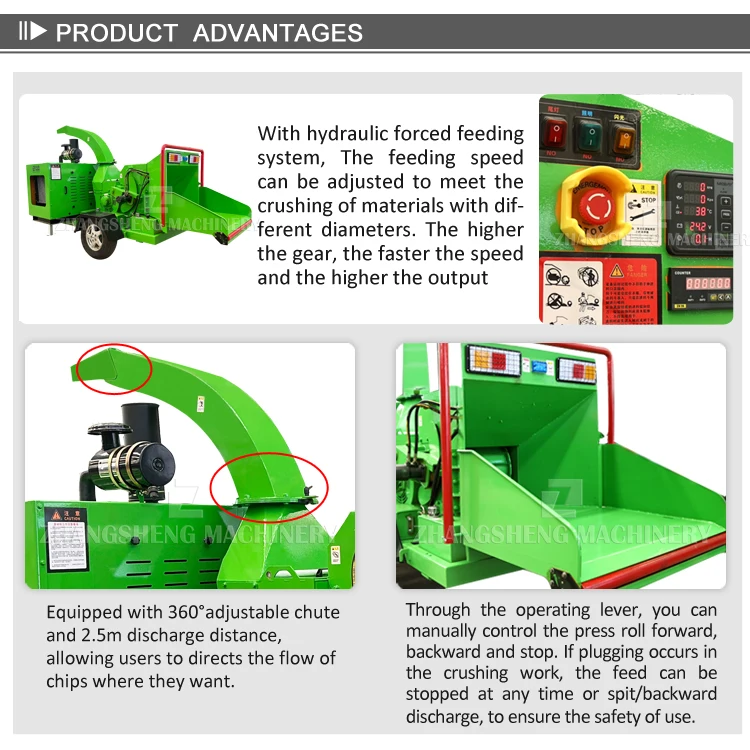

With hydraulic forced feeding system, The feeding speed can be adjusted to meet the crushing of materials with different diameters. The higher the gear, the faster the speed and the higher the output
Through the operating lever, you can manually control the press roll forward, backward and stop. If plugging occurs in the crushing work, the feed can be stopped at any time or spit/backward discharge, to ensure the safety of use

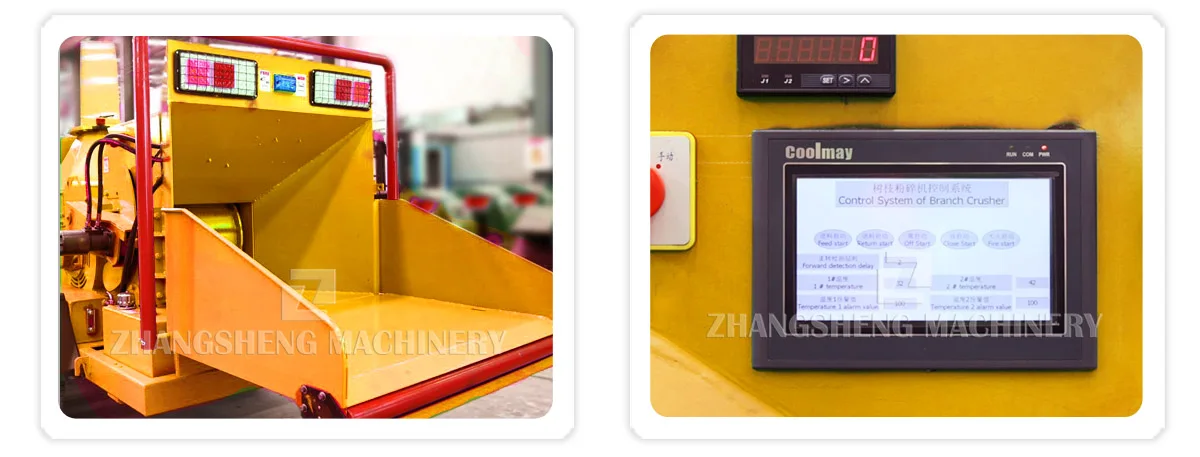

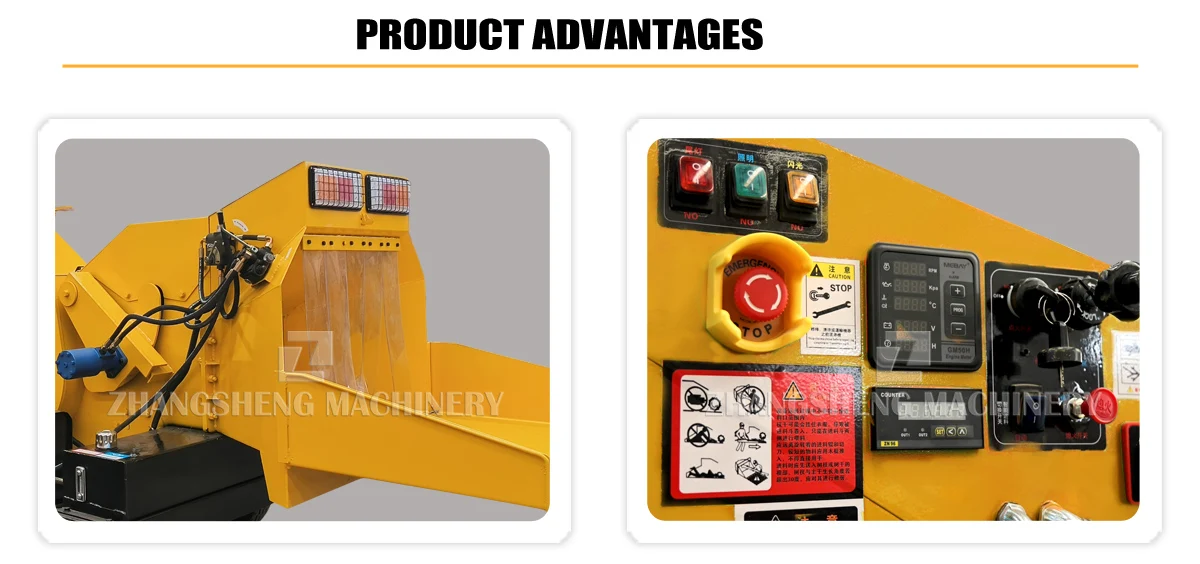

The intelligent operation panel displays the operating conditions of the whole machine (oil volume, water temperature, working hours, etc.) in time to find abnormalities and reduce maintenance. Reliable and convenient starting at the turn of a key.

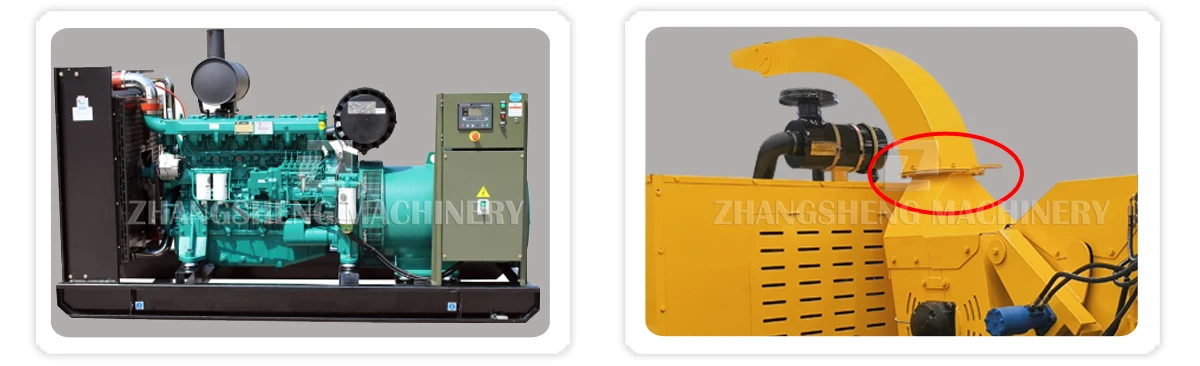

Equip good Chinese local brand 102 HP, 4 cyl. diesel engine. We also support Cummins & Perkins brand diesel engine. EPA Tier 3 or tier 4 also available.
Equipped with 360°adjustable chute and 2.5m discharge distance, allowing users to directs the flow of chips where they want.
We are the original factory and support customized orders. The general options are as follows.
Product packaging
To prevent the goods from being damaged during transportation, we pack them carefully.
The structural steel frame in the wooden box can effectively prevent heavy objects from damaging the machine. In order to protect the machine from being damaged in the marine humid environment, the main parts of the machine are wrapped with film to ensure the safety of electrical parts.
Our Service
Installation instructions and maintenance instruction videos help the wood chipper easily start the service after you receiving it. We also provide 2 years of quality assurance and maintenance services.

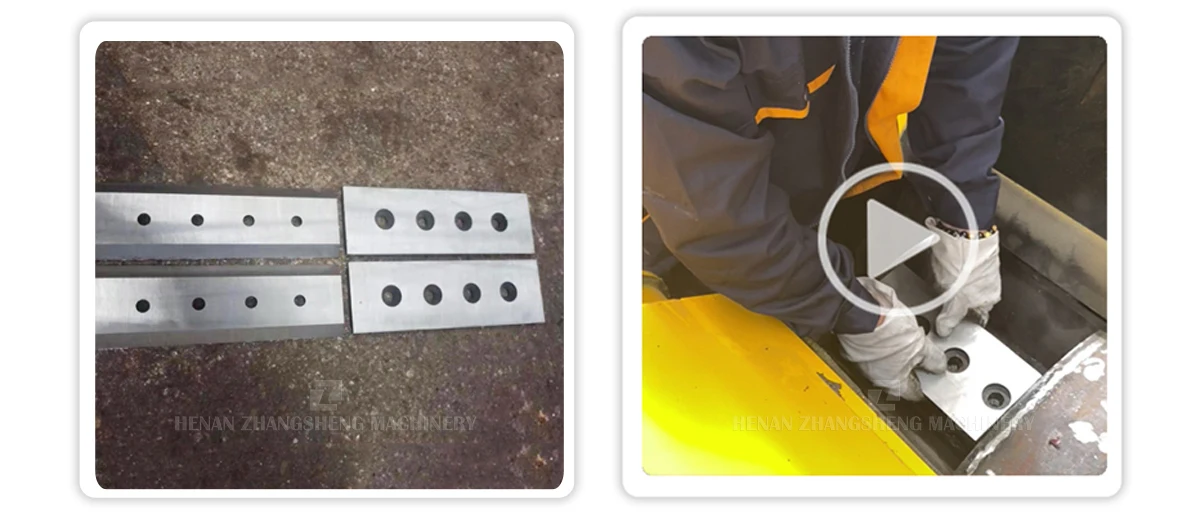

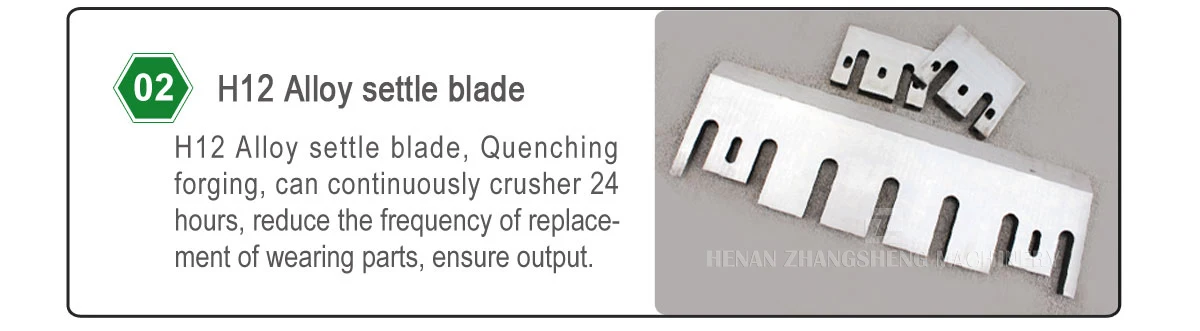

We give away a set of extra blades and ship along with the wood chipper to ensure the long-term servering. When the blades wear out, they need to be replaced. Please contact us in time, we will arrange the shipment as soon as possible. All customers who have purchased our equipment will enjoy the agency price when they purchase accessories and wear parts.
Company Certificate
Established in 2005,Henan Zhangsheng Environmental ProtectionEquipment Company is headquartered in Zhengzhou City,Henan Province.The company is in the list of the "Honesty Enterprise in HenanProvince",and obtained both ISO and CE
certification.The productshave been widely exported to more than 60 countries and get a lot of praise from customers.Our main product is wood recycling equipment.including tree branch shredders, wood crushers, universal shredders, wood shaving machine, large comprehensive crushers, etc.
certification.The productshave been widely exported to more than 60 countries and get a lot of praise from customers.Our main product is wood recycling equipment.including tree branch shredders, wood crushers, universal shredders, wood shaving machine, large comprehensive crushers, etc.
FAQ
Q1:What payment methods do you accept?
We support various payment methods, we can accept 20% or 30% as deposit. lf it is a returnorder, we can receive 100% payment by copy B/L.payment methodflexibly.
Q3:What if the machine is damaged?
One-year warranty and comprehensive after-sales service.After this period, we will charge alower fee to maintain after-sales service.
Q4:Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 60 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. Moreover, sales have increased for three consecutive years. The product quality and new product research and development capabilities of Zhangsheng Machinery are worthy of your trust. And the perfect TUV-CE certificate and reliable pre-sales and after-sales service are what we have been working hard to do.
We support various payment methods, we can accept 20% or 30% as deposit. lf it is a returnorder, we can receive 100% payment by copy B/L.payment methodflexibly.
Q2:How long is your delivery time?
We have more than 1500 square meters of spot inventory workshop, and it usually takes 5-10days for goods with sufficient inventory. lf you need to customize the equipment, it takes 20-30days. We will do our best to deliver as soon as possible.
We have more than 1500 square meters of spot inventory workshop, and it usually takes 5-10days for goods with sufficient inventory. lf you need to customize the equipment, it takes 20-30days. We will do our best to deliver as soon as possible.
Q3:What if the machine is damaged?
One-year warranty and comprehensive after-sales service.After this period, we will charge alower fee to maintain after-sales service.
Q4:Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 60 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. Moreover, sales have increased for three consecutive years. The product quality and new product research and development capabilities of Zhangsheng Machinery are worthy of your trust. And the perfect TUV-CE certificate and reliable pre-sales and after-sales service are what we have been working hard to do.
