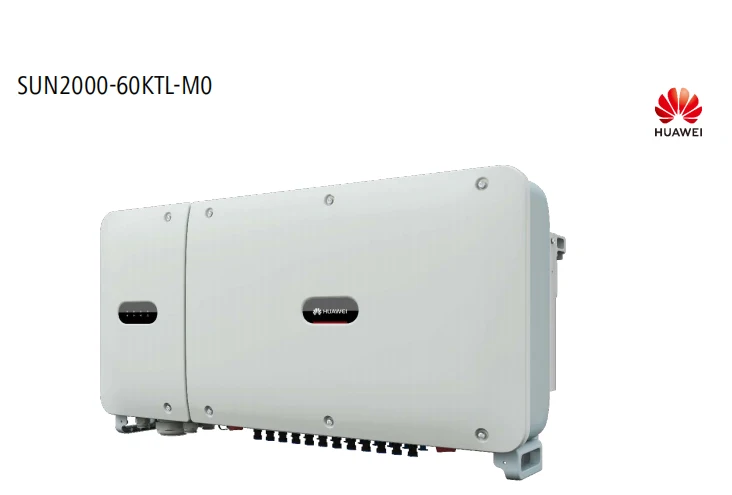

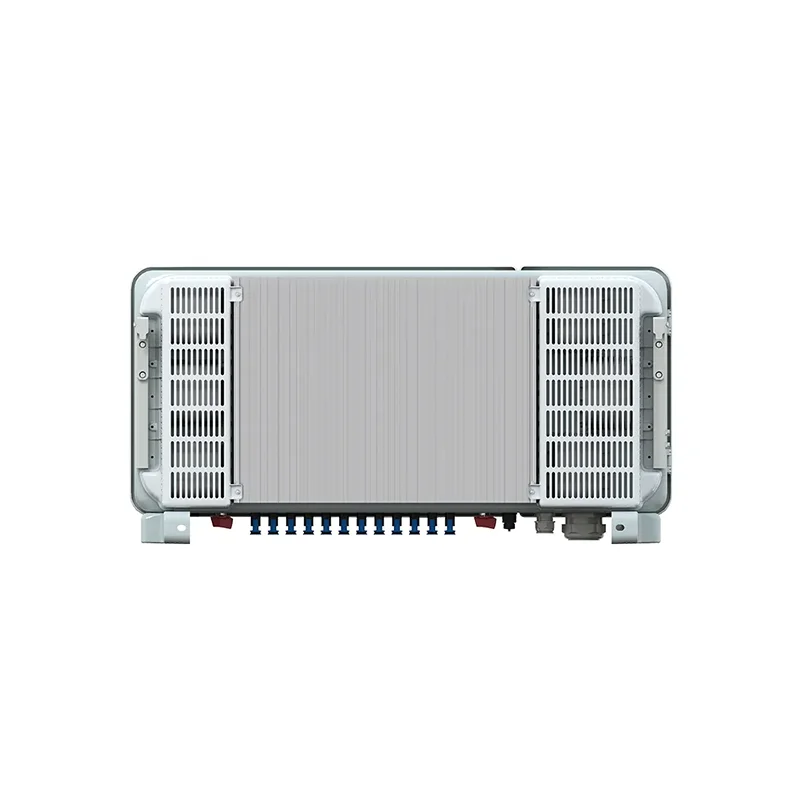

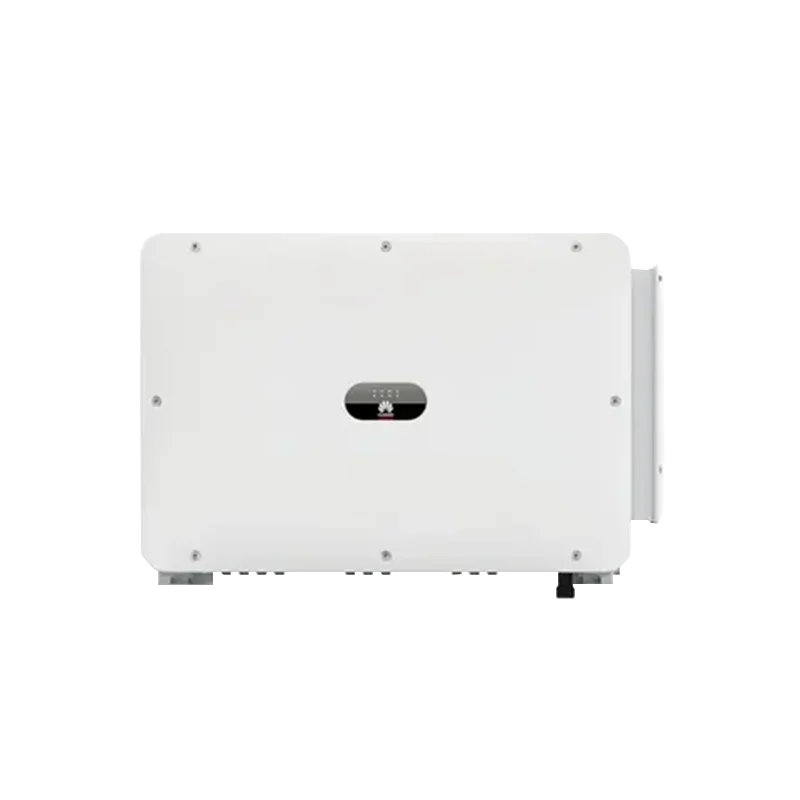

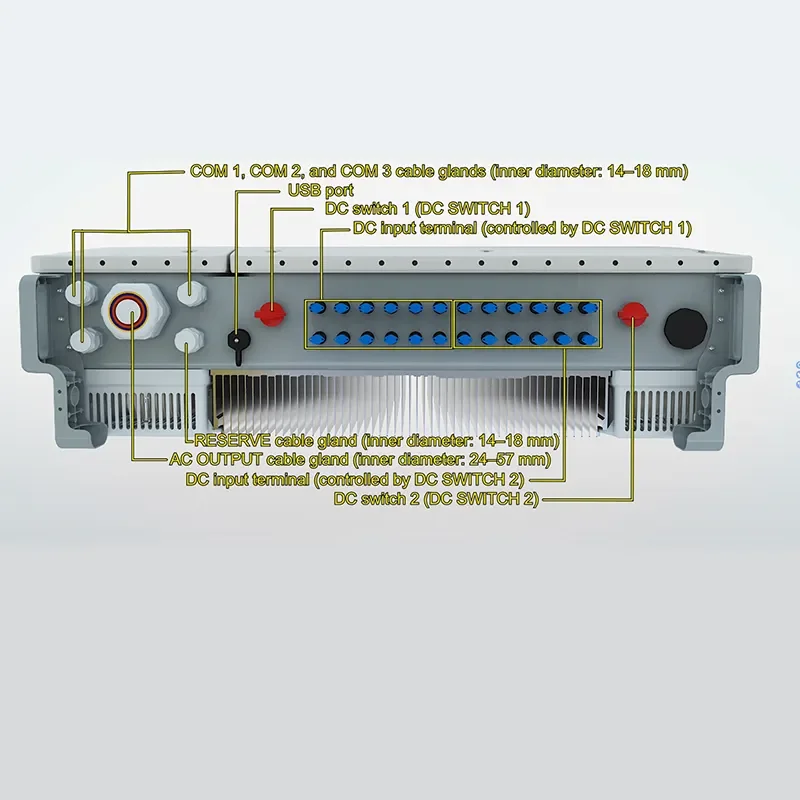

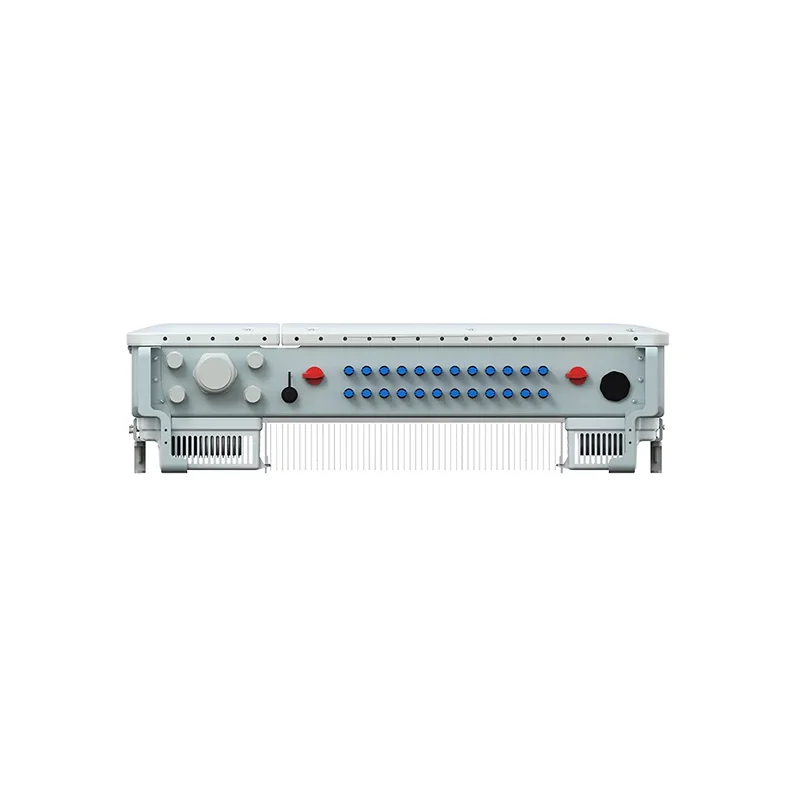

Huawei solar inverter on grid SUN2000 60KTL 60KW Three Phase 1MW project HUAWEI Inverter
- Category: >>>
- Supplier: Jiangsu Gaoyue New Energy Technology Group Co. Ltd.
Share on (1600898494073):
Product Overview
Description
grid tie inverter on grid 3 phase mppt solar inverter on grid huawei sun2000 60kw huawei power inverter
Product Paramenters
intelligent
12-channel high-precision intelligent string detection, reducing fault location time
Based on Dongle communication module,
wireless communication matches various complex application scenarios
wireless communication matches various complex application scenarios
Support intelligent IV diagnosis, power station panoramic
scanning, intelligent operation and maintenance
scanning, intelligent operation and maintenance
Efficient
The highest efficiency is 98.71%, and the efficiency in China is greater than 98.3%
6-channel MPPT, effectively reducing the
impact of string mismatch
impact of string mismatch
Safety
Support residual current monitoring
No fuse design to avoid fire hazards caused by DC side failure
Reliable
Natural heat dissipation, IP65 protection level
Built-in AC and DC lightning protection module, all-round lightning protection

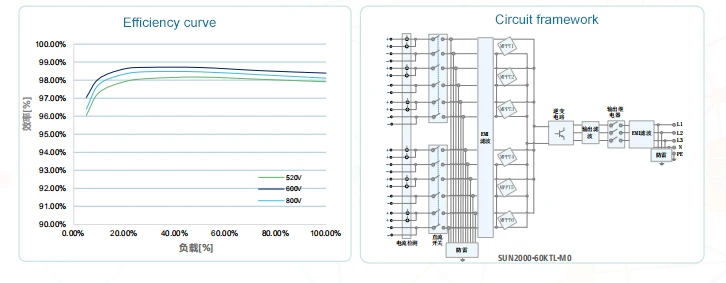

Efficiency | |
98.71Maximum efficiency | 98.71% |
The input | |
Maximum input voltage | 1100V |
Maximum input current per MPPT channel | 22A |
Maximum short circuit current per MPPT channel | 30A |
MPPT voltage range | 200V~1000V |
Rated input voltage | 600V |
Maximum input number | 12 |
Number of MPPT | 6 |
The output | |
Rated output | 60,000W |
Maximum apparent power | 66,000VA |
Maximum active power | 66,000W |
Rated output voltage | 220V/380V,230V/400V,3W+N+PE/3W+PE |
Output voltage frequency | 50HZ |
Rated output current | 91.2A |
Maximum output current | 100A |
Maximum total harmonic distortion | <3% |
Protection | |
Input DC switch | support |
Anti-islanding protection | support |
Output overcurrent protection | support |
Output reverse connection protection | support |
String fault detection | support |
DC surge protection | support |
AC surge protection | support |
Insulation resistance detection | support |
Residual current monitoring | support |
Display and communication | |
Display | support |
RS485 | support |
USB | support |
PLC | support |
Dongle | support |
Details Images

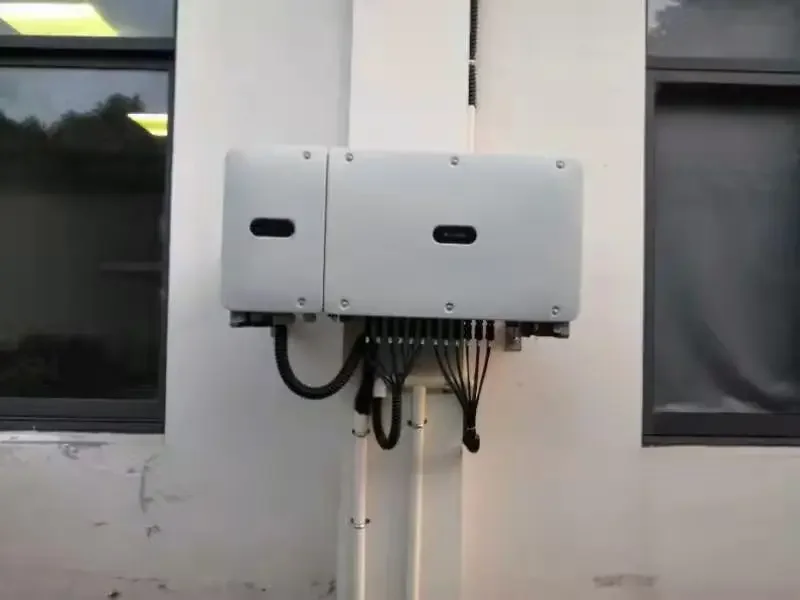

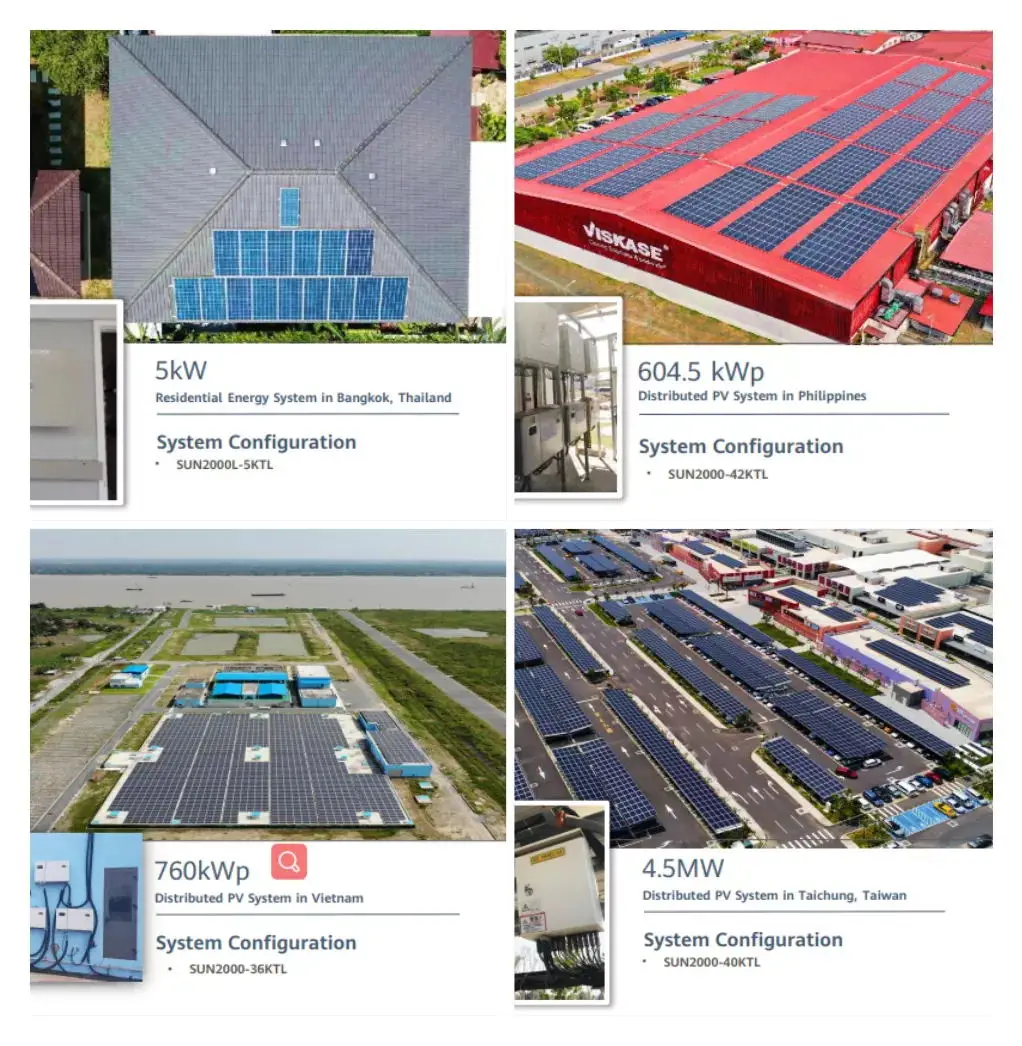

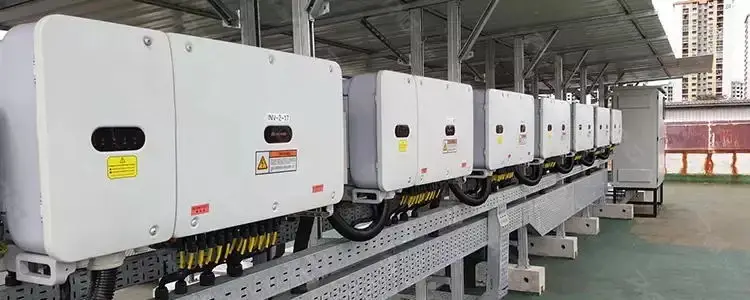

Product case

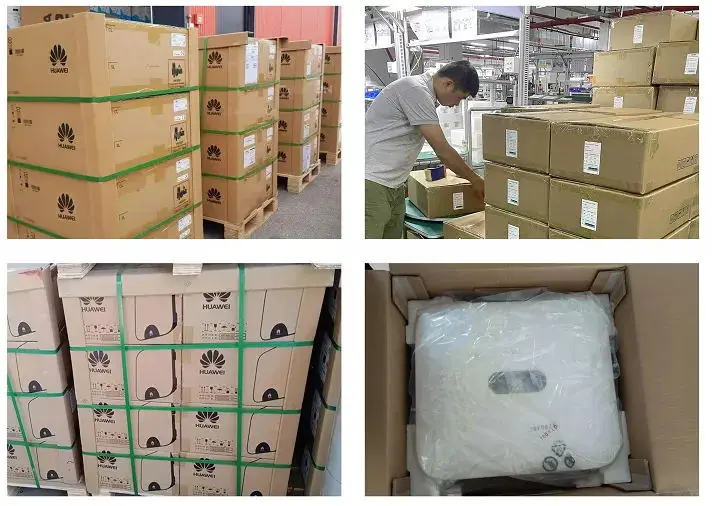

Packing & Delivery
Contact us
FAQ
Gaoyue group production of solar panels have passed CE, CQC, Rohs, FCC test certificate, made up of crystalline silicon solar cell components, and in the process of production according to the strict quality standard for a series of performance tests, the quality of security components can be in the normal work of all kinds of bad environment, guarantee the output power of the components in electric power generation. GOYOR is committed to providing customers with cost-effective photovoltaic products for a wide range of residential, commercial and public applications.
1. What advantages do we have?
The price is cheap, we have a certain price advantage in bulk purchase and factory purchase. The delivery time is short, the goods can be delivered within 15days upon receipt of the money.
Many brands, with a variety of brands, a variety of categories.
One-stop, you only need to face one of our suppliers, saving you a lot of energy and time.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience, Goyor Group continues to be part of the renewable energy transition by
helping you harvest clean energy at any given location in the world.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
1. What advantages do we have?
The price is cheap, we have a certain price advantage in bulk purchase and factory purchase. The delivery time is short, the goods can be delivered within 15days upon receipt of the money.
Many brands, with a variety of brands, a variety of categories.
One-stop, you only need to face one of our suppliers, saving you a lot of energy and time.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience, Goyor Group continues to be part of the renewable energy transition by
helping you harvest clean energy at any given location in the world.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
