Tank Vacuum Evaporator Jam Concentrator
- Category: >>>
- Supplier: Wenxiong Holding Group Co. Ltd.
Share on (1600898514659):
Product Overview
Description
Products Description
Usage & characteristic:
This machine is widely used in the traditional herb, western medicine, food, chemical field for the liquid products concentrator, the final concentrated material concentration can reach to 1.2
Structure:
This machine including the following unit: first effect heating tank, first effect evaporate tank, second effect heating tank, second effect evaporate tank, gas/water separater, condenser, sub-cooler, collection tank and pipeline
Machine operation mode:
Manual operation &automatic operation
This machine is widely used in the traditional herb, western medicine, food, chemical field for the liquid products concentrator, the final concentrated material concentration can reach to 1.2
Structure:
This machine including the following unit: first effect heating tank, first effect evaporate tank, second effect heating tank, second effect evaporate tank, gas/water separater, condenser, sub-cooler, collection tank and pipeline
Machine operation mode:
Manual operation &automatic operation
Data
Model | SX500 | SX1000 | SX1500 | SX2000 | SX3000 | ||||
Evaporate capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 | ||||
Steam consumption(kg/h) | 275 | 550 | 825 | 1100 | 1650 | ||||
Cooling water consumption(T/h) | 14 | 28 | 42 | 56 | 84 | ||||
Vacuum pumping capacity(m³/h) | 125 | 250 | 375 | 500 | 750 | ||||
First effect heating area(㎡) | 6.2 | 12.2 | 18.5 | 24.4 | 37 | ||||
Second dffect heating area(㎡) | 6.2 | 12.5 | 18.5 | 24.4 | 37 | ||||
First effect evaporated temperature(℃) | 75-85 | ||||||||
Second effect evaporated temperature(℃) | 55-65 | ||||||||
Dimension(mm) | 4800*1100*3750 | 5950*1200*4650 | 6300*1350*4750 | 6800*1550*4850 | 7500*1800*5800 | ||||
Principle &Characteristic
1. This machine is adopted outside heating circulation and vacuum condition, the inside material can be heat well and evaporated efficient fast.
2. All the system design according to GMP standard, heating tank and evaporate tank have the CIP unit, the temperature & vacuum pressure can display on line.
3. This machine have the big sight glass to inspect inside material evaporate status.
4. Water/gas separater can reduce the material lost under the evaporate proce
5. This machine can be feed raw material, out put final products and take sample online continous.
6. According to the process, we can use the PHE type cooling unit instead of the shell & tube condenser for the good cooling efficient.
2. All the system design according to GMP standard, heating tank and evaporate tank have the CIP unit, the temperature & vacuum pressure can display on line.
3. This machine have the big sight glass to inspect inside material evaporate status.
4. Water/gas separater can reduce the material lost under the evaporate proce
5. This machine can be feed raw material, out put final products and take sample online continous.
6. According to the process, we can use the PHE type cooling unit instead of the shell & tube condenser for the good cooling efficient.
Company Profile
WENXIONG HOLDING GROUP
We was founded in 2002, We are a high-tech enterprise in Zhejiang province. We specilize in the design, production and installation of phermaceutical machnery, chemical machinery, dairy & food machinery, sanitary fuid equipment and intelligent control system for Traditional Chinese medicine (TOM).
We are the member of "China Association for Pharmaceutical equipment".
We are the member of "China Association for Pharmaceutical equipment".
Company main products and services:
extractor and concentrator equipments, vacuum belt drying equipmenst, purifying and distillation equipment, chemiacal equipments and other non-standard equipments, pumps, fluid pipe fittings and also can provide users with automatic control DCS, Warehouse Management System WMS, manufacturing execution system MES overall planning and design, euipment installation and commissioning services, and undertake turnkey projects.

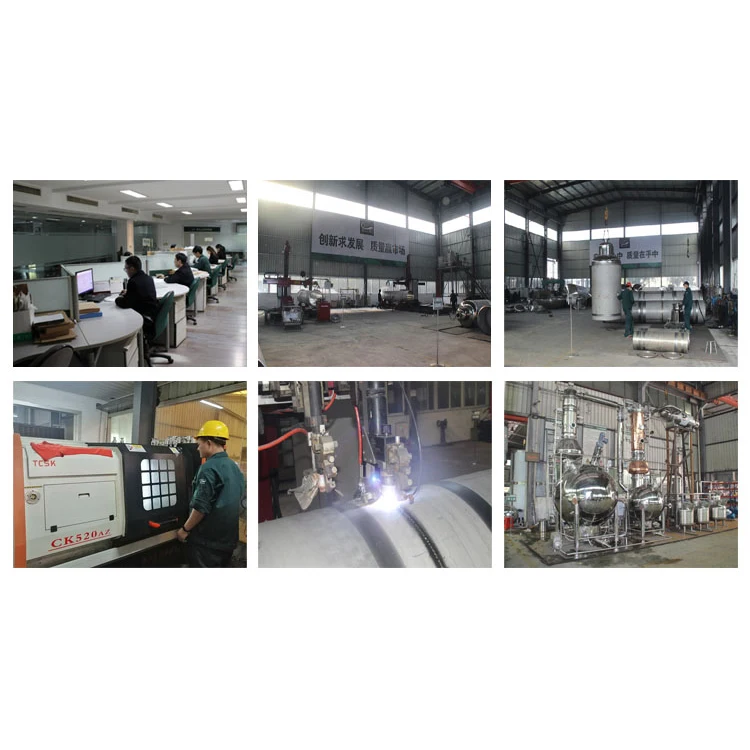

Office and Manufacturing Workshop
Company personnel: there are more than 200 employees (1 Professor, 5 senior engineers, 16 engineers, 46 technicians, 2 senior technicians, 1 technician and 12 senior workers)
Certificates and Honors
Certified by ISO9001 and ISO14000.
We have got 3 invention patents and 45 new practical letters patents in pharmaceutical machinery, three national key new products, one National Torch Program project, One national technology innovation fund project for small and medium-sized science and technology enterprises, onekey innovation fund project.

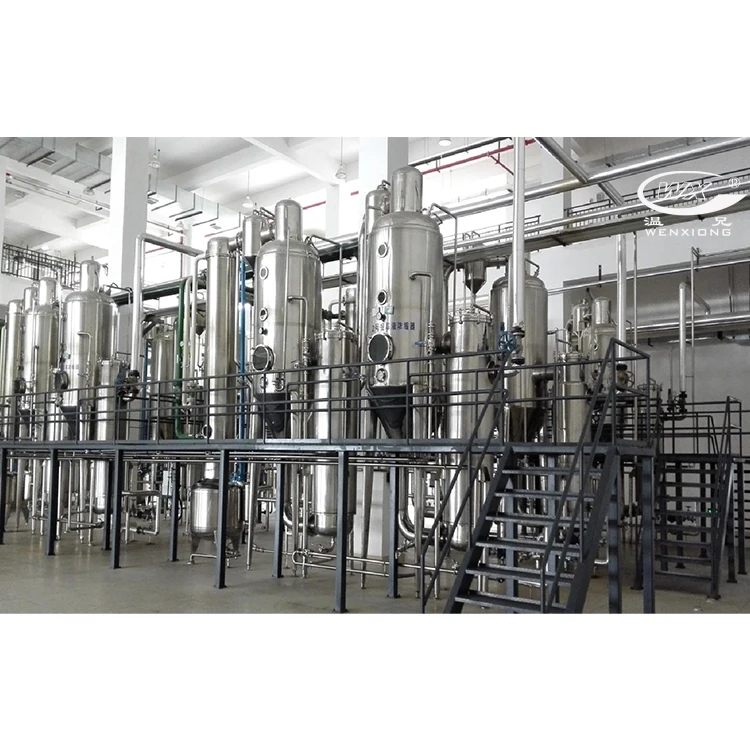

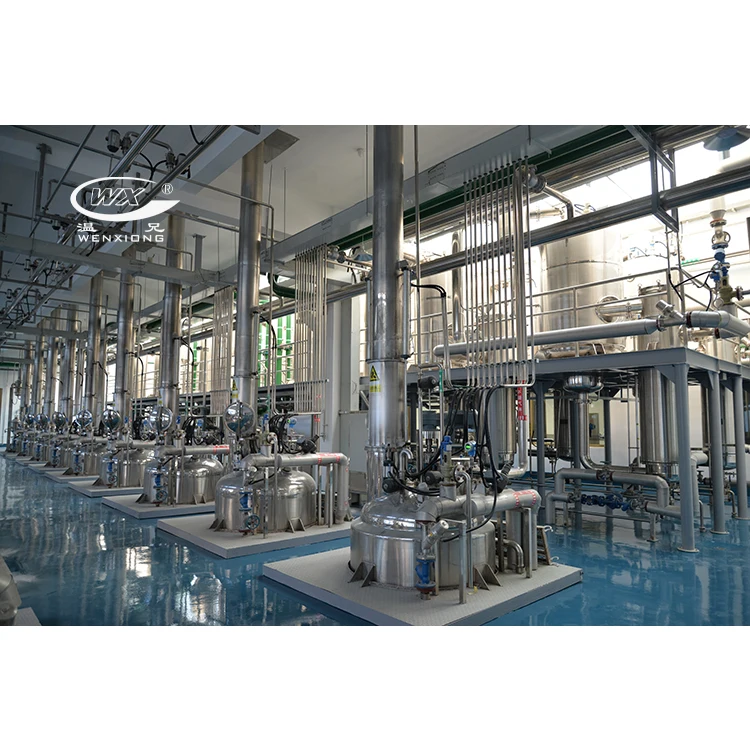

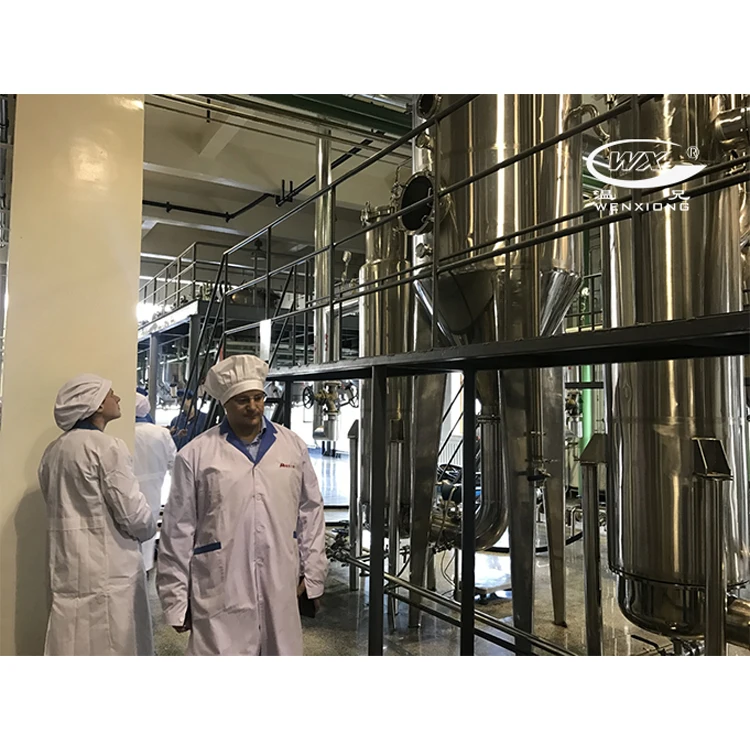

Customer Case
FAQ
Q: Are you manufacturer or trading company?
A: wenxiong industry is a professional manufacturer, we have more than 15years experience in pharmaceutical machine field.
Q: Where is your factory located?
A: We are located in Wenzhou, Zhejiang, China. 1 hour flight to Shanghai, 2 hour to Guangzhou, 2.5 hour to Beijing, welcome to visit our factory.
Q: what is your business scope?
A: Active pharmaceutical ingredients, Herbal extracts, Western Medicine, Beverage, Dairy and Food.
Q: How could we confirm the details of the products?
A: Drawings will be provided for you to confirm.
Q: Will you change us for drafting if we have specail requests?
A: No, we will not. Free of charge to make a draft or offer. ODM
Q: How long the warranty will be?
A: 1 year warranty.
Q: How about the installation? And what if the machine goes down
A: Yes, we will do that. There are two options:
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side.
Q: Do you take L/C?
A: Yes, we accept Western Union, T/T and irrevocable L/C payable
Q: Can we become your distributor in our country?
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
A: wenxiong industry is a professional manufacturer, we have more than 15years experience in pharmaceutical machine field.
Q: Where is your factory located?
A: We are located in Wenzhou, Zhejiang, China. 1 hour flight to Shanghai, 2 hour to Guangzhou, 2.5 hour to Beijing, welcome to visit our factory.
Q: what is your business scope?
A: Active pharmaceutical ingredients, Herbal extracts, Western Medicine, Beverage, Dairy and Food.
Q: How could we confirm the details of the products?
A: Drawings will be provided for you to confirm.
Q: Will you change us for drafting if we have specail requests?
A: No, we will not. Free of charge to make a draft or offer. ODM
Q: How long the warranty will be?
A: 1 year warranty.
Q: How about the installation? And what if the machine goes down
A: Yes, we will do that. There are two options:
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side.
Q: Do you take L/C?
A: Yes, we accept Western Union, T/T and irrevocable L/C payable
Q: Can we become your distributor in our country?
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
