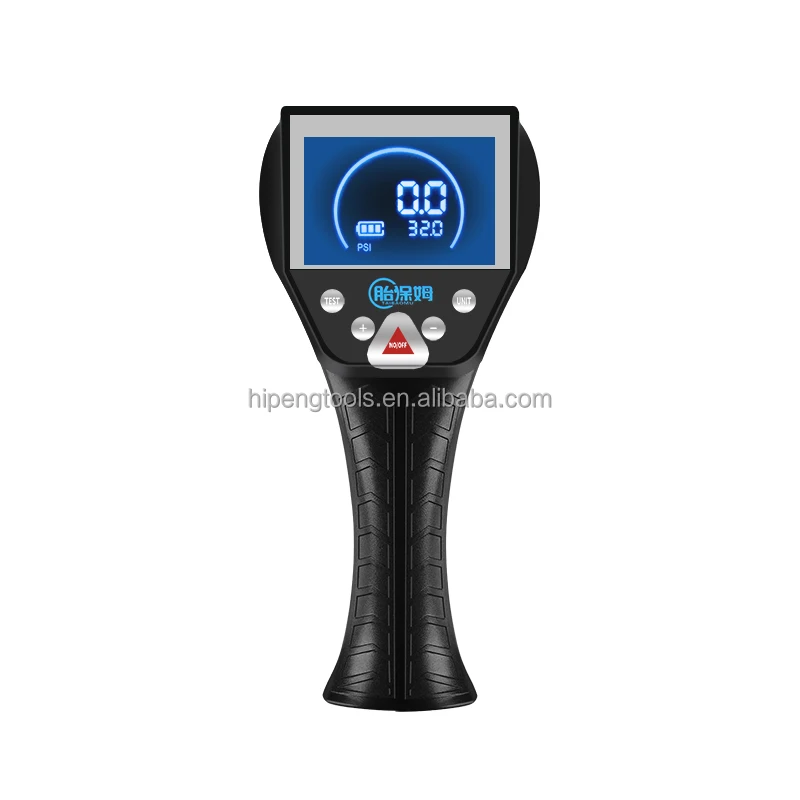

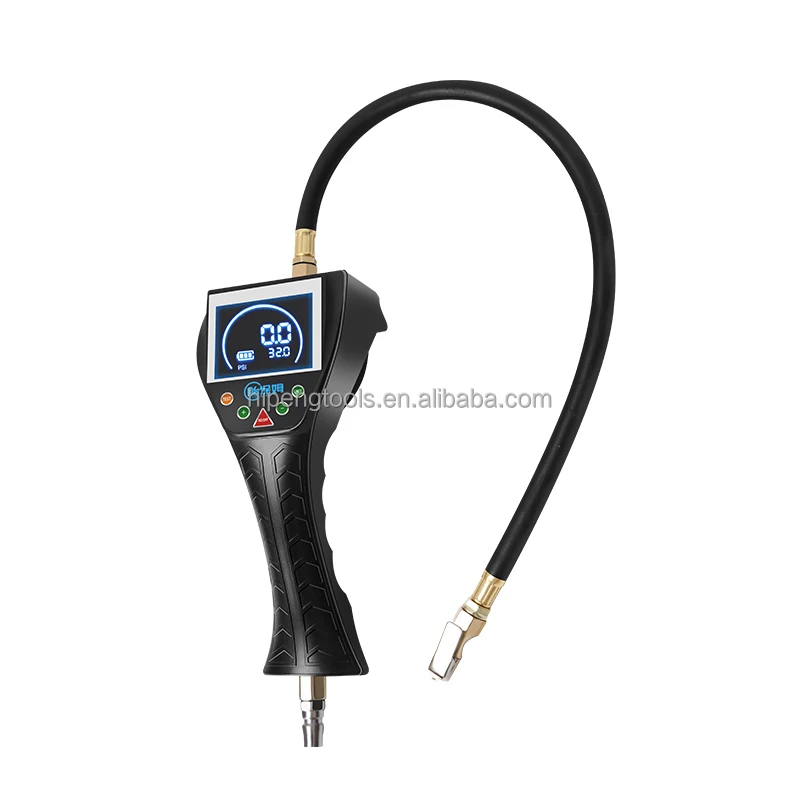

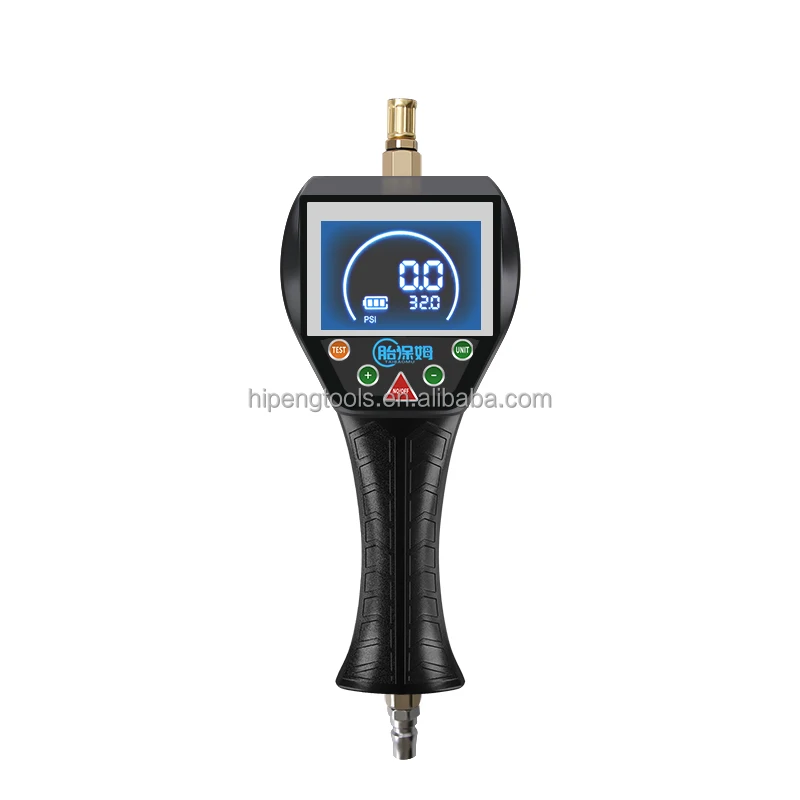

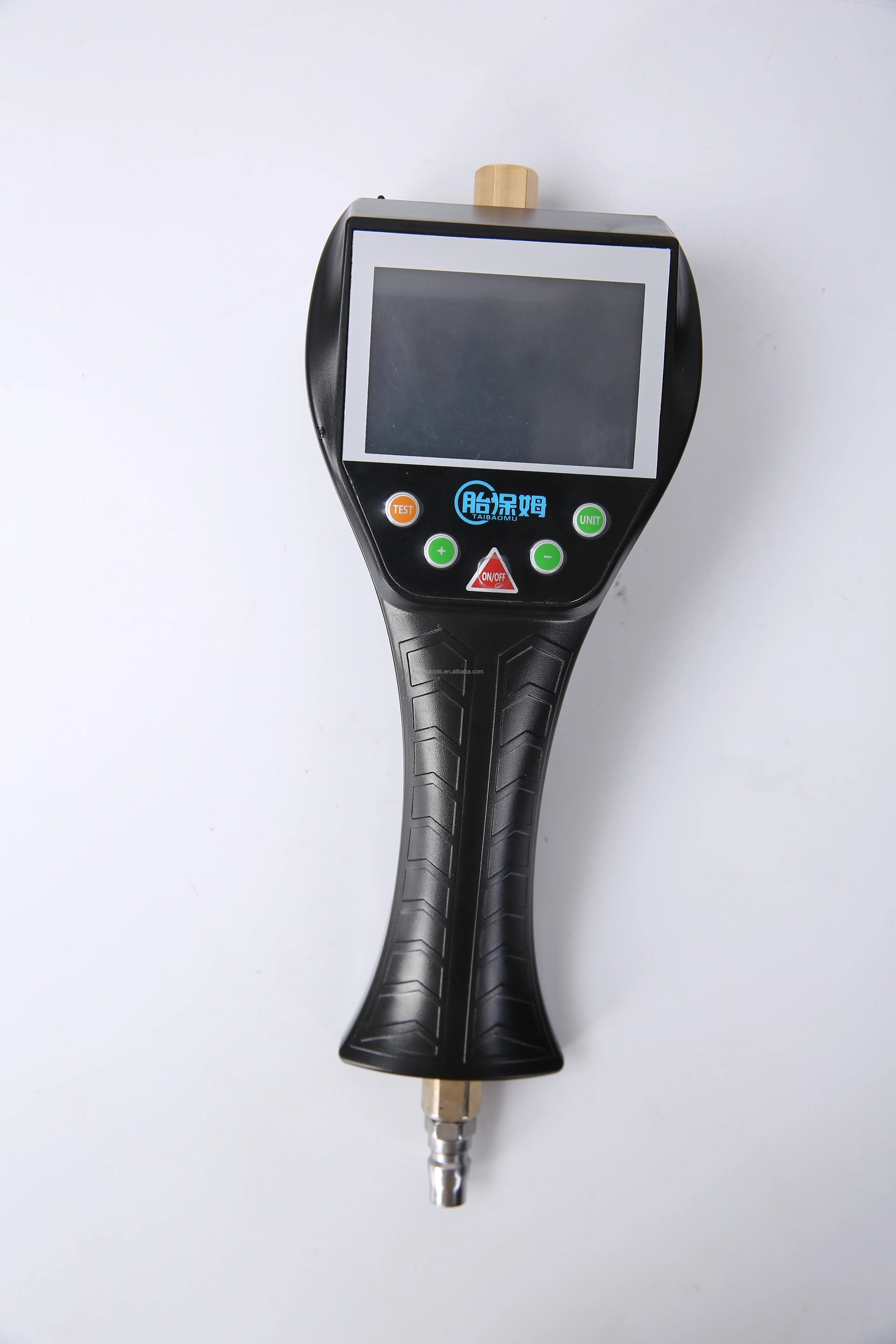

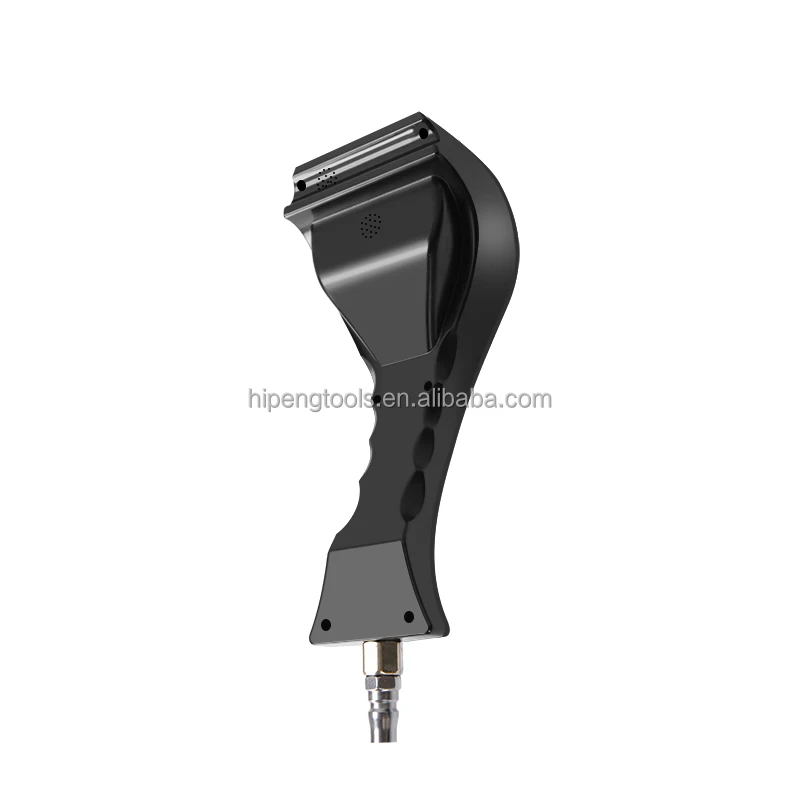

Handheld LCD Tire/tyre Inflate Pre set Pressure Fully Automatic Inflator 4 Pressure Unit LCD Digital Display

Product Overview

Description

Technical parameter
Model	TB-902
Applicable vehicle	Moto-bicycle,Van,Car,SUV
Display mode	LED digital display (340x235mm,backlight display)
Powerstyle	3.7V
Workingtemperature	-20~+65℃
Storagetemperature	-20~+65℃
Using	Air
Function	Inflate
	Deflate
	4 pressure unit choose ,Psi Bar Kg/cm2 Kpa,
	reminder and memory function
Max inlet pressure	Kg/cm²	18 kg/cm²
	Bar	18 Bar
	Psi	225 Psi
	Kpa	1000Kpa
Gauage Measuring range	Kg/cm²	0 Kg/cm² ~ 7 kg/cm²
	Bar	0.0~18Bar
	Psi	0.3~225Psi
	Kpa	20~1800Kpa
Accuracy	Kg/cm²	±0.01 Kg/cm²
	Bar	±0.01bar
	Psi	±0.2Psi
	Kpa	±3Kpa
Differentiation	0.5Psi/0.05Bar/0.05Kg/cm²/5Kpa

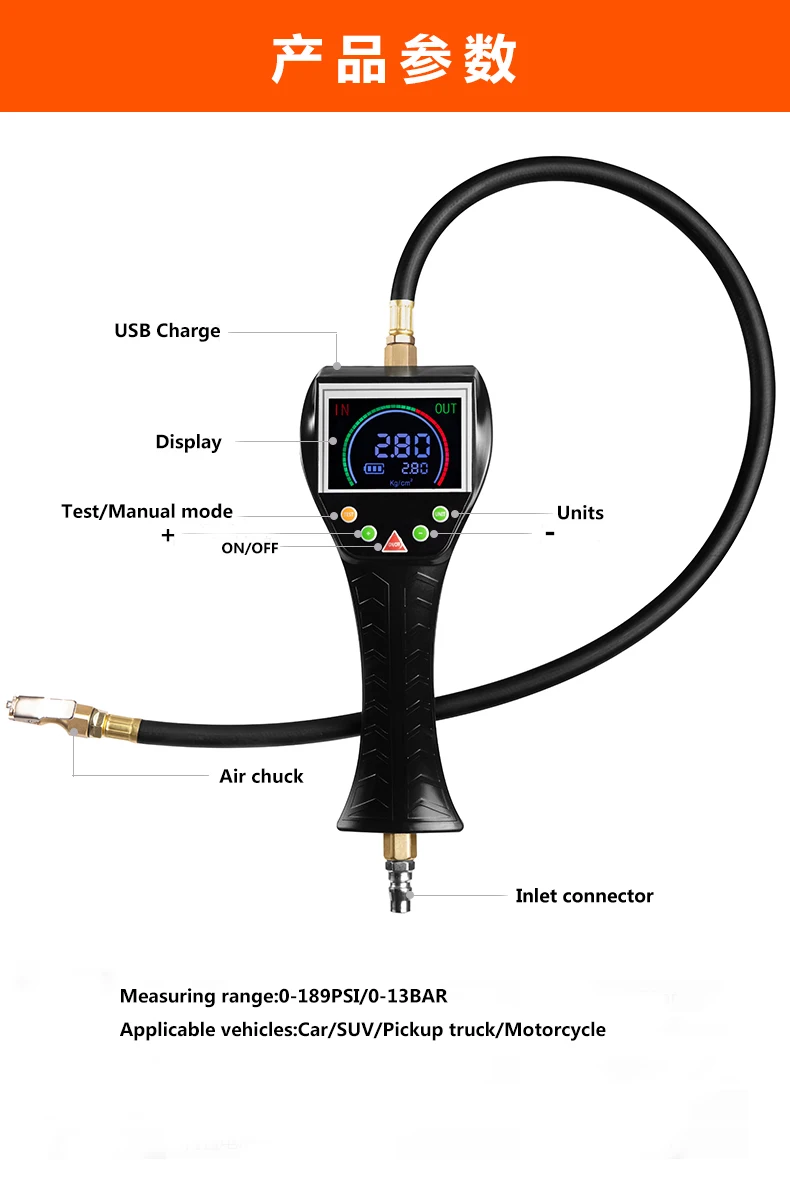

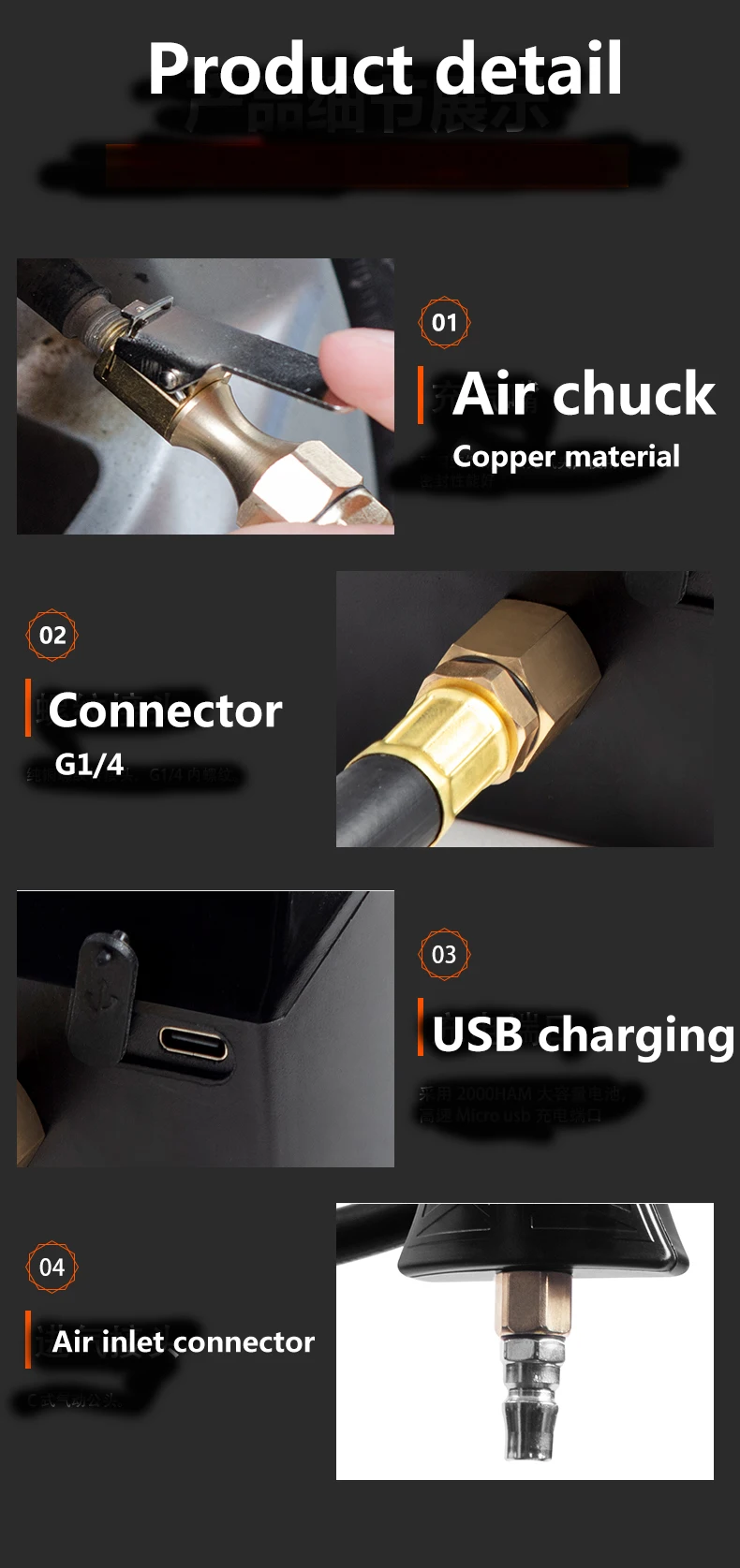

Standard fittings:	Tire Inflator
	660mm High pressure ruber hose (with air chuck)
	Power Cable
Packe size	295x160x100mm
Net weight	1.2kg



Operating Instructions
Fully Automatic Handheld Inflatable Gun
1. Start
1. Connect the tire, and it will automatically turn on when you feel the air pressure
2. Press the "OFF/ON" button to power on

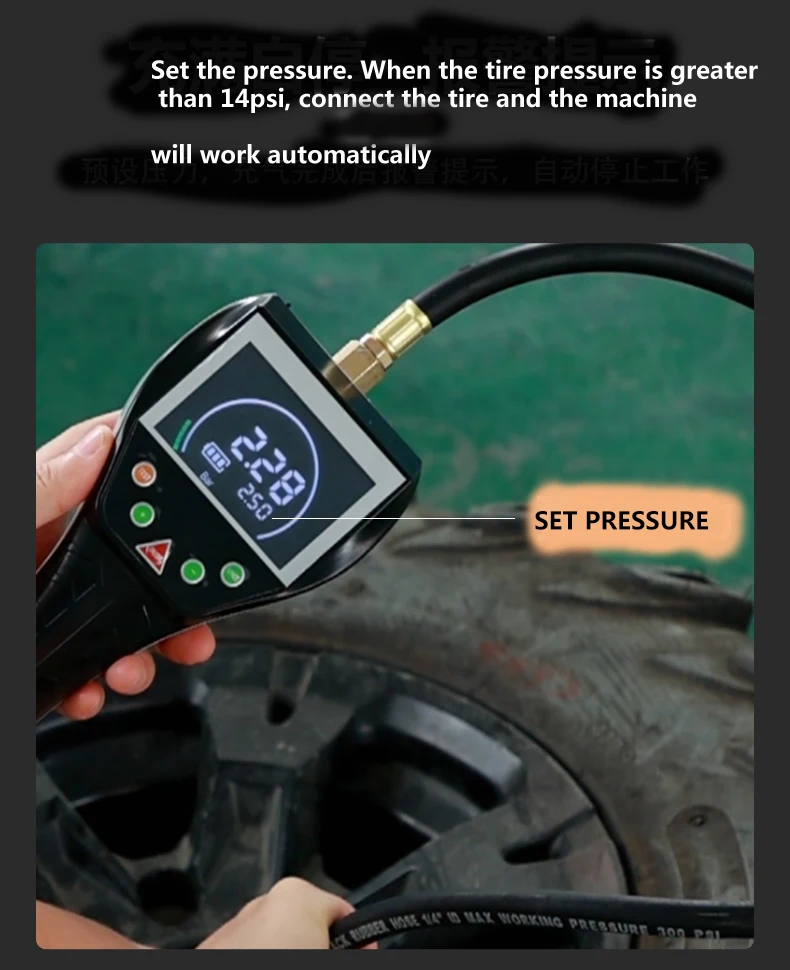

2. () Automatic mode) Set the pressure in advance, connect the tire, it can be automatically inflated, or automatically deflated to the set pressure value.
When the work is finished, remove the clamp nozzle (for the next operation, the air tube must be connected to the tire).

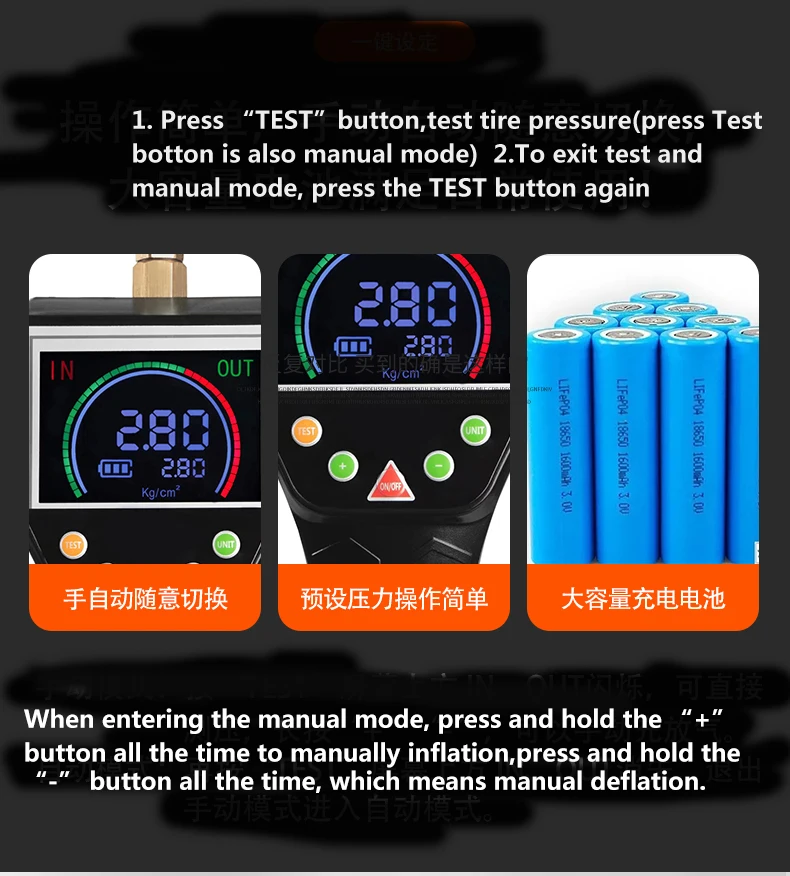

3. Detect the pressure (also known as manual mode), press the TEXT button, connect the tire, this is to detect the pressure of the tire, if you want to exit the detection mode, press TEST.
1. When you press the TEST button, connect the trachea to the tire, keep pressing (+) or (-) with your finger to manually add or deflate air, exit the manual mode, and press the TEXT button once.

Note: When the progress bar on the screen changes, the button cannot be pressed. You need to press the OFF/ON button and do not connect the trachea to the tire before you can operate the next step.

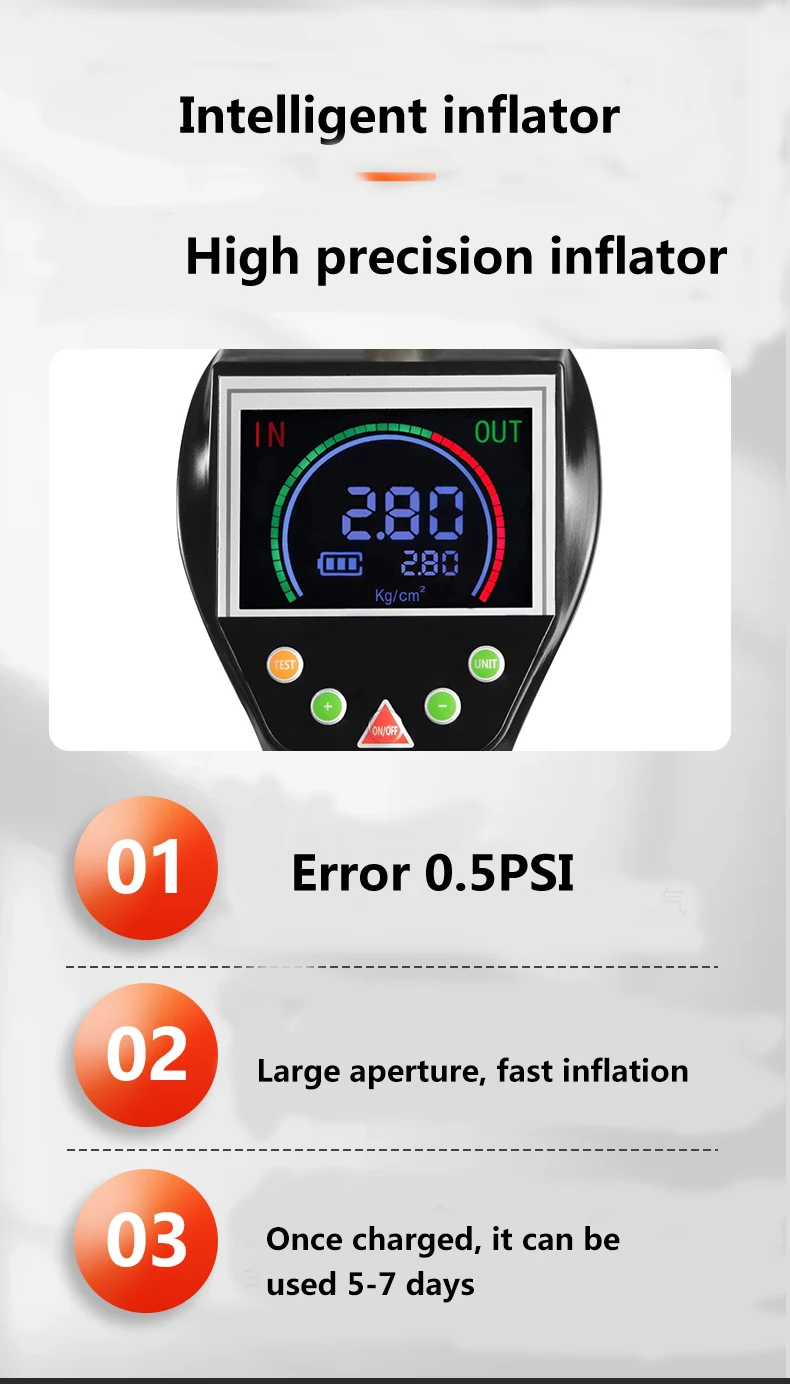

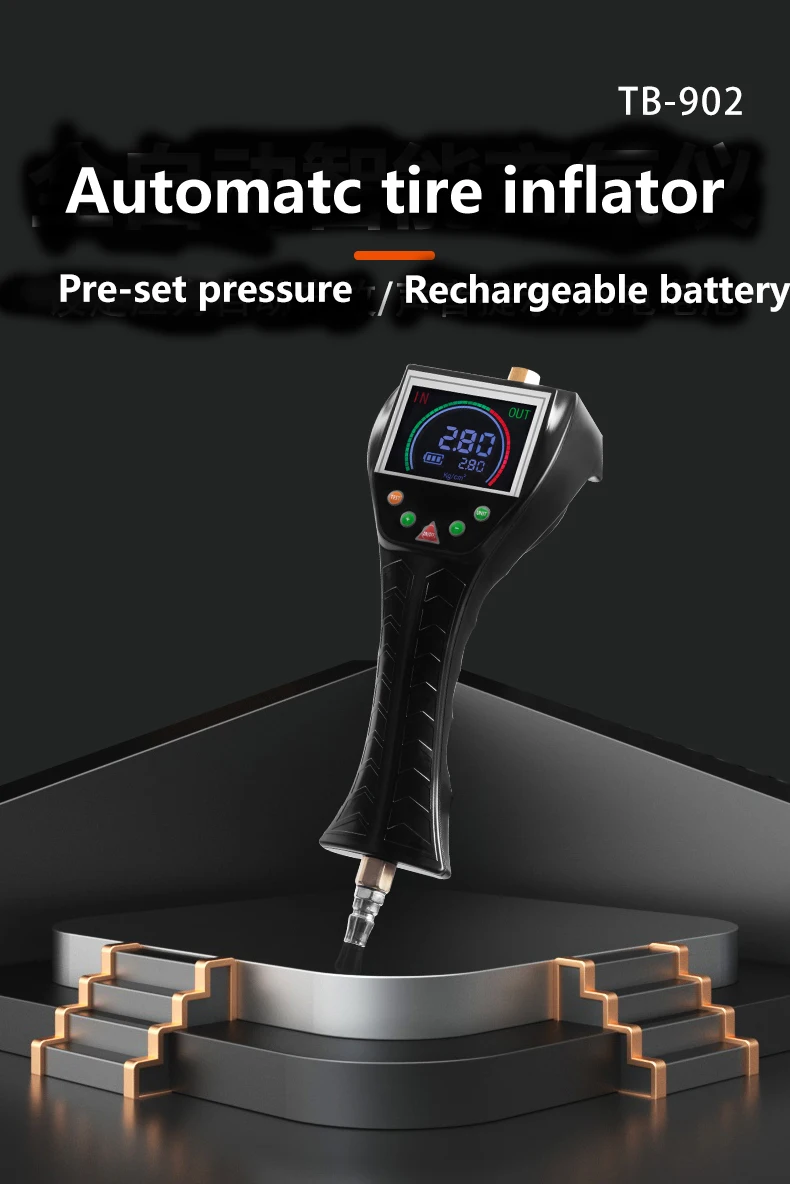

*Pre-set pressure automatic inflate

*LED backlight display
*4 pressure units switch
*Pressure unit Memory function
*Universal joint

*Accuracy ±0.2Psi
