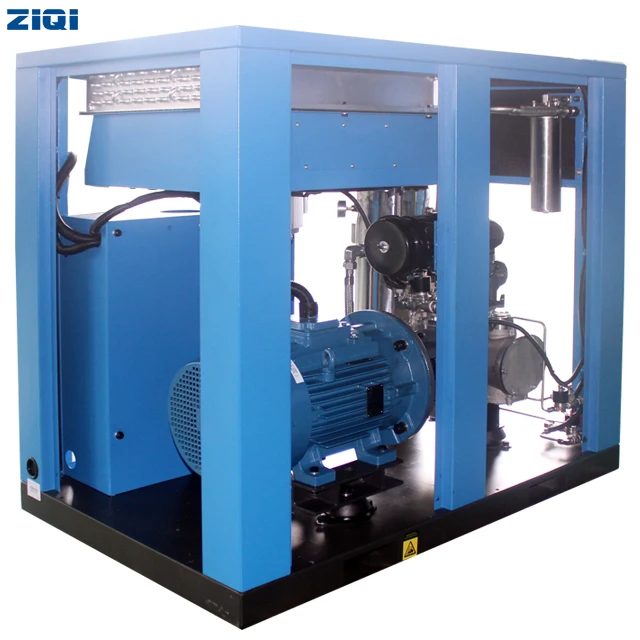

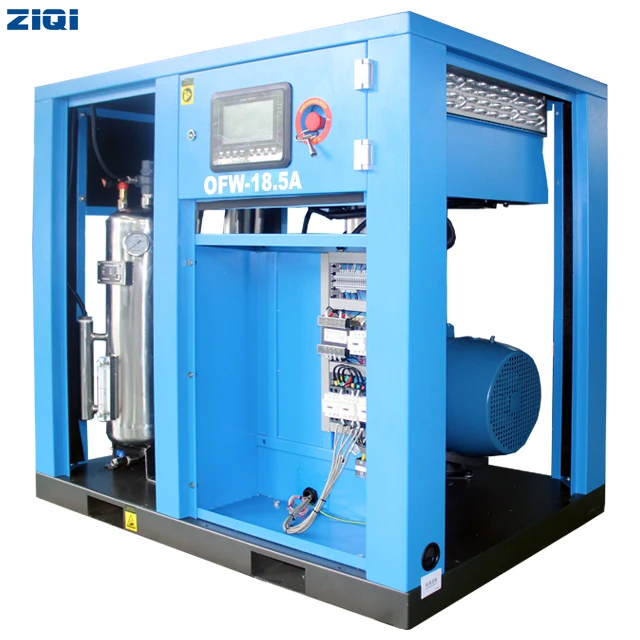

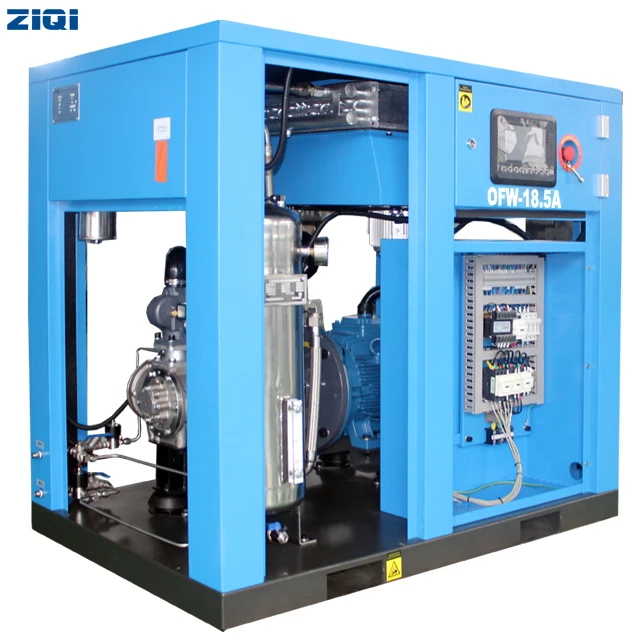

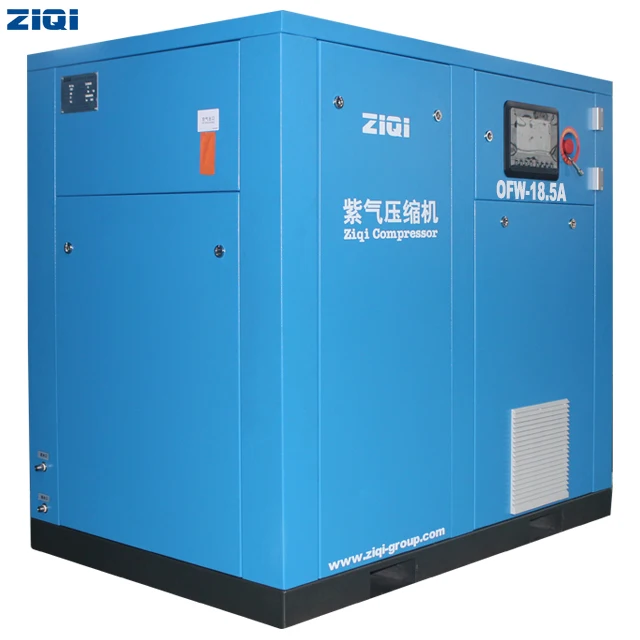

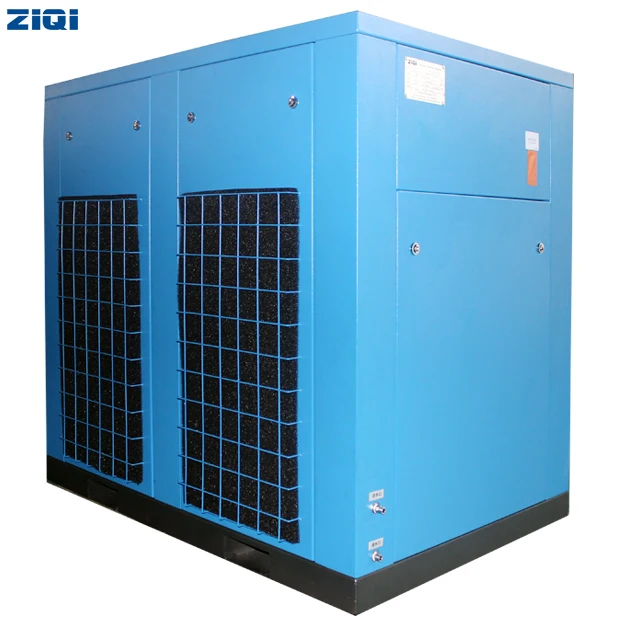

High quality 18.5 kw flexibility direct drive vertical screw oil less type air compressor machine with CE certificate
- Category: >>>
- Supplier: Ziqi Compressor (shanghai) Co. Ltd.
Share on (1600898537400):
Product Overview
Description
PRODUCT INTRODUCTION
OUR ADVANTAGES
ZIQI Oil Free Water Lubricant Screw Air Compressor Advantages:
There is no oil in the water-lubricated screw body, which will not cause oil pollution of the compressed air. It belongs to a
completely oil-free screw air compressor. Dry-type oil-free machine bearings, gearboxes, and intercoolers require oil to
participate in lubrication and sealing. The high temperature of the unit can easily cause oil leakage to pollute the compressed air. It is a semi-oil-free compressor.
2. Isothermal compression, high efficiency, no flammable, explosive, etc.
The operating temperature of the oil-free screw machine does not exceed 50℃, and the gas does not expand to save energy by more than 15%. The exhaust temperature of the semi-oil-free screw machine is above 180℃. The high temperature makes the bearing, screw, body, and sealing material have a very short service life and must be expensive. s material. The volatilization of lubricating oil at high temperatures can cause fires and explosions.
3. Power saving: water-lubricated compressor is one of the lower energy consumption of oil-free machines in the world.
ZIQI air dry oil-free air compressor 90KW, nameplate capacity 12.50m?/min (10bar), water-jet all oil-free air compressor 90KW, the actual measured air volume is 14.52m?/min (10bar), the displacement has increased by 16%, This means that users save 16% of electricity. According to the calculation based on running 24 hours a day and the electricity cost of 1.0 yuan/kWh, each unit can save 1.26 million yuan in electricity costs for ten years.
4. The compression temperature is relatively low, the host has a long life, the maintenance cost is relatively low, and the
trouble-free operation cycle is long.The main engine of the water-jet all-oil-free compressor has a general warranty of 5 years and a design life of more than 25 years. Low maintenance costs are a reliable choice for formal enterprises to focus on energy management and reduce product costs.
5. Simple maintenance and no worries
It is as simple as a "water pump" to ensure no worries.
6.Dry
The water content in compressed air is low. All compressors produce 100% saturated water vapor. The pressure dew point of water-injected and oil-free compressed air is less than 40 degrees Celsius. Actually, it contains less water, and a lot of water in the air will be discharged. .
6.Dry
The water content in compressed air is low. All compressors produce 100% saturated water vapor. The pressure dew point of water-injected and oil-free compressed air is less than 40 degrees Celsius. Actually, it contains less water, and a lot of water in the air will be discharged. .
PRODUCT SPECIFICATIONS
Model | Air pressure | Air flowing | Motor power | Dimension | Weight | ||||||||
mpa | bar | psi | m3/min | cfm | hp | kw | L(mm)*W(mm)*H(mm) | kgs | |||||
OF-11A | 0.7 | 7 | 102 | 1.6 | 56 | 15 | 11 | 1100mm*800mm*1000mm | 500 | ||||
0.8 | 8 | 116 | 1.5 | 53 | |||||||||
1 | 10 | 145 | 1.3 | 46 | |||||||||
OF-15A | 0.8 | 8 | 116 | 1.8 | 64 | 20 | 15 | 1130mm*900mm*1024mm | 550 | ||||
OF-18.5A | 0.7 | 7 | 102 | 3.1 | 109 | 25 | 18.5 | 1400mm*1000mm*1200mm | 600 | ||||
0.8 | 8 | 116 | 2.8 | 99 | |||||||||
1 | 10 | 145 | 2.5 | 88 | |||||||||
OF-22A | 0.7 | 7 | 102 | 3.7 | 131 | 30 | 22 | 655 | |||||
0.8 | 8 | 116 | 3.4 | 120 | |||||||||
1 | 10 | 145 | 3 | 106 | |||||||||
OF-30A | 0.7 | 7 | 102 | 5.2 | 184 | 41 | 30 | 1150 | |||||
0.8 | 8 | 116 | 4.7 | 166 | |||||||||
1 | 10 | 145 | 4.3 | 152 | |||||||||
OF-37A | 0.7 | 7 | 102 | 6.1 | 215 | 50 | 37 | 1200 | |||||
0.8 | 8 | 116 | 5.6 | 198 | |||||||||
1 | 10 | 145 | 5 | 177 | |||||||||
OF-45A | 0.7 | 7 | 102 | 7.5 | 265 | 61 | 45 | 1920mm*1170mm*1320mm | 1320 | ||||
0.8 | 8 | 116 | 6.8 | 240 | |||||||||
1 | 10 | 145 | 6 | 212 | |||||||||
OF-55A | 0.7 | 7 | 102 | 10 | 353 | 75 | 55 | 1520 | |||||
0.8 | 8 | 116 | 9 | 318 | |||||||||
1 | 10 | 145 | 7.8 | 275 | |||||||||
OF-75W | 0.7 | 7 | 102 | 13 | 459 | 75 | 1620 | ||||||
0.8 | 8 | 116 | 12 | 424 | |||||||||
1 | 10 | 145 | 10 | 353 | |||||||||
OF-90A | 0.7 | 7 | 102 | 15.5 | 547 | 1800 | |||||||
0.8 | 8 | 116 | 14 | 494 | |||||||||
1 | 10 | 145 | 12.5 | 441 | |||||||||
OF-110A | 0.7 | 7 | 102 | 20 | 706 | 3100 | |||||||
0.8 | 8 | 116 | 18 | 636 | |||||||||
1 | 10 | 145 | 16 | 565 | |||||||||
OF-132A | 0.7 | 7 | 102 | 25 | 883 | 3250 | |||||||
0.8 | 8 | 116 | 23 | 812 | |||||||||
1 | 10 | 145 | 20 | 706 | |||||||||
OF-160W | 0.7 | 7 | 102 | 27 | 953 | 217 | 160 | 4500 | |||||
0.8 | 8 | 116 | 25.5 | 900 | |||||||||
1 | 10 | 145 | 24 | 847 | |||||||||
OF-185W | 0.7 | 7 | 102 | 30 | 1059 | 251 | 185 | 4500 | |||||
0.8 | 8 | 116 | 28 | 989 | |||||||||
1 | 10 | 145 | 25 | 883 | |||||||||
OF-200W | 0.7 | 7 | 102 | 36 | 1271 | 272 | 200 | 4500 | |||||
0.8 | 8 | 116 | 33 | 1165 | |||||||||
1 | 10 | 145 | 27 | 953 | |||||||||
OF-250W | 0.7 | 7 | 102 | 43 | 1518 | 340 | 250 | 5200 | |||||
0.8 | 8 | 116 | 41 | 1448 | |||||||||
0 | 10 | 145 | 38 | 1342 | |||||||||
*For more model,please contact the salesman person.
PRODUCTION FLOW
COMPANY PROFILE
CERTIFICATIONS
FAQ
Are you manufacturer?
ZIQI: Yes,we are professional air compressor manufacturer over 10 years and our factory located in Shanghai.
How long is your air compressor warranty?
ZIQI: For 1 year.
Do you provide After- sales service parts?
ZIQI: Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
ZIQI: Generally, more than 10 years.
How about your price?
ZIQI: Based on high quality, Our price is very competitive in this market all over the world.
How about your customer service?
ZIQI: For email, we could reply our customers' emails within 2 hours.
Do you support OEM?
ZIQI: YES, and we also provide multiple models to select.
ZIQI: Yes,we are professional air compressor manufacturer over 10 years and our factory located in Shanghai.
How long is your air compressor warranty?
ZIQI: For 1 year.
Do you provide After- sales service parts?
ZIQI: Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
ZIQI: Generally, more than 10 years.
How about your price?
ZIQI: Based on high quality, Our price is very competitive in this market all over the world.
How about your customer service?
ZIQI: For email, we could reply our customers' emails within 2 hours.
Do you support OEM?
ZIQI: YES, and we also provide multiple models to select.
How to get quicker quotation?
When you send us inquiry, please confirm below information at the same time:
* What is the air displacement (m3/min,cfm/min)?
* What is the air pressure (mpa,bar,psi)?
* What is the voltage in your factory (v/p/Hz)?
* It is ok if you need air tank, air dryer and filters.
This information is helpful for us to check suitable equipment solution and quotation quickly.
* What is the air displacement (m3/min,cfm/min)?
* What is the air pressure (mpa,bar,psi)?
* What is the voltage in your factory (v/p/Hz)?
* It is ok if you need air tank, air dryer and filters.
This information is helpful for us to check suitable equipment solution and quotation quickly.
