Economical Garage Storage Warehouse Medium Duty Loading Long Span Rack with Steel Panel
- Category: >>>
- Supplier: Zhucheng City Chaoyu Goods Shelf Co. Ltd.
Share on (1600898567198):
Product Overview
Description
Economical Garage Storage Warehouse Medium Duty Loading Long Span Rack with Steel Panel.
Products Description
ChaoYu storage shelving
Our medium duty shelving is designed for small to medium sized goods in commercial and industrial warehouse storage settings -where goods are fast-moving and require easy access. It is basically an ideal storage system for hand stacking plus, the shelves are adjustable and can be customized as per the storage requirements.
Our medium duty shelving is designed for small to medium sized goods in commercial and industrial warehouse storage settings -where goods are fast-moving and require easy access. It is basically an ideal storage system for hand stacking plus, the shelves are adjustable and can be customized as per the storage requirements.

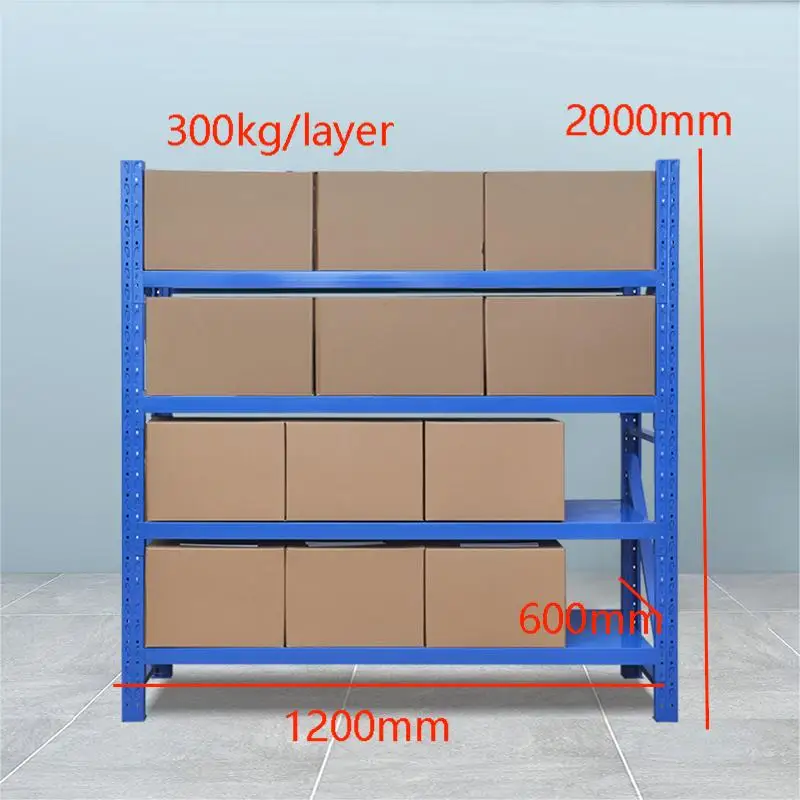

Description | Upright Specification | Beam Specification | Thickness of the shelf | Load capacity/layer | ||||
1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs | ||||
2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs | ||||
1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs | ||||
2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs | ||||
1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs | ||||
2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs | ||||
1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs | ||||
2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs | ||||
2000*600*2000 | 40*80*1.1mm | 50*80.1.5mm | 0.6mm | 500kgs | ||||
More racking sizes and specification please contact with me directly, thank you ! | ||||||||
Details Images

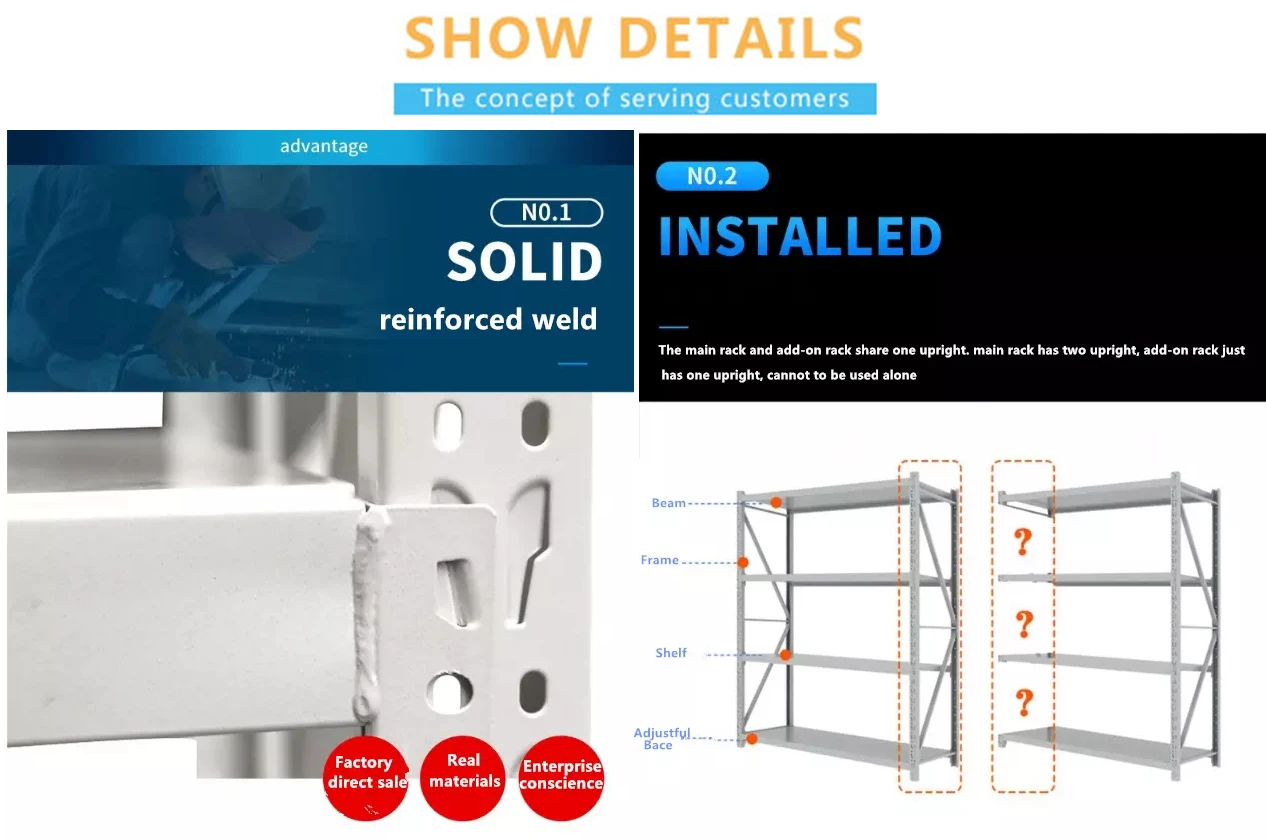

Details 1

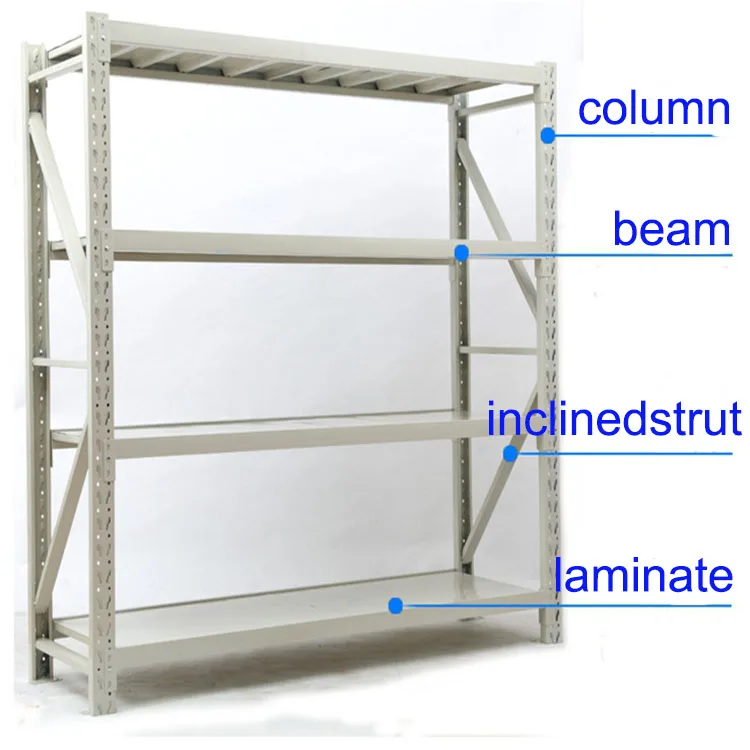

Upright: Upright is combined with horizontal bracinig ,diagonal bracking and baynet.This structure is
convenient to install and have more stronger supporting power.
Beam:Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics
of simplicity, reliability, light weight, strong bearing capacity and low cost.
convenient to install and have more stronger supporting power.
Beam:Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics
of simplicity, reliability, light weight, strong bearing capacity and low cost.
Details 2
Connector:Special design safety pin is equipped when the column clamp is connected with the column
to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates made in the world, which have the characteristics of strongbearing capacity, wear
resistance, simple replacement and low maintenance cost.
to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates made in the world, which have the characteristics of strongbearing capacity, wear
resistance, simple replacement and low maintenance cost.
Packing & Shipping
Packing
1.KD structure, polyfoam between every part, packed in order and reasonable, not easy to shake.
2.Outside with five layers strong carton, tape sealing and packing belt to reinforce.
3.Can print LOGO or shipping mark as the customer want.
2.Outside with five layers strong carton, tape sealing and packing belt to reinforce.
3.Can print LOGO or shipping mark as the customer want.
Shipping
By Sea,By Air,
By international Express
Delivery Date within 10 days or according to your order quantity.
Exhibition
Our Company
Zhucheng Chaoyu Goods Shelf Co.,Ltd is one of the leading racking supplier in China. We have shelving system for any environment and racking system for warehouse for all types of loads. We dedicates ourselves to provide quality racking systems at competitive price.
Our company main products are per follows:
:Light Duty Racking Systems such as Boltless Rack
:Medium Duty Racking Systems such as Valuespan Shelving Rack
:Heavy Duty Racking Systems such as Selective Pallet Rack, Heavy Duty Shelving Rack
:Warehouse Duty Racking Systems such as Heavy Duty Shelving cw Top Flooring, Multi-Tier Shelving System
:Gondola Shelving System such as Wall Gondola, Cashier Counter
Certifications
More Products
Recommended by seller
FAQ
1. Are you a manufacturer or a trading company?
Yes,we are a professional manufacturer for steel furniture.
2.What is raw material & your products range?
The material is standard cold-rolled steel plate.Electrostatic Powder Coating Surface, avoid rusty.
products range : all kinds of steel office furniture, such as steel cabinet,mobile shelving,locker wardrobe, bunk beds etc.
3.Can you customize and supply samples?
Yes, We offer custom-made service to our clients. You need to provide us some technical
data such as dimension and drawing.
4.What is your production procedure?
Raw material-QC-cutting-pressing-bending-welding-QC-Phosphating-powder painting-QC-packing
5.What's your packing?
Polyfoam + 5-layer corrugated carton. For LCL and sample ,will consider to use polywood case
to reinforce to avoid damage during transportation.
6.Easy assemble?
There is assembling instruction in each carton.if you need, you will received our assembling video.
7.How to pay?
T/T,L/C,cash. Welcome to use alibaba trade assurance.
8.Which service you can supply?
a,OEM & ODM
b,Good discount.
c,Reply you inquiry within 24 hours.
d,Assembling video.
e,After-sale service. Reply your feedback in 12 hours. Free replacement for the damaged parts.
9.Can we visit your factory?
We warmly welcome you all the time!Hotel reservation is available.
