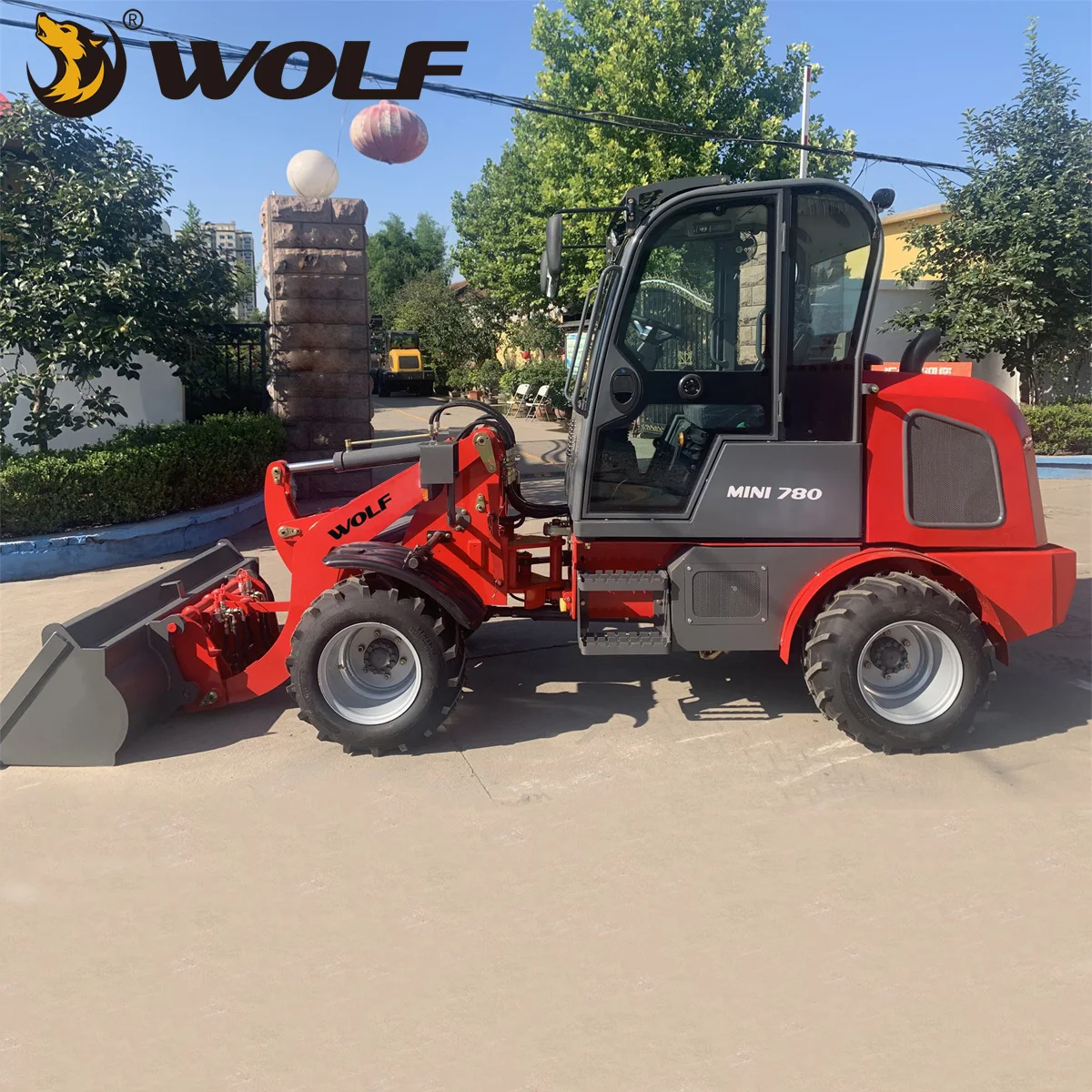

Wolf 1t Mini780T Garden Loader Farm Loader Mini Wheel Loader Price
- Category: >>>
- Supplier: Qingdao Zongjin Engineering Machinery Co. Ltd.
Share on (1600898634636):
Product Overview
Description
Mini 780T is one innovative loader, with new completely appearance, from new structure, frame, rear hood and cabin, you can easily find out the differences from traditional loader. Open cabin and enclosed cabin meets your different demands. It has been widely welcomed by European customers when published.

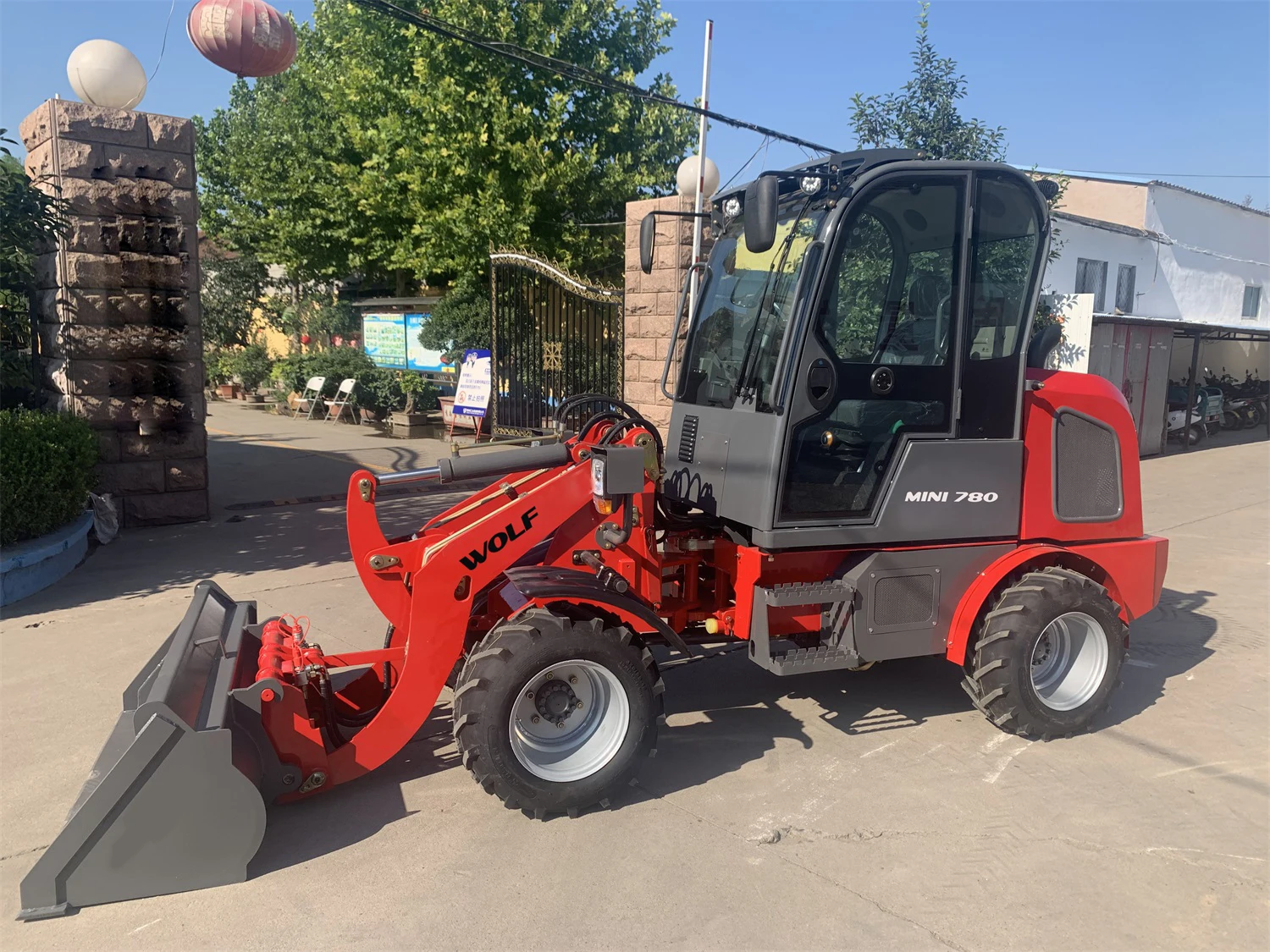

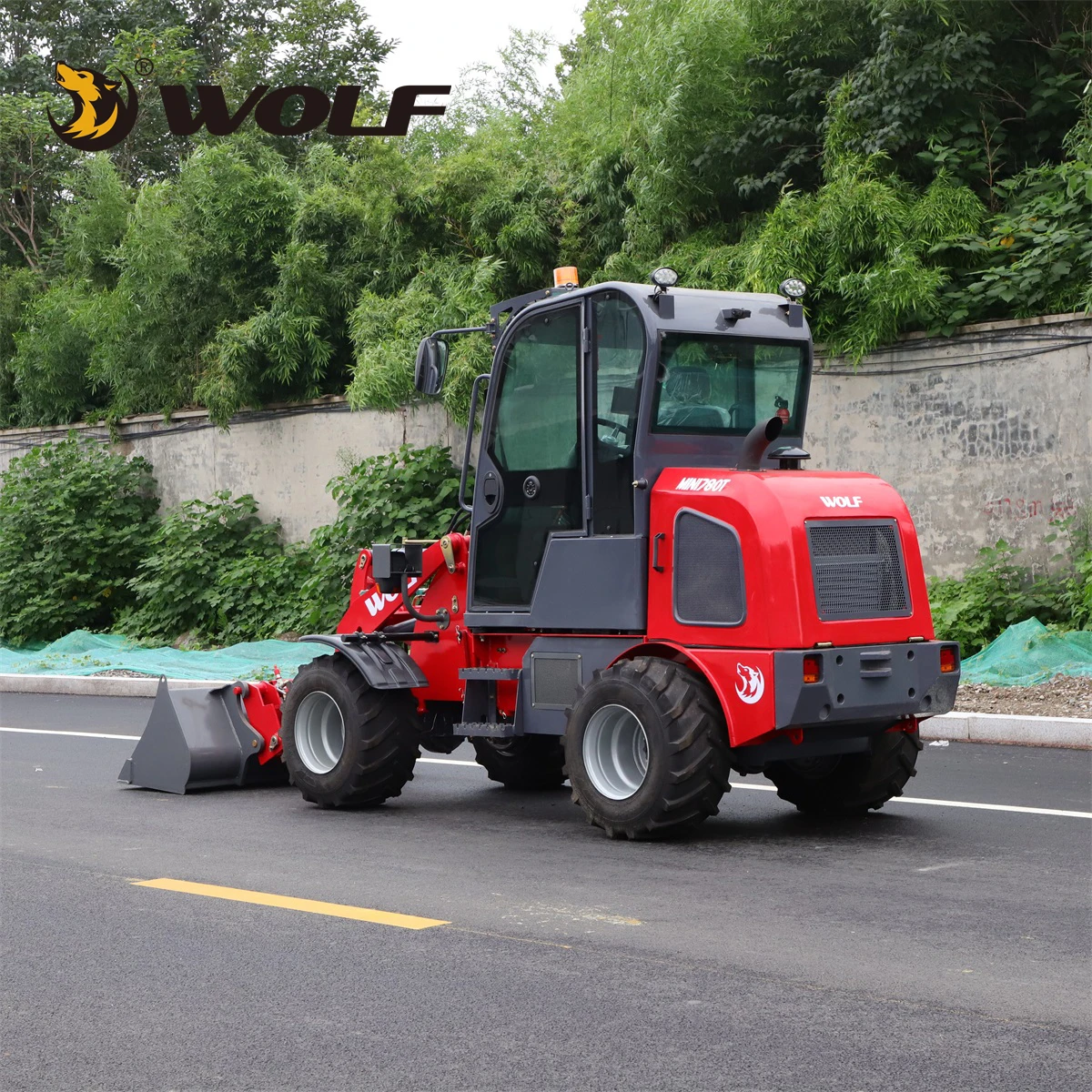

Mini780T with enclosed cabin
Mini780H With Roll Ball
More Pictures:

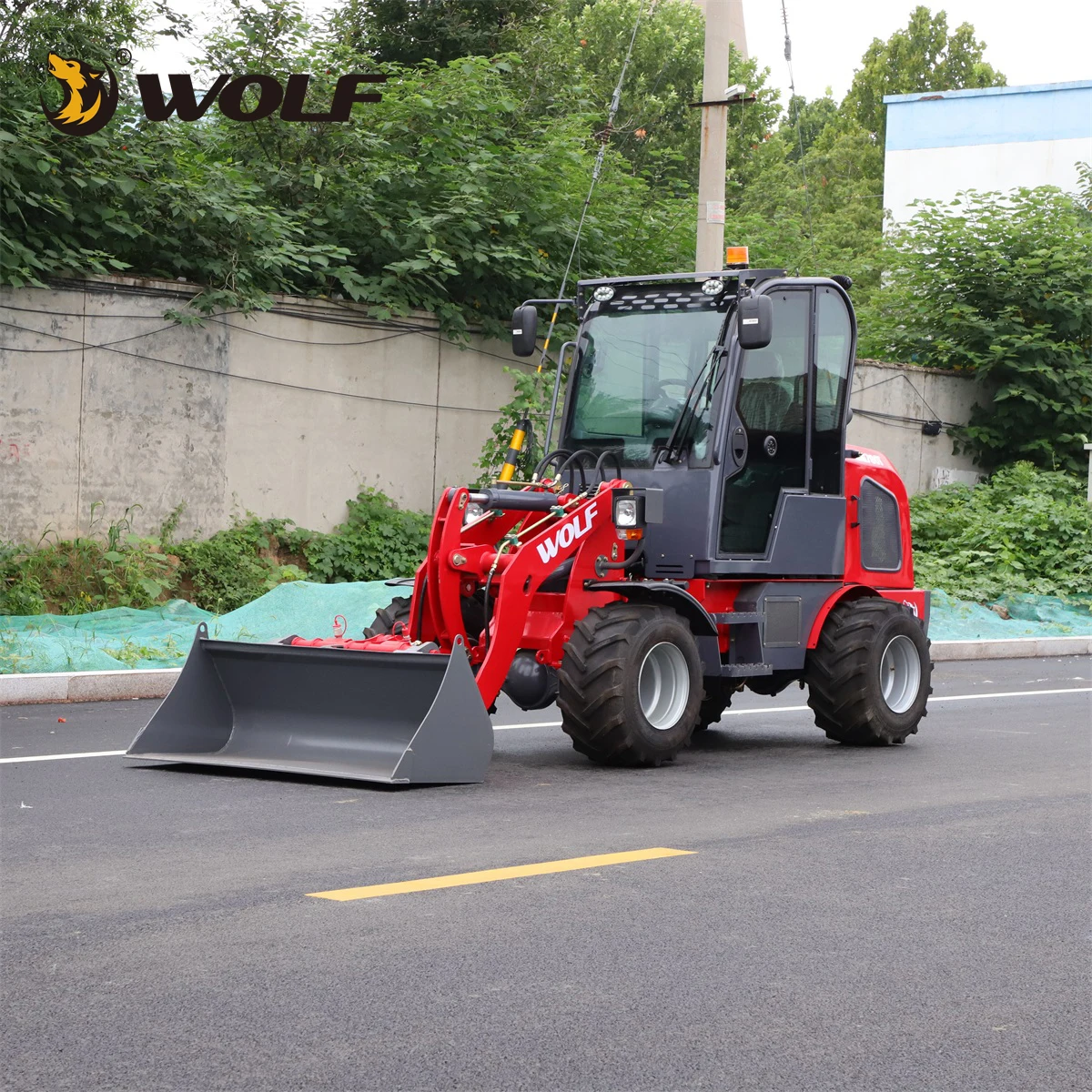

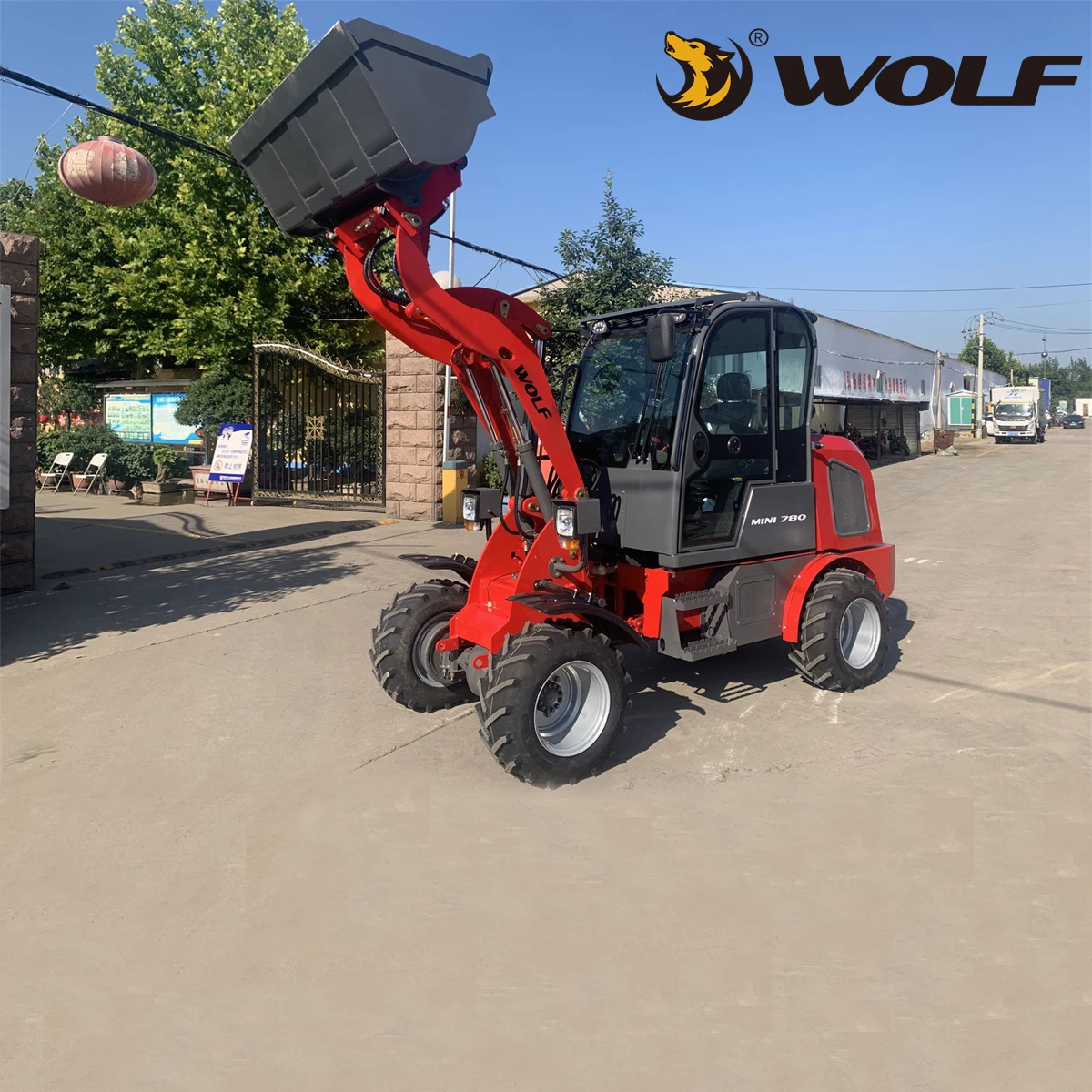

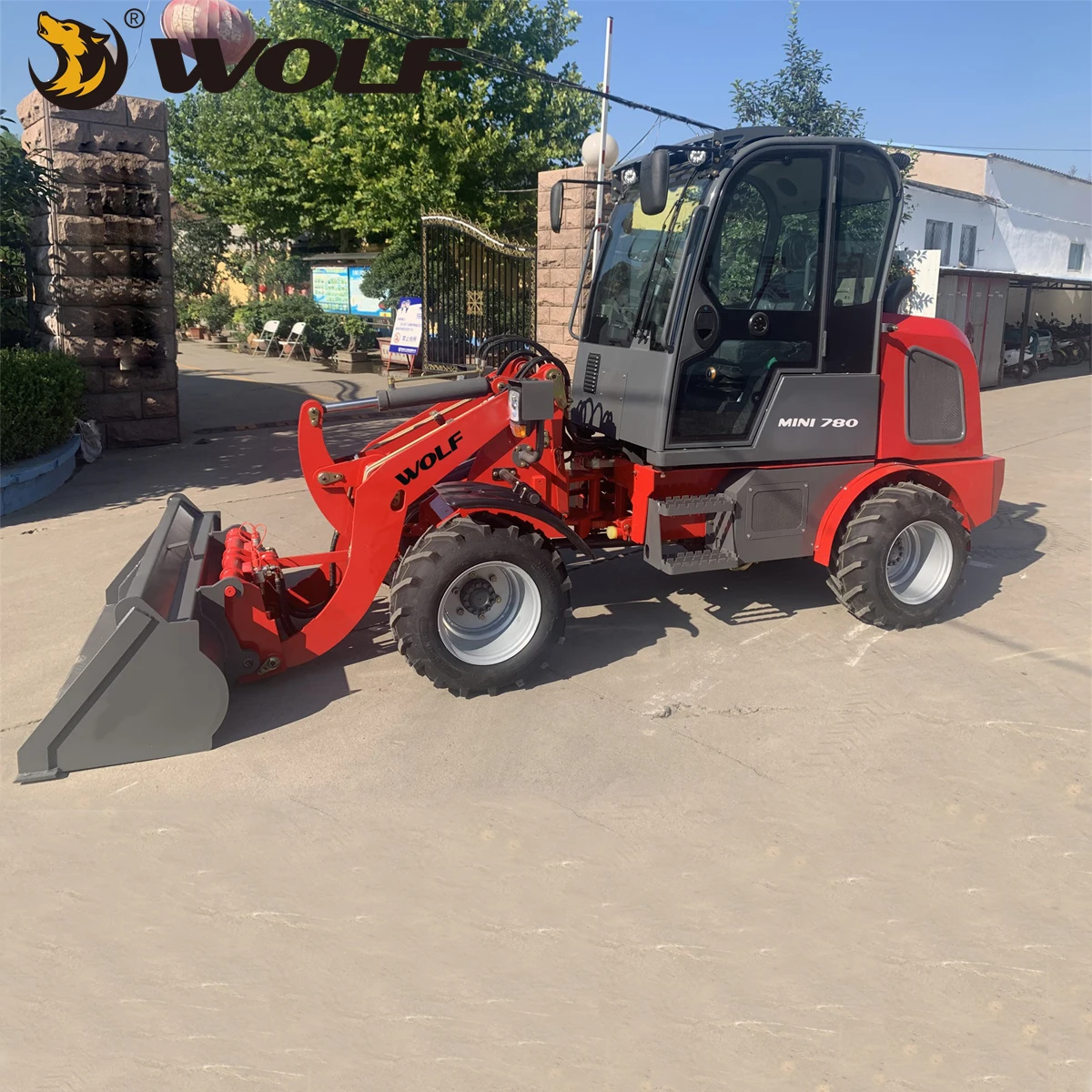

Enclosed Cabin
Without cabin
Standard Configuration:
- Changchai 3 Cylinders engine 25KW
- Standard Joystick
- Standard 825-16 tires
- Safety Canopy
- 3 ways hydraulic pipelines
- Rear Trailer ball
- Standard bucket
Engines:
The standard engine is Changchai ZN390Q engine, which has good torque and is economical in consumption, and you can also choose optional Xinchai 490 Euro 3 engine or Changchai 390 Euro 5 engine based on different engine emmission standards in different markets. Always one for you!
Specification:
| Basic Parameters | overall weight(kg) | 2000 |
| L×W×H(mm) | 4036x1350x2200mm | |
| rated bucket capacity(m3) | 0.5 | |
| Rated load(kg) | 800 | |
| Lifting height(mm) | 2500 | |
| dump height (mm) | 2100 | |
| Dump distance | 700mm | |
| Wheelbase | 1000mm | |
| Thread | 590mm | |
| Total time | 11s | |
| Engine | Model | Changchai ZN390 |
| Optional engine | Changchai Euro5 engine | |
| Type | direct injection, horizontal, water-cooled, four stroke, 3 cylinder | |
| Rated power(KW) | 25KW | |
| Rated speed(r/min) | 2400 | |
| Working system | Distribution of work valve | DF15.2C |
| Working pump | CBF32 | |
| Steering system | Type | Articulated hydraulic steering |
| Min. turning angle | 280±1 | |
| Min turning radius(mm) | 3200 | |
| Tyres | Standard tires | 26x12-x12 |
| Optional tires | 31*15.5-15 wide tire |
