HVAC Accessories Conditioning Systems Duct Work Water Proof Connector
- Category: >>>
- Supplier: Guangzhou Yida Composite Material Co. Ltd.
Share on (1600898680378):
Product Overview
Description
Products Description

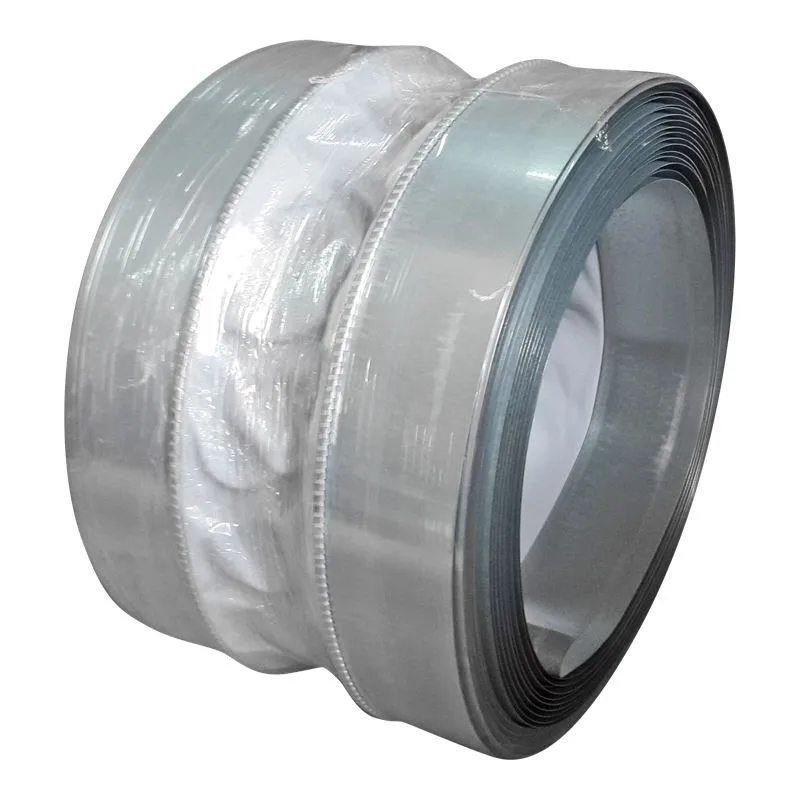

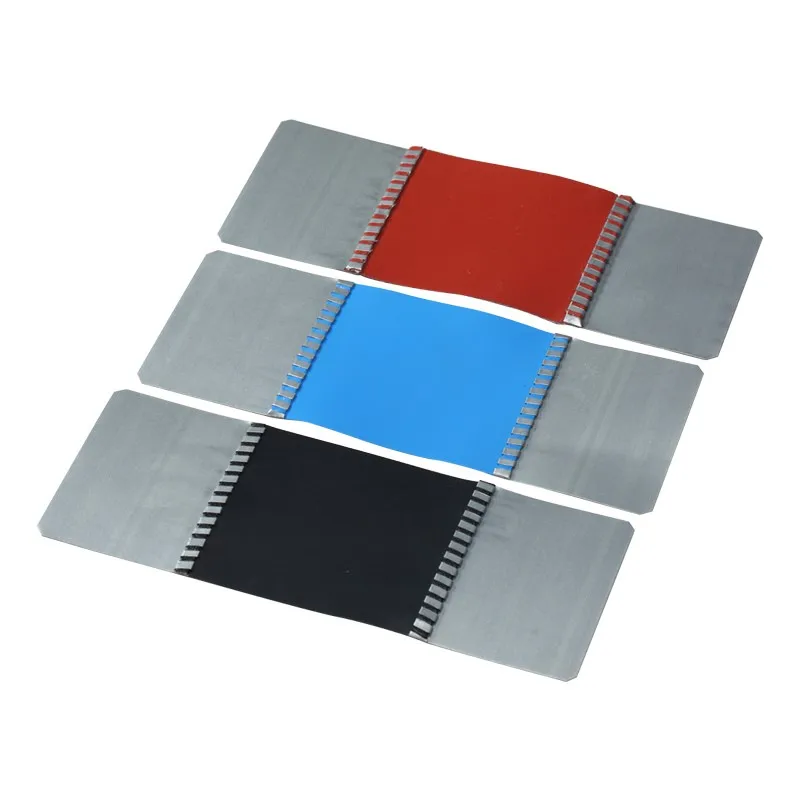

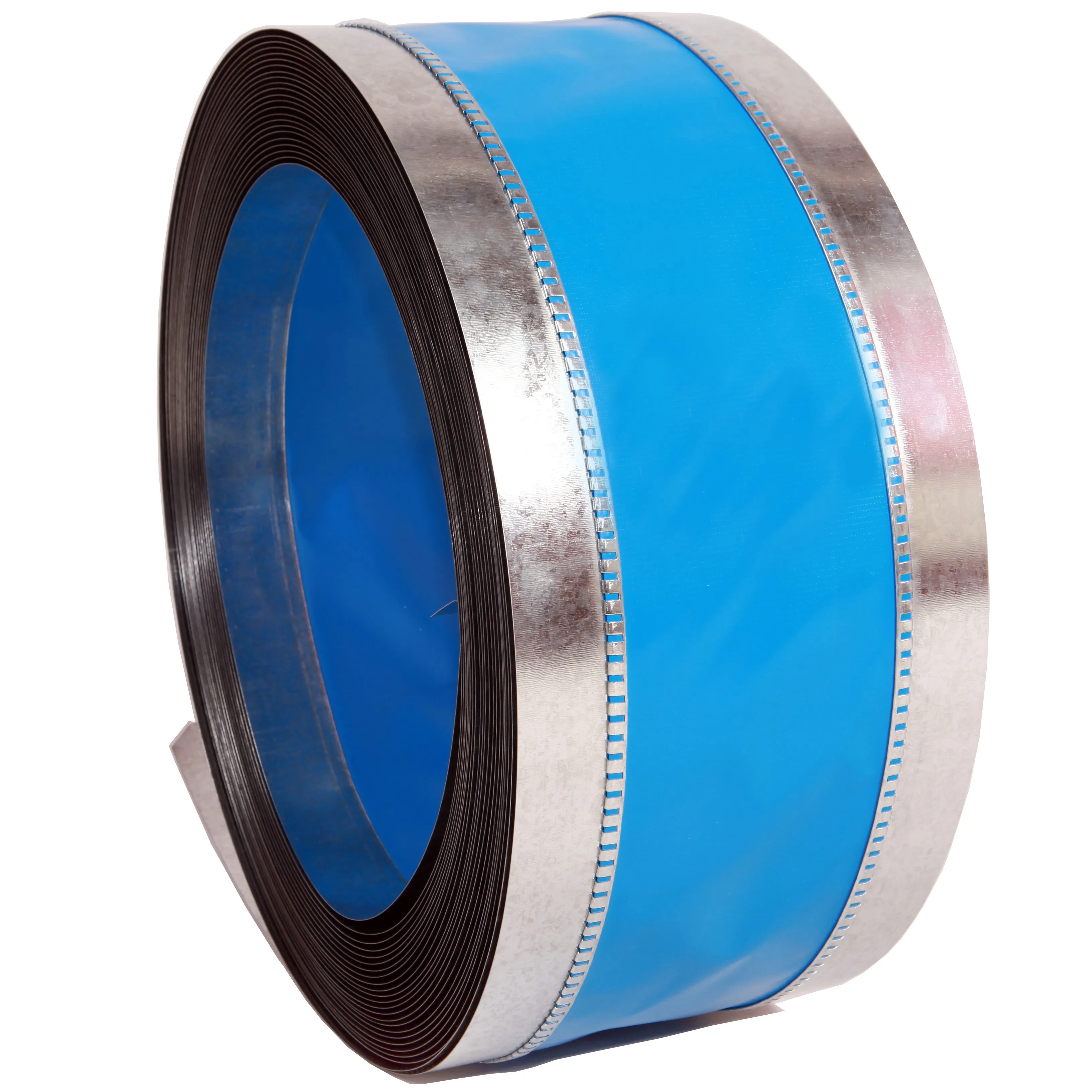

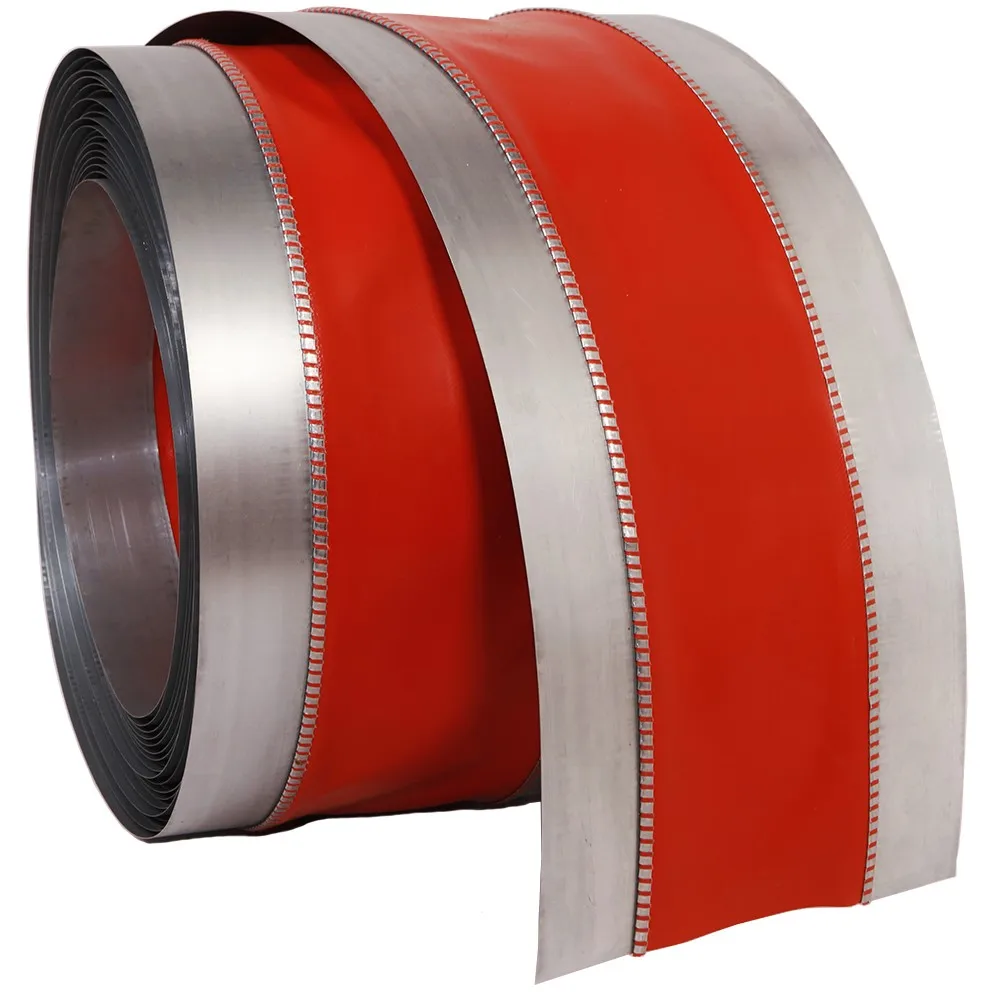

Ventilation Duct Manufacturer Flexible Duct HVAC Canvas Duct Connector is made of fabrics and galvanized iron plate. The two tight special seams between the fabric, and metal plate are airproof.
Application:
Apply for industrial, commercial and residential, ventilation systems.
All air duct installations for heating, cooling or ventilation are connected to mechanical equipment containing a fan or blower. Vibrations, noises and rattles resulting from the operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system.
In order to isolate vibrations and noises caused by air handling units, fans or other equipment connected to air ducts, it is highly recommended to install a flexible duct connector joint between the outlet of these devices and the air duct.
Features:
1. easy and quick to be installed;

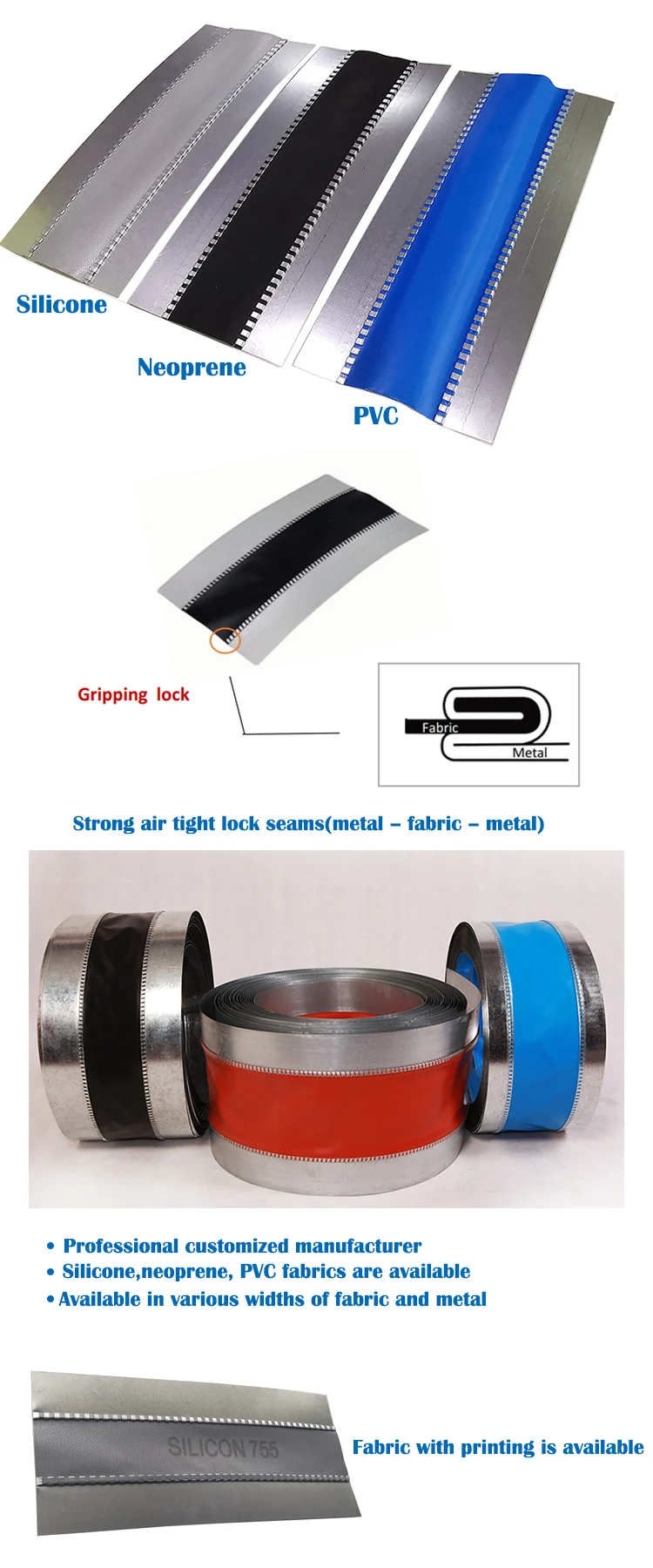

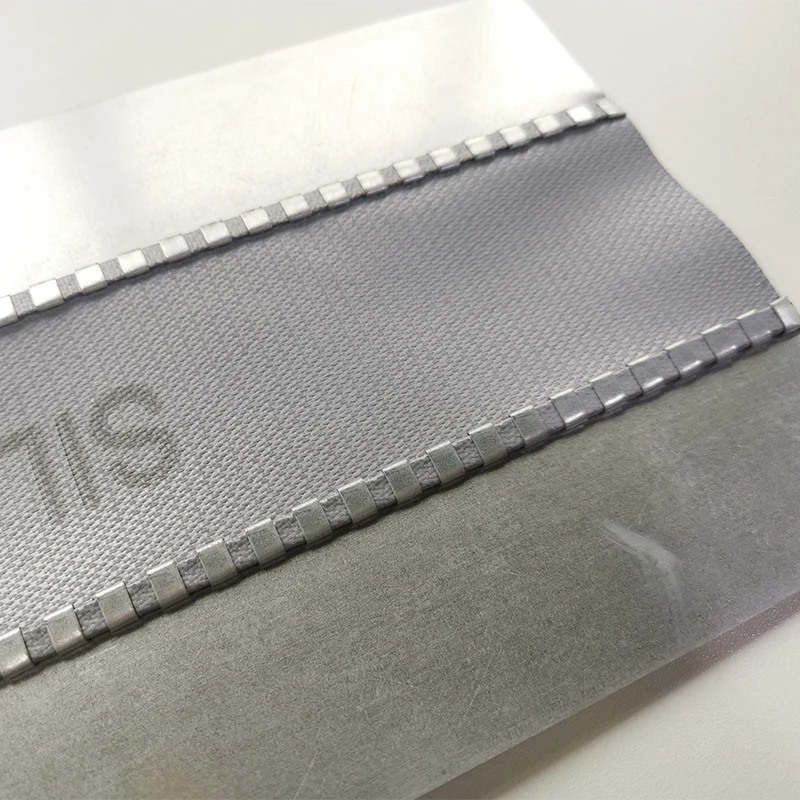

2. strong air tight lock seams;
3. available in various widths of fabric and metal.
4. high temperature resistant.
5. fire resistant.
Application:
Apply for industrial, commercial and residential, ventilation systems.
All air duct installations for heating, cooling or ventilation are connected to mechanical equipment containing a fan or blower. Vibrations, noises and rattles resulting from the operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system.
In order to isolate vibrations and noises caused by air handling units, fans or other equipment connected to air ducts, it is highly recommended to install a flexible duct connector joint between the outlet of these devices and the air duct.
Features:
1. easy and quick to be installed;
2. strong air tight lock seams;
3. available in various widths of fabric and metal.
4. high temperature resistant.
5. fire resistant.
Size | Metal Thickness | Length/roll | Materials | |||
45 X60X45mm | 0.4/0.5/0.6mm | 25/30/45/50m | Vinyl/PU/Neoprene/Silicone for option | |||
45 X75X45mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
45X100X45mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
45X150X45mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
75X100X75mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
75X150X75mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
93X100X93mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
Customized sizes are available | ||||||
