Burr free fully automatic cnc pipe cutting machine for thin metal iron stainless steel round tube
- Category: >>>
- Supplier: FOSHAN Ushine Metal Co. Ltd
Share on (1600898693561):
Product Overview
Description
Our Advantages
Products Description

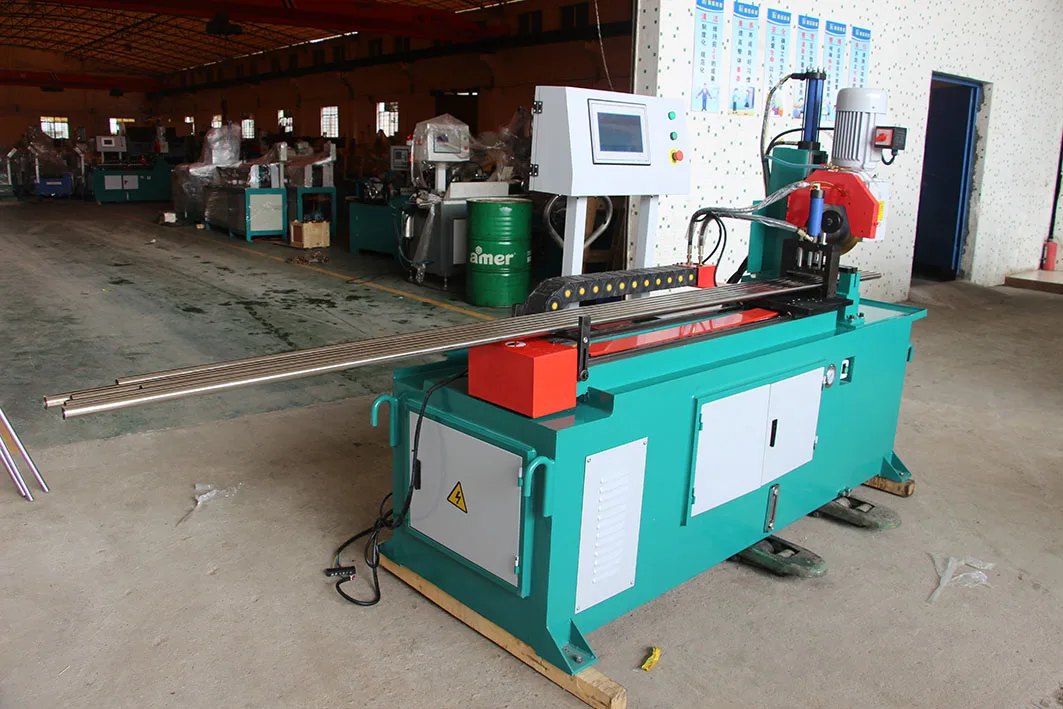

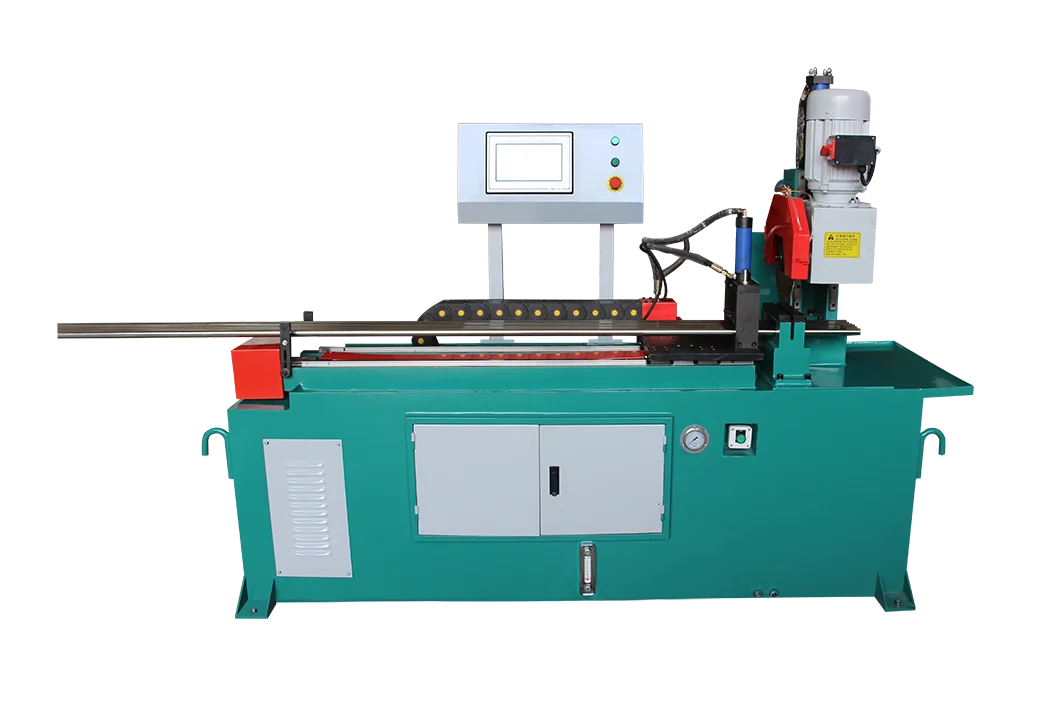

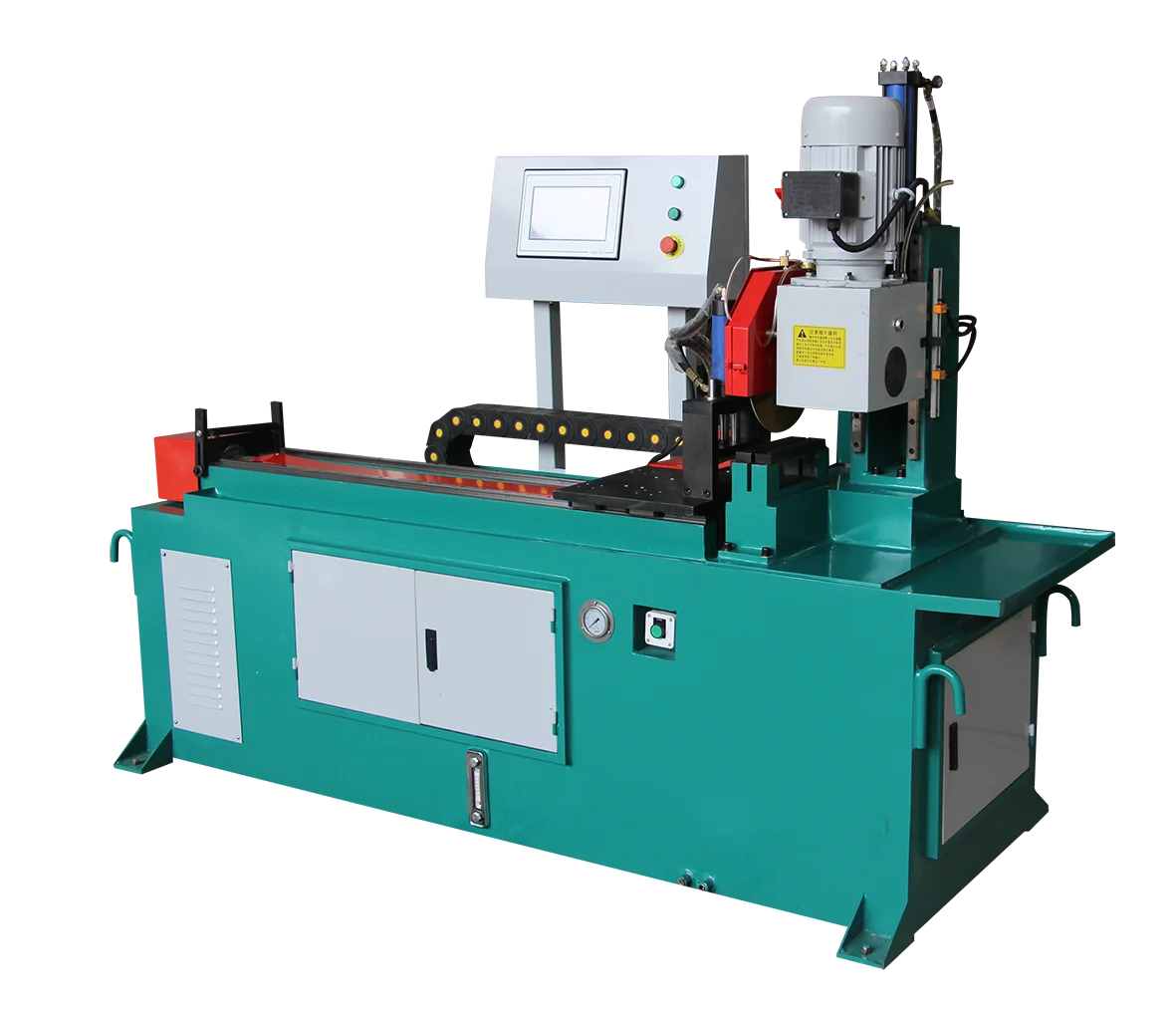

CS-330CNC servo full automatic pipe cutting machine
1.Low-speed rotation of the high-speed hacksaw piece, suitable for cutting metal pipe.No burr，no black ,not deformed.
2.Servo feeding, feeding accuracy 0.20 mm.The biggest feed a 1 meters, can be customized extended edition。

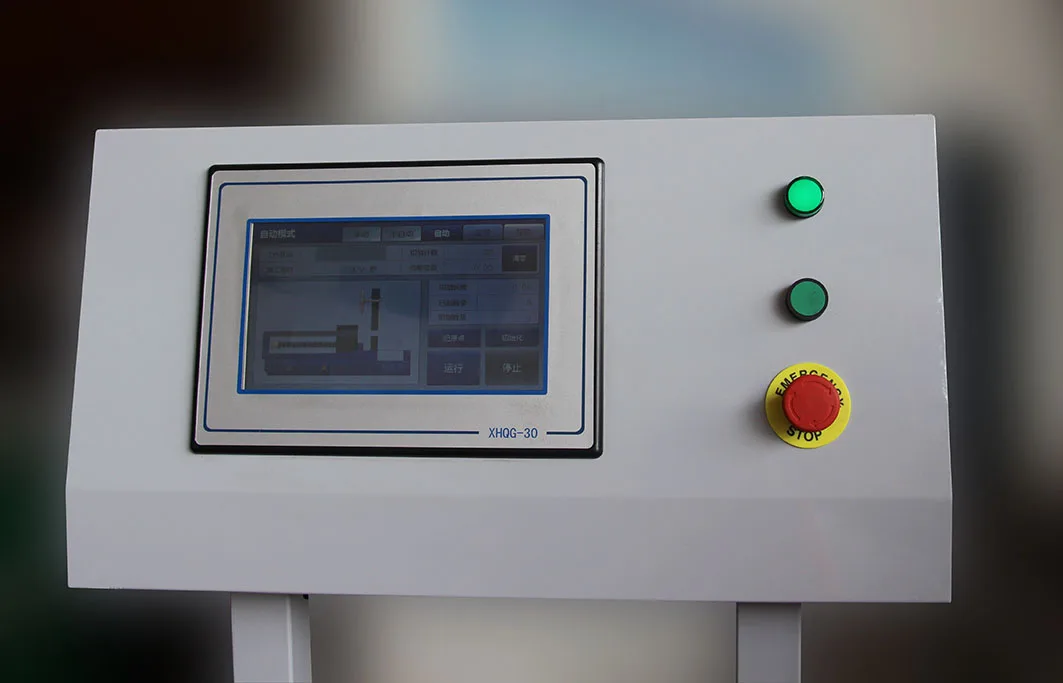

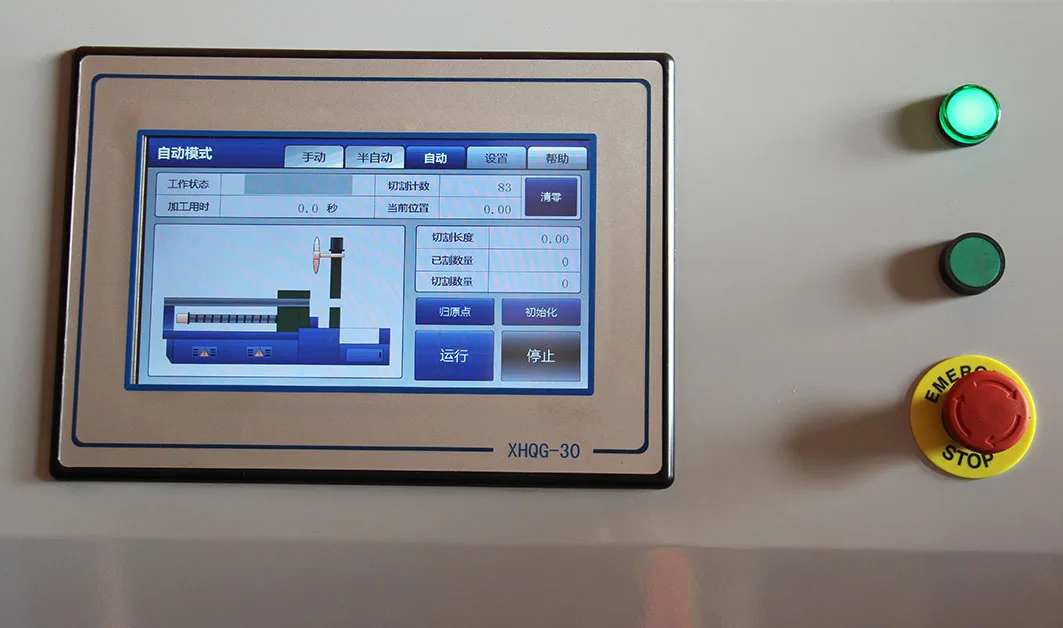

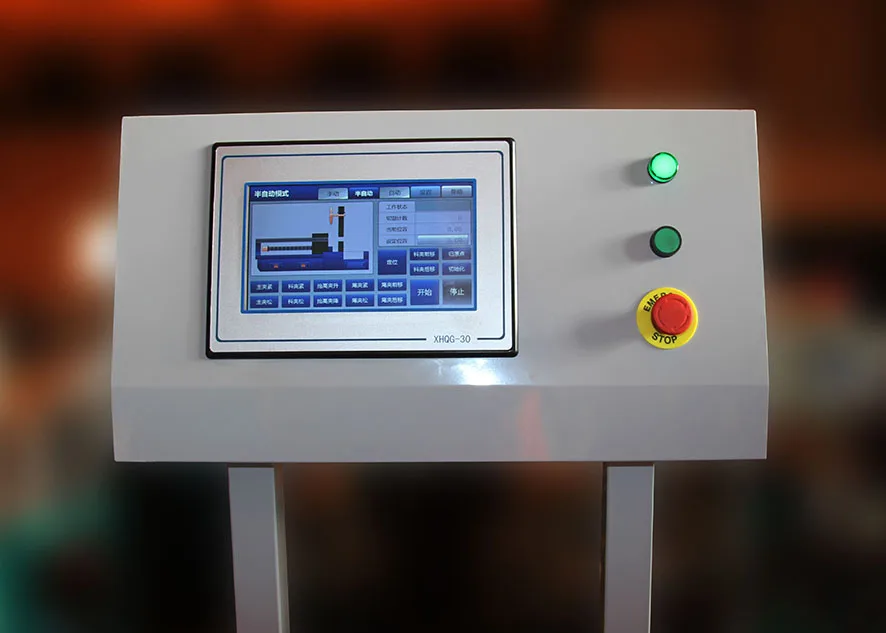

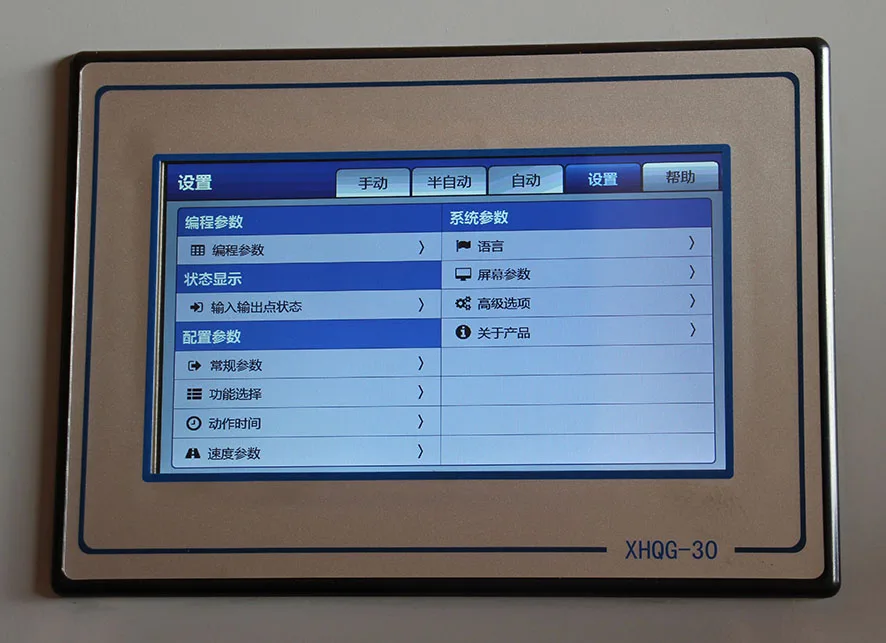

3.The switch button and the PLC control, easy operation.
4.Can be set multiple intelligence feed, the machine cutting length can reach to a single feed at any times.
2.Servo feeding, feeding accuracy 0.20 mm.The biggest feed a 1 meters, can be customized extended edition。
3.The switch button and the PLC control, easy operation.
4.Can be set multiple intelligence feed, the machine cutting length can reach to a single feed at any times.
Product Paramenters
NAME | parameter | NAME | NAME | parameter | ||
Main Drive Motor(KM) | YD100L-4/2 380v 3.3/4.0KW 50HZ | Saw Blade Size | Diameter(mm) | HSSφ250-300 φ325（Special） | ||
Biade Speeds(RPM) | 25/50(Stainless steel） 60/120（Standard） | Pin Holes(mm) | 2×φ11×PCD63 | |||
Max.Clamping Capacity (mm) | 160 | Oil Pressure System | Oil pressure(kg/cm2) | 25-35 | ||
Net Weight(KG) | 600 | Hyd.Oil storage capacity(L) | 90 | |||
Machine Dimensions(L×W×H)(mm) | 2280×1620×680 | |||||
Head Swivel | 90°/45° | Square Tube | 80*80 | 60*60 | ||
Round tube | 90/80 | Determined by the thickness of pipe cutting | ||||
Certifications

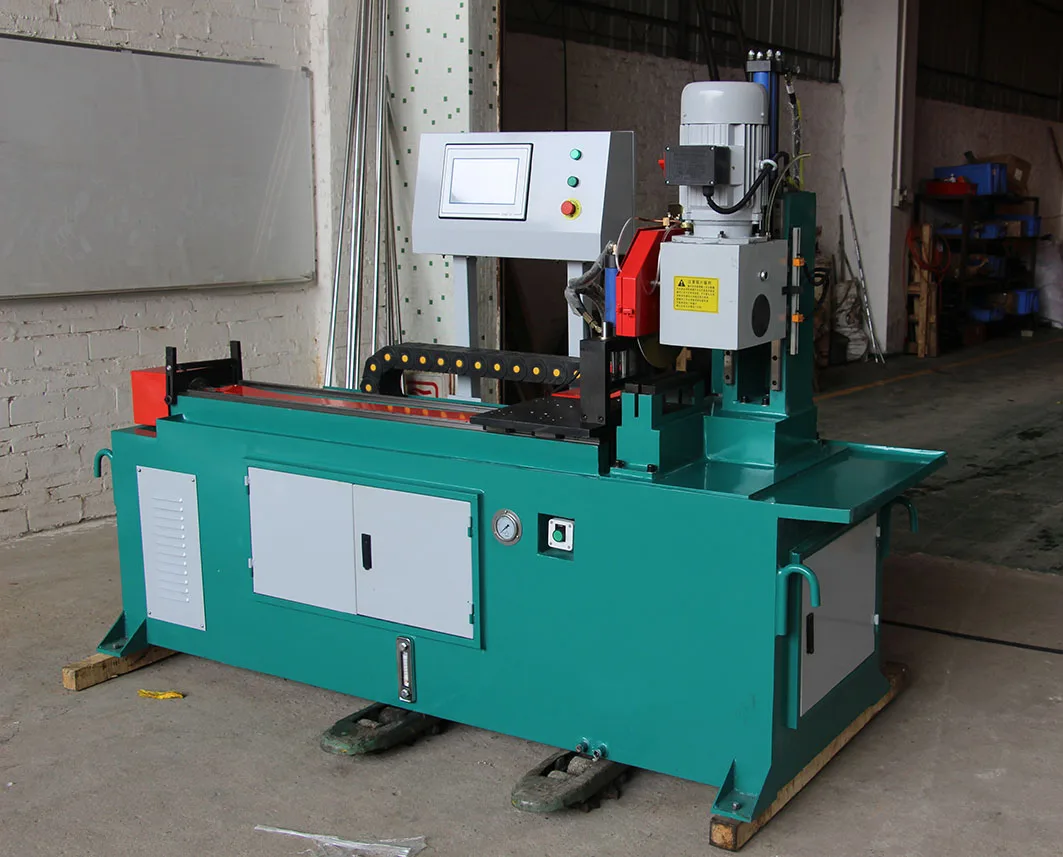

Details Images

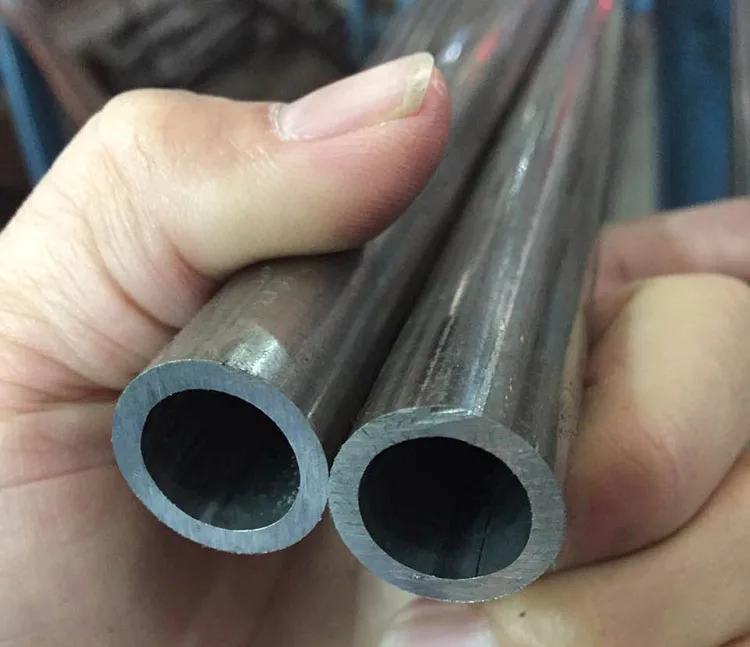

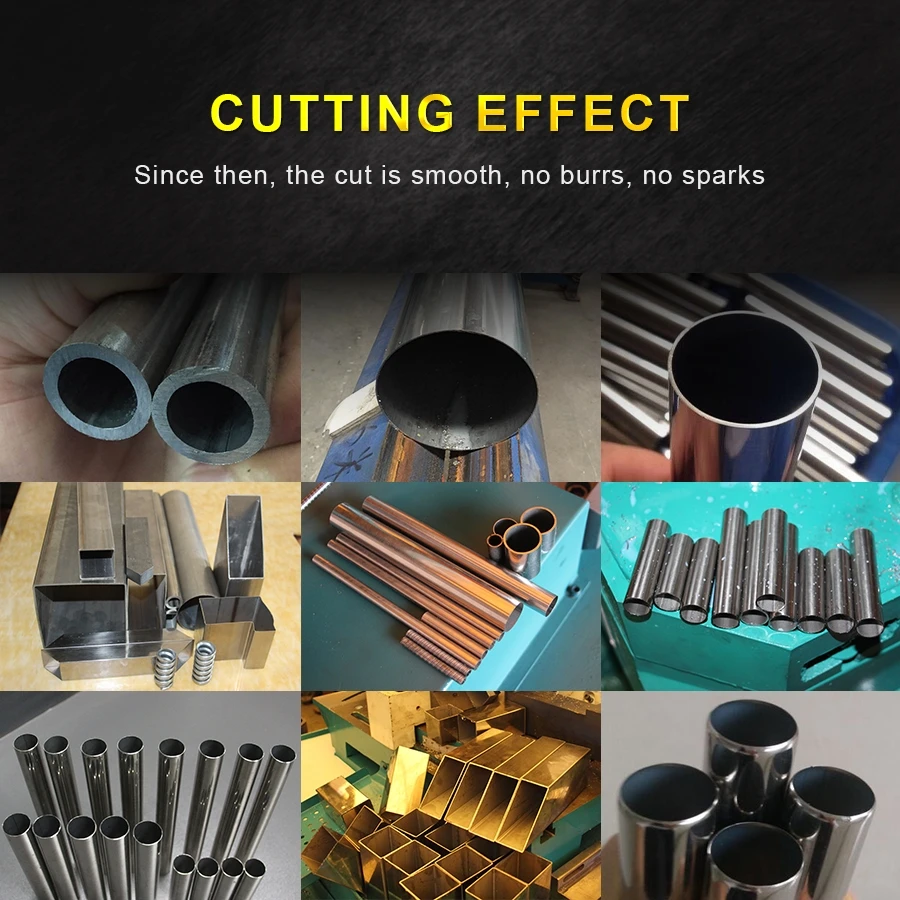

Effect of cutting

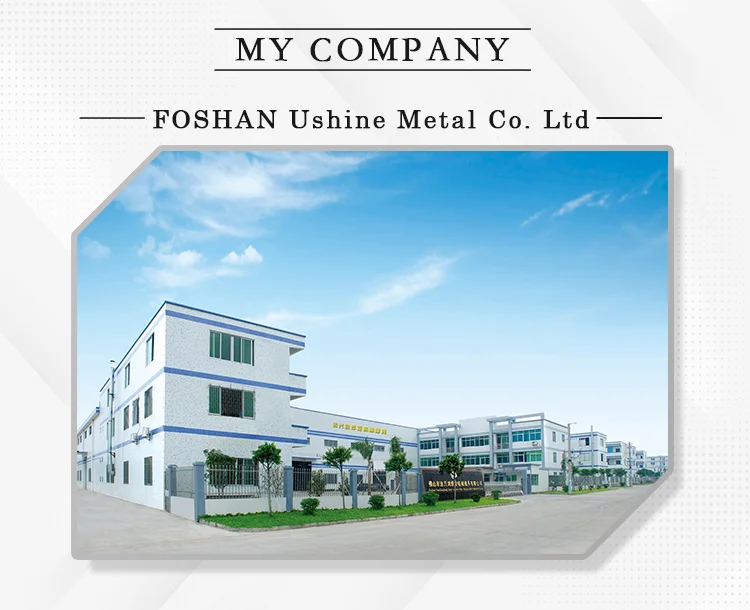

Company Profile
