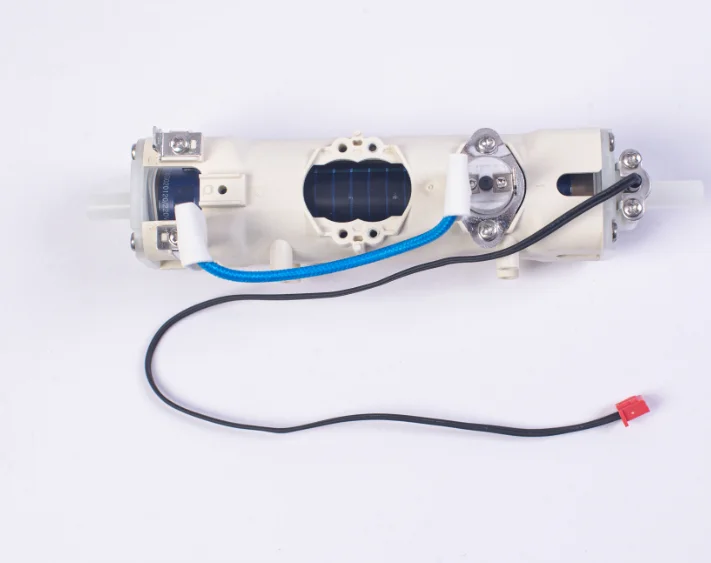

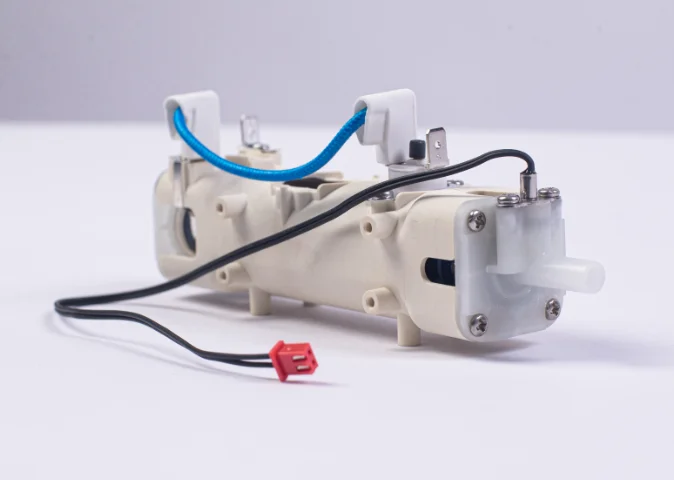

High Thermal Efficiency thick film electric heater instant electric water heater for water purifier
- Category: >>>
- Supplier: Xinxiang Jieda Precision Electronics Co. Ltd.
Share on (1600898715280):
Product Overview
Description

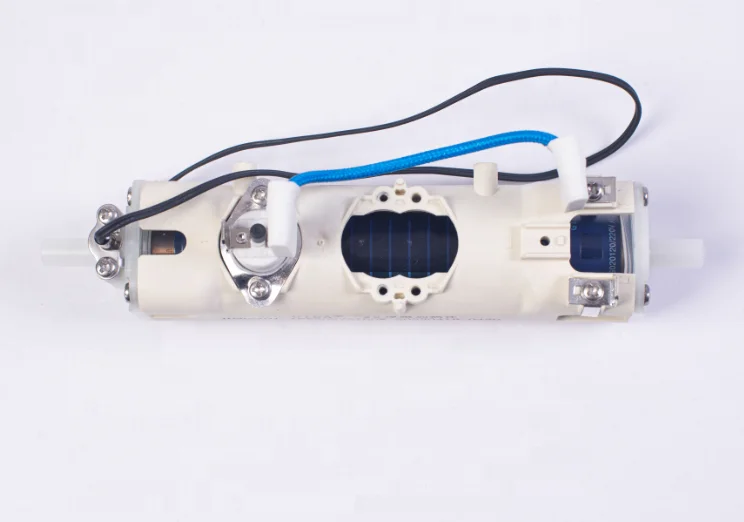

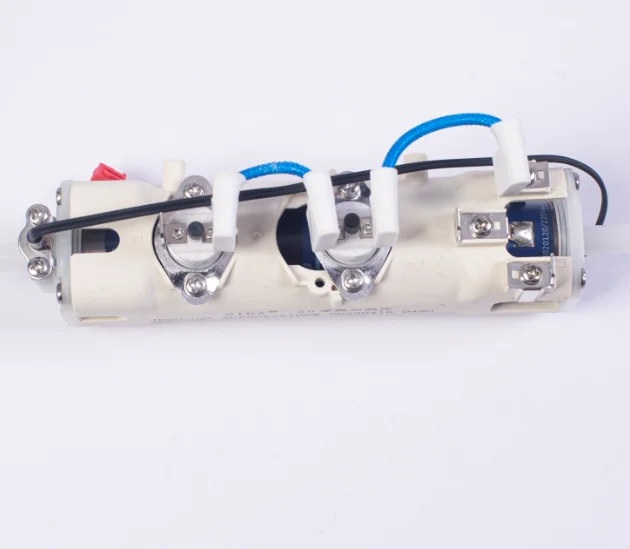

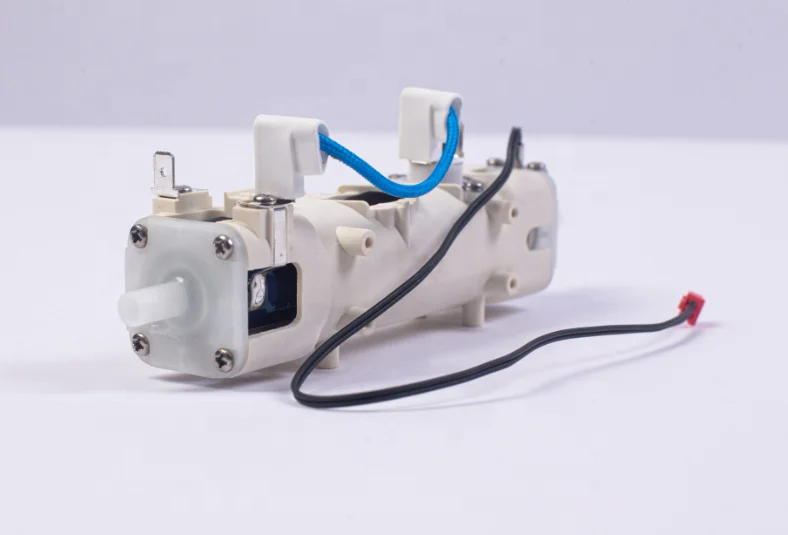

Product display
Product application
The application of instant thick film heater
The series of Jieda GIDAPE® GIDA® stainless steel thick film heating pipes have been specially designed for fluid heating, and currently have been successfully applied to fast heat water dispenser, fast heat water heater, electric heat faucet, pipeline machine, under sink water heater, coffee machines, circulate-heating, industrial equipment heating etc.
Certifications
Certifications
Jieda GIDAPE® ANDETONG® series stainless steel thick-film heating tube has four invention patents, dozens of utility model patents, we are also the first domestic company who produces stainless steel thick film products with CQC certification, wading health approval documents, ROHS certification.

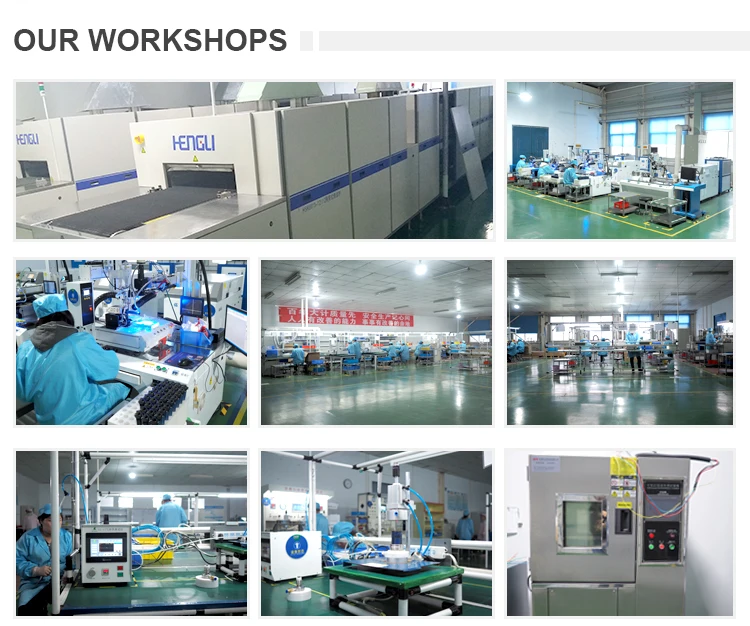

Our Advantages
Recommend Products
Product packaging
FAQ
Q: What's Thick Film Heating Element?
A: Thick Film Heater is a new technical art which is use screen printing technology and new thick film material. It is
A: Thick Film Heater is a new technical art which is use screen printing technology and new thick film material. It is
printed with isolation dielectric, heating element and glass prevent on a substrate that is made by stainless steel,
and through drying firing process with 800°C. Thick Film Heater has become a new type of heater.
Q: What's the advantages of Jieda Thick Film Heating Element?
A: We fully master screen printing and sintering technology on curved surface stainless steel tubes, which makes it
Q: What's the advantages of Jieda Thick Film Heating Element?
A: We fully master screen printing and sintering technology on curved surface stainless steel tubes, which makes it
possible to heat continuous water flow without water tank.

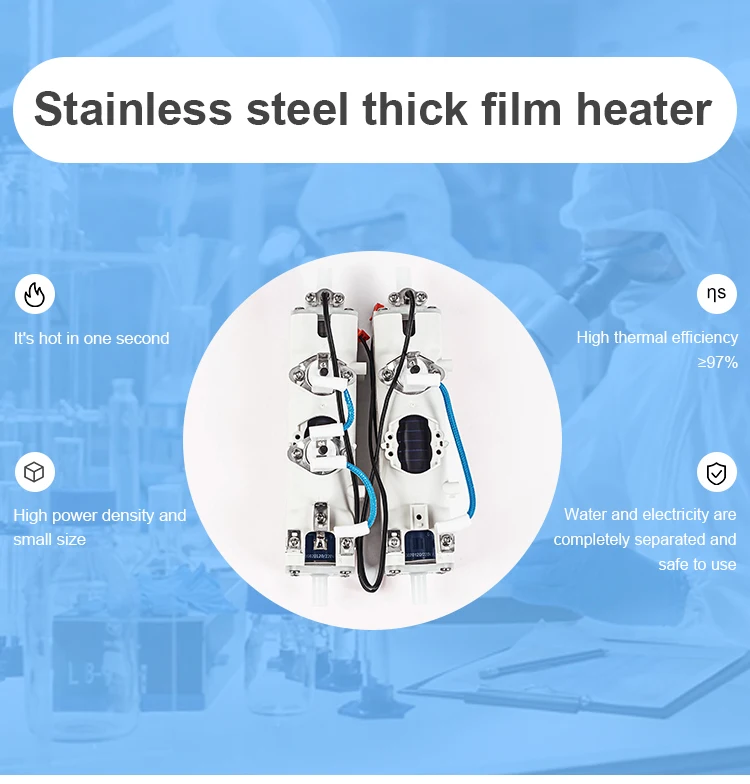

60W/c㎡ power density and small size;>80℃/S temperature ranp up; High thermal efficiency ≥97%；Water and
electricity are completely separated and safe to use。
Q: What's the lifespan of Thick Film Heating Tube / Thick Film Heating Element?
A: It can work more than 10,000 hours, in case of no DRY HEATING.
Q: What's the inlet and outlet diameter?
A: Thick Film Heating Tube : 18, 20, 30, 35, 40, 50,63,75,85mm.
60W/c㎡ power density and small size;>80℃/S temperature ranp up; High thermal efficiency ≥97%；Water and
electricity are completely separated and safe to use。
Q: What's the lifespan of Thick Film Heating Tube / Thick Film Heating Element?
A: It can work more than 10,000 hours, in case of no DRY HEATING.
Q: What's the inlet and outlet diameter?
A: Thick Film Heating Tube : 18, 20, 30, 35, 40, 50,63,75,85mm.
Thick Film Heating Element : Available with 7.5mm,10mm, 16mm ,G1/2, G1/8 etc.
Q: Can I DIY it for personal use by myself?
A: Our Products are mainly used as heating spare parts for water heaters in mass production, not recommended
Q: Can I DIY it for personal use by myself?
A: Our Products are mainly used as heating spare parts for water heaters in mass production, not recommended
for Personal DIY.
Q: Can the Thick Film be applied to Copper Pipe or Aluminum Pipe?
A: It can not be applied on Copper pipe, but can work on Aluminum pipe.
Q: How to get the suitable model for our application?
A: We need to know the water temperature in inlet and outlet port, water flow rate, connection port details and other
Q: Can the Thick Film be applied to Copper Pipe or Aluminum Pipe?
A: It can not be applied on Copper pipe, but can work on Aluminum pipe.
Q: How to get the suitable model for our application?
A: We need to know the water temperature in inlet and outlet port, water flow rate, connection port details and other
special requirements, to recommend the suitable Thick Film Heating Elements
Q: What's the operation attentions?
A: 1. The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.
2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial
Q: What's the operation attentions?
A: 1. The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.
2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial
area of heating tube.
3. Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizing
and dry heating
4. Make sure reliablility grounding.
4. Make sure reliablility grounding.
