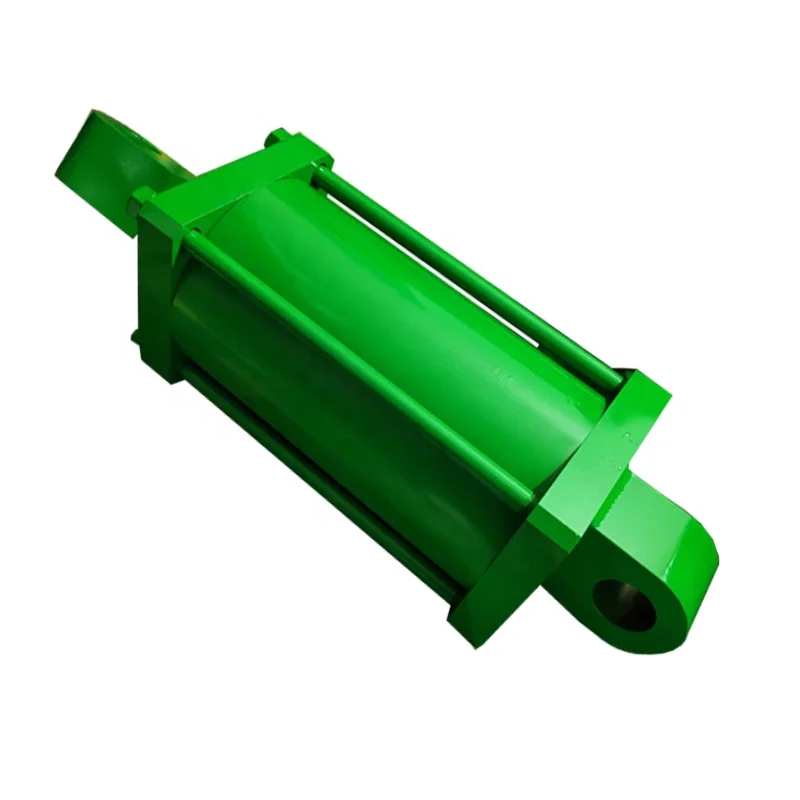

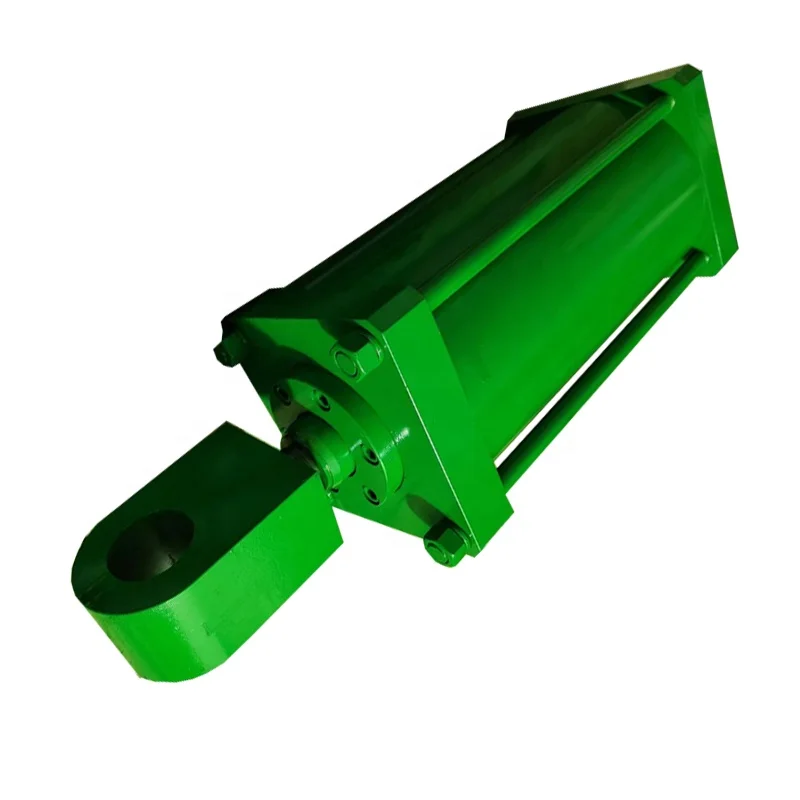

Long Service Life Air Cylinder With Chrome Plated Rod Double Acting Pneumatic Cylinder
- Category: >>>
- Supplier: Shandong Kewill Automation Equipment Co. Ltd.
Share on (1600898729534):
Product Overview
Description
Double Action Pneumatic Cylinder Output Force | ||||||
Bore diameter mm (inch) | Rod diameter mm (inch) | 6bar Push force N | 6bar Pull force N | |||
32 | 12 | 482 | 414 | |||
40 | 16 | 753 | 633 | |||
50 | 20 | 1178 | 989 | |||
63 | 20 | 1870 | 1681 | |||
80 | 25 | 3015 | 2721 | |||
100 | 25 | 4712 | 4418 | |||
125 | 32 | 7363 | 6881 | |||
160 | 40 | 12063 | 11309 | |||
200 | 40 | 29452 | 28274 | |||
320 | 63 | 59588 | 58049 | |||
How to customize the most suitable pneumatic hydraulic cylinders?
- According to above air cylinder output force table, can check out the details pneumatic cylinder size that suitable to your work.
- Double action pneumatic cylinder and single action pneumatic cylinder all can customized according to your details require.
- Cylinder bore standard max to 1500mm, cylinder stroke max to 15m.
- Double action pneumatic cylinder and single action pneumatic cylinder all can customized according to your details require.
- Cylinder bore standard max to 1500mm, cylinder stroke max to 15m.
- Base on your needs, the cylinder can make into pneumatic type and hydraulic type.
- Piston rods can make into single piston, double piston cylinders.
- Offer us cylinder parameters requirements or drawing or reference photos

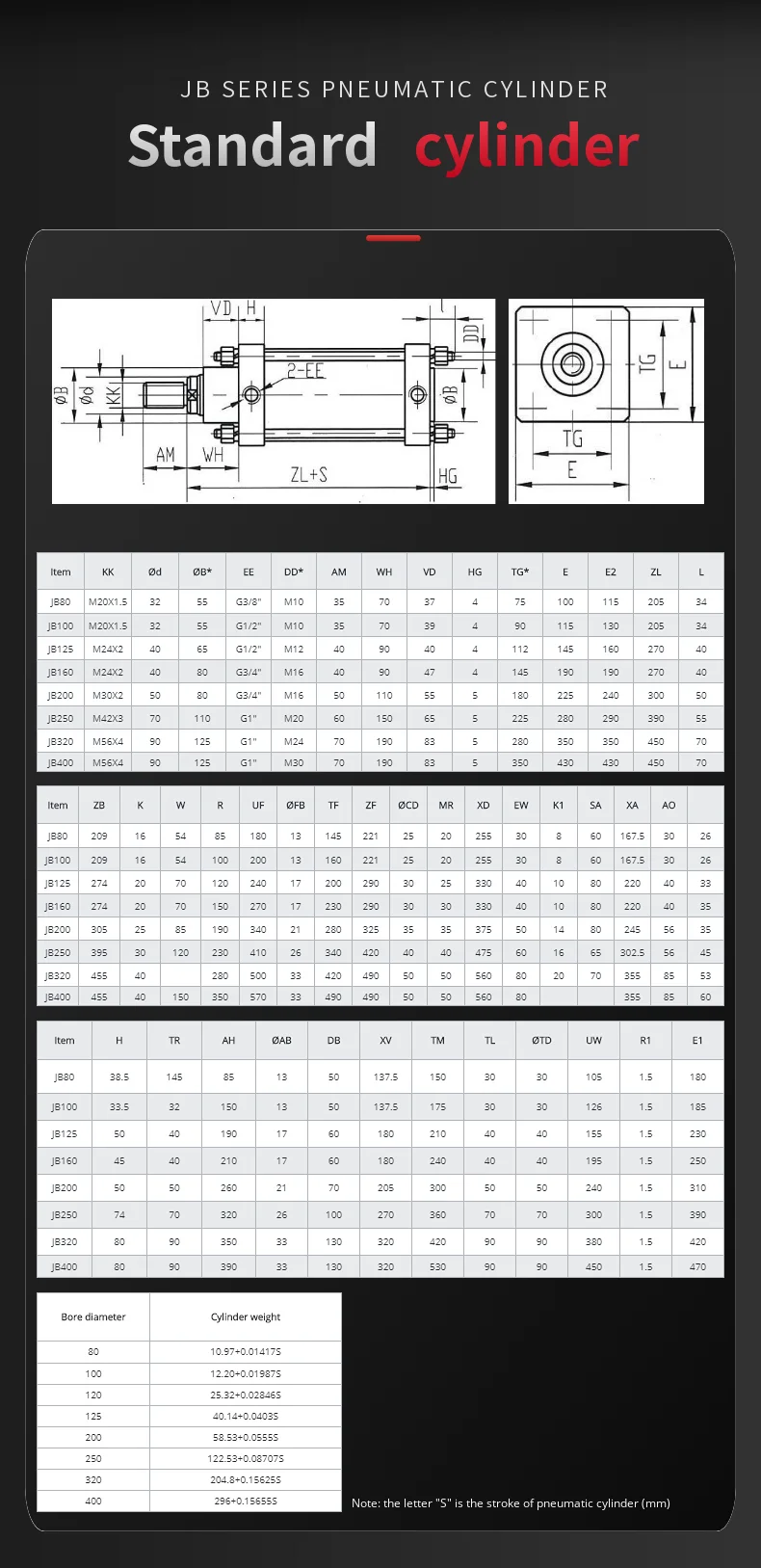

JB Series Pneumatic Air Cylinder Features

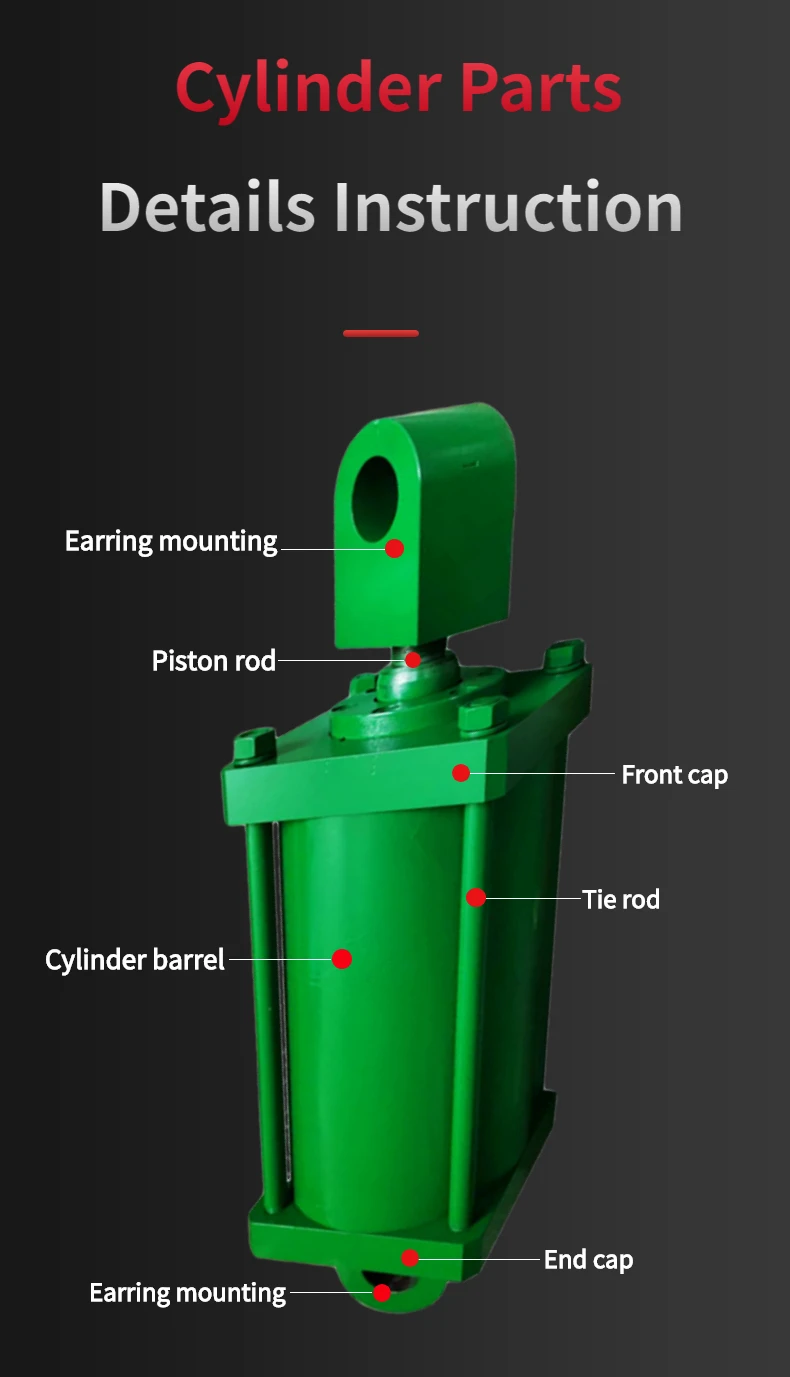

Single piston rod pneumatic cylinder, double acting and fixed cushion;

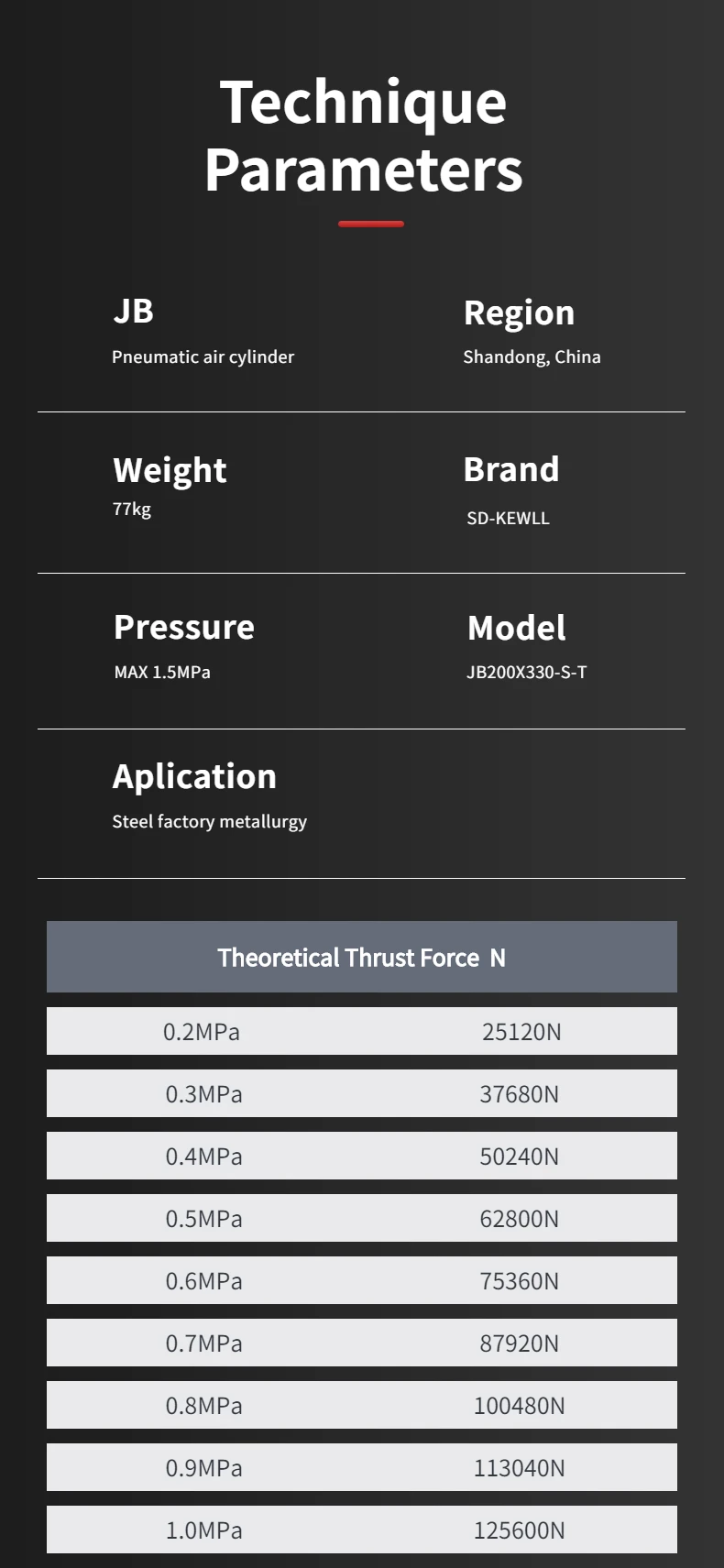

Pressure Max 1.2Mpa,big thrust,be used for steel factory metallurgy;
Conventional product, newly innovated，reliable functions and long service life;

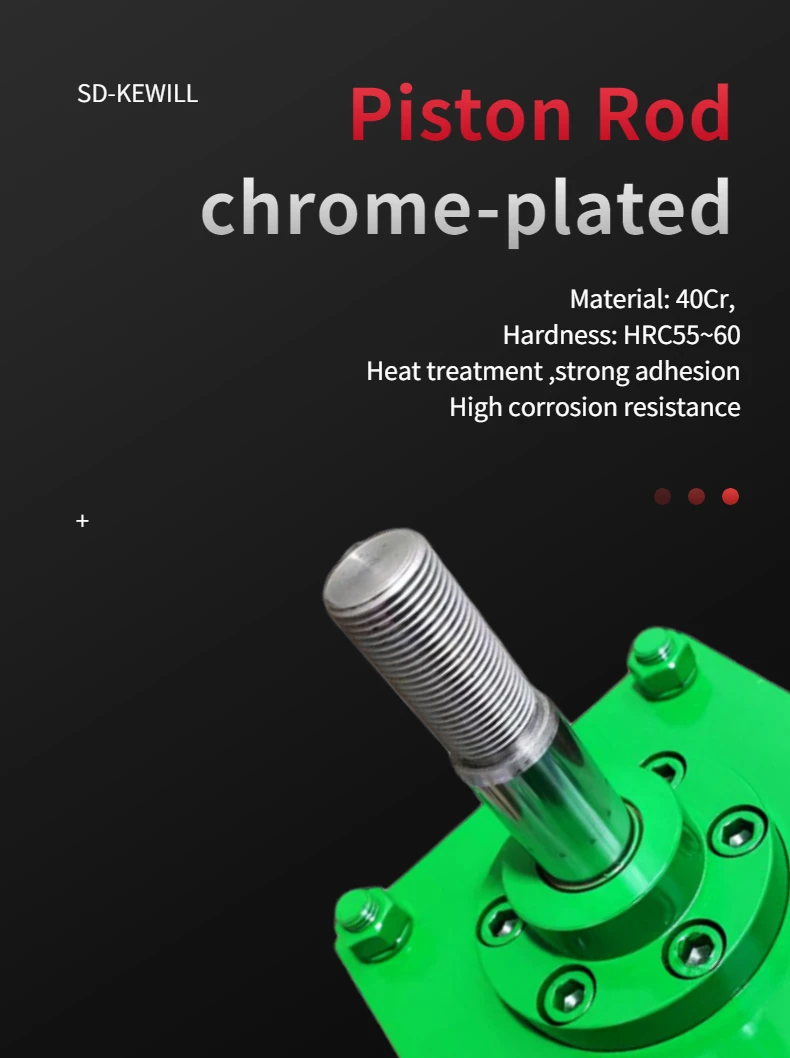

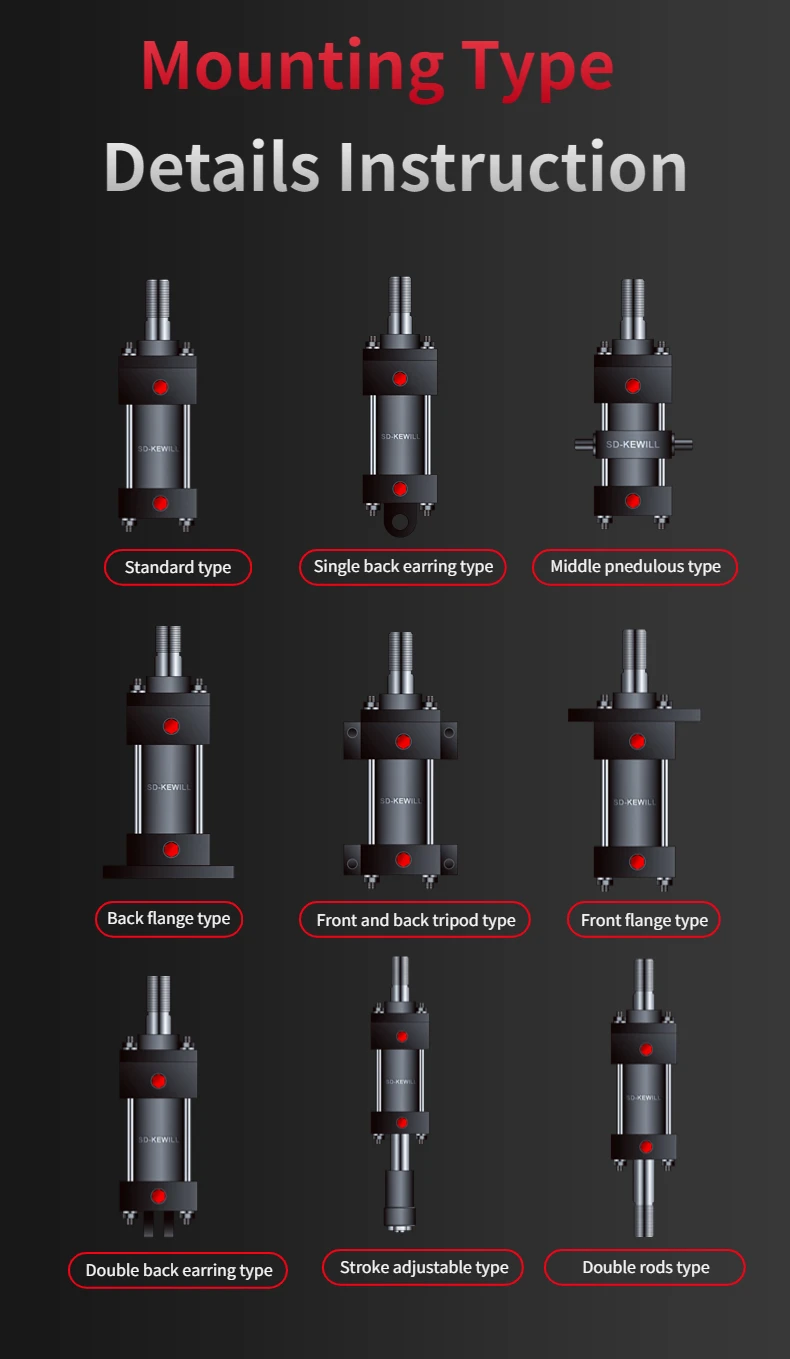

Various mounting styles, multiple utilization and chromed rod.
Conventional product, newly innovated，reliable functions and long service life;
Various mounting styles, multiple utilization and chromed rod.
