BT100F Intelligent Dispensing Dosing Metering Peristaltic Pump
- Category: >>>
- Supplier: Baoding Lead Fluid Technology Co. Ltd.
Share on (1600898775402):
Product Overview
Description

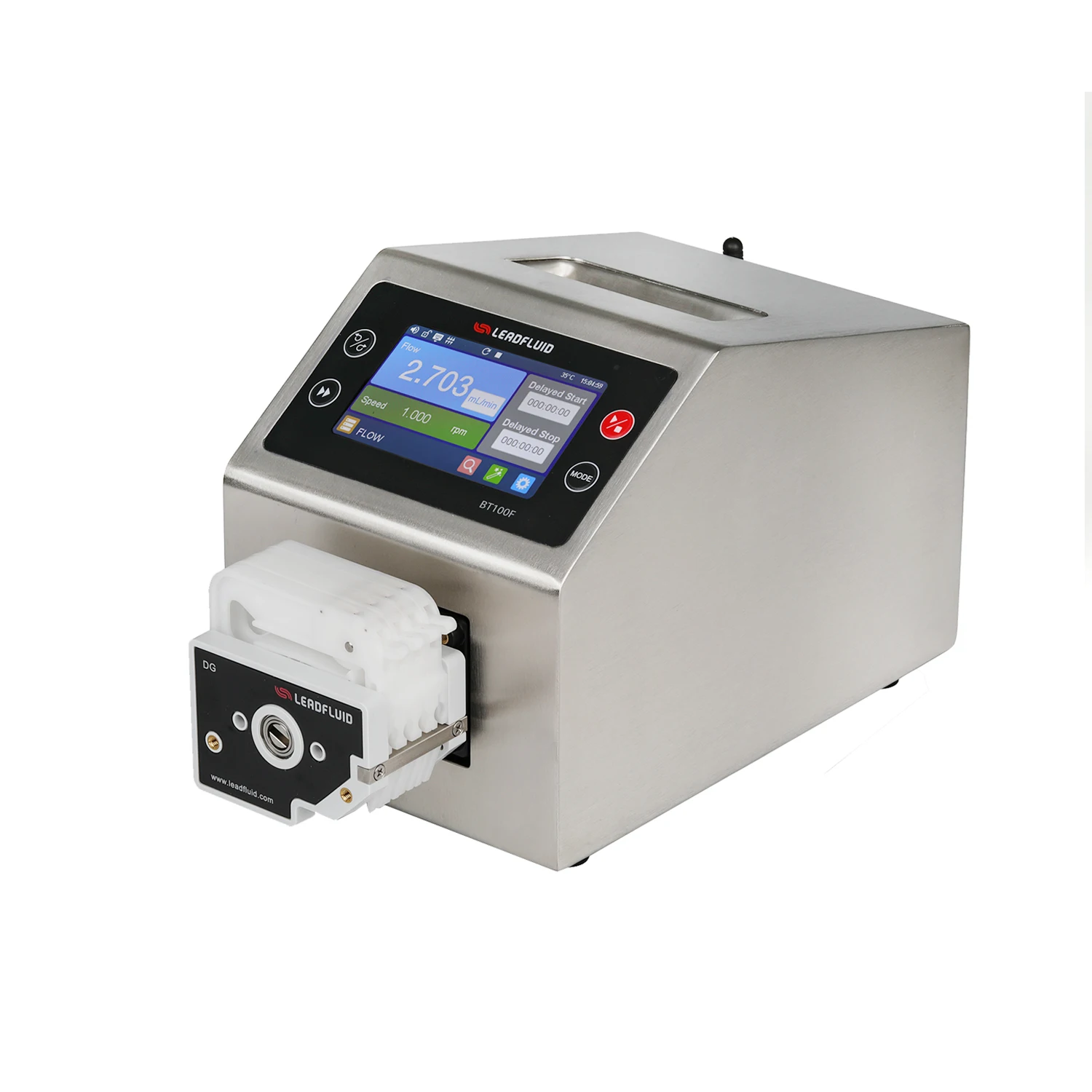

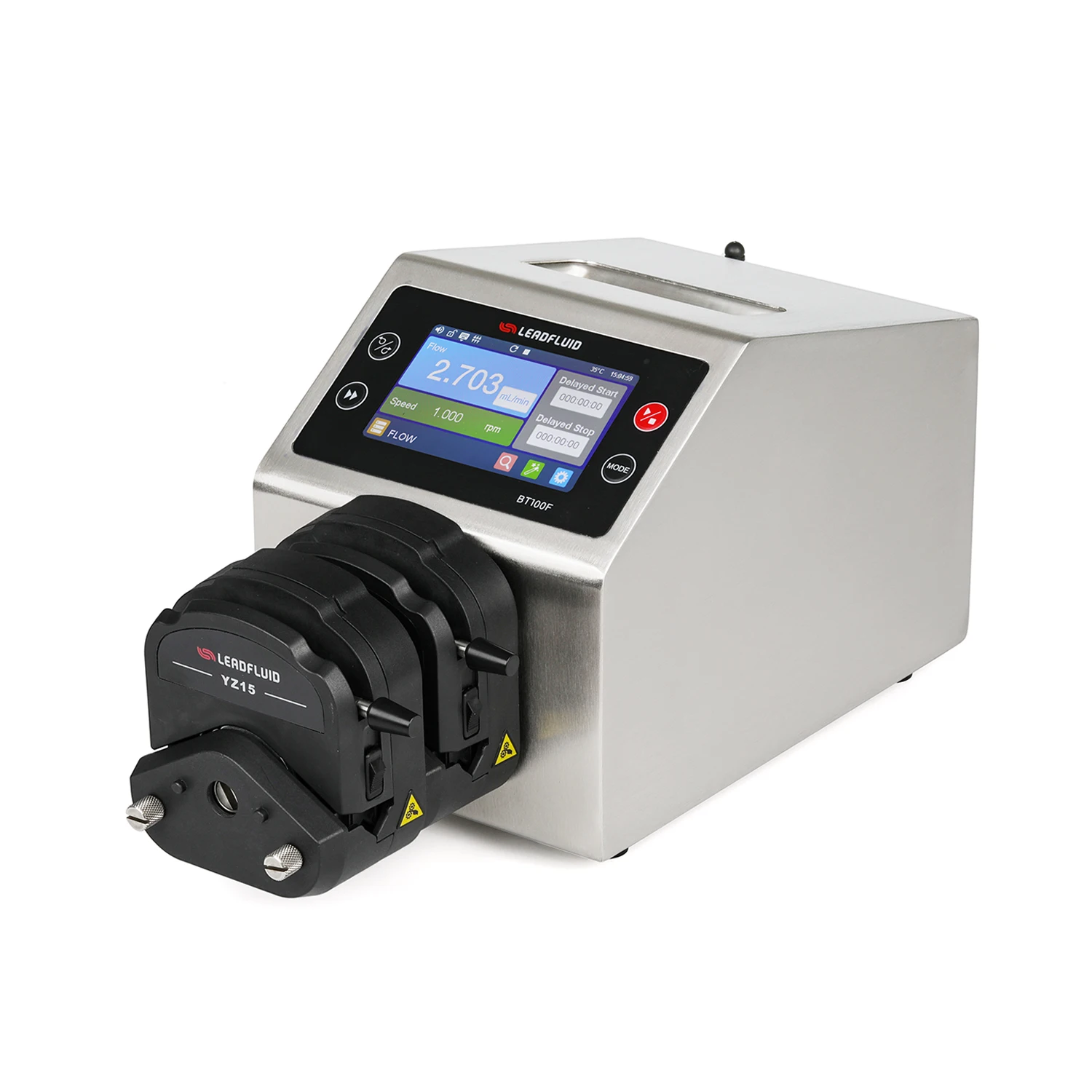

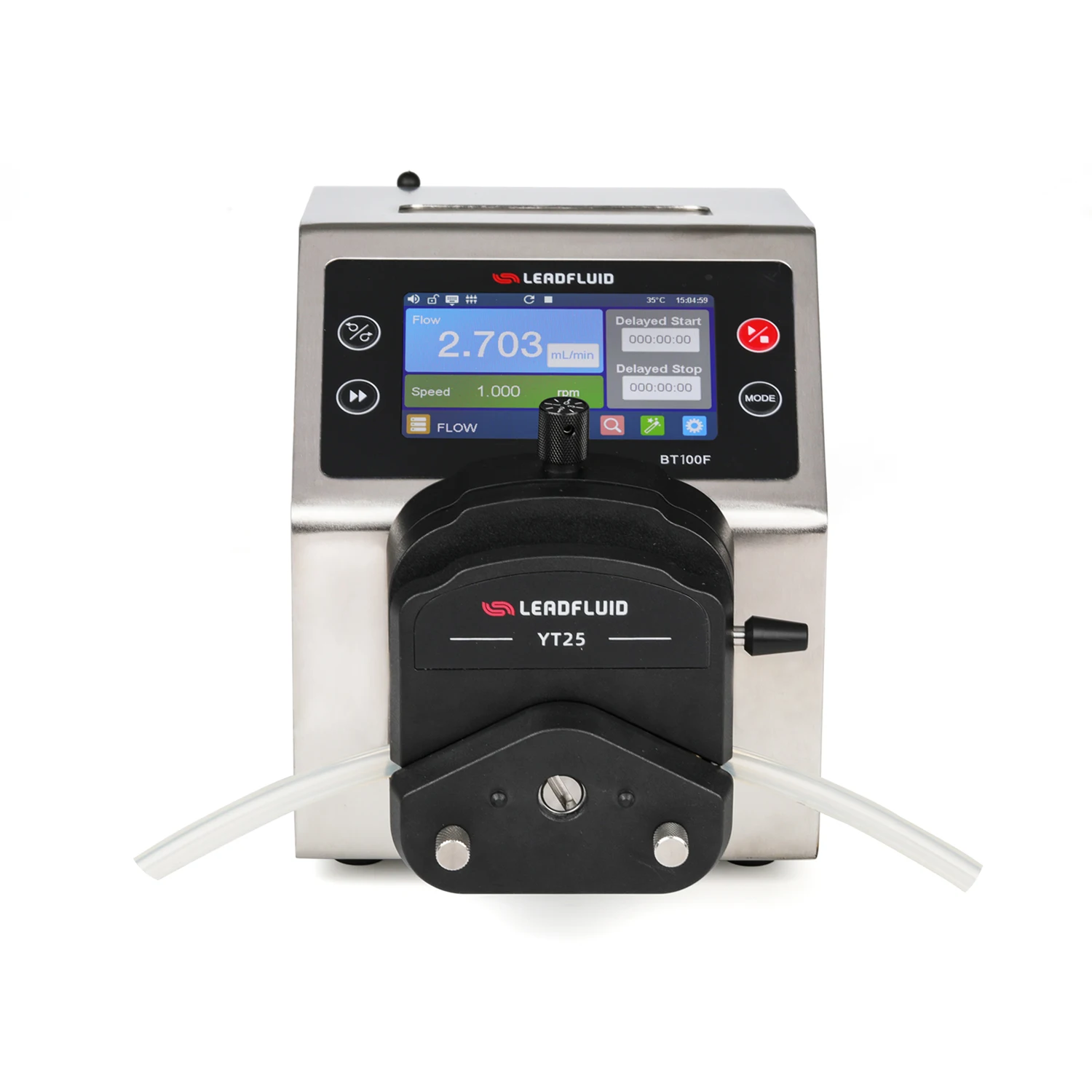

Lead Fluid BT100F Intelligent Dispensing Peristaltic Pump
BT100F intelligent dispensing peristaltic pumps adopt stepper servo motors, 4.3 inch HD LCD touch screen display and operation, multiple dispensing modes are available, Through the Lead Fluid APP software, the pump can be remotely controlled and the running status can be monitored in real time.
It is mainly suitable for high-precision transmission and timing and quantitative dispensing of liquids.
It is mainly suitable for high-precision transmission and timing and quantitative dispensing of liquids.
Product Description
Flow Range | 0.00023~750ml/min |
Speed Range | 0.1~150 rpm |
Application | Mainly suitable for high-precision transmission, timing and quantitative dispensing of liquids. |
• 4.3 inch color LCD display, intuitive image,touch screen with key operation, convenient and fast.
• Working modes: flow rate, time dispensing, volume dispensing, programming dispensing (cycle).
• Five sets of dispensing parameters for volume and time dispensing pre-storage.
• Programming mode supports 30 different quantitative parameter settings for complex control processes.
• Start/stop, reversible direction, full speed, suction function, timed start-stop.
• Programming mode supports 30 different quantitative parameter settings for complex control processes.
• Start/stop, reversible direction, full speed, suction function, timed start-stop.
• Intelligent temperature control function, automatically adjusting the heat according to the environment, so that the device is always in the best state.
• WIFI control function, remote operation can be realized through the Lead Fluid APP software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
• External analog adjust speed , external control start-stop ,reversible direction, dispensing, external signal physical isolation.
• RS485 communication interface, MODBUS protocol is available, can set up communication parameters, convenient to connect various of control equipments.
• Open multiple control parameters , suitable for OEM custom applications.
• WIFI control function, remote operation can be realized through the Lead Fluid APP software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
• External analog adjust speed , external control start-stop ,reversible direction, dispensing, external signal physical isolation.
• RS485 communication interface, MODBUS protocol is available, can set up communication parameters, convenient to connect various of control equipments.
• Open multiple control parameters , suitable for OEM custom applications.
Application Show
Specification
Brand Name | Lead Fluid |
Model Number | BT100F |
Channel | 1,2,4 |
Voltage | AC100-240V,50Hz/60Hz |
Power | 30W |
Flow | 0.0002～720ml/min |
Rotation Speed | 0.1-150rpm |
Speed resolution | 0.1rpm |
Speed accuracy | ＜±0.2% |
Dispensing volume | 0.001μl～9999l (It is recommended to have a minimum fill of 50μl.) |
Dispensing time | 1～999，“0”Infinite cycle |
Dispensing interval time | 0.1～999.9 S/Min/H, time unit adjustable |
External control signal input | (1) Start/Stop: passive contact, external control input level (5~24V) (2) Forward/Reverse: passive contact, external control input level (5~24V) (3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set. |
External control signal output | (1) Start/Stop: Level Signal (following input voltage) (2) Forward/Reverse: Level Signal (following input voltage) (3) Speed Status: Analogue 0~5V |
Communication interface | RS485 communication interface, Modbus protocol is available |
Power supply | AC100～240V，50Hz/60Hz |
Power consumption | <40w |
Working environment | Temperature 0 ～ 40℃, relative humidity＜80% |
IP grade | IP31 |
Weight | 4.5 kg |

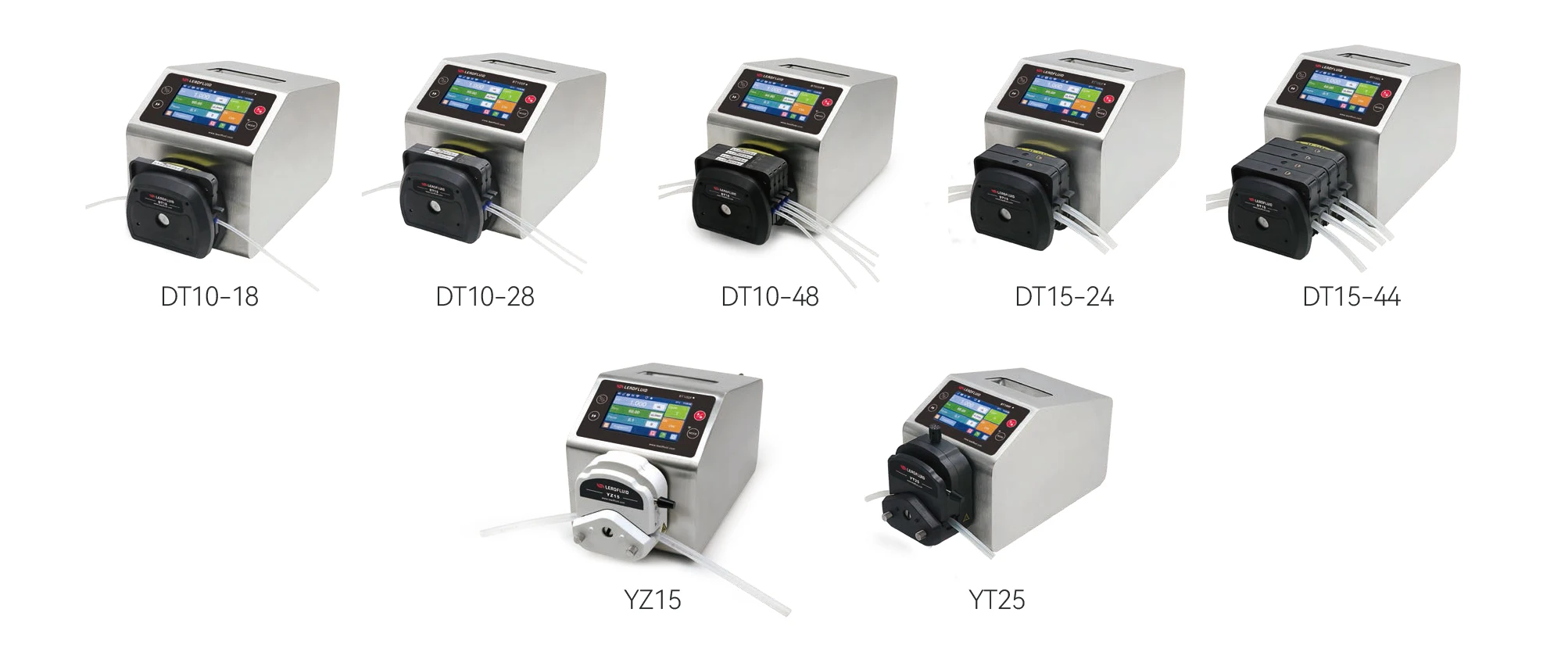

BT100F Applicable Pump Head and Tube, Flow
Drive type | Pump Head | Channel | Tube（mm） | Flow Rate Per Channel （mL/Min） |
DT10-48 BT100F | DT10-18 | 1 | Wall 0.8～1, ID≤3.17 | 0.0002～49 |
DT10-28 | 1 | Wall 0.8～1, ID≤3.17 | 0.0001～41 | |
DG-48 | 2 | Wall 0.8～1, ID≤3.17 | 0.0002～49 | |
YZ15 | 2 | Wall 0.8～1, ID≤3.17 | 0.0001～41 | |
YT25 | 4 | Wall 0.8～1, ID≤3.17 | 0.0002～49 | |
DT15-24 | 4 | Wall 0.8～1, ID≤3.17 | 0.0001～41 | |
DT15-44 | 1 | 13#14#19#16#25#17#18# | 0.006～570 | |
2×YZ15 | 2 | 13#14#19#16#25#17#18# | 0.006～570 | |
YT25 | 1 | 15#24#35#36# | 0.16～720 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Baoding Lead Fluid Technology Co., Ltd. was founded in October 1999. It mainly engaged in R&D, production and the sale of peristaltic pumps, laboratory syringe pumps, micro syringe pumps, precision gear pumps and related accessories, and is committed to continuously providing users with competitive micro Fluid transmission solutions and services.
How About The Advantage About Lead Fluid Company?
● 23 years experience for peristaltic pump, syringe pump ,gear pump ,ODM pump production.
● 20000㎡ factory with 175 workers.
● 1000 ㎡ testing lab and perfect testing system ensure reliable design and stable batch production.
● 40 R & D workers ensure continuous technological innovation and provide you with perfect fluid solutions
● Strong anti-interference design, working in complex industrial environment, more reliable quality.
● Strict ISO9000 quality management system + 6S management.
● Automatic testing equipment to ensure product consistency.
● Important accessories are purchased directly by large international manufacturers to ensure quality.
● The whole product process can be traced, including raw materials, assembly, inspection and logistics.
● Lead Fluid pumps has passed the CE certification of RoHS, reach, EMC, LVD and other directives, and the hose meets the GMP standard.
FAQ
Q:What is the minimum order?
A: The MOQ as 1 piece.
Q:What payment methods your company accept?
A:We accept most often payment methods,but mainly accept T/T,L/C,Western Union.
Q:How long is the warranty time for your products?
A:Our official warranty time is one year for quality problems.And if you have any questions,our after-sales department will offer the best service for you in time.
Q:Do you offer any discount?
A:We will try our best to help you get the best price and good service at the same time,welcome to contact us.
Q:Do you offer custom service?
A:yes, we have R & D department,they will offer suitable liquid transfer solution for you, welcome to send us your details requires.
A: The MOQ as 1 piece.
Q:What payment methods your company accept?
A:We accept most often payment methods,but mainly accept T/T,L/C,Western Union.
Q:How long is the warranty time for your products?
A:Our official warranty time is one year for quality problems.And if you have any questions,our after-sales department will offer the best service for you in time.
Q:Do you offer any discount?
A:We will try our best to help you get the best price and good service at the same time,welcome to contact us.
Q:Do you offer custom service?
A:yes, we have R & D department,they will offer suitable liquid transfer solution for you, welcome to send us your details requires.
