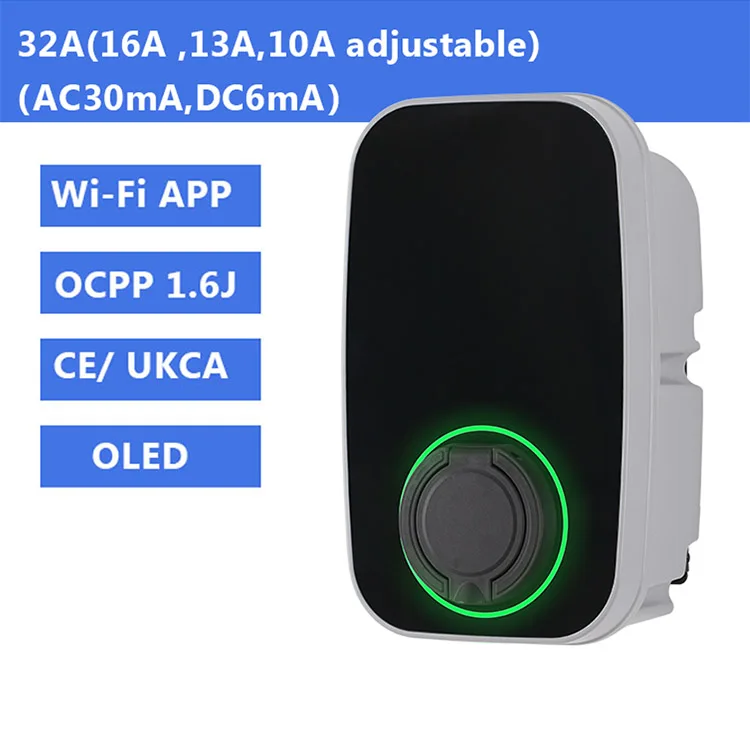

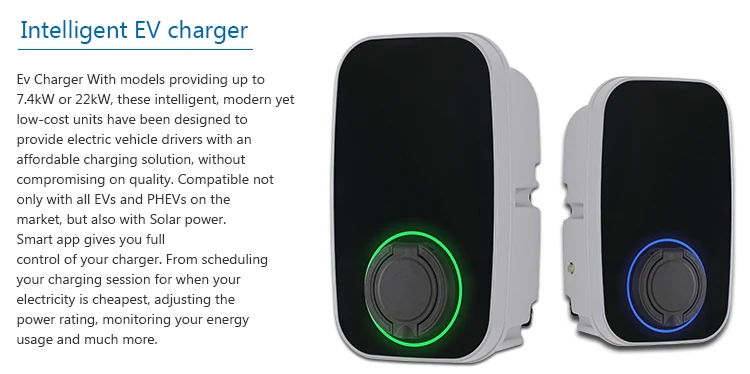

Hot sale OCPP EV Charger 7kw Smart AC App Control Car Charger Station EV Charger
Products Description
Model | EVC1S-3210 | EVC1L-1610 | EVC1L-3210 | EVC3S-3210 | EVC3L-1610 | EVC3L-3210 | |||||
Power | 7.4KW | 3.7KW | 7.4KW | 22KW | 11KW | 22KW | |||||
Power Supply | 1P+N+PE | 1P+N+PE | 3P+N+PE | 3P+N+PE | 3P+N+PE | ||||||
Rated Voltage | AC220~240V | AC380～450V | AC220～240V | AC380～450V | AC380～450V | ||||||
Rated Current | 32A(16A ,13A,10A adjustable) | 16A (13A,10A adjustable) | 32A(16A ,13A,10A adjustable) | 32A(16A ,13A,10A adjustable) | 16A (13A,10A adjustable) | 32A(16A ,13A,10A adjustable) | |||||
Output Voltage | AC220～240V | AC380~450V | |||||||||
Maximum Current | 32A(16A ,13A,10A adjustable) | 16A (13A,10A adjustable) | 32A(16A ,13A,10A adjustable) | 32A(16A ,13A,10A adjustable) | 16A (13A,10A adjustable) | 32A(16A ,13A,10A adjustable) | |||||
Rated Power (MAX) | 7.4KW | 3.7KW | 7.4KW | 22KW | 11KW | 22KW | |||||

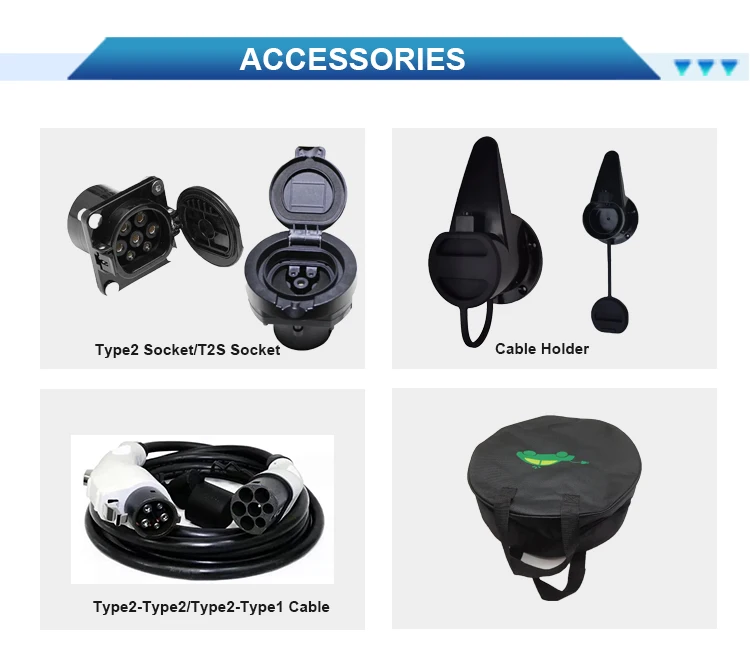

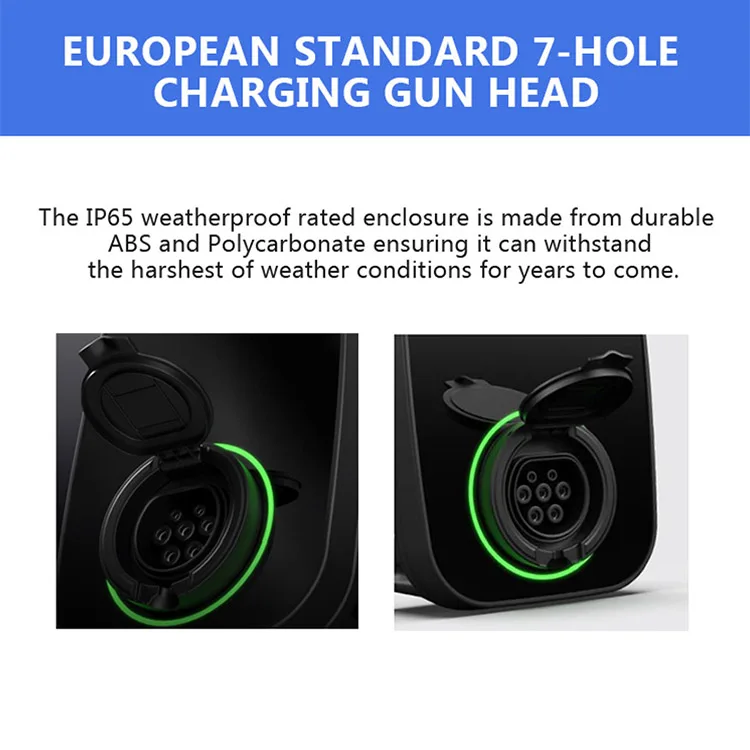

Charger Connecter | Type 2/T2S Socket | Cable +Plug | Cable +Plug | Type 2/T2S Socket | Cable +Plug | Cable +Plug | |||||
Cable Length | NO | 5M | 5M | NO | 5M | 5M | |||||
Material | ABS +PC | ABS +PC | ABS +PC | ABS +PC | ABS +PC | ABS +PC | |||||
Color | White + Black | White + Black | White + Black | White + Black | White + Black | White + Black | |||||
Three Color LED | ● | ● | ● | ● | ● | ● | |||||
OLED | Optional | Optional | Optional | Optional | Optional | Optional | |||||
Plug in and Charge | ● | ● | ● | ● | ● | ● | |||||
Smart App | ● | ● | ● | ● | ● | ● | |||||

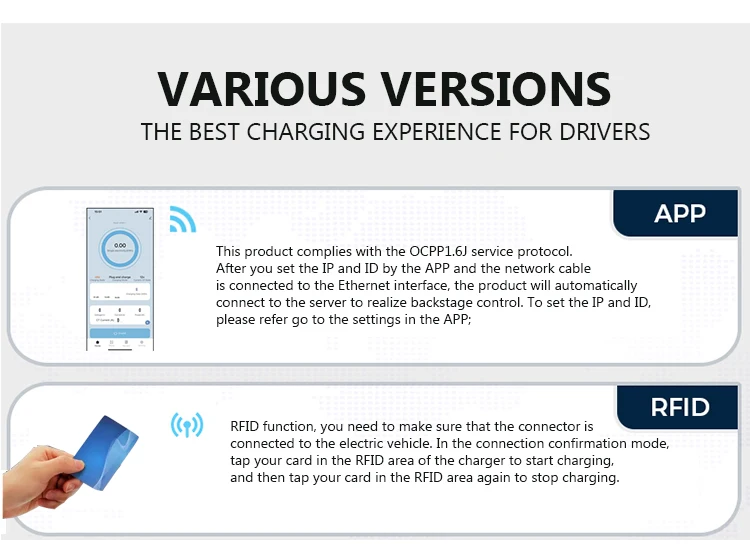

OCPP 1.6 Ethernet | ● | ● | ● | ● | ● | ● | |||||

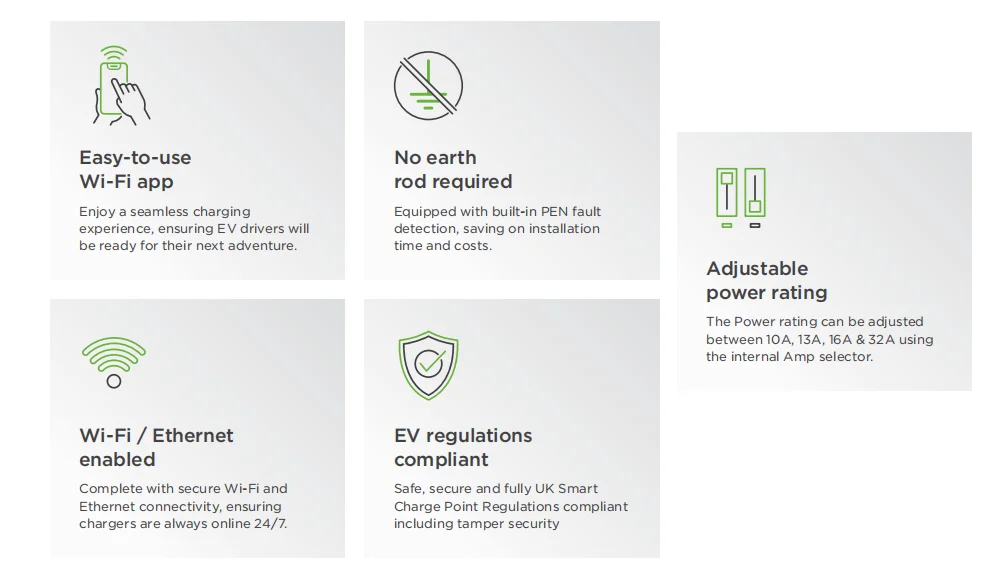

O-PEN Protection | Optional | ||||||||||
RFID | Optional | ||||||||||

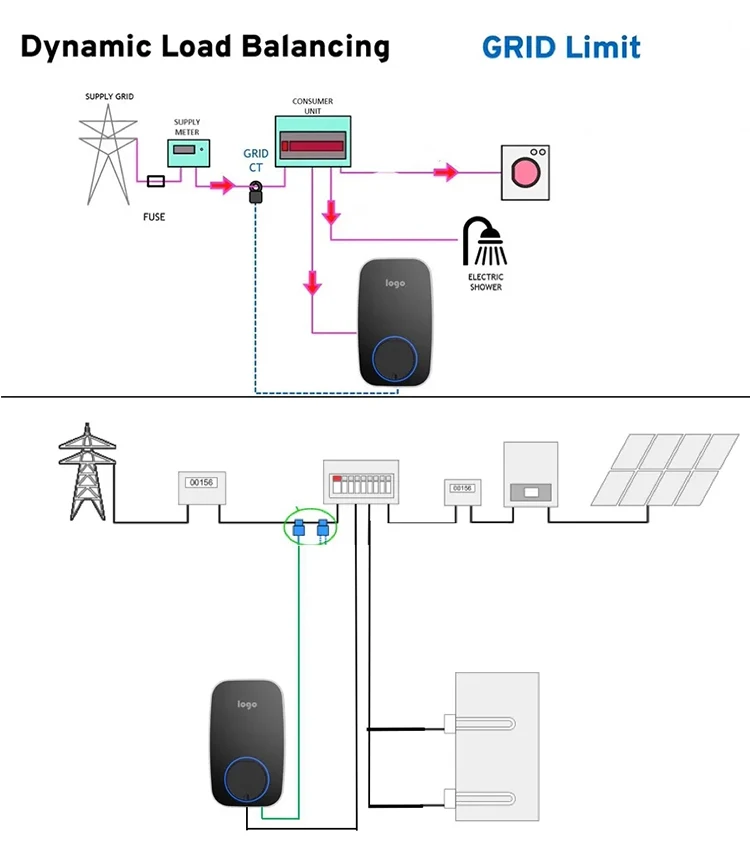

Home Power Load Balance Management | Optional | ||||||||||
Solar Power Load Balance Management | Optional | ||||||||||

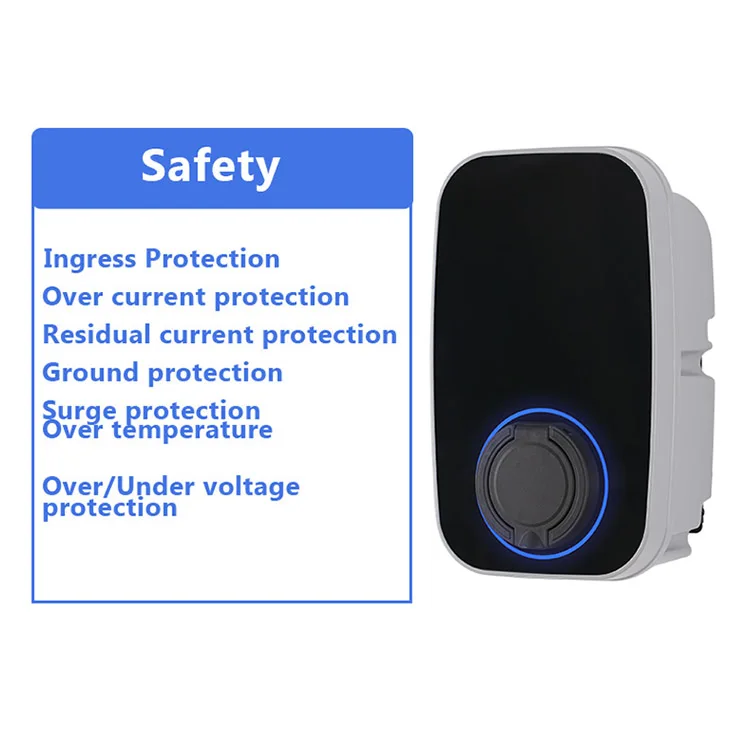

Ingress Protection | IP54 | IP65 | IP65 | IP54 | IP65 | IP65 | |||||
Impact Protection | / | ||||||||||
Over Current Protection | ● | ||||||||||
Residual Current Protection | AC30mA& DC6mA | ||||||||||
Ground Protection | ● | ||||||||||
Surge Protection | ● | ||||||||||
Over/Under Voltage Protection | ● | ||||||||||
Over Temperature | ● | ||||||||||
Certification | CE/ UKCA (Dekra) | ||||||||||
Certification Standard | EN IEC 61851, EN 62196 | ||||||||||

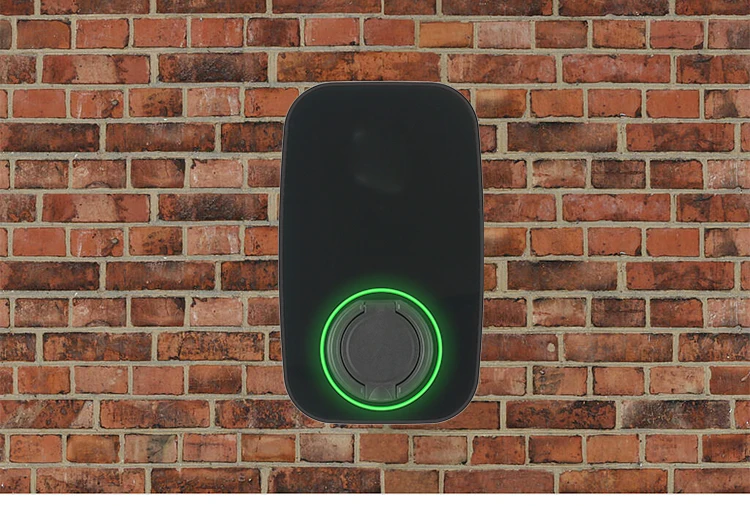

Installation | Wall Mounted | ||||||||||
Work Temperature | -25℃~50℃ | ||||||||||
Work Humidity | 3%~95% | ||||||||||
Work Altitude | <2000m | ||||||||||

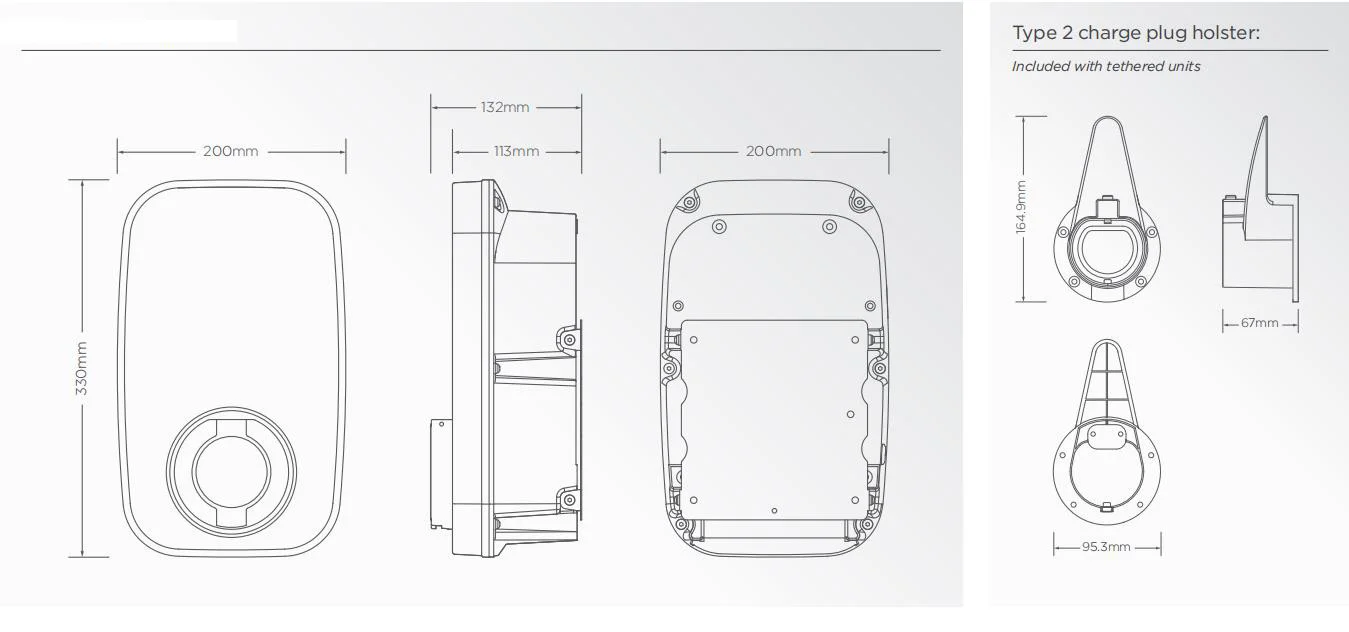

Procduction Dimension (H*W*D)mm | 330*200*105 | 330*200*105 | 330*200*105 | 330*200*105 | 330*200*105 | 330*200*105 | |||||
Package Dimension (L*W*H)mm | 390*260*165 | 485*375*155 | 485*375*155 | 390*260*165 | 485*375*155 | 485*375*155 | |||||
Net Weight (KG) | 2.1 | 2.82 | 3.96 | 2.2 | 3.92 | 5.01 | |||||
Gross weight (KG) | 2.5 | 3.82 | 4.96 | 2.6 | 4.92 | 6.01 | |||||
External Carton Loading Capacity | 4 unit in one box | / | / | 4 unit in one box | / | / | |||||
External Package Dimension mm | 535*405*350 | / | / | 535*405*350 | / | / | |||||
Loading Quantity | 20GP: 1464 40GP: 2973 40HQ: 3472 | 20GP: 1100 40GP: 2220 40HQ: 2533 | 20GP: 1100 40GP: 2220 40HQ: 2533 | 20GP: 1464 40GP: 2973 40HQ: 3472 | 20GP: 1100 40GP: 2220 40HQ: 2533 | 20GP: 1100 40GP: 2220 40HQ: 2533 | |||||
XingBang Group was founded in 1995 and have three companies&manufacturing factories which is composed of Qingdao Xingbang Elecronic Appliances Co., Ltd. & Qingdao Xingbang Cooker & Ovens Appliances Co., Ltd & Qingdao Xingbang Kitchen and Bathroom Appliances Co., Ltd.

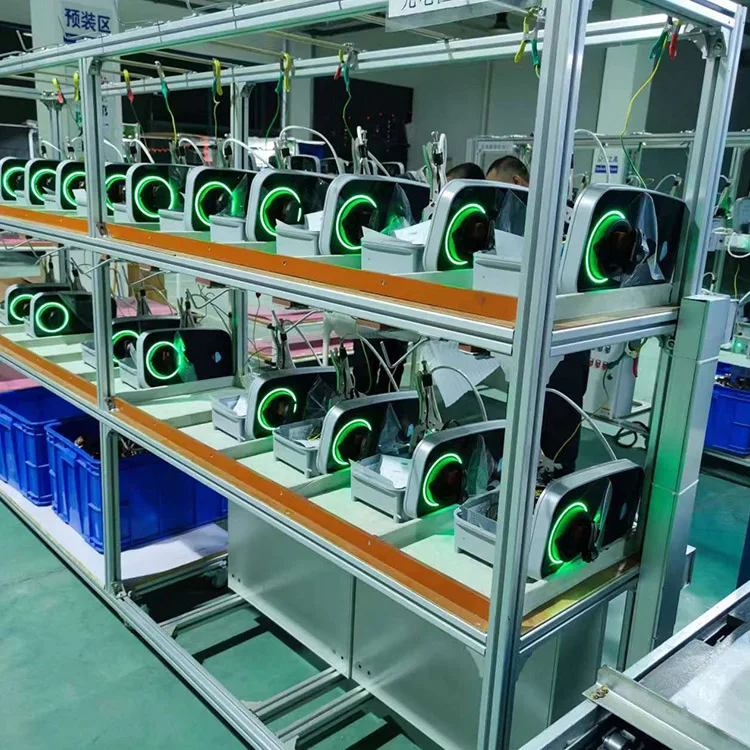

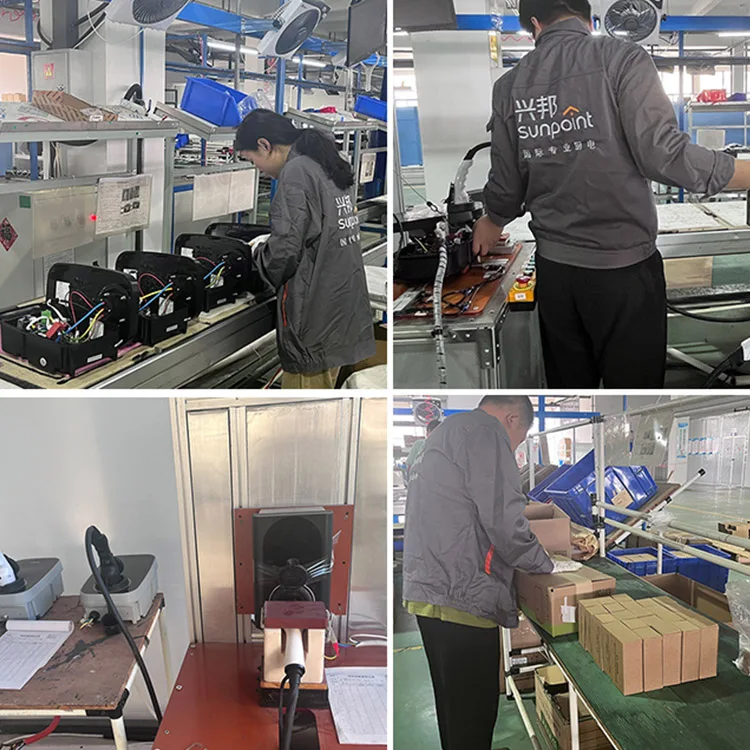

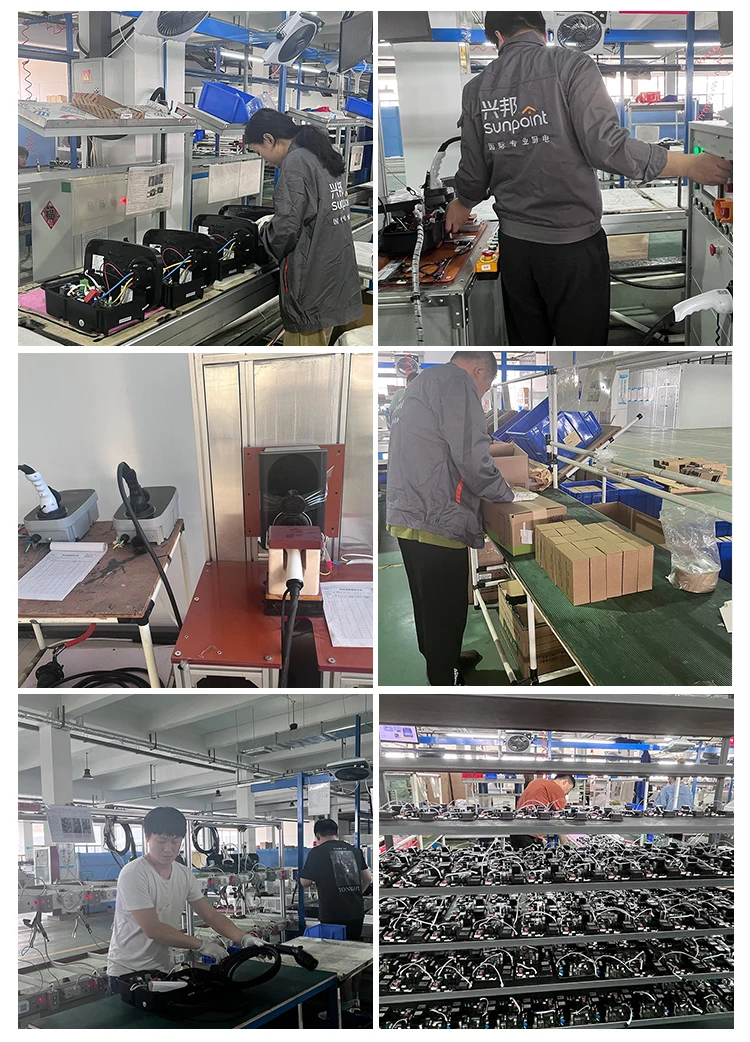

Factories cover around 200,000 square meters and over 2,000 employee and professional R&D team and high-tech technical team and strict production&inspection team and excellent sales and service team.
XingBang Group who is specialized in kitchen appliances like built in ovens, hobs, cooker hoods, microwave oven, bathroom ventilation fan, water heater, hydrogen-rich water dispensers. With steady growth and development, XingBang Group cooperation customers more than 100 countires and regions, totally covering the European, American, Asian, Africa, Oceania and mid-east markets with a turnover of 1 billion RMB and 80 million USD per year.
XingBang Group who is specialized in kitchen appliances like built in ovens, hobs, cooker hoods, microwave oven, bathroom ventilation fan, water heater, hydrogen-rich water dispensers. With steady growth and development, XingBang Group cooperation customers more than 100 countires and regions, totally covering the European, American, Asian, Africa, Oceania and mid-east markets with a turnover of 1 billion RMB and 80 million USD per year.

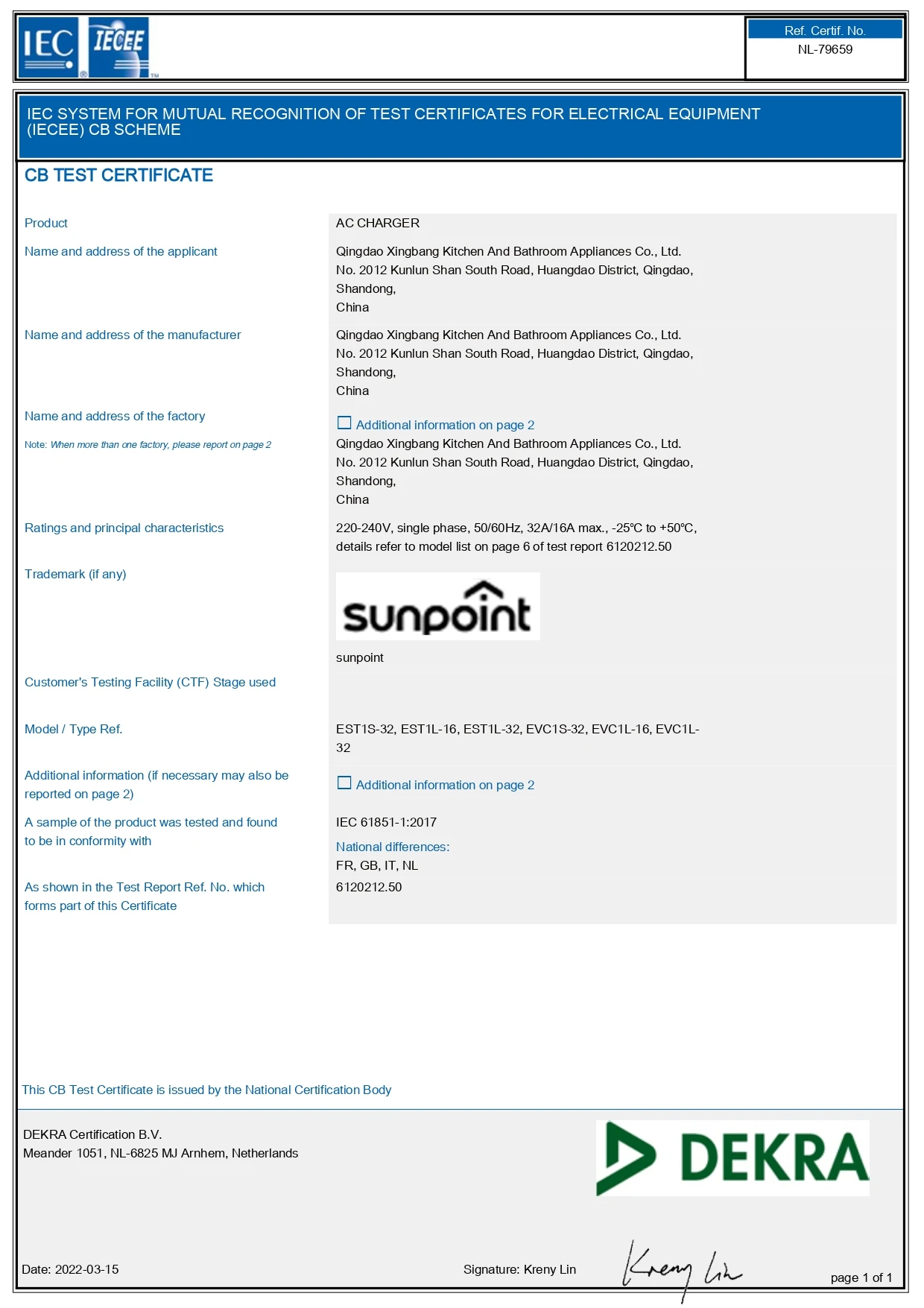

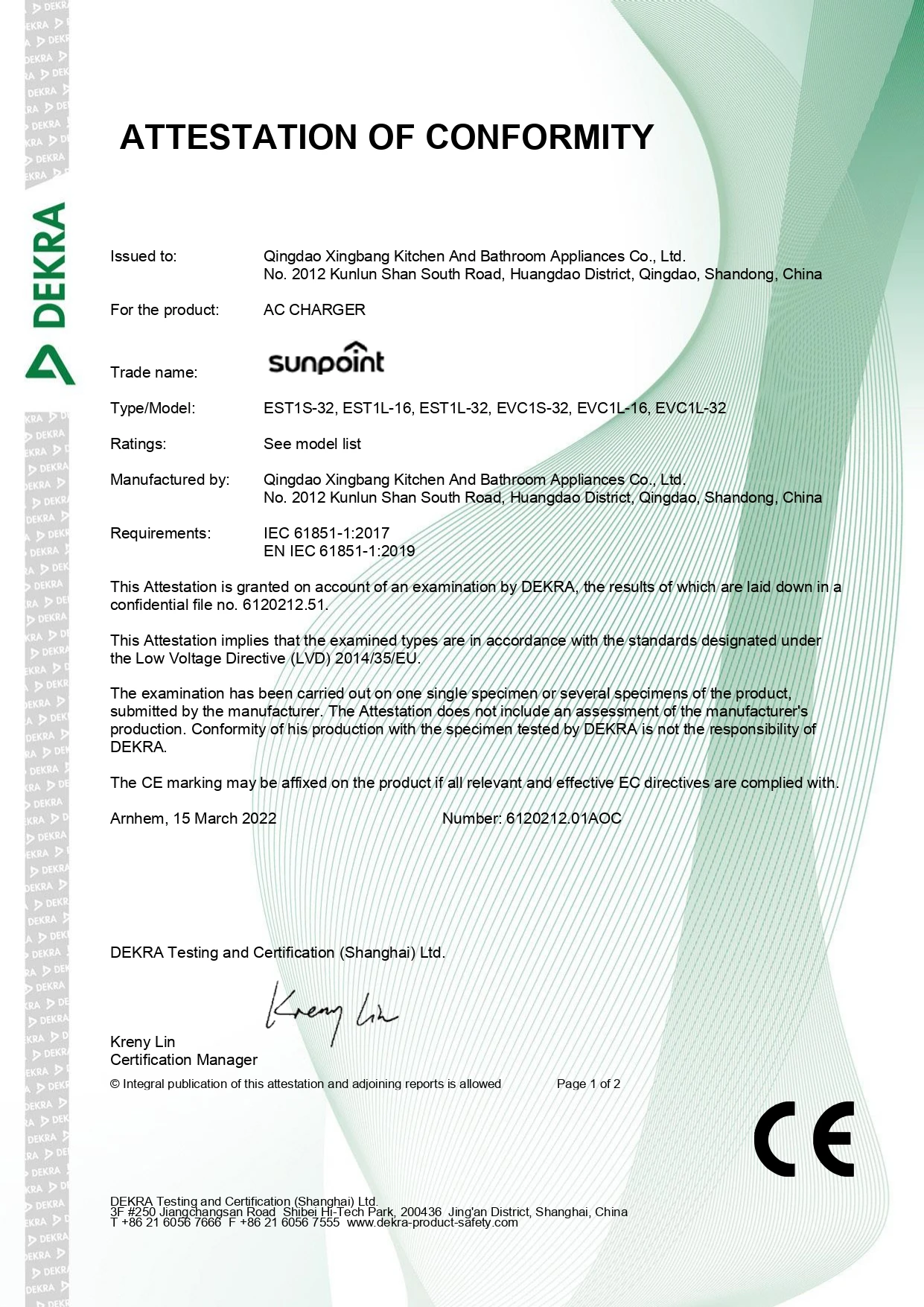

CE, UKCA(DEKRA)
Standard: EN IEC 61851,EN 62196
