100l 200l 300l pilot beer brewing system supplied nano size of brewery equipment for pilot brewing beer recipe testing

Product Overview

Description



Welcome to visit Tiantai Brewery Equipment product details!

Please allow me to introduce our pilot brewing systems including 100l 200l and 300l to you,

Feel free to chat with me if there are any questions or other information needed please!

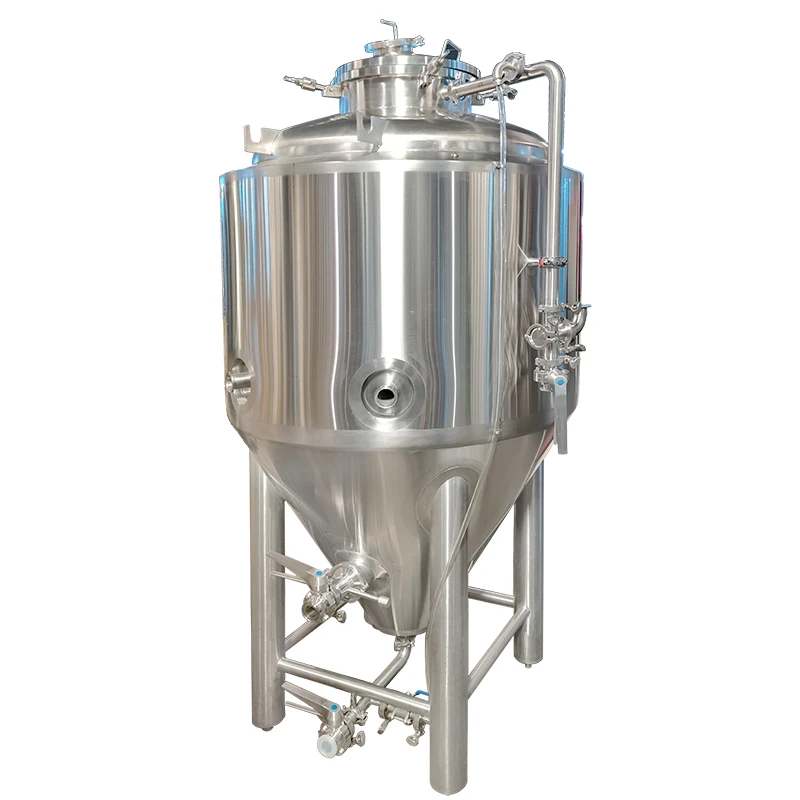

Fermentation Tanks:





Details:





Part 2: Specifications

1x 50L mash/lauter boiling whirlpool combined tank
1x one plate heat exchanger for wort cooling
1x centrifugal type wort pump
2x 50L fermentation tank with cooling jacket and insulation
1x glycol water tank with refrigerator for cooling fermentation tanks
1x controlling panel for all flow and temperature control, digital panel or plc optional
All tanks interior shell 2mm, cladding shell 1.5mm, SUS304.

----------------------------------------------------------------------------------------------------------------------------------

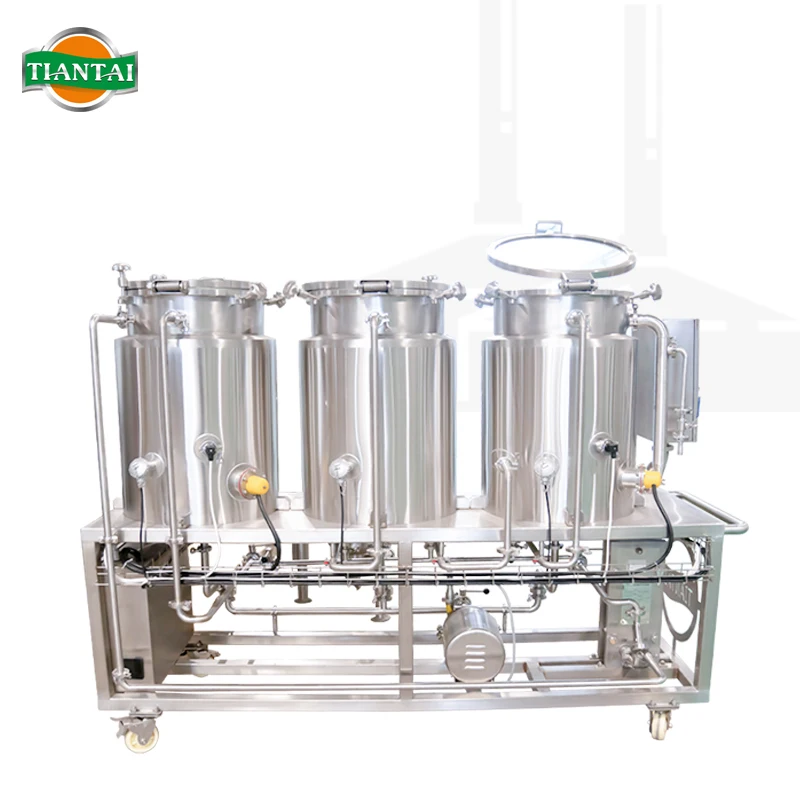

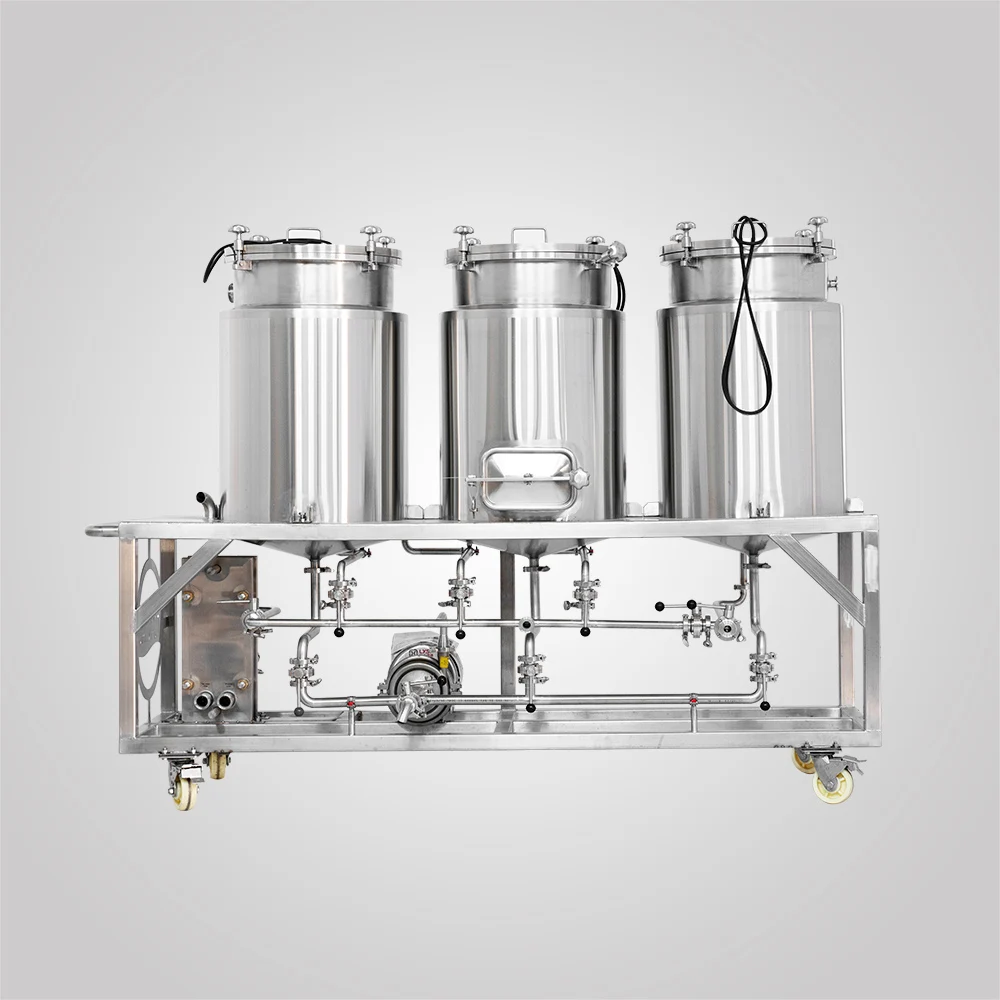

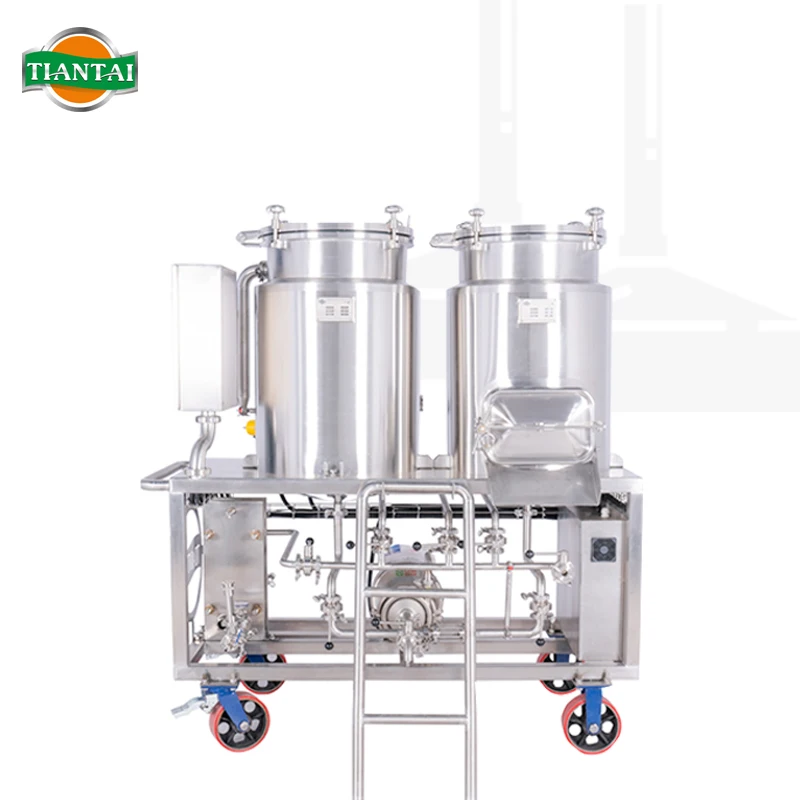

50L Brew Kit:



100L Brew Kit:

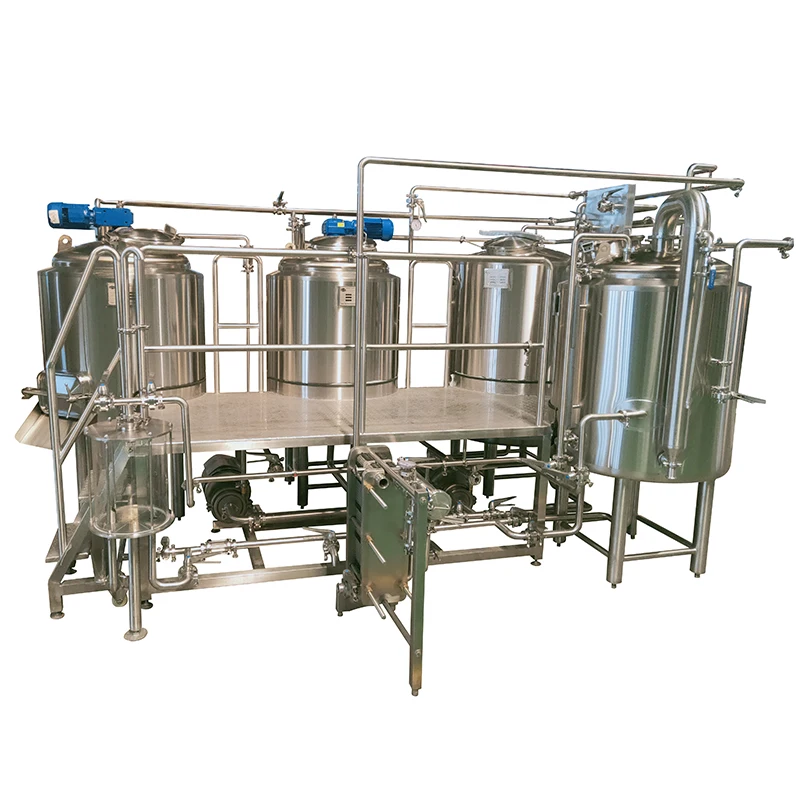

200L Brew Kit:

300L Brew Kit:

Copper Tun:



Features:

Material	304/316 Stainless Steel/Copper
Welding	100% TIG automatically welding with pure argon gas shield
Interior shell	Stainless Steel, Thickness:3mm
Exterior shell	Stainless Steel, Thickness:2mm
Insulation	TH=80mm with low thermal conductivity PU
Cooling	35% Glycol liquid -5℃
Cooling jacket	Dimple plate on bottom and side wall
Jacket working pressure	<2bar/30psi

 Part 3: Power request specification

 Heating Elements: 6kw; 220v/50,60Hz-1p;
Wort pump:0.55kw; 220v/50,60Hz-1p;
Refrigerator:1.5KW; 220v/50,60Hz-1p.

Part 4: Package

Fumigation-free veneer crates packing; All system is packed in one veneer crate.

Net Weight: 280kg
Dimension: 2100 x800 x1750mm
Installed area:1.7m2

\\
