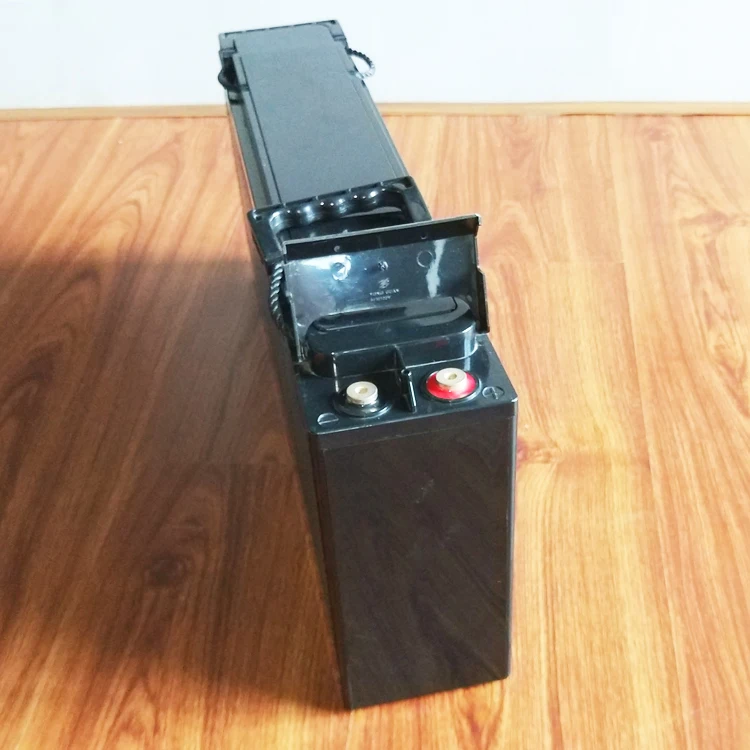

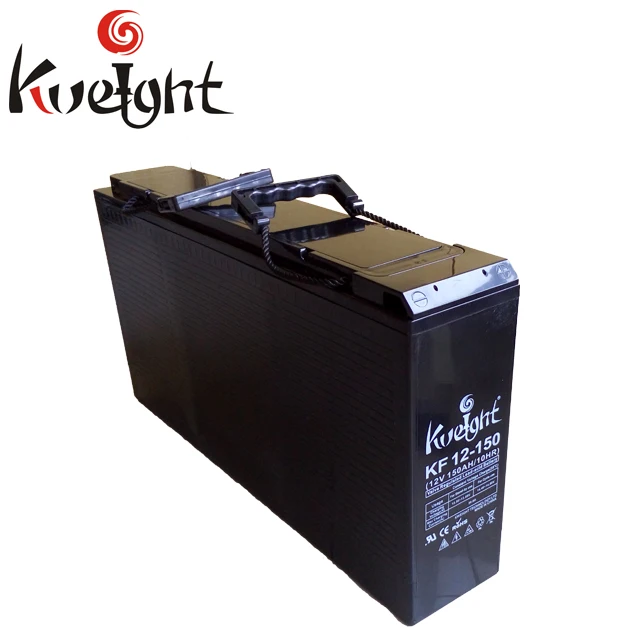

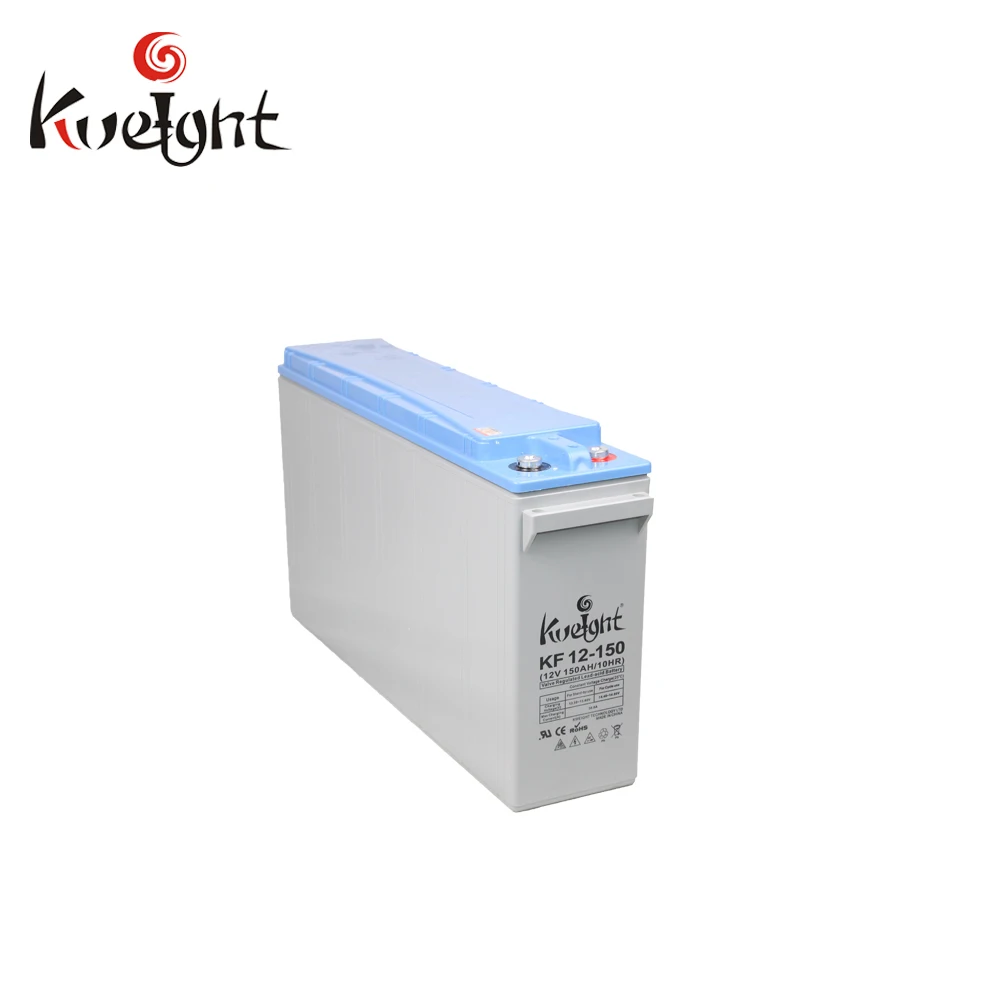

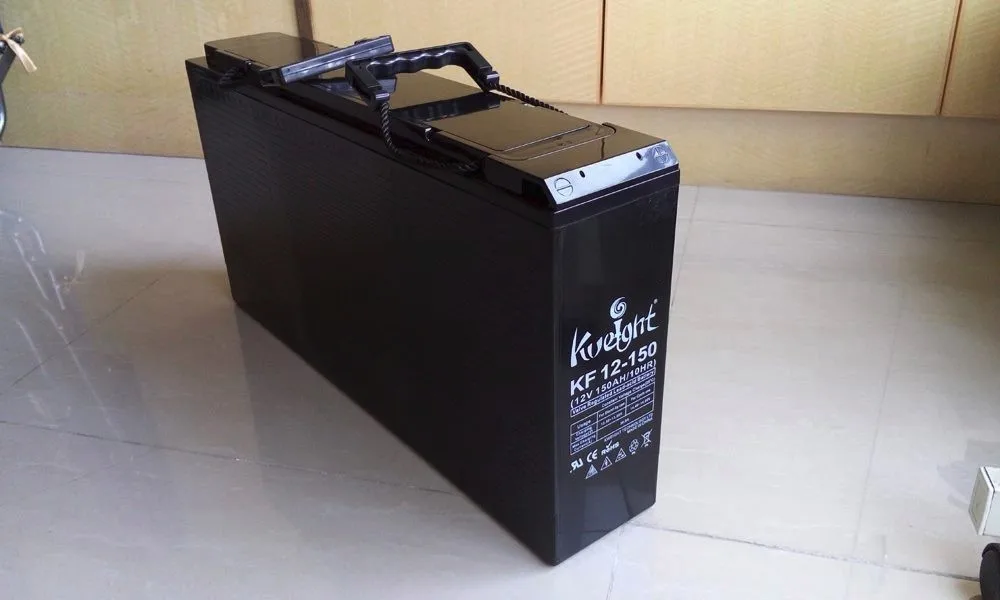

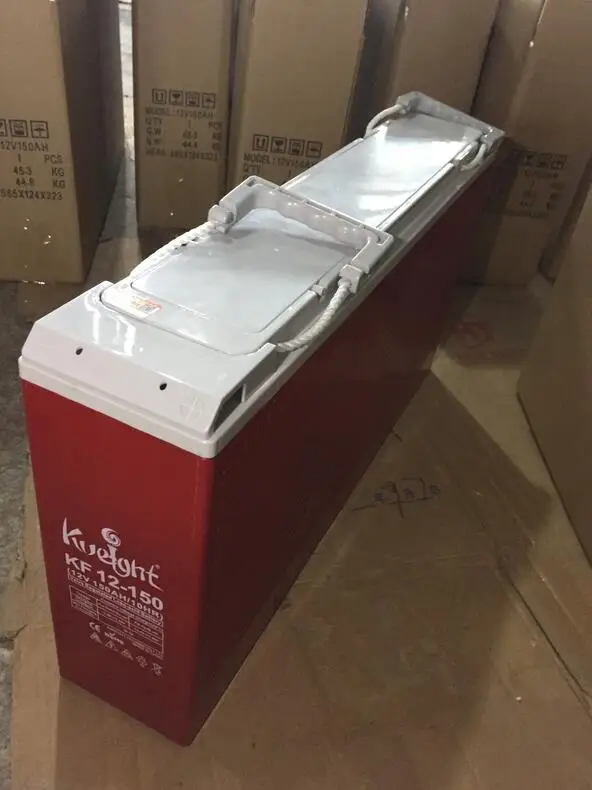

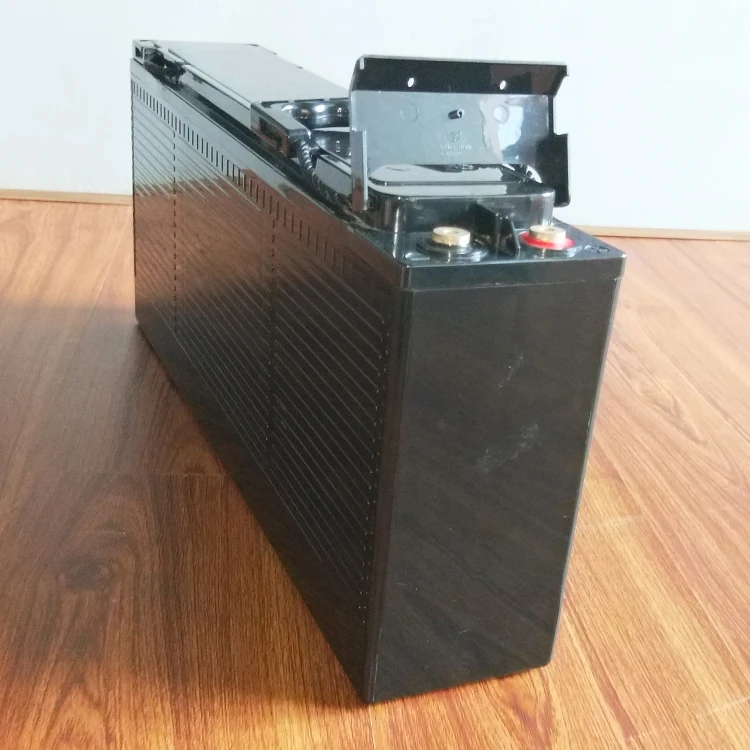

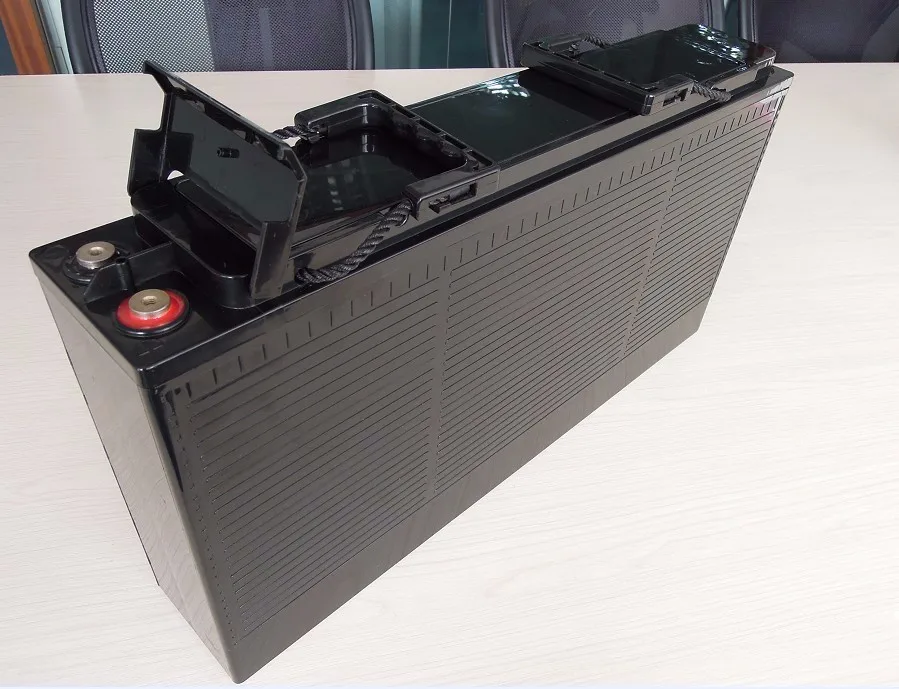

Energy storage 12V 150AH Solar Front terminal Battery Deep Cycle Solar Gel Battery
- Category: >>>
- Supplier: Shenzhen Kweight Development Co. Ltd.
Share on (1600898819082):
Product Overview
Description
Product Description
KF Series
Front access series By combing the newly developed paste formula with up-to-date AGM structures, Kweight created the innovation front access rang of batteries. It features 12 years design life and front access connections for fast, easy installation and maintenance. This series is highly suited to telecom applications, UPS systems and other back up applications.
Specification:
Nominal Voltage | 12Volts |
Nominal Capacity | 150Ah@10 hours rate F.V. (1.80V/cell) |
Approx.Weight | 44.8Kg |
Dimension: | L551*W110*H288*TH288 mm |
Terminal: | I3 (M8 Female Thread) |
Internal Resistance: | ≤ 2.8 mΩ (fully charged) |
Max. Discharge Current: | 1500A (5 sec) |
Max. Charge Current: | 37.5A |
Operating Temperature Range | Charge: -10℃~50℃ |
Self Discharge: | 3% of capacity declined per month at (25℃) |
Features:
1. Hig-pressure Absorbed Glass Mat (AGM)-a guarance of a gas recombination rate at more than 99%.
2. It's designed to operate for up to 10 years at 20°C on the basis of accelerated tests.
3. If depth of discharge is 30%, cycle service life can reach maximum at about 1800 times.
4. Its warranty is 1 year for proper use.
5. Battery case is made of fire proofs ABS material-high resistance to vibration.
6. Front terminal design, convenient for installation in cabinet.
7. Maintenance free as it is valve-regulated sealed.
8. High power-to-weight ratio –SLA batteries can provide much power in comparison to its weight
9. Low resistance embedded copper core terminal-easy for installation and insure dischargeing safety of large current and no producing heat.
10. Low self discharge –Using high purity raw materials ensures batteries have less self-discharge.
11. Longer service life design –utilized thick and massive calcium grate ensure that SLA battery has a longer service life.
12. Advanced Discharging Ability.
Applications:
- 19 inch, 23 inch standard power cabinet
- UPS, EPS backup system
- Data and TV signal transmission
- Electric power, military and other private newwork
communication base station
- Wire/wireless communication station, switching
station
- Access network system of telecommunication
system
- All kinds of cycle use1)UPS(uninterruptible power
supply)

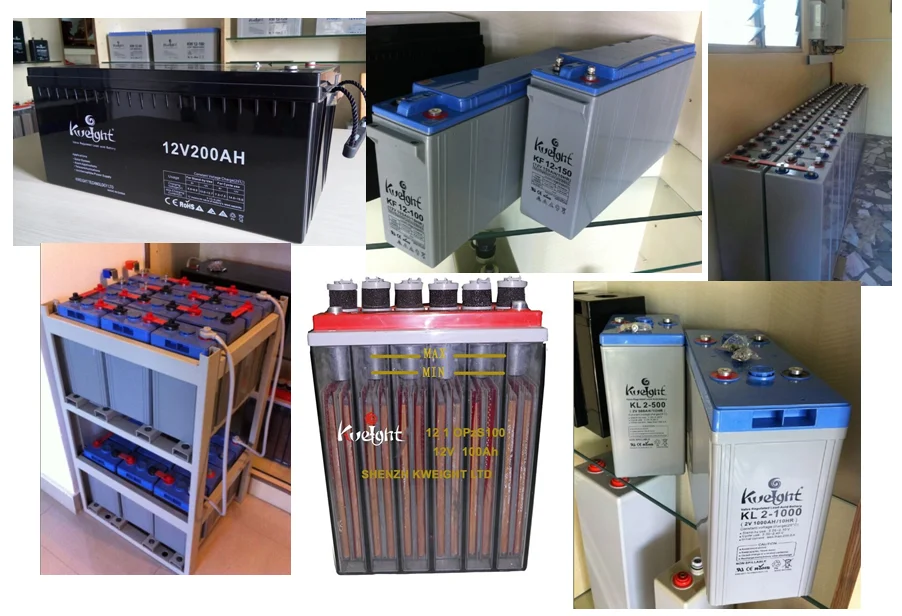

Product Series:
KW Series-Normal VRLA type
KD Series-Deep cycle battery
KG Series-Gel battery
KS Series-Solar deep cycle gel battery
KF Series-Front terminal battery
KFG Series-Front terminal gel battery
KL Series-Long life 2V battery
OPzV Series-Tubular plate gel battery
OPzS Series-Tubular flooded battery
packaging & shipping
Packaging:
20-foot container can be loaded about 80000 batteries.A tray paper packaging contain 20 batteries. Appearance sealed by plastic and make the same kind of goods equivalent packing. On the surface of packaging indicate the name,type,number,box number,batch number etc. Ensure the packaging in good condition.
Delivery:
1.By sea(mainly), by air.
2.Delivery 15-30 days after the deposit received.
3.Packing photos of products will be sent by email after shipment arranged.
4.Pay through T/T( 30% T/T in advance, 70% T/T before shipment), western union, L/C.
5.Delivery terms: FOB Shenzhen port, CNF, CIF.
Payments:
* FOB Shenzhen
* 30% T/T in advance,70% T/T bofore shippment
* The lead time is about 15 days
Company Profile
Shenzhen Kweight Technology Ltd
Kweight is a professional Valved Regulated Lead Acid battery manufacturer and trading company with more than 9 years experience in China. Our main products are VRLA batteries including AGM batteries, Gel batteris,Deep cycle batteries,Front terminal/access batteries, OPzV batteries, OPzS batteries, which were widely used in UPS system, Telecommunications system, Power Station, EPS, Solar and Wind energy storage systems
Company Culture
Vision: To become one of the leading global suppliers of power products.
Mission: Based on broad power industy,providing the safe and reliable power products and service for users to achieve win-win situation.
Value: Assured long-lasting quality,reliable long –existing service.
Certificates:
Company Project Case
"Kweight" brand storage battery has been used in "2010 Singapore Youth Olympic Games". The quality of Kweight battery has been recognized by the TOG, and certified "the best battery supplier of power products". Now, there are more than 75% of large and small size VRLA battery exported to Europe, North American, Southeast Asia, Middle East and other countries and areas. | ||||||
2011 solar street light project in one city of Iran
Battery Type: Kweight gel deep cycle battery 12V200AH; Kweight ordinary AGM battery 12V33AH
Project Details: Iran has abundant solar energy resources, Kweight brand battery can give full play to the advantages of the local sunny, turn light energy efficiently and stored perfectly. The performance indicators of Kweight battery are excellent, energy saving effect is remarkable, won the customer's highly praise. Our company will continuously improve on product technology and details, to provide a more refined and better solar solutions. As overseas friendly partner we are glad to help Iran local landscaping, resource conservation and energy diversification.
Solar Street Light Project
Battery Type:12V250AH
Quantity:582pcs
Project Details: Solar Street Light System in Chad: Kweight storage battery won the bidding about one city of Chad with 56W solar street light project in 2012. Kweight company supplied green, energy conservation, safety and stable power to solve the local street lighting problem.
A remote area of solar power stations in Russia
Battery Type: OPzV 2V2000AH
Our Russian guests friendly to compared our battery to "camel hump". Effectively solved the difficult of power generation similar to remote areas. Metaphor for strong performance. Solar power stations effectively relieve the tense situation of the area, the initial cooperation under such favorable environment for the user, providing more high-quality electricity options for the future.
Why Choose Us
1) We have more than 10 years experience of manfacturing SEALED LEAD ACID battery.
2) Our batteries have been used in "2010 Singapore Youth Olympic Games" and gained
"The Best Battery Supplier of Power Products".
3) Our battery is maintenance free with long life design.
4) Strictly quality control through the whole producting process.
5) Changing on the material:color,shape acceptable
6) Third party inspection:acceptable;
7) Spots check after production before shipping.
8) Batteries price will be changed with the lead price change.
9) High quality service from Kweight family members' hard working, always have, and always will.
Our Services:
Pre-sale service
* Fast response within 24 hours.* Online service.
* OEM manufacturing service for customers is ok.
After-sale service
* Offer 12 months warranty for AGM battery with capacity 1.3Ah~250Ah,Offer 24 months wattanty for others.
* During the warranty, if failed,send some pictures of failed battery for us and tell us the performance of failed one.
* If we confirmed the problem of battery causes the battery fail, we will send new battery(to replace) for you to replace.
* The new battery will be shipped together with your new order, or shipped alone
