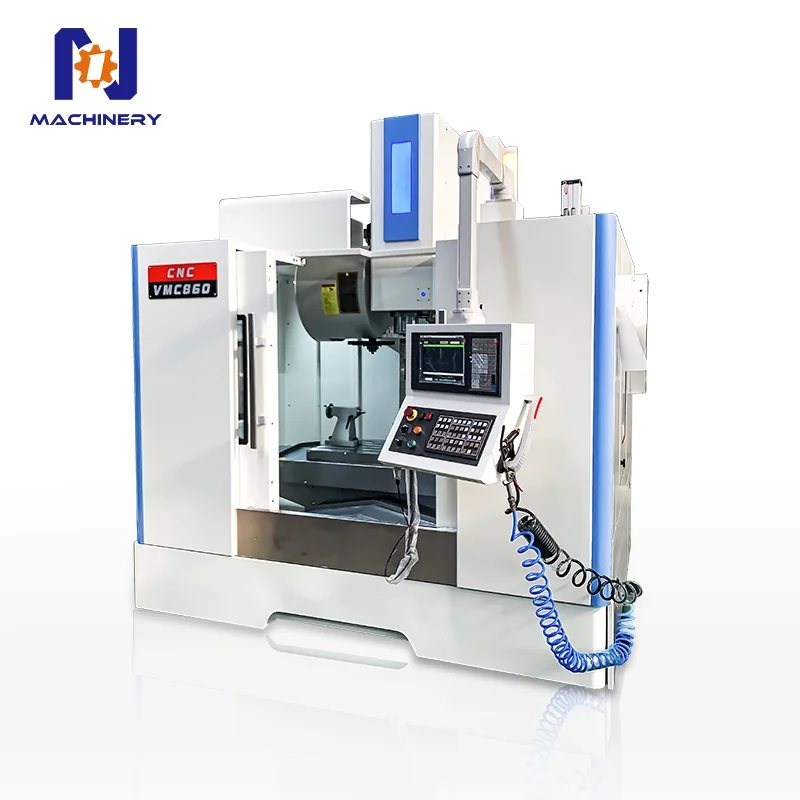

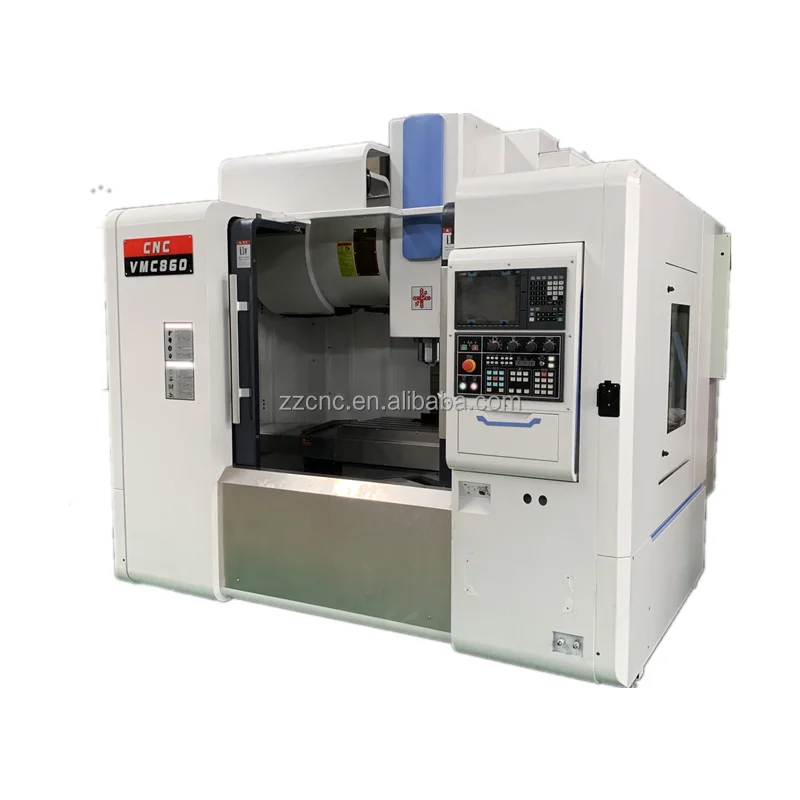

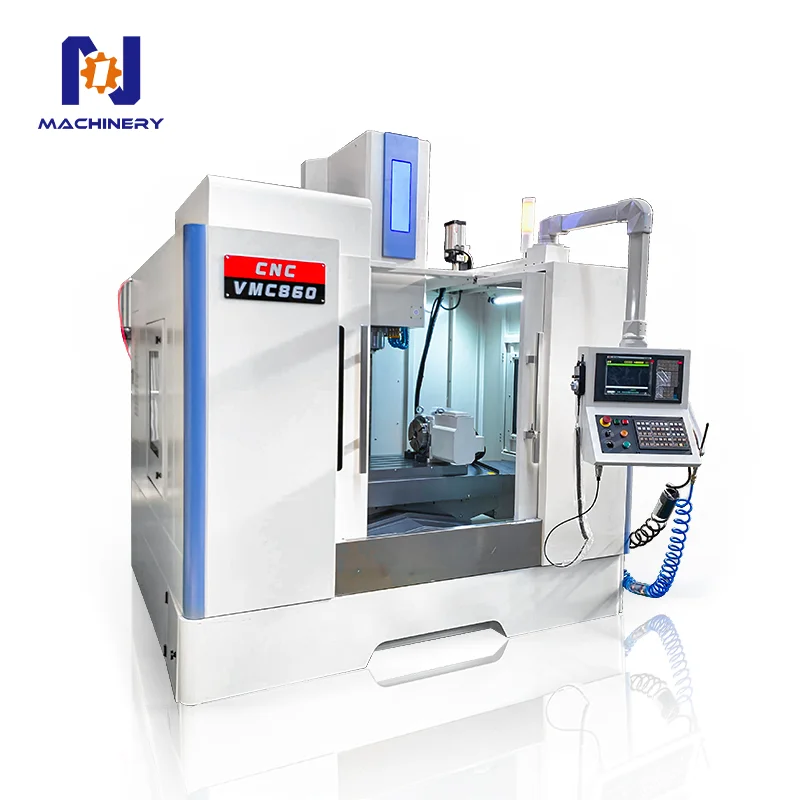

Taiwan spindle Fanuc system 4 axis milling vertical machining center VMC860
Taiwan spindle Fanuc system 4-axis milling vertical machining center VMC860
Taiwan spindle Fanuc system 4-axis milling vertical machining center VMC860
Taiwan spindle Fanuc system 4-axis milling vertical machining center VMC860
Taiwan spindle Fanuc system 4-axis milling vertical machining center VMC860
Taiwan spindle Fanuc system 4-axis milling vertical machining center VMC860
Taiwan spindle Fanuc system 4-axis milling vertical machining center VMC860

Taiwan spindle Fanuc system 4 axis milling vertical machining center VMC860

Share on (1600898972575):


Price:23.816,43 US$ - 24.698,52 US$

Quantity:


Product Overview

Description



Taiwan cnc milling Fanuc 4 axis vertical machining center VMC860


Product Description




Product Paramenters


specification
unit
VMC860
Workbench specification
mm
1000*550
Workbench min.load
kg
600
X/Y/Z axis coordinate schedule
mm
800*600*600
Distance between spindle center and column guide surface
mm
590
Distance between spindle end face and worktable surface
mm
130-660
X/Y/Z largest feed speed
mm/min
8000
X/Y/Z largest fast moving speed
m/min
48/48/48
The spindle max.speed
r/min
8000
The spindle taper hole
type
BT40
Spindle motor
kw
7.5
The workbench T slot
mm
5-18*100
Positioning accuracy
mm
±0.0075
Repeat positioning accuracy
mm
±0.005
Knife library form
Disc
Tool magazine capacity
Disc:24
Max.tool weight
kg
8

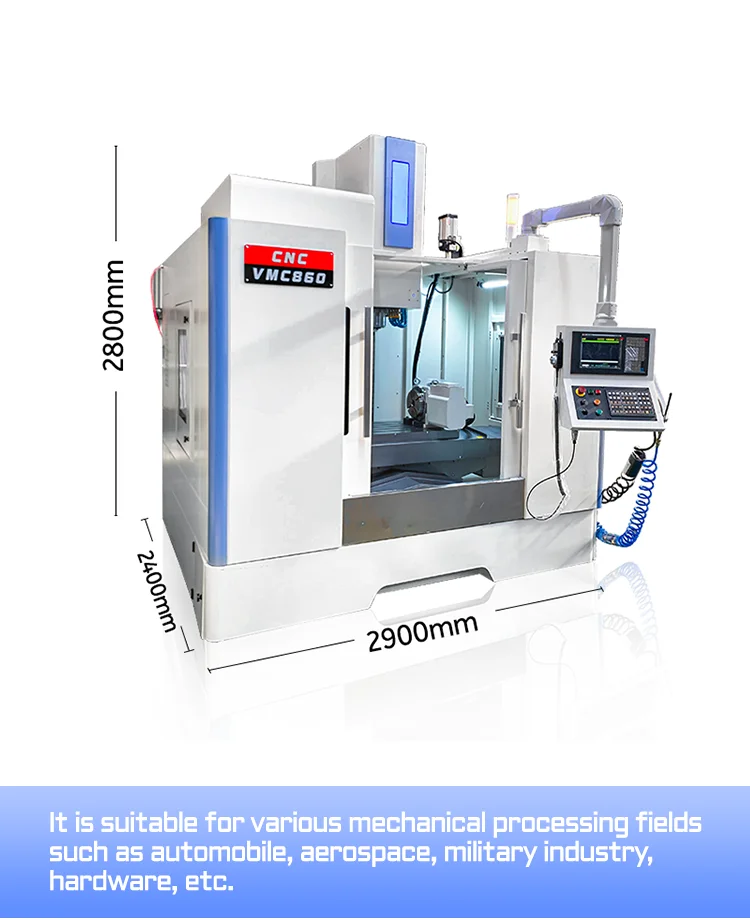

Machine size(L*W*H)
mm
2900*2400*2800
Machine weight
kg
6000
