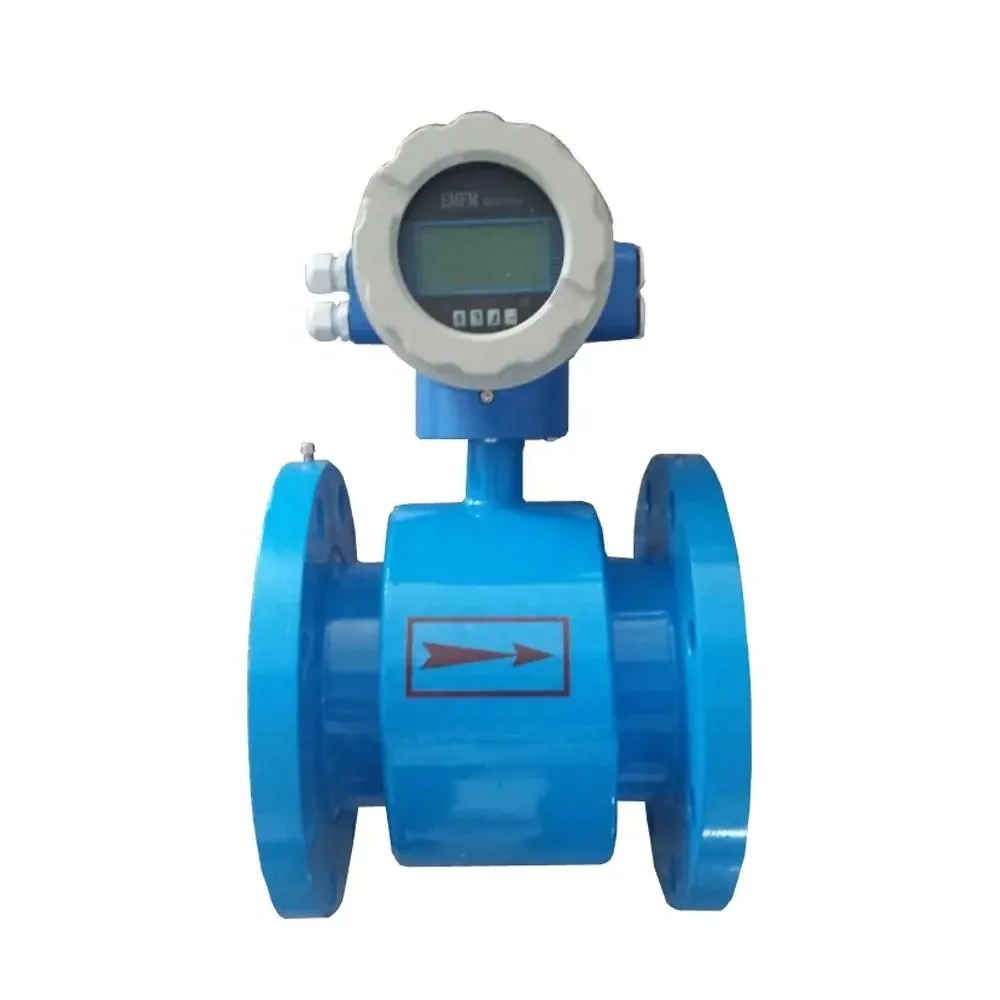

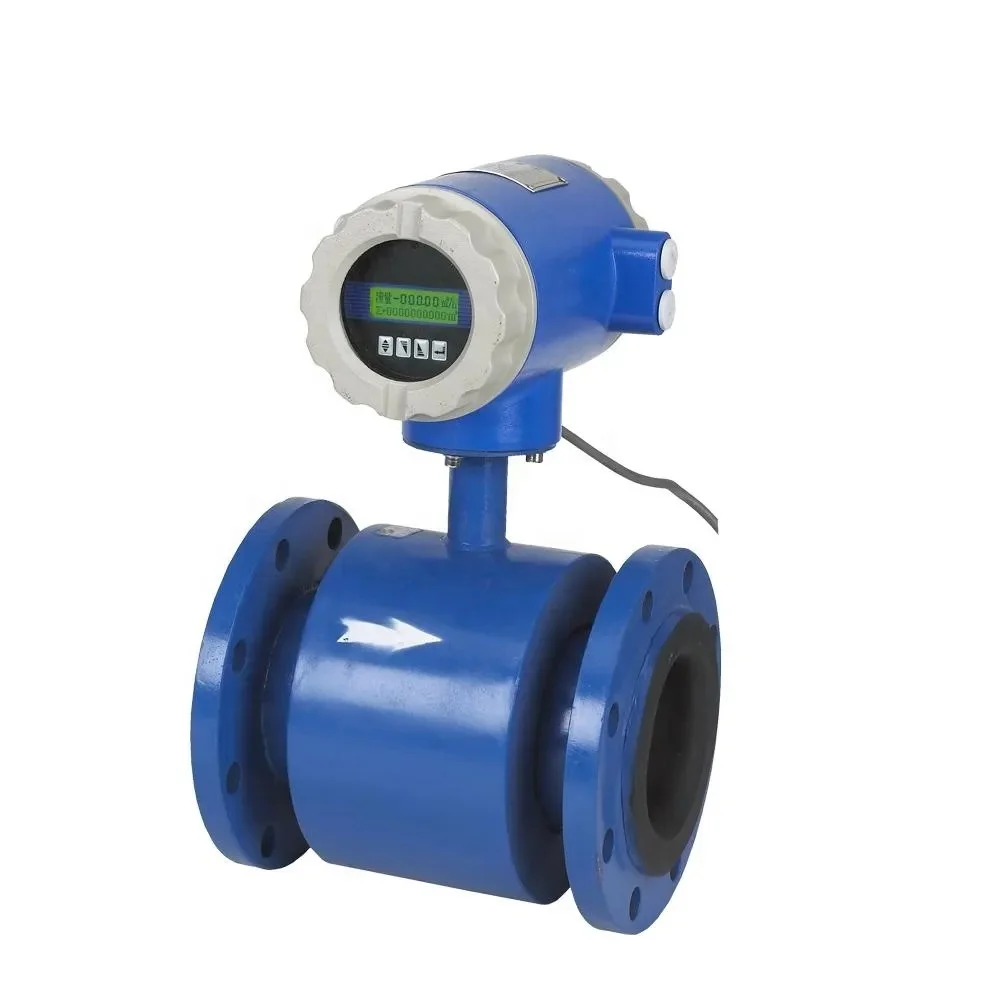

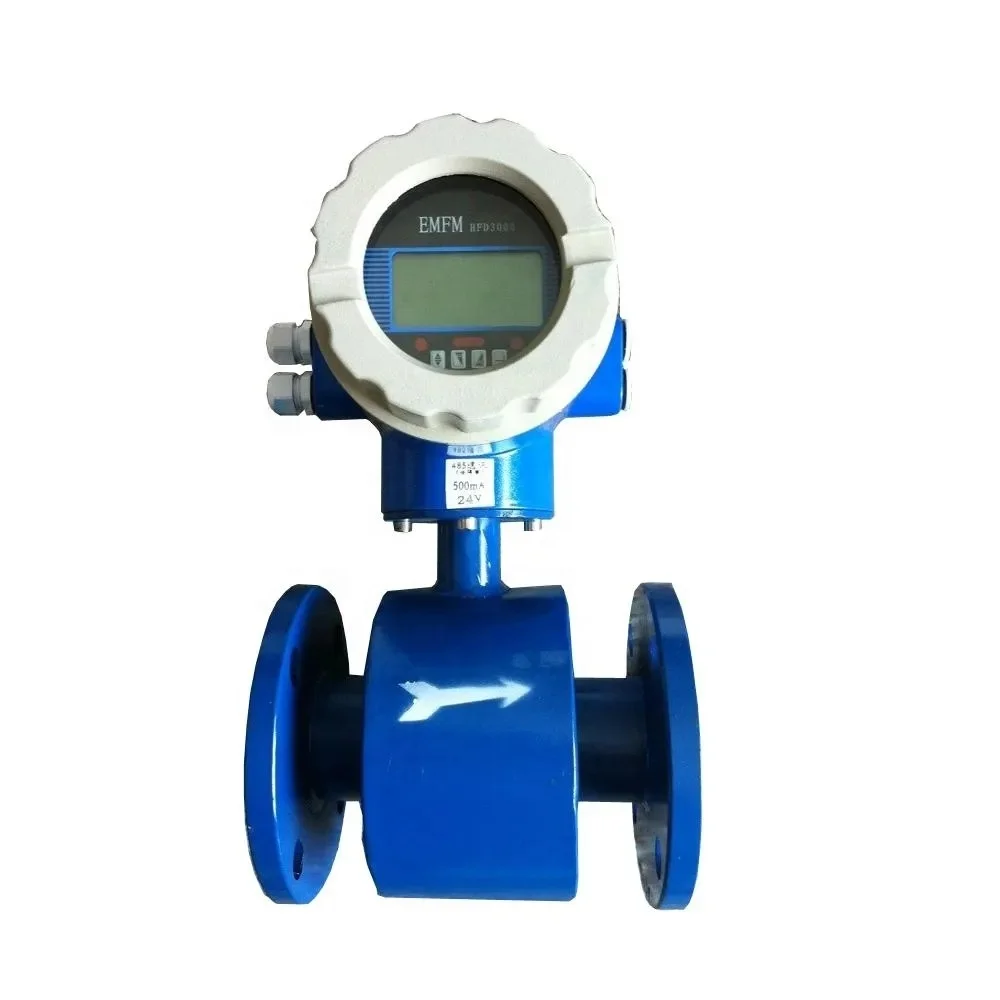

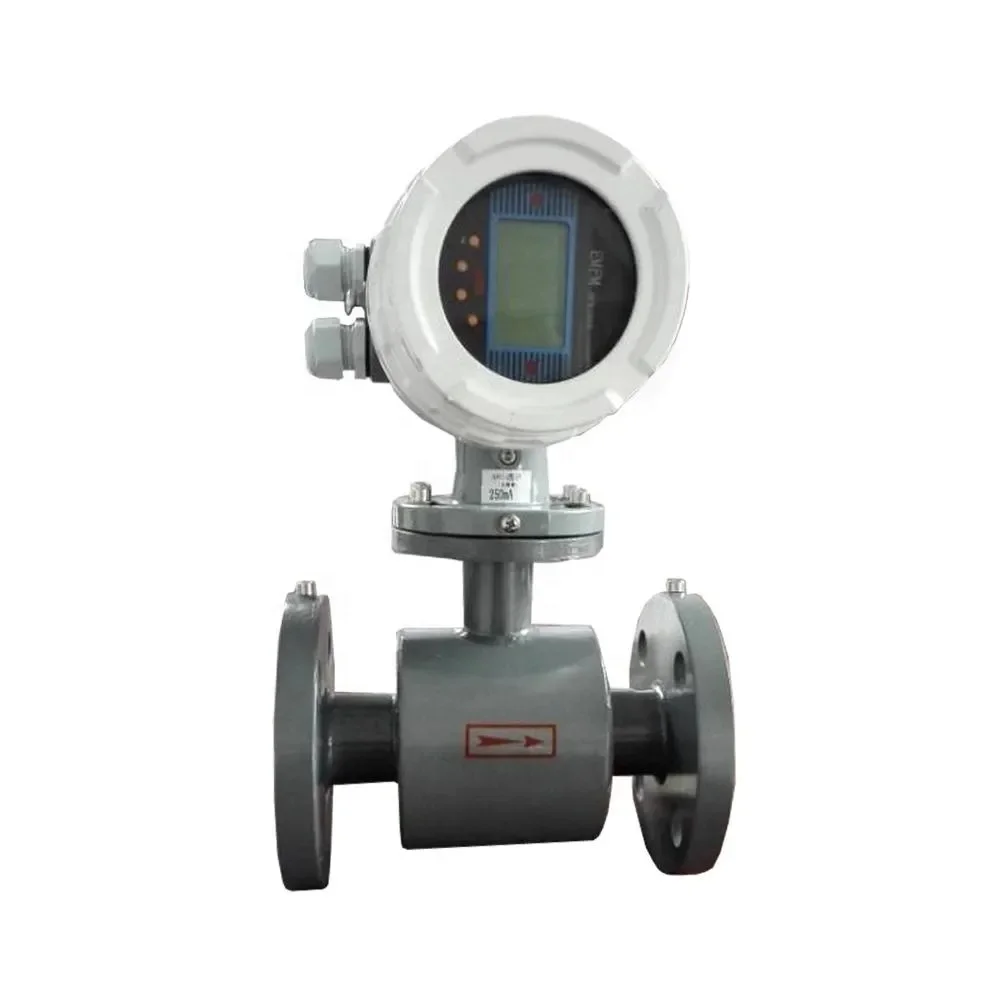

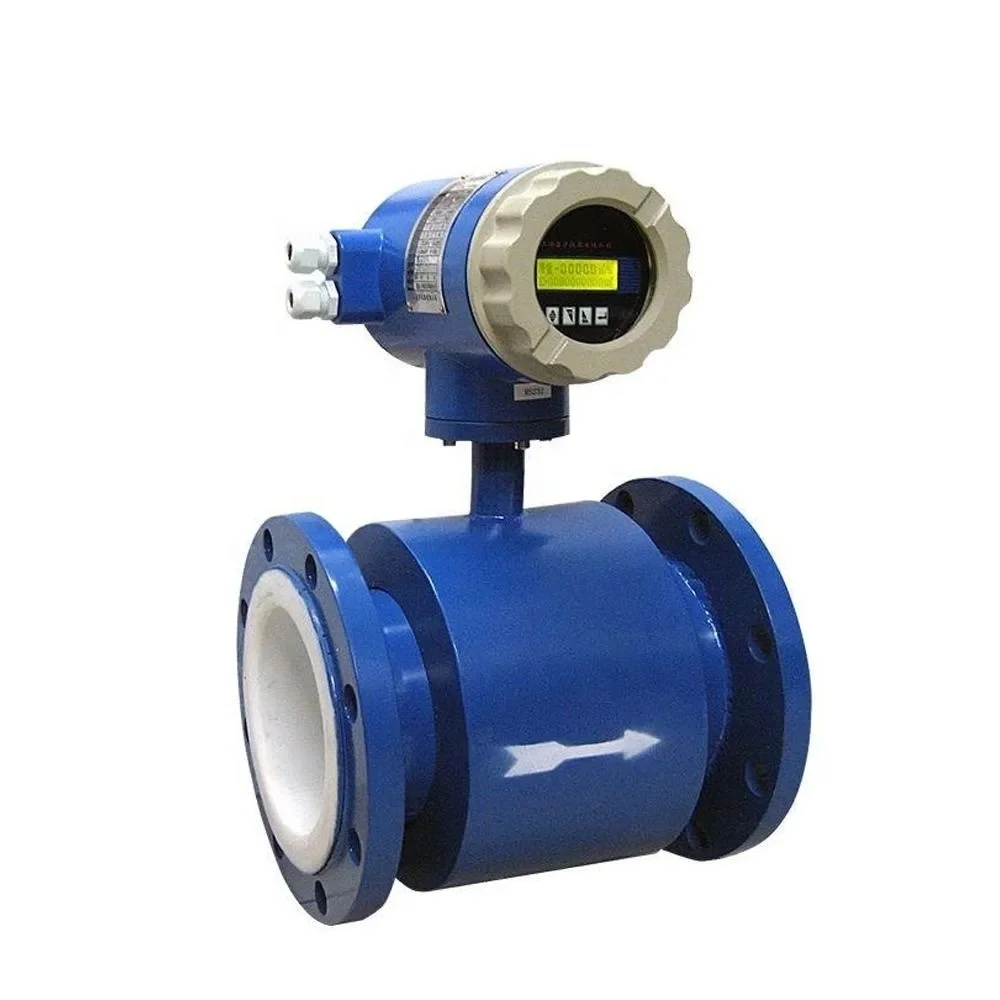

4 20ma output electromagnetic chemical flow meter digital magnetic water flow meter
- Category: >>>
- Supplier: Yuyao Kingtai Instrument Co. Ltd.
Share on (1600899008496):
Product Overview
Description
Electromagnetic chemical flow meter with computer
Product Description
Features:
1.There is no movable part in the pipes ,hence ,nothing resista the flow and to cause pressure loss or jamming.
2.Measurement is free from series of influences e.g medium density,elasticity ,temperature or electrical conductivity.
3. Corrosion resistance and wearability standard among other indexes are met via selecting different materials for lining and electrodes
4 .The products are equipped with high resoluction backlighted LCD display, which is integrated with menus with both language of english and chinese, it is up to the users' needs to modify the measuring range on site.
5.The devices have also been integrated with series of communiction prorocals i.e.RS485. RS232 ,HART and MODBUS.
6.With programmable low frequency rectangular wave excitation,flow stability is promoted on less power loss.
7. Both power off protection and overrang alarming orients for measured calue,besides,it is also possible to change medium flow direction via programming the integrated sensor,which means installation of sensors are not limited to flow direction and messuring is operatable with both the flow directions.
8 Thers instrument do not suit for measuring gas flw or nonconductive liquids
Main technical parameter
Nominal path series DN(mm)

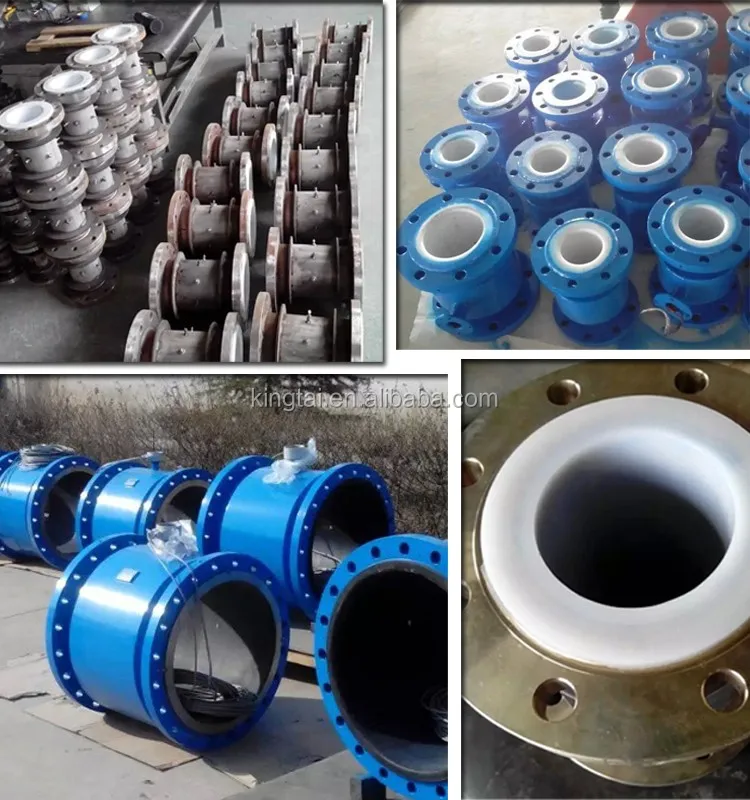

Piped PTFE Lining:
10 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
Piped rubber lining:
40 50 65 80 100 125 150 200 250 300 350 400 500 600 800 1000 1200
1.Flow direction:positive and negative net flow
2.Measure extention ratio:150:1
3.Repeating erro:±0.1% of the meterage
4.Accuracy grade :pipeline style: 0.5 1.0
5.The temperature of themeasured medium:
Ordinary rubber underlay:-20~+60
High temperature rubber underlay:-20~+90
Polythene underlay: -30~+100
High temperature underlay:-30~+180
6.Rating work pressure:
Pipeline style : DN10-65:≤2.5MPA
DN80-DN150:≤1.6MPA
DN200- DN 1200:≤1.0MPA
COPMANY INFORMATION
Yuyao Kingtai Instrument Co.,Ltd specializes in the research and development, manufacture. sales and services of industry instruments. our main products are flowmeter, pressure gauge and solenoid valve.we are one of the biggest manufaccturer of flowmeter in china.we have establish friendly and long term relationshs with famous corporation in the world.
We win our good repulation among customers, our goods passed though ISO9001:2008.We are committed to producing products with high quality and new technology to meet the demands of our customers.
We have a professional production team to ensure the quality and safety.adcanced equipment to make production more fast and efficient.
OUR SERVICE
1. Professional and patient pre-sale and after-sale service on our products;
2. Stable quality and reasonable price for you to gain long term cooperation;
3. OEM & ODM service for quantity orders;
4. Sample orders welcomed for quality test.
1.Why do you order from the KINGTAI?
The KINGTAI company can provide you competitive price.
2.What about the delivery time?
Honestly, it depends on the order quantity and the season you place the order .for bulk order which production lead time is within 1~3 weeks.Generally speaking, small QTY are in stock
3.What is your payment method?
T/T, Western Union, Moneygram, Paypal are available for us
4.Can you make my logo on product?
Of course! we are factory,we supply OEM ,You only need provide us your original logo file or clear picture, so we can make it.
5. How to delivery ?
Shipped by express for sample order and small order, express include DHL, UPS, TNT, EMS, etc. Shipped by sea or by air for bulk order.
6.What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
