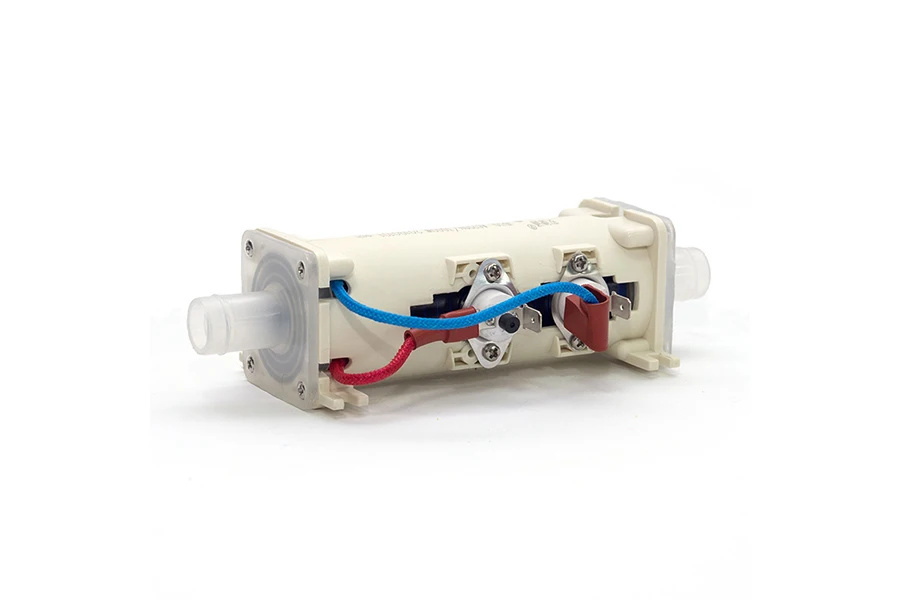

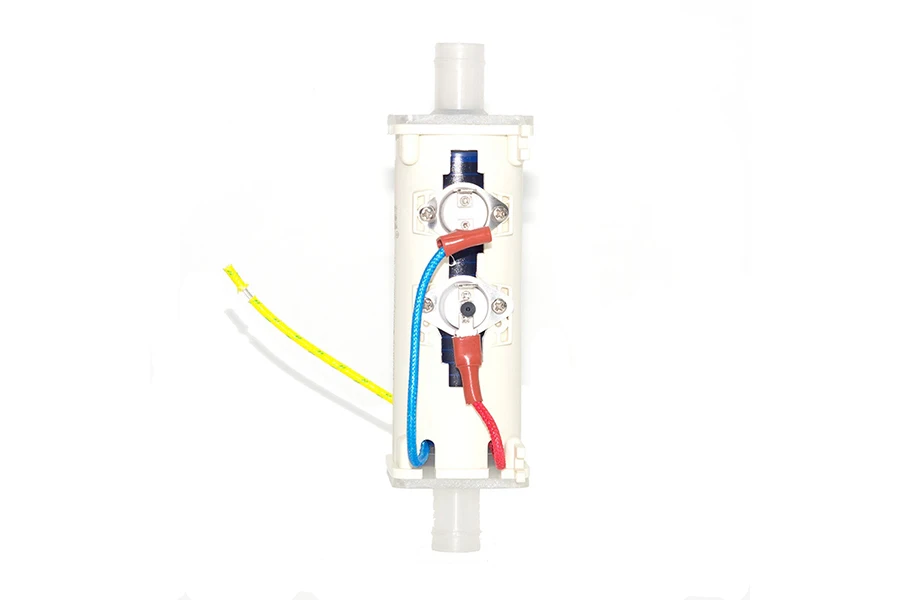

ISO9001 Certification electric heating tube thick film heater for Commercial vending machine
- Category: >>>
- Supplier: Xinxiang Jieda Precision Electronics Co. Ltd.
Share on (1600899091435):
Product Overview
Description
Products Description
Items | Specification |
Model No | 30BJ |
Rated Power | 3000W |
Rated Voltage | 220V |
Size | 159MM*64MM*45MM |
Material | SUS445 |
Work life | >10000 hours |
Power option | 2200W |
Usage | Instant water heating, hot water dispenser ,coffee maker |
Certification | RoHS, CQC, ISO9001 |
Lead time | 3-5 days for samples and 15-20 days for mass order |

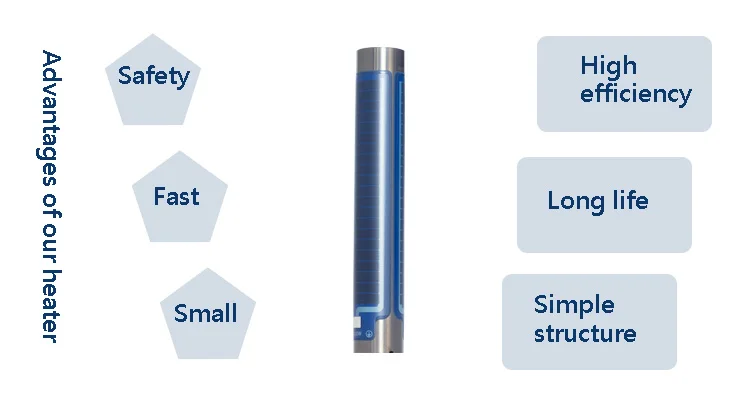

The advantage of using thick film heater in water dispensers
The heating element of instant heating water dispenser adopts stainless steel thick film heating tube, and the heating part adopts tubular design, which can make the water flow in the pipeline heated to the required temperature at the outlet, it can prevent the repeated heating of drinking water in the heater and avoid the generation of thousands of boiling water, and it eliminate the breeding of other impurities and bacteria to achieve healthy drinking water.
The power density of the stainless steel thick-film heating tube produced by Xinxiang Jieda Precision Electronic Co., Ltd.is more than five times that of the conventional heater. The power density can reach 60-250W/cm2 and the heating efficiency can reach more than 98%.
Secondly, the heater assisted by high-precision electronic control program, with temperature sensors, thermostats, temperature controllers and other electronic components, can effectively achieve the effect of precise temperature control, coupled with the dual-power design of heating tubes, so that the cost of electronic control can be reduced, heating efficiency of heating tubes can be fully utilized, and thus achieve different temperatures.

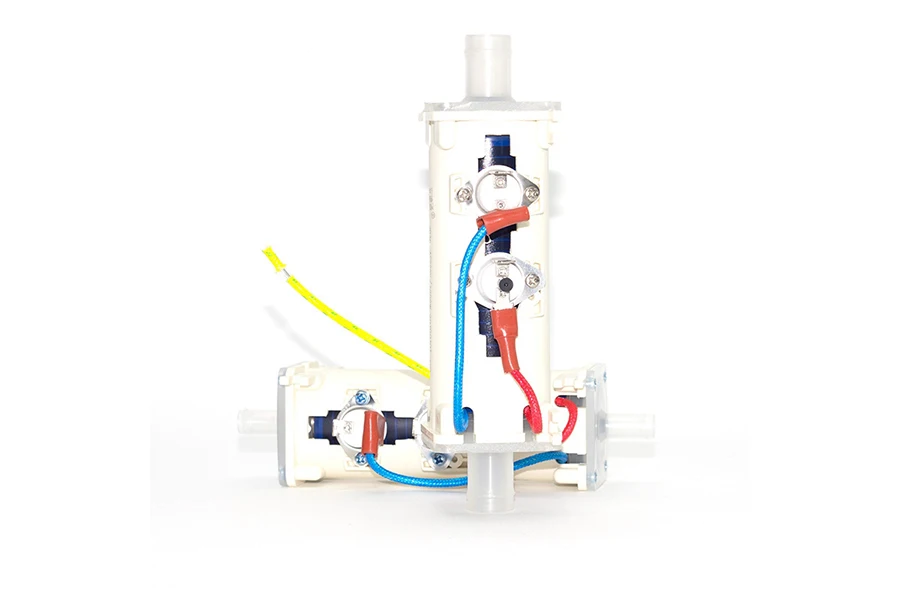

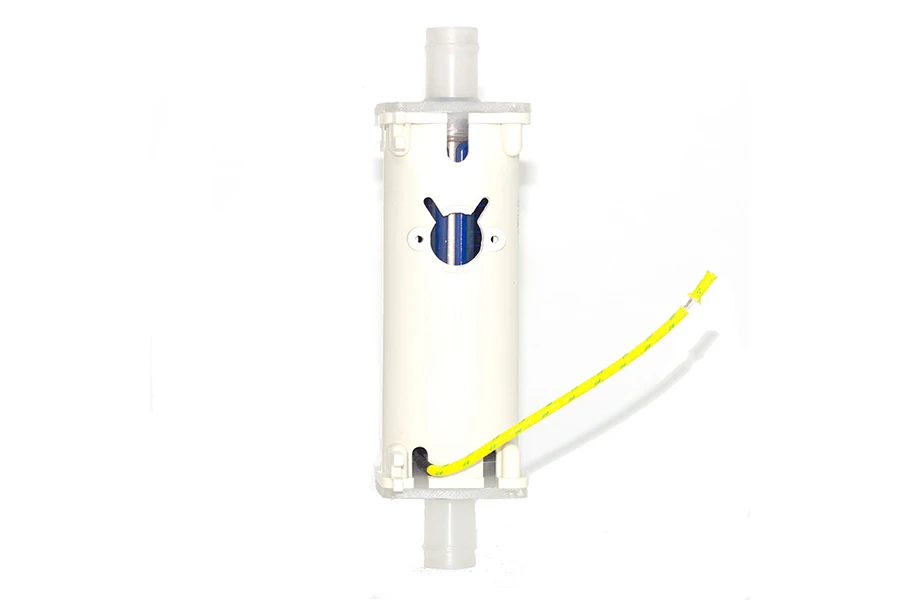

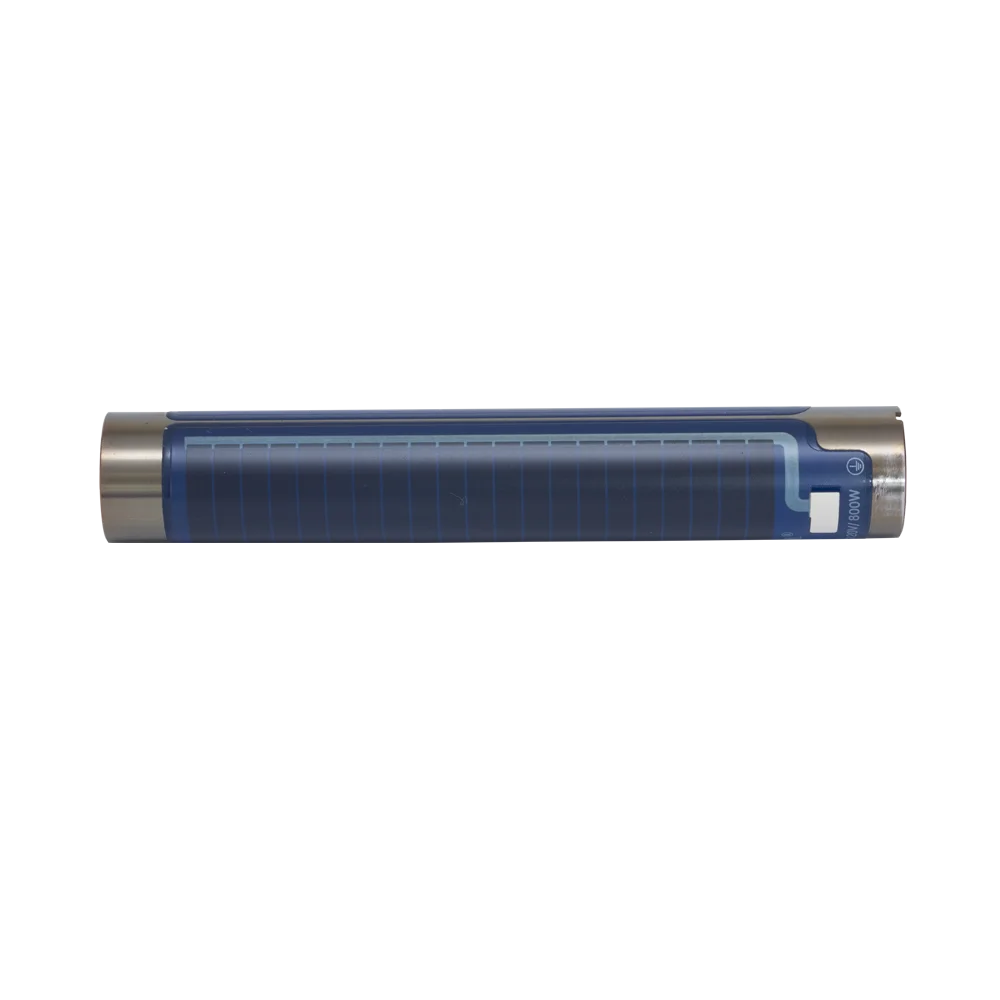

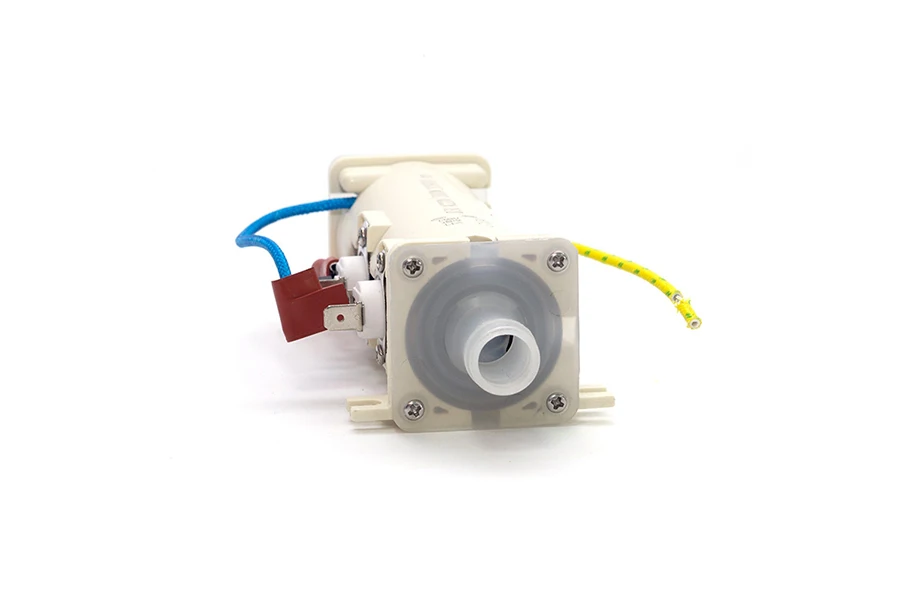

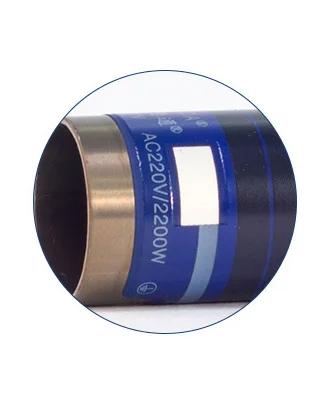

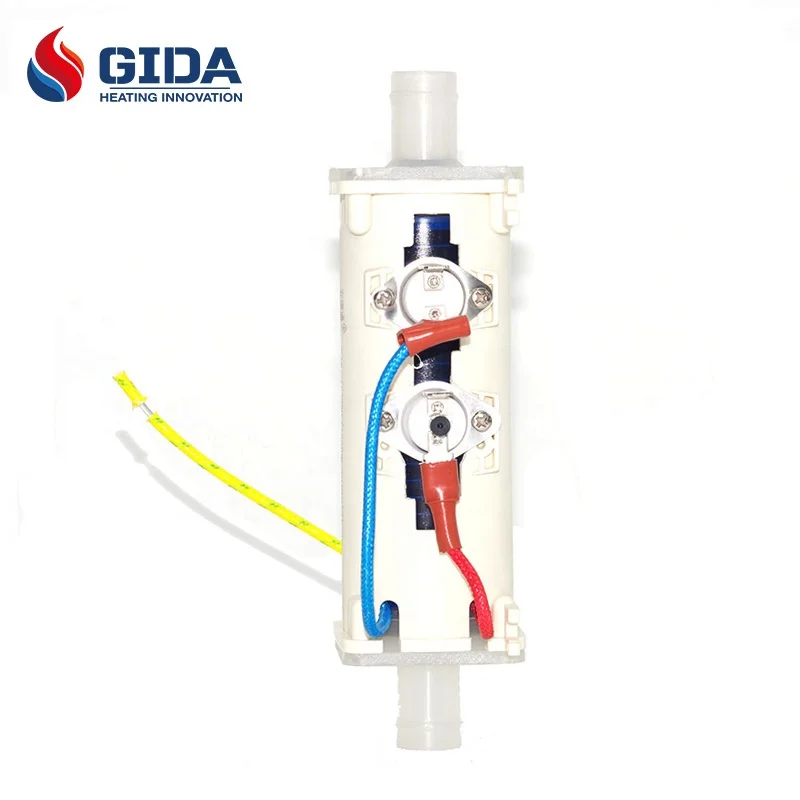

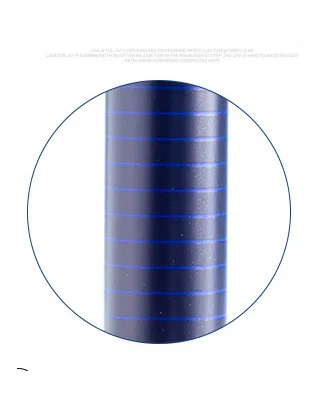

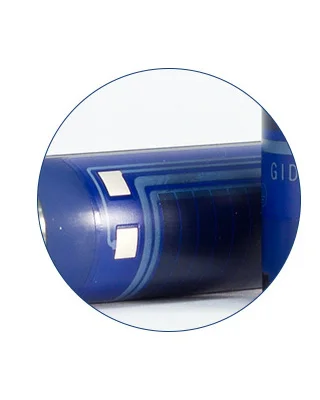

Detail of stainless steel heater

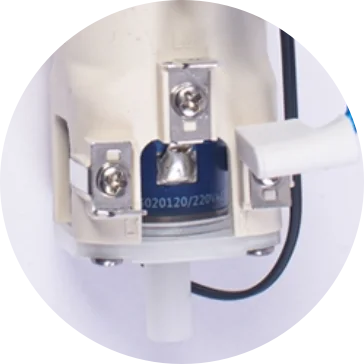

Detail of stainless steel heater

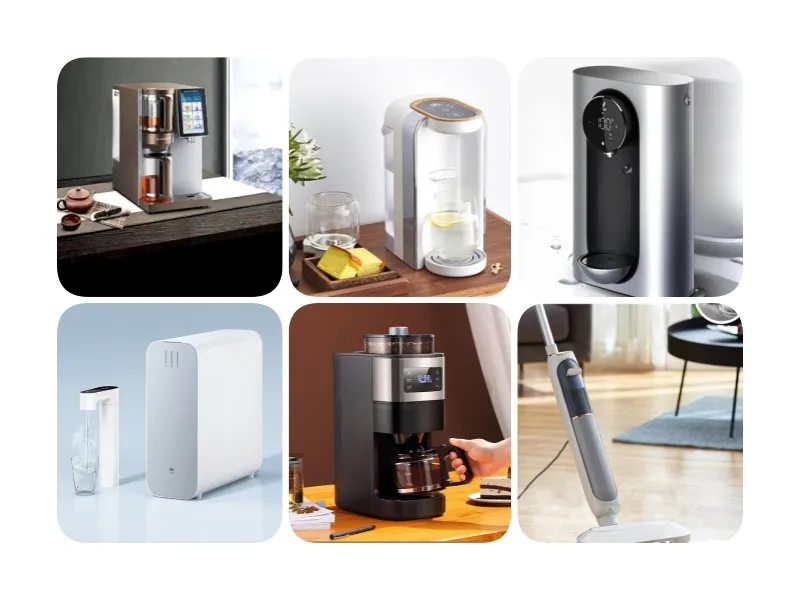

Product application
The application of instant thick film heater
The series of Jieda GIDAPE® GIDA® stainless steel thick film heating pipes have been specially designed for fluid heating, and currently have been successfully applied to fast heat water dispenser, fast heat water heater, electric heat faucet, pipeline machine, under sink water heater, coffee machines, circulate-heating, industrial equipment heating etc.

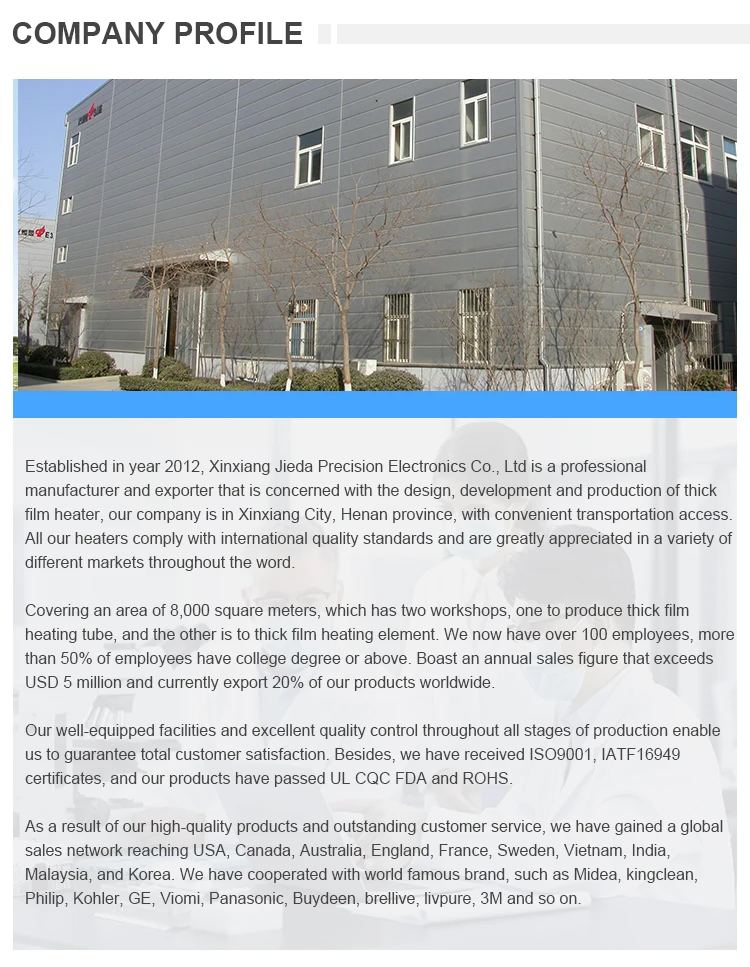

Company Profile
Product packaging
Related Products

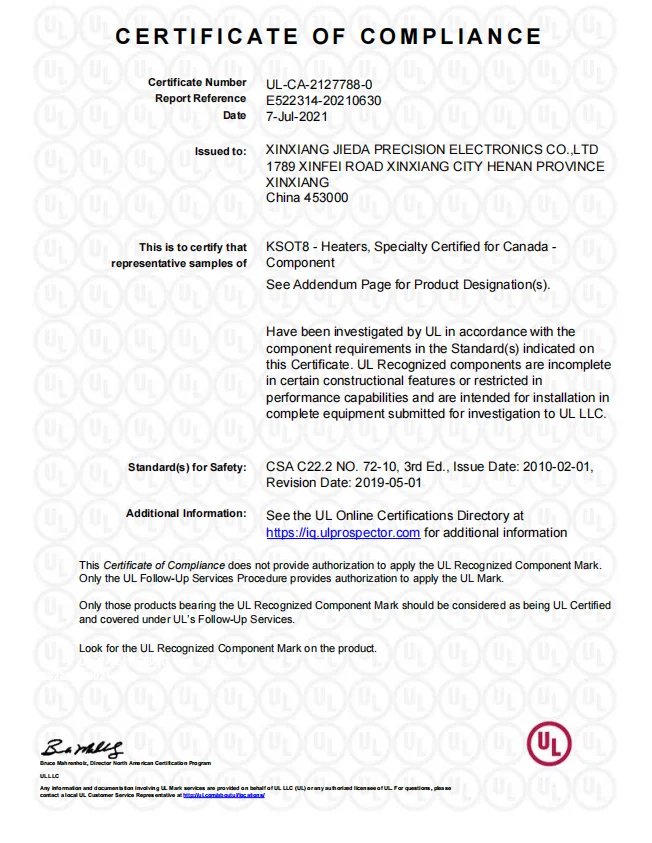

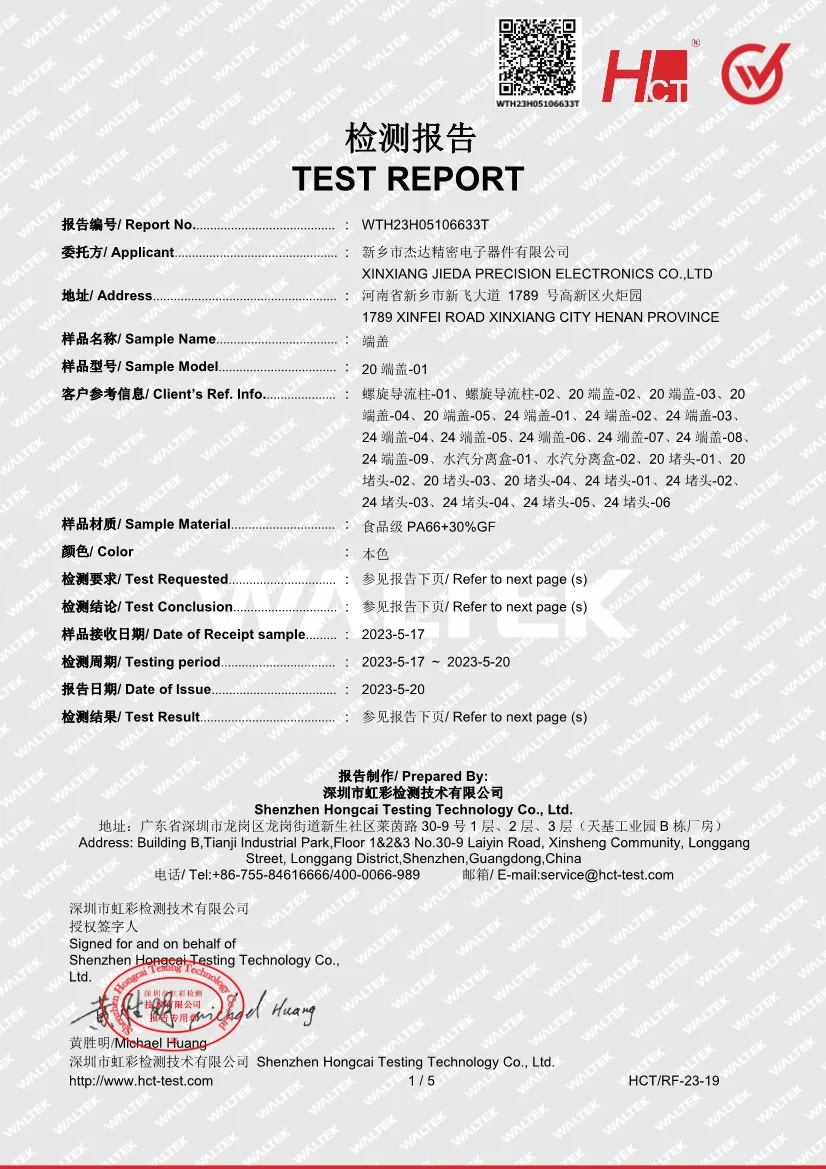

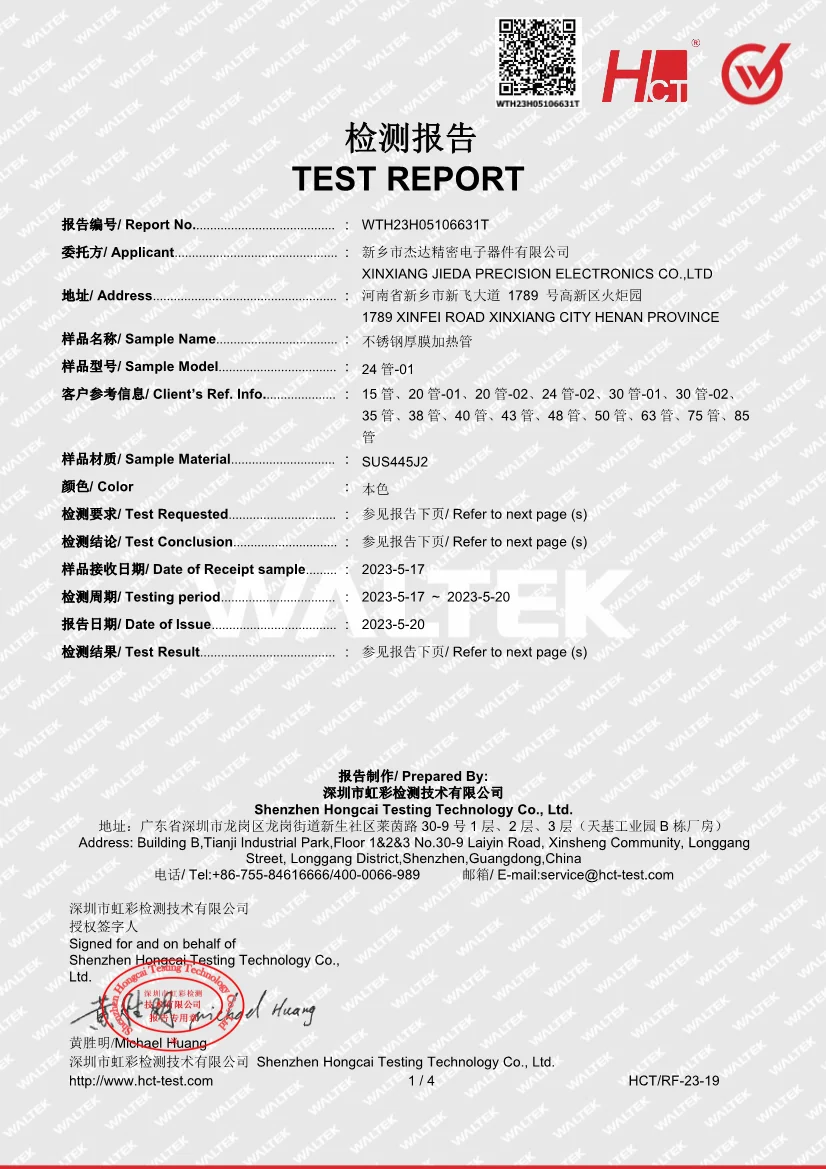

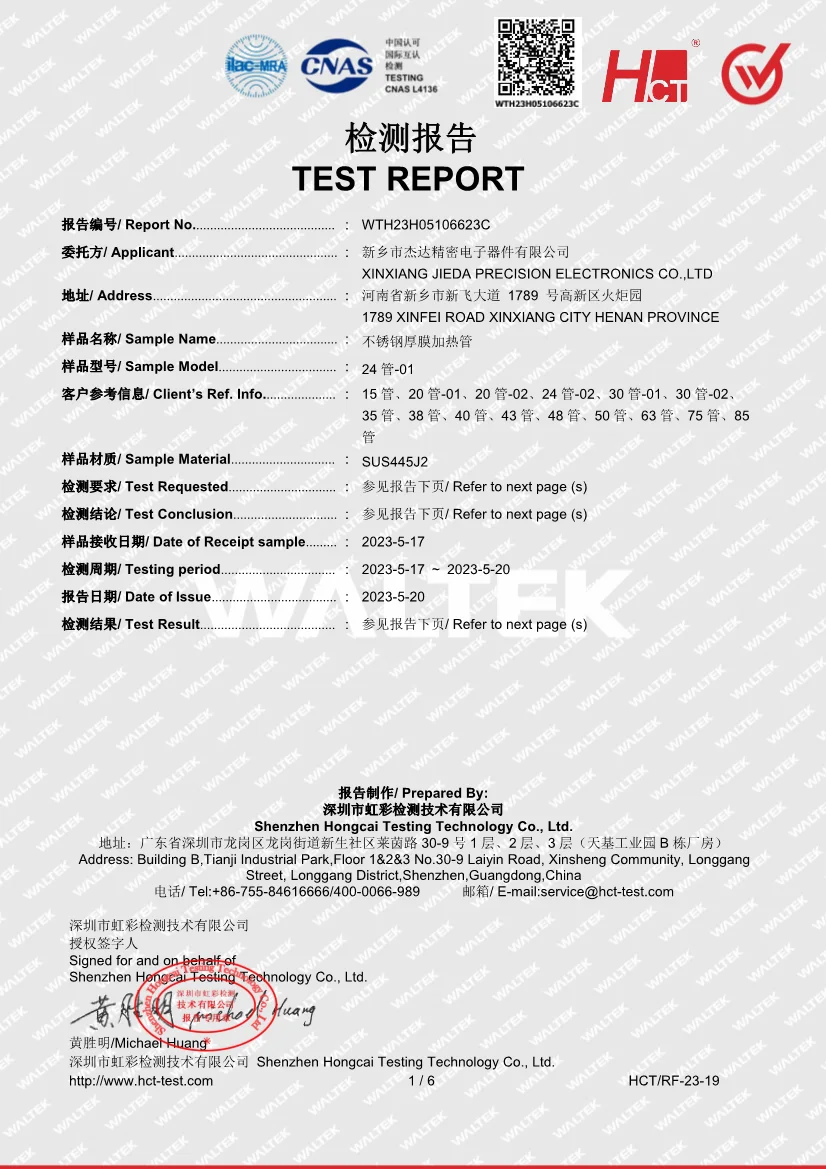

Certifications
FAQ
Q: What's Thick Film Heating Element?
A: Thick Film Heater is a new technical art which is use screen printing technology and new thick film material. It is printed with isolation dielectric, heating element and glass prevent on a substrate that is made by stainless steel, and through drying firing process with 800°C. Thick Film Heater has become a new type of heater.
Q: What's the advantages of Jieda Thick Film Heating Element?
A: We fully master screen printing and sintering technology on curved surface stainless steel tubes, which makes it possible to heat continuous water flow without water tank. 60W/c㎡ power density and small size;>80℃/S temperature ranp up; High thermal efficiency ≥97%；Water and electricity are completely separated and safe to use。
Q: What's the lifespan of Thick Film Heating Tube / Thick Film Heating Element?
A: It can work more than 10,000 hours, in case of no DRY HEATING.
Q: What's the inlet and outlet diameter?
A: Thick Film Heating Tube : 18, 20, 30, 35, 40, 50,63,75,85mm.
Thick Film Heating Element : Available with 7.5mm,10mm, 16mm ,G1/2, G1/8 and G3/4 etc.
Q: Can I DIY it for personal use by myself?
A:Our Products are mainly used as heating spare parts for water heaters in mass production, not recommended for Personal DIY.
Q: Canthe Thick Film be applied to Copper Pipe or Aluminum Pipe?
A: It can not be applied on Copper pipe, but can work on Aluminum pipe.
Q: How to get the suitable model for our application?
A: We need to know the water temperature in inlet and outlet port, water flow rate, connection port details and other special requirements, to recommend the suitable Thick Film Heating Elements
Q: What's the operation attentions?
A: 1. The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use;
2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial area of
heating tube.;
2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial area of
heating tube.;
3. Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizingand dry heating ;
4. Make sure reliablility grounding.
