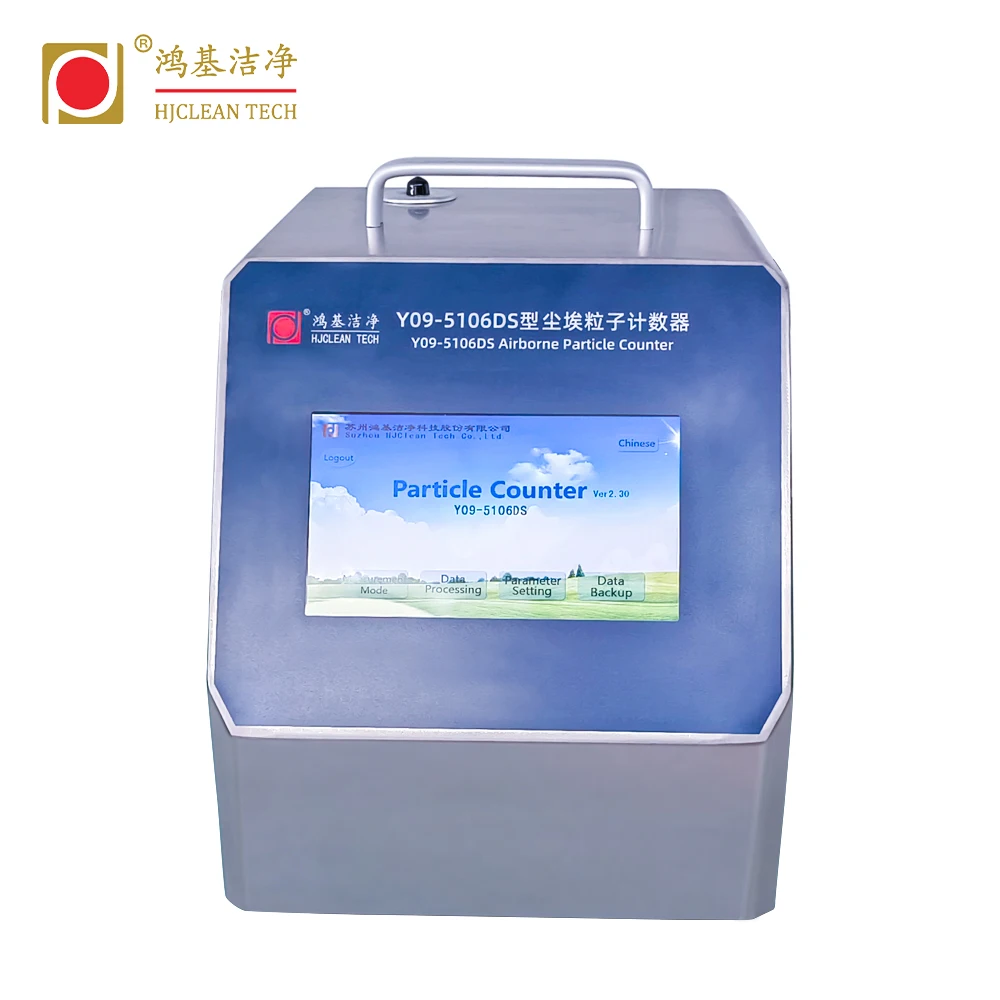

DEVELOPED TYPE airborne Particle Counter
- Category: >>>
- Supplier: Suzhou Hjclean Tech Co. Ltd.
Share on (1600899107341):
Product Overview
Description
Product Description
PRODUCT INTRODUCTION.
Airborne particle counter is a testing instrument used to measure and analyze the size and quantity of dust particles per unit volume of air in a clean environment, and determine the cleanliness level of the clean environment based on standards. Widely used in clean room testing in pharmaceutical and health, optics, chemistry, food, cosmetics, electronics, biological products, aerospace, and other enterprises.

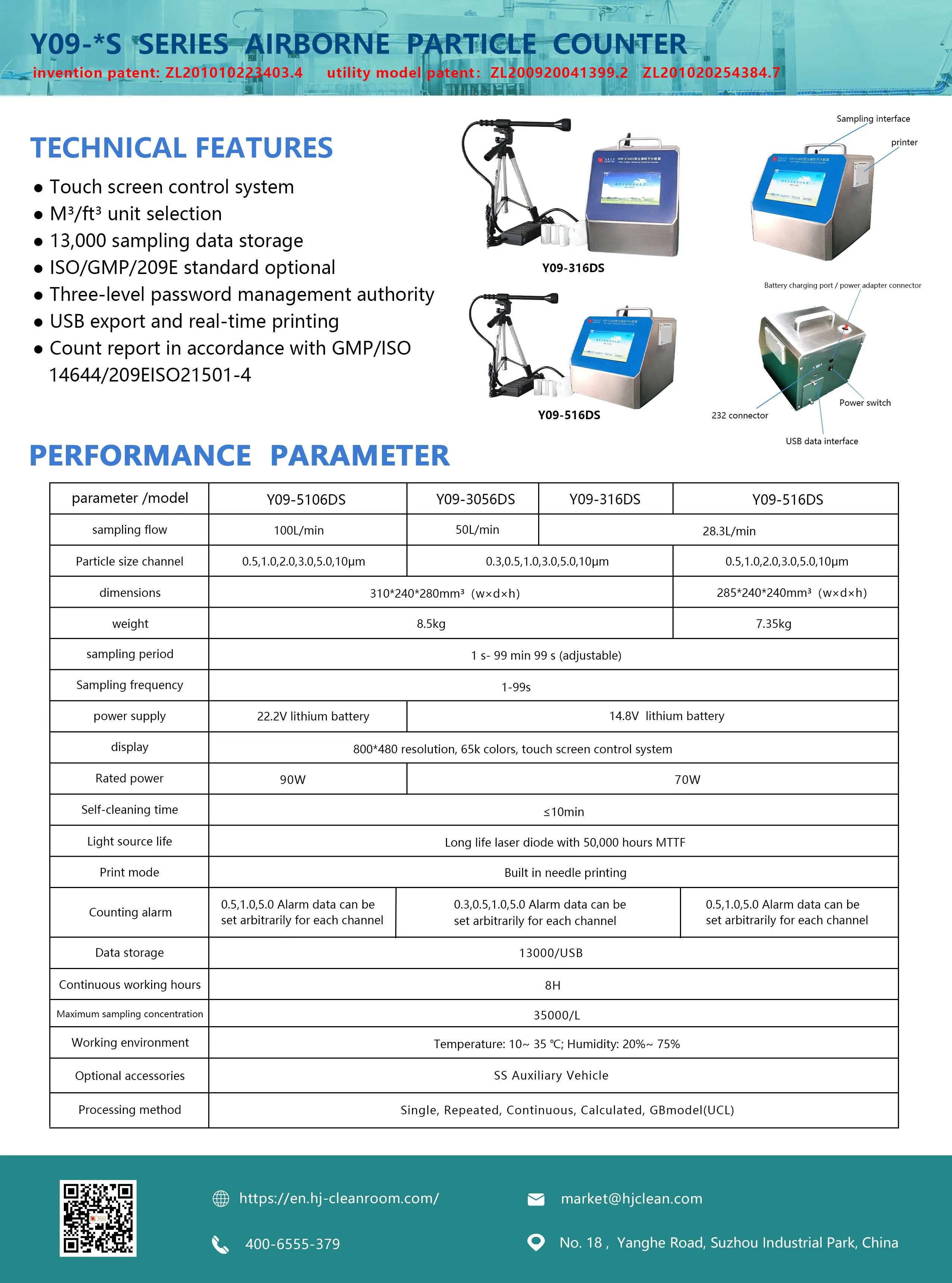

Product parameters

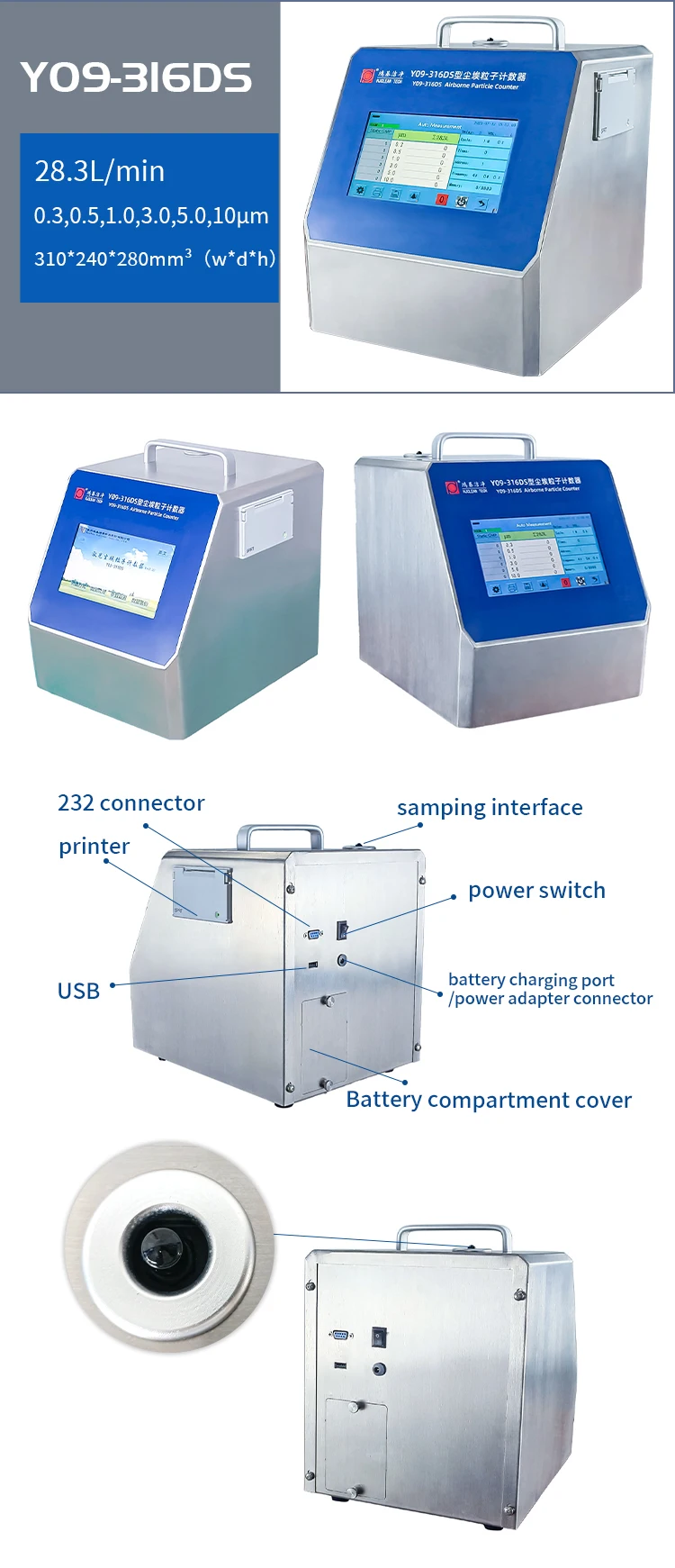

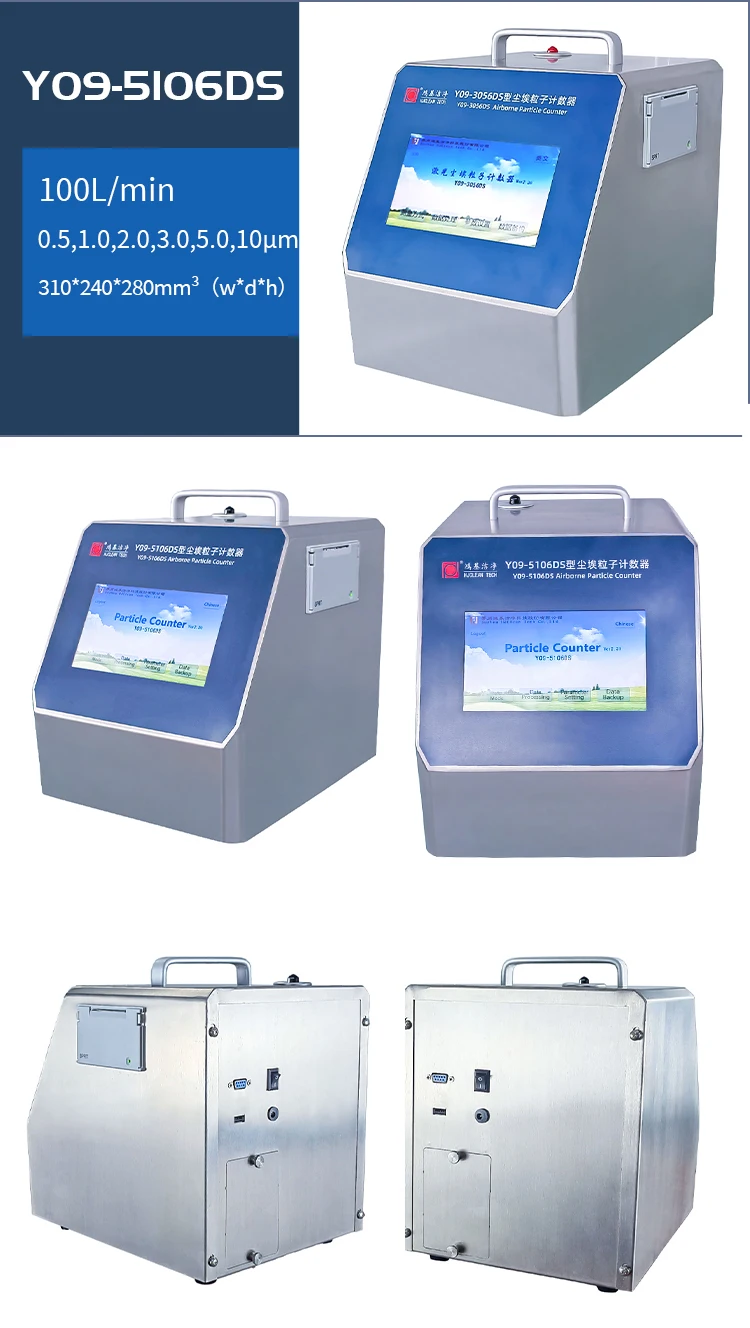

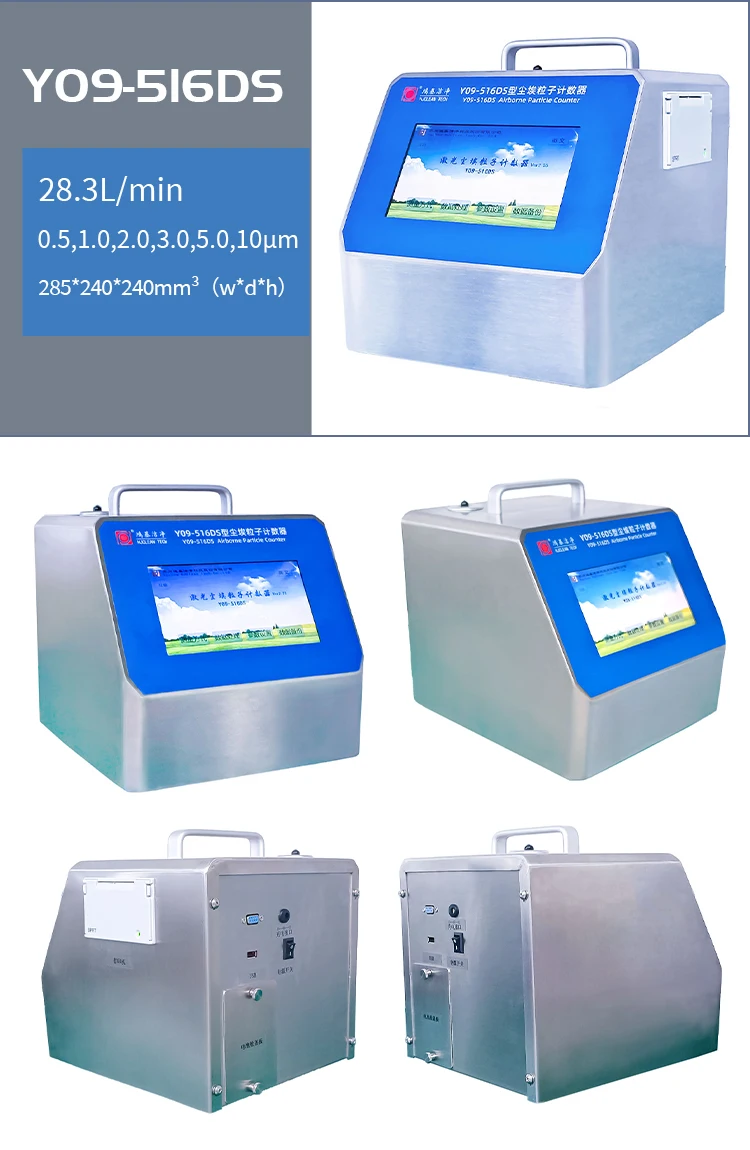

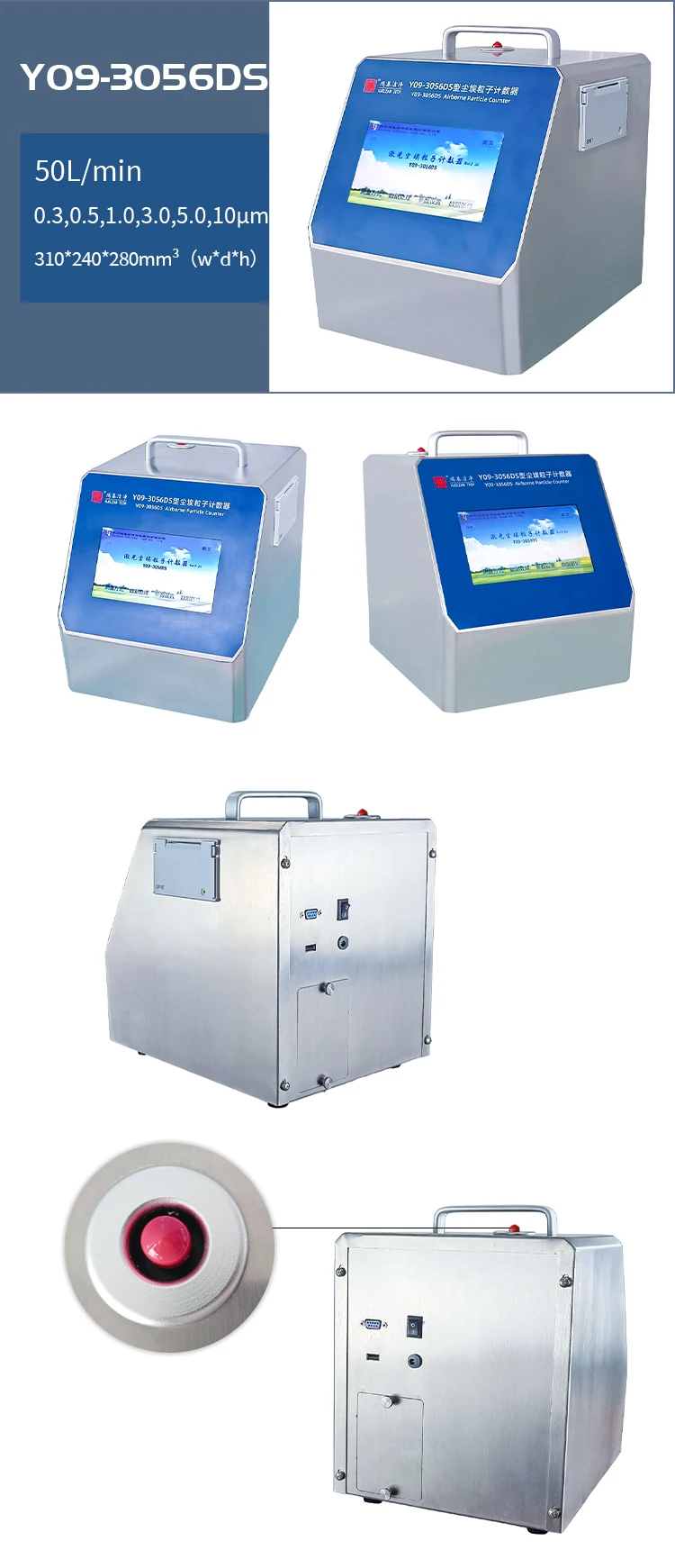

parameter /model | Y09-5106DS | Y09-3056DS | Y09-316DS | Y09-516DS | |||
sampling flow | 100L/min | 50L/min | 28.3L/min | ||||
Particle size channel | 0.5,1.0,2.0,3.0,5.0,10μm | 0.3,0.5,1.0,3.0,5.0,10μm | 0.5,1.0,2.0,3.0,5.0,10μm | ||||
dimensions | 310*240*280mm³（w×d×h） | 285*240*240mm³（w×d×h） | |||||
weight | 8.5kg | 7.35kg | |||||
sampling period | 1 s- 99 min 99 s（adjustable） | ||||||
Sampling frequency | 1-99s | ||||||
power supply | 22.2V lithium battery | 14.8V lithium battery | |||||
display | 800*480 resolution, 65k colors, touch screen control system | ||||||
Rated power | 90W | 70W | |||||
Self-cleaning time | ≤10min | ||||||
Light source life | Long life laser diode with 50,000 hours MTTF | ||||||
Print mode | Built-in needle printer | ||||||
Counting alarm | 0.5,1.0,5.0 Alarm data can be set arbitrarily for each channel | 0.3,0.5,1.0,5.0 Alarm data can be set arbitrarily for each channel | 0.5,1.0,5.0 Alarm data can be set arbitrarily for each channel | ||||
Data storage | 13000/USB | ||||||
Continuous working hours | 8H | ||||||
Maximum sampling concentration | 35000/L | ||||||
Working environment | Temperature: 10~ 35℃; Humidity: 20%~ 75% | ||||||
Optional accessories | SS Auxiliary Vehicle | ||||||
Processing method | Single, Repeated, Continuous, Calculated, GBmodel(UCL) | ||||||

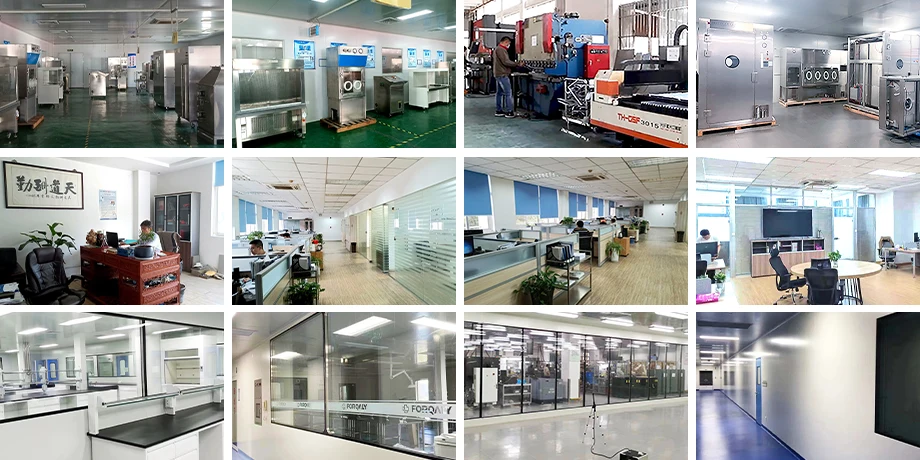

Company Profile
