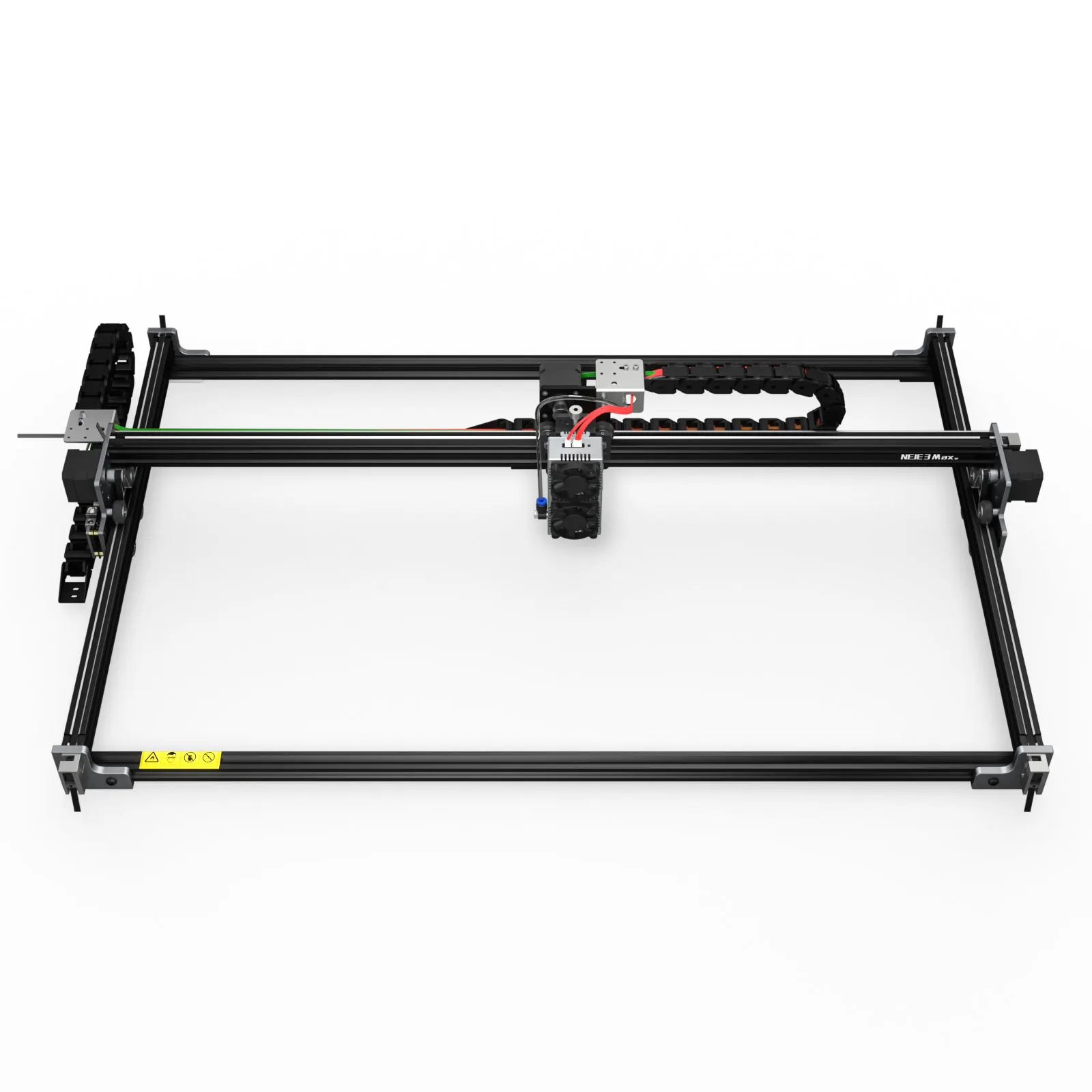

NEJE 3 MAX V2 E80 Laser Cutting Machine For Metal 130W 790*470mm Acrylic Wood Laser Cutter laser engraving machine

Share on (1600899150971):


Price:$535.00 - $545.00

Quantity:


Product Overview

Description


NEJE 3 MAX V2 E80 Laser Cutting Machine For Metal 130W 790*470mm Acrylic Wood Laser Cutter laser engraving machine






Product Description

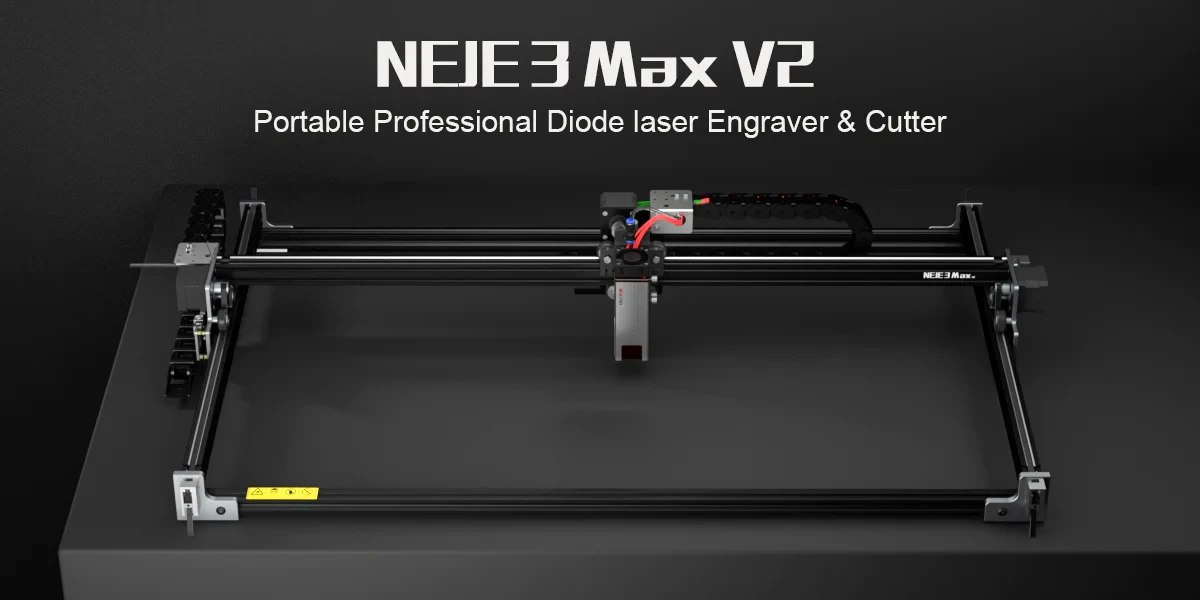

NEJE 3 MAX V2: DIY PROFESSIONAL DIODE LASER ENGRAVER AND CUTTTER

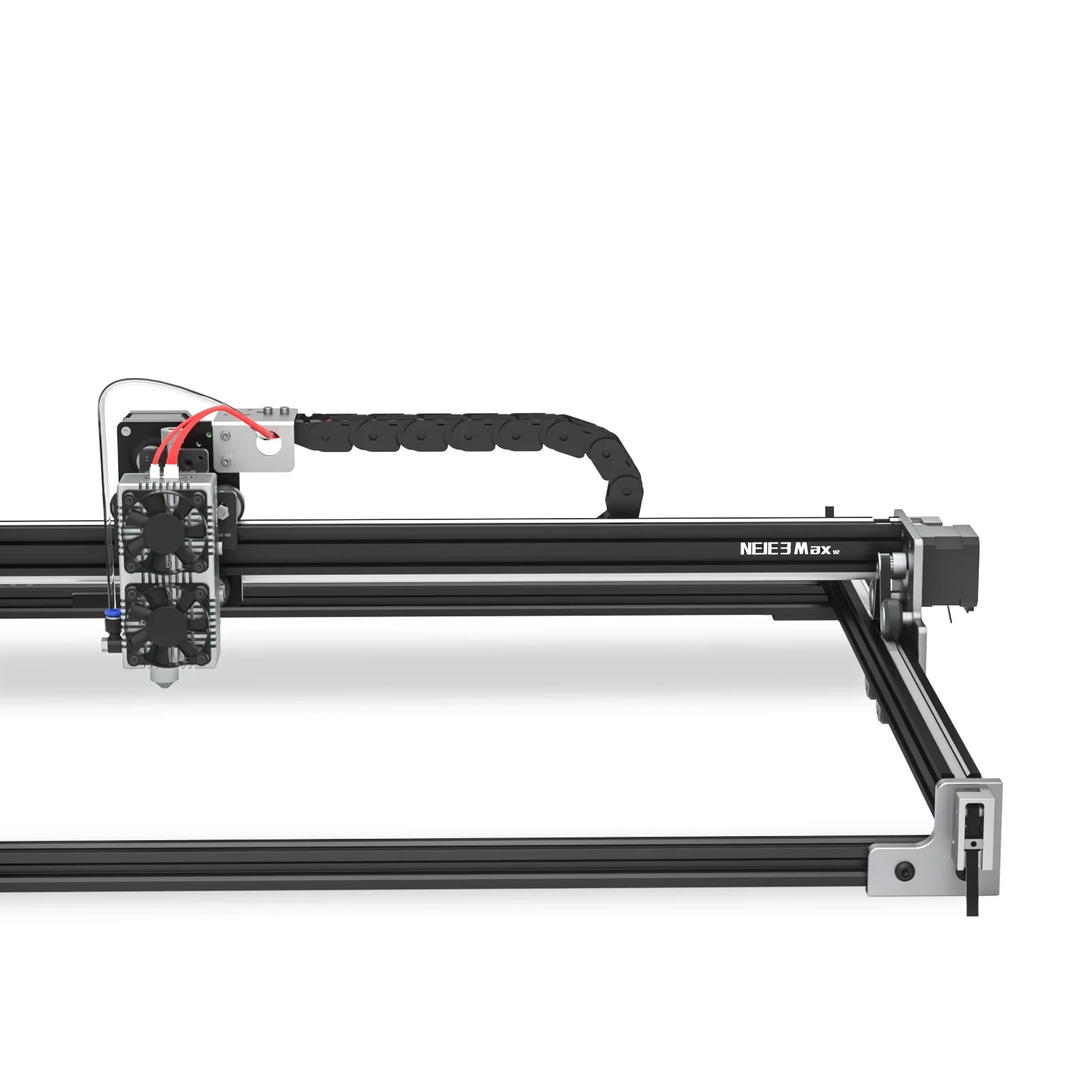

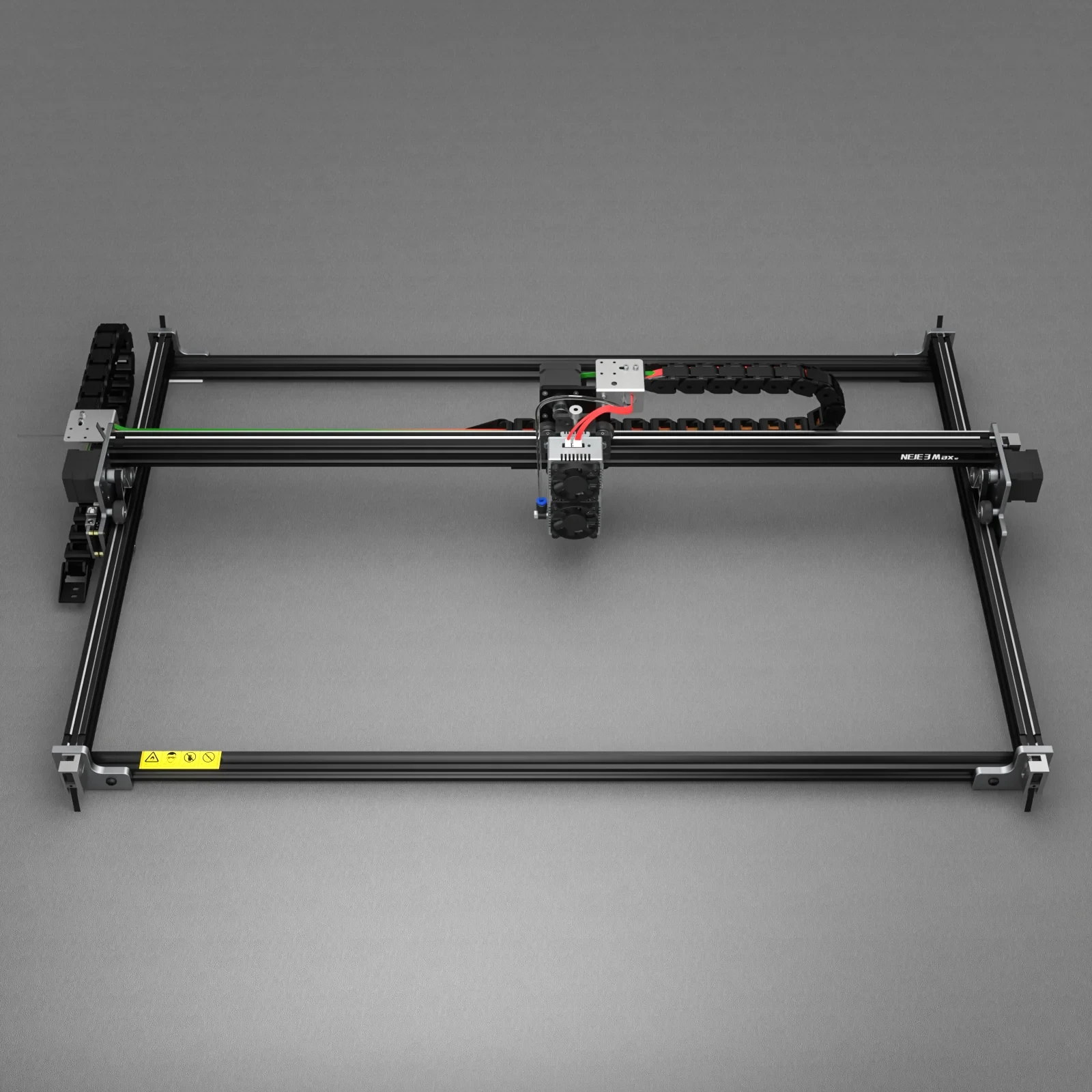

 NEJE 3Max-V2 is a general-purpose large-area DIY laser engraving and cutting machine with simple assembly, stable performance, and easy to maintain.
It is an improved version of the fourth generation based on NEJE 2 Max, NEJE 2s Max, and NEJE 3 Max. It improves structural strength, smoothness, and accuracy by optimizing alloy material matching and structural design, and conducts comprehensive calibration using precision CNC machines. While ensuring portability and ease of use, it perfectly meets the needs of both novice and commercial users.
The NEJE 3Max-V2 is very portable, allowing you to easily pick it up with one hand and complete your projects outdoors. It can also be easily hung on the wall when not in use.

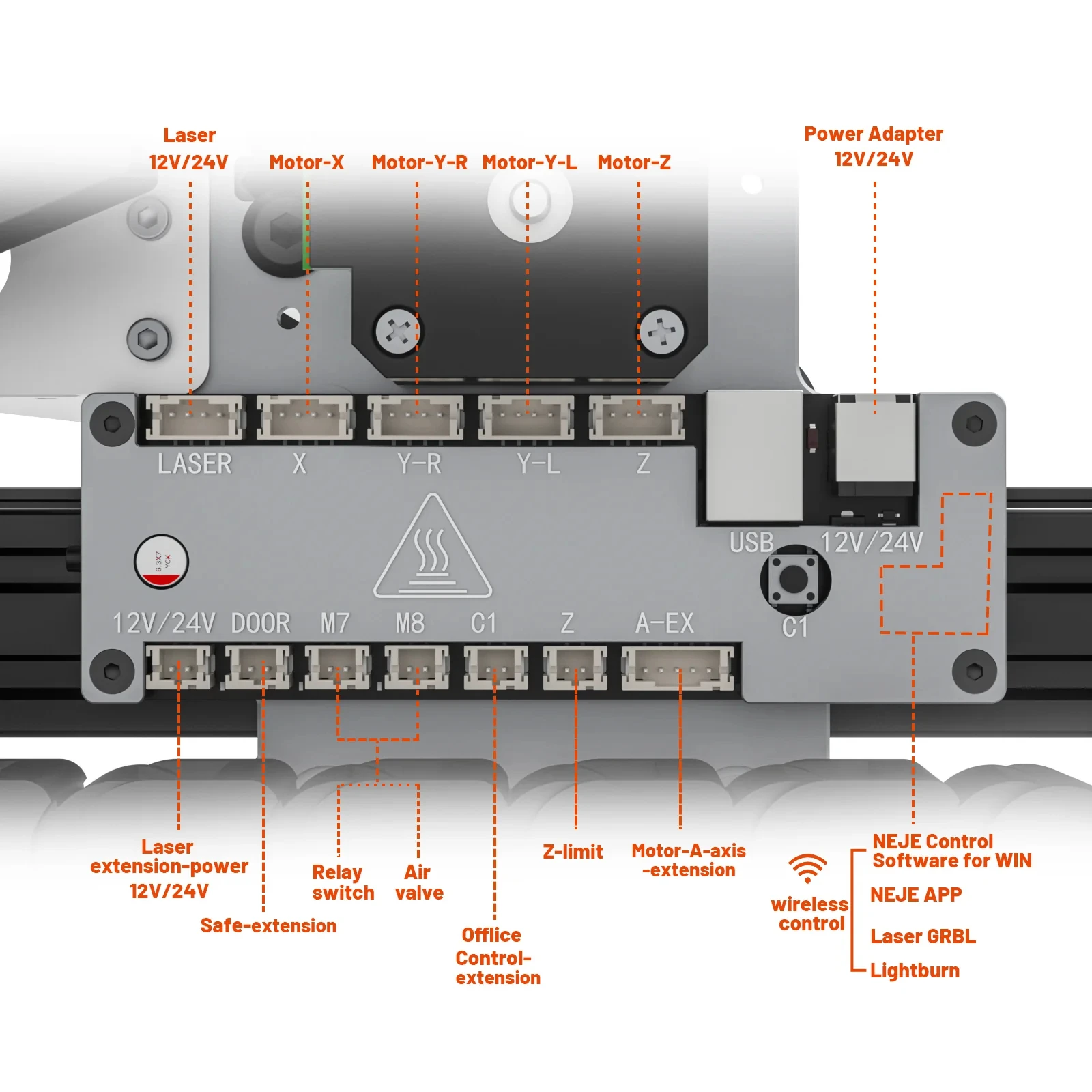

The new control system supports native Z-axis and A-axis, and a single computer can control countless devices, supporting commercial production mode settings and lightburn wireless mode.

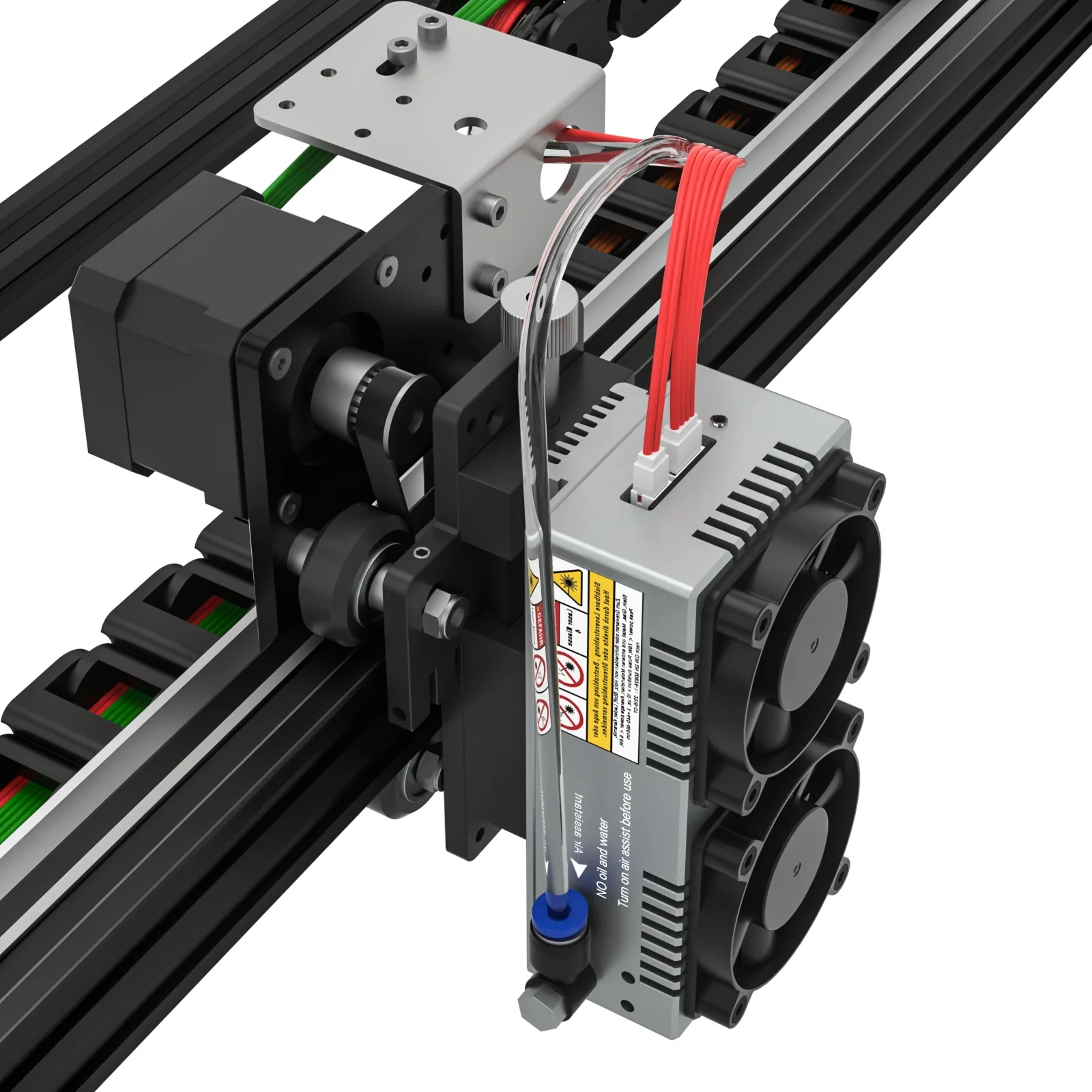

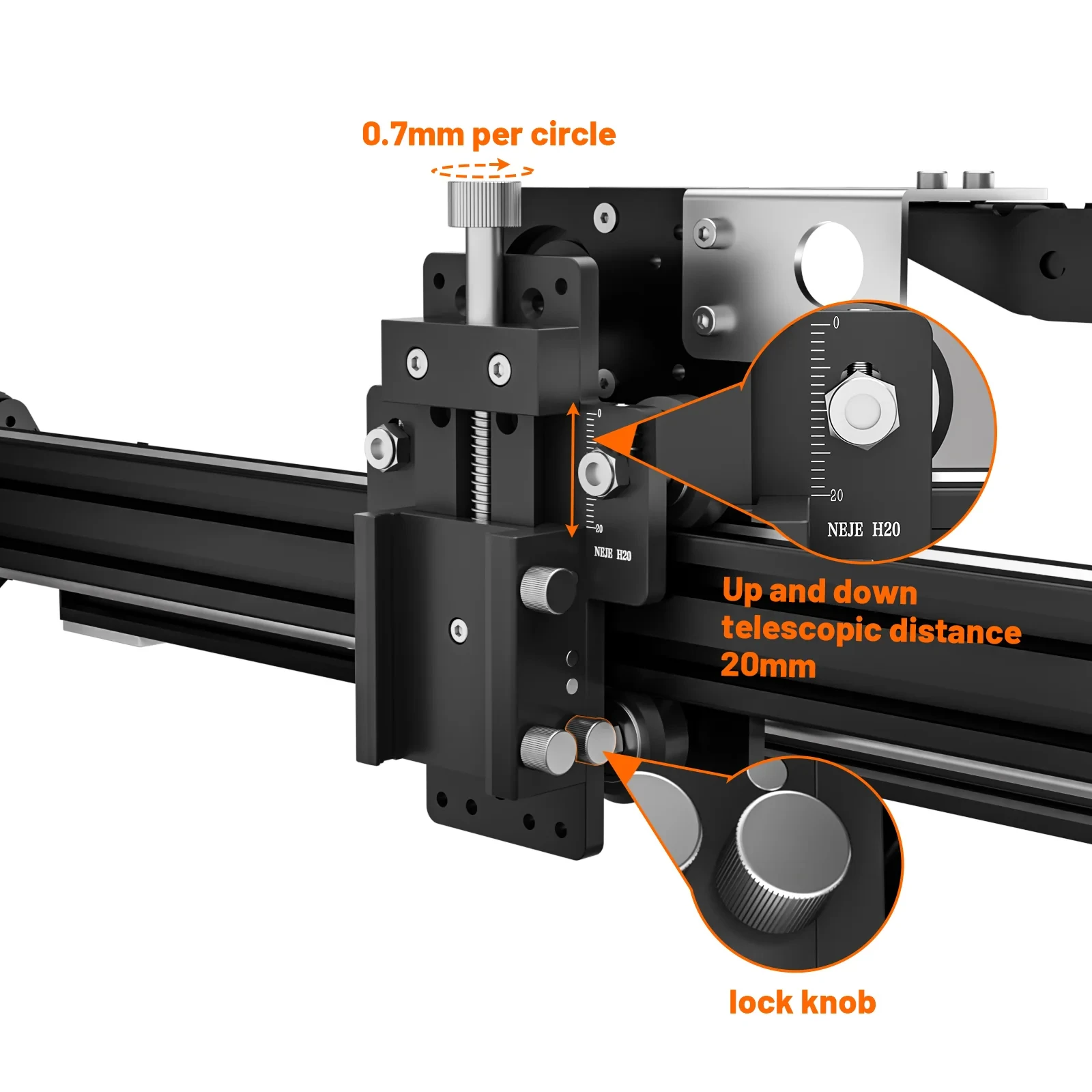

The NEJE H20 optical precision module focus adjuster is also configured. It is compatible with larger power modules such as E80, stable, easy to use, and efficient. If you want to retrofit the machine, you can update the firmware and upgrade it to an electric Z-axis to enhance the performance of the 3Max-V2 in multi-dimensional space. Alternatively, expanding the X-axis and Y-axis to achieve incredible working area, the all-new NEJE 3Max-V2 is a great helper for entry-level and commercial use.





Specifications












































































































Frame Size (L-W-H)970x582x60mm
Working Area( X-Y)790 x 470mm, suppot Extends to 790x1030mm

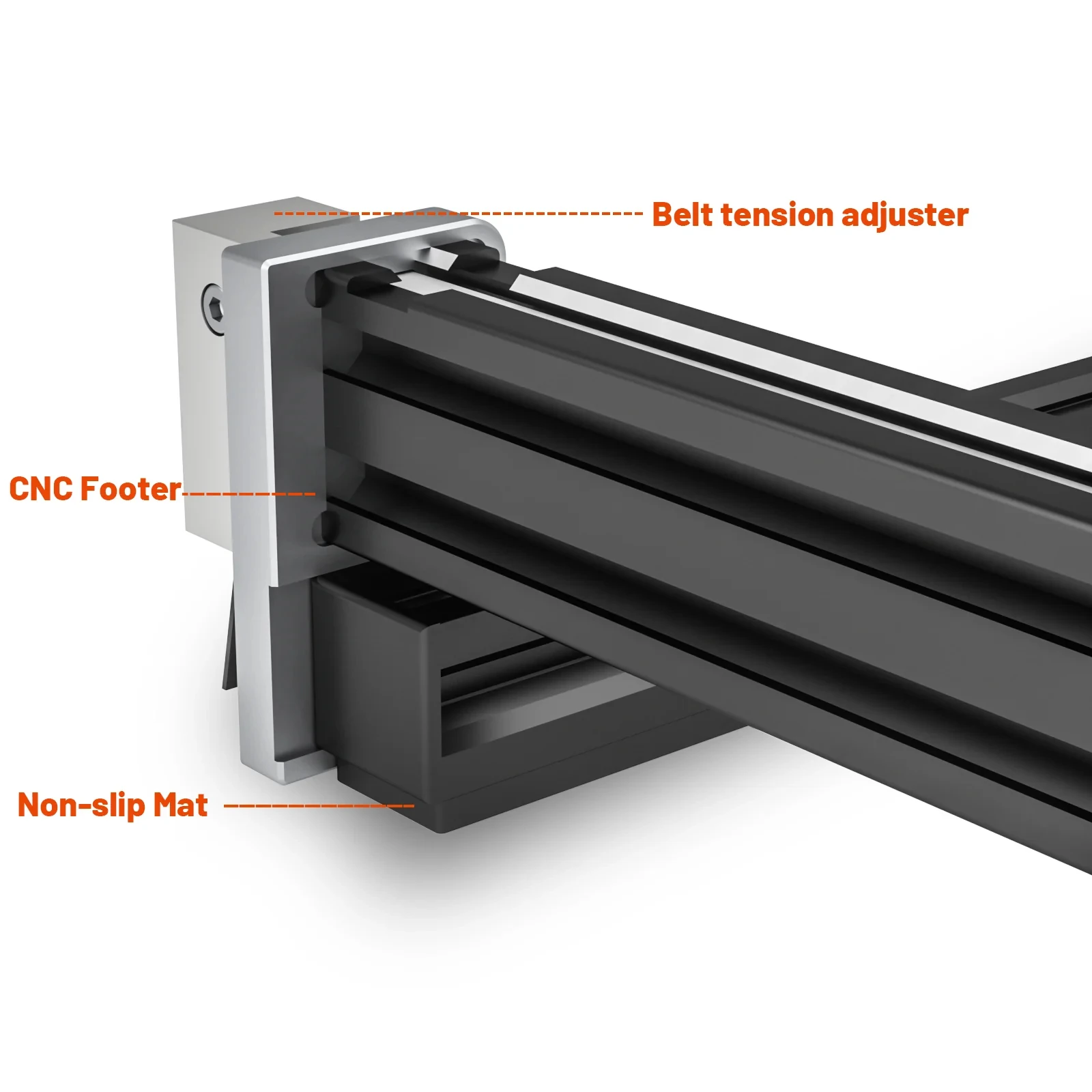

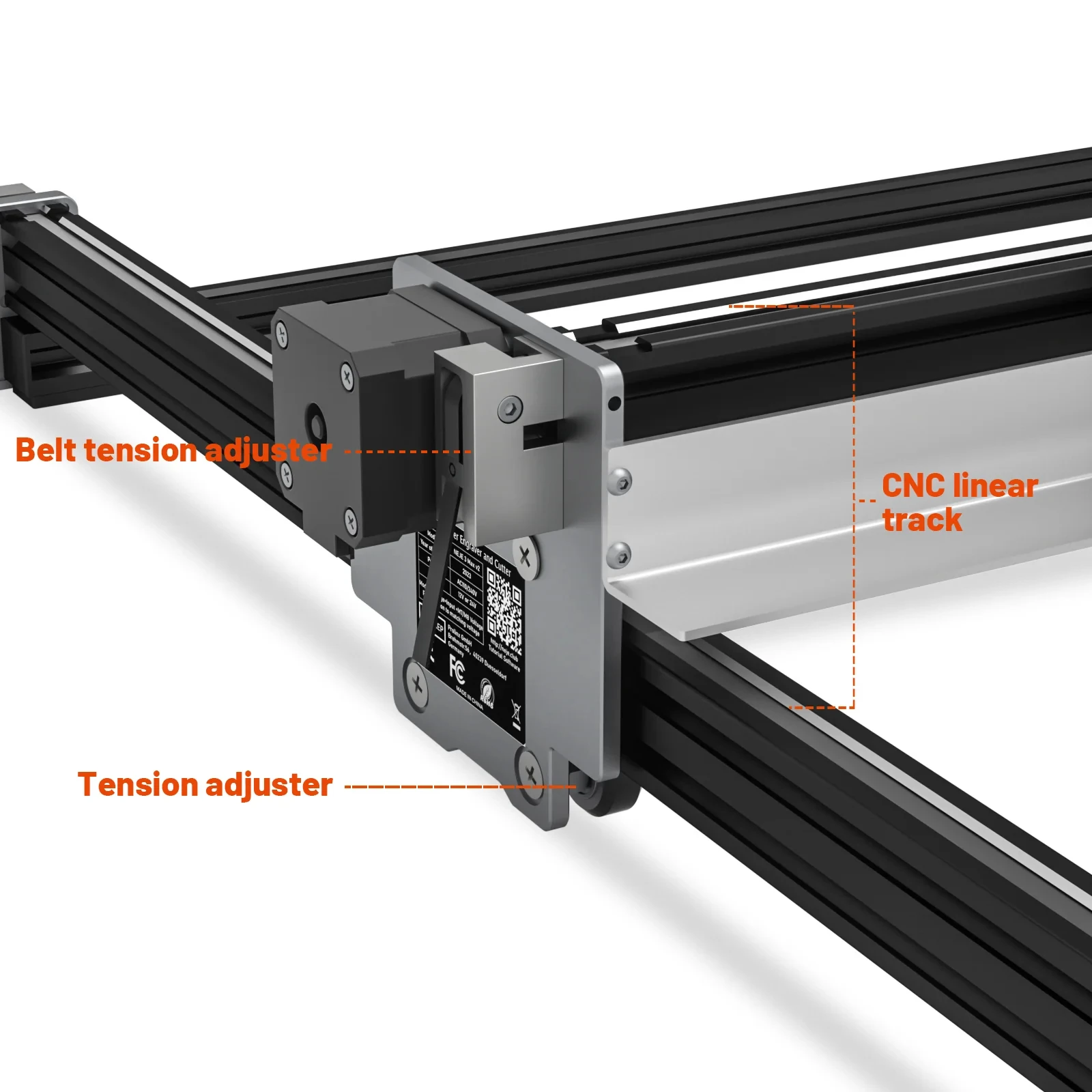

X axisIndustrial straight track, bottom CNC straight line correction
Y axisNEJE diamond CNC linear track, smooth and durable
Z axisIndustrial linear track
A axis Rotary axis expansion(but the expansion need buy extra, if you need contact us before buy the machine)
 Y axis Extension:  Yes, NEJE will provide linear extension track, and the Y axis can be extended to 1030mm.(but the expansion need buy extra, if you need contact us before buy the machine)

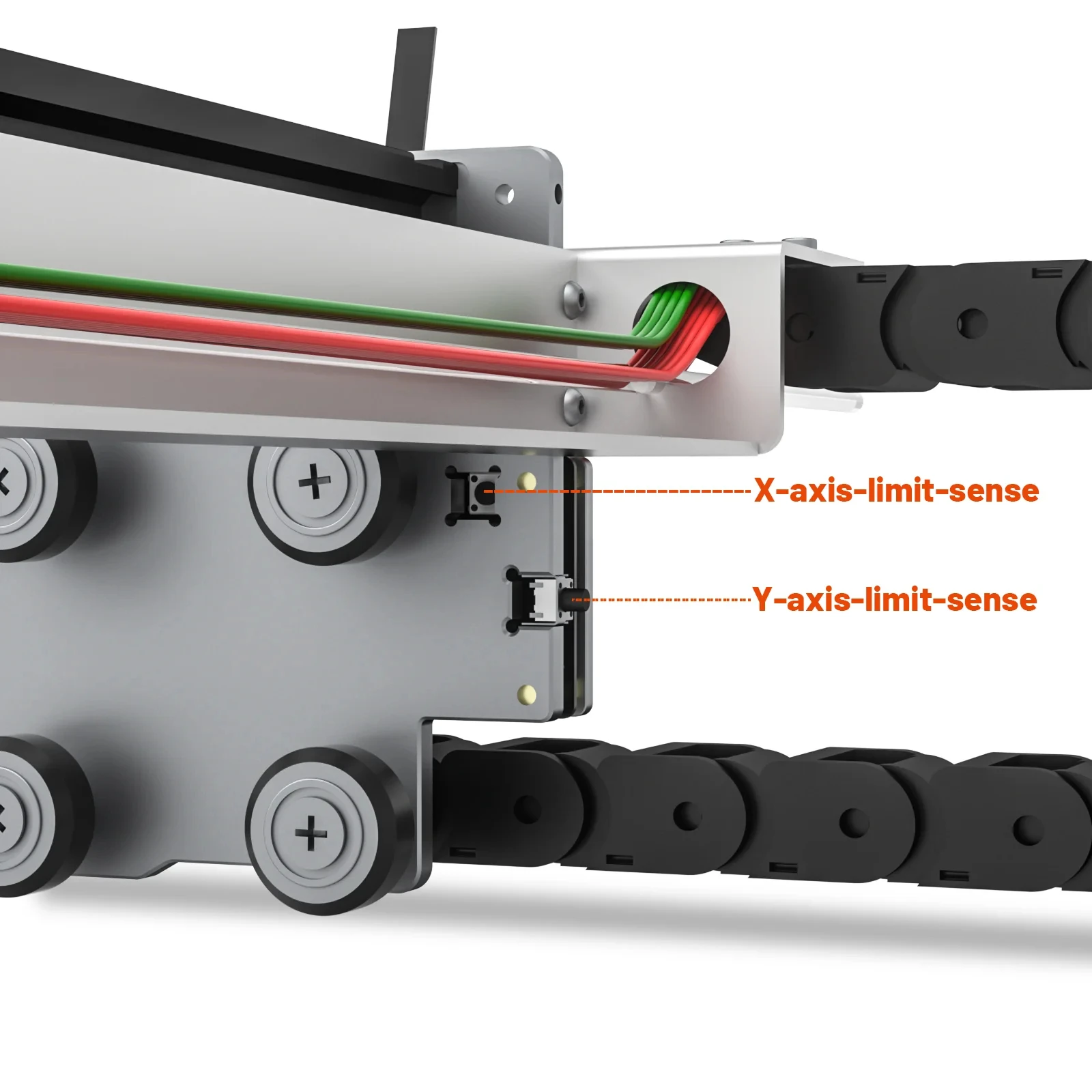

 Limit SwitchBuild in X Y Z
 Homing Repeat Position Accuracy 0.01mm
Repeat Position Accuracy X Y: 0.01mm; Z: 0.001mm

Recommended acceleration and top speed400mm/s

Vertical Carving Yes(90°)

Input Voltage:
 12V or 24V, Match according to module voltage
Interface

 5.5*2.1, Max 6A


Compatibleall 12V and 24V NEJE modules
Lightburn Offline ControlYes
Lasergrbl Offline ControlYes
BLE Bluetooth FunctionSupport Bluetooth 4,Windows 10, iOS 8 and Android 4.2 and above.
App control Yes
MEMS protectionYes
NEJE Software OTA UpgradeYes
Software NEJE Win Soft, NEJE APP, Lightburn, LaserGRBL
Firmwarebuild in NEJE fireware and GRBL 1.1f(optimized)
Systems SupportWin 7/Win 8/Win 10, Android, iOS, ipadOS, macOS
File Format SupportsGC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.


























































Difference



E40 (NEW)

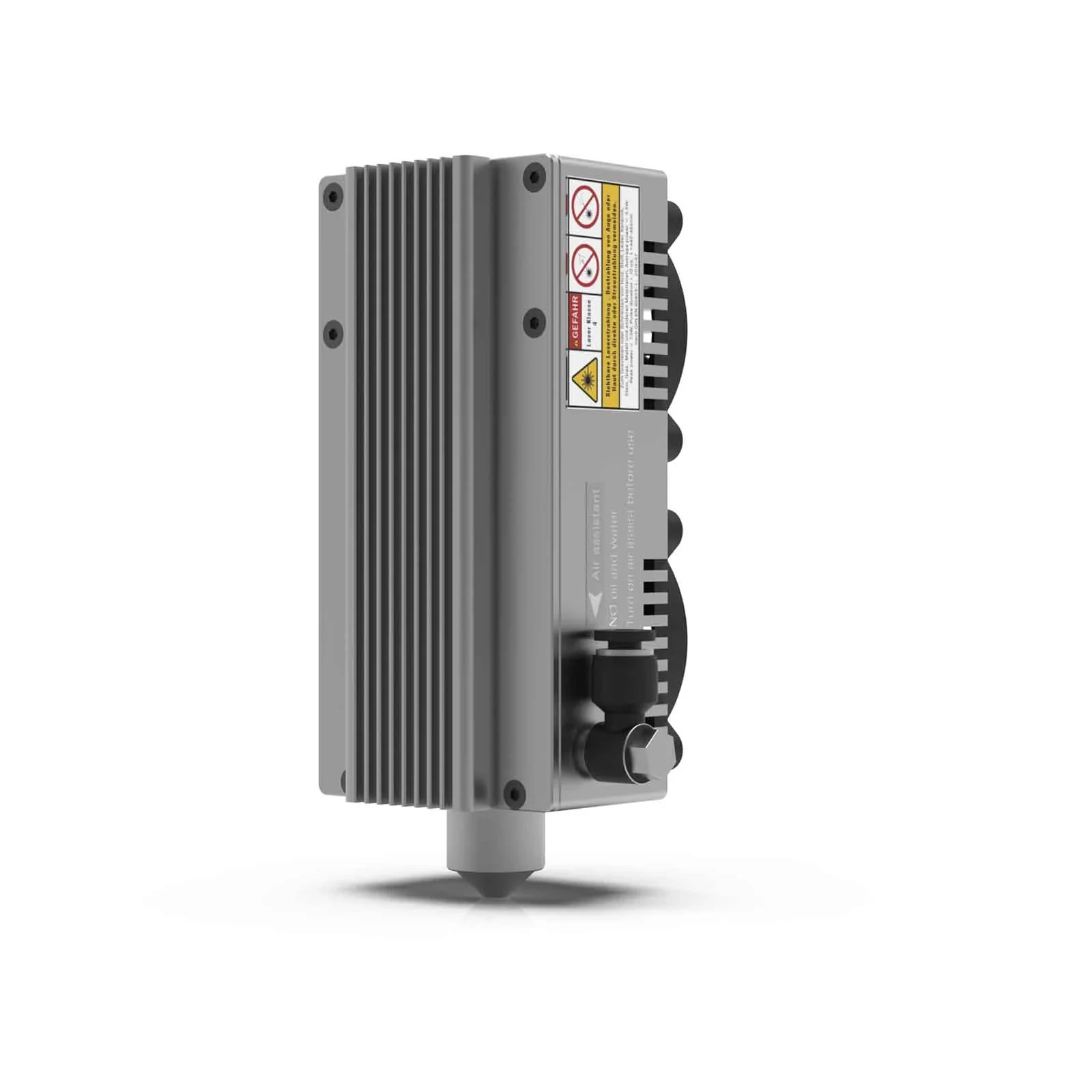

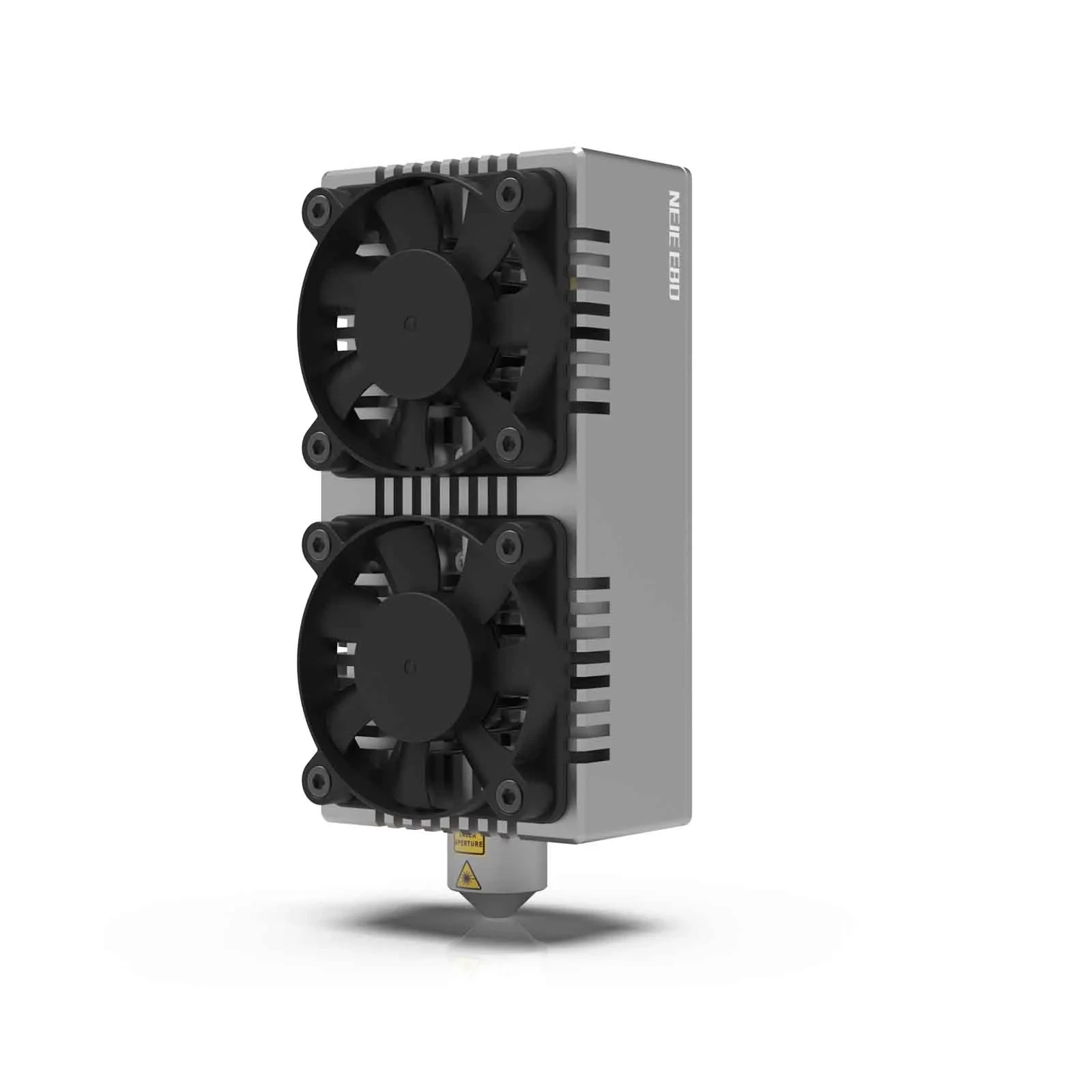

E80 (NEW)



Light source



Original diode X2



Original diode X4



Focal spot size



0.03*0.04mm fixed focus



0.06*0.06mm fixed focus



Continuous Power



10-11W



21-22W



Pulse power



12W



24W



Max cutting thickness



10mm



30mm



Recommended cutting thickness



<5mm



<18mm



Feature



Having very fine carving and cutting expression abilities, for users with higher requirements for precision, such as ceramic carving, leather, MDF cutting within 4mm, etc., with perfect detail presentation.

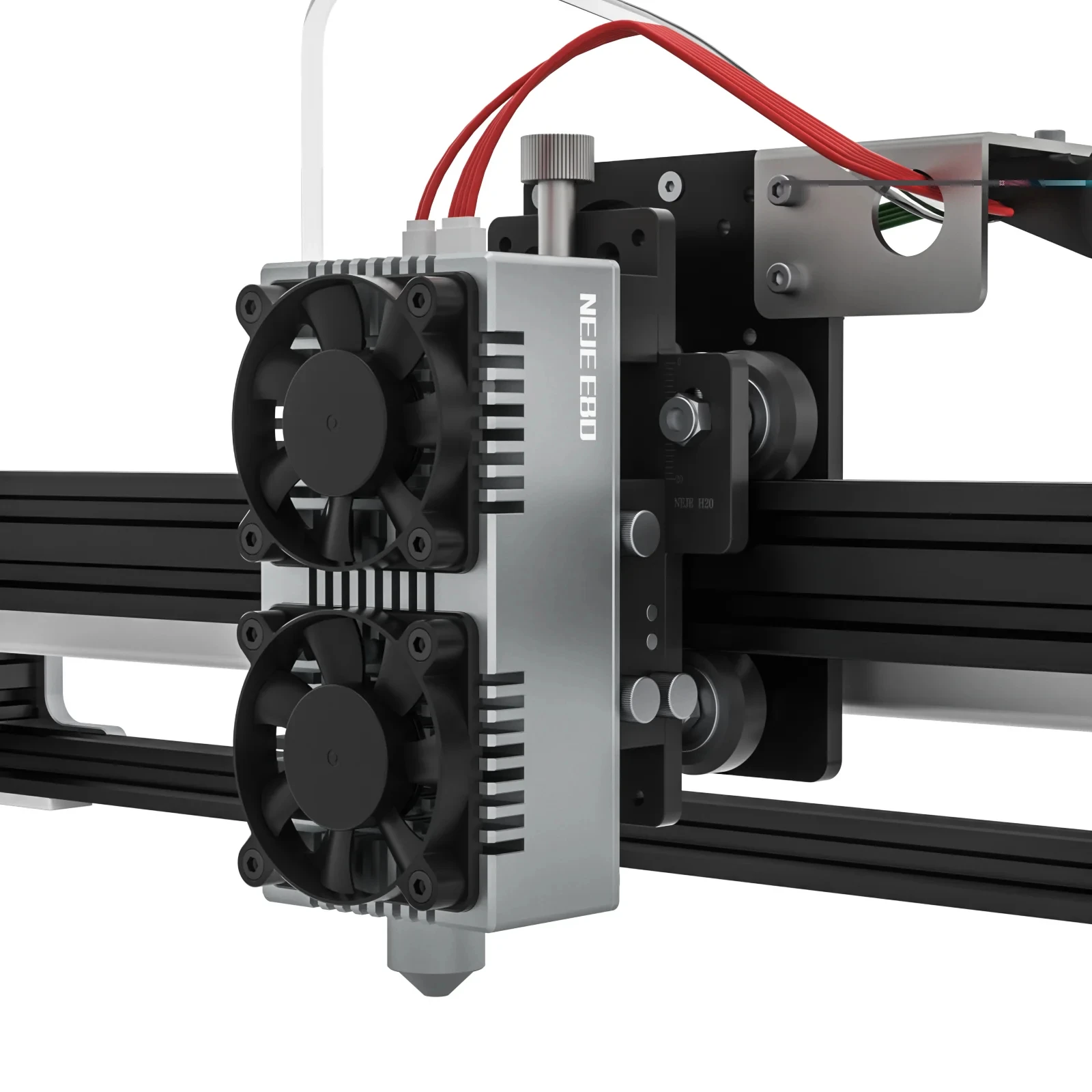

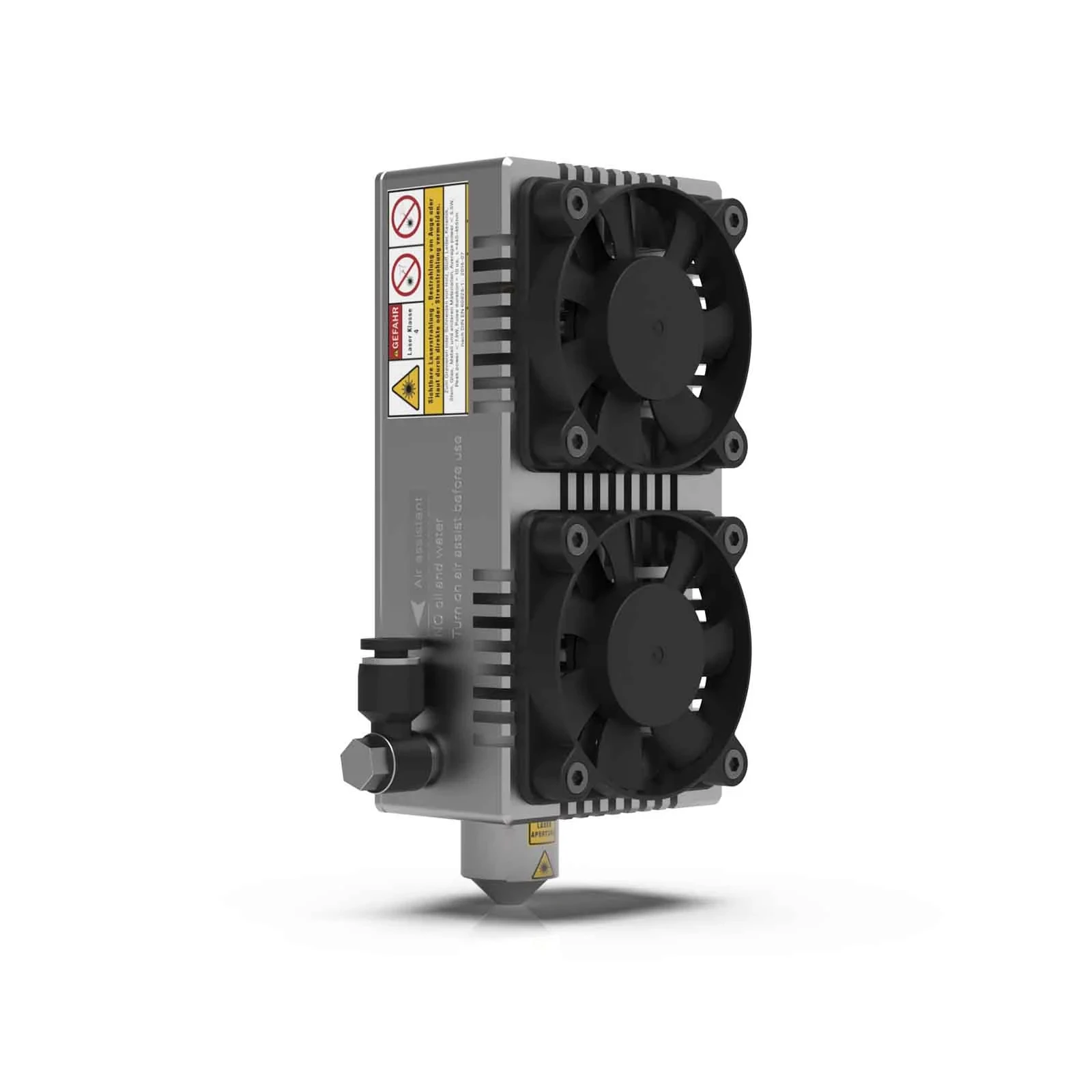

Powerful power and perfect optical quality, with an ultra long lifespan design, the E80 has higher commercial applications in carving and cutting efficiency. It will be a standard grade product for Diode Laser entering the industrial era.



Warranty



2 Years



2 Years



Stainless Steel Cutting



Thickness:0.05 mm 300 mm/min



Thickness:0.1 mm 300 mm/min






Detailed Images


 E80 (1).jpg02.jpg03.jpg3MaxV2D.jpg04.jpg05.jpg06.jpg11.jpg12.jpg13.jpg14.jpgE80.jpg1.jpg2.jpg3.jpg

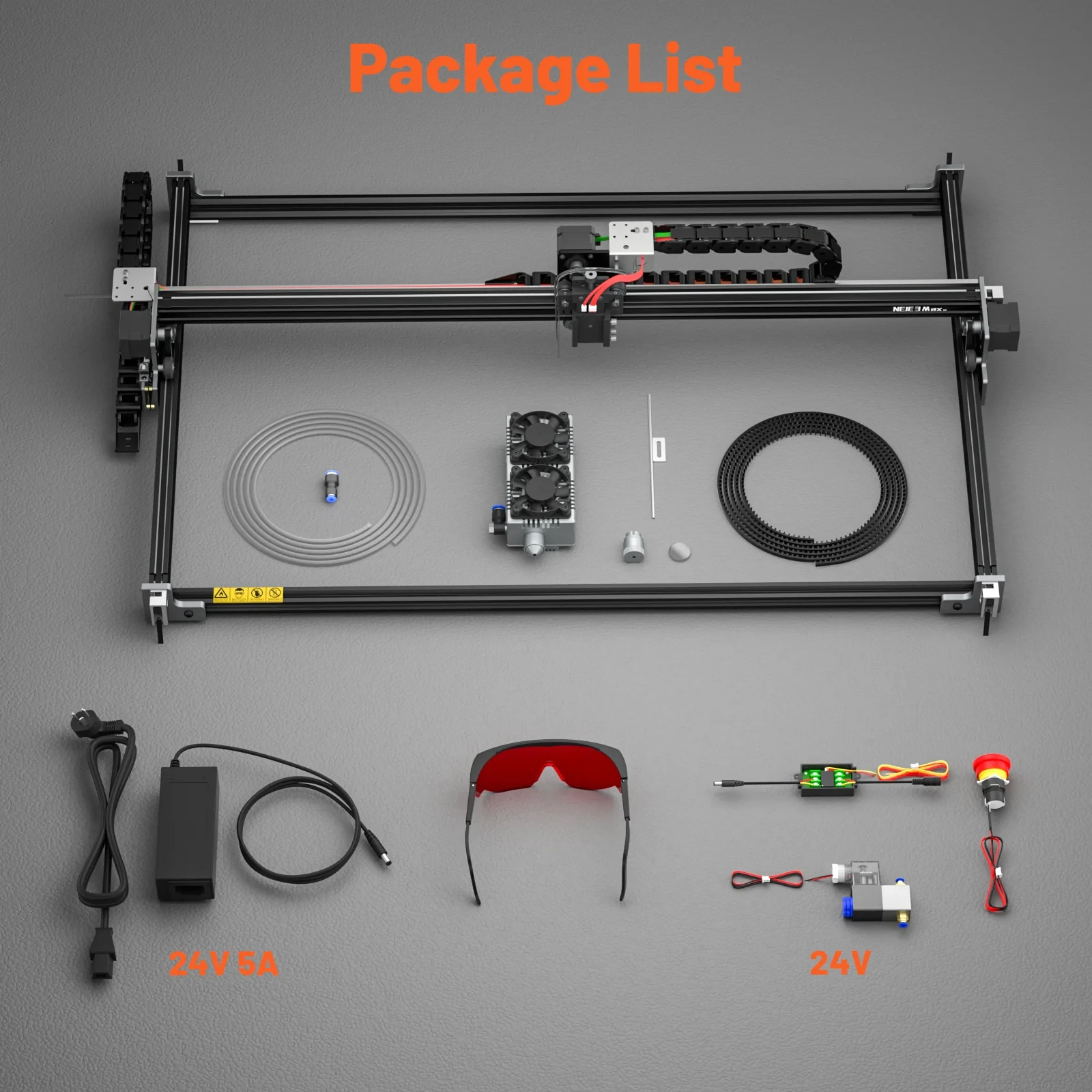

Packaging list
