10 15 kwh 100 200 30 0ah home energy storage charger power wall lifepo4 pack batteries wall mounted 48v lithium ion battery
- Category: >>>
- Supplier: Guangzhou Sohigh Solar Technology Co. Ltd.
Share on (1600899155255):

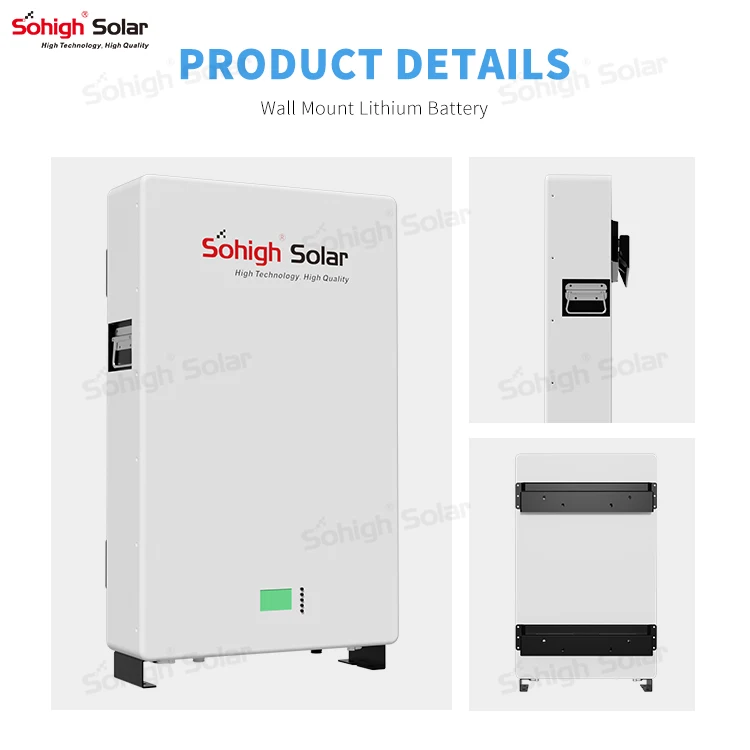

Product Overview
Description
Product Description

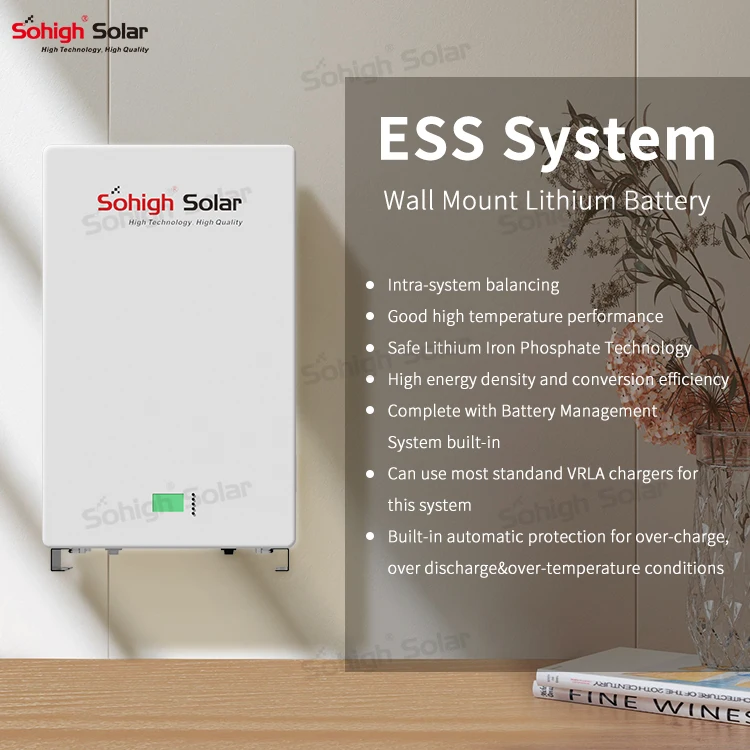

Attractive Design

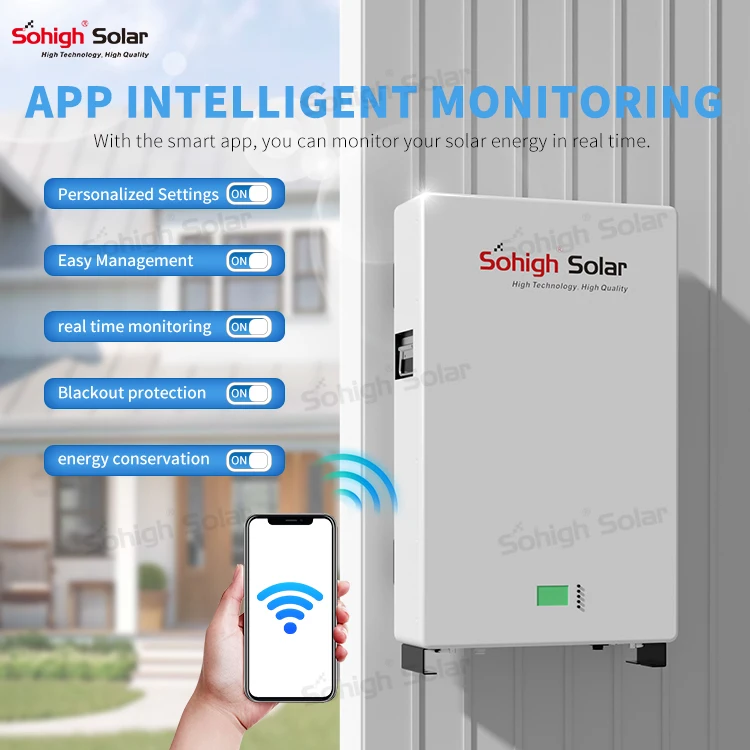

Sohigh Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation.
To welcome cooperation we accept OEM with your logo design!
Integrated Function

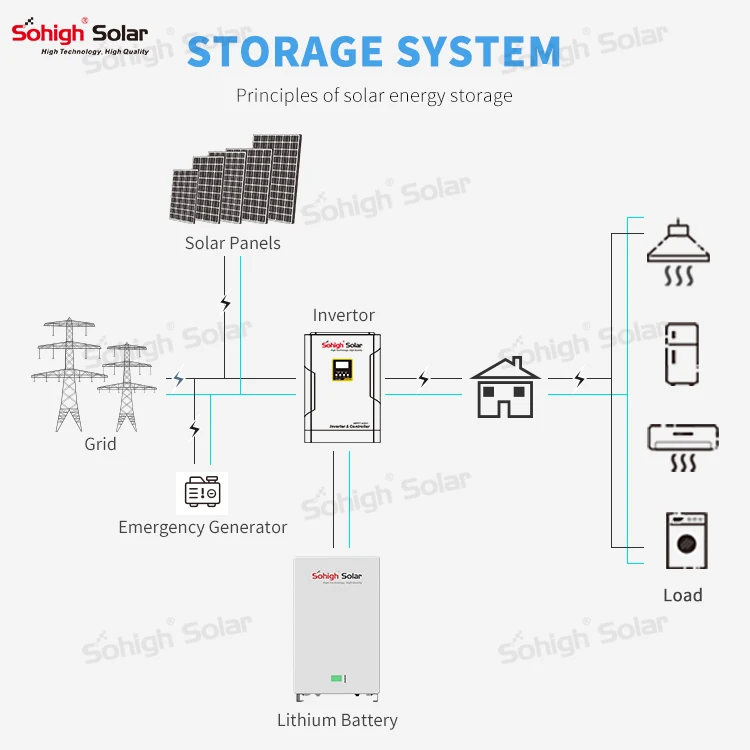

Sohigh Solar Powerwall can be installed in parallel with combiner box for protection, with it's integrated BMS communication protocol to comprehensive hybrid and off grid inverters!
Wide Application
Sohigh Solar Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, Sohigh Solar Powerwall has won global approval!
Sohigh Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation.
To welcome cooperation we accept OEM with your logo design!
Integrated Function
Sohigh Solar Powerwall can be installed in parallel with combiner box for protection, with it's integrated BMS communication protocol to comprehensive hybrid and off grid inverters!
Wide Application
Sohigh Solar Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, Sohigh Solar Powerwall has won global approval!
Electrical Characteristics | Nominal Voltage | 25.6V | 48V | 48V | 48V | 48V | 51.2V | 51.2V | 51.2V | ||||||||
Nominal Capacity | 100Ah | 50/100Ah | 150Ah | 200/250Ah | 300Ah | 50/70/100Ah | 210Ah | 300Ah | |||||||||
Energy | 2560Wh | 2400Wh | 7200Wh | 9600Wh | 14400Wh | 2400Wh | 10752Wh | 15360Wh | |||||||||
Internal Resistance | ≤200mΩ | ≤200mΩ | ≤500mΩ | ≤500mΩ | ≤500mΩ | ≤200mΩ | ≤500mΩ | ≤500mΩ | |||||||||
Cycle Life | >3500 cycles @0.2C 100%DOD | ||||||||||||||||
Months Self Discharge | <3% | ||||||||||||||||
Efficiency of Charge | 100% @0.2C | ||||||||||||||||
Efficiency of Discharge | 96~99% @1C | ||||||||||||||||
Standard Charge | Charge Voltage | 29.2±0.2V | 54.8±0.2V | 58.4±0.2V | 58.4±0.2V | 58.4±0.2V | |||||||||||
Charge Mode | 0.2C to 29.2V, then 29.2,charge current 0.02C(CC/CV) | ||||||||||||||||
Charger Current | 10A | 20A | 20A | 20A | 20A | 20A | |||||||||||
Max. Charge Current | 20A | 50A | 50A | 50A | 50A | 50A | |||||||||||
Charge Cut-off Voltage | 29.6V±0.2V | 55.5V±0.2V | 55.5V±0.2V | 55.5V±0.2V | 55.5V±0.2V | 59.2V±0.2V | |||||||||||
Continuous Current | 50A | 50A | 100A | 100A | 100A | 100A | |||||||||||
Max. Pulse Current | 100A(<12s) | 100A(<3s) | 150A(<3s) | 150A(<3s) | 150A(<3s) | 150A(<3s) | 150A(<3s) | ||||||||||
Discharge Cut-off Voltage | 40V | 37.5V | 37.5V | 40V | 37.5V | 40V | |||||||||||
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||||||||||||||
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | ||||||||||||||||
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | ||||||||||||||||
About Sample | The sample of lithium battery is a battery pack with power less than 100wh, please contact us for details | ||||||||||||||||
Related Products
Certifications

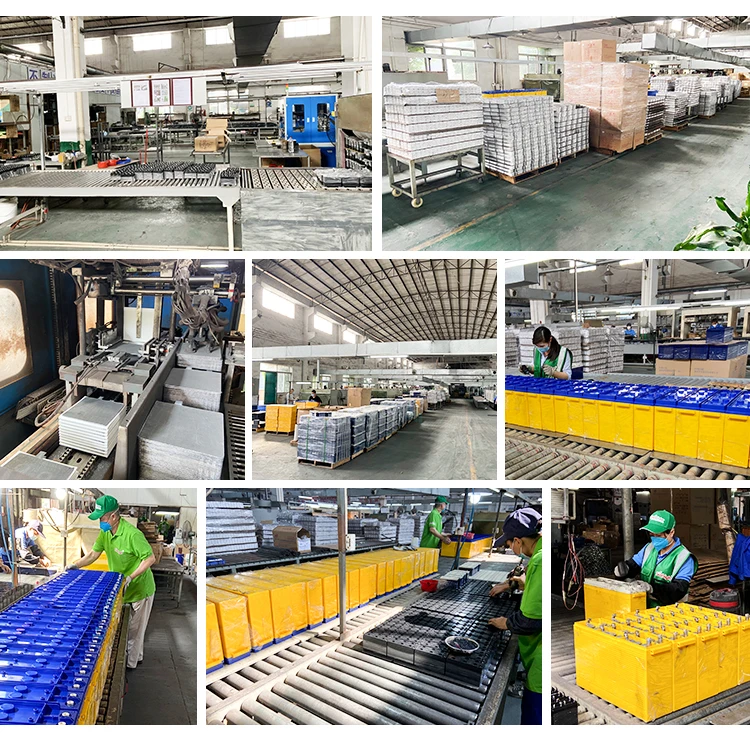

Factory
Product packaging
Global Projects
Customer Photos
FAQ
1.Q: What is the biggest differene between your battery and other suppliers
A: Safest with longer lifespan.
2.Q: Why your battery is safer than others?
A: We adopt Bolt in structure, it is strongest structure with most advanced technology involved.
B. Integrated BMS to monitor tempeature, voltage, current to realize over voltage protection, over current protection, over temperature protection, short circuit protection, Reverse Polarity protection
3.Q:How to become your agent?
A:Contact us through Alibaba, we will give you the best price and look forward to your greetings
4.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in power inverter for many years. Our factory is located in Guangdong, China.
5.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.
6.Q:Why does your battery ensure longer lifespan than others?
7.Q:How about your warranty?
A: We provide 1.5 and 5 years warranty for different products and whole life technical support.
A: Safest with longer lifespan.
2.Q: Why your battery is safer than others?
A: We adopt Bolt in structure, it is strongest structure with most advanced technology involved.
B. Integrated BMS to monitor tempeature, voltage, current to realize over voltage protection, over current protection, over temperature protection, short circuit protection, Reverse Polarity protection
3.Q:How to become your agent?
A:Contact us through Alibaba, we will give you the best price and look forward to your greetings
4.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in power inverter for many years. Our factory is located in Guangdong, China.
5.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.
6.Q:Why does your battery ensure longer lifespan than others?
A: With more than 10 years experiences in LiFePO4 Battery pack, unrivalled technical capacity ensured.
B. Olivine LiFePO4 Structure(Most stable structure)
C. Single cell protection(Unique in China)
C. Single cell protection(Unique in China)
7.Q:How about your warranty?
A: We provide 1.5 and 5 years warranty for different products and whole life technical support.
