CPJ 3020W Standard Electronic Power Digital Optical Profile Projector and Phoropter Equipment Machine Price
- Category: >>>
- Supplier: Guangdong Hongtuo Instrument Technology Co. Ltd.
Share on (1600899165973):
Product Overview
Description
CPJ-3020W Standard Electronic Power Digital Optical Profile Projector and Phoropter Equipment Machine Price
Introduction
Horizontal Profile Projectors, ergonomic measuring instruments with reliable mechanical structure and high precision magnification, are specially designed for the measurements that cannot be easily or effectively achieved by traditional (vertical) profile projectors. The systems allow to inspect and measure the profile, section, surface and outline of complicated workpieces, such as cutters, wheel gears, screws and springs.
Features
1.Horizontal profile projector
2. Easy to operate
3. Resolution of linear scale: 0.5um
4. Powerful Digital Readout to support easy and accurate measurement
5. Reliable and cost-effective
6. Precise and accurate
7. Low maintenance cost
8. Optional Proprietary software
2. Easy to operate
3. Resolution of linear scale: 0.5um
4. Powerful Digital Readout to support easy and accurate measurement
5. Reliable and cost-effective
6. Precise and accurate
7. Low maintenance cost
8. Optional Proprietary software
Specification
Model | CPJ-3020W | CPJ-4025W | ||
X-axis Travel (mm) | 200 | 250 | ||
Y-axis Travel (mm) | 100 | 150 | ||
Worktable size (mm) | 400×150 | 450×200 | ||
Swing range | ±15° | ±15° ( can be custom made to ±25°) | ||
Resolution (μm) | 0.5 | |||
Indication error (mm) | X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/50 (L is the length of the measured object. Unit: mm) | |||
Z-axis Travel (mm) | 75 (focusing) | 100 (focusing) | ||
Weight (kg) | 160 | 240 | ||
Dimension (mm) | 1090×830×1010 | 1215×646×1210 | ||
Data processing system | Multi-functional DRO DC-3000 | |||
Illumination | Transmission: 24V/150W halogen lamp. Reflection: 21V/150W halogen lamp. | |||
Accessories | Printer, edge detector, Measuring software M2D-CPJ, etc. | |||
Power supply: AC 100-240V 50/60Hz. Total power: 450W | ||||

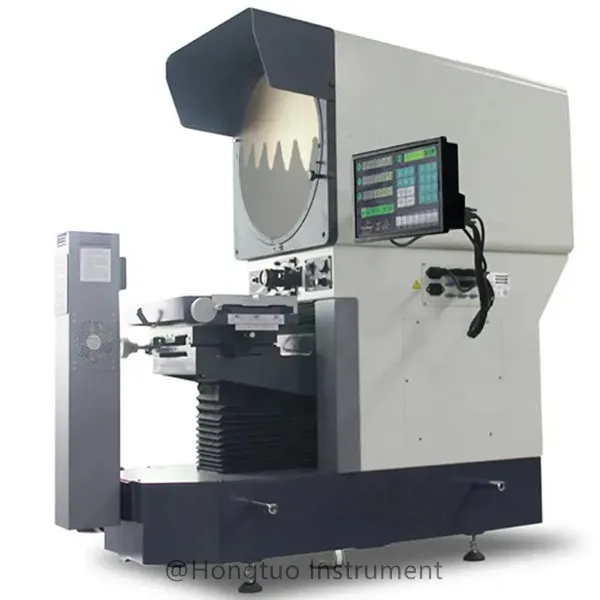

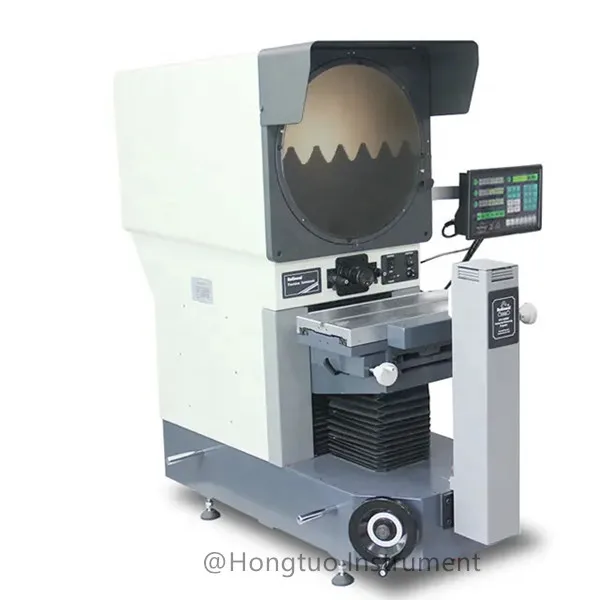

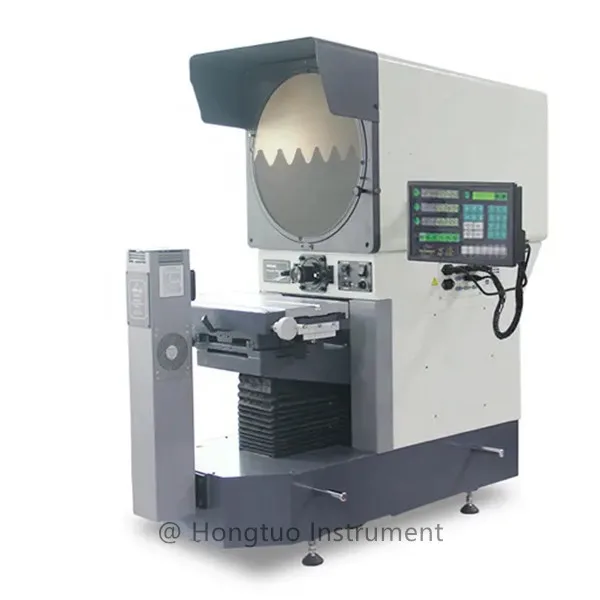

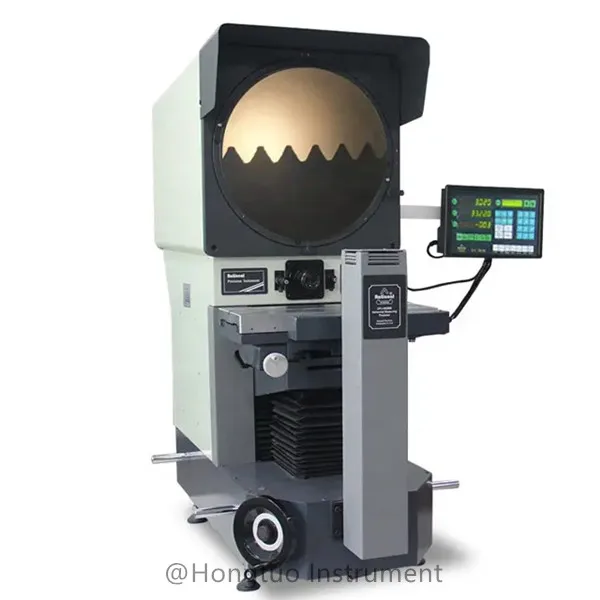

Details Images
Company Profile
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.

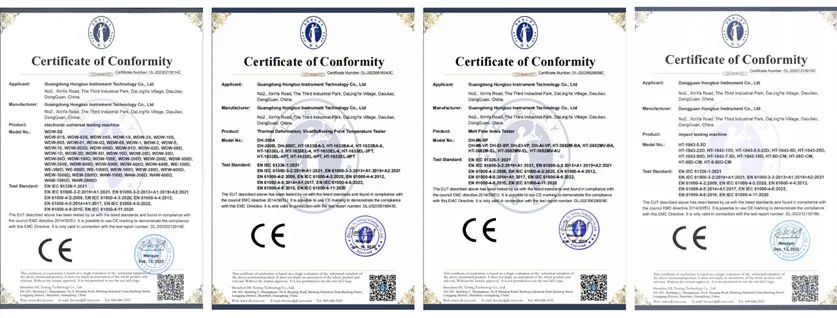

Certifications
FAQ
1.Quality Insurance
We guarantee this instrument for 3 years and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
We guarantee this instrument for 3 years and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
