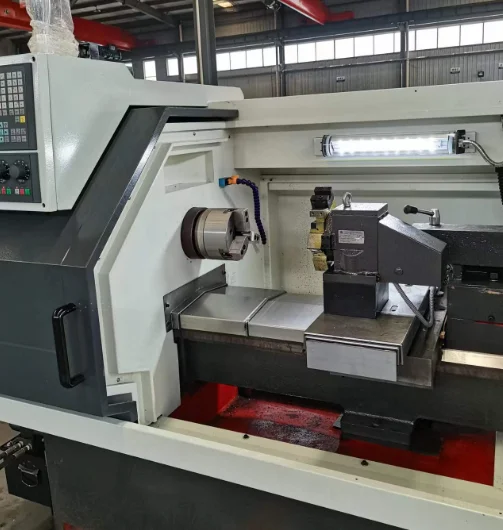

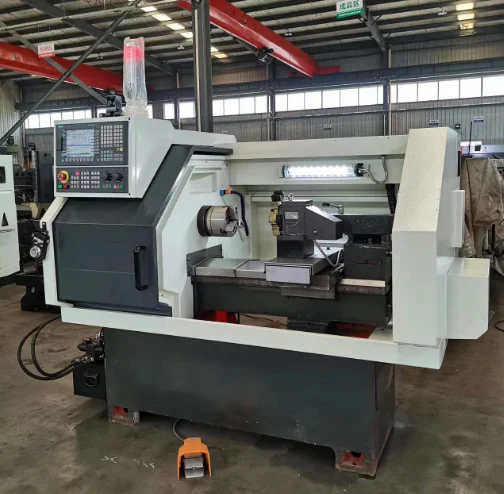

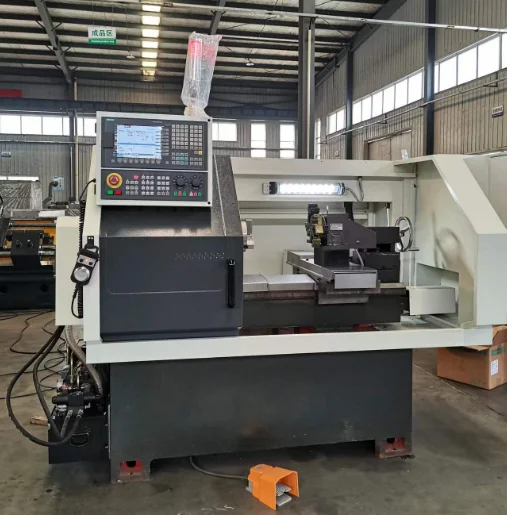

TZC0640F CNC lathe Mini CNC lathe manufacturer
- Category: >>>
- Supplier: Tengzhou Believe Machinery Co. Ltd.
Share on (1600899218779):
Product Overview
Description
Product Description
CNC Lathe TZC0640F usage
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face. It can also turn the single and multiple threads in metric , inch and other standard.
This machine is widely used in processing the electrical appliance, instrumentation, automobile, motorcycle, fastener, bearing, photographic and film machinery, hardware tools, watches, glasses, stationery motors, valves, gas pipe and other high precise and complex components. It is the ideal high efficient equipment in hardware machinery industry.
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face. It can also turn the single and multiple threads in metric , inch and other standard.
This machine is widely used in processing the electrical appliance, instrumentation, automobile, motorcycle, fastener, bearing, photographic and film machinery, hardware tools, watches, glasses, stationery motors, valves, gas pipe and other high precise and complex components. It is the ideal high efficient equipment in hardware machinery industry.
Specification
Guide way type | Double triangular block way | |
Max. swing over bed | mm | 400 |
Max. processing length | mm | 300 |
X/Z axis travel | mm | 250/300 |
Spindle nose | A2-5 | |
Spindle bore | mm | Φ56 |
Max. Diameter of the bar | mm | Φ40 |
Spindle speed | rpm | 100-3500 |
Work piece clamping type | 6’’ hydraulic chuck | |
Spindle motor power | kw | 3 |
X/Z axis motor torque | N.m | 4/4 |
X/Z axis fast feeding speed | m/min | 8/10 |
X/Z repeat-ability | mm | +/-0.005 |
Tool post type | 6 station electric turret | |
Tool bar section | mm | 16x16 |
Power capacity | kva | 6 |
N.W. | kg | 1300 |
Machine dimension (L*W*H) | mm | 1700*1000*1700 |
Main purchasing parts and suppliers
Item | Specification | suppliers |
NC system | GSK980TDI | GSK |
Motors on feeding axes | X:4 Nm, Z:4Nm | GSK |
Main motor | 3 kw | Beijing Chaotongbu |
Ball screw | Z:FD3210-489-622, length 622mm X: FD2506-407-530, length 530 mm | Beifang Qishan |
Bearing | P5 standard | NSK |
Hydraulic chuck | 150mm (6”) dia. | Wuxi Jianhua |
Lubrication system | Shanghai Hurun |
The machine come with:
2.6’’hydraulic chuck
3.integrated automatic lubrication system
4.coolant system
5.Advanced LED lighten system
6.Both inside and out side full covers --good water-proof, dust-proof, oil-proof
7.Three-color warning light
8.GSK980TDI cnc controller
9.Mechanical electrical user manual, control system operating manual, electrical drawing etc
10.Come with tailstock.
