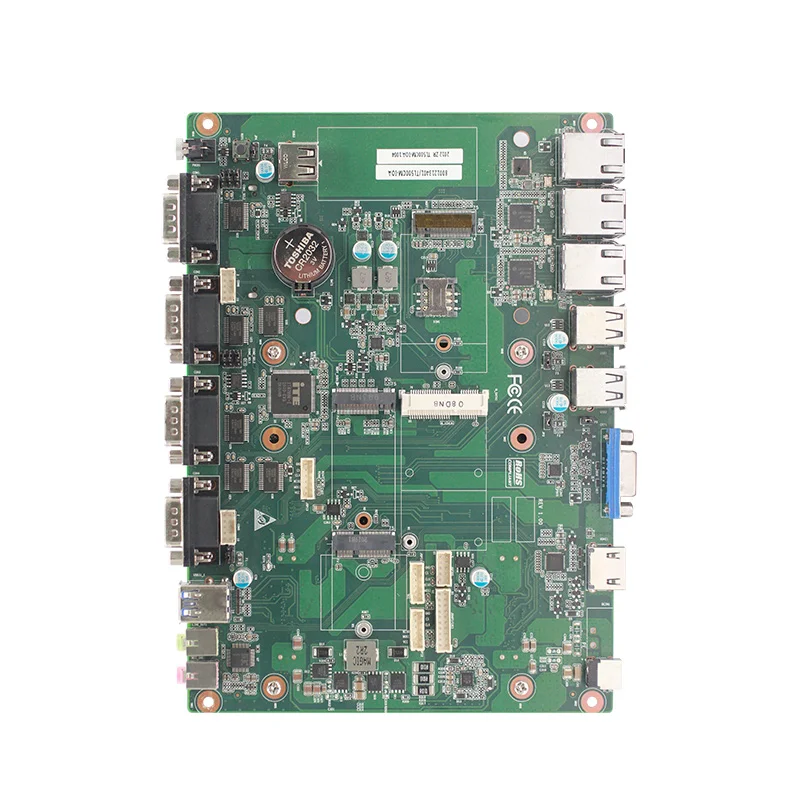

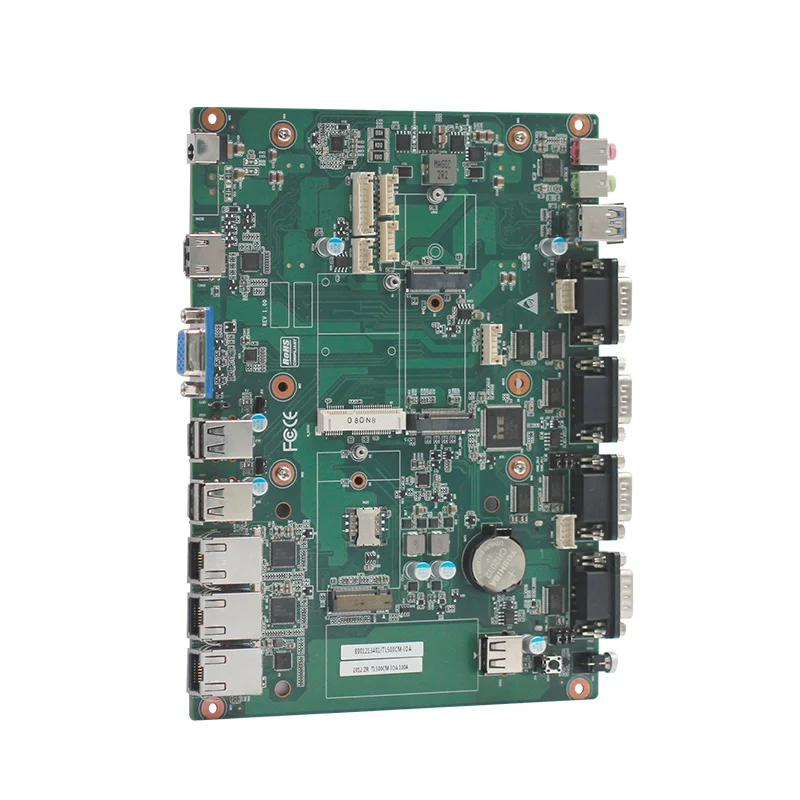

Factory Intel 11th Celeron Core i3/i5/i7 x86 Computer Embedded Mini PC Mother board 120Pin Linux Industrial Control Motherboard
- Category: >>>
- Supplier: Chengqin Precision Technology (Shenzhen) Co. Ltd.
Share on (1600899234458):
Product Overview
Description
Product Description
Processor system | CPU | Intel 11th Tiger Lake Celeron,Core i3/i5/i7 |
CPU package | BGA | |
Chipset | Intel® Tiger Lake serial SOC | |
BIOS | EFI BIOS | |
Ram | Technology Architecture | Dual Channel DDR4 2400/2666/3200MHz |
Onboard Ram | Onboard 4G/8G/16G DDR4 Ram | |
Ram Socket | 1*DDR4 SO-DIMM Ram socket，Max support 32GB | |
Video | Graphics controller | Intel Iris Xe Graphics(I7-1165G7 graphics card); the graphics card model is related to the CPU |
EDP | EDP supports a maximum resolution of 4096*2304@60Hz | |
VGA | VGA supports a maximum resolution of 2048x1536 | |
HDMI | HDMI2.0 supports a maximum resolution of 4096*2304@60Hz | |
Dual Display | EDP+VGA,EDP+HDMI,HDMI+VGA Synchronous or asynchronous display | |
Three Display | EDP+VGA+HDMI Synchronous or asynchronous display | |

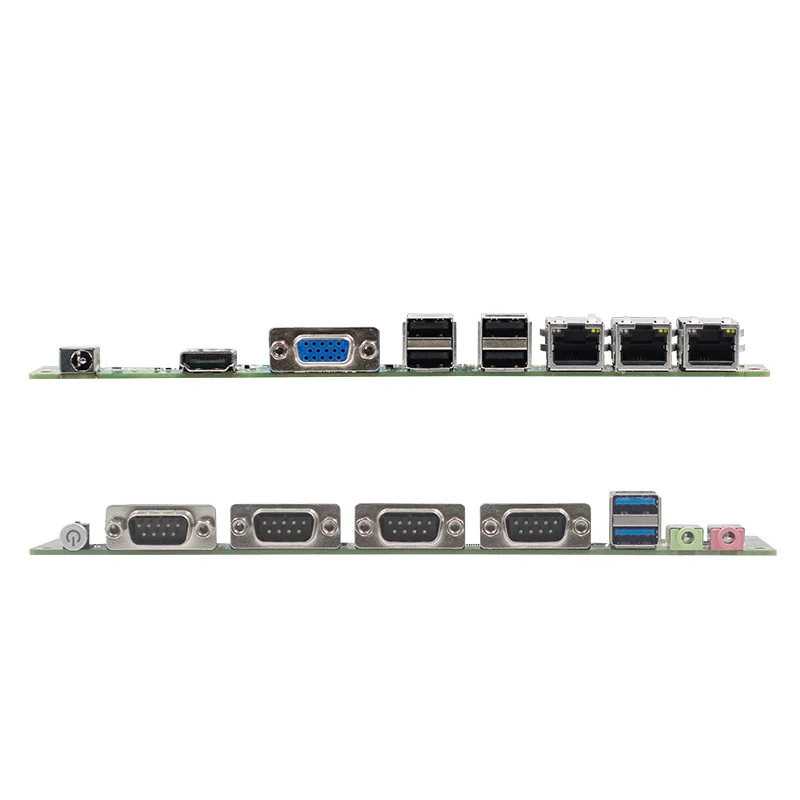

I/O panel | I/O port | 1*DC 1*VGA 1*HDMI 3*LAN 2*USB3.1 4*USB2.0 4*COM 1*LINE OUT 1*MIC 1*Switch button with indicator light |
Network | Controller | 2*intel I211 or I210 lan card 1*I219-LM lan card |
Audio | Controller | Realtek HD ALC662 audio decoding (left and right channels + microphone) |
Super I/O | Controller | IT8786E/8613E |
Hardware monitoring | Watchdog timer | 0-255 seconds, provide watchdog routine |

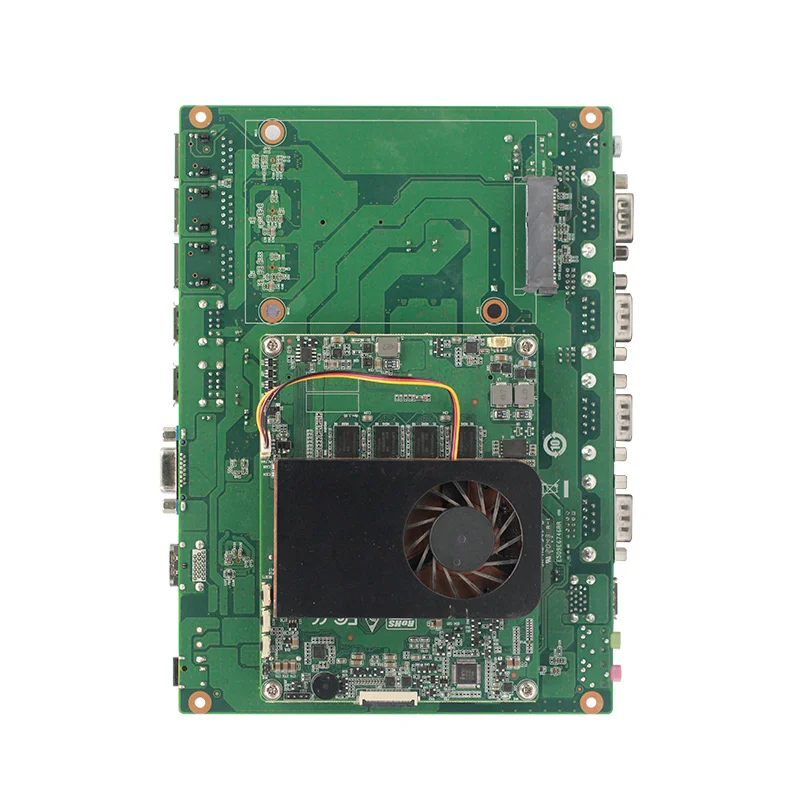

Cooler | Aluminum fan radiator (supports automatic and manual fan speed adjustment) | |
Input/Output Interface | USB | 2*USB3.1(USB3.1 GEN2 is backward compatible),5*USB2.0 |
Serial Port | COM1 is a 2-wire RS232 COM2, COM3 (DB9 interface) can be selected as RS232 or RS485 through jumper and BIOS, COM4,5,6,7 is RS232 (COM4,5 is DB9 interface, COM6,7 is pin header) | |
GPIO | 4 bits, provide routines, freely define input/output, 3.3V@24mA level | |
Expansion Bus | NGFF(KEY-E) | 1*NGFF port（KEY E ） |
NGFF(KEY-B) | 1*NGFF port(KEY-B)Support 5G module | |
Storage | SATA_HDD | 1*SATA_HDD hard disk，maximum transfer rate 6Gb/s |
M-SATA | 1 M-SATA Scoket, support SANDISK protocol, maximum transfer rate 6Gb/s | |
NGFF(KEY-M) | Support PCIE X4 NVME Hard disk | |
Power supply | Power supply | DC 9-36V power supply(a power supply with rated power above 80W is required) |
working environment | Operating temperature | -20℃ ~ +60℃ |
storage temperature | -40℃ ~ +85℃ | |
Working humidity | 0% ~ 90% relative humidity, non-condensing | |
Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
System support | Windows10 Linux | |

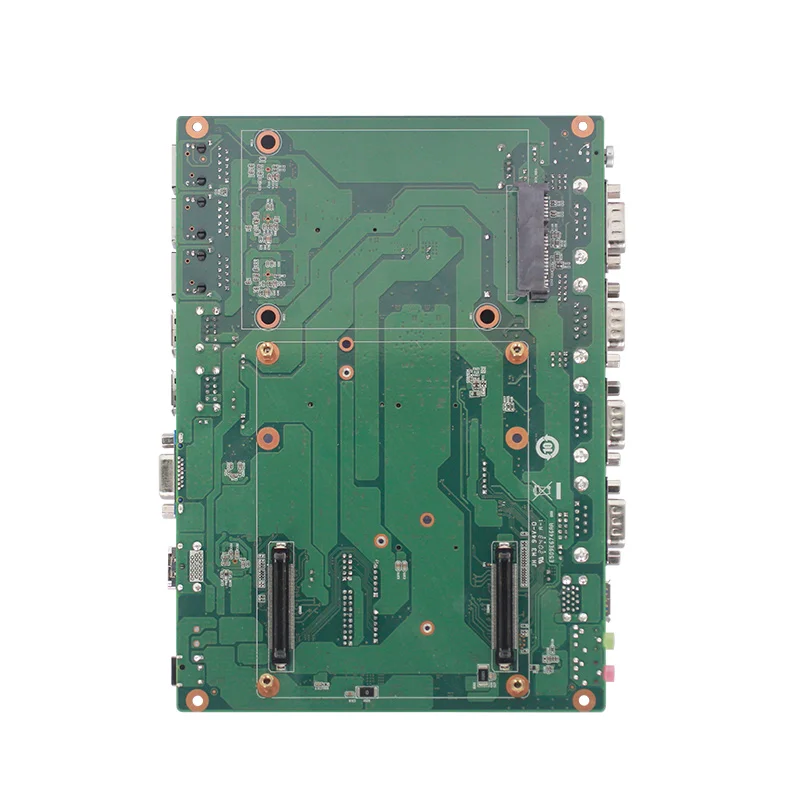

physical dimension | Size | Core board 125*95mm，expansion board 210*150mm |
Weight | 0.5KG | |
Certification | CE,RoHS,FCC |
