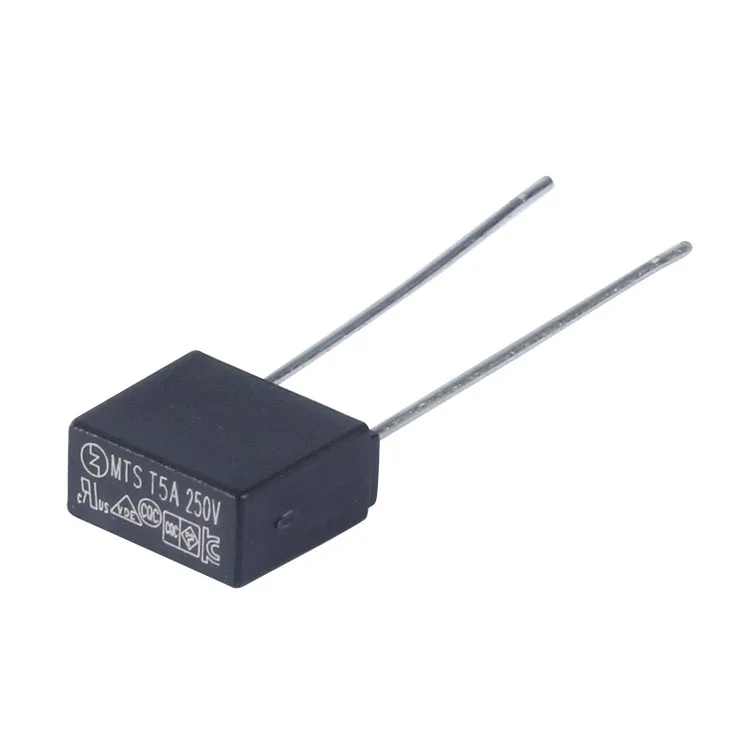

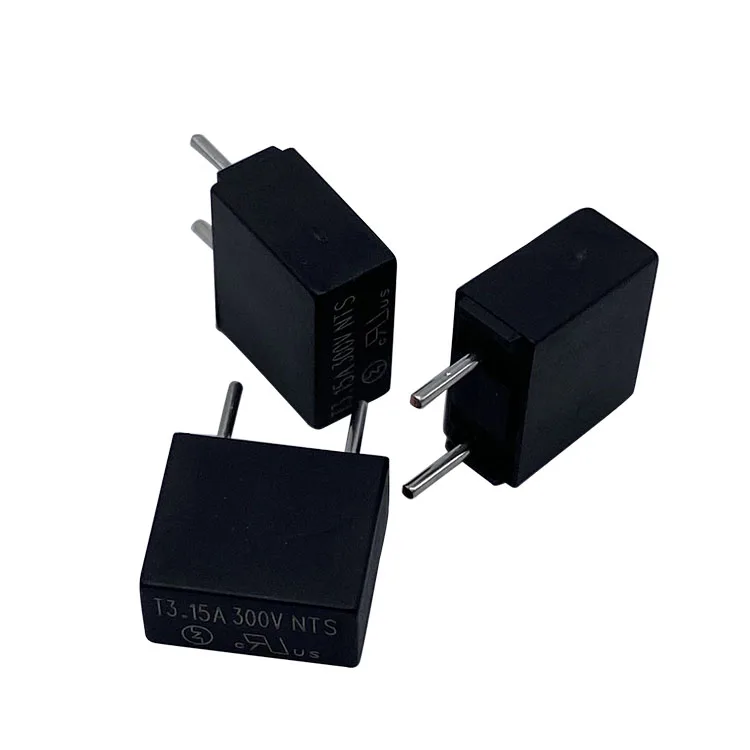

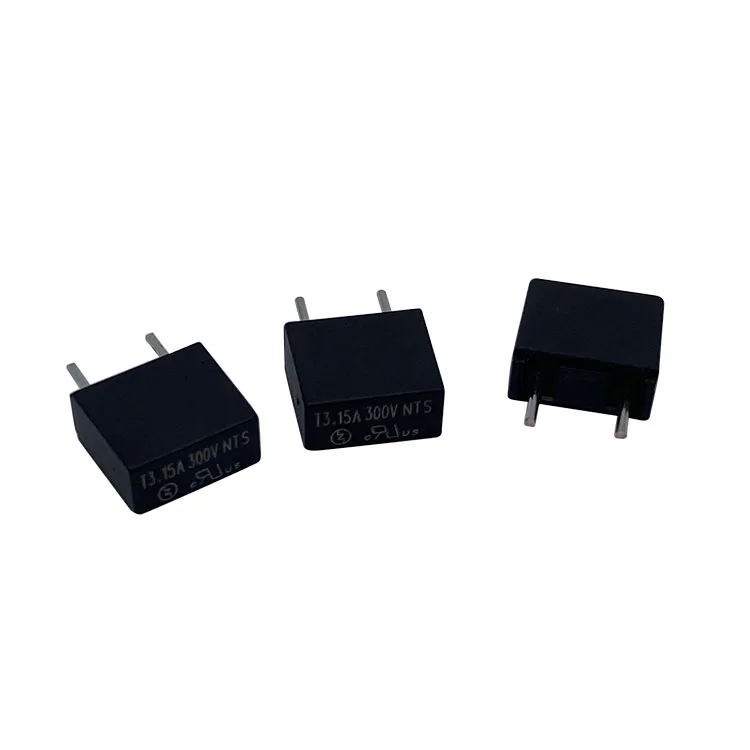

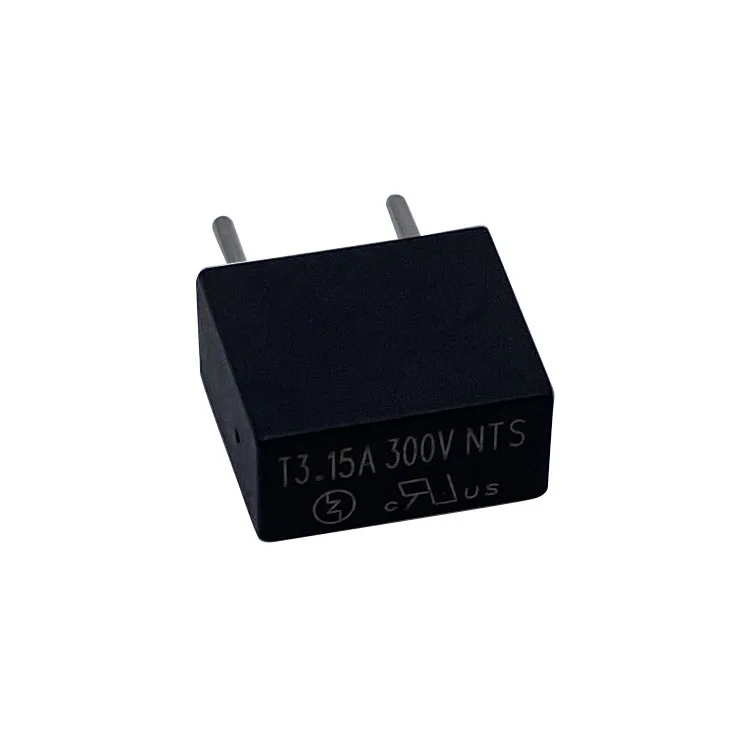

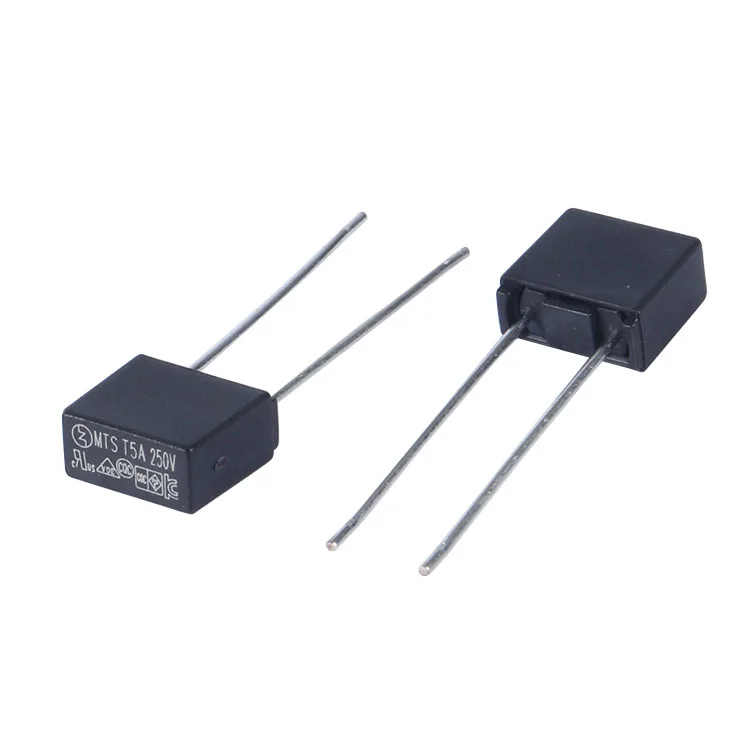

300V Square Fuse NTS Series Time Lag Slow Blow 8x4x7mm Radial Lead Micro Fuse 100mA 300V Dip Square Fuse 300VDC Using DC Power
300V Square Fuse NTS Series Time Lag Slow Blow 8x4x7mm Radial Lead Micro Fuse 100mA 300V Dip Square Fuse 300VDC Using DC Power
300V Square Fuse NTS Series Time Lag Slow Blow 8x4x7mm Radial Lead Micro Fuse 100mA 300V Dip Square Fuse 300VDC Using DC Power
300V Square Fuse NTS Series Time Lag Slow Blow 8x4x7mm Radial Lead Micro Fuse 100mA 300V Dip Square Fuse 300VDC Using DC Power
300V Square Fuse NTS Series Time Lag Slow Blow 8x4x7mm Radial Lead Micro Fuse 100mA 300V Dip Square Fuse 300VDC Using DC Power
300V Square Fuse NTS Series Time Lag Slow Blow 8x4x7mm Radial Lead Micro Fuse 100mA 300V Dip Square Fuse 300VDC Using DC Power
300V Square Fuse NTS Series Time Lag Slow Blow 8x4x7mm Radial Lead Micro Fuse 100mA 300V Dip Square Fuse 300VDC Using DC Power

300V Square Fuse NTS Series Time Lag Slow Blow 8x4x7mm Radial Lead Micro Fuse 100mA 300V Dip Square Fuse 300VDC Using DC Power

Share on (1600899293326):


Price:$0.02 - $0.04

Quantity:


Product Overview

Description



Product Description


Description.
8x4x7mm physical size.
Solder-free design.
Designed to UL248-1.
This product is suitable for various kinds of electronic devices’ circuit over current protection. Widely
used in industrial of Battery Charges, Consumer Electronics, Power supplies, Industrial Controllers,
etc
Features.
Lead-Free and RoHS compliant
High inrush current withstanding capability
Compatible with reflow and wave solder
Excellent environmental integrity
One time positiye disconnect
Suitable for rated current of 50mA-8A
Operating temperature range -55℃ to +125℃ (consider de-rating)
Description.
Square fuses are commonly used in electrical systems of vehicles, boats, motorcycles, etc., to protect circuits from damage caused by excessive current and short circuits. They are also employed for specific circuit or equipment protection in residential and commercial buildings. In summary, square fuses are a prevalent type of circuit protection device utilized to ensure the safe operation of circuits and equipment.

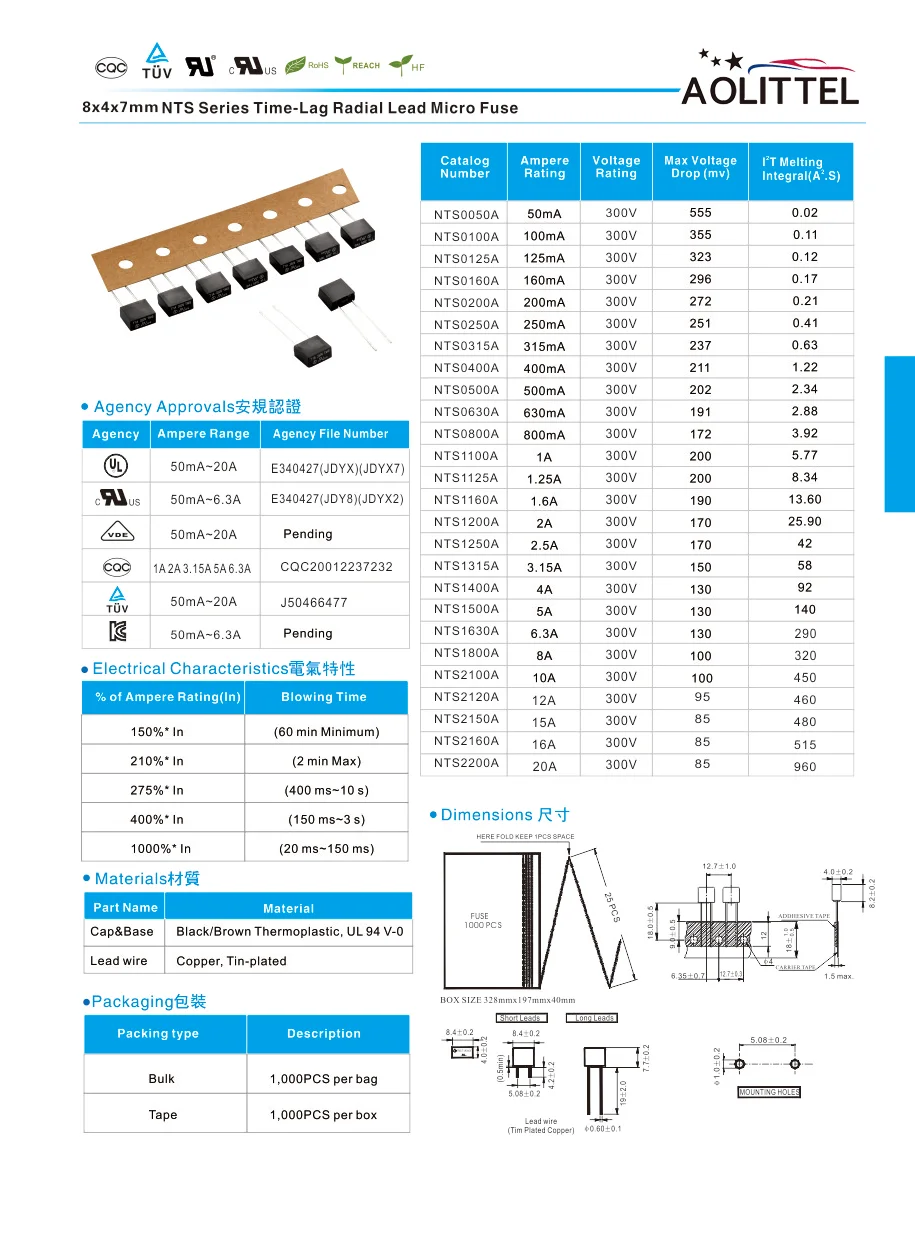

Electrical Characteristcs


% of Ampere Rating(ln)
Blowing Time
150%"In
(60 min Minimum)
210%*In
(2 min Max)
275%*In
(400ms-10s)
400%*In
(150ms-3s)
1000%*In
(20 ms ~ 150ms)






Product Characteristics.

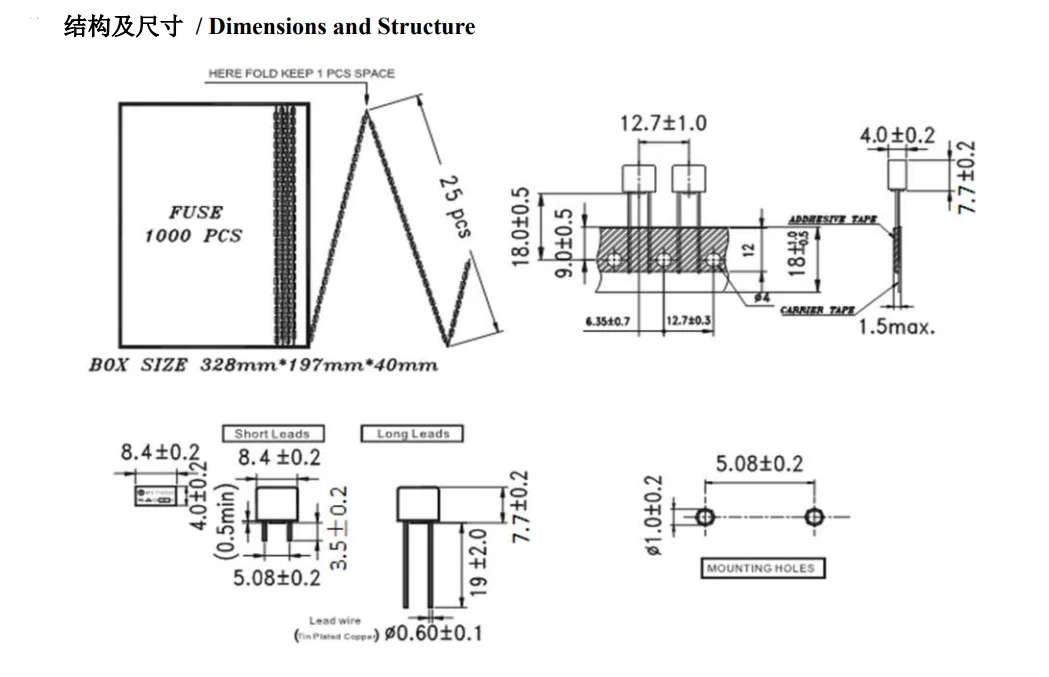

8x4x7mm physical size.
Solder-free design.
Designed to UL248-1.
RoHS compliant,Halogen free and Lead-free

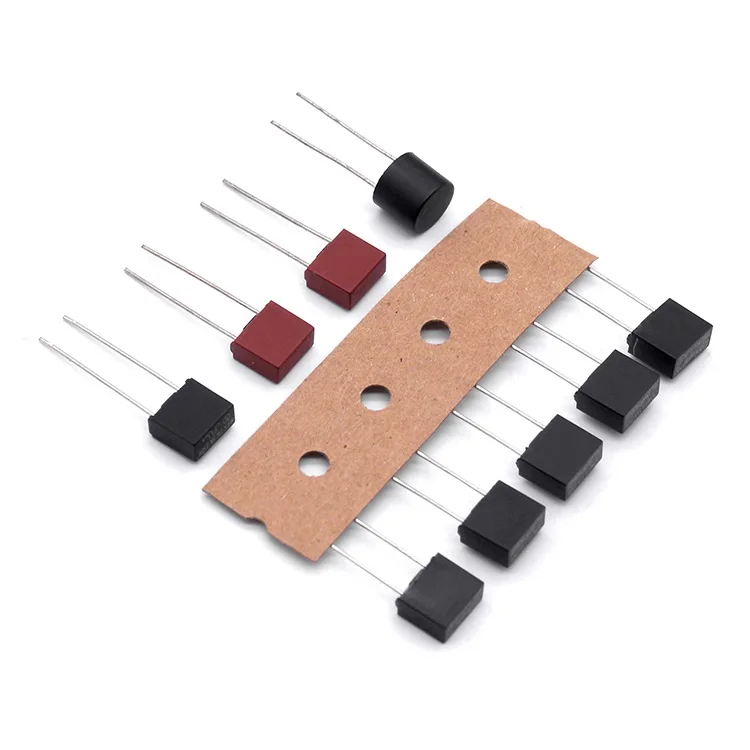

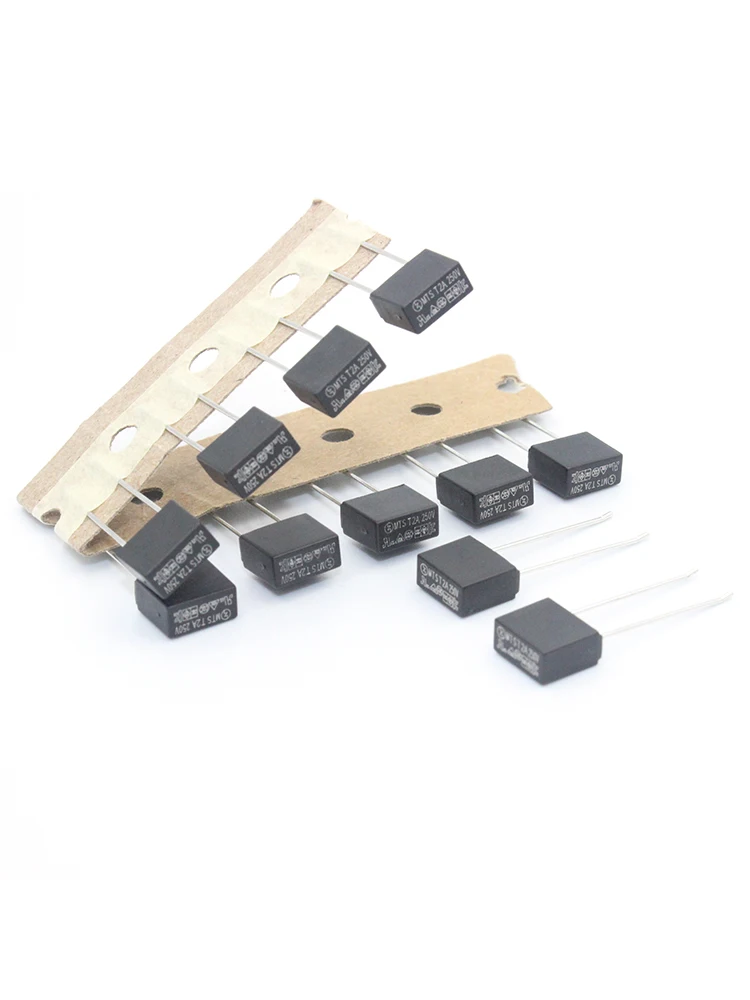

packaging
1000 pcs per reel
