Kaihong Kit Cnc 3 4 5 Axis 2 Phase Nema 34 Closed Loop Stepper Motor Kit Nema 34 With Encoder 8nm 12nm Close Loop Hybrid Set

Share on (1600899334298):


Price:$55.00 - $59.00

Quantity:


Product Overview

Description



VR


Factory Video




Best selling




Product Paramenters


Nema 34 Stepper Motor
Step angle 1.8°
Flange side length 86×86mm
Step accuracy ±5%
Ambient temperature -20℃~+50℃
Maximum radial force 220N
Maximum axial force 60N


Model
(No.)
Motor length L(mm)
Moment (N.m)
Current (A)
Resistance (Ω)
Moment of inertia (g.cm2)
Weight (kg)
86BYGH60-454
60
3.0
4.5
0.5
1100
1.6
86BYGH65-604
65
3.6
6.0
0.3
1400
1.8
86BYGH80-424
80
4.5
4.2
0.75
1800
2.4
86BYGH97-604
97
7.2
6.0
0.44
2800
2.9
86BYGH118-604
118
8.5
6.0
0.6
3600
3.8
86BYGH125-604
125
9.0
6.0
0.6
4200
4.1
86BYGH156-624
156
12.0
6.2
0.72
5400
5.0

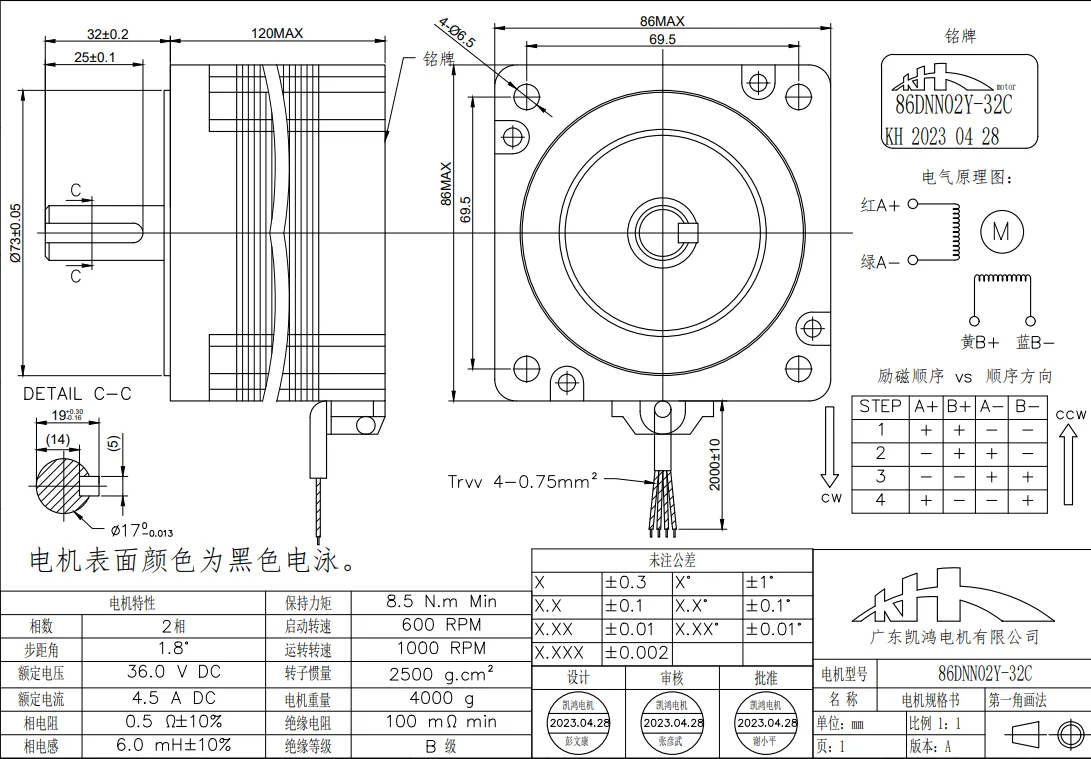

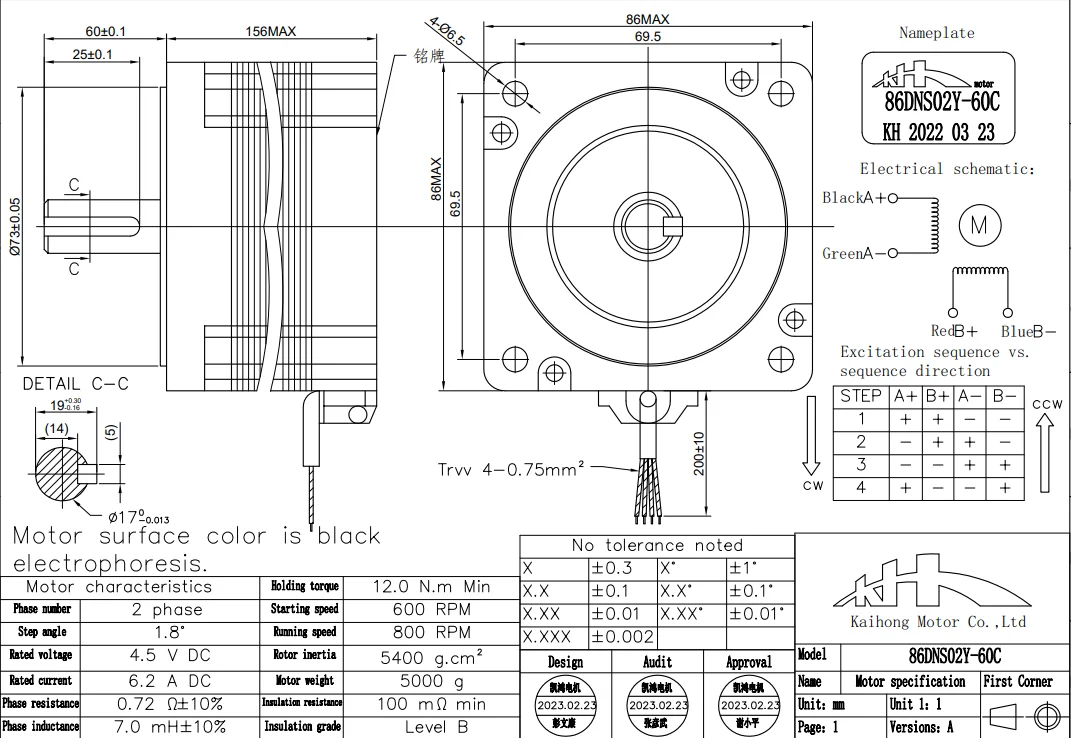

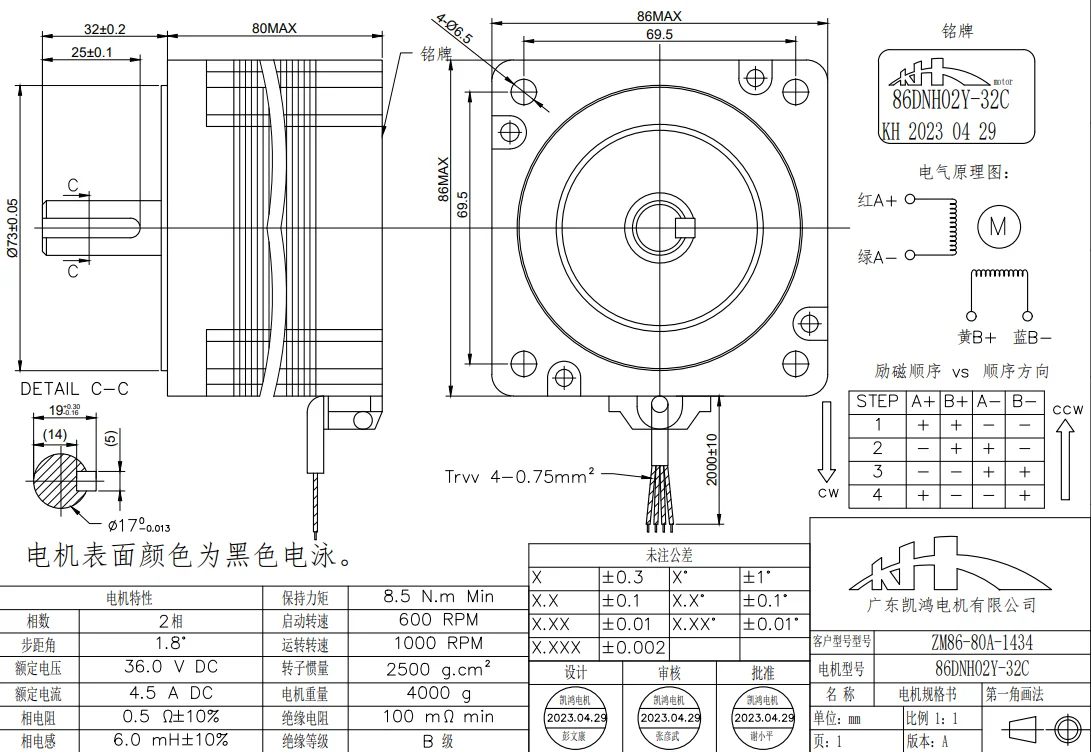

Motor Drawing








Motor Internal Details






Company Profile














FAQ


Q1.Are you a trading company or a manufacturer?
A1: Our factory is located in Building C82, Wanyang Zhongchuang City, Zhaoqing, Guangdong.Welcome to visit our factory!
Q2.What's the MOQ?
A2: 1 Pieces.
Q3.Are your delivery dates on time?
A3: Yes of course.We have our own factory so can ensure timely delivery.
Q4.Do you have any certificates?
A4:Yes, we have.All the motors have been approved by CE and Rohs.
Q5.Is this your final price?May i have the discount?
A5:Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
Q6.What's the delivery time?
A6:Except special order.For samples usually 10-14 working days .For batch order .Usually 17-25days. For Stock motors usually 1~2 days.
