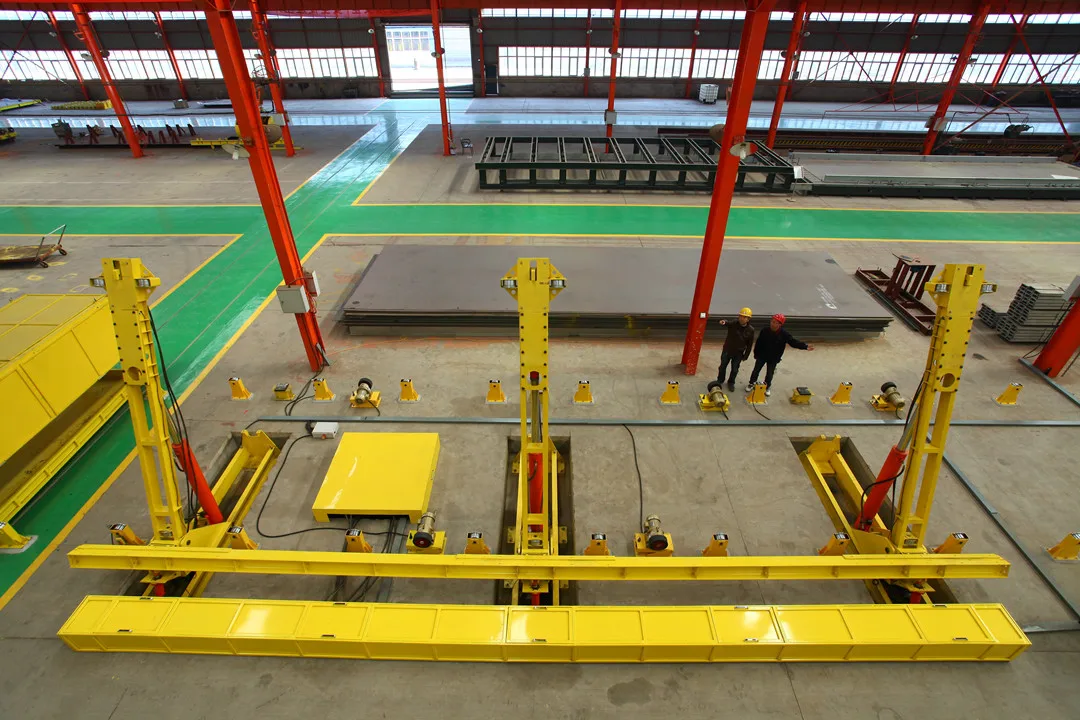

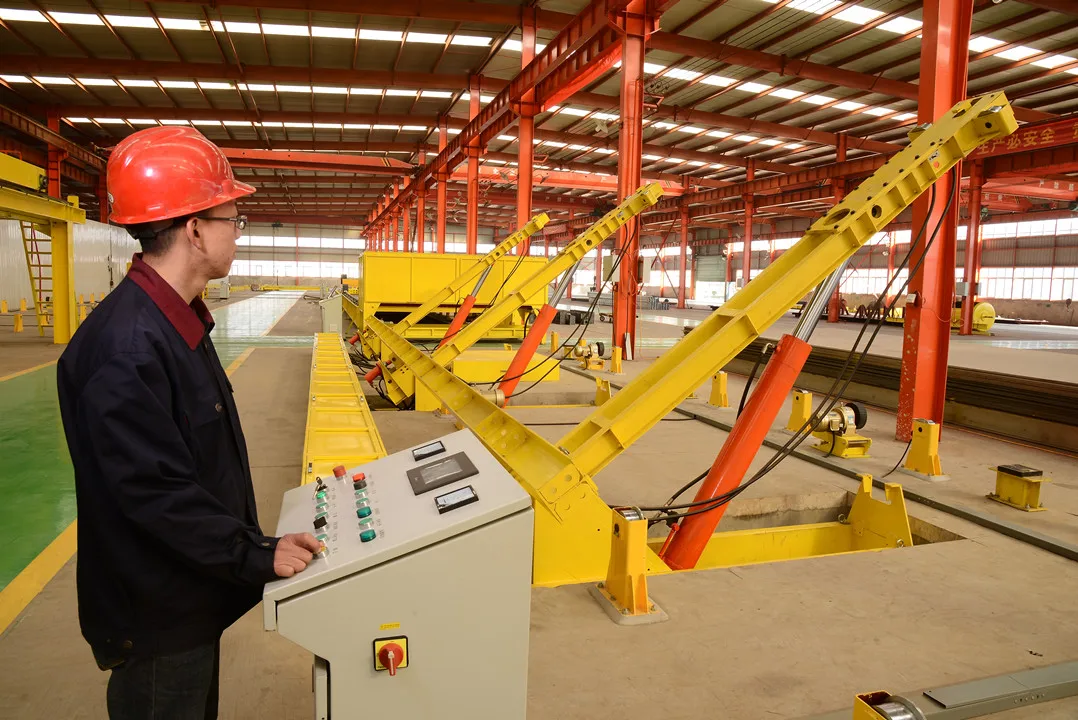

Panel Precast Tilting Table With Steam Curing System For Concrete Reinforced External And Internal Wall Panels Hydraulic Tilt S
Panel Precast Tilting Table With Steam Curing System For Concrete Reinforced External And Internal Wall Panels Hydraulic Tilt S
Panel Precast Tilting Table With Steam Curing System For Concrete Reinforced External And Internal Wall Panels Hydraulic Tilt S
Panel Precast Tilting Table With Steam Curing System For Concrete Reinforced External And Internal Wall Panels Hydraulic Tilt S
Panel Precast Tilting Table With Steam Curing System For Concrete Reinforced External And Internal Wall Panels Hydraulic Tilt S
Panel Precast Tilting Table With Steam Curing System For Concrete Reinforced External And Internal Wall Panels Hydraulic Tilt S
Panel Precast Tilting Table With Steam Curing System For Concrete Reinforced External And Internal Wall Panels Hydraulic Tilt S

Panel Precast Tilting Table With Steam Curing System For Concrete Reinforced External And Internal Wall Panels Hydraulic Tilt S

Share on (1600899368185):


Price:$10,500.00 - $11,000.00

Quantity:


Product Overview

Description

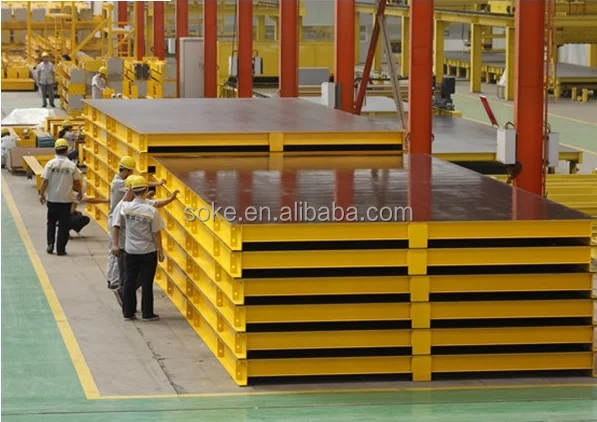

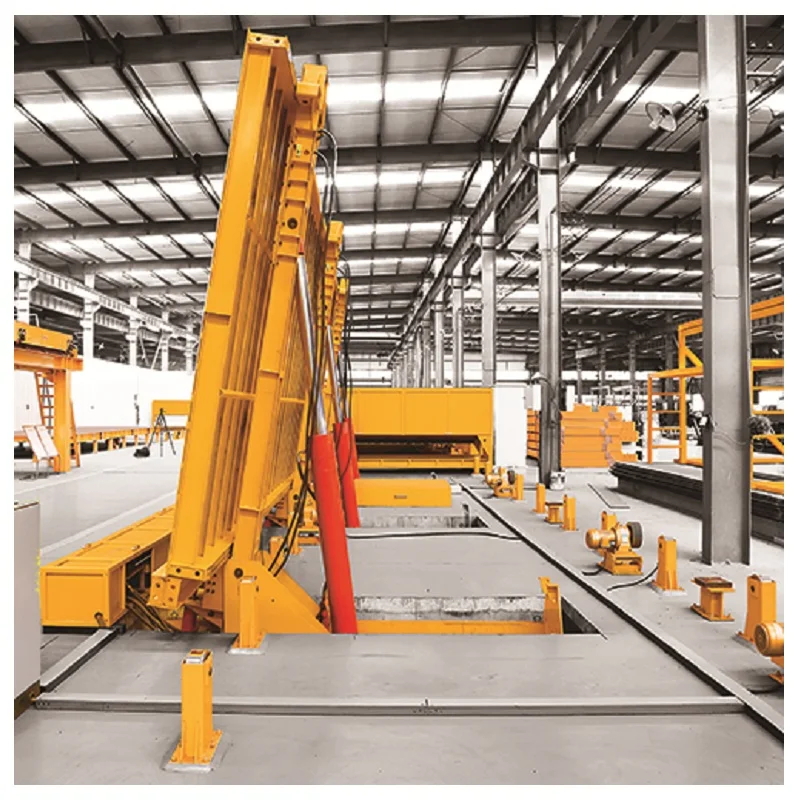

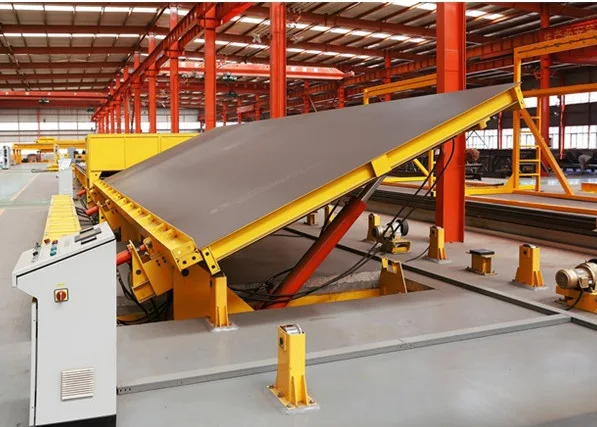

Precast pallet




Feature of precast pallet

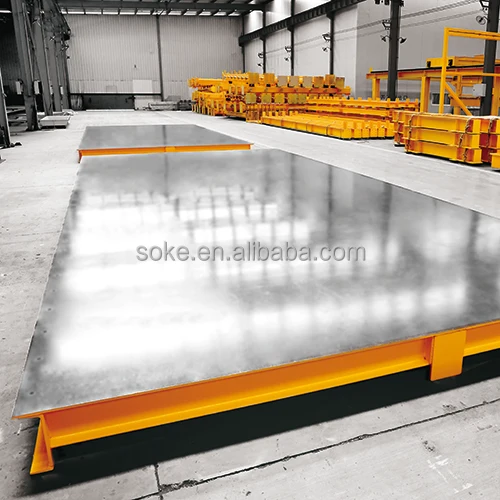

The precast pallet consists of a solid welded steel structure and a polished steel plate. Since the surface flatness of the formwork plate will affect the quality of the final surface of the concrete prefabricated components, the formwork should undergo complex and special processing, so that you can produce a perfectly visible concrete outer surface. The bottom of the mold table is treated with special gray double-layer anti-corrosion sealing coating to ensure good anti-corrosion performance.


Precast pallet formwork description




Specification of precast pallet formwork
Precast pallets size can be customized according to customer’s requirement;
1. The structure is firm, reliable and durable, with high fatigue strength during vibration and erection; Normal use can reach 3000 times of maintenance service life;
2. Through finite element analysis, the deformation is 2mm under the maximum service load;
3. The pre arch technology is adopted for grid processing analysis and finite element analysis, and the service life of the formwork is longer;
4. The frame of table is welded by high-quality national standard profile steel. The steel plate of surface is made of high-quality steel Q345, the thickness is ≥10mm, the flatness is ≤1.5mm/3meter, and the bearing capacity is 800kg/m2;
5.The surface of table is treated by special polishing process, and the finish can reach 3.2μm, ensuring the appearance of each component is fine;

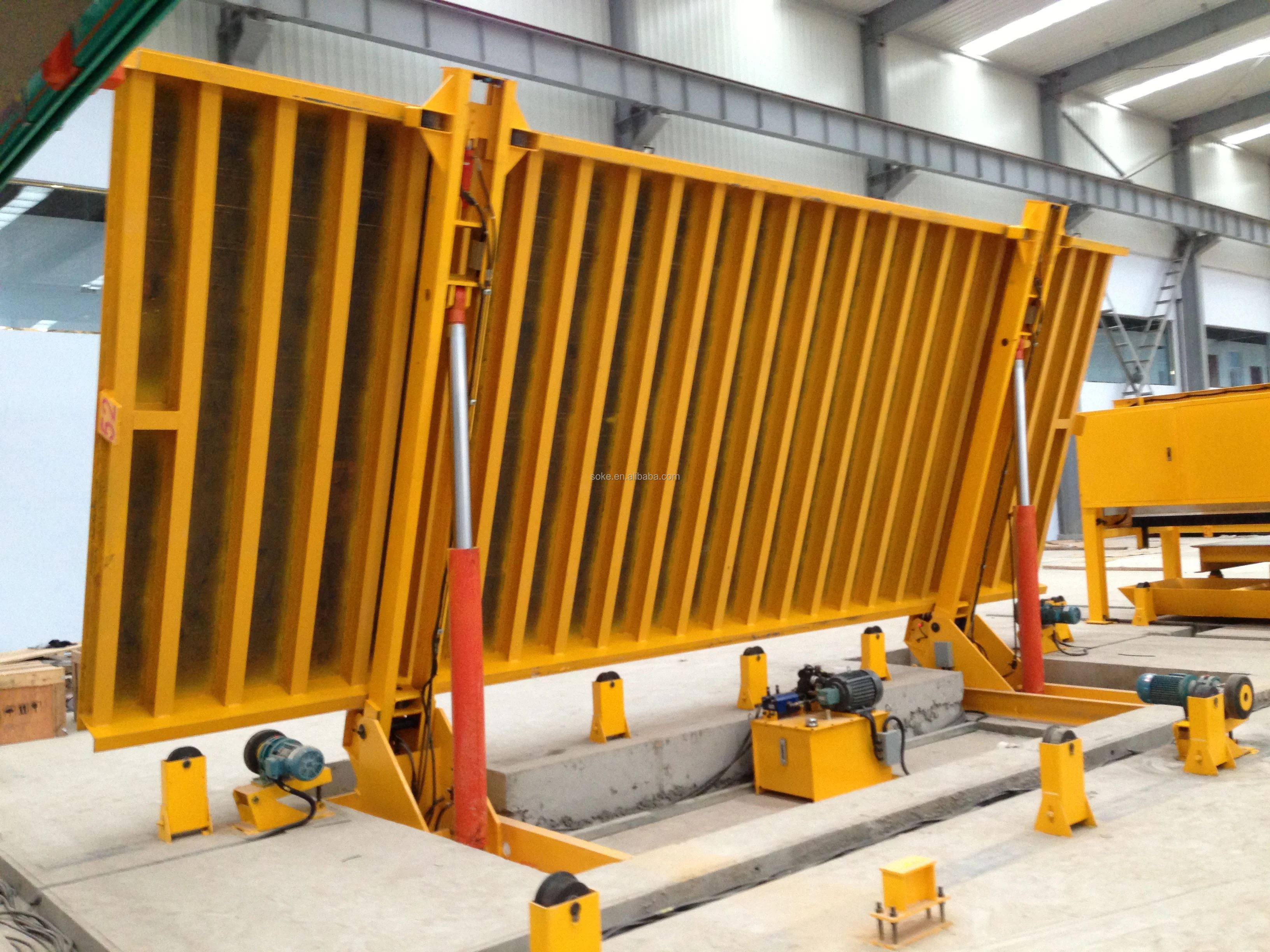

6.The precast pallet can add vibration, heating, turning and other functions according to customer needs
Popular size:9mX4m,11.8mX4m,9mX3m,9mX5m etc.


Other precast elements can be produced


Precast pallet formwork

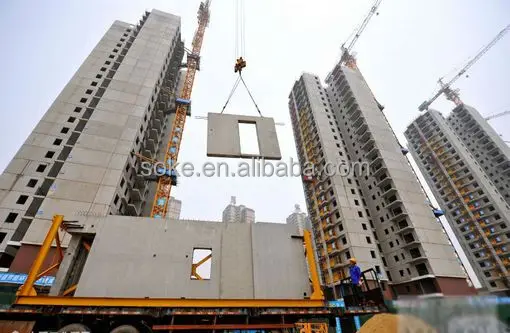

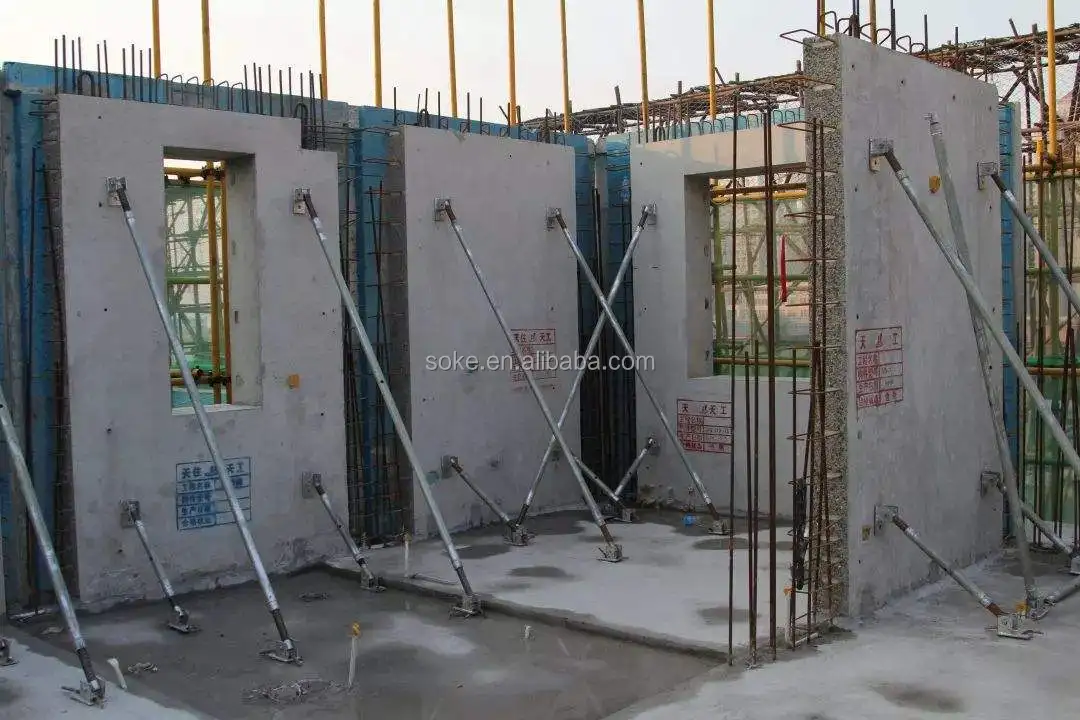

Precast panel components: including all kinds of precast panels such as exterior wall panels, interior wall panels, composite floor panels, air conditioning panels, etc.
Special-shaped components: PCF panels, stairs, balconies, floating windows, beams and columns

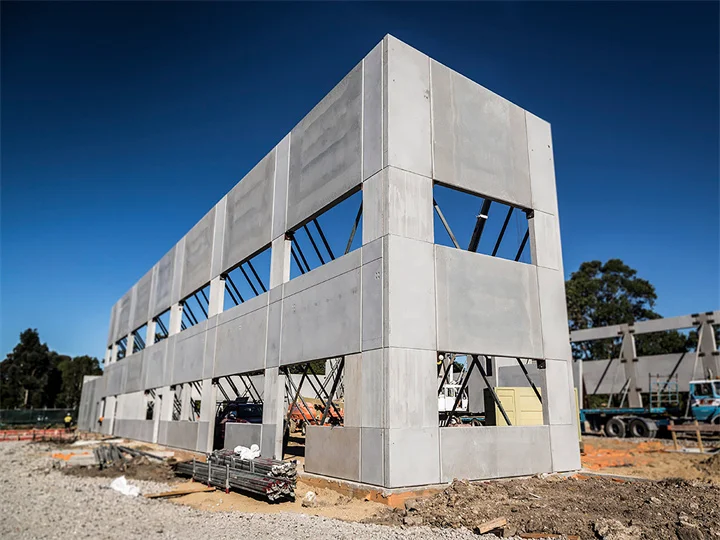

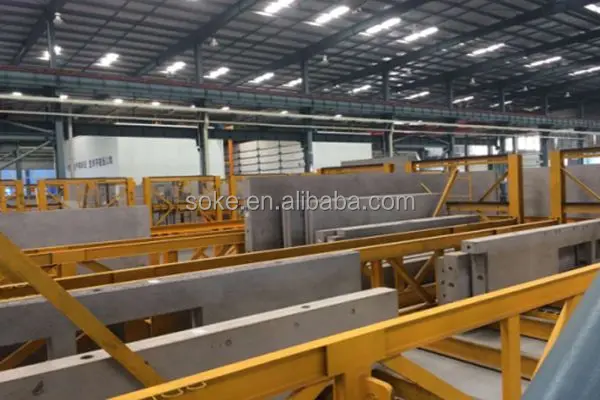

Finished product




Our services


* The technical supporting all the time 7x24hours
* One year warranty for whole machine
* Free quick wear parts
* Free training to end-users and online training
* Low charge continue maintenance


Contact US


Whatsapp:+8615589991532
Wechat:evansoke


SOKE INTERNATIONAL(Precast Machine Department)
Contact person:Evan
M:+ 86 15589991532
WhatsApp/Wechat: + 86 15589991532
E: evan@sokeinternational.com
Website: www.sokeprecastmachine.com
We welcome you to consult our precast concrete hollow core slab machine, precast concrete wall panel machine,concrete Beam machine, concrete lintel machine, concrete H beam machine, concrete T beam machine or other equipments related precast technology.
