Coal Washing Plant Coal Cleaning Equipment Supplier Mineral Separator Flotation Machine for Sale
- Category: >>>
- Supplier: Shijiazhuang Fengwang Technology Co. Ltd.
Share on (1600899411145):
Product Overview
Description
Why Choose Us
Products Description

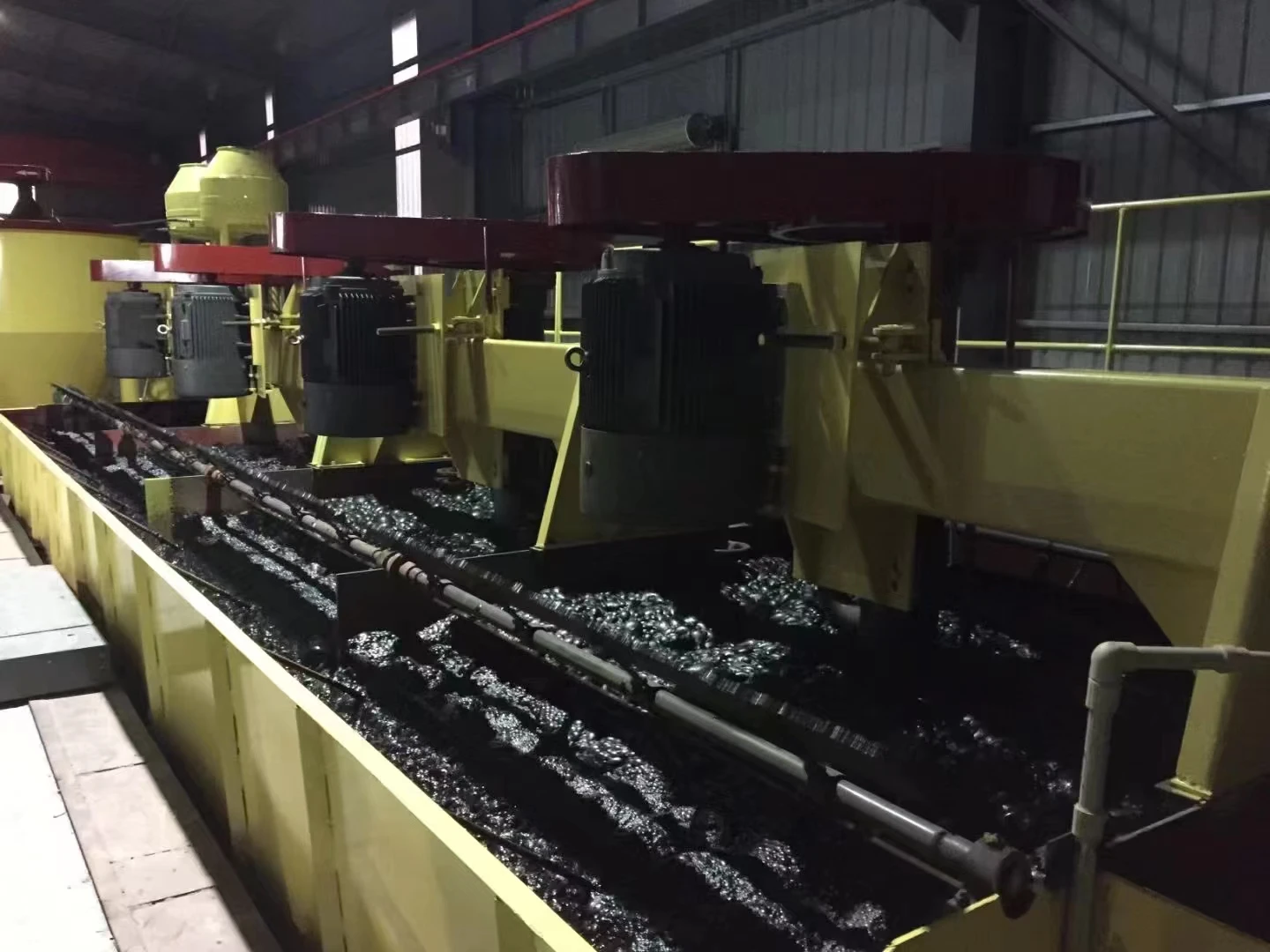

XJM Flotation machine
use:
Mainly used for sorting 0mm-0.5mm grade coal slime. Selecting the appropriate flotation equipment can not only improve the clean coal yield and economic benefits, but also ensure the normal operation of the coal preparation plant for the subsequent operation effect of the coal slurry water treatment system.
working principle:
This type is a mechanical stirring type. The principle is to use the rotation of the impeller to generate negative pressure inside the impeller to inhale the pulp and air, and mix them evenly. Under the action of the agent, the different bubble adsorption properties of coal and impurities are used to achieve the purpose of sorting .
Technical Features | Model | ||||||||||
XJM-4 | XJM-8 | XJM-12 | XJM-16 | ||||||||
m³ Single tank volume | 4 | 8 | 12 | 16 | |||||||
Processing power | 0.6-1 | ||||||||||
/m³h Standard throughput of coal slurry | 250 | 400 | 600 | 750 | |||||||
/m³/m²min Inflation rate | 0.6-1.2 | ||||||||||
m/s Impeller linear speed | 8.4 | 8.4 | 8.9 | 8.9 | |||||||
m/n Diameter of impeller | 530 | 700 | 800 | 860 | |||||||
kw Mixer power | 15 | 22 | 30 | 37 | |||||||
kw Scraping mechanism power | 1.5 | 1.5 | 1.5 | 2.2 | |||||||
Outside type ruler Inch | L/mm | 3室 | 6785 | 8200 | 9479 | 10970.5 | |||||
4室 | 8690 | 10555 | 12239 | 14175.5 | |||||||
5室 | 10595 | 12910 | 14999 | 17380.5 | |||||||
6室 | —— | ||||||||||
W/mm | 2450 | 2750 | 3120 | 3450 | |||||||
H/mm | 2758 | 2806 | 3250 | 3283 | |||||||
kg Weight | 3室 | 9634 | 14056 | 18860 | 21264 | ||||||
4室 | 12224 | 18538 | 24334 | 27526 | |||||||
5室 | 14814 | 23020 | 29805 | 33764 | |||||||
6室 | 17404 | 27500 | |||||||||
product display
Company Profile
SHIJIAZHUANG FENGWANG TECHNOLOGY CO., LTD was established in 2009. It is an enterprise specializing in R&D, design and manufacture of coal preparation equipment. The company has 2 senior engineers, 6 professional and technical personnel, more than 60 employees, and covers an area of more than 7,000 square meters.
The main products are: coal feeder, coal washing machine, clean coal screen, slime screen, flotation machine, centrifuge, etc.
The company insists on survival by quality, development by innovation, and good after-sales service to win the trust of users and share the fruits of success with users.
The company can undertake turnkey projects from design, manufacture, installation and commissioning through one-stop service.
You give Fengwang a chance, and Fengwang will give you a satisfaction!
Customer Photos
Packaging and shipping
FAQ
A): Why did I choose your company?
Why should I choose your company? Our company has been producing coal washing production line equipment for nearly ten years, with rich experience and advanced technology, and has a professional technical team to provide 24-hour service. Competitive price, best quality and service. One year warranty, lifetime maintenance.
B): How about installation and after-sales service?
We will provide installation drawings and videos. We can also send professional technicians to your company to guide the installation of the machine and train your staff on-site until they can operate the machine independently.
C): Besides materials, what else do we need to prepare?
You should prepare workshop, water lines, electrical wiring, compressed air (if you need, we can help you buy an air compressor). We can provide workshop layout drawings according to your workshop.
D): How long is the delivery time?
The lead time for a production line is about 50 days. (According to the actual order situation)
E): What are your payment terms?
Customers can choose to pay in installments, we accept T/T, platform direct payment, etc.
F): Where are your customers located?
China , Malaysia, Turkey, Vietnam, South Korea, Southeast Asia and other countries.
G): How should we order?
Choose the product you like, or send us your requirements and our engineers can make a project and quote for you. (Then confirm all details and sign the contract, you can make advance payment, then we start to purchase raw materials for production,Shipped according to our agreement. )
H): Can I come to your factory for inspection?
Of course, we are located in Shijiazhuang, China, you can take a plane to Shanghai, then take a high-speed train or plane to Shijiazhuang, we will arrange a driver to pick you up. Welcome to visit our factory.
If you have any questions, please feel free to contact us and look forward to working with you!
