Price:$11.00 - $23.00

Quantity:


Product Overview

Description









20+Years Experience In Marine

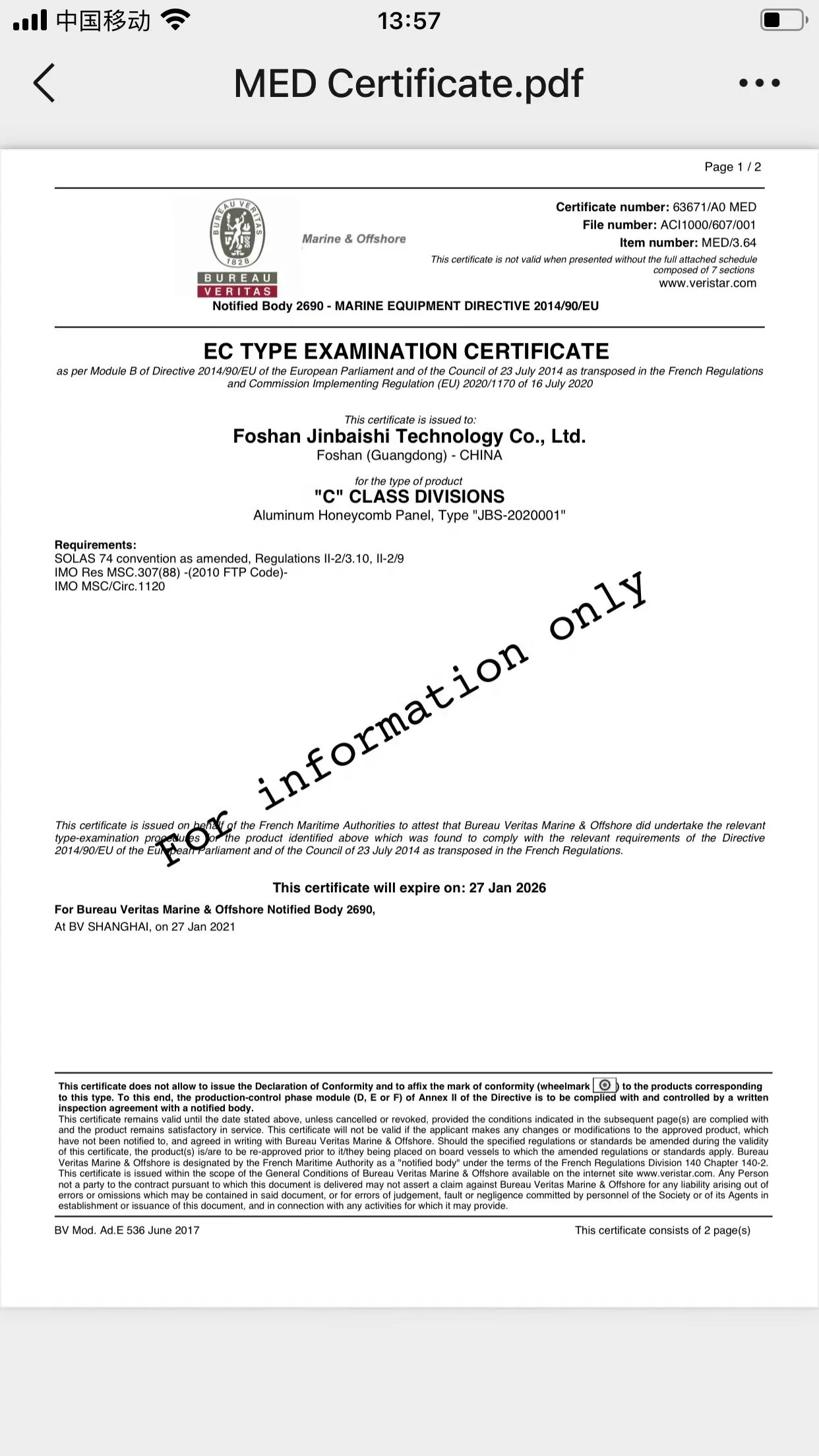

BV Marine Certificate


Lucent by whatsapp +8613503076132








Wall Ceiling Flooring Furniture Seats Solution













Alumetal 10mm aluminum honeycomb core sandwich panel for curtain wal

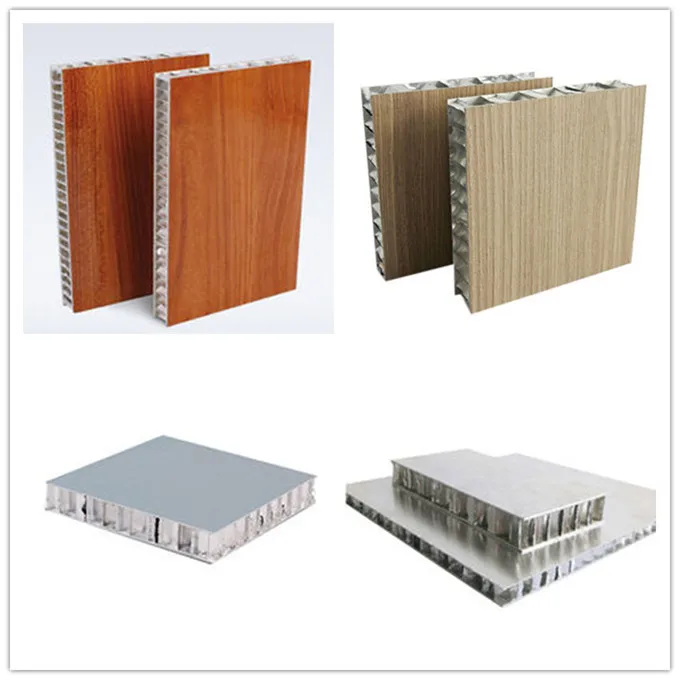

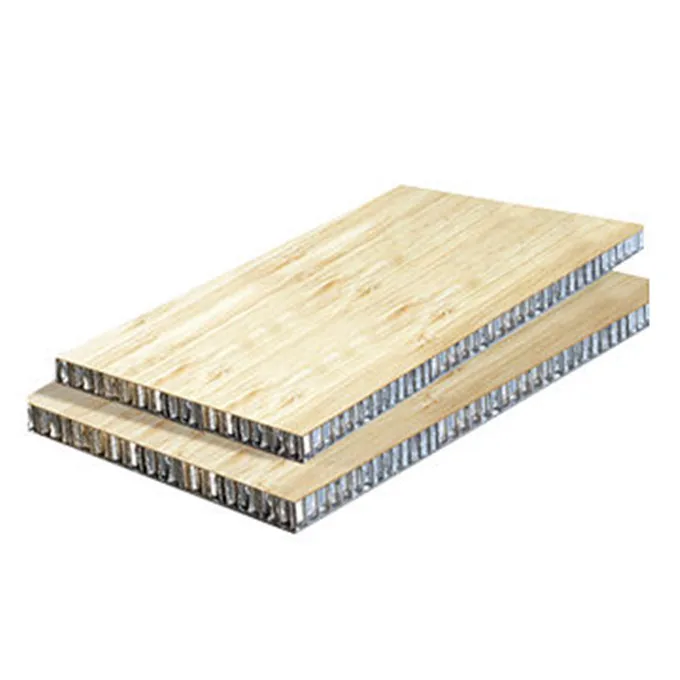

Aluminum Honeycomb Panel



Product Description


 Aluminum honeycomb panels are comprised of two layers of aluminum sheets on top and bottom sides with inner aluminum honeycomb structure in the middle. The honeycomb structure is known to be lightweight while enhance the rigidity of panels in a large scale.

























































Specifications Of  Aluminum Honeycomb Panel


Aluminum Alloy


AA3003 H18, AA5052 H18
Panel Thickness 4mm, 8mm, 10mm, 15mm, 25mm,32mm Max 500mm

Aluminum Skin Thickness


0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm
Surface Coating:

PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc


Width1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm
Length2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm

Honeycomb Core Thickness


0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.12mm

Honeycomb Core Cell Size



Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb:  1/4”(6.35mm), 1/3”(8.47mm), 3/8”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m)


Honeycomb Core Cell Side Length Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm,  Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm
Edge Type

 Open Edge, Close Edge or customer's design









Advantages






  • light Weight


  • Sound&Heat Insulation



  • 100% Fire Resistance


  • Moisture & Corrosion Resistance




  • Super Flatness & Rigidity




  • Easy Installation




  • 100% Recyclable & Environmental Protection







Our factory have the BV marine certificate for ship. Pls. contact : Lucent by whatsapp +8613503076132
