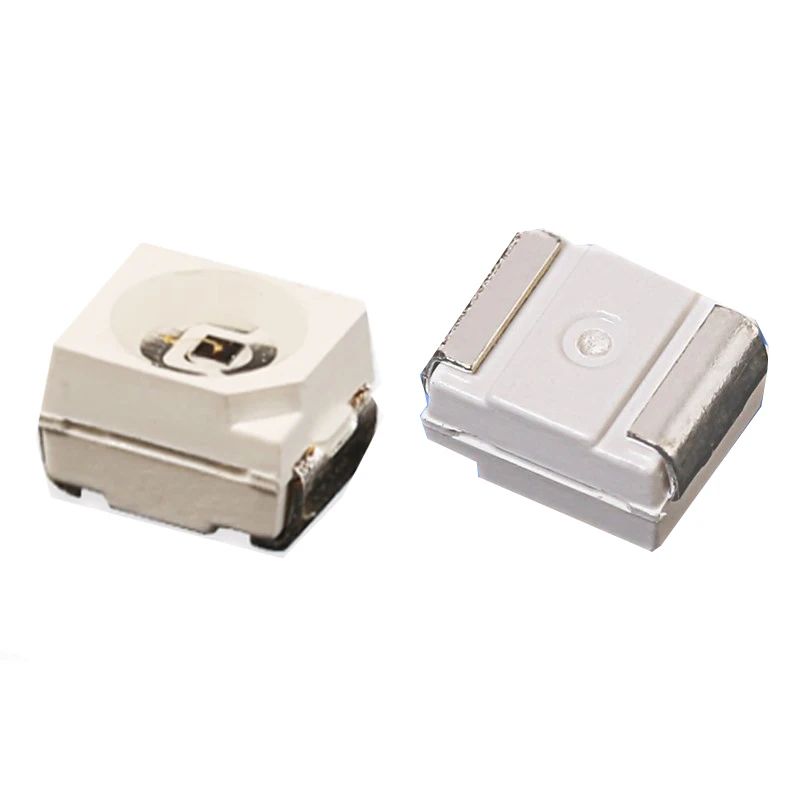

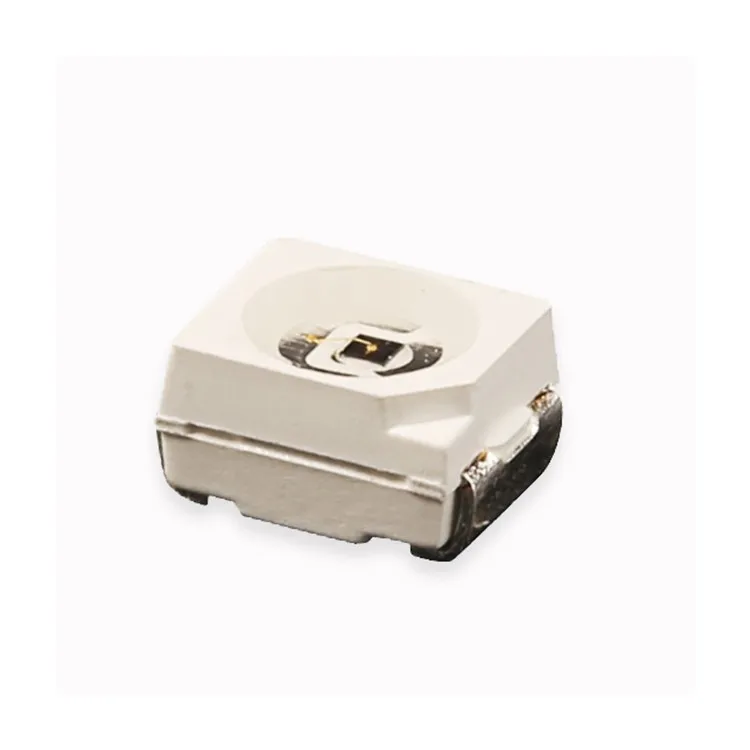

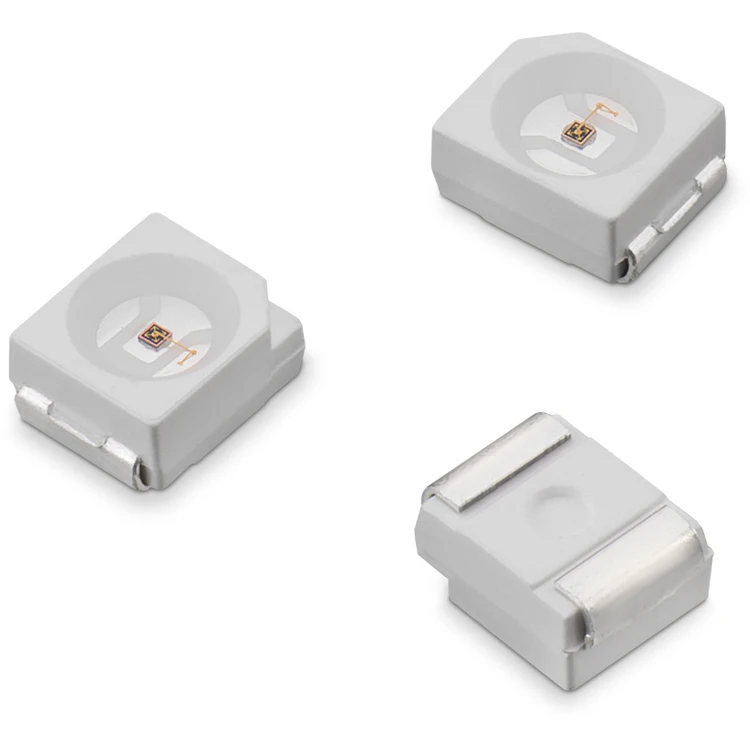

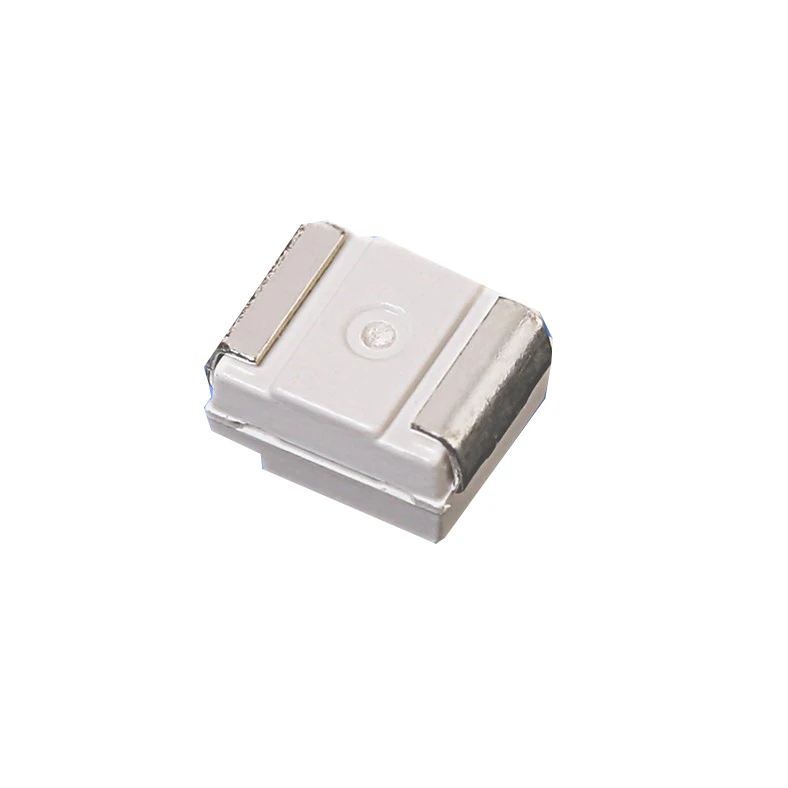

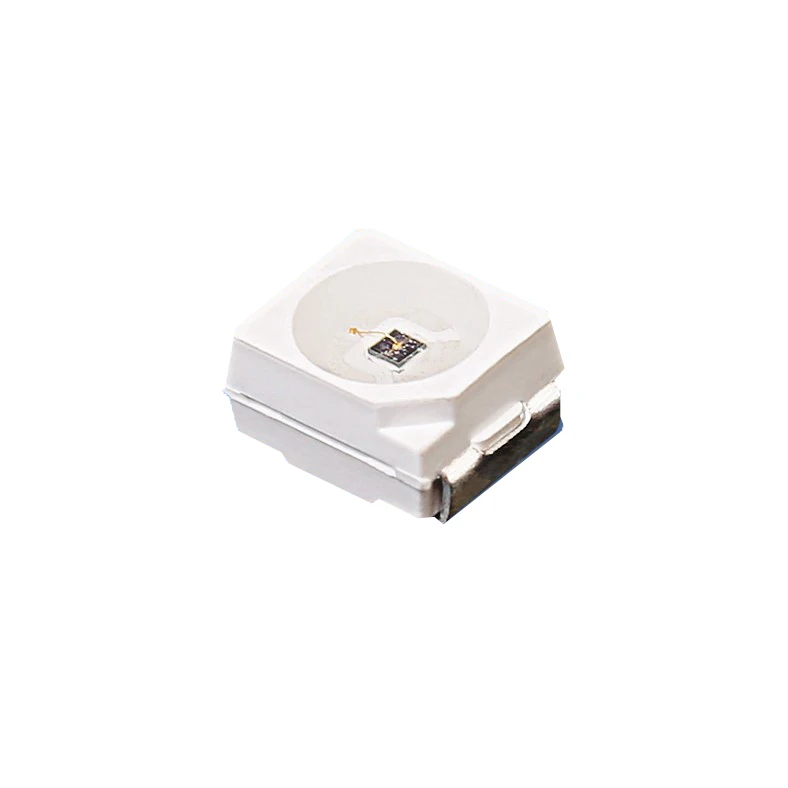

3528 Infrared lamp ir led smt SMD 810nm 850nm 940nm 880nm 830nm 980nm1050nmEpistar LED chip For vision LED light!
- Category: >>>
- Supplier: Shenzhen Heyi Optical Control Co. Ltd.
Share on (1600899672134):
Product Overview
Description
| Order Code | Voltage (V) | Peak Wavelength (nm) | Radiant Power (mW) | Radiant Intensity (mw/sr) | Current (mA) | Half Width (nm) | Angle (0) | Power (W) |
| HYS36E15N365RP-D1 | 3.5-4.0 | 365-370 | 15-20 | / | 20 | 10 | 120 | 80 |
| HYS36U13P380RP-D1 | 3.2-3.6 | 380-385 | 15-20 | / | 20 | 13 | 120 | 72 |
| HYS36E15P400RP-D1 | 3.0-3.4 | 400-405 | 15-20 | / | 20 | 20 | 120 | 68 |
| HYS36U13P410RP-D1 | 3.0-3.4 | 410-415 | 15-20 | / | 20 | 17 | 120 | 68 |
| HYS36E14N660RP-D1 | 2.0-2.4 | 655-665 | 20-30 | 125 | 100 | 16 | 120 | 240 |
| HYS36G14N680RP-D1 | 2.0-2.4 | 670-690 | 50-70 | / | 100 | 17 | 120 | 240 |
| HYS36G14N700RP-D1 | 2.0-2.4 | 690-710 | 50-70 | / | 100 | 20 | 120 | 240 |
| HYS36E14N730RP-D1 | 1.8-2.2 | 720-740 | 20-30 | 10 | 100 | 22 | 120 | 220 |
| HYS36L14N760RP-D1 | 1.6-2.0 | 760-780 | 70-90 | 12.9 | 100 | 26 | 120 | 200 |
| HYS36L14N780RP-D1 | 1.6-2.0 | 780-800 | 80-100 | 14 | 100 | 26 | 120 | 200 |
| HYS36L14N800RP-D1 | 1.4-1.8 | 800-820 | 70-90 | 14.8 | 100 | 29 | 120 | 180 |
| HYS36G14N820RP-D1 | 1.6-2.0 | 820-830 | 70-90 | 15.7 | 100 | 30 | 120 | 200 |
| HYS36E14N850RP-D1 | 1.4-1.8 | 840-860 | 50-70 | 13.3 | 100 | 35 | 120 | 180 |
| HYS36L14N880RP-D1 | 1.4-1.8 | 870-890 | 60-80 | 13.7 | 100 | 39 | 120 | 180 |
| HYS36L14N910RP-D1 | 1.4-1.8 | 900-920 | 70-90 | 14 | 100 | 42 | 120 | 180 |
| HYS36L14N940RP-D1 | 1.2-1.6 | 930-950 | 120-140 | 13.5 | 100 | 45 | 120 | 160 |
| HYS36L14N970RP-D1 | 1.2-1.6 | 960-980 | 50-70 | 13.3 | 100 | 50 | 120 | 160 |
| HYS36L14N1000RP-D1 | 1.0-1.4 | 1000-1100 | 35-45 | 13 | 100 | 60 | 120 | 140 |
| HYS36L14P1300RP-D1 | 0.5-1.0 | 1300-1400 | 15-20 | 8 | 100 | 80 | 120 | 100 |
| HYS36L14N1400RP-D1 | 0.5-1.0 | 1400-1500 | 15-20 | 7 | 100 | 90 | 120 | 100 |
Warm Tip:The above parameters are for reference. Wavelength Angle, PCB can be customized according to requirements
