Single Phase and Three Phase EI Silicon Steel Lamination Transformer lamination parts non oriented material
- Category: >>>
- Supplier: Jiangyin Saiyu Electric Appliance Co. Ltd.
Share on (1600899722871):
Product Overview
Description
Popular silicon steel ei core for electric engine silicon steel annealed ei core
Product details
| Package Type | Cardboard core |
| Thinkness | 0.5mm |
| PACK | Wooden Pallet |
| Product Keywords | ac single phase transformer |
Specification size
| TYPE | A | B | C | D | E | F | Aperture(Φ) | Holes |
| 3PEI-20 | 100 | 80 | 20 | 20 | 20 | 60 | 6 | 3 |
| 3PEI-22 | 110 | 88 | 22 | 22 | 22 | 66 | 6 | 2 |
| 3PEI-25 | 125 | 100 | 25 | 25 | 25 | 75 | 7.5 | 3 |
| 3PEI-30 | 150 | 120 | 30 | 30 | 30 | 90 | 8 | 3/2 |
| 3PEI-30* | 150 | 105 | 30 | 30 | 30 | 75 | 7 | 3 |
| 3PEI-32* | 160 | 112 | 32 | 32 | 32 | 80 | 7 | 3 |
| 3PEI-35 | 175 | 140 | 35 | 35 | 35 | 105 | 8 | 3 |
| 3PEI-38* | 190 | 133 | 38 | 38 | 38 | 95 | 8 | 2 |
| 3PEI-38 | 190 | 152 | 38 | 38 | 38 | 114 | 8 | 3 |
| 3PEI-40* | 200 | 140 | 40 | 40 | 40 | 100 | 10 | 2 |
| 3PEI-40 | 200 | 160 | 40 | 40 | 40 | 120 | 10 | 3 |
| 3PEI-44 | 220 | 176 | 44 | 44 | 44 | 132 | 8 | 3 |
| 3PEI-45 | 225 | 180 | 45 | 45 | 45 | 135 | 10 | 3 |
| 3PEI-45.6* | 228 | 159.6 | 45.6 | 45.6 | 45.6 | 114 | 10 | 2 |
| 3PEI-50* | 250 | 175 | 50 | 50 | 50 | 125 | 12 | 2 |
| 3PEI-50 | 250 | 200 | 50 | 50 | 50 | 150 | 11 | 3 |
| 3PEI-55 | 275 | 220 | 55 | 55 | 55 | 165 | 11 | 3 |
| 3PEI-55* | 275 | 192.5 | 55 | 55 | 55 | 137.5 | 11 | 3 |
| 3PEI-60* | 300 | 210 | 60 | 60 | 60 | 150 | 12 | 3 |
| 3PEI-60 | 300 | 240 | 60 | 60 | 60 | 180 | 12 | 3 |
| 3PEI-61* | 305 | 213.5 | 61 | 61 | 61 | 152.5 | 12 | 3 |
| 3PEI-70* | 350 | 245 | 70 | 70 | 70 | 175 | 13 | 3 |
| 3PEI-70 | 350 | 280 | 70 | 70 | 70 | 210 | 13 | 3 |
| 3PEI-80* | 400 | 280 | 80 | 80 | 80 | 200 | 14 | 3 |
| 3PEI-80 | 400 | 320 | 80 | 80 | 80 | 240 | 14 | 3 |
| 3PEI-90* | 450 | 315 | 90 | 90 | 90 | 225 | 14 | 3 |
| 3PEI-90 | 450 | 360 | 90 | 90 | 90 | 270 | 14 | 3 |
| 3PEI-100 | 500 | 400 | 100 | 100 | 100 | 300 | 16 | 3 |

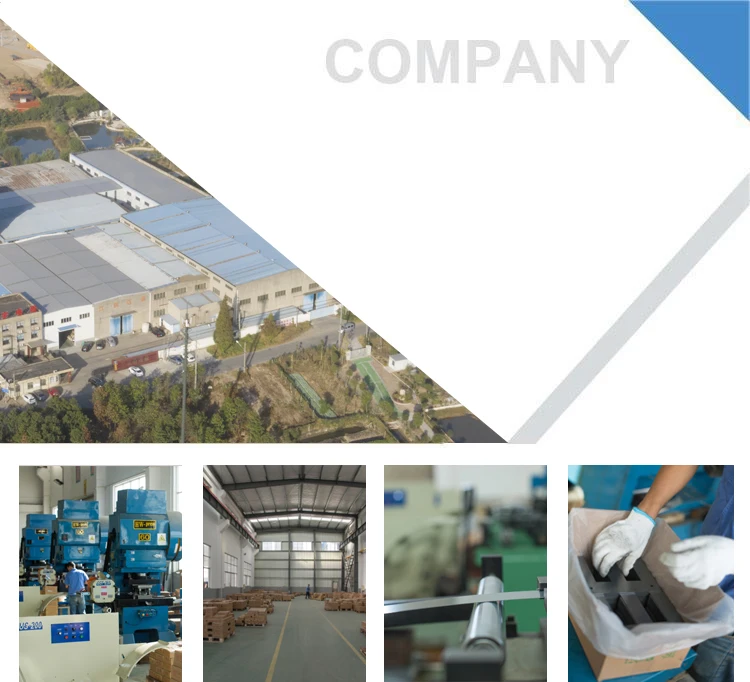

Company Information
