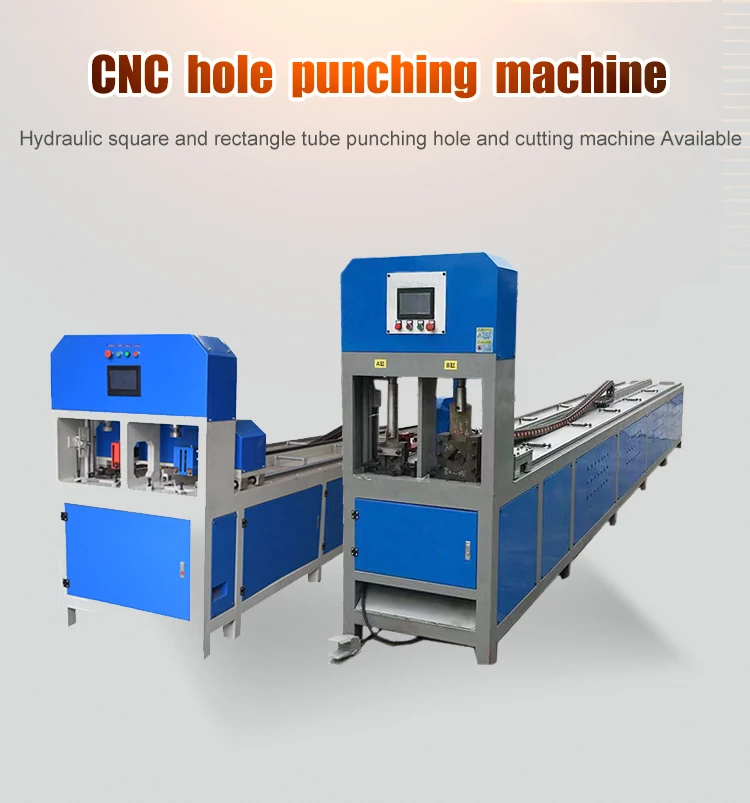

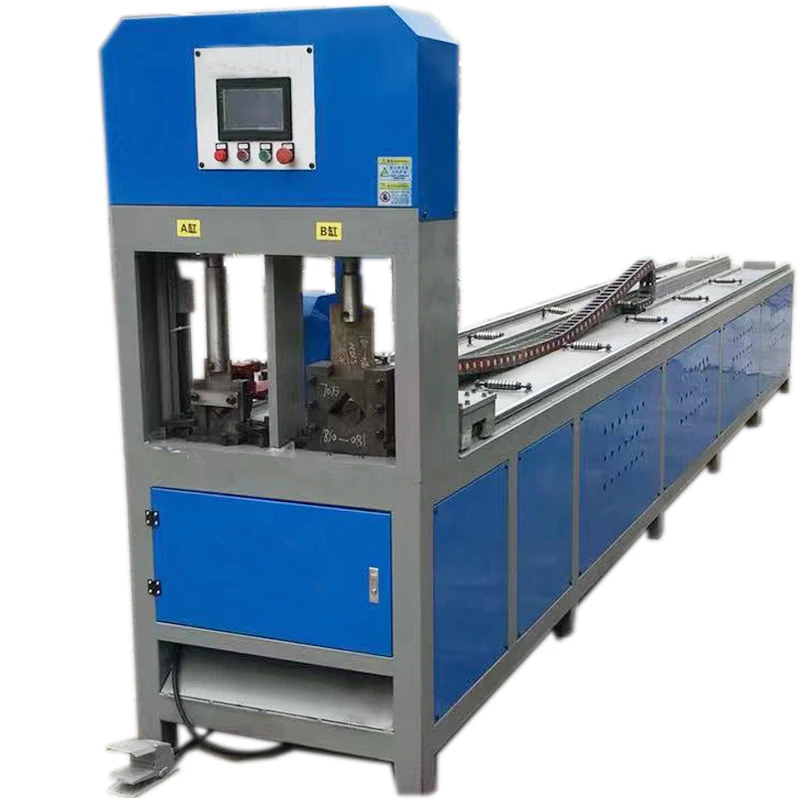

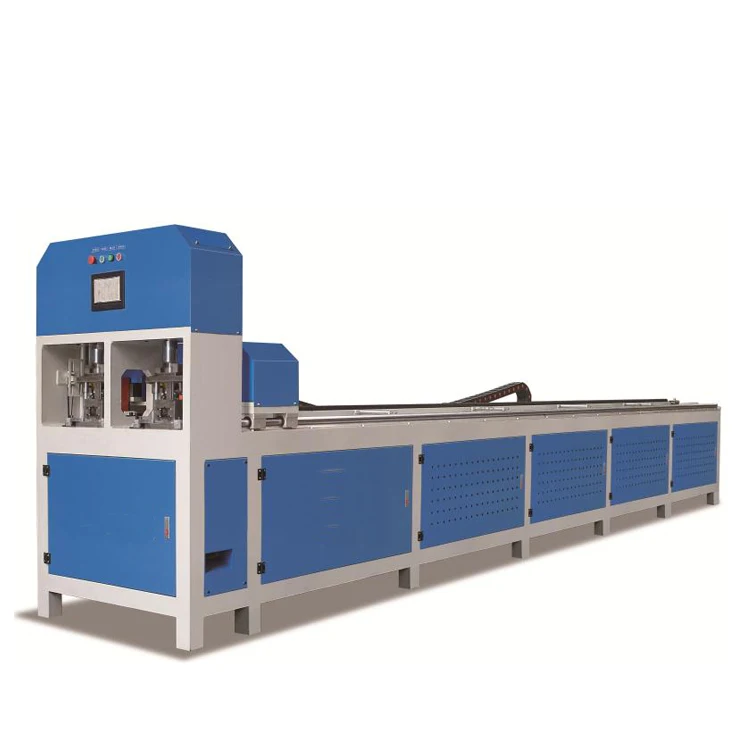

perforating metal mesh making machine Small plate CNC hydraulic Punching and shearing machine
- Category: >>>
- Supplier: Shandong Soar Machinery Co. Ltd.
Share on (1600899799487):
Product Overview
Description
Product feature:

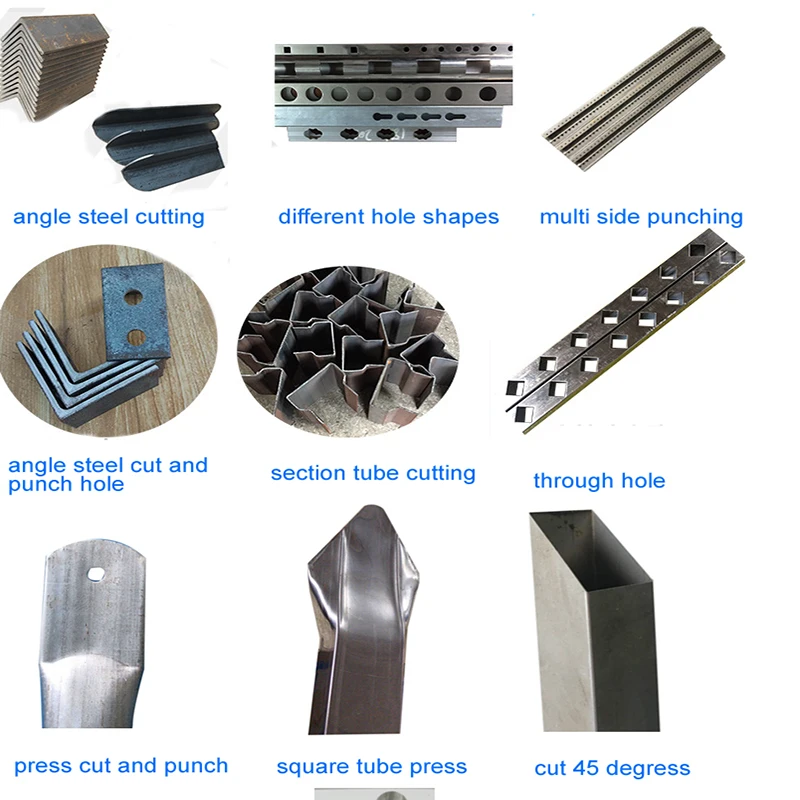

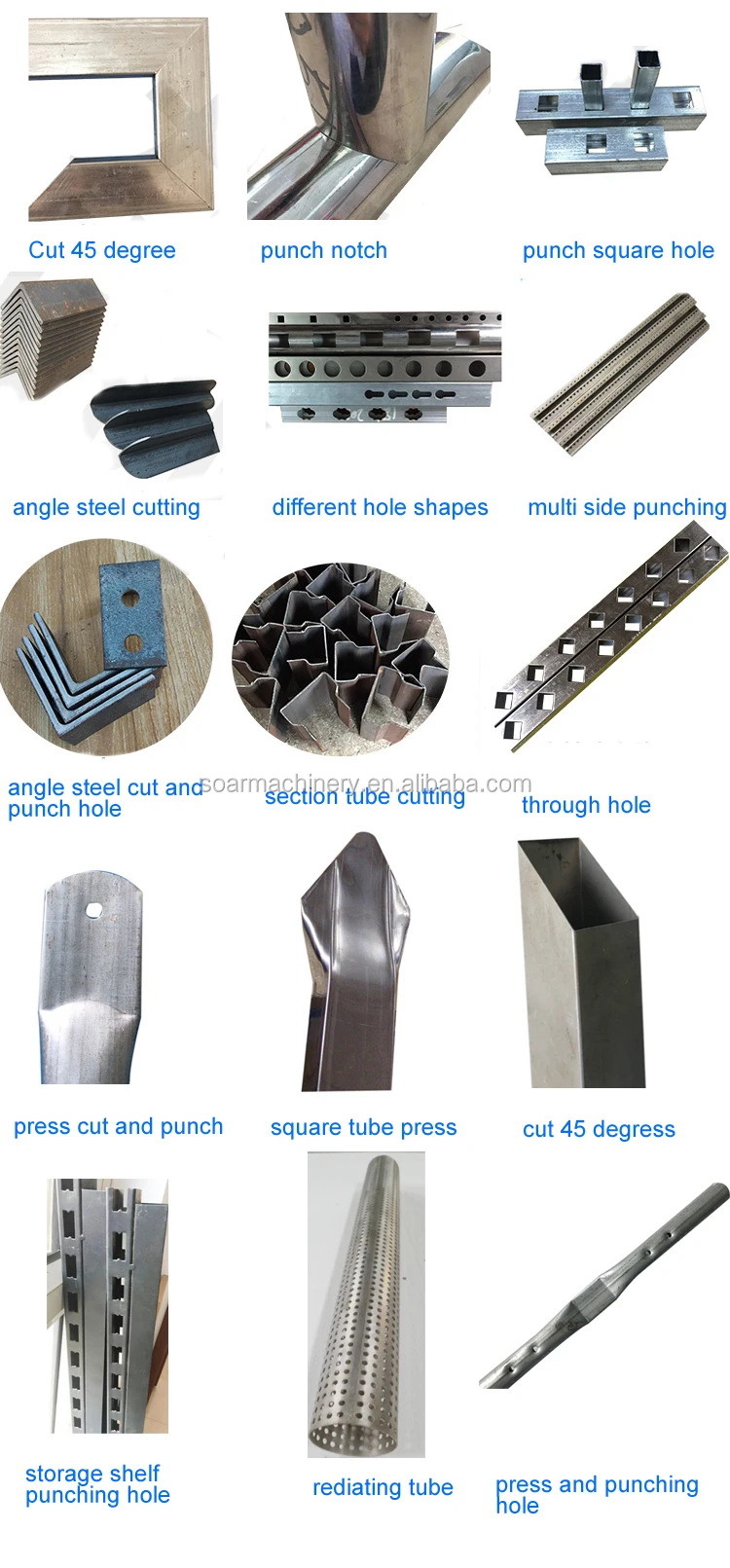

1. Punching Category: ①.single hole punching; ②.double hole punching; ③.Isometric hole punching; ④. none- Isometric hole punching,⑤rotary punching(only for round pipe).⑥punch from upward side and horizontal two sides

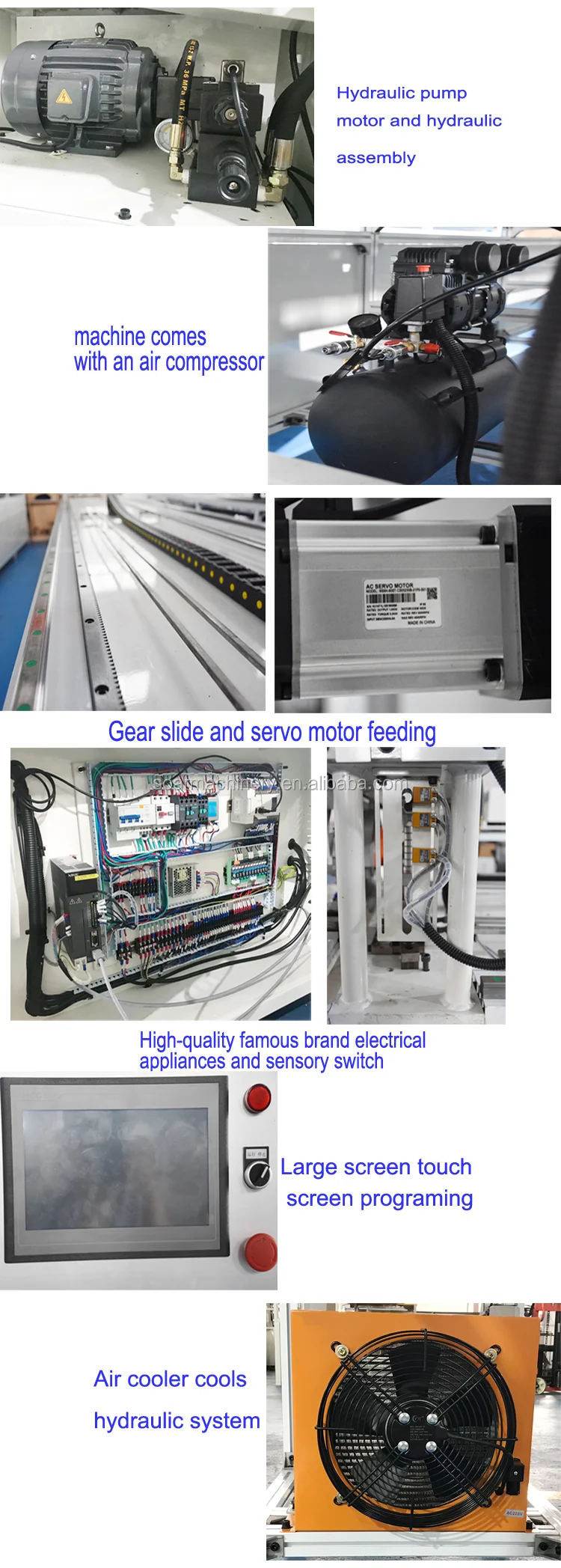

2. Hydraulic and Servo System.
3. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pumpmotor, effectively reduced noise, increased motor efficiency and service duration.
4. When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.
5. double punching heads machine can punch hole with two hydraulic cylinders, or only one cylinder punch separately
Model | 8TA | 8TB | 15TA | 15TB | 20TA | 20TB | |||||||
Feed length | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | |||||||
Nominal force | 80kn | 150kn | 250kn | ||||||||||
Stroke | 100mm | 120mm | 150mm | ||||||||||
Motor power | 4kw | 5.5kw | 7.5kw | ||||||||||
Punching capacity（metal thickness） | ≤2mm | ≤3mm | ≤5mm | ||||||||||
Fit to material | Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on | ||||||||||||
Fit to shape | Round, square, rectangle ,oval, angle steel | ||||||||||||
Tube and hole size | Moulds can be customized as different requirement Depend on tube material and thickness, also hole size, | ||||||||||||
Punching hole accuracy | 0.01mm | ||||||||||||
Feed accuracy | 0.1mm | ||||||||||||
Color | white , or customized | ||||||||||||
Feed way | Slideway and servo motor | ||||||||||||

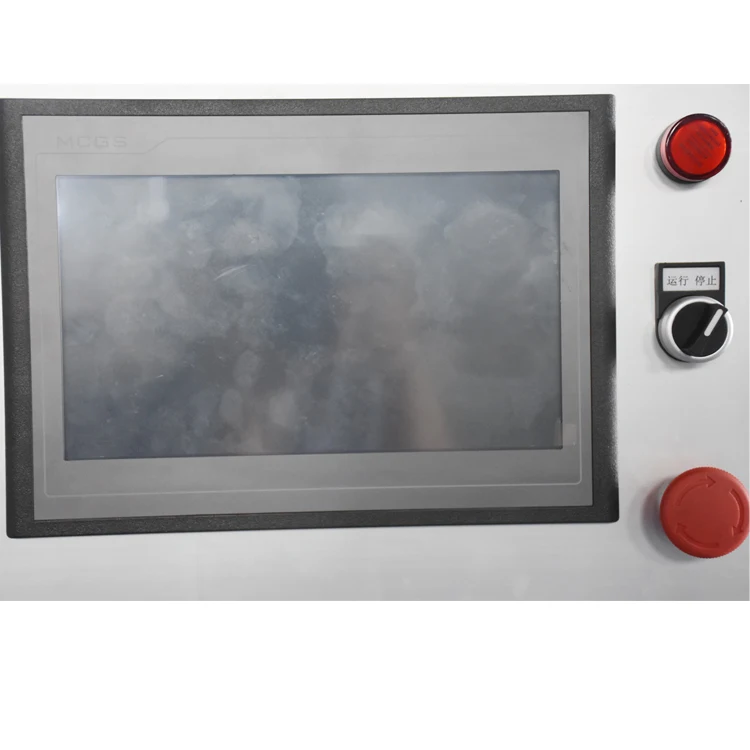

Control way | PLC, 10 inch Touch Screen | ||||||||||||

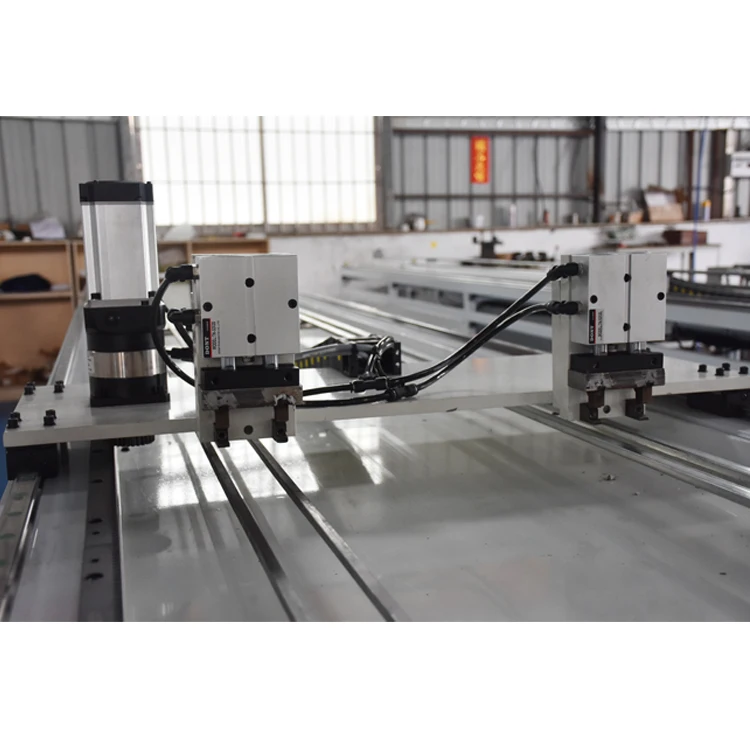

Clamping way | Pneumatic(air compressor is with machine) | ||||||||||||
programs stored | 200 sets, each program store different processing message | ||||||||||||
Operation language | Chinese and English， or customized | ||||||||||||
Voltage | 220V,380V,415V,440v, customized as requirement | ||||||||||||
Cutting method(option ) | Saw blade ,or hydraulic punch cutting | ||||||||||||
Measure | Machine head | 1500x100x1700mm | |||||||||||
Feed frame | 3500x600x12500mm(single，3m feed) 3500x900x12500mm(double，3m feed) 6500x600x12500mm(single，6m feed) 6500x900x12500mm(double，6m feed) | ||||||||||||
FAQ
1 how lony have you been in this filed?
we have been in this filed for more than 15 years
2 Do you have any Certification with product or your factory?
yes, we have passed TUV certification with our product and factory
3 where is your factory?
we are in shandong province,it is about 150KM far from Qingdao port
4 Can we be as yor anget in our country?
yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you
we have been in this filed for more than 15 years
2 Do you have any Certification with product or your factory?
yes, we have passed TUV certification with our product and factory
3 where is your factory?
we are in shandong province,it is about 150KM far from Qingdao port
4 Can we be as yor anget in our country?
yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you
