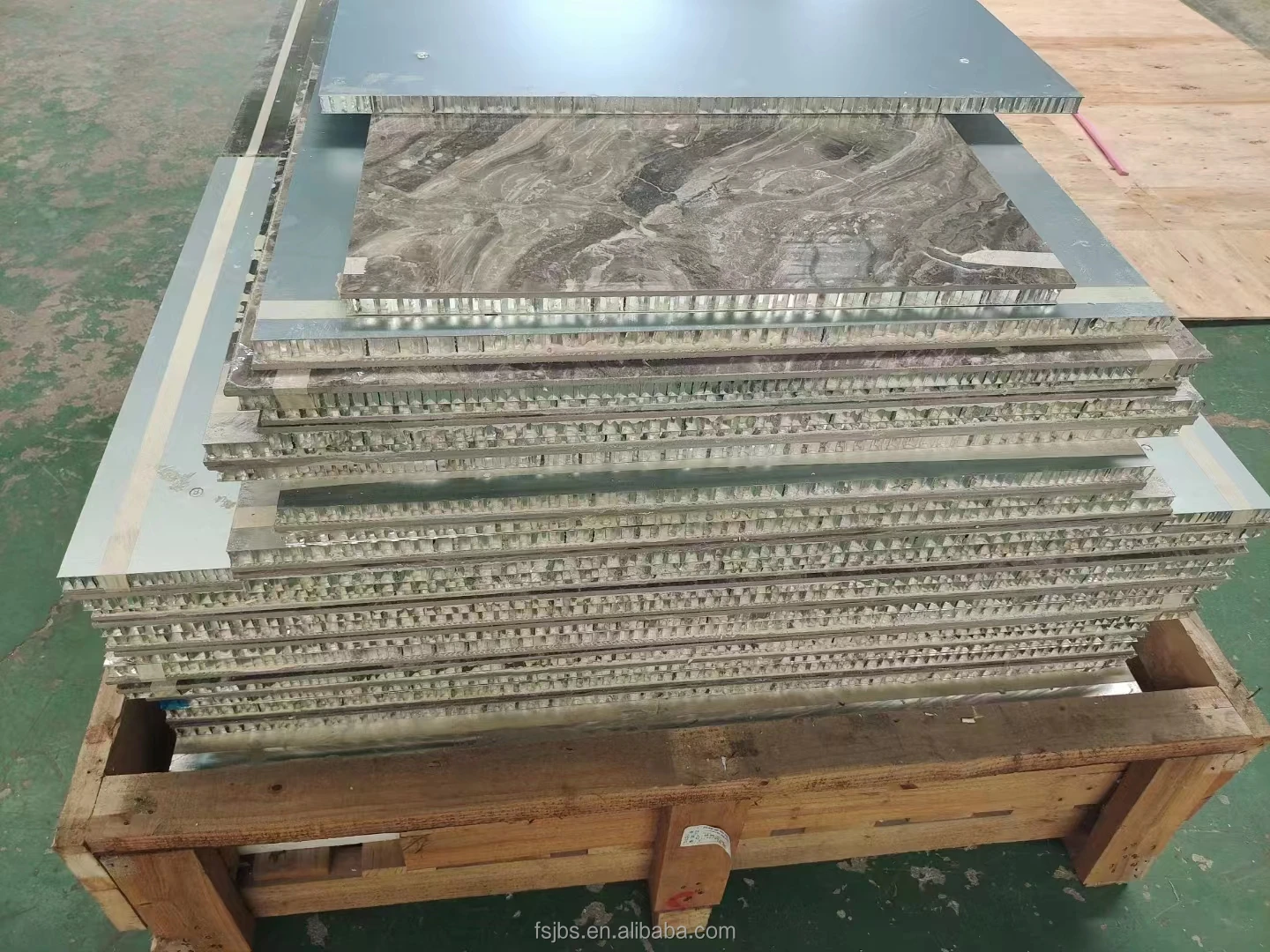

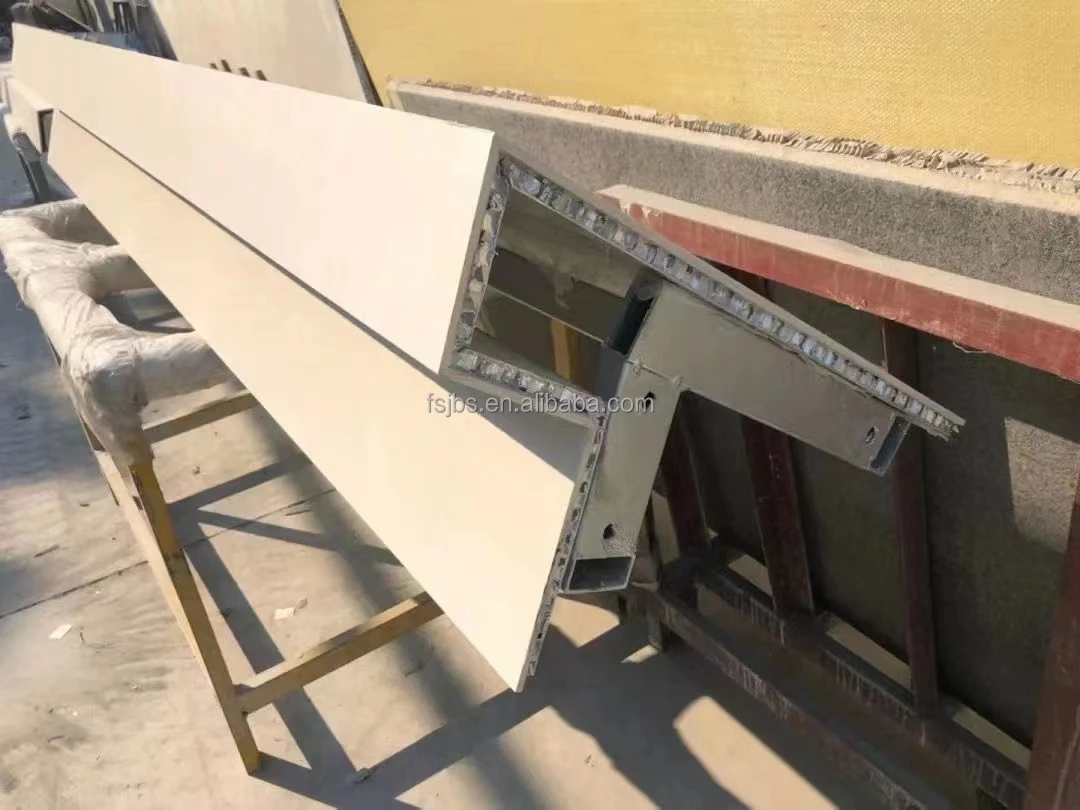

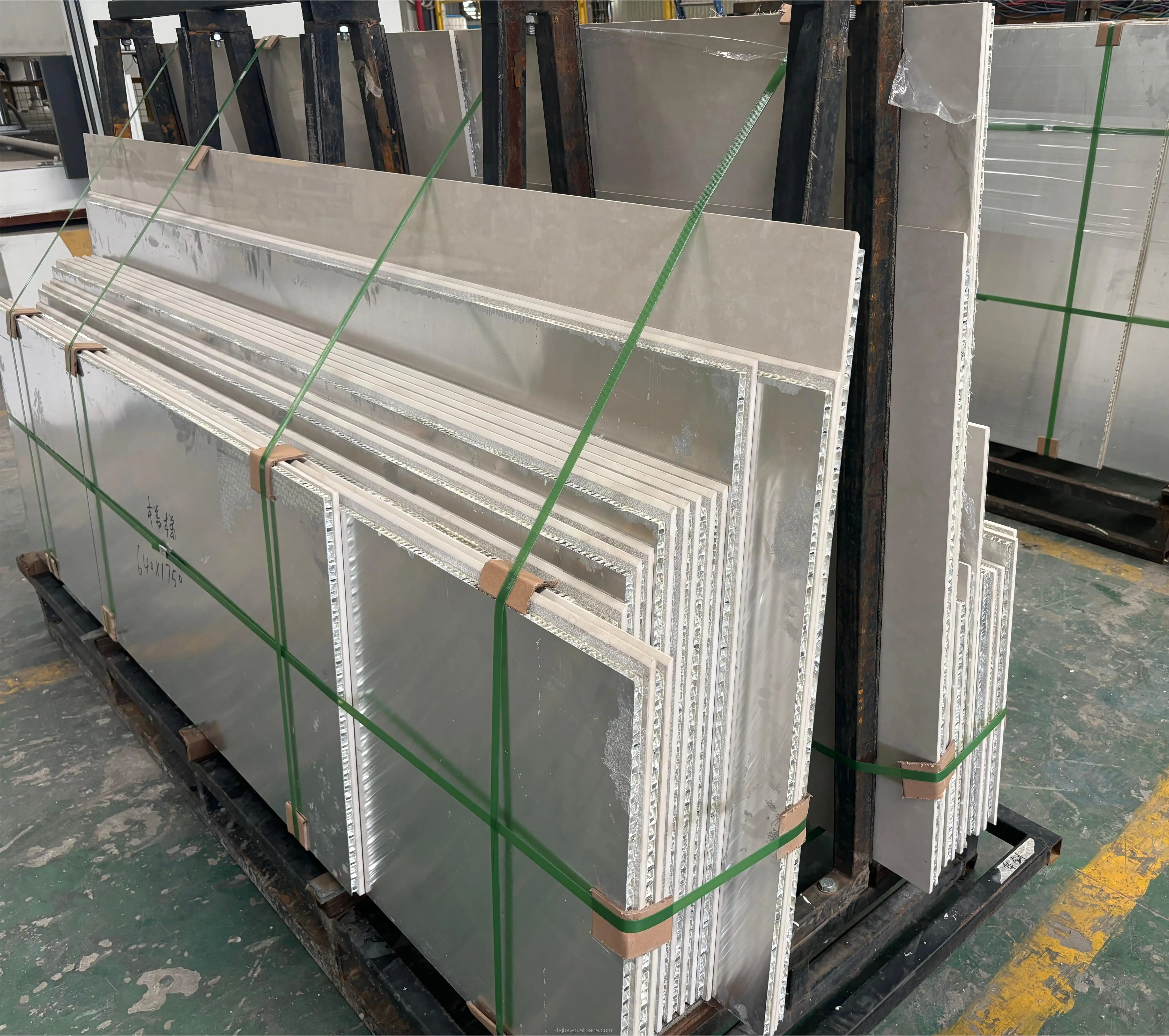

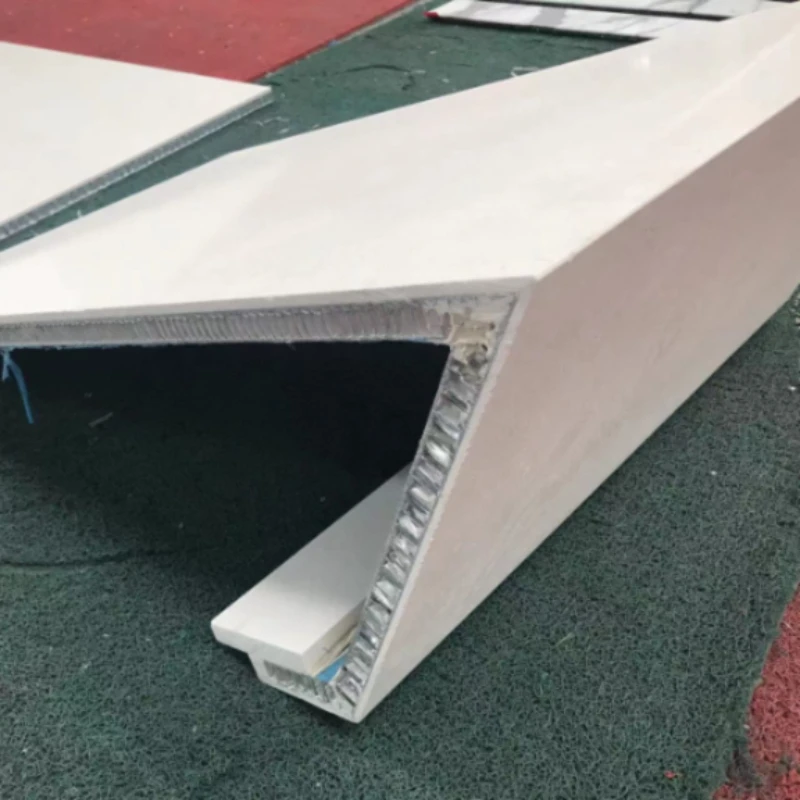

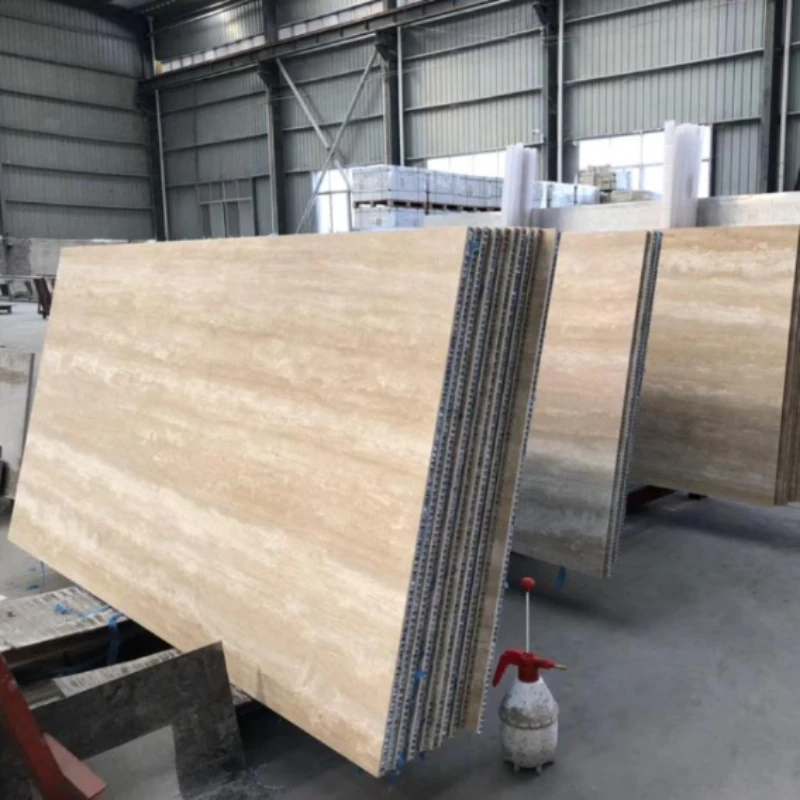

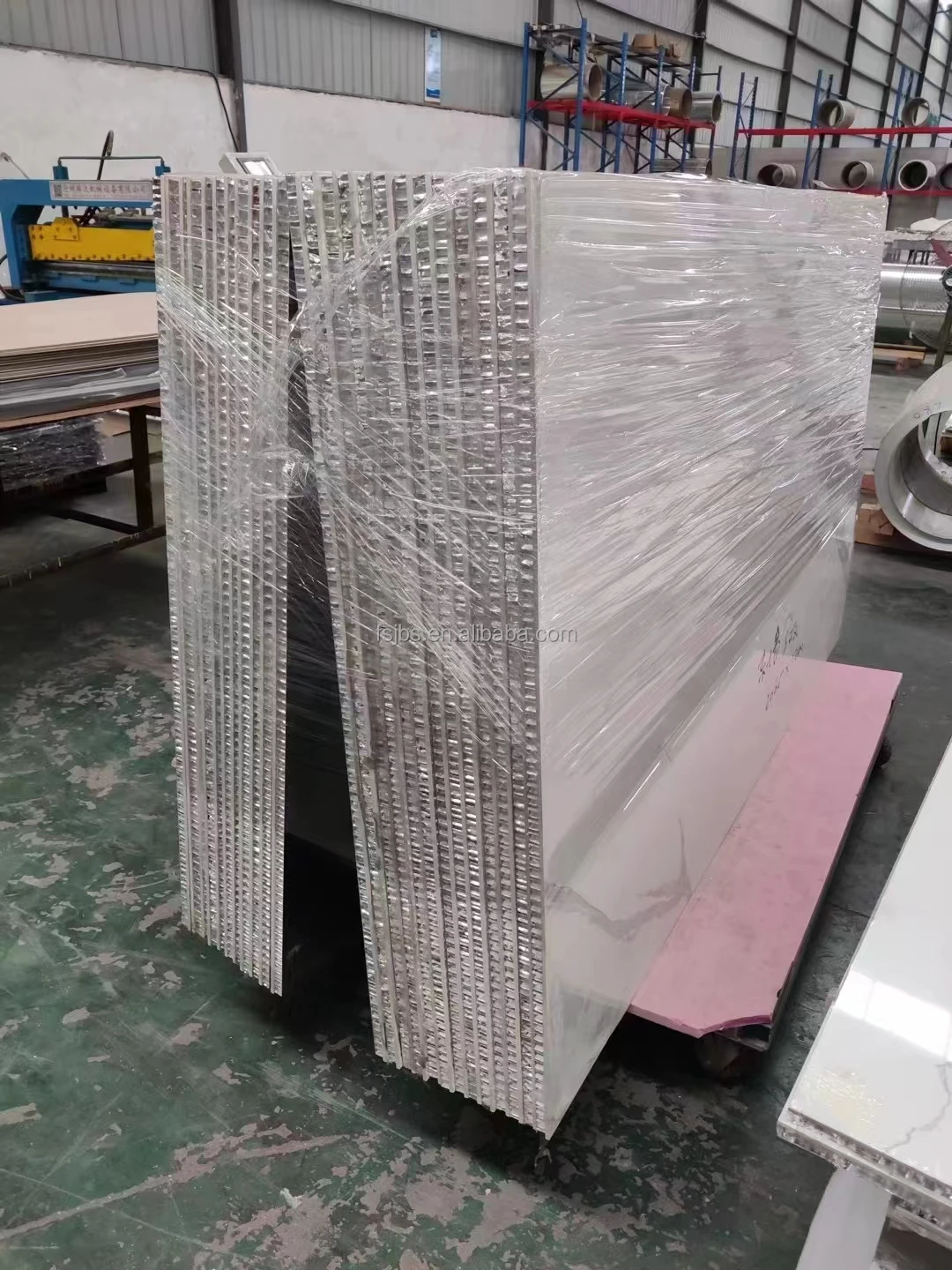

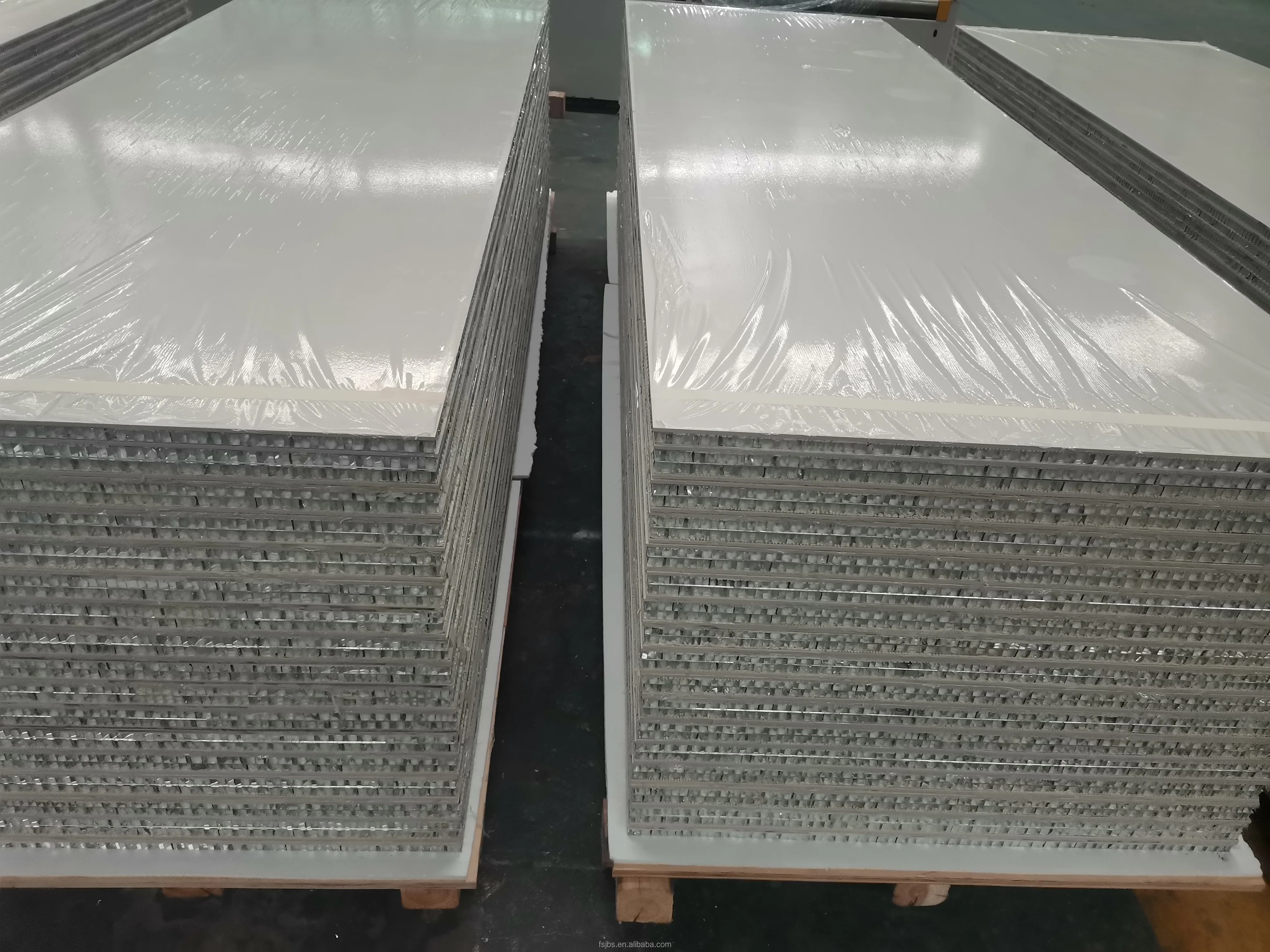

Alumetal 10mm aluminum honeycomb core sandwich panel for curtain wal Aluminum Honeycomb Panel Product Description Aluminum honeycomb panels are comprised of two layers of aluminum sheets on top and bottom sides with inner aluminum honeycomb structure in the middle. The honeycomb structure is known to be lightweight while enhance the rigidity of panels in a large scale.
Specifications Of Aluminum Honeycomb Panel |
|
Aluminum Alloy
|
AA3003 H18, AA5052 H18 |
Panel Thickness |
4mm, 8mm, 10mm, 15mm, 25mm,32mm Max 500mm |
Aluminum Skin Thickness
|
0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
Surface Coating: |
PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc
|
Width |
1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
Length |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
Honeycomb Core Thickness
|
0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.12mm |
Honeycomb Core Cell Size
|
Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m)
|
Honeycomb Core Cell Side Length |
Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
Edge Type |
Open Edge, Close Edge or customer's design
|
     Advantages
- light Weight
Sound&Heat Insulation
- 100% Fire Resistance
Moisture & Corrosion Resistance
Super Flatness & Rigidity
Easy Installation
100% Recyclable & Environmental Protection

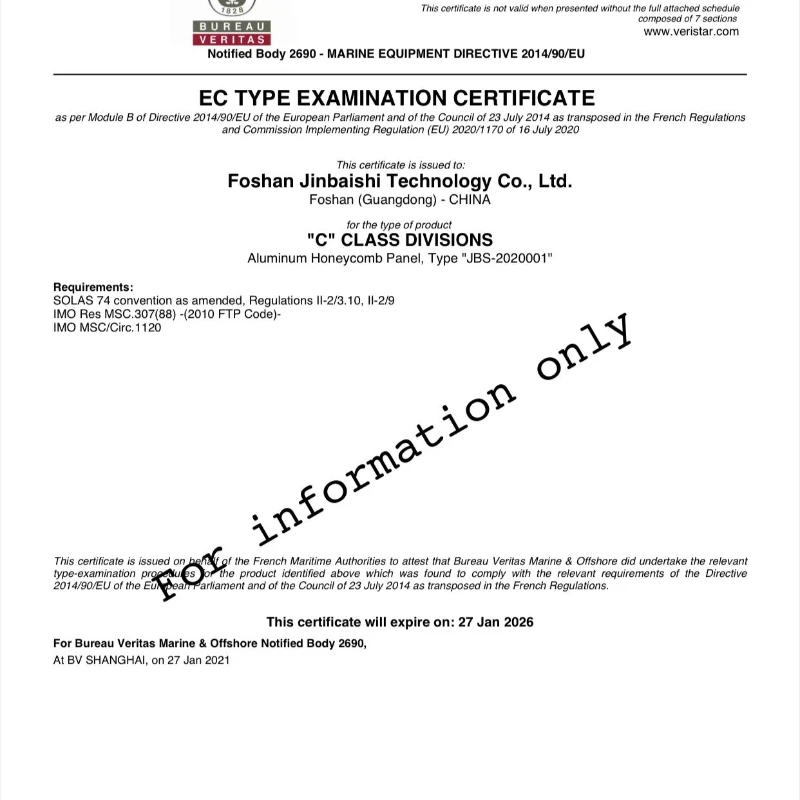

Our factory have the BV marine certificate for ship. Pls. contact : Lucent by whatsapp +8613503076132

|
