Products Description

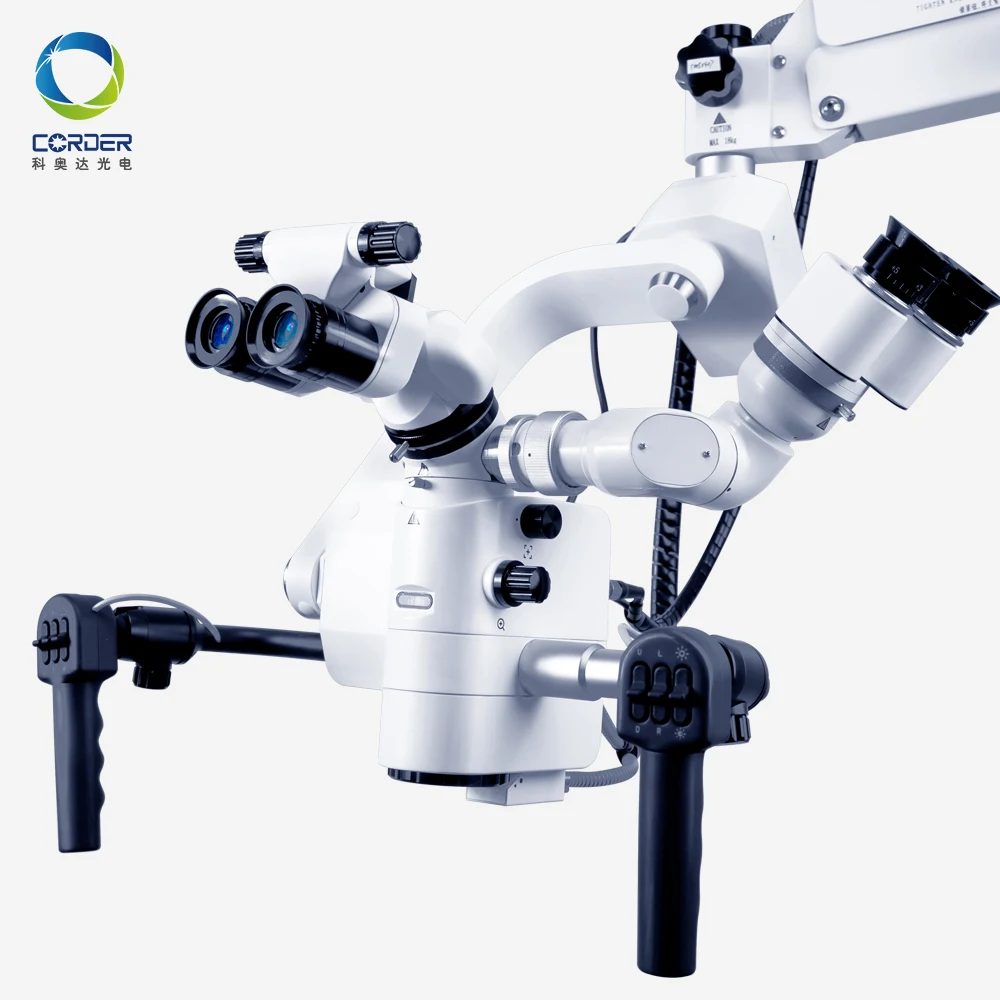

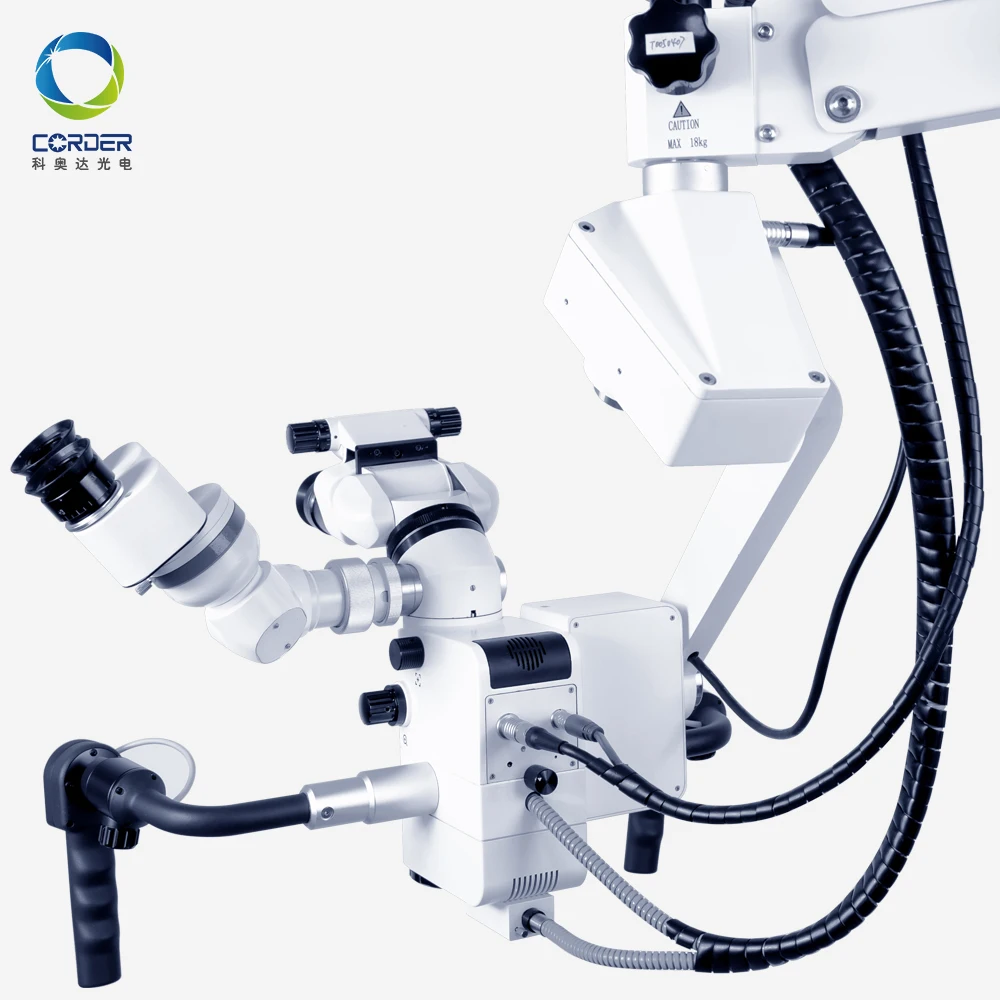

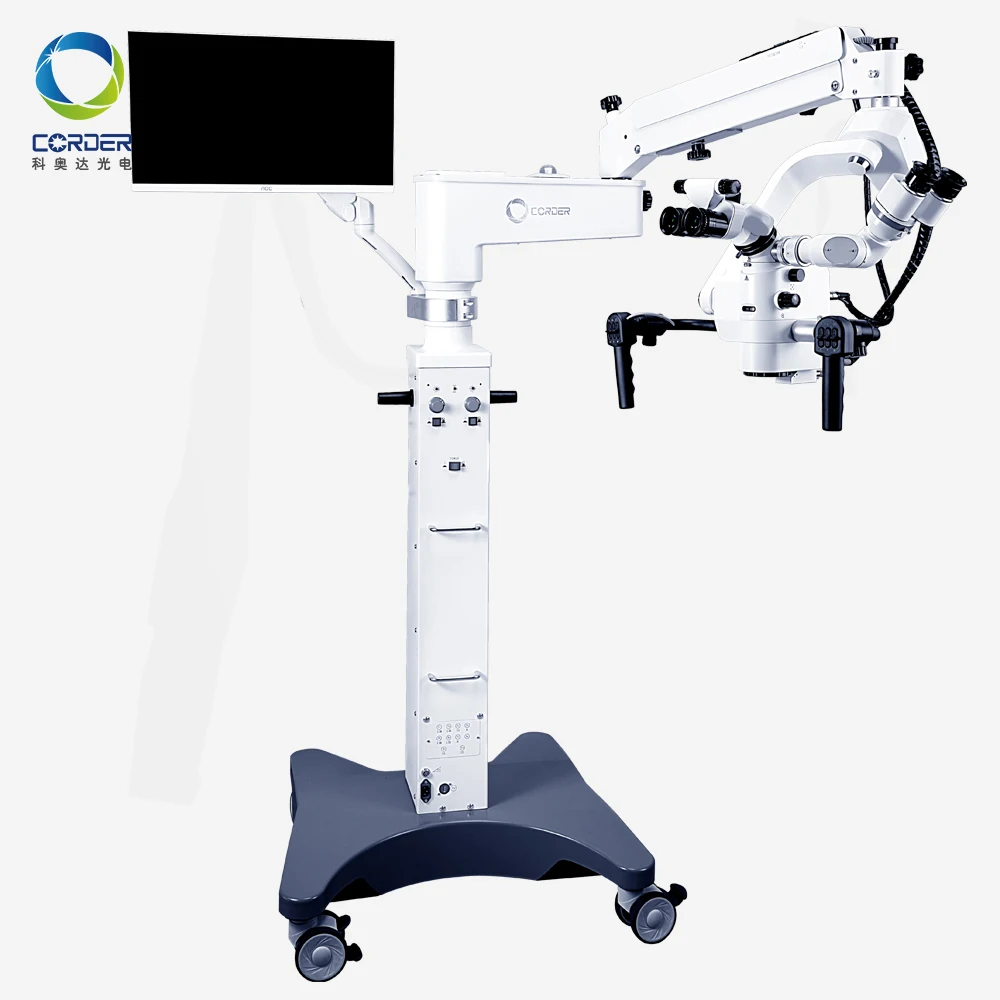

Multifunctional neurosurgical operating Autofocus microscope
Asom-5-d is a neurosurgical operating microscope. It also has the conditions for operating microscope operations in Ophthalmology, otolaryngology, orthopedics, dentistry and other departments. It is a multifunctional operating microscope instrument and equipment.
Asom-5 surgical microscope adopts high-resolution and high-definition optical system, with strong three-dimensional sense, large depth of field, cold light source, dual fiber coaxial lighting and good field brightness; Foot controlled automatic fine-tuning focus, electric continuous zoom, and has visual, TV, video, lighting and other functions; Luxury rack with complete functions is suitable for microsurgery and teaching demonstration in brain surgery, otolaryngology, dentistry, neurosurgery and so on.
Excellent microscope
According to the ergonomic design, the handle can control a variety of functions, and the microscope can adjust different angles according to the operation requirements, so that the doctor can operate more conveniently.
Electric amplification 1.8x-16x
Built in 100000 lux LED light source, halogen lamp as standby.

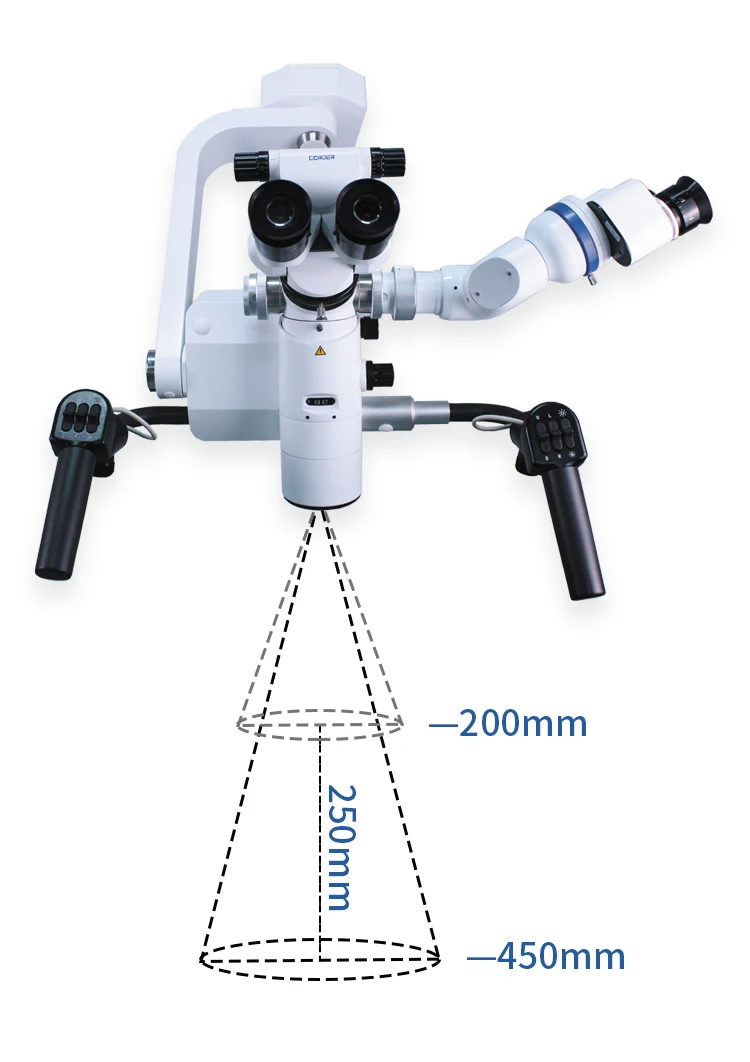

200-450mm zoom objective

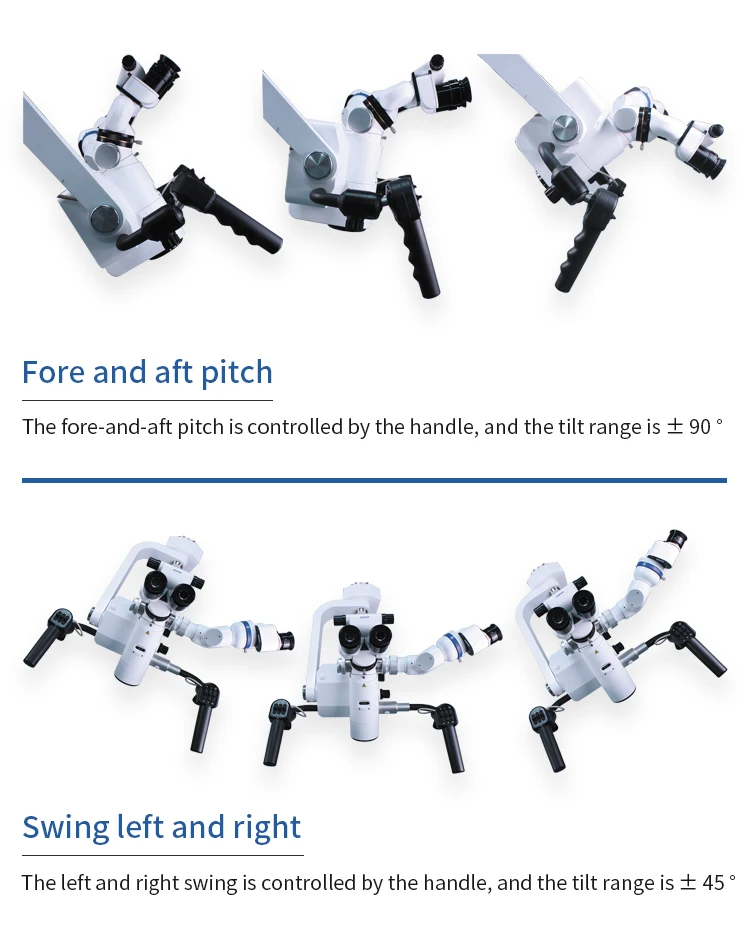

Automatic adjustment and locking of head, fore-and-aft tilt and left-right pendulum
Optional auto focus function
Optional built-in CCD camera control handle
LIGHTING SYSTEM
1. It adopts American ultra long-life medical LED white light source, with color temperature of 5500k, high color rendering index, brightness greater than 100000 lux, strong reduction degree and no fatigue after long-term use.
2. LED has low energy consumption and service life of up to 100000 hours.
3. The spare halogen bulb can be switched with LED, and can also be turned on at the same time, so as to make the light color softer and prevent long-term operation visual fatigue.

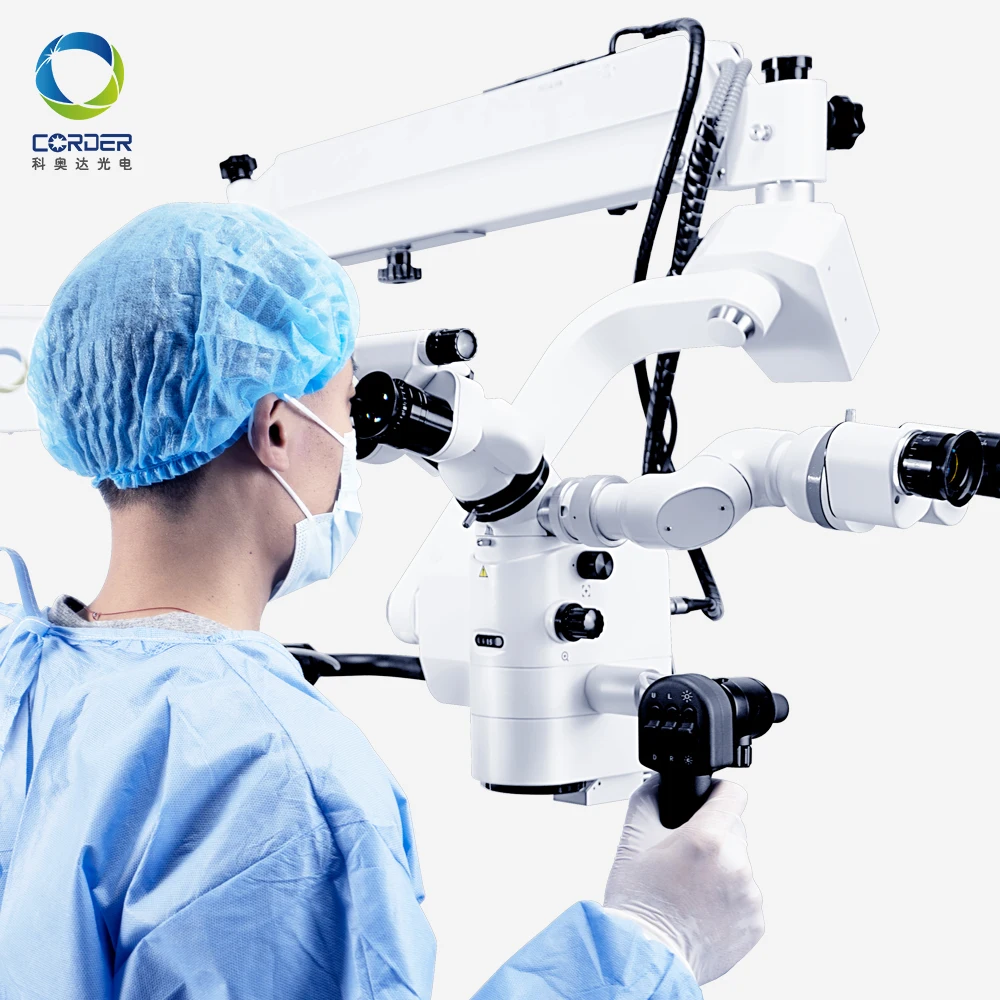

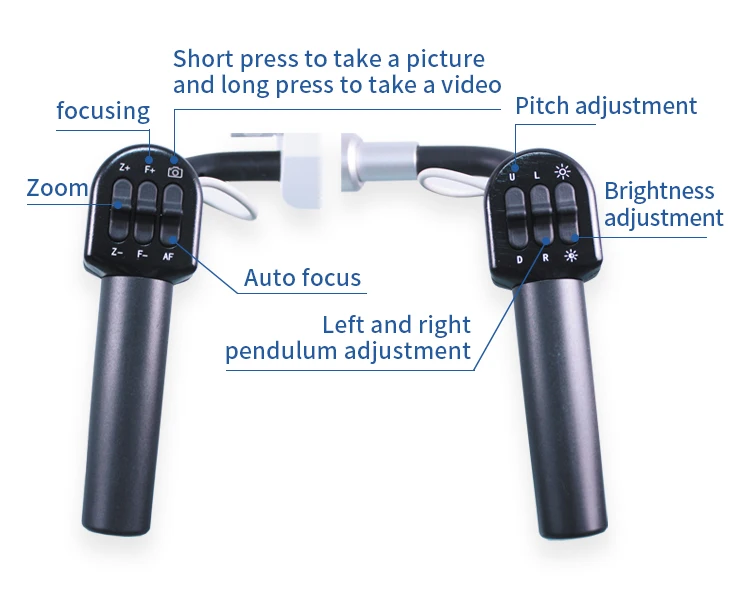

Multifunctional electric control handle
The multi-functional handle designed according to ergonomics can easily complete the operations of electric continuous zoom, electric continuous zoom, brightness adjustment, photographing and video recording.
In line with the engineering principle, it can ensure that clinicians can obtain the clinical sitting posture of ergonomics, and can effectively reduce and prevent the muscle strain of waist, neck and shoulder. So that clinicians can stay away from cervical spondylosis and lumbar spondylosis.

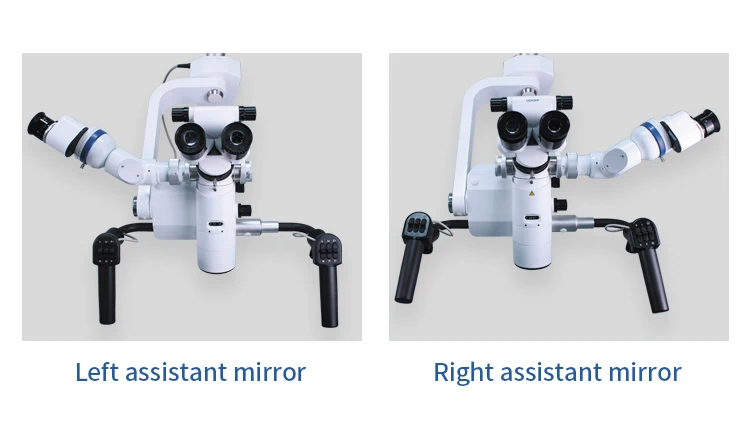

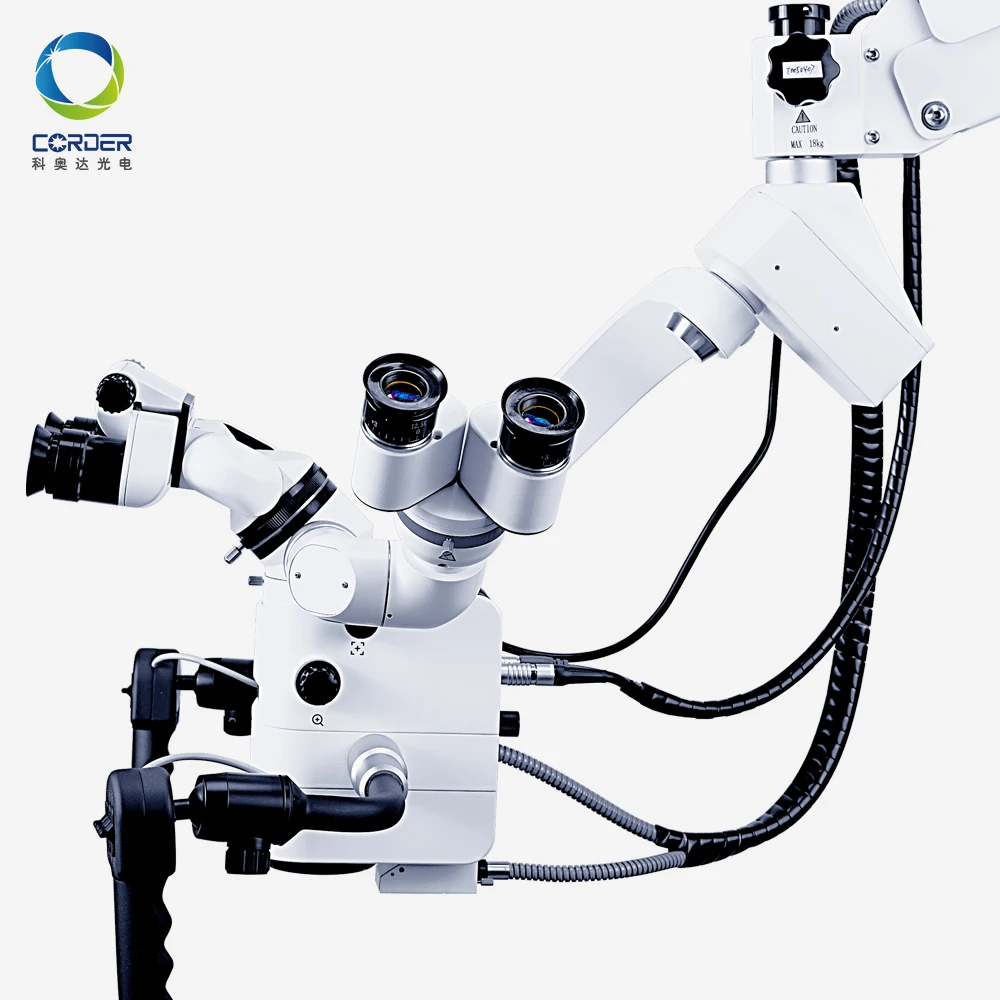

Auxiliary microscope position adjustable

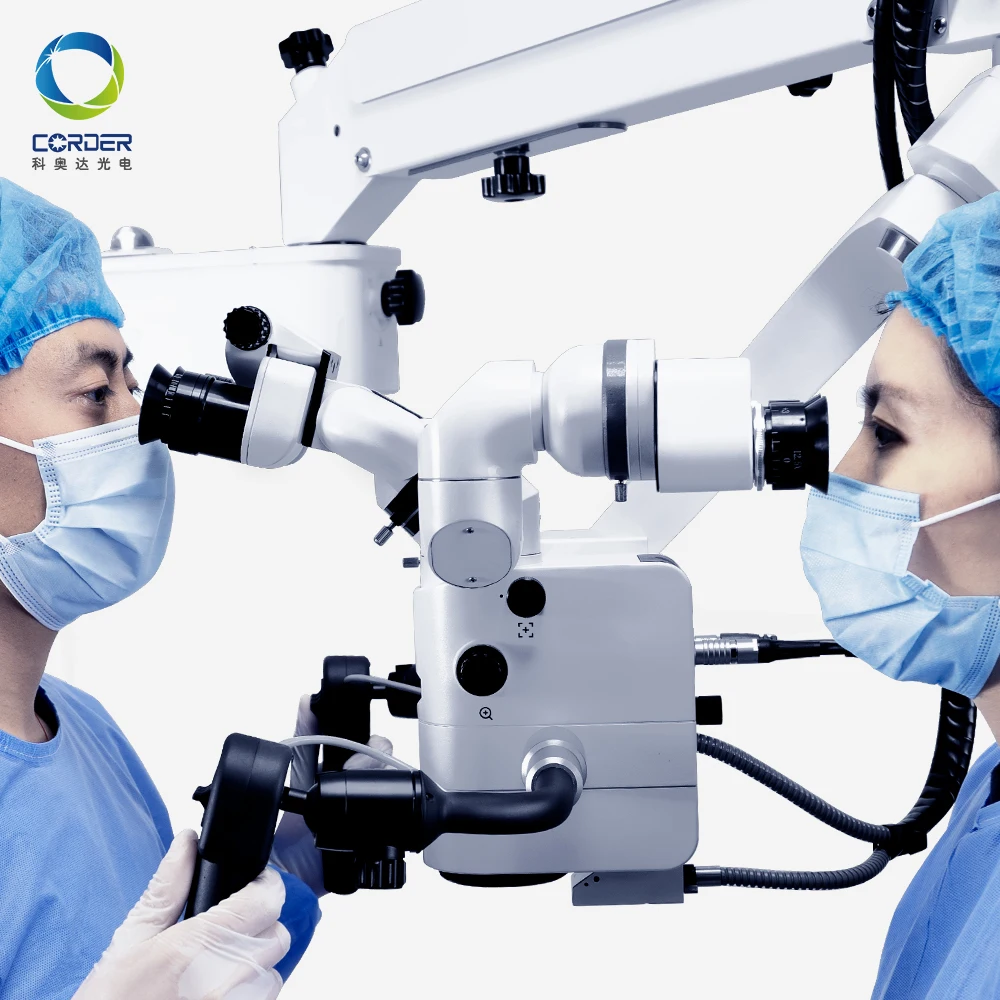

The assistant mirror position can change the left and right positions according to the needs of surgical operation, which can more conveniently cooperate with the leading physician for surgery.
Balance system
The angle of the microscope head can be adjusted freely according to the actual operation needs. The fixed angle can be easily selected through the handle control button, making the doctor easier in the operation process.
Product Paramenters
Product model | ASOM-5-D |
Function | neurosurgery |
Eyepiece | The magnification is 12.5 times, the adjustment range of pupil distance is 55mm ~ 75mm, and the adjustment range of diopter is + 6D ~ - 6D |

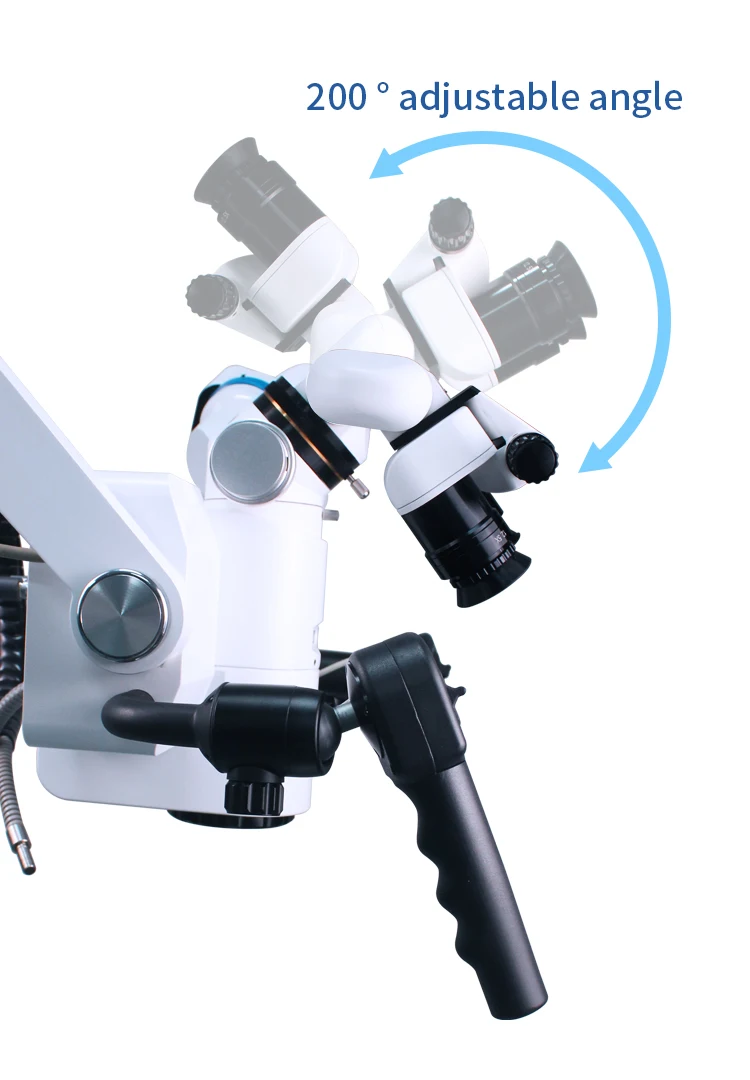

Binocular tube | 0 ° ~ 200 ° variable inclination main knife observation, pupil distance adjustment knob |
Magnification | 6:1 zoom, motorized continuous, magnification 1.8x~21x; field of view Φ7.4~Φ111mm |
Coaxial assistant’s binocular tube | Free-rotatable assistant stereoscope, all direction circumvolve freely, magnification 3x~16x; field of view Φ74~Φ12mm |
Illumination | 80w LED lifetime more than 80000 hours , illumination intensity＞100000lux |
Focusing | Motorized 200-450mm |
X-Y swing | The head can swing in X direction +/-45 °motorized, and in Y direction +90°,and can stop in any angle |

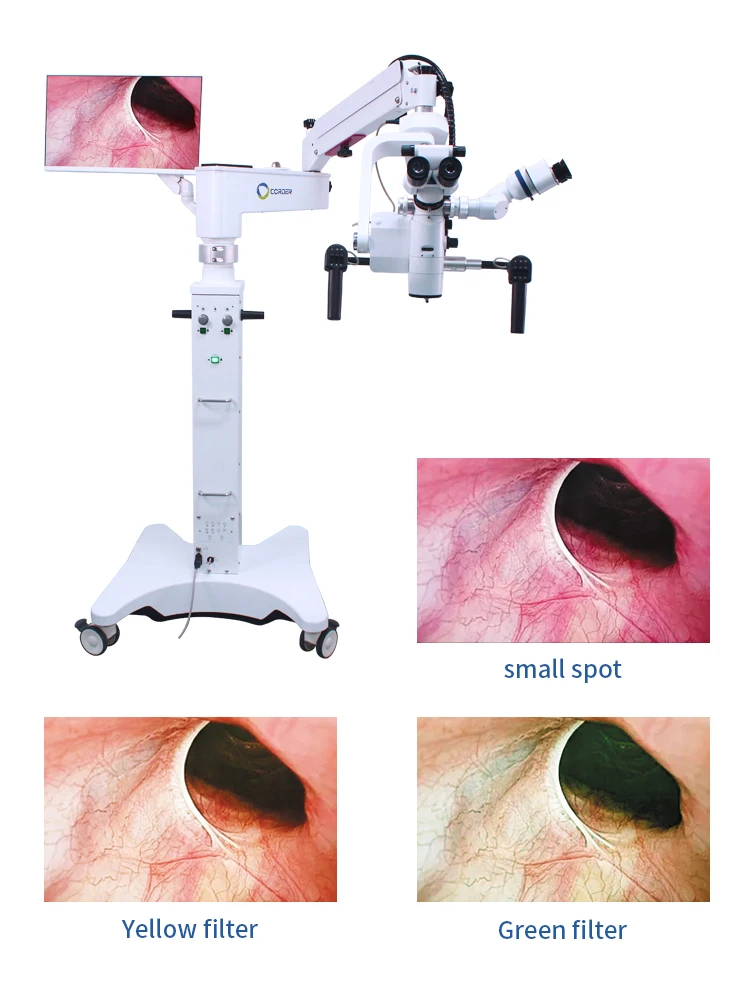

Filiter | Yellow filter, green filter and ordinary filter |
Maximum length of arm | Maximum extension radius 1380mm |
New stand | swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm |
Handle controller | 10 functions (zoom, focusing, X-Y swing, take vedio/photo,browse pictures ) |
Optional function | Autofocus, built-in CCD image system |
Weight | 169kg |
Company Profile
Company Profile
Chengdu Corder Optics and Electronics Co., Ltd. is one of the subsidiary companies of Optoelectronic Technology Research Institute of Chinese Academy of Sciences (CAS).
Our company's main products include ASOM operation microscopes, LX slit lamp microscopes, spotting scopes, bio-chip detectors, photoetching machines, retinal self-adaption optics imaging systems and other optical-electronical equipment. Products have passed the ISO 9001:2000 and ISO 13485:2003 Quality Management System Certifications. We are the leading manufacturer of surgical microscopes in China, and we can accept cooperation by OEM, and provide import-export and other services too. Now Corder's products have been sold all over China and have been exported to several foreign countries, such as the Middle East, Europe, the United States, etc. The brand "CORDER" has became a well-known brand in domestic optical-electronical industry in China.
Chengdu Corder Optics and Electronics Co., Ltd. is a governmental company. We are the first manufacturer who produces operation microscopes in China. We have begun to produce ASOM operation microscopes since 1970s. And from 1991, we began to manufacture other optical-electronical products, such as spotting scope and photoetching machines. And now you can find optical-electronical products made by CORDER all over the world.
Our company's main products include ASOM operation microscopes, LX slit lamp microscopes, spotting scopes, bio-chip detectors, photoetching machines, retinal self-adaption optics imaging systems and other optical-electronical equipment. Products have passed the ISO 9001:2000 and ISO 13485:2003 Quality Management System Certifications. We are the leading manufacturer of surgical microscopes in China, and we can accept cooperation by OEM, and provide import-export and other services too. Now Corder's products have been sold all over China and have been exported to several foreign countries, such as the Middle East, Europe, the United States, etc. The brand "CORDER" has became a well-known brand in domestic optical-electronical industry in China.
Chengdu Corder Optics and Electronics Co., Ltd. is a governmental company. We are the first manufacturer who produces operation microscopes in China. We have begun to produce ASOM operation microscopes since 1970s. And from 1991, we began to manufacture other optical-electronical products, such as spotting scope and photoetching machines. And now you can find optical-electronical products made by CORDER all over the world.
Our goal is to be a global market leader in life science and medical microscopy products with the highest price-to-performance ratio.
reflected through product innovations.
Careful synchronization of design, engineering, and production processes to ensure that our vision of flawless functionality is realized from beginning to end.
Thoughtful execution of quality control and product support to our network of faithful distributors so that our customers realize supreme value in owning a Corder microscope.
Careful synchronization of design, engineering, and production processes to ensure that our vision of flawless functionality is realized from beginning to end.
Thoughtful execution of quality control and product support to our network of faithful distributors so that our customers realize supreme value in owning a Corder microscope.
Captures the essence of optical and mechanical perfection.
With the clarity of vision to respond to evolving needs in modern microscopy, Corder was founded on its unique abilities to deliver high precision microscopes and optical instruments. From design concepts to finished products, the Corder brand captures the essence of optical and mechanical perfection.
MANUFACTURING TECHNIQUE
Optical wool glass is made from a patented raw material formulation
30 production processes are completed by hand
60 quality control checks by experienced technicians to ensure consistent quality
Obtain durable high quality optical glass.
We have more than 30 years experience of QC team and strictly quality control system in our production process.
