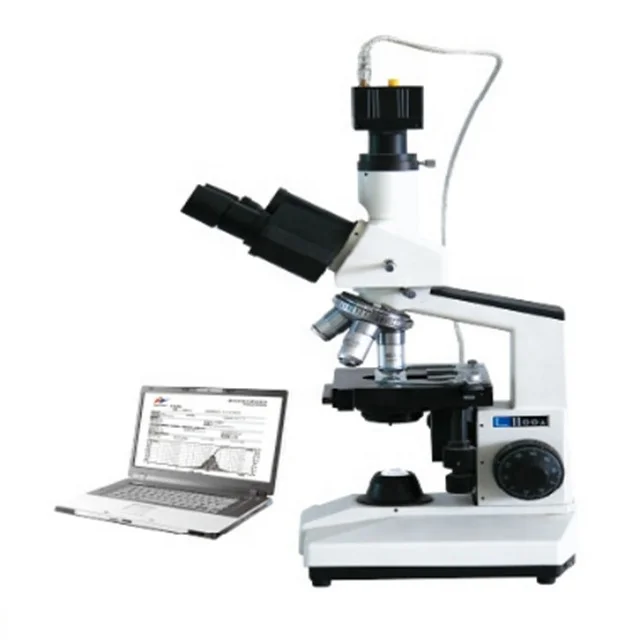

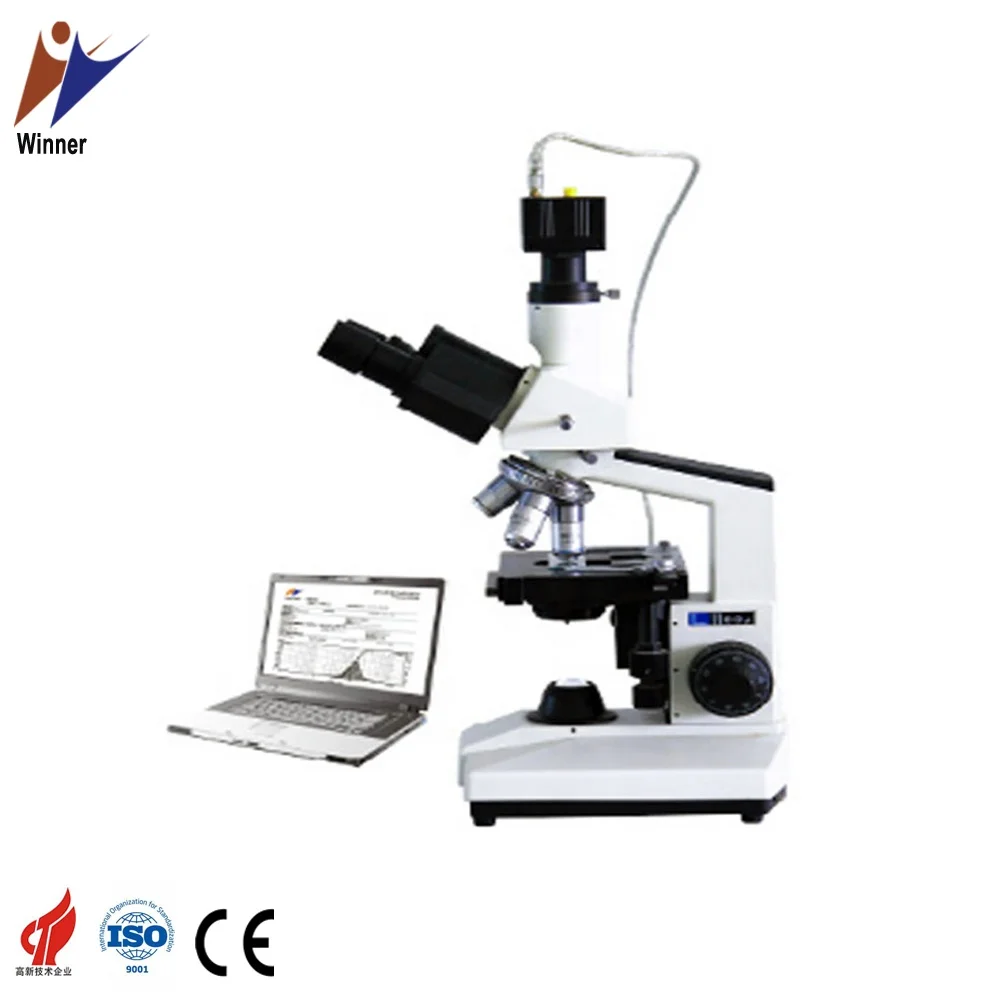

Particle image analyzer Winner99E for static automatic data analysis
- Category: >>>
- Supplier: Jinan Winner Particle Instrument Stock Co. Ltd.
Share on (1600900008012):
Product Overview
Description

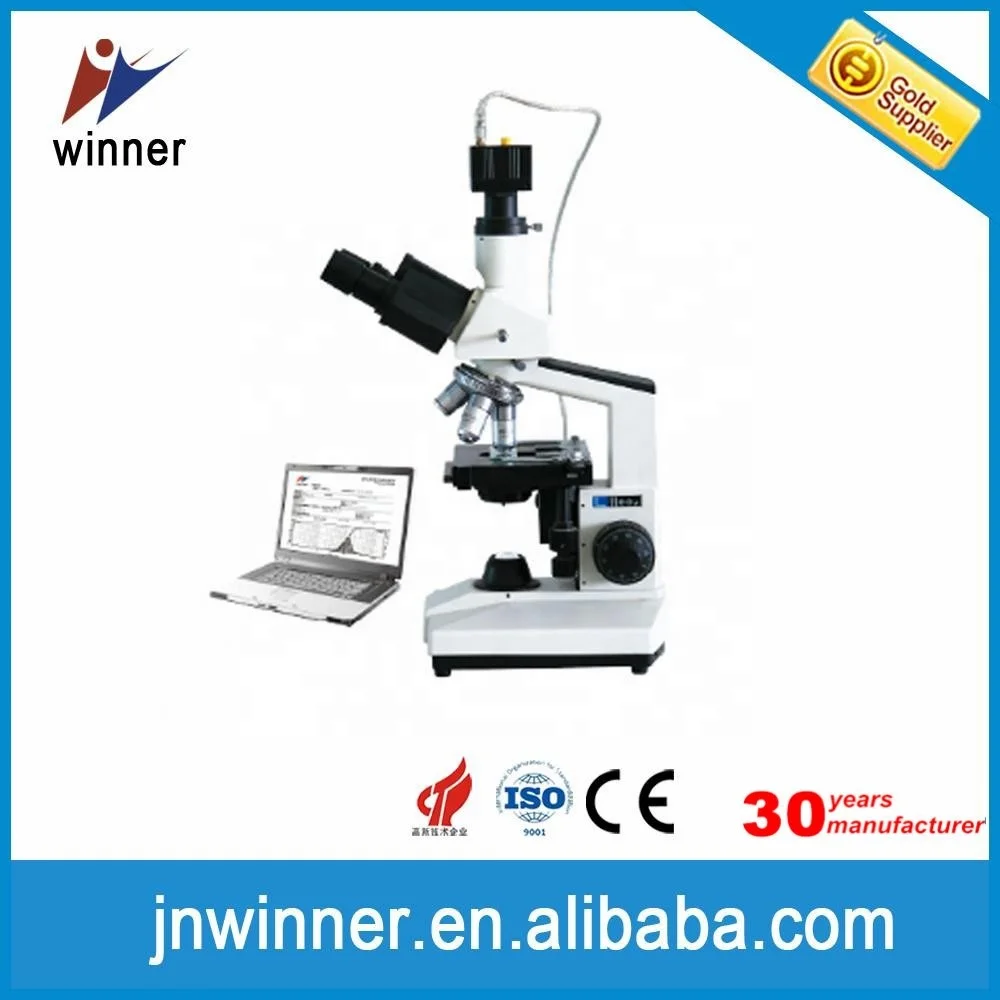

Winner 99E Introduction Of Static Image Particle Size Analyzer
Products Description
Winner99E is a special instrument for particle size distribution and particle shape analysis. The instrument through well-designed professional-grade optical microscope and camera to obtain particles information; using a computer image analysis technology to analyze and process, thereby determining the particle size distribution and particle morphology. The instrument is easy to operate, the image is clear, intuitive measurement resolution is up to 0.1 micron / pixel, wide measuring range etc. outstanding features, It can be widely used in new product research and development, technology control and quality inspection of universities, research institutes and enterprises.
Specification
Model | Winner99E | ||||||
Standard | ISO13322-1: 2004; GB/T21649.1-2008 | ||||||
Size Range | 1-3000 μm(customized) | ||||||
Maximum Resolution | 0.1 micron | ||||||
Repeatability | <3%(error due to sample not considered) | ||||||
Digital camera(CCD) | 3 million pixels | ||||||
Ruler Scale | 3.2*3.2um | ||||||
Segmentation Speed | <1 second | ||||||
Segmentation Success rate | >98% | ||||||
Operation system | Win XP/Win7 | ||||||
Connection Port | USB | ||||||
Microscope system | Microscope | Domestic biological microscope, (Japan Olympus is available) | |||||
Max amplification | 4000 | ||||||
Static collection | Take the sample morphology into high resolution JPG image | ||||||
Image Processing | a variety of drawing tools | ||||||
Image stitching | The multiple picture Stitching seamless, get more number of particles in the particle esting in order to improve test representation. But also can stitching accuracy after save a single analysis, to further improve the result accuracy. | ||||||
Particles automatic processing tool-set | Automatic elimination of particle adhesion, noise point, boundaries incomplete particles, Automatically fill the hollow area and automatic smooth grain boundaries, etc. 12 automatic processing tools. | ||||||
Scale Calibration | After the adoption of national standards calibrated micrometer, simply select each test scale corresponds with the objective value can directly get the actual size of the value of the particles. | ||||||
Single particle photo data | Cross-sectional area, volume, aspect ratio etc. 10 specification | ||||||
characteristic parameter | D10、D50、D90、D100 etc. | ||||||
Overall frequency distribution cumulative distribution | The frequency of particles by number, volume, area and other distribution Distribution and cumulative distribution of data tables, graphs, bar charts, and so on. | ||||||
Statistical average diameter | Xnl、Xns、Xnv、Xls、Xlv、Xsv etc. | ||||||
Shape parameters | L/D ratio, Aspect ratio, a huge rate, sphericity, surface ratio, specific surface area, circumscribed rectangle parameters etc. | ||||||
Number statistics | Number of particles directly observed | ||||||
product details:
Winner99E is an upgraded version of Winner99C and winner99D products used have higher resolution,high speed CMOS camera and full new automatic analysis algorithms to improve the accuracy rate of automated analysis, and can be freely generate color and Binarization particle size analysis report . Meanwhile, the instrument increases two manual binarization algorithm of the boundary detection and equalization, greatly reducing the dynamic binarization error and complexity, to improve the accuracy of the analysis.
Main Features:
1. Software support
powerful automatic analysis function, simple to operate equalization and boundary detection and other Binarization methods, greatly improves the data processing and analysis capabilities. It reduces the complexity of user operation, improve the equipment convenience and resolution.
powerful automatic analysis function, simple to operate equalization and boundary detection and other Binarization methods, greatly improves the data processing and analysis capabilities. It reduces the complexity of user operation, improve the equipment convenience and resolution.
2.Intuitive test results

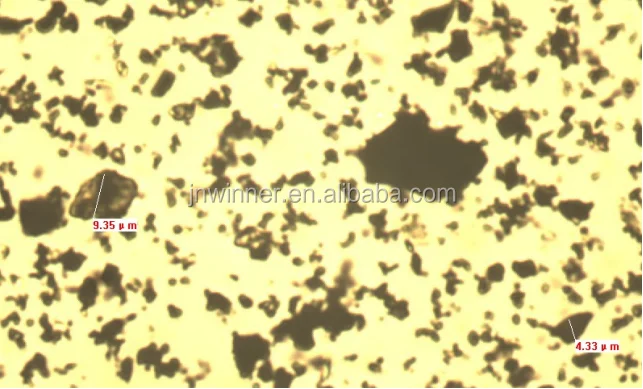

It enables users to more comprehensive understanding of the morphology of particles, status, process changes and other information when testing particles. Also, intuitive sample pictures could help users better understand the meaning of the data in the report.
It enables users to more comprehensive understanding of the morphology of particles, status, process changes and other information when testing particles. Also, intuitive sample pictures could help users better understand the meaning of the data in the report.
3. Image stitching
The multiple picture Stitching seamless, get more number of particles in the particle testing in order to improve test representation. But also can stitching accuracy after save a single analysis, to further improve the result accuracy.
4.Particles automatic processing tool-set
Automatic elimination of particle adhesion, automatically eliminate noise, automatically eliminate boundaries incomplete particles, the particles automatically fill the hollow area, automatic smooth grain boundaries, etc. 12 automatic processing tools.
The multiple picture Stitching seamless, get more number of particles in the particle testing in order to improve test representation. But also can stitching accuracy after save a single analysis, to further improve the result accuracy.
4.Particles automatic processing tool-set
Automatic elimination of particle adhesion, automatically eliminate noise, automatically eliminate boundaries incomplete particles, the particles automatically fill the hollow area, automatic smooth grain boundaries, etc. 12 automatic processing tools.
Structural features:

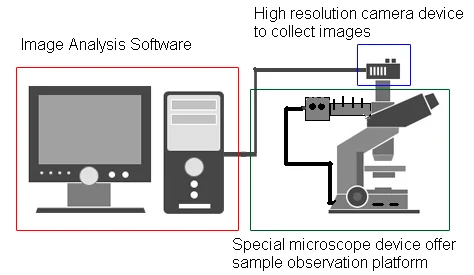

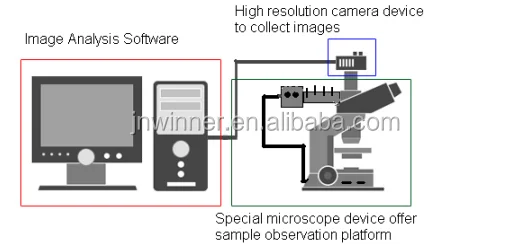

Winner 99E standard three most microscopic particle image analyzer system is composed of special microscope equipment, high-definition camera device and image analysis software.
Winner 99E standard three most microscopic particle image analyzer system is composed of special microscope equipment, high-definition camera device and image analysis software.
Computer is not included in the standard accessories
Application
Winner 99E static particle image analyzer used in cement, ceramics, pharmaceuticals, paints, dyes, pigments, fillers, chemical products, catalysts, coal, sediment, dust, flour, food additives, pesticides, explosives, graphite, photographic materials, fuel , metal and non-metal powder, calcium carbonate, kaolin and other powder industry.
After sale service:
1. We will send our technician to install the laser particle size analyzer if customer need.( operation demo video CD will be
offered also.) 2. Offer free-training service.
3. The quality assurance date is 1 year since finishing payment, Technology support in all a life. And after that, we will collect
the cost if provide repair accessories.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
offered also.) 2. Offer free-training service.
3. The quality assurance date is 1 year since finishing payment, Technology support in all a life. And after that, we will collect
the cost if provide repair accessories.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.

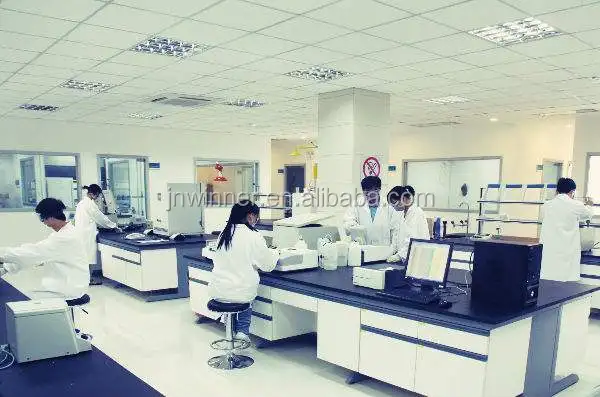

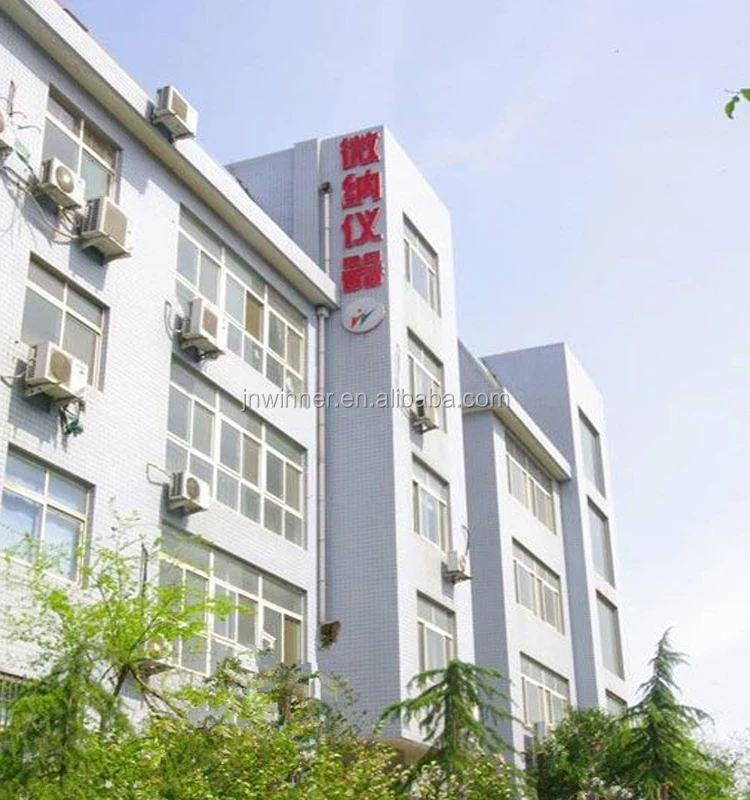

Company Profile
Jinan Winner Particle Instrument Co., Ltd. have have been specialized in particle size analyzer for more than 30 years, since we undertake National Science Project-particle size analyzer development in 1985. We are the 1st manufacturer to produce Nano-particle size analyzer in China! Our particle size analyzer will enable you understand materials well, and save your time and cost. Reliable data enables scientists, researchers and engineers to evolve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality, and optimize output. By now, We have Laser Particle size analyzer, Image particle size analyzer, Spray particle size analyzer, particles counter and Nano-particles size analyzer and so on. We are dedicated to offer you the best particle size analysis solution. Your satisfaction is our eternal target!
Product packaging
Winner particle testing equipment is Wooden box package.
We would ship machine by DHL, FeDex, China express, by sea and by air.
We would ship machine by DHL, FeDex, China express, by sea and by air.
Certifications

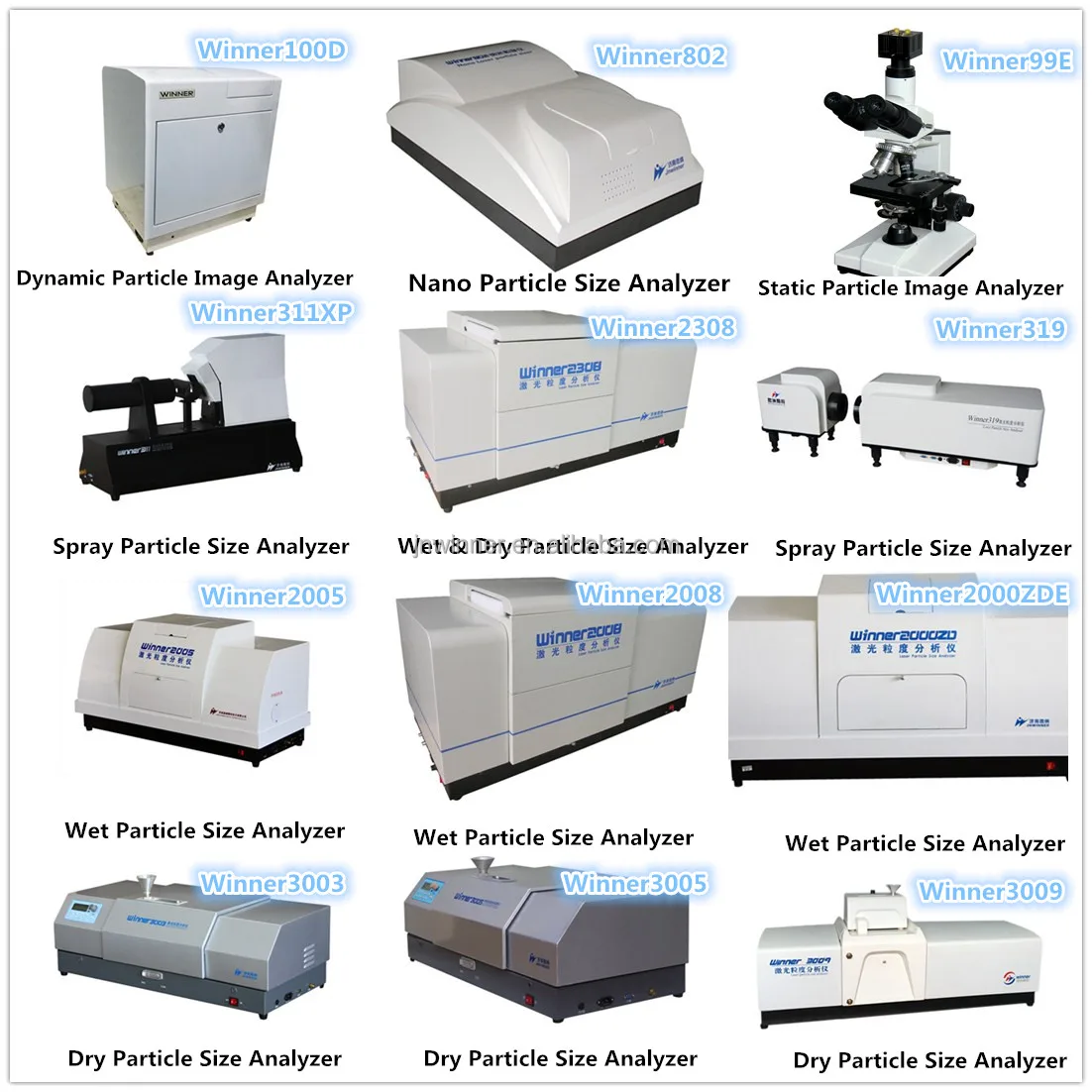

Recommend Products
Exhibition
FAQ
Purchase laser particle size analyzer need know points:
(1) What materials need test?
If suspension/emulsion, must choose liquid dispersion particle size analyzer, and some materials are also reacted with water, so need liquid dispersion particle size analyzer also. Generally, cement, metal powders and pharamcy materials need dry dispersion model particle size analzyer.
(2) What size range need test?
By now, Based on MIE scattering, laser particle size analyzer can test the particle range is 0.01um-2000um.
If materials range is not so wide, for example, 10um-20um, smaller range of particle size distributon choose closer range model will be preciser, no need to buy large range model.
(3) What is dispersion media?
For liquid model, in order that sample can disperse well and circualte in the laser particle size analyzer, generally we need use water, alochol or organic solvent as dispersion media.For dry dispersion model, just use compressed air as dispersion media.In the current market, Dry laser particle size analyzer cost is higher than liquid dispersion models, so if can test well, liquid model is better.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
(1) What materials need test?
If suspension/emulsion, must choose liquid dispersion particle size analyzer, and some materials are also reacted with water, so need liquid dispersion particle size analyzer also. Generally, cement, metal powders and pharamcy materials need dry dispersion model particle size analzyer.
(2) What size range need test?
By now, Based on MIE scattering, laser particle size analyzer can test the particle range is 0.01um-2000um.
If materials range is not so wide, for example, 10um-20um, smaller range of particle size distributon choose closer range model will be preciser, no need to buy large range model.
(3) What is dispersion media?
For liquid model, in order that sample can disperse well and circualte in the laser particle size analyzer, generally we need use water, alochol or organic solvent as dispersion media.For dry dispersion model, just use compressed air as dispersion media.In the current market, Dry laser particle size analyzer cost is higher than liquid dispersion models, so if can test well, liquid model is better.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
