Product Overview
Description
Products Description
Fabric preshrinking setting machine Main functions：
1.Steam humidification and heating
2.Drying is mainly by steam heating, electric heating is auxiliary.
Not only for save energy but also meet the temperature requirements of different fabric.
but also meet the temperature requirements of different fabric.
3.Adopt strong cooling device, quickly cooling fabric, stabilize fabric size.
4.Vibration function allow the fiber to be fluffy naturally.
5.Spreading fabric、 Measurement, folding fabric、Automatic edge alignment function.
6.Steam temperature can be adjustment.
7.Automatic mesh belt feeding cloth device.
fabric preshrinking setting machine Product description:
HW-DXG4600 : Suitable for
Special for cotton and linen weaving fabric, cotton and linen chemical fabric, woolen fabric and other fabric with strong water-absorbing.Knit and woven , a variety of general fabric. Especially suitable for silk, wool, linen .
2.Drying is mainly by steam heating, electric heating is auxiliary.
Not only for save energy but also meet the temperature requirements of different fabric.
but also meet the temperature requirements of different fabric.
3.Adopt strong cooling device, quickly cooling fabric, stabilize fabric size.
4.Vibration function allow the fiber to be fluffy naturally.
5.Spreading fabric、 Measurement, folding fabric、Automatic edge alignment function.
6.Steam temperature can be adjustment.
7.Automatic mesh belt feeding cloth device.
fabric preshrinking setting machine Product description:
HW-DXG4600 : Suitable for
Special for cotton and linen weaving fabric, cotton and linen chemical fabric, woolen fabric and other fabric with strong water-absorbing.Knit and woven , a variety of general fabric. Especially suitable for silk, wool, linen .
fabric preshrinking setting machine of specification | ||||||||
Model | HW-DXG4600 | |||||||
Shrinkage width | 2200 mm | |||||||
Preshrink speed | 0-50 Y /min | |||||||
Steam consumption | 200kg/H | |||||||
Steam pressure | Max 6kg/Mpa | |||||||
Temperature control | 120℃-230℃ | |||||||
Operating voltage | 380V/50Hz | |||||||
Power | 36 kw | |||||||
Machine size | 4800*2680*1600 mm | |||||||
fabric preshrinking setting machine of main feature

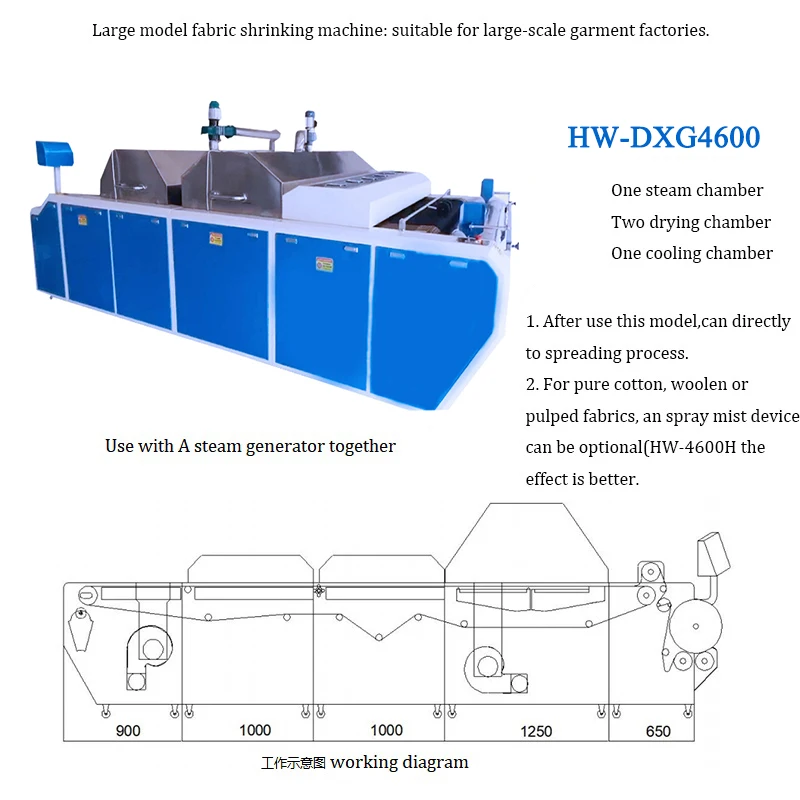

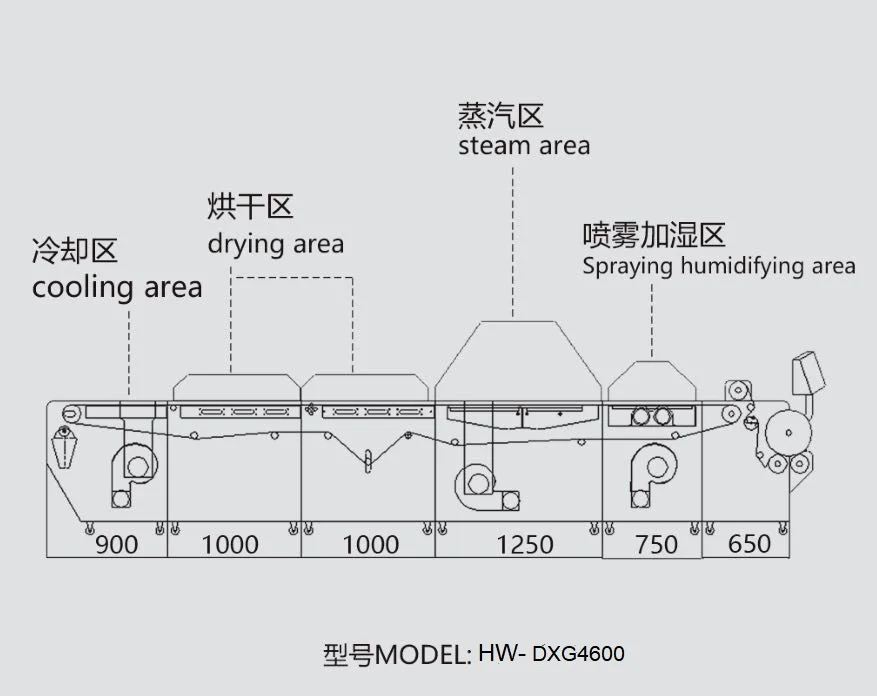

◎This machine is composed of three parts, the steam box shrinks and sets, the
drying box (drying sets), the cooling box (air-cooling sets) .
◎Three inverters are controlled to protect the motor from overload and overvoltage, variable frequency speed regulation, 0 to 60 meters per minute.
◎Automatic cloth feeding device: let the cloth and the conveyor belt maintain a certain vertical arc, so that the cloth can be conveyed in a tension-free state, preventing the fabric from elongating and deforming .
◎Heating device: The upper and lower ends adopt electric heating and steam circulation, and
the all-aluminum mica heating sheet can replenish the temperature of the steam box twice, without dripping water, and the fabric is dry and soft.
◎Screw for combing and curling cloth device .
◎Infrared electronic eye sensor, stop when there is no cloth, when there is no fabric feeding in the back, the infrared electronic eye sensor will automatically stop,
◎ Equipped with a vibrating fabric device, it can effectively repair pinholes, trachoma, and twill.
◎The steam temperature can be adjusted according to the requirements of the fabric, the temperature can be adjusted from 125°C to 230°C, and the temperature can be replenished quickly.
◎Cooling device: It adopts a strong suction cooling system, which can completely cool and shape the fabric:
◎Suction hood device:absorb the residual steam in the humidification area to make the air in the workplace fresh:
◎Cloth unloading device: the cloth is folded into a piece of cloth through the swing frame, or the roller is rolled neatly:
◎Calculator: electronic codec to accurately measure cloth length and shrinkage;
◎Using microcomputer programming technology, visual man-machine interface, easy and convenient
operation.
*Steam box and drying box are all made of thickened aluminum bottom plate and 304 stainless steel box cover This machine is equipped with Teflon high temperature mesh belt, electric eye automatic correction, the advantages of Teflon material: high temperature resistance - the working temperature can reach 280 ℃. Low temperature resistance - has good mechanical toughness; even
if the temperature drops to -196°C, it can maintain an elongation of 5%. Corrosion resistance - inert to most chemicals and solvents, resistant to strong acids and alkalis, water and various organic solvents.
drying box (drying sets), the cooling box (air-cooling sets) .
◎Three inverters are controlled to protect the motor from overload and overvoltage, variable frequency speed regulation, 0 to 60 meters per minute.
◎Automatic cloth feeding device: let the cloth and the conveyor belt maintain a certain vertical arc, so that the cloth can be conveyed in a tension-free state, preventing the fabric from elongating and deforming .
◎Heating device: The upper and lower ends adopt electric heating and steam circulation, and
the all-aluminum mica heating sheet can replenish the temperature of the steam box twice, without dripping water, and the fabric is dry and soft.
◎Screw for combing and curling cloth device .
◎Infrared electronic eye sensor, stop when there is no cloth, when there is no fabric feeding in the back, the infrared electronic eye sensor will automatically stop,
◎ Equipped with a vibrating fabric device, it can effectively repair pinholes, trachoma, and twill.
◎The steam temperature can be adjusted according to the requirements of the fabric, the temperature can be adjusted from 125°C to 230°C, and the temperature can be replenished quickly.
◎Cooling device: It adopts a strong suction cooling system, which can completely cool and shape the fabric:
◎Suction hood device:absorb the residual steam in the humidification area to make the air in the workplace fresh:
◎Cloth unloading device: the cloth is folded into a piece of cloth through the swing frame, or the roller is rolled neatly:
◎Calculator: electronic codec to accurately measure cloth length and shrinkage;
◎Using microcomputer programming technology, visual man-machine interface, easy and convenient
operation.
*Steam box and drying box are all made of thickened aluminum bottom plate and 304 stainless steel box cover This machine is equipped with Teflon high temperature mesh belt, electric eye automatic correction, the advantages of Teflon material: high temperature resistance - the working temperature can reach 280 ℃. Low temperature resistance - has good mechanical toughness; even
if the temperature drops to -196°C, it can maintain an elongation of 5%. Corrosion resistance - inert to most chemicals and solvents, resistant to strong acids and alkalis, water and various organic solvents.
