Pneumatic Diaphragm Pump for Filter Press
- Category: >>>
- Supplier: Yuzhou Gejin Filter Equipment Co. Ltd.
Share on (1600900236256):
Product Overview
Description
Product Description

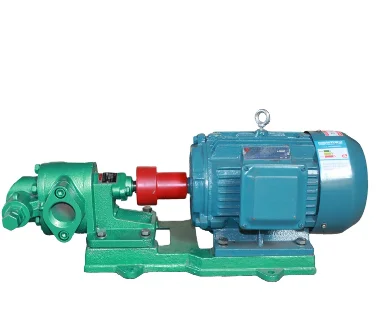

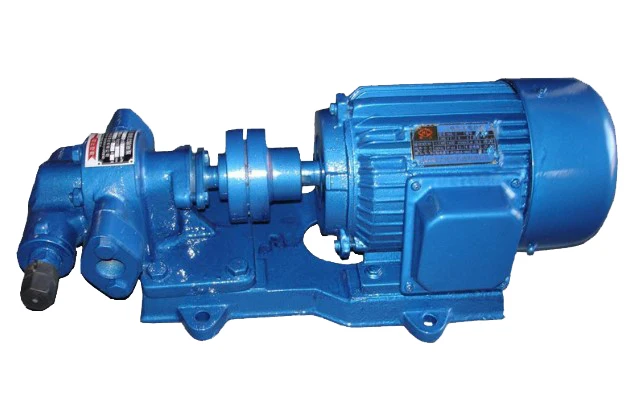

Oil pump
Introduction
Gear pumps are used to transport liquids with high viscosity, and should not transport liquids with low viscosity or liquids containing particulate impurities. It is generally used to transport various oils, such as crude oil, firewood fish, lubricating oil, animal and vegetable oil, etc.
Feature
1. The medium temperature shall not exceed 70 ° C
2. The operating temperature of the high-temperature resistant oil pump shall not exceed 300°C.
2. The operating temperature of the high-temperature resistant oil pump shall not exceed 300°C.
Parameter
Model | 2CY-1.08 | 2CY-2.1 | 2CY-3 | 2CY-4.2 | 2CY-7.5 | 2CY-12 | |||||
Flow （m³/h） | 1.05 | 2.1 | 3 | 4.2 | 7.5 | 12 | |||||
Pressure（Mpa） | 0.3-1.45 | ||||||||||
Power（Kw） | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | |||||

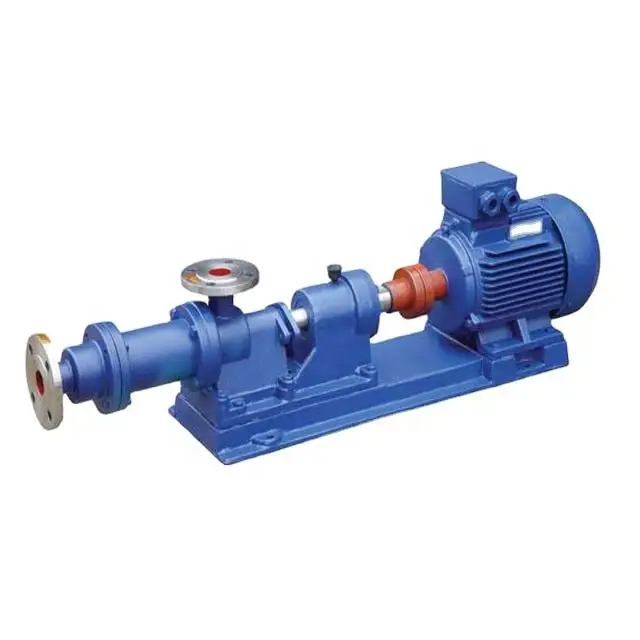

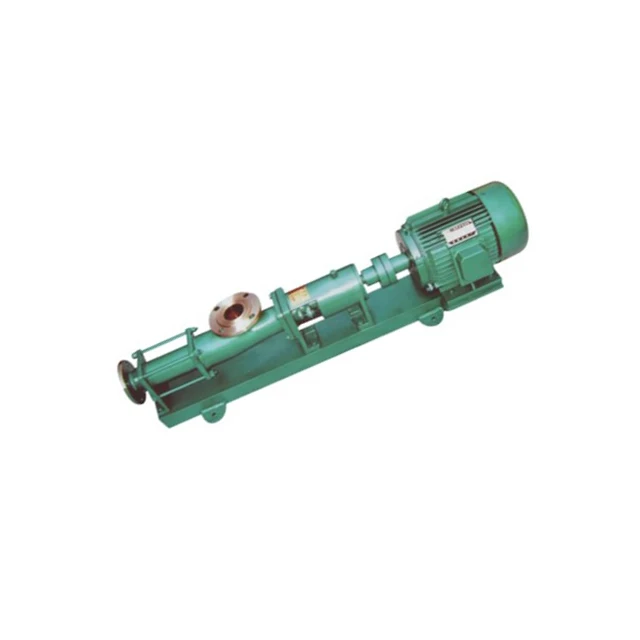

G type screw pump
Introduction
Type G Screw pump can transport high viscosity slurry, which is made of all stainless steel and shaft stainless steel. It is suitable for sewage sludge, medicine, chemical industry, food, printing and dyeing, electroplating water crossing, emulsion, brewing, paper making and other industries
Feature
1. Run plain weave and eliminate pressure stability
2. Working temperature: -20-150 ° C
2. Working temperature: -20-150 ° C
Parameter
Model | Flow（m³/h） | Pressure（Mpa） | Electrical machinery（Kw） | Lift (m） | Import（mm） | Export（mm） |
G25-1 | 2 | 0.6 | 1.5 | 60 | 32 | 25 |
G25-2 | 2 | 1.2 | 2.2 | 120 | 32 | 25 |
G30-1 | 5 | 0.6 | 3.0 | 60 | 50 | 40 |
G30-2 | 5 | 1.2 | 3.0 | 120 | 50 | 40 |
G35-1 | 8 | 0.6 | 4.0 | 60 | 65 | 50 |
G35-2 | 8 | 1.2 | 4.0 | 120 | 65 | 50 |
G40-1 | 12 | 0.6 | 5.5 | 60 | 80 | 65 |
G40-2 | 12 | 1.2 | 5.5 | 120 | 80 | 65 |
G50-1 | 20 | 0.6 | 5.5 | 60 | 100 | 80 |
G50-2 | 20 | 1.2 | 7.5 | 120 | 100 | 80 |
G60-1 | 30 | 0.6 | 11 | 60 | 125 | 100 |

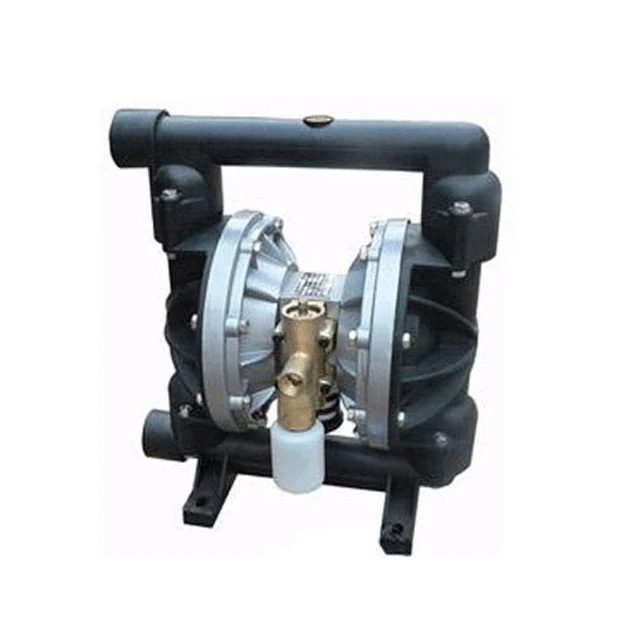

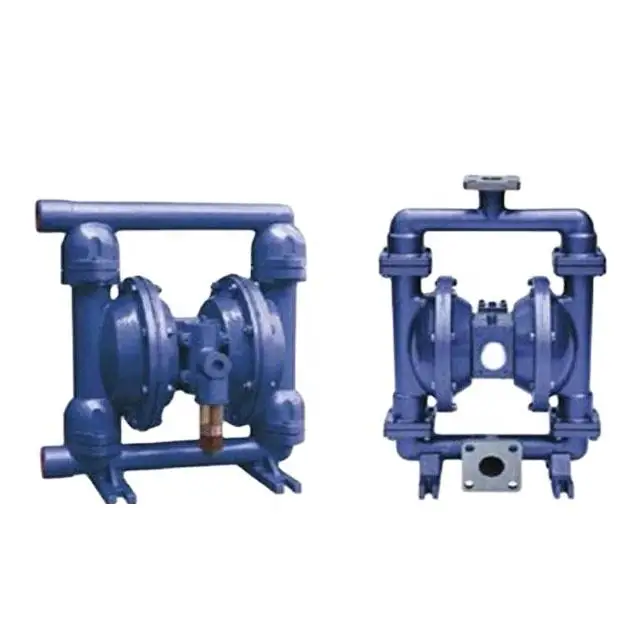

Pneumatic diaphragm pump
Introduction
QBY type pneumatic diaphragm pump can pump and absorb all kinds of corrosive liquids, such as liquids with particles, high viscosity, volatile, flammable, explosive, and highly toxic, ceramic glaze, jam, glue, oil recovery from tanker warehouses, and temporary tank pouring.
Feature
Using compressed air, steam, and industrial wastewater as power sources, with a suction head of 7m, a lift of 0-90m, and a flow rate of 0.8-40m ³/h.
Parameter
Model | Flow（m³/h） | Suction（m） | Lift（m） | Material particle size （mm） | Gas consumption（m³/min） |
QBY-10 | 0.8 | 5 | 10 / 90 | 1 | 0.3 |
QBY-15 | 1 | 5 | 1 | 0.3 | |
QBY-25 | 2.4 | 7 | 2.5 | 0.6 | |
QBY-40 | 8 | 4.5 | 0.8 | ||
QBY-50 | 12 | 8 | 1.5 | ||
QBY-65 | 16 | 10 | 1.8 | ||
QBY-80 | 24 | 10 | 2.2 | ||
QBY-100 | 30 | 10 | 2.7 |
Specification
item | value |
Customized support | OEM, ODM |
Place of Origin | China |
Application | District Energy, Industrial Utilities, Machining, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Washing and Cleaning, wastewater treatment, Water Distribution, Water Treatment Solutions |
Horsepower | 30hp |
Power Source | Electric |
Pressure | high pressure |
Structure | Multistage Pump |
Outlet Size | 6 Inch |
Voltage | 220V/380V |
Power | 22KW |
Usage | Sludge |
Product name | G Type Screw Pump |

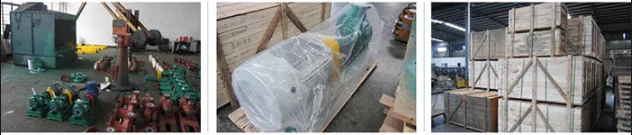

Packing & Delivery
wooden case suitable for Sea freight or as request
Company Profile
FAQ
1. who are we?
We are based in Henan, China, start from 2018,sell to Domestic Market(50.00%),Southeast Asia(20.00%),South Asia(15.00%),Africa(6.00%),Mid East(2.00%),South America(1.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Oceania(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Filter Press, Filters, Filter Plate and Filter Cloth, Filter Bag, Self Cleaning Filter
4. why should you buy from us not from other suppliers?
Yuzhou Gejin Filter Equipment Co., Ltd is an experienced filter equipment enterprise integrated with manufacturing, Research & Development, sales and international exporting. Our products had been successfully exported to many countries and regions.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2018,sell to Domestic Market(50.00%),Southeast Asia(20.00%),South Asia(15.00%),Africa(6.00%),Mid East(2.00%),South America(1.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Oceania(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Filter Press, Filters, Filter Plate and Filter Cloth, Filter Bag, Self Cleaning Filter
4. why should you buy from us not from other suppliers?
Yuzhou Gejin Filter Equipment Co., Ltd is an experienced filter equipment enterprise integrated with manufacturing, Research & Development, sales and international exporting. Our products had been successfully exported to many countries and regions.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
