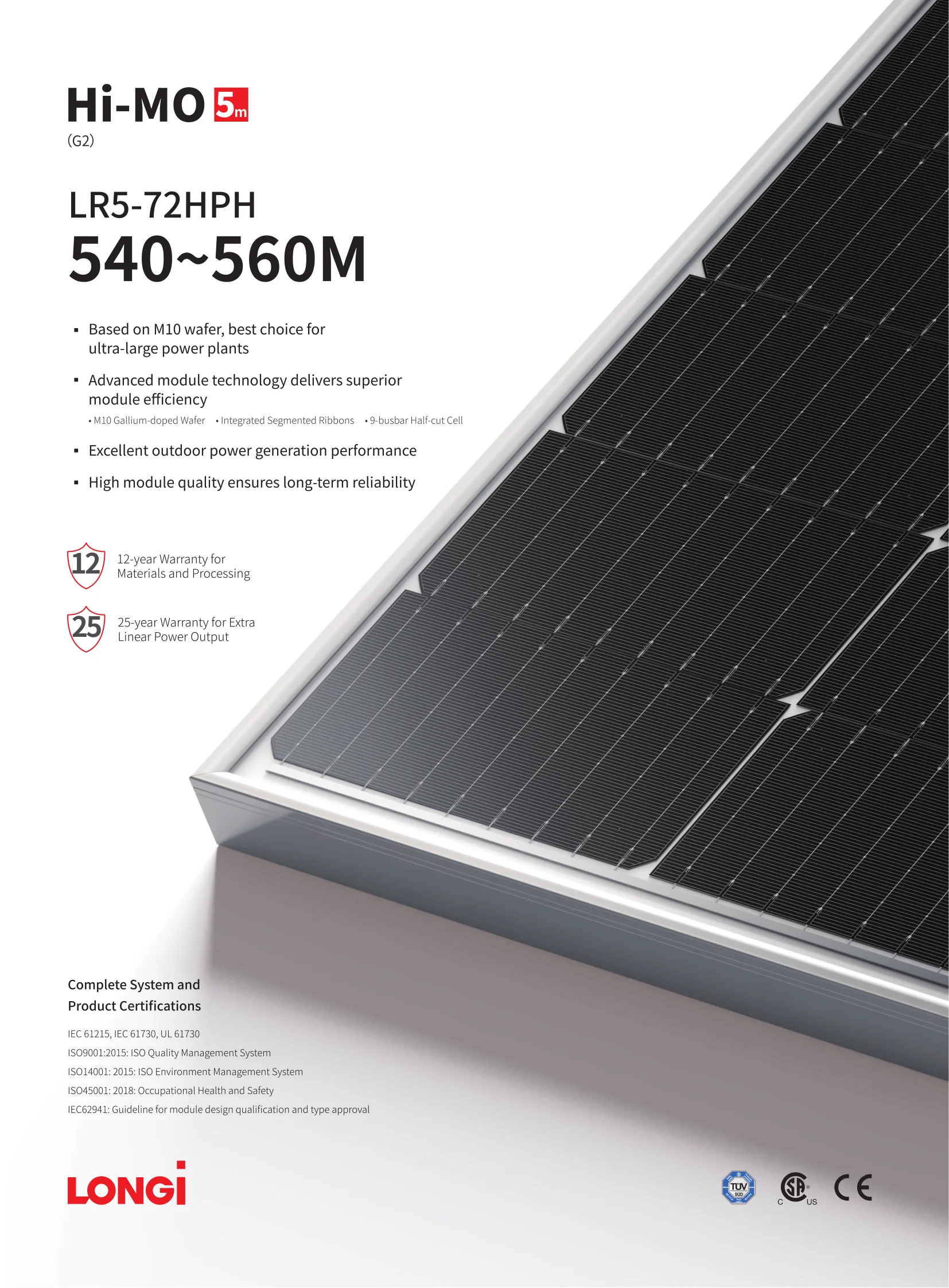

Module Type | LR5-72HPH-540M | LR5-72HPH-545M | LR5-72HPH-550M | LR5-72HPH-555M | LR5-72HPH-560M |
Maximum Powe (Pmax/W) | 540 | 545 | 550 | 555 | 560 |
Open Circuit Voltage (Voc/V) | 49.50 | 49.65 | 49.80 | 49.95 | 50.10 |
Short Circuit Current (lsc/A) | 13.85 | 13.92 | 13.98 | 14.04 | 14.10 |
Voltage at Maximum Power (Vmp/V) | 41.65 | 41.80 | 41.95 | 42.10 | 42.25 |
Current at Maximum Power (Imp/A) | 12.97 | 13.04 | 13.12 | 13.19 | 13.26 |
Module Efficiency(%} | 20.9 | 21.1 | 21.3 | 21.5 | 21.7 |
Temperature Rating(STC) | ||
Temperature Coefficient of Isc(α-jsc) | +0.050%/℃ | |
Temperature Coefficient of Voc(β_Voc) | -0.265%/℃ | |
Temperature Coefficient of Pmax(γ_Pmp) | -0.340%/℃ | |
