GLTech Inductively Coupled Plasma Mass Spectrometer automated open sampling structure machine for medical use

Product Overview

Description



GLTech Hot Industrial Use Hand Held X-Ray Portable spectrometer Alloy xrf Analyzer



         PRODUCT INTRODUCTION

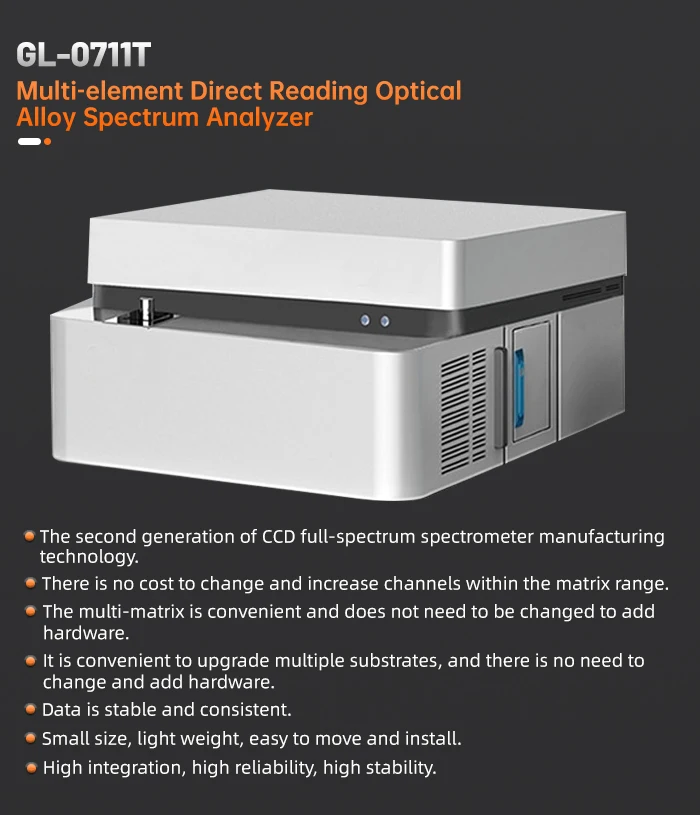

Multi-element direct reading optical alloy spectrum analyzer can determine trace carbon(C), phosphorus (P), sulfur(S) elementsand is suitable for a variety of metal matrices, such as:iron-based,aluminum-based, copper-based, nickel-based,chromium-based, titanium-based, magnesium-based, zinc-basedtin-based and lead-based.



optical system
Chamber temperature	Automatic control constant temperature: 35 ℃± 0.5 ℃
Wavelength range	160-800nm
Grating focal length	350nm
Grating reticle	3600 l/mm
First-order spectral line dispersion rate	1.2nm/mm
Detector	Multiple high-performance linear CCD
Average resolution	10pm/pixel
Gas	Argon flushing type
Argon flow	3-5 L/min in case of excitation, and no standby flow in case of standby
Electrode	Tungsten Spray Electrode Technology
Purging	Click the self purging function
Compensation	Thermal deformation self compensation design
Analyze clearance	Analytical clearance of sample table: 4mm
Type	HEPS digital solid-state light source
Frequency	100-1000Hz
Discharge current	1-80A
Special technology	Optimization design of discharge parameters
Precombustion	High energy precombustion technology
processor	High end ARM processor, high-speed data synchronous acquisition and processing
Interface	Ethernet Data Transmission Based on DM9000A
Input	220VAC 50Hz
Power	Maximum 700W during analysis, 40W in standby mode
Working temperature	10-30 ℃ (the temperature change within the temperature range is not more than 5 ℃/h)
Operating humidity	20-80%
Host size	800*750*500mm
Weight	120Kg

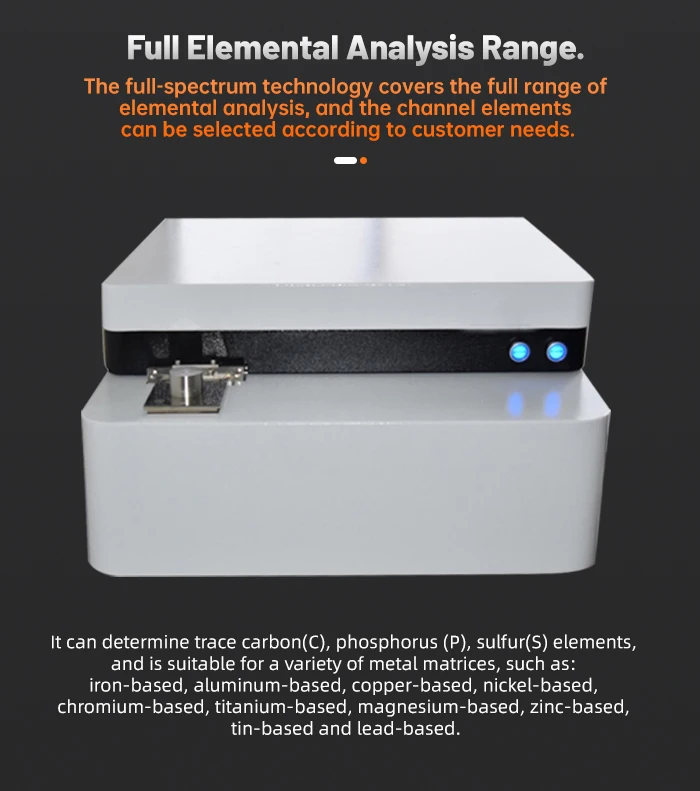

1. It can be used to determine trace carbon (C), phosphorus (P) and sulfur (S), and is applicable to various metal substrates, such as iron base, aluminum base, copper base, nickel base, chromium base, imperial base, magnesium base, zinc base, tin base and lead base. Full spectrum technology covers the range of full element analysis, and channel elements can be selected according to customer needs:

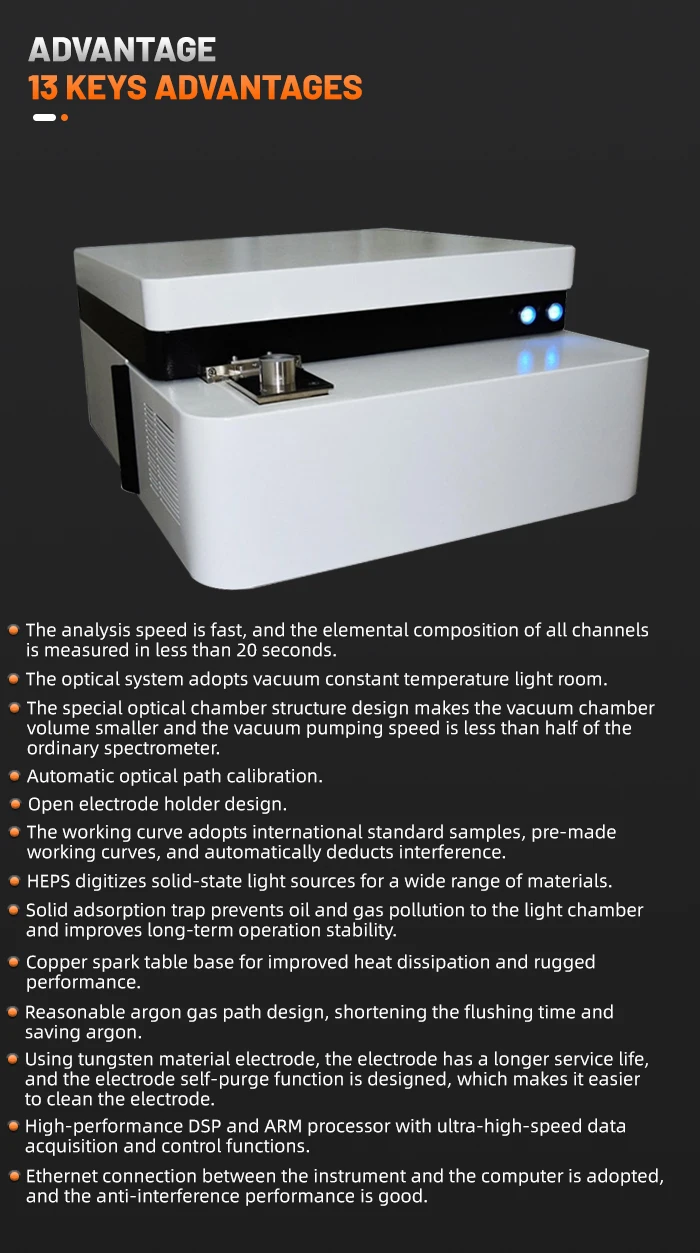

2. The analysis speed is fast, and the element composition of all channels is measured within 20 seconds. For different analytical materials, the pre burning time and marking line are set to make the instrument achieve excellent analysis effect in a short time: 3. The optical system uses a vacuum constant temperature light chamber, and the arc flame generated during excitation is directly introduced into the vacuum light chamber through the lens, so that the light path is straight, the optical path loss is eliminated, the detection limit is improved, the measurement result is accurate, and the reproducibility and long-term stability are excellent; 4. The special optical chamber structure design makes the vacuum chamber volume smaller, and the vacuum pumping speed is less than half of the ordinary spectrometer;

5. Automatic optical path calibration and automatic spectral line scanning of the optical system ensure the correctness of reception and eliminate the tedious wave peak scanning. The instrument automatically identifies specific spectral lines, compares them with the original storage line, determines the drift position, and finds the current pixel position of the analysis line for measurement;

6. The open electrode rack design can adjust the samples to facilitate the analysis of samples of various shapes and sizes

8. HEPS digital solid state light source, suitable for various materials;

9. Solid adsorption trap to prevent oil and gas from polluting the optical chamber and improve long-term operation stability:

10. Copper fire flower stand base, improving heat dissipation and firmness:

11. The reasonable design of chlorine gas path shortens the chlorine flushing time when the sample is excited, saving chlorine gas for users. The chlorine gas consumption is less than half of that of ordinary spectrometers

12. Tungsten electrode is used, which has a longer service life, and the electrode self purging function is designed, which makes it easier to clean the electrode: 13. High performance DSP and ARM processors, which have ultra-high speed data acquisition and control functions, and can automatically monitor the operating conditions of the optical chamber temperature, vacuum, chlorine pressure, light source, excitation chamber and other modules in real time:

14. Ethernet connection is adopted between the instrument and computer, with good anti-interference performance. The upgrade of external computer is independent of the instrument configuration, so that the instrument has better applicability;

15. All core devices are imported with original packaging, ensuring the excellent quality of the instrument.
