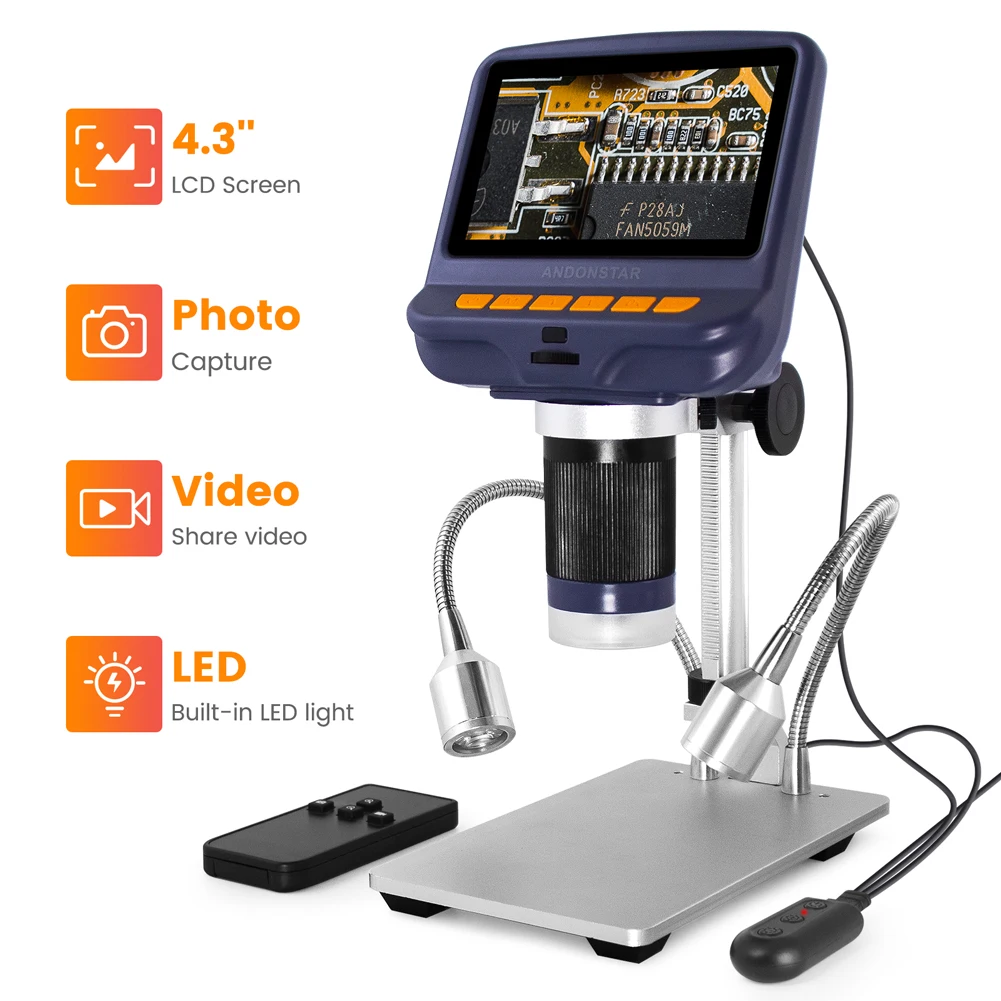

Andonstar USB Digital Microscope with Screen for Phone Repair Soldering Tool BGA SMT Jewelry Appraisal Biologic Use Kids Gift

Features:
Infrared remote control: infrared induction design, convenient for you to control with remote control.
UV filters: Glass UV filters not only protect the lens from heat and smoke, but also reduce reflection.

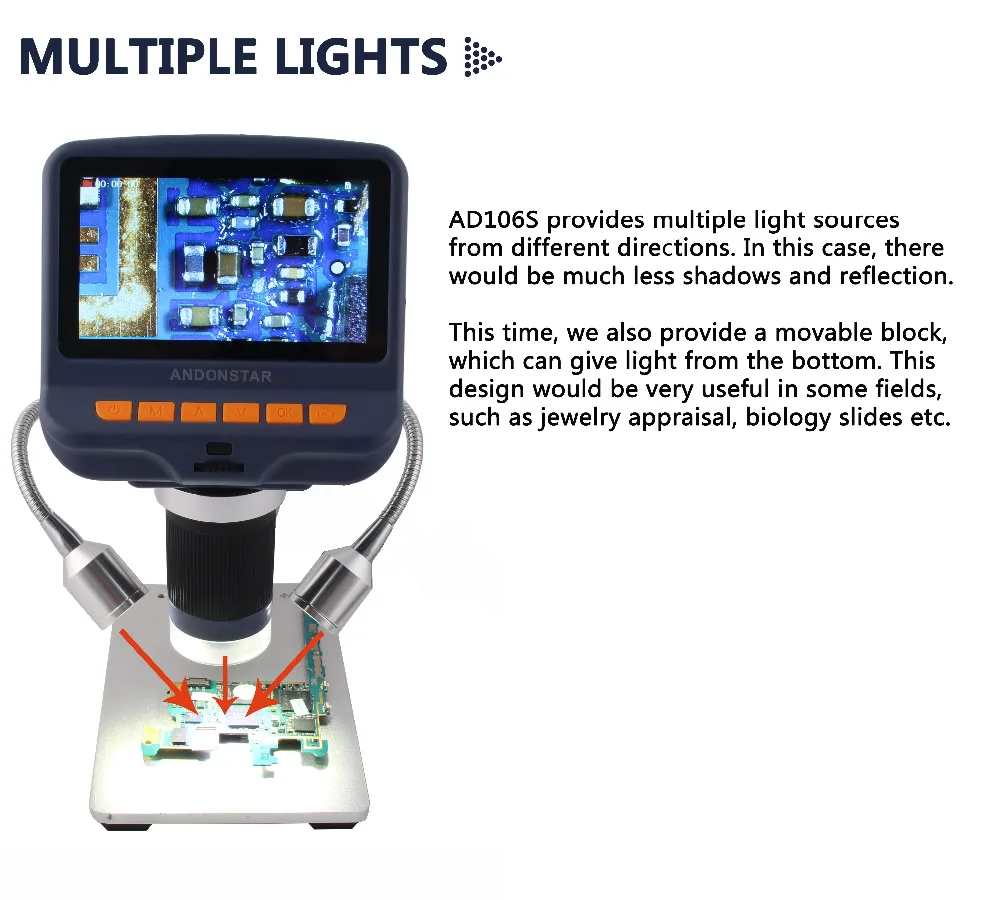

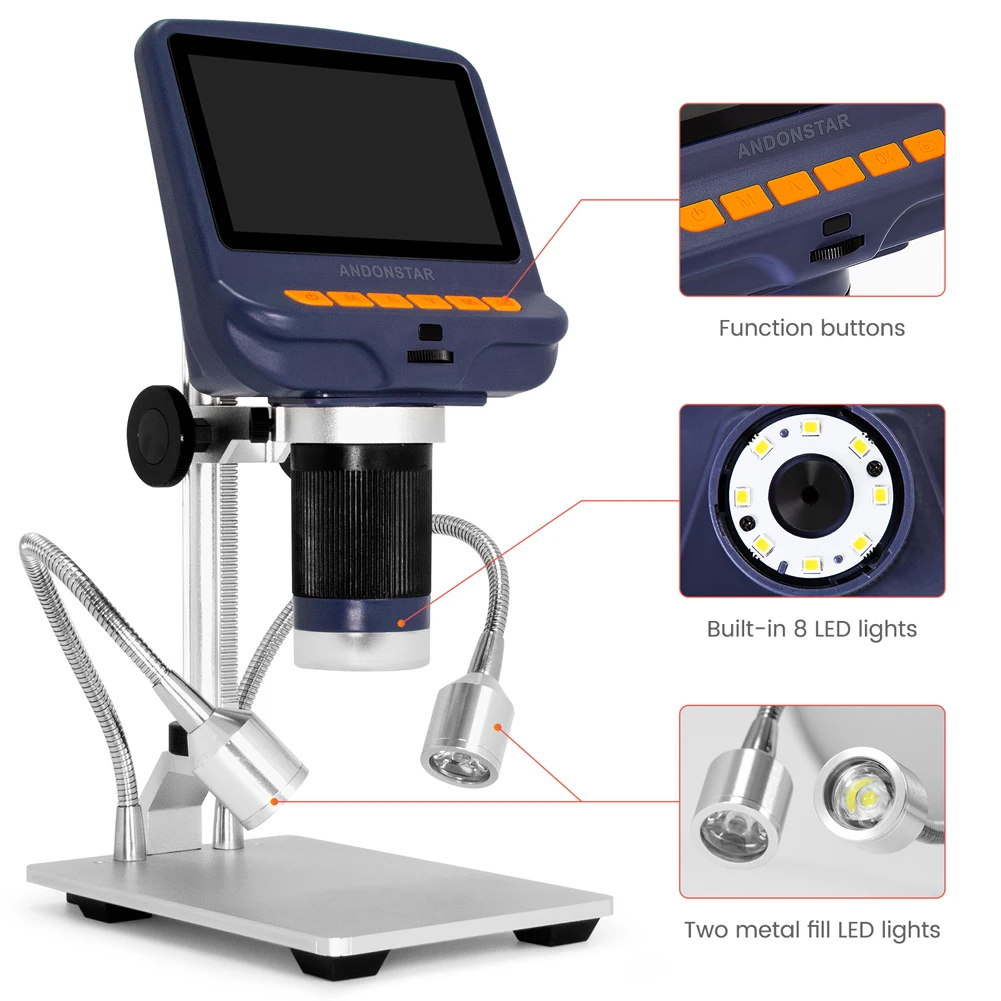

Focus and LED lights adjustable: The focus and brightness of the eight LED lights can be adjusted by knob as needed. (The AD106S model has two extra lights on both sides.)

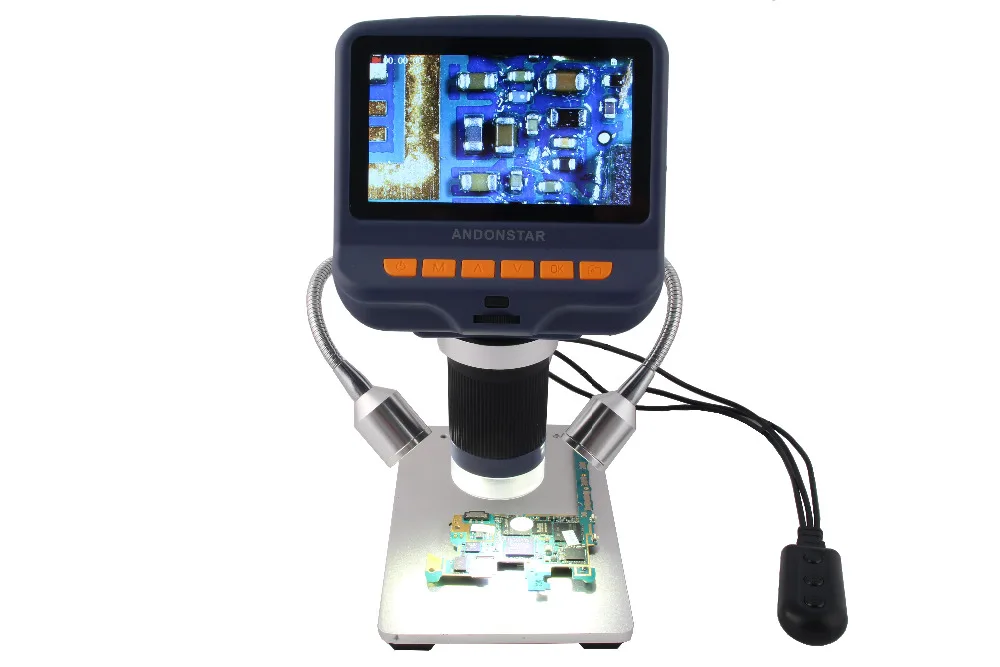

Widely used: magnification up to 220 times, can be used in PCB circuit repair, jewelry identification, insect observation, study and other fields.

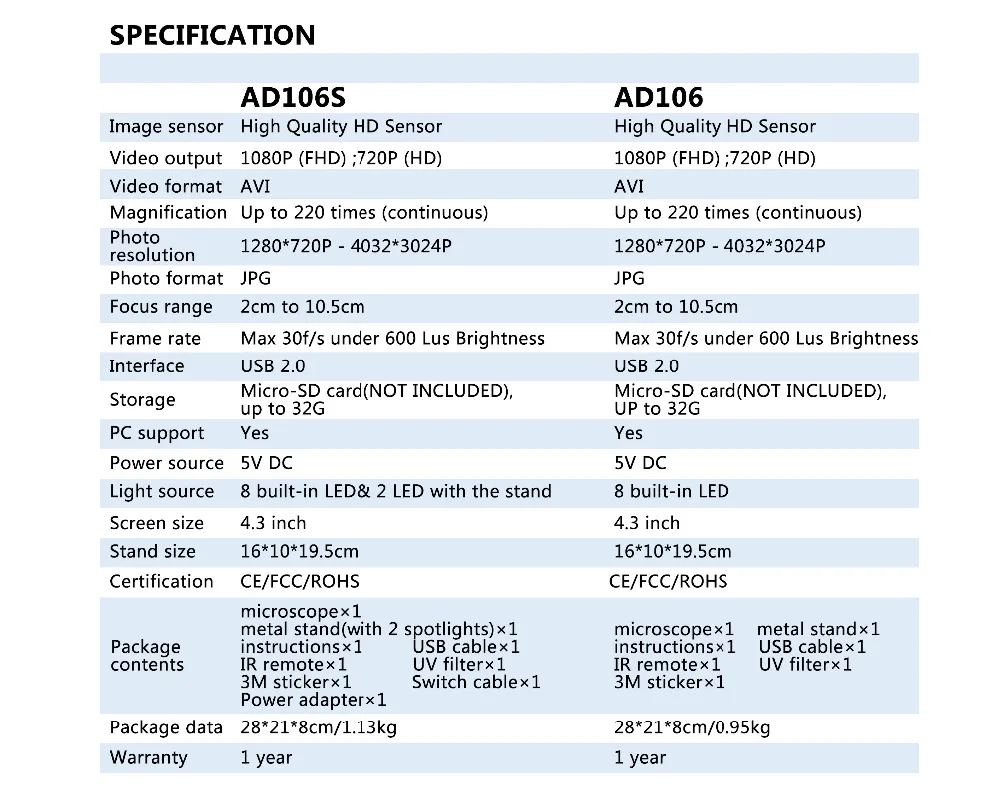

Specifications:
Model :AD106S(with spotlights and switching cables)/ AD106(without spotlights and switching cables)(optional)
Material :ABS + SS
Image sensor: High quality HD sensor
Video output :1280P (FHD), 720P (HD)
Magnification: up to 220x (continuous zoom)
Video format :AVI
Image format :JPEG
Image resolution :1280*720P-4032*3024P

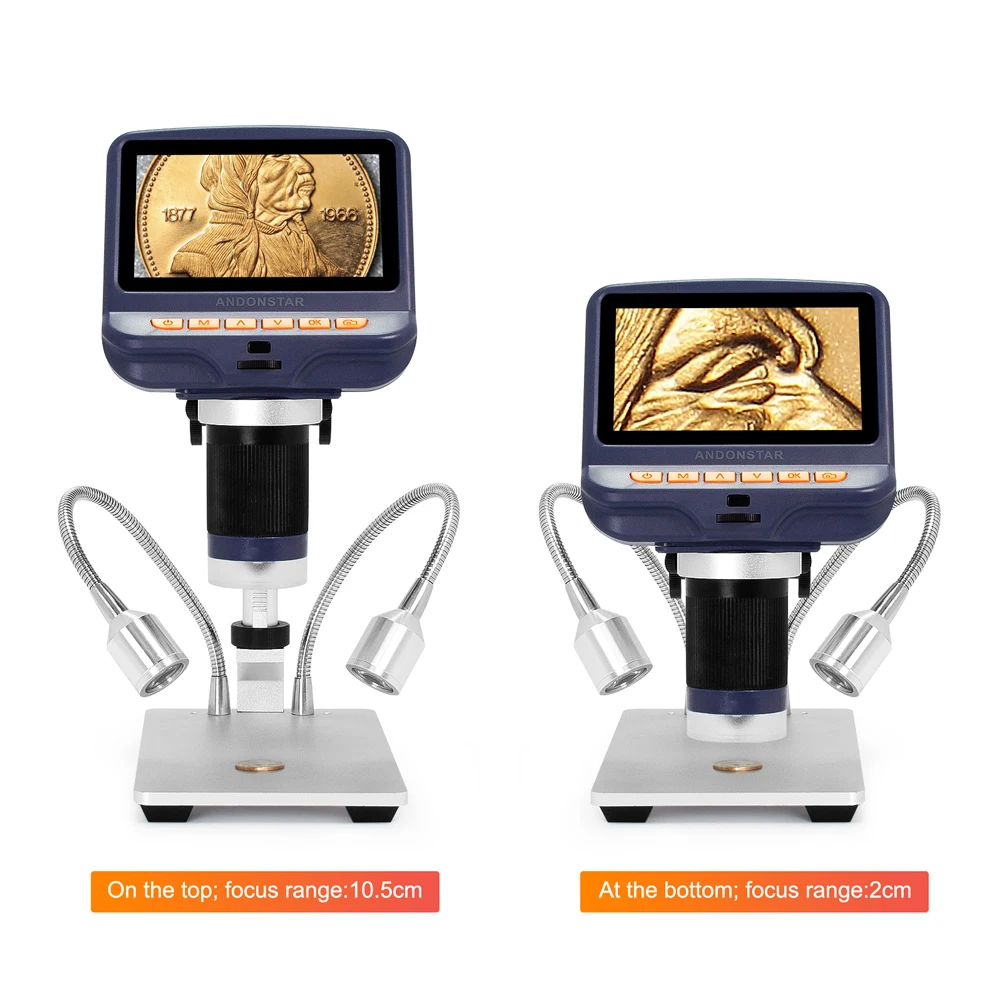

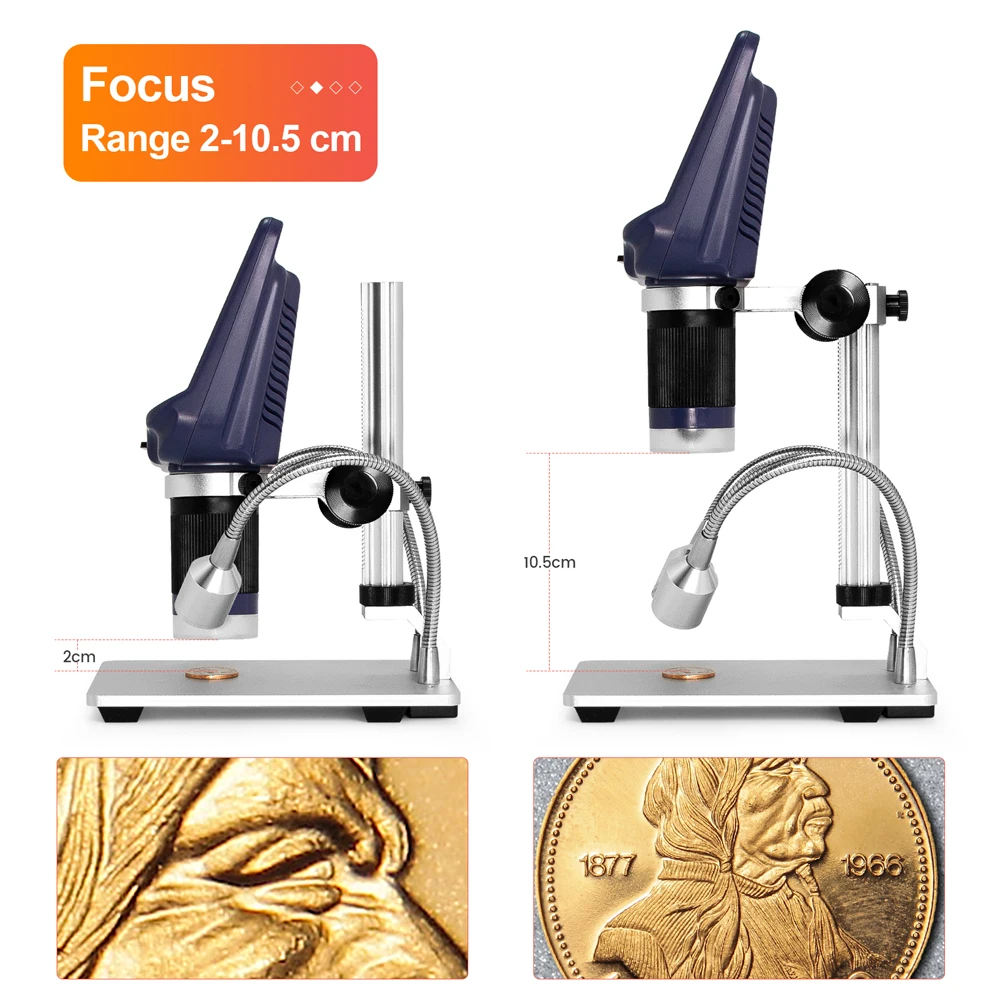

Focus range :2~10.5cm
Frame rate :30fps
Interface :0

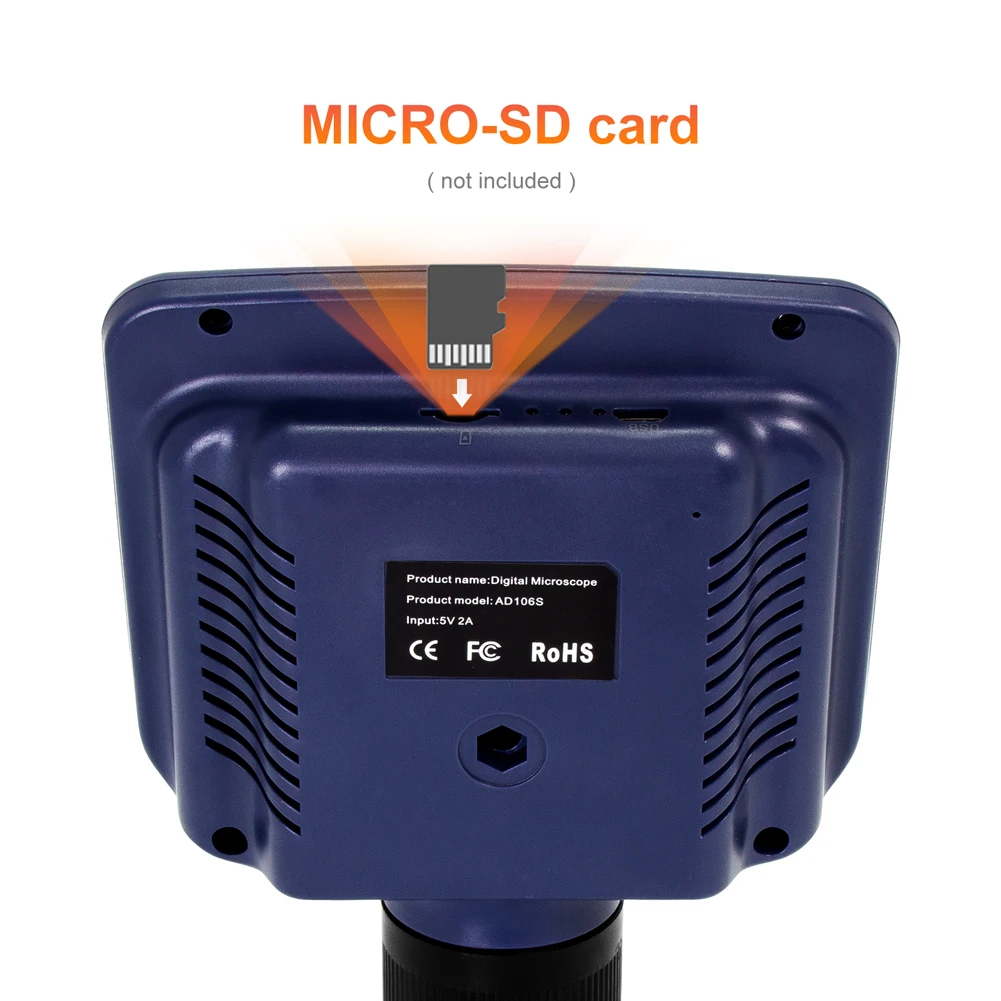

Storage: 32GB expandable memory (without memory card)
Power supply :5VDC
Light source:
8 built-in leds and 2 leds with stand (AD106S)
8 built-in leds (AD106)
Screen size :4.3"
Remote control battery :CR2025 button battery (excluding)
Support size :195 * 160 * 100mm / 7.68 * 6.30 * 3.94in
Packing weight:
1130g / 39.86oz (AD106S)
950g / 33.51oz (AD106)
Packing size :28 * 21 * 8cm / 11.02 * 8.27 * 3.15in
Packing list:
1 * AD106S microscope (with spotlight and switching cable)/ AD106 microscope (without spotlight and switching cable)
1 * Full parentheses
1 * Remote control
1 * USB cable
1 * UV filter
1 * sticker
1 * Manual (English)

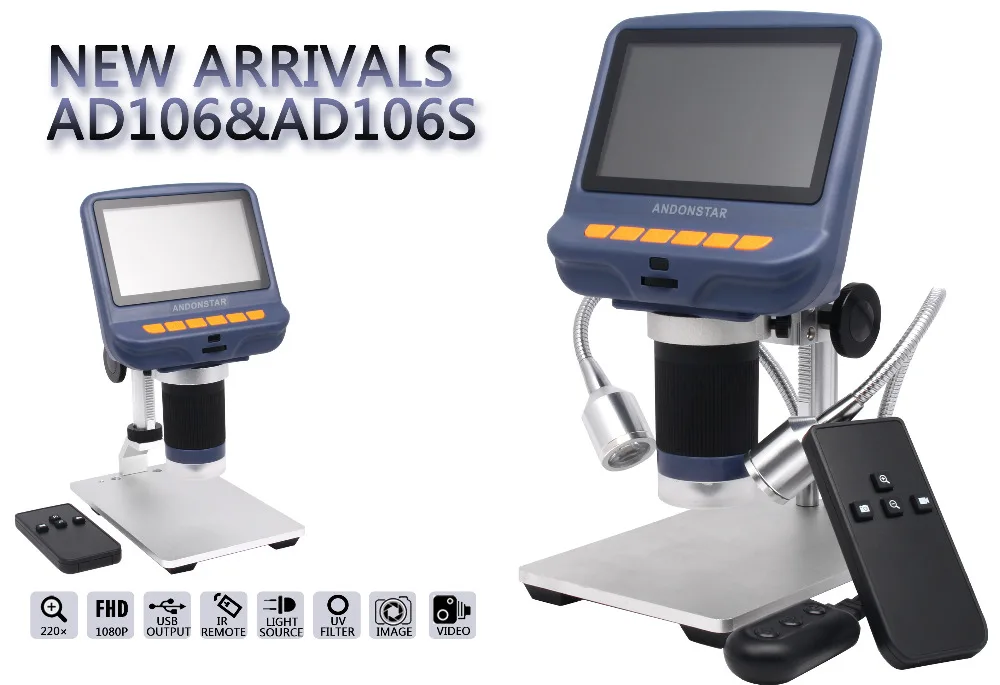

(The device on the left is the AD106, with no switching cables in the package and no spotlights on the stand. The one on the right is the AD106S)

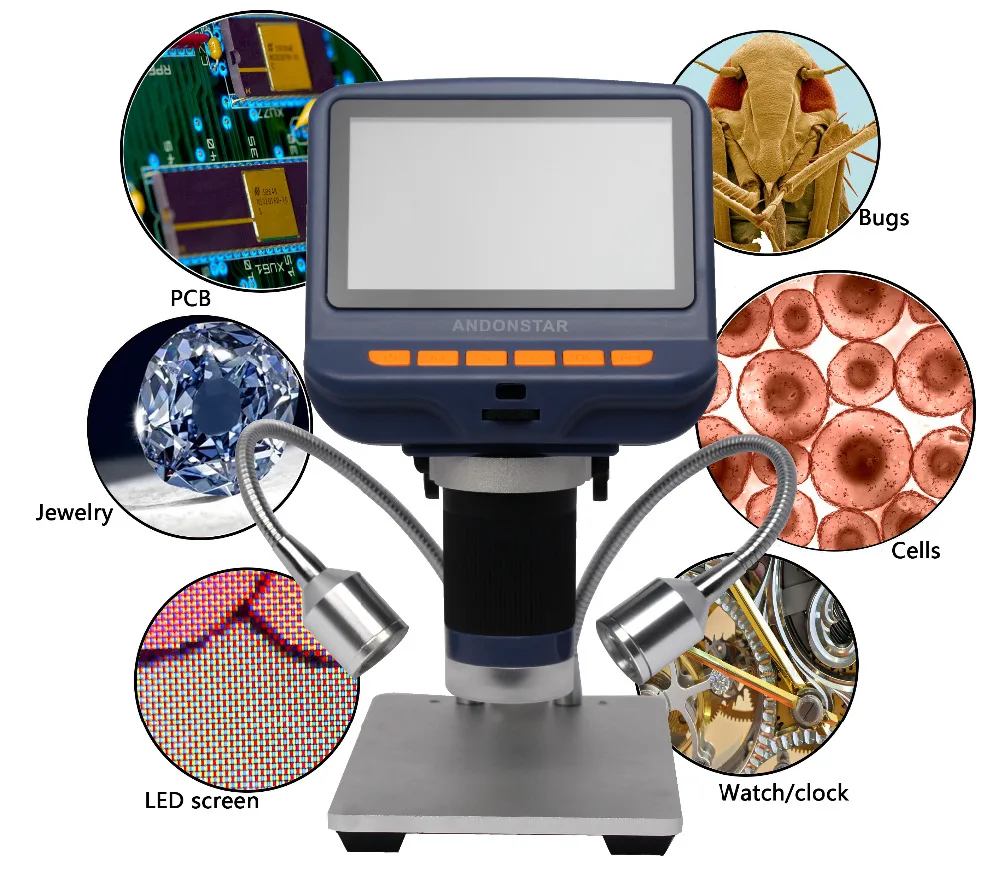

One microscope can solve problems in at least 6 fields.

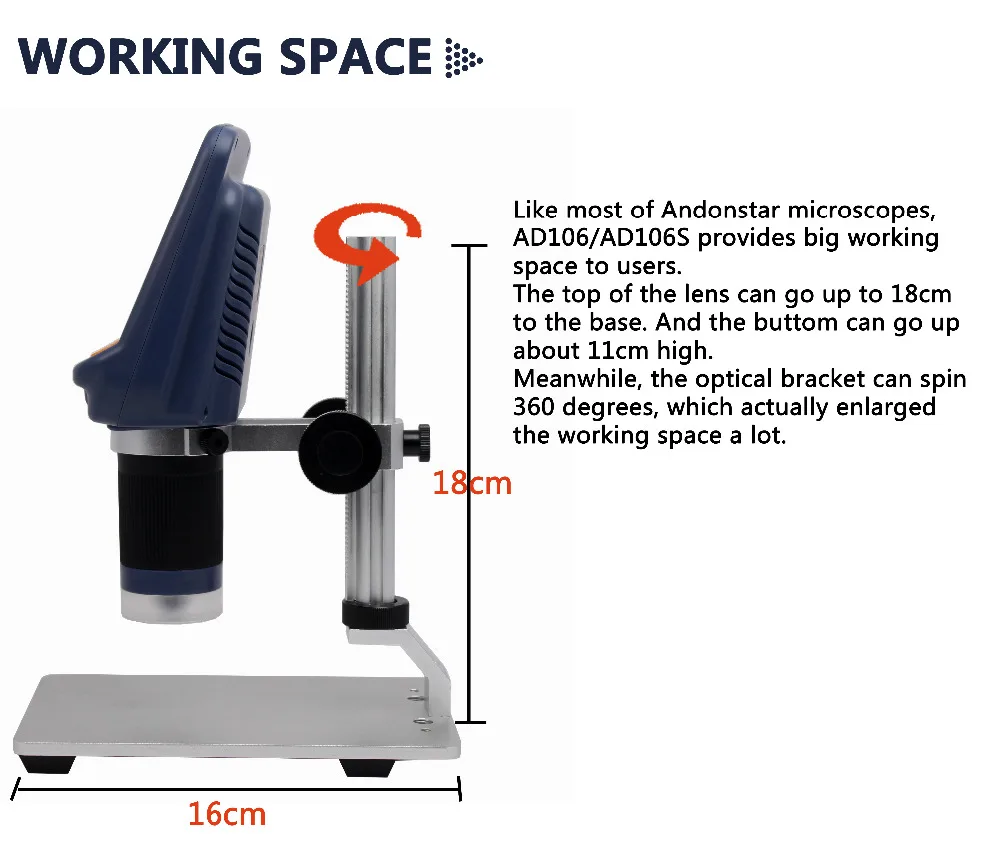

Like most Anton microscopes, the AD106/AD106S offers users a larger workspace.

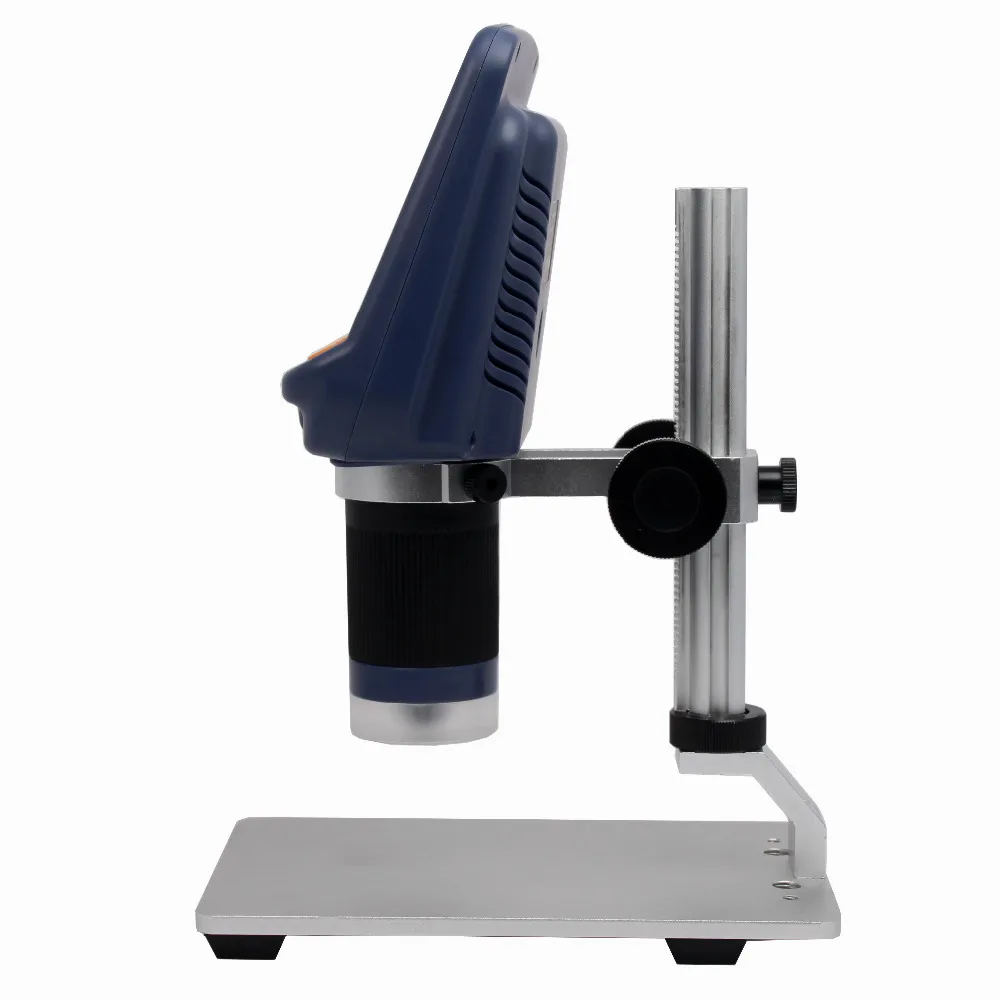

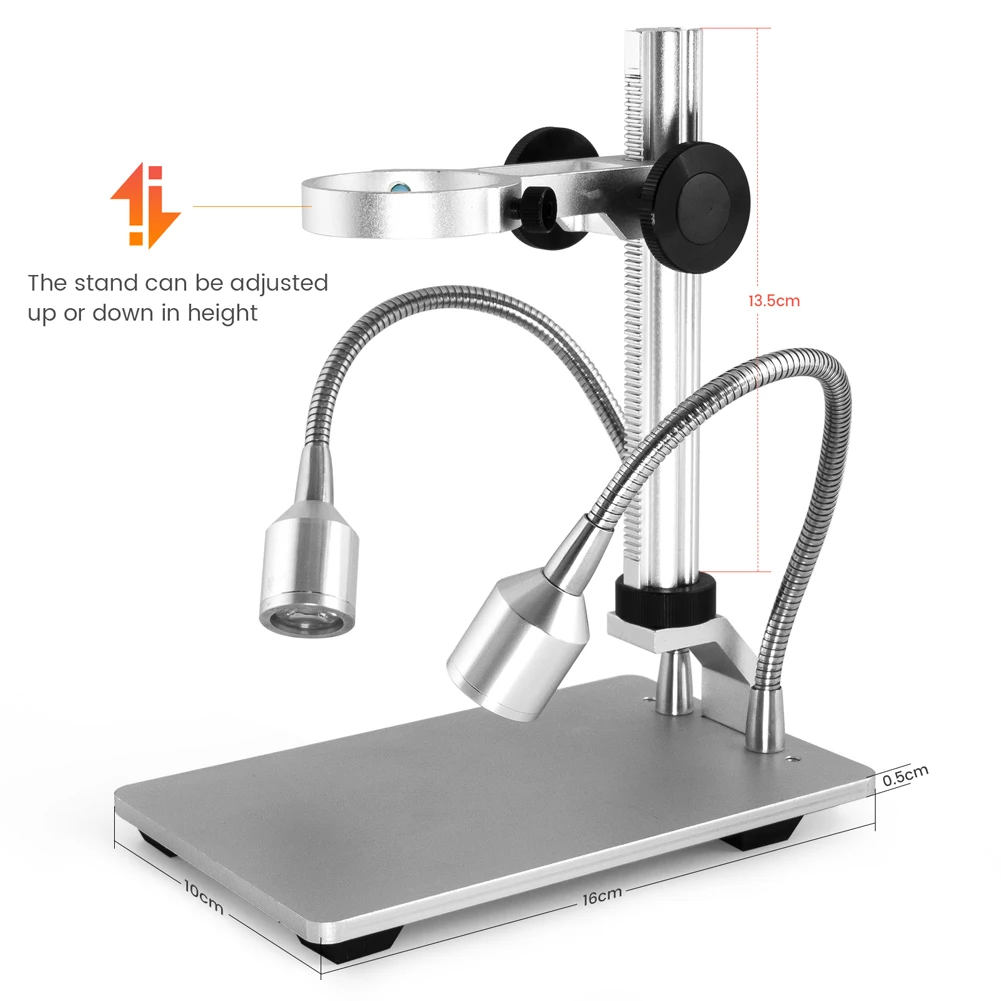

The top of the lens can be up to 18 cm from the base. The bottom of the lens can rise to a height of about 11 cm.

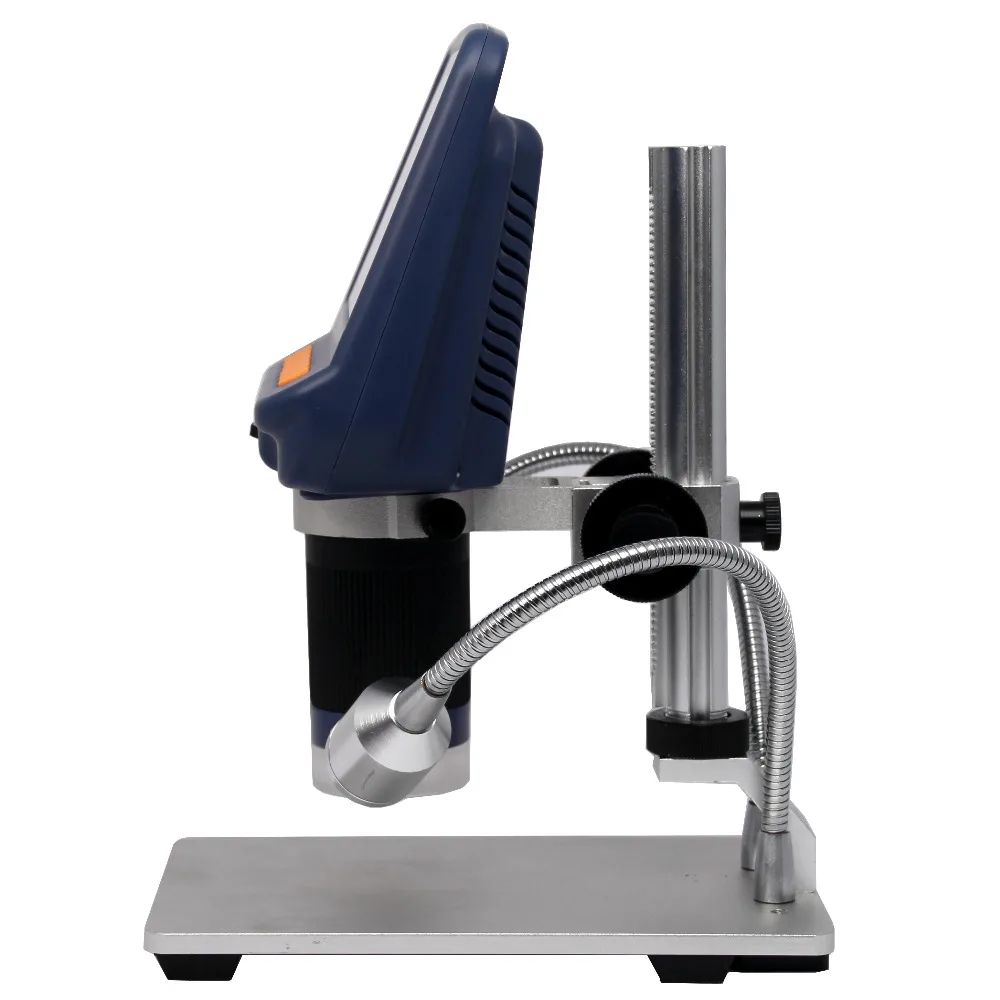

At the same time, the optical stand can be rotated 360 degrees, greatly expanding the working space.

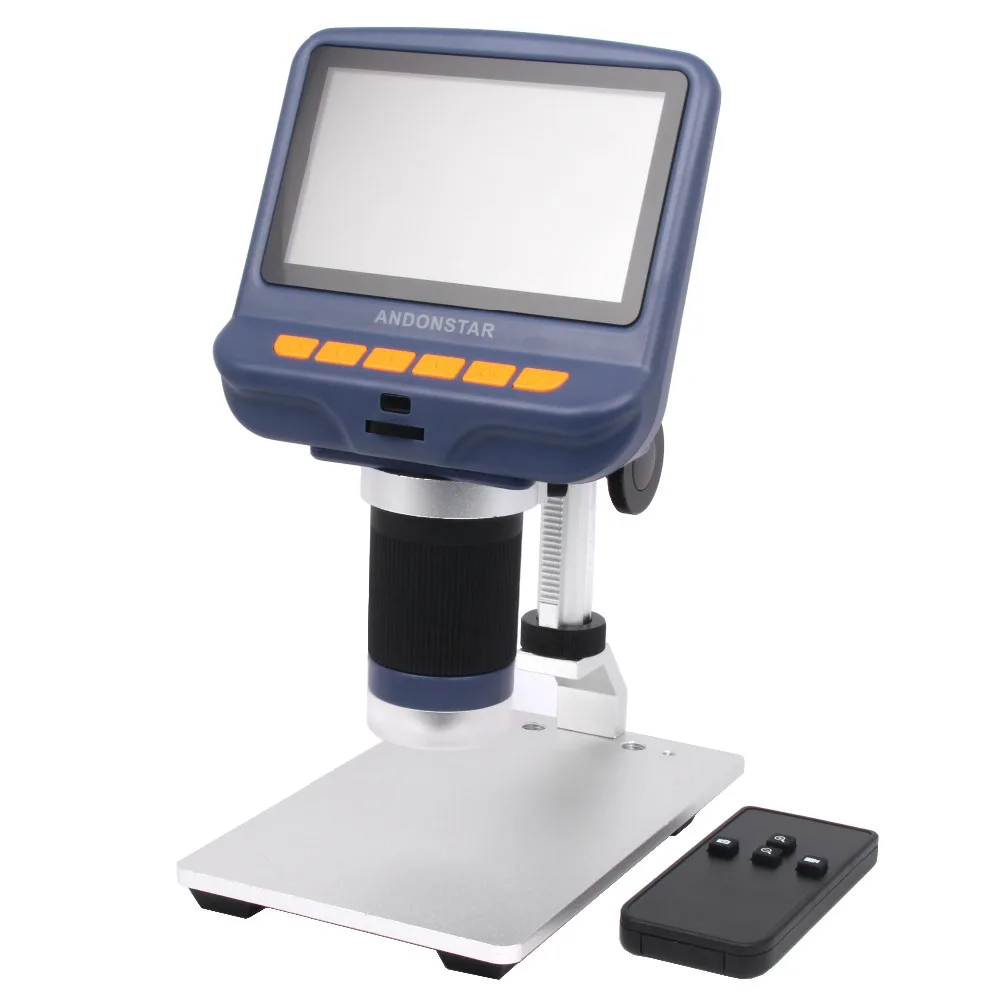

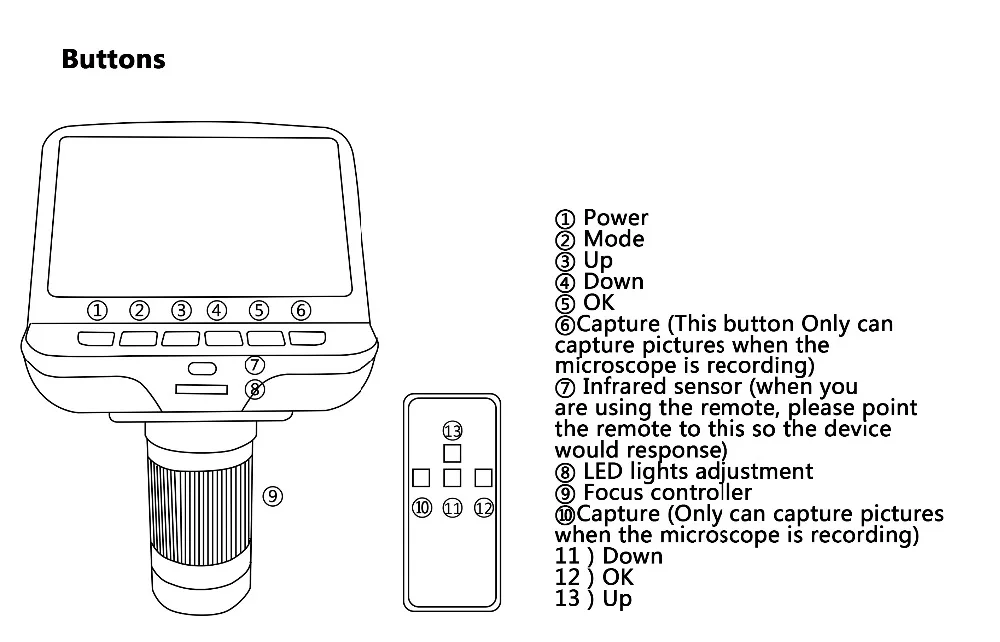

While there are buttons on the front of the display, the AD106S also comes with an AI remote control. You can use it for simple tasks like capturing video and pictures, or digitally zooming in and out.

Buttons are useful, but you don't want to have a slight shake when taking a picture when the image goes up hundreds of times, in which case the object you're trying to capture might disappear from sight.

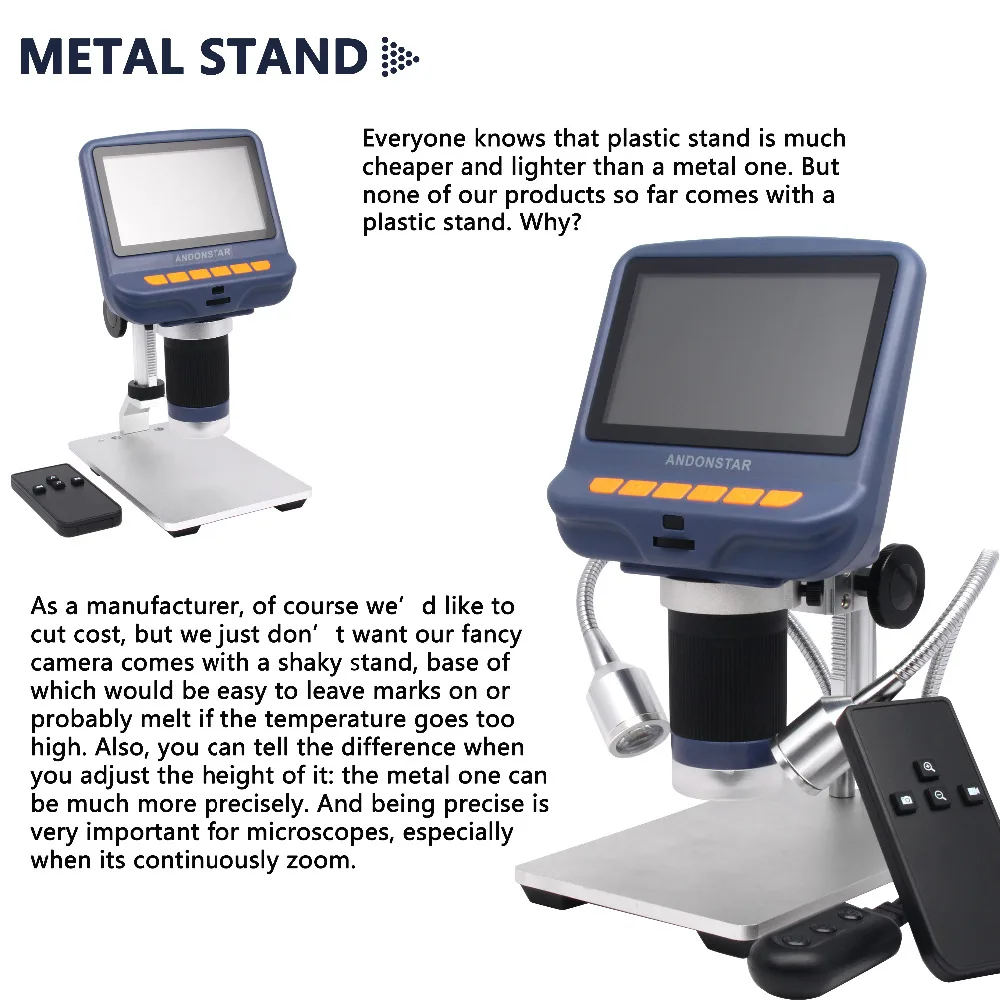

Everyone knows that plastic brackets are cheaper and lighter than metal ones. But so far, none of our products have plastic brackets. Why?

As manufacturers, we certainly want to keep costs down, but we just don't want our fancy cameras to have a rickety mount with a base that can easily leave marks or could melt if it gets too hot. Also, when you adjust its height, you can tell the difference: metal's can be more precise. For microscopes, precision is very important, especially in the case of continuous zoom.

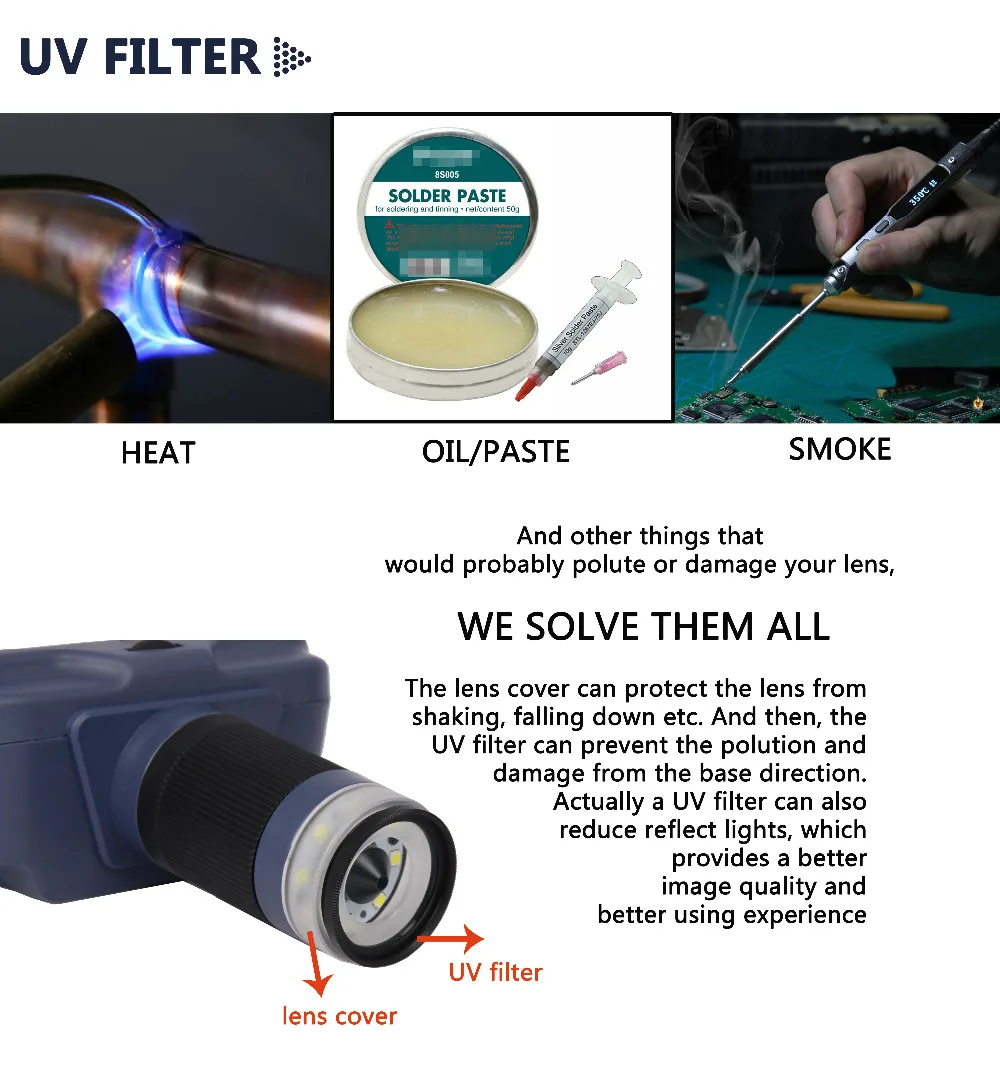

During soldering or repair work, we may need to use hot air guns, electric irons and other soldering tools, which can cause heat and smoke.

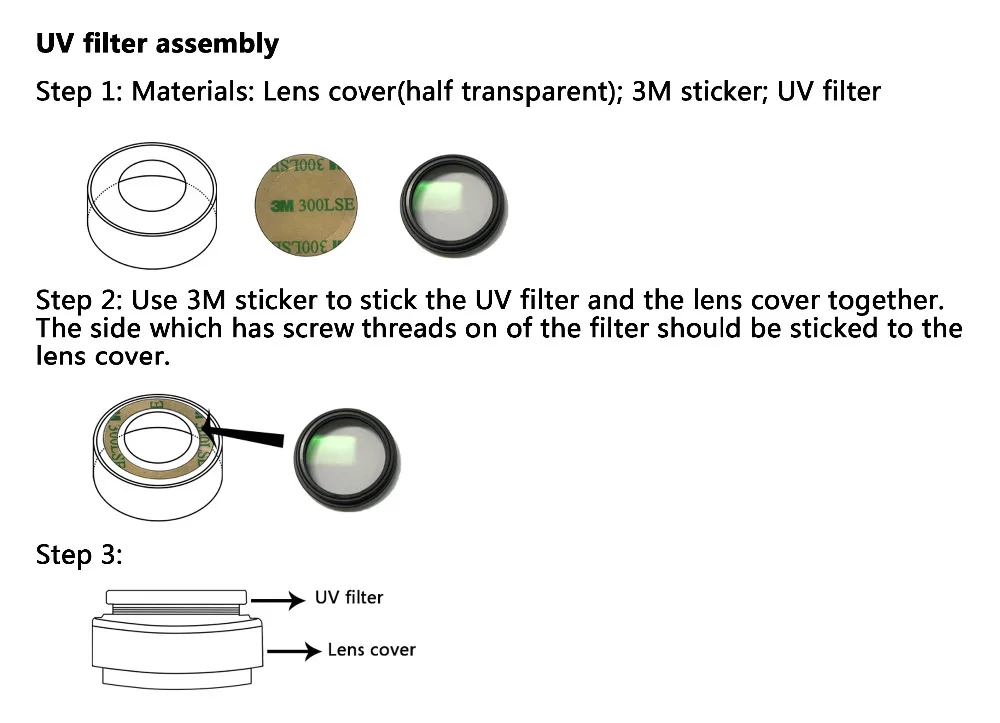

And heat and smoke are bad for the lens, expecially when the lens is mainly coverd by plastic material. In this case, we provide customers a UV filter, which can not only protect the lens, and also, reduce the reflection and stray lights

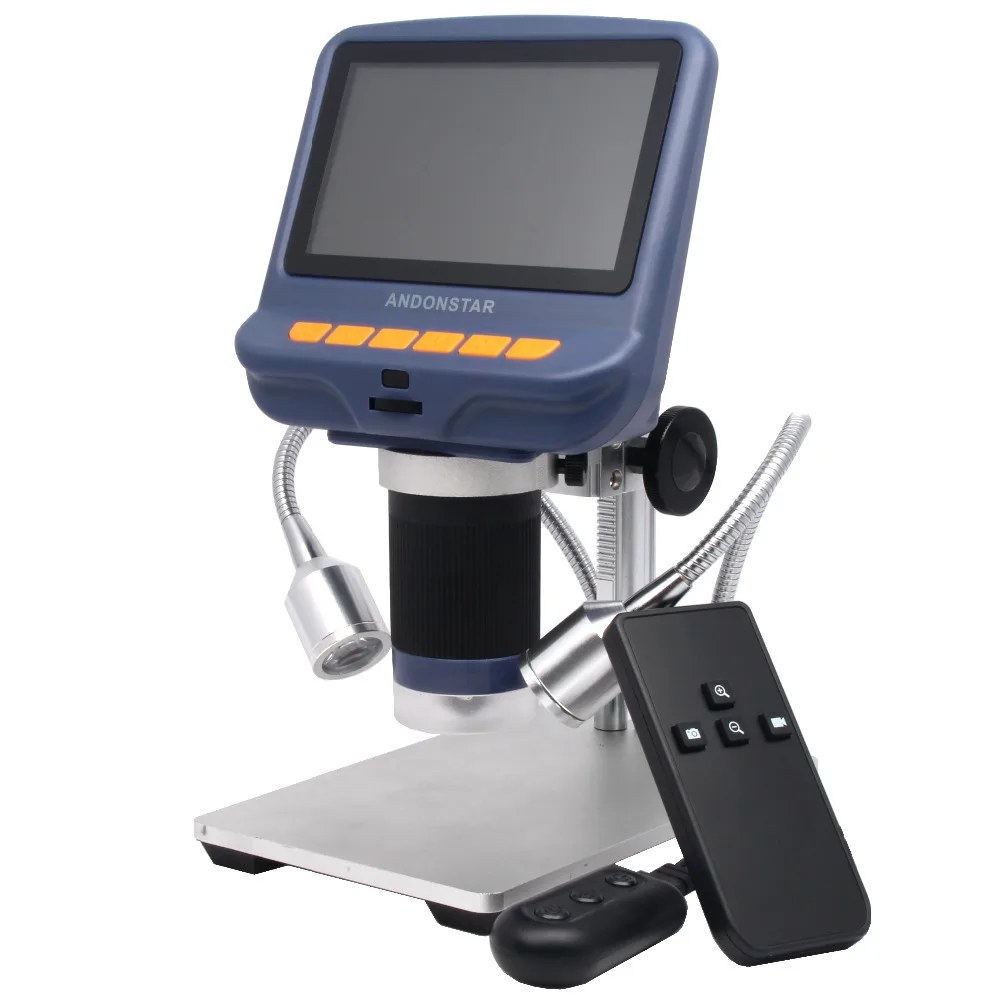

AD106S

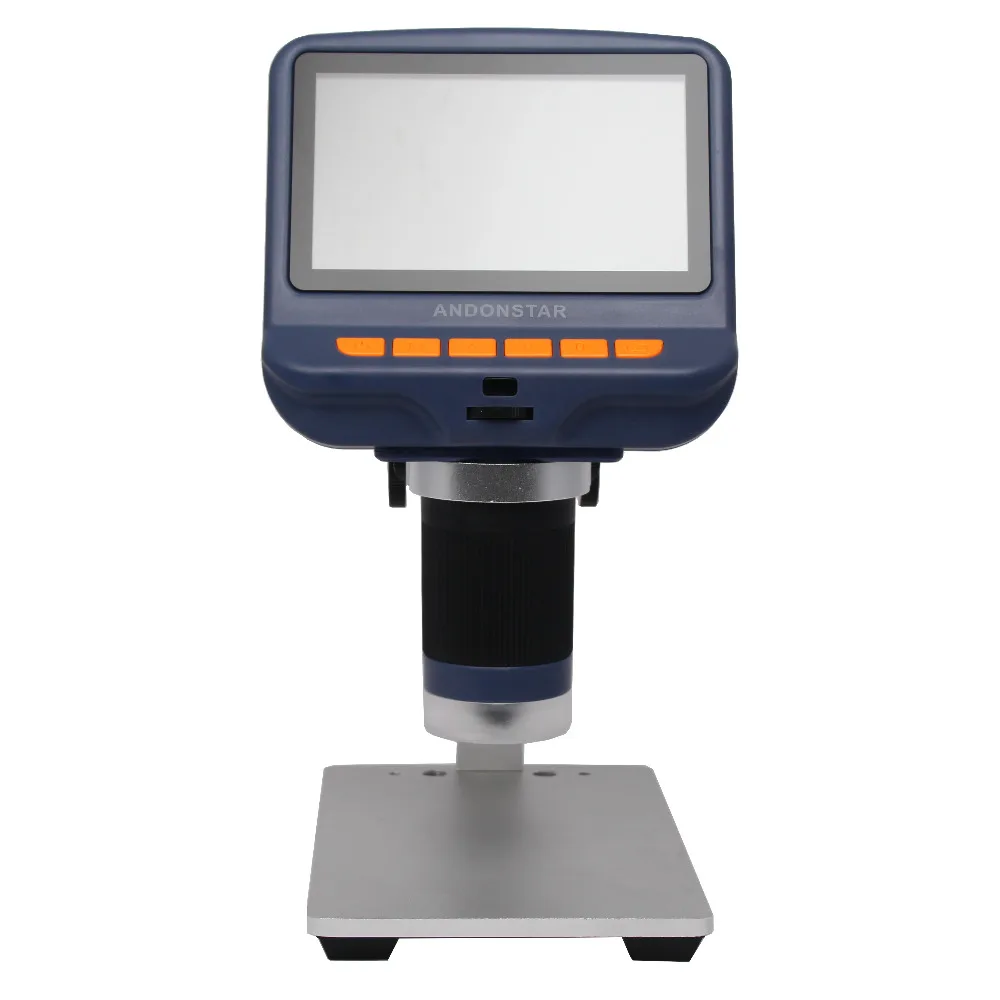

AD106
