Automatic MBBR carrier media making machine HDPE media filter pipe production line
- Category: >>>
- Supplier: Zhangjiagang Sevenstars Machinery Co. Ltd.
Share on (1600900548684):
Product Overview
Description
Product Description
Automatic MBBR carrier media making machine HDPE media filter pipe production line
-PE Series plastic pipe production line is mainly used for producing pipe of water supply and drainage in the field of agriculture and construction cable etc.
-This machine consists of vacuum calibration tank,haul-off unit.cutting unit,stacker etc.
-The production efficiency is high with special device,it can produce inner wall spiral pipe,inner wall hollow pipe,and core layer foam pipe.It can also produce PP,PE,ABS,PPR,PEX,silicon core pipe etc.
-This machine consists of vacuum calibration tank,haul-off unit.cutting unit,stacker etc.
-The production efficiency is high with special device,it can produce inner wall spiral pipe,inner wall hollow pipe,and core layer foam pipe.It can also produce PP,PE,ABS,PPR,PEX,silicon core pipe etc.

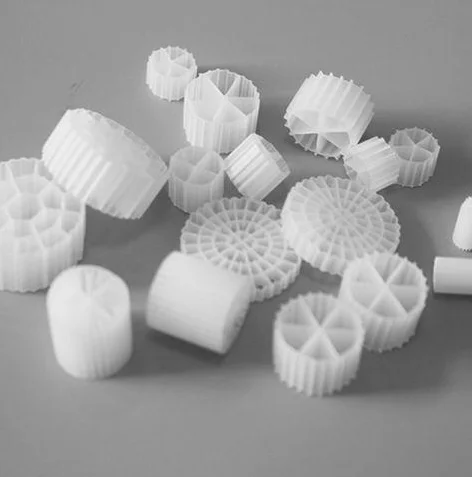

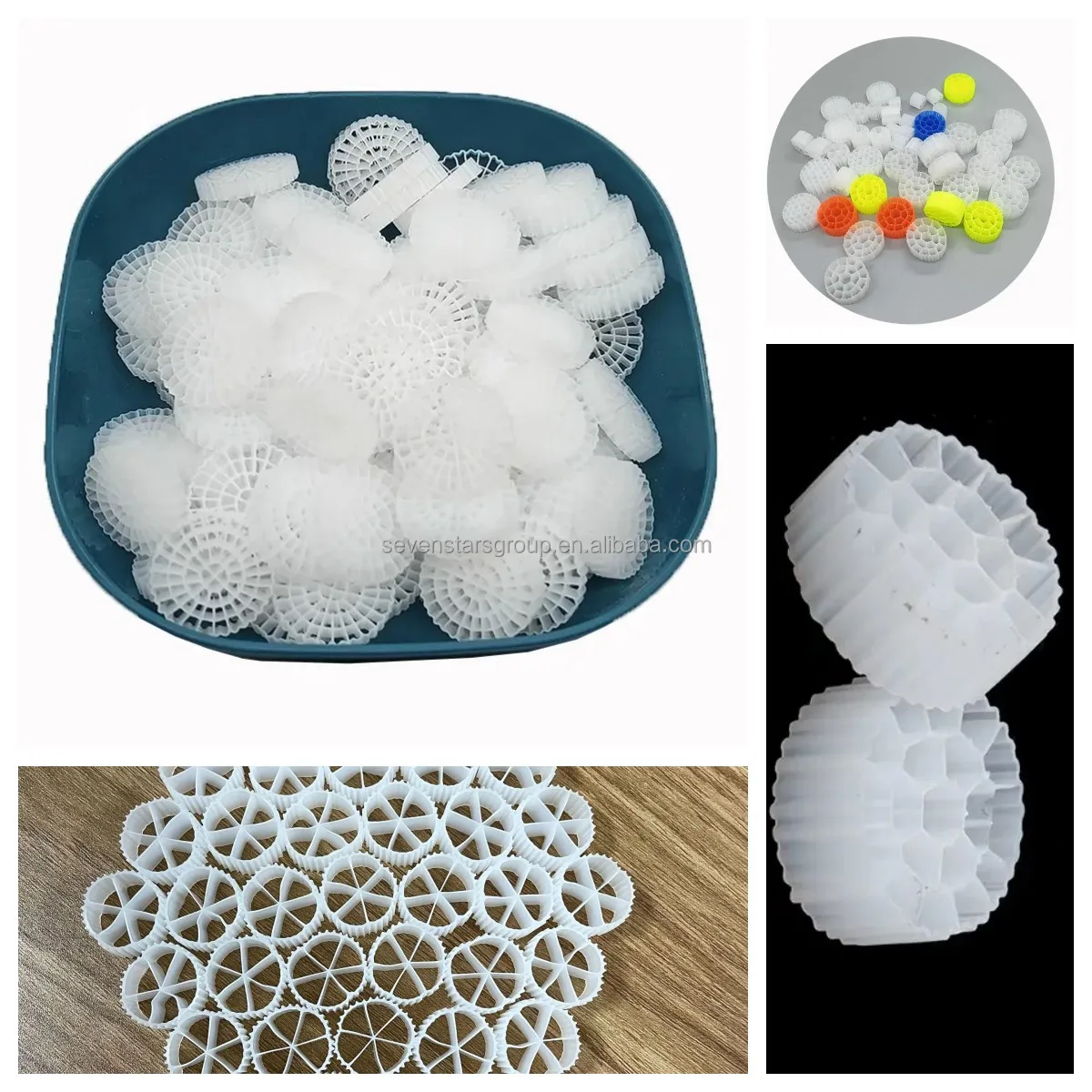

Final product
About Biofilm
Used for ammonia nitrogen removal from wastewater
Size：11*7mm~25*12mm
Specific surface area：＞800㎡/m³
Technical Parameters
Model | SJ45 | SJ50 | SJ65 | SJ70 |
L/D | 10-33 | 10-33 | 10-33 | 10-33 |
Main Motor Power | 7.5~18.5Kw | 22~37Kw | 37~55Kw | 55~90Kw |
Capacity | 10-35kg/h | 20-80kg/h | 80 -150kg /h | 120-280kg/h |
Details Images
Main features
-Wide processing range of raw materials.
-PLC control,high degree of automation.
-Adopting special and good effect screw.
-Adopting compound spiral head,effectively deleting memory function of the material.
-Vacuum calibration,constant temperature control,eliminating pipe stress.
-Adopting Co-extrusion head to make the tube with color line.
-High extrusion capacity,low melt temperature,uniform melt temperature.
-PLC control,high degree of automation.
-Adopting special and good effect screw.
-Adopting compound spiral head,effectively deleting memory function of the material.
-Vacuum calibration,constant temperature control,eliminating pipe stress.
-Adopting Co-extrusion head to make the tube with color line.
-High extrusion capacity,low melt temperature,uniform melt temperature.

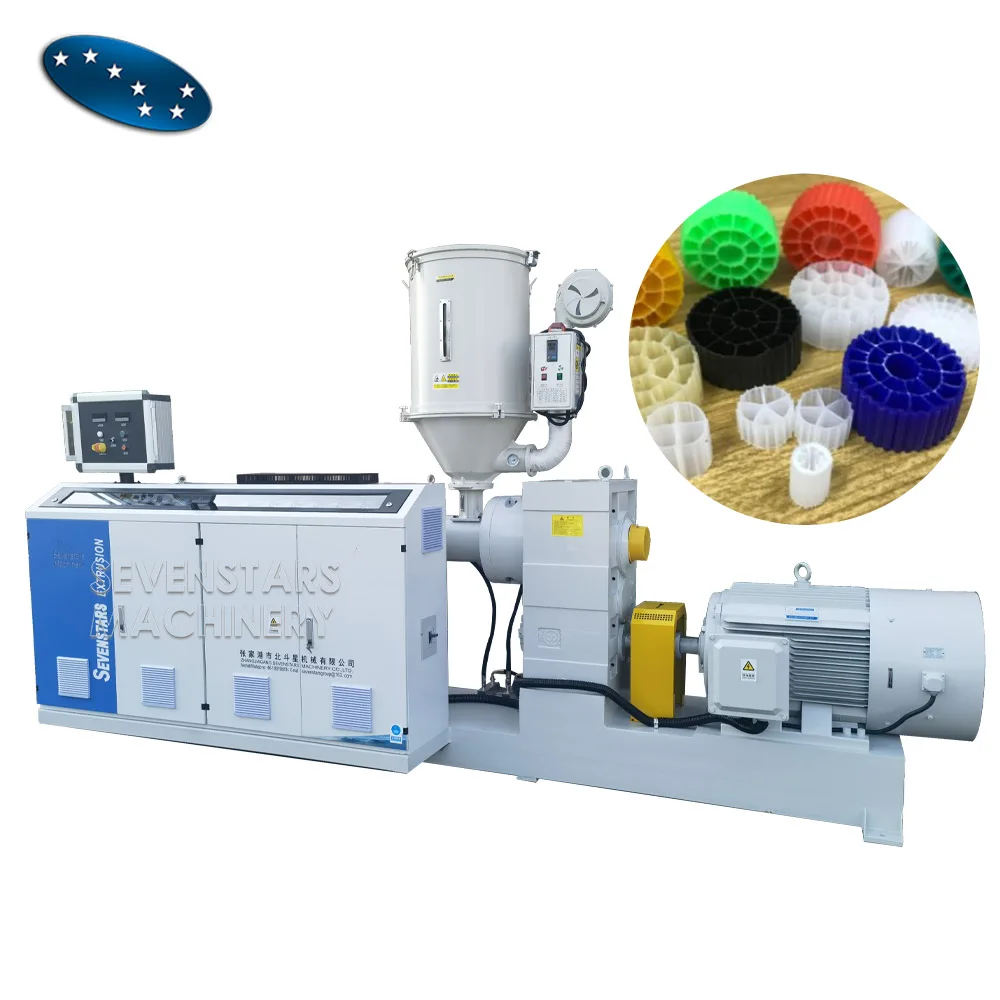

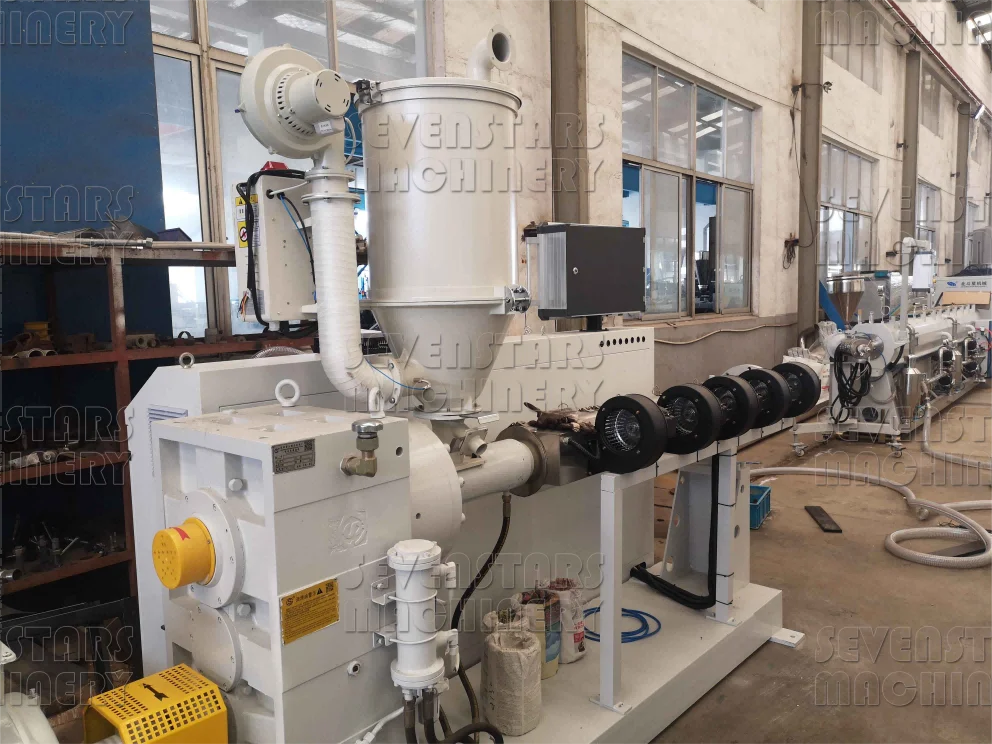

Single-Screw Plastic Extruder
Frequency converter: ABB
Feeding: vacuum suction, drying hopper
Cooling: jacket water cooling+air cooling

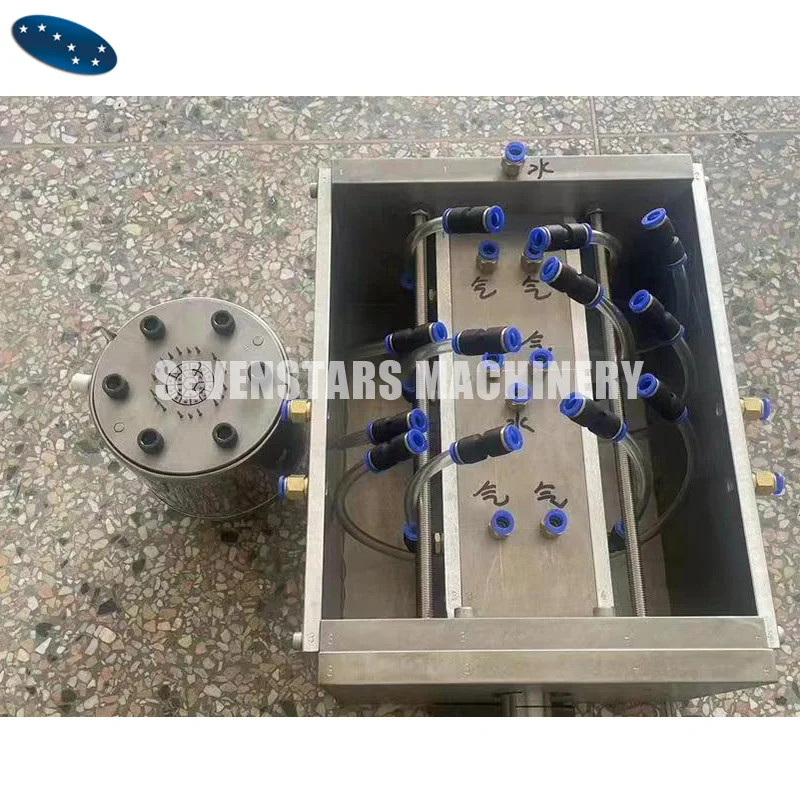

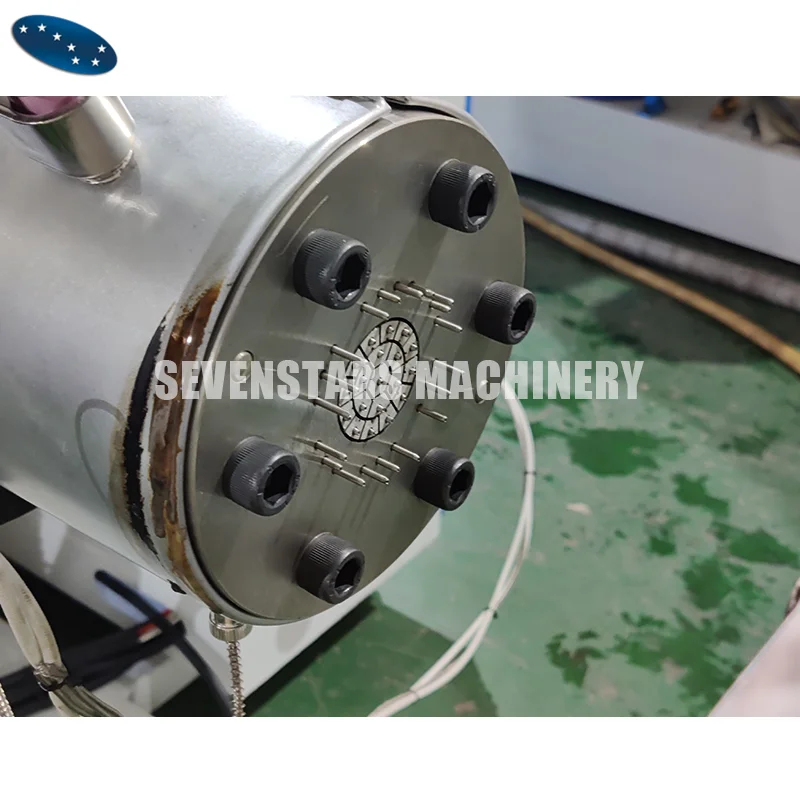

Mould
Wall thickness :According to customer request
Mould body material :40Cr

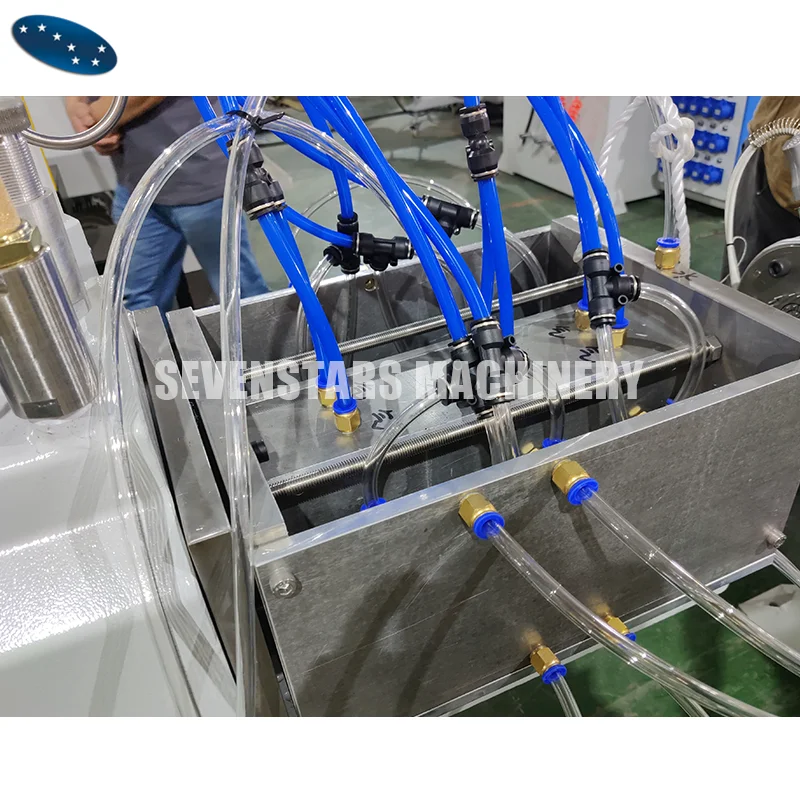

Material of the calibrator: Stannum Bronze

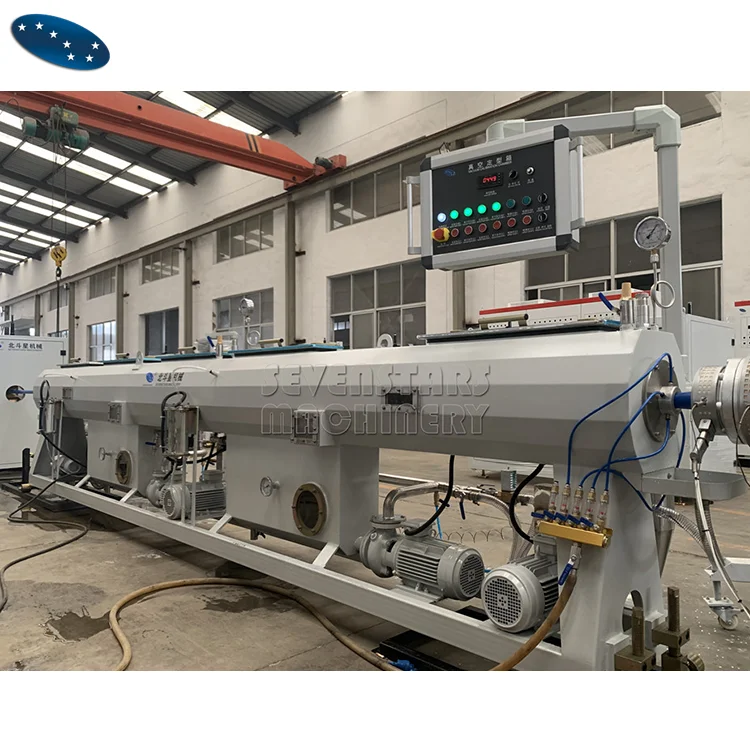

Water cooling tank
Material: The components in contact with water are made of stainless steel to avoid rusting
Haul-off unit
Equipped with encoder to confirm the length of the pipe
Clamping method: pneumatic.
Speed regulation method: variable frequency.

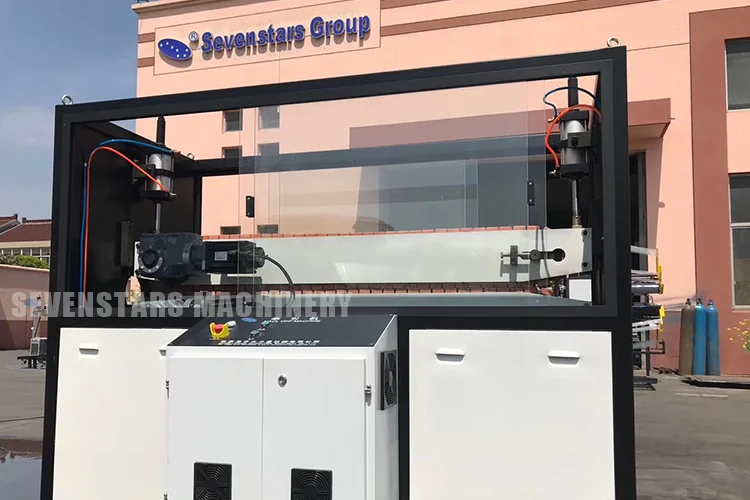

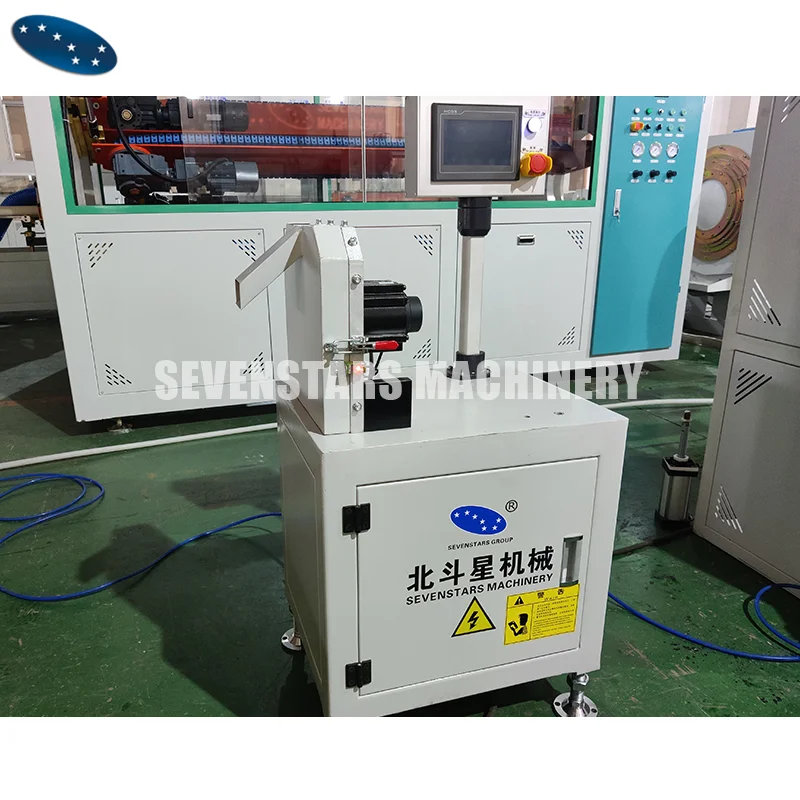

Cutter machine
