30N 6.6Lb Digital Push Pull Force Gauge With Clamp Manufacturer
US $15000-$155000
Hot Selling Intelligent Measuring and Controling Indicator with indicator 4 to 20ma, 0 to 5v 0 to 10v
- Category: Force Measuring Instruments >>>
- Supplier: Anhui,Tianguang,Sensor,Co.,Ltd.
Share on:
Product Overview
Description
Product Show
Features
TL6D High precision intelligent measurement and control instrument
Patented product, patent number: ZL 2014 2 0769522.3
Instrument uses aluminum alloy shell and anti-jamming components, with good anti-jamming performance.
1. Instrument power: 100V-240V AC.
2 working environment: 0 ℃ -50 ℃, humidity less than 90% RH, no frost.
3.10 times / second, 60 times / second sampling speed (switchable). Basic error ± 0.02% F.S, display range -199999-999999.
4. With resistance strain gauge load cell, suitable for measurement and control. 5 key operation mode.
5. Output excitation voltage 5V, the current is about 200mA.
6. Gross, net, peak, valley, zero tracking, one-touch zeroing and other functions.
7. High-precision transmission output (4-20mA, 0-5V, 0-10V).
8.4 relay output.
9. Support RS232 or RS485 communication (ModBus RTU).
10. Support TG ONE data acquisition management software.
11. Dimensions: 160 * 80 * 180 (aluminum alloy shell), hole size 152 * 76.
Patented product, patent number: ZL 2014 2 0769522.3
Instrument uses aluminum alloy shell and anti-jamming components, with good anti-jamming performance.
1. Instrument power: 100V-240V AC.
2 working environment: 0 ℃ -50 ℃, humidity less than 90% RH, no frost.
3.10 times / second, 60 times / second sampling speed (switchable). Basic error ± 0.02% F.S, display range -199999-999999.
4. With resistance strain gauge load cell, suitable for measurement and control. 5 key operation mode.
5. Output excitation voltage 5V, the current is about 200mA.
6. Gross, net, peak, valley, zero tracking, one-touch zeroing and other functions.
7. High-precision transmission output (4-20mA, 0-5V, 0-10V).
8.4 relay output.
9. Support RS232 or RS485 communication (ModBus RTU).
10. Support TG ONE data acquisition management software.
11. Dimensions: 160 * 80 * 180 (aluminum alloy shell), hole size 152 * 76.
Related Products
Packing & Delivery
Packing Details : Standard export packaging,carton box,PE cotton
Delivery Details : 5-30 days after payment
Delivery Details : 5-30 days after payment
Process Flowchart
Our Company

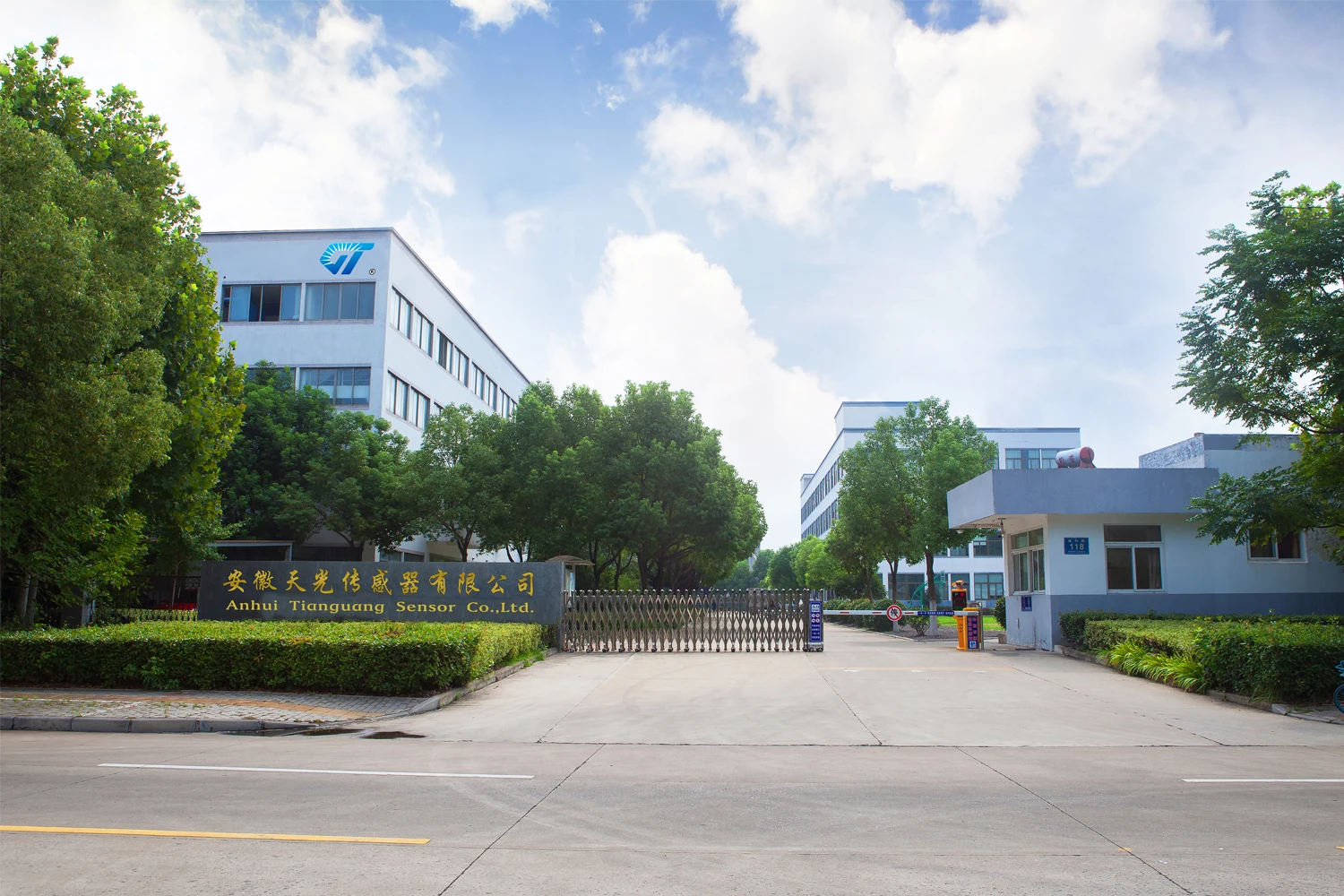

Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million. Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors, shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control instruments and other products. Over the past 30 years Tianguang constantly draws on domestic and foreign advanced technology, the introduction of foreign advanced equipment and technology, learning and absorbing the concept of modern enterprise management, has developed, produced more than 100 kinds of load cell sensors and ancillary instruments, the products are widely used in military.
Factory
Workshop
Warehouse
Equipment
Exhibition
Office
Certifications and enterprise honor
Feed Back
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
