Business card cutter/card cutting machine a4 manufacturer
US $100.00-$120.00
DINGYU customizable full automatic creasing and die cutting machine
- Category: Paper Processing Machinery >>>
- Supplier: Wenzhou Dingyu Machinery Co. Ltd.
Share on (1600900841663):
Product Overview
Description
Products Description
Main Features

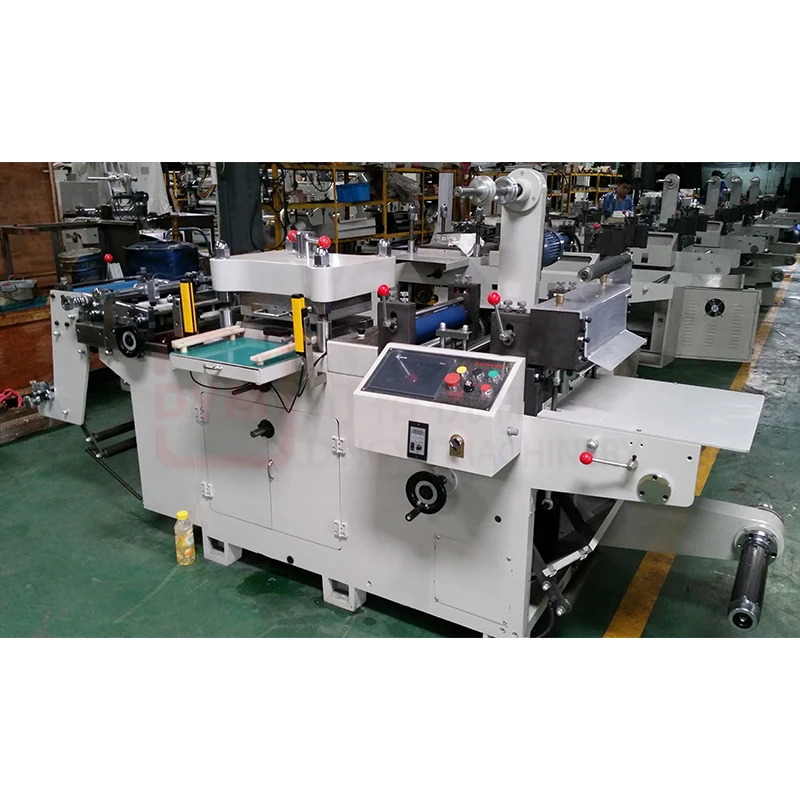

DBMQ-320A auto flatbed die cutter is suitable for die cutting adhesive paper label, dacron film label and laser anti-false label. It cuts label materials into shape required for a designated shape design with high precison.
- The machine is splitted style flat to flat high precision die cutting .
- Pulling materials and cutting is controlled by computer.
- Two sides and a line are tracked by three photoelectric sensors.
- Tracking、die cutting 、collecting waste、adhesive label can be processed in the same time.
- It’s very suitable for paper adhesive label ,silk screen label and so on.
- The machine is splitted style flat to flat high precision die cutting .
- Pulling materials and cutting is controlled by computer.
- Two sides and a line are tracked by three photoelectric sensors.
- Tracking、die cutting 、collecting waste、adhesive label can be processed in the same time.
- It’s very suitable for paper adhesive label ,silk screen label and so on.
Model | DBMQ-320 | DBMQ-420 |
Max. Cutting Speed | 250-400times / min ( 40 / min) | 250-400times / min ( 40 / min) |
Max. Unwinding Dia. | 450mm | 450mm |
Max. Rewinding Dia. | 450mm | 450mm |
Max. Web Width | 320mm | 420mm |
Max. Die Cutting Width | 300mm | 400mm |
Max. Die Cutting Length | 300mm | 400mm |
Orientation Accuracy | ± 0.1mm | ± 0.1mm |
Total Power | 3KW | 3KW |
Power Voltage | 220V ± 10% | 220V ± 10% |
Machine Weight | about 1500kgs | about 1800kgs |
Overall Dimensions | about L2600 * W950 * H1400mm | about L2700 * W950 * H1400mm |
Application and Sample
Applicable Material:
* Self-adhesive paper,Self-adhesive thermal paper,thermal paper ATM etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.
Applicable Industry:
* Paper cup paper, Blank label, Gold stamping label, Adhesive label, Wine Label,
Price Label, Wash care Label, Oil Label, Bottle Label, Napkin Label,
Milk label, PVC label, Thermal label, Beer Label, Commercial label,
Health product label, Delarm&Relarm label, Battery label, Alcohol label, etc.
Details Images
Unwinding Unit
◆Max.dia 500mm
◆3--inch shaft support
◆With Turbo motor
◆3--inch shaft support
◆With Turbo motor
Web Guide
◆Mitsubishi plc control
◆Three modes to switch
◆Three modes to switch
Tracking Location
Die-cutting positioning more accurate

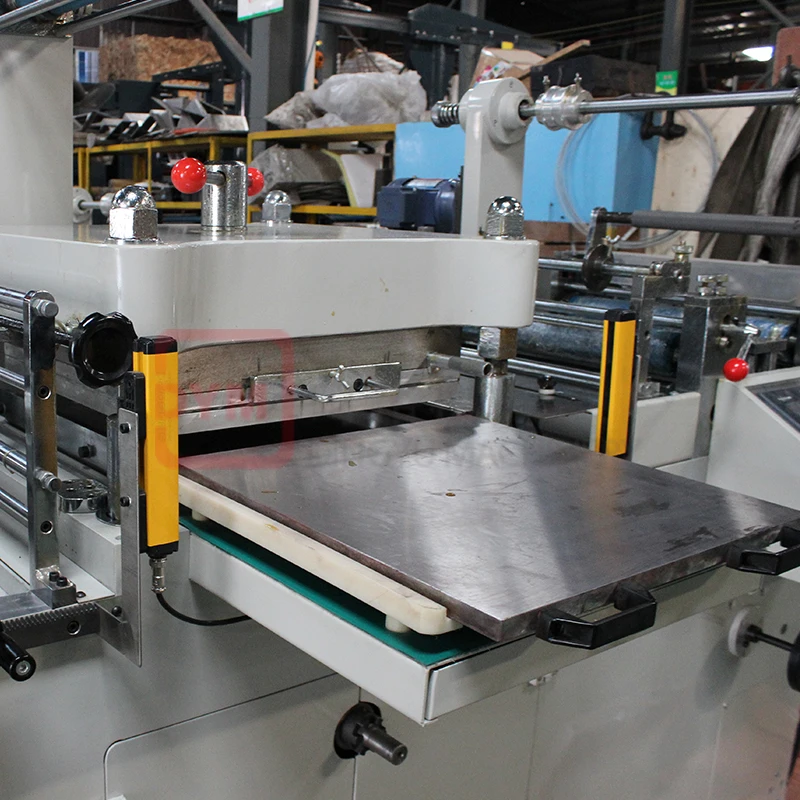

Die Cutting Unit
◆Integrated design no splicing
◆Thick aluminum light and stable
◆The Speed can reach 400m/min
◆Thick aluminum light and stable
◆The Speed can reach 400m/min
Control Panal
◆Cleared operating status
◆Smooth Knob switch button
◆With Number counting
◆Smooth Knob switch button
◆With Number counting
Sheet Cutting Unit
◆Stable heavy blade
◆No jitter at high speed
◆No shape change on blades
◆No jitter at high speed
◆No shape change on blades
Matrix Remove Unit
◆3-inch shaft support
◆With Independent motor
◆With Independent motor

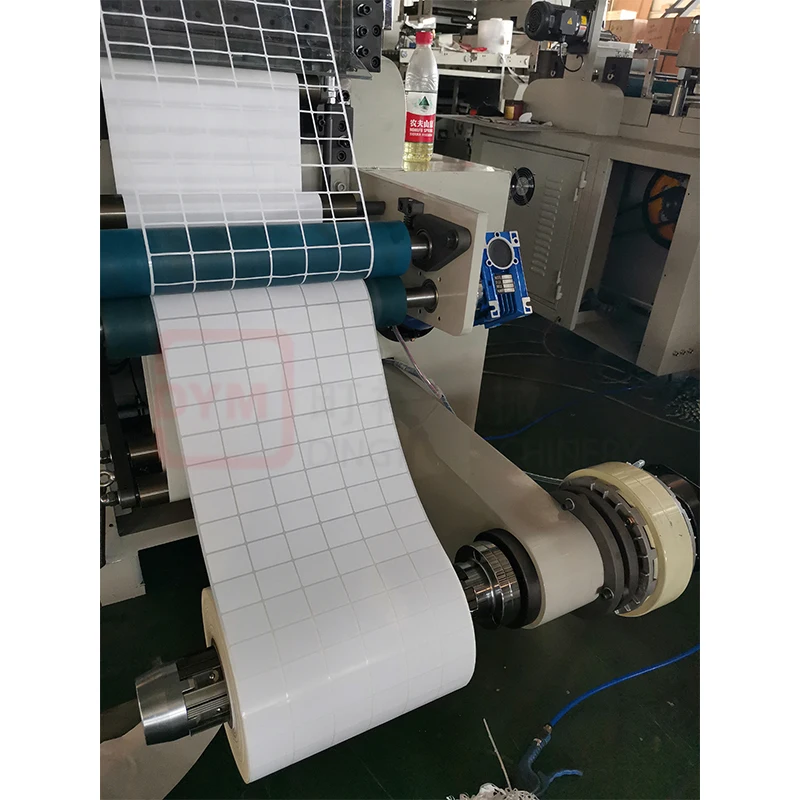

Rewinding Unit
◆Max.dia 500mm
◆3-inch shaft support
◆with Turbo motor
◆3-inch shaft support
◆with Turbo motor
Laminating Unit
◆Lamination using an adhesive film to make
multi-layers material.
multi-layers material.
Hot Stamping Unit
◆Make foils transfer to material surface at high temperatures.
Punching Unit
◆Punch holes on your material by different
size of dies.
size of dies.
IML Label cutting Unit
◆Equipped with a stacking table,cut and collect In-mould labels directly.
In Factory Photo
Services
1.Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some samples of your
products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
DABA COMPNAY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapnywill dispatch technician to The Buyer's factory to
installation and preoperation ofmachines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factoryto learn how to operate machines.DABA Company
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reachwithin 3-7 Express working days.
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some samples of your
products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
DABA COMPNAY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapnywill dispatch technician to The Buyer's factory to
installation and preoperation ofmachines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factoryto learn how to operate machines.DABA Company
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reachwithin 3-7 Express working days.
Contact
Packaging
Company Profile
FAQ
Q: What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy. We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy. We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
