  • Model: DL 654 Fully automatic three coordinate measuring machine Equipped with a computer 2D/3D graphic printing
Model: DL 654 Fully automatic three coordinate measuring machine Equipped with a computer 2D/3D graphic printing
Model: DL-654 Fully automatic three coordinate measuring machine Equipped with a computer 2D/3D graphic printing
Model: DL-654 Fully automatic three coordinate measuring machine Equipped with a computer 2D/3D graphic printing
Model: DL-654 Fully automatic three coordinate measuring machine Equipped with a computer 2D/3D graphic printing
Model: DL-654 Fully automatic three coordinate measuring machine Equipped with a computer 2D/3D graphic printing
Model: DL-654 Fully automatic three coordinate measuring machine Equipped with a computer 2D/3D graphic printing

Model: DL 654 Fully automatic three coordinate measuring machine Equipped with a computer 2D/3D graphic printing

Share on (1600900910262):


Price:$42,647.00 - $44,118.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Warranty
1 Year
Customized support
OEM, ODM, OBM
Place of Origin
China
Guangdong
Brand Name
DONLIM
Model Number
DL-654

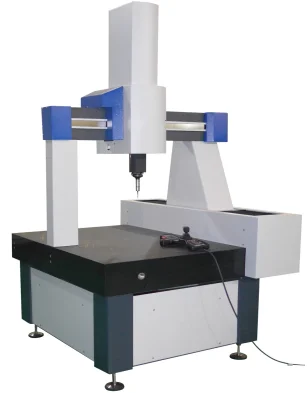

Technical parameters:
Measuring area: x=500mm, y=600mm, z=400mm
Overall dimension: 1250 X 1380 X 2380 mm
Workbench load-bearing Max Part Weight: 800kg
Machine weight: 1800kg
Length accuracy MPEe: ≤ 1.7+L/300（ μ M)
Detection ball accuracy MPEp: ≤ 2.5 μ M
Scale resolution: 0.1um
Max 3D Speed: 500mm/s
Max 3D Acceleration: 900mm/s ²
Technical Parameters：
1.Single CPU processor，32 bit processor. True real-time control.
2.19’ rack，weight 19kg
3.Direct connection to 220V, 50/60HZ, single-phase, connected load 1300Watt
4.Complies with EN50082, EN50081 regulations
5.Temperature range- operation: 10℃ to 45℃
6.Relative air humidity: 10% to 95% non-condensing
7.Performance: max. Positioning speed with 1µm resolution
8.Look ahead, acceleration profile S-profile
9.Incremental RS422, 1/T Sub-count Interpolation
10.Counter frequency to max. 10MHz
11.Connection facilities for incremental transducer (5V-TTL)
12.LED to show all important elements’ operating status on the platform



Tolerance evaluation of geometric elements that comply with ISO standards, including straightness, flatness, roundness, cylindricity, parallelism, verticality, angle, symmetry, positional accuracy, co-axiality, concentricity, axial runout, radial runout, total runout, etc.
Calculation of geometric relationships, including functions such as construction, projection, parallelism, intersection, perpendicularity, tangency, best fit, and correction.
Translate, rotate, transform, and mirror the coordinate system.

Various 2D/3D graphic reports, including PDF, EXCEL, IGES, HTML and other formats



Customer requirement :
CMM machine, max size: 25x25x35 cm
Features:: High precision grating ruler 0.5um
Drive type: X/Y axis rod drive,Z axis optical axis drive
Weight(kg): 260
Dimension(L)*(W)*(H): 600*750*1100
Metal table's size(mm): 450*350
Glass table's size(mm): 330*230
X/Y axis travel(mm): 300*200
Customized: Yes
Customized support: OEM
Customized support: ODM
Power: Electronic

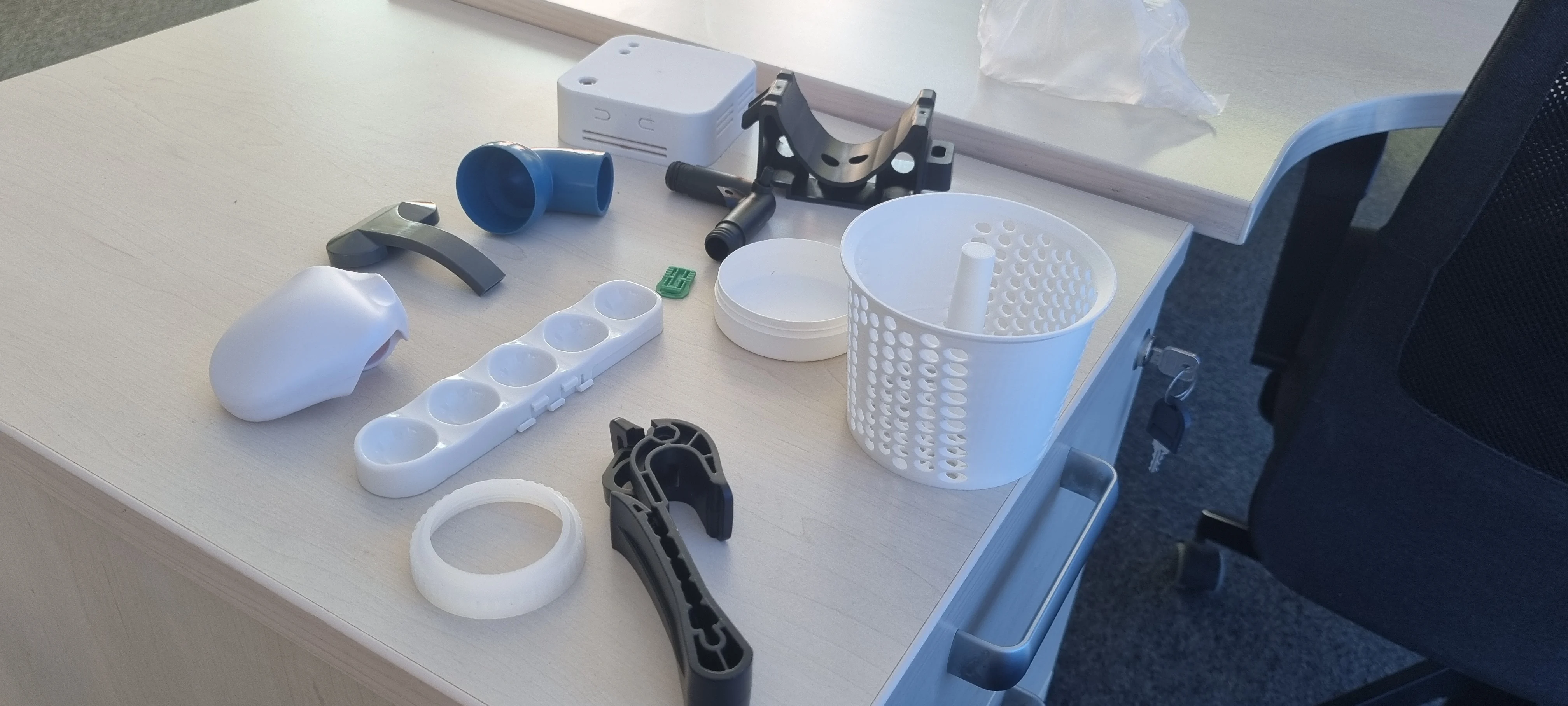

This detection device is fully automatic and can detect the irregular plastic products shown in your pictures. This device also has the function of measuring 2D and 3D geometric elements, evaluating the tolerance of geometric elements in accordance with ISO standards, translating, rotating, converting, and mirroring coordinate systems, and various 2D/3D graphic printing reports.

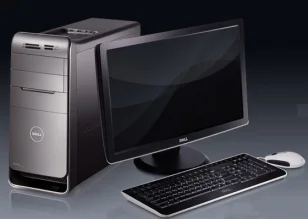

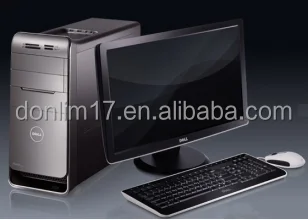

Computer System:
Dell branded machines:
CPU: Core I5 3.2GHz processor
Physical memory: 16GB
Hard Disk Drive: 1TB
Graphics card: independent graphics card 1G
Mouse, keyboard, keyboard: DELL set
Monitor: 24 inch LCD 24 'LCD monitor
Operating System: Windows Chinese Professional Edition Windows Chinese version
CD writer CD-R
Printer: A4 black and white laser printer
A set of PC desks


Packing & Delivery




export wooden case package


Company Profile






Dongguan Dongling Electronic Technology Co., Ltd. is a collection of scientific research, design and development, production Manufacturing, sales and service in one of the high-end instrument technology enterprises. A wide range of products are produced Used for consumer electronics, wire and cable, household appliances, footwear, building materials, electronic electricity Industry, plastic mold, paper packaging and other industries testing, the company produces all kinds of products IEC, GB, UL, TAPPI, ASTM, EN, DIN, CE, VDE, JIS, etcTest requirements for relevant standards.
The company consists of a high-quality and skilled business sales, design and development, production and manufacturing,Measurement and inspection, after-sales service and other management elite and business backbone and engineering and technical personnel Team, we always uphold the concept of "continuous innovation", devoted to research, product software and Hardware has made great progress, accuracy has reached the advanced level at home and abroad; The company Use AutoCAD, ProE, Solid Works 3D product design software for product design Meter; We have introduced CNC machining center, CNC machine tools and other advanced machining equipment;And has a number of national standards and provincial measurement verification requirements of high precision detector; For the company independent design and development, manufacturing, measurement and inspection to provide favorable conditions and Strong guarantee.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2008,sell to Southeast Asia(47.00%),Eastern Europe(22.00%),Western Europe(20.00%),North America(11.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
tensile testing machine,Vibration testing machine,Drop testing machine,Plug and pull testing machine,Fatigue life testing machine

4. why should you buy from us not from other suppliers?
The company Use AutoCAD, ProE, Solid Works 3D product design software for product design Meter; We have introduced CNC machining center, CNC machine tools and other advanced machining equipment;And has a number of national standards and provincial measure

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
